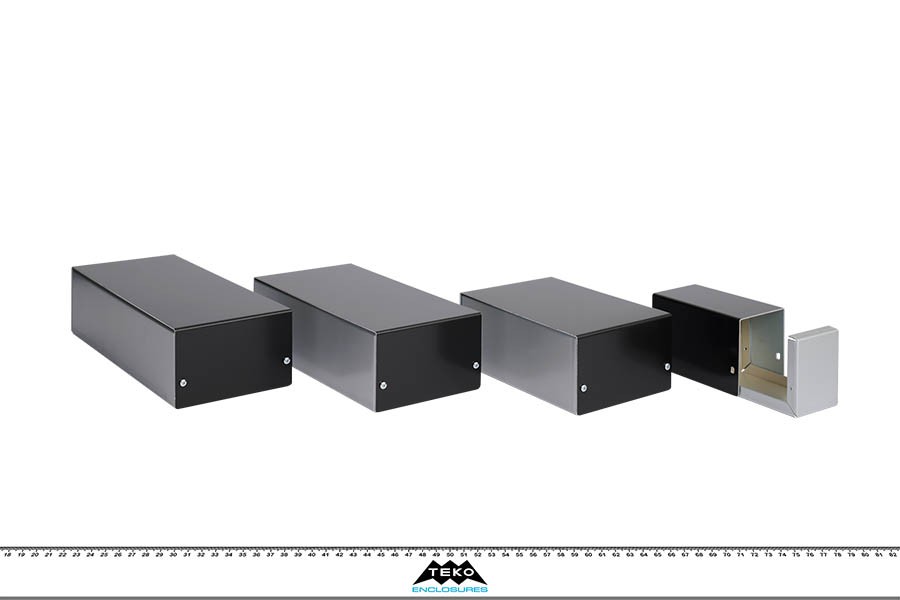

Family Aluminium - Electronic enclosures - Metal

Description

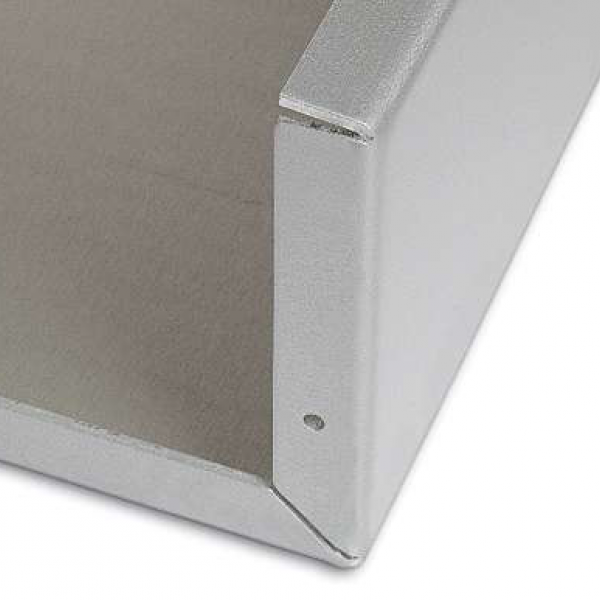

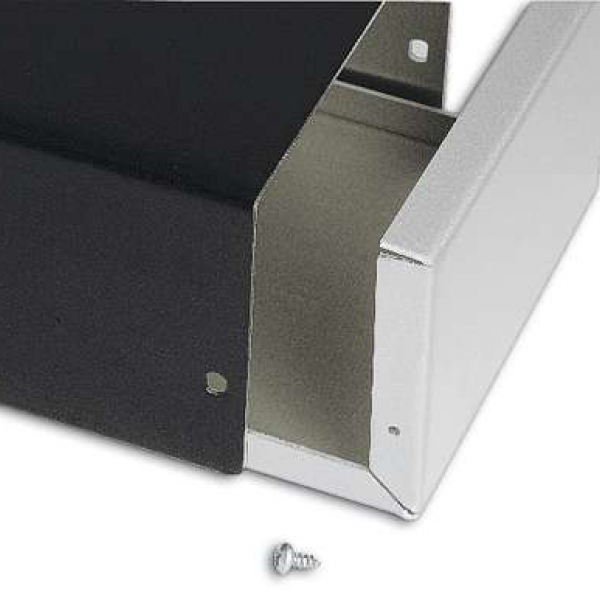

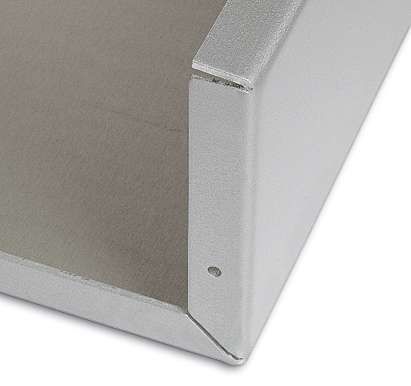

Aluminium enclosures with silver metalised base and black cover. Simple and speedy to assemble, with four screws to put in place.

Details

Products

Model L (inch) W (inch) H (inch) Color (Ral) Material MAX PCB L (inch) MAX PCB W (inch) Screws Battery Accessories Drawings Other

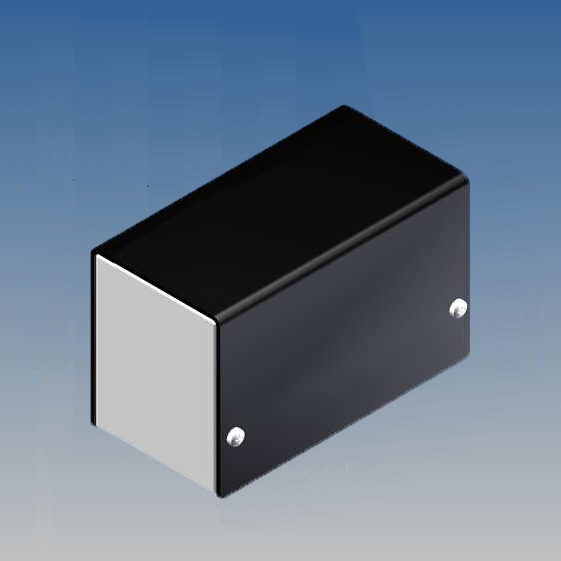

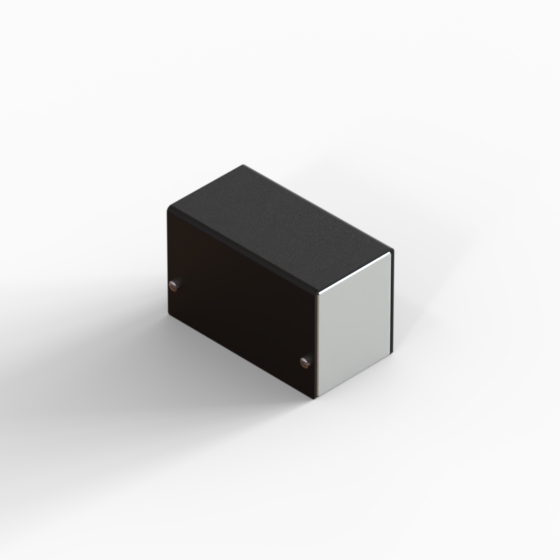

331.18 2,106 3,937 2,48 9004 9006
EN AW-5010 H42  -  AW-3105 H46 - - 4 - PDF
DWG
View

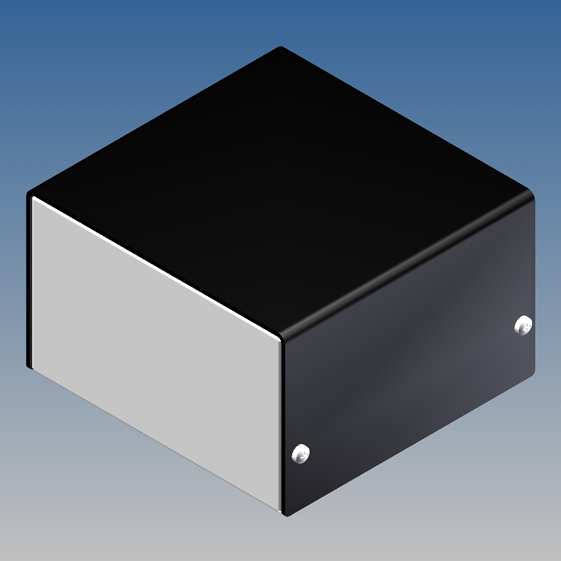

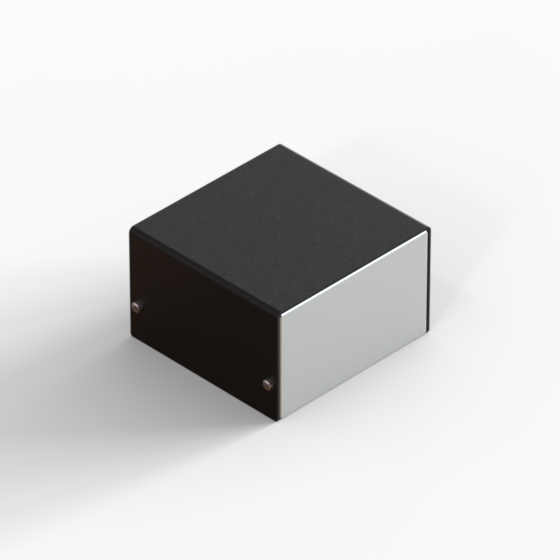

332.18 4,075 3,937 2,48 9004 9006
EN AW-5010 H42  -  AW-3105 H46 - - 4 - PDF
DWG
View

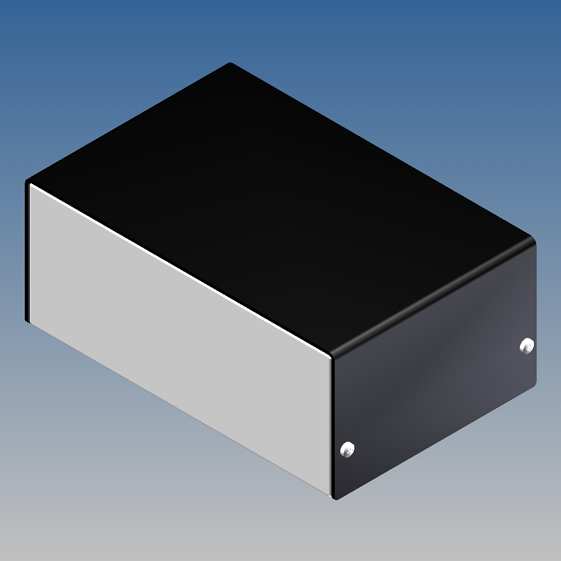

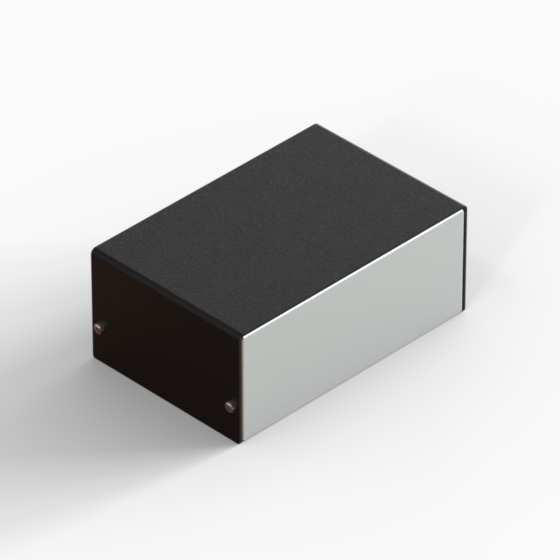

333.18 6,024 3,937 2,48 9004 9006
EN AW-5010 H42  -  AW-3105 H46 - - 4 - PDF
DWG
View

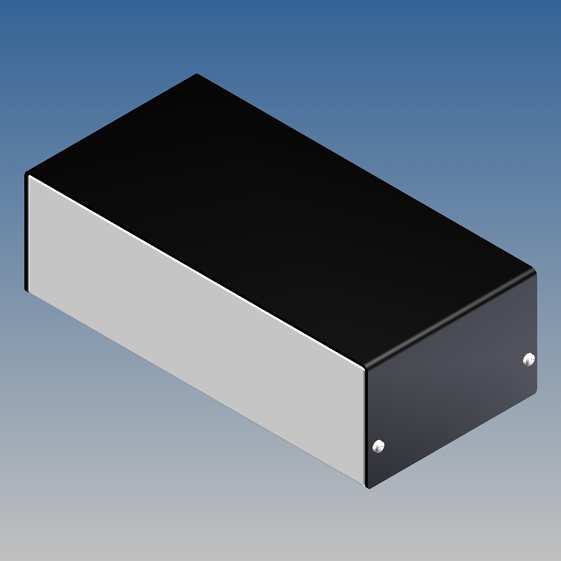

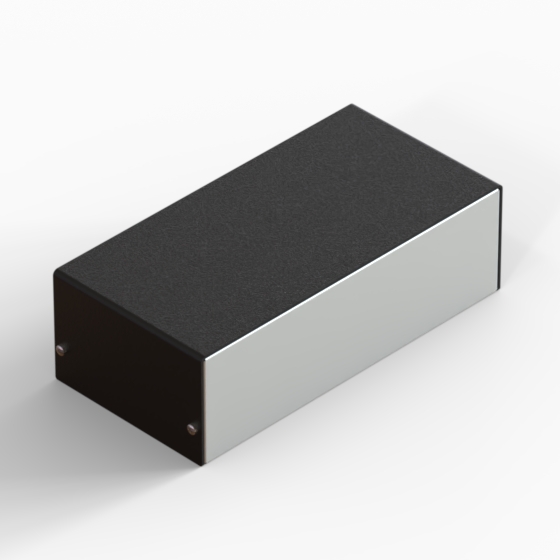

334.18 7,992 3,937 2,48 9004 9006
EN AW-5010 H42  -  AW-3105 H46 - - 4 - PDF
DWG
View

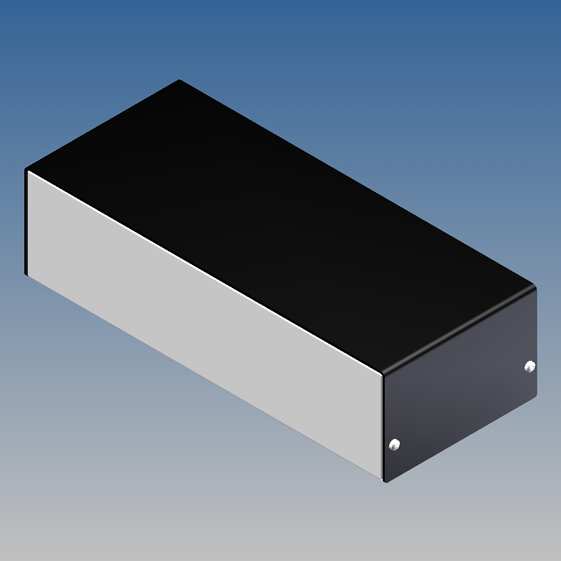

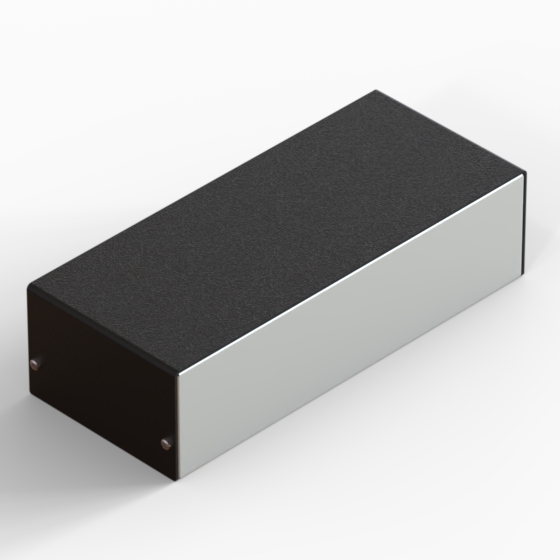

335.18 9,331 3,937 2,48 9004 9006
EN AW-5010 H42  -  AW-3105 H46 - - 4 - PDF
DWG
View
12 product families, 144 series. You can't find what you're looking for? Contact us
