Family Aluminium - Electronic enclosures - Metal

Description

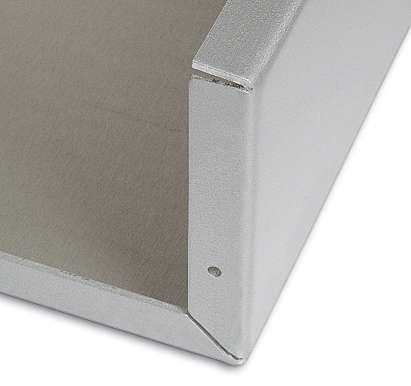

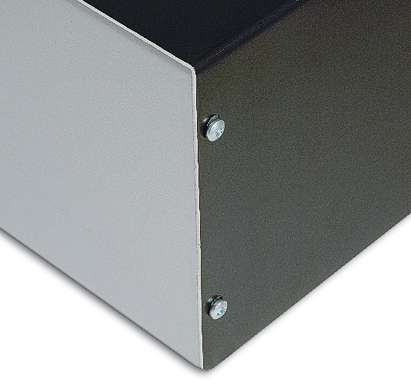

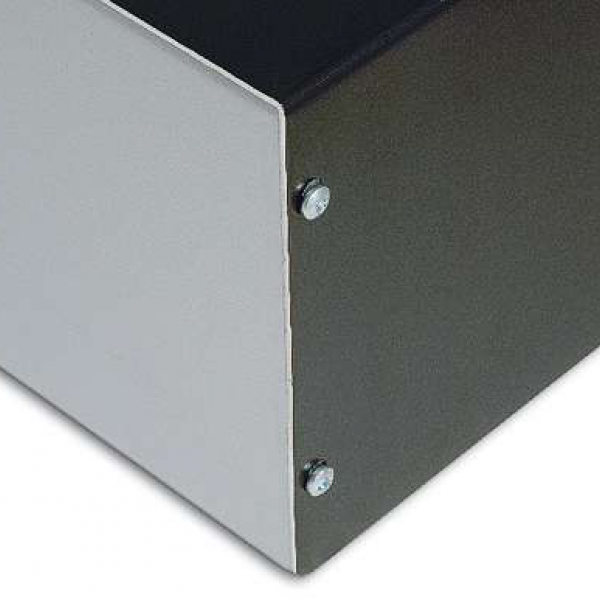

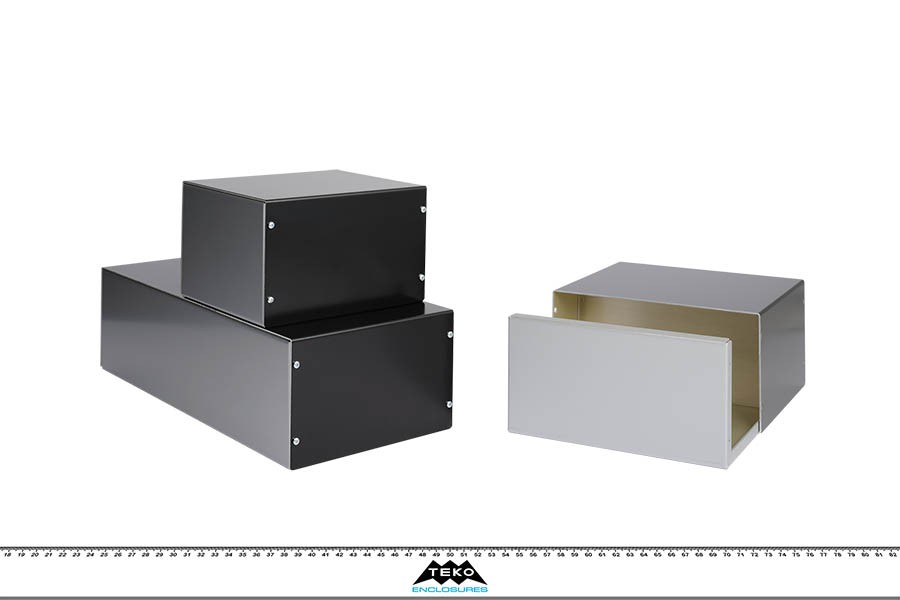

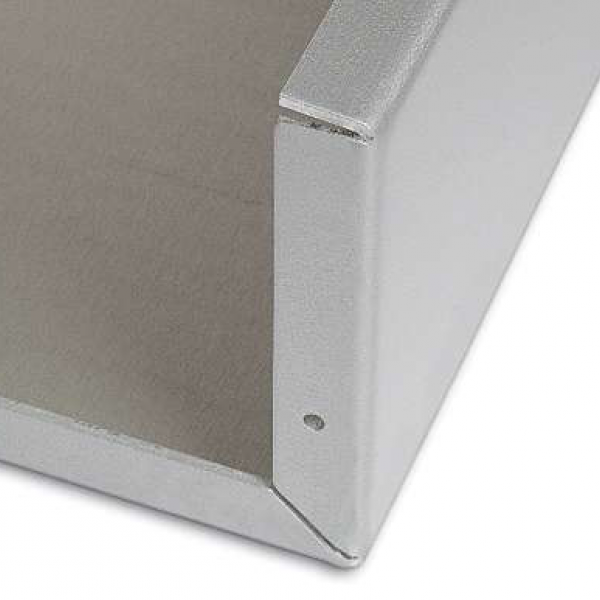

Aluminium enclosures with silver metalised base and black cover. Simple and speedy to assemble, with four screws to put in place.

Details

Products

Model L (inch) W (inch) H (inch) Color (Ral) Material MAX PCB L (inch) MAX PCB W (inch) Screws Battery Accessories Drawings Other

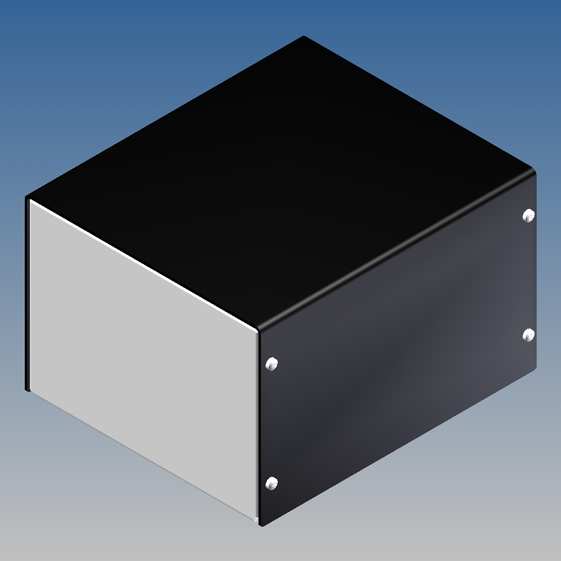

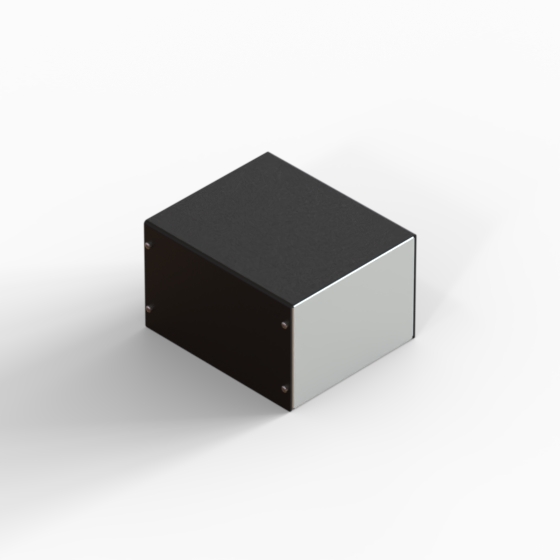

422.18 5,394 6,299 3,937 9004 9006
EN AW-5010 H42  -  AW-3105 H46 - - 8 - PDF
DWG
View
423.18 7,362 6,299 3,937 9004 9006
EN AW-5010 H42  -  AW-3105 H46 - - 8 - PDF
DWG
View

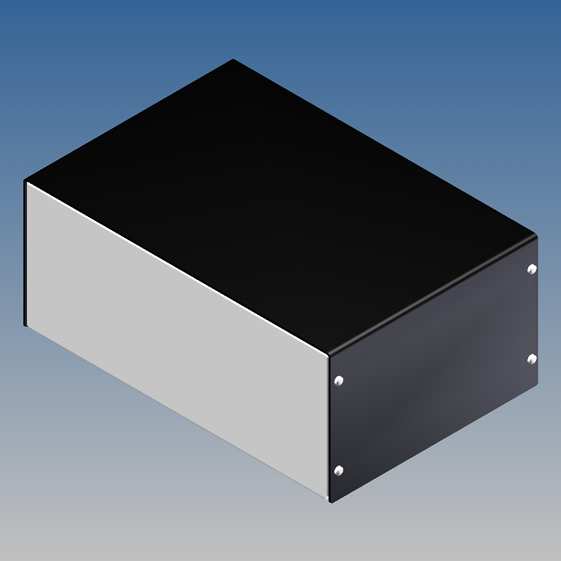

424.18 9,331 6,299 3,937 9004 9006
EN AW-5010 H42  -  AW-3105 H46 - - 8 - PDF
DWG
View
425.18 11,299 6,299 3,937 9004 9006
EN AW-5010 H42  -  AW-3105 H46 - - 8 - PDF
DWG
View

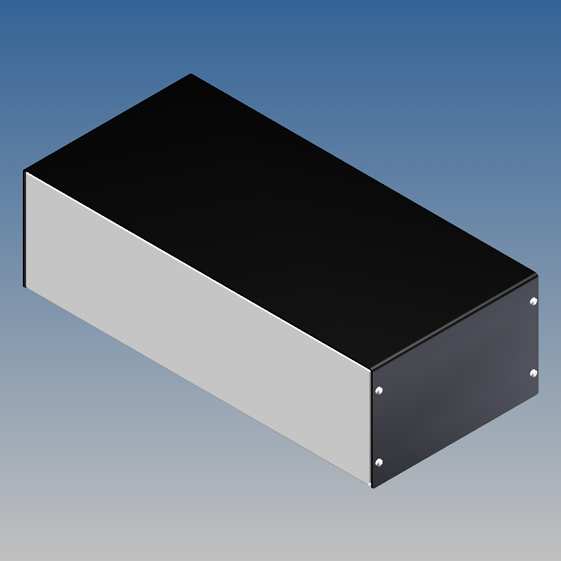

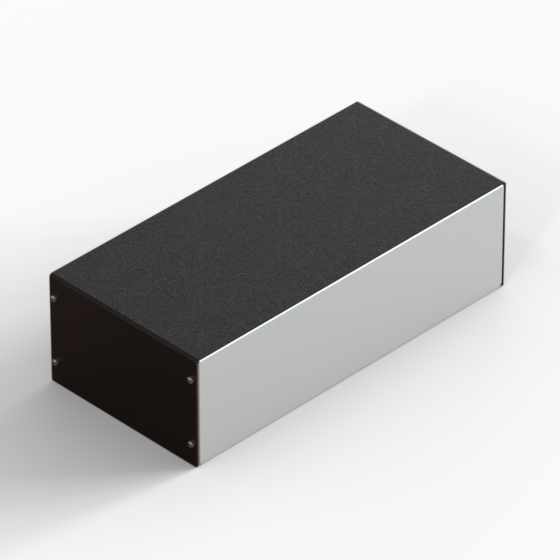

426.18 13,268 6,299 3,937 9004 9006
EN AW-5010 H42  -  AW-3105 H46 - - 8 - PDF
DWG
View

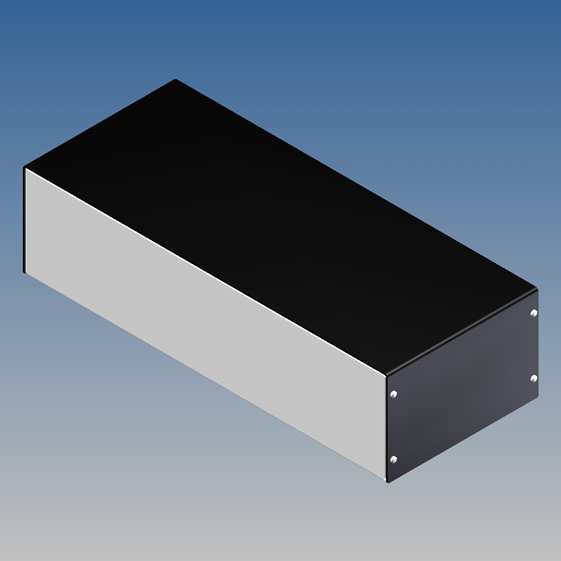

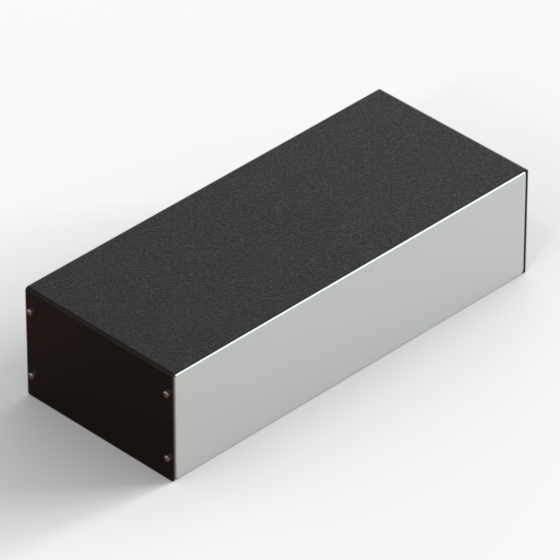

427.18 15,236 6,299 3,937 9004 9006
EN AW-5010 H42  -  AW-3105 H46 - - 8 - PDF
DWG
View
