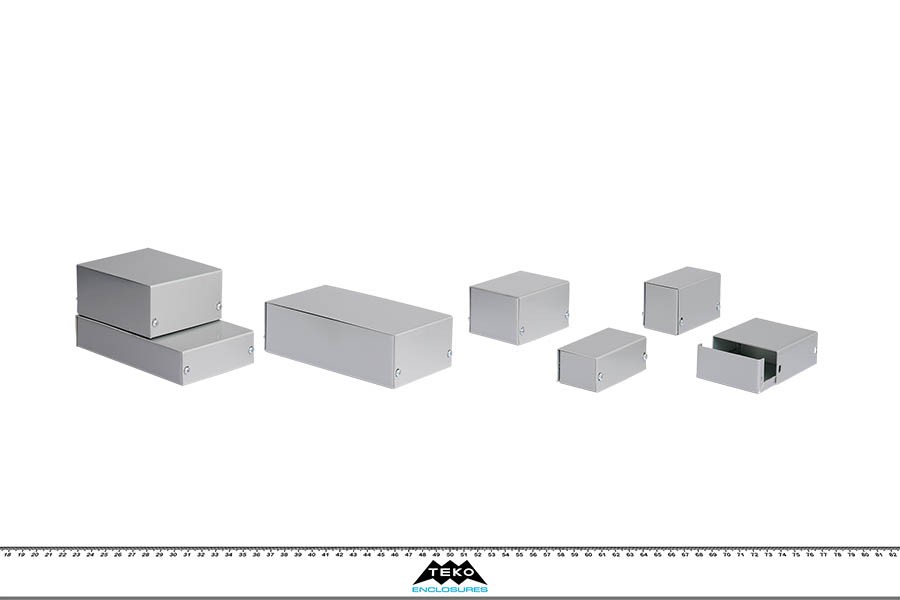

AL BOX

Family Aluminium - Electronic enclosures - Metal

Description

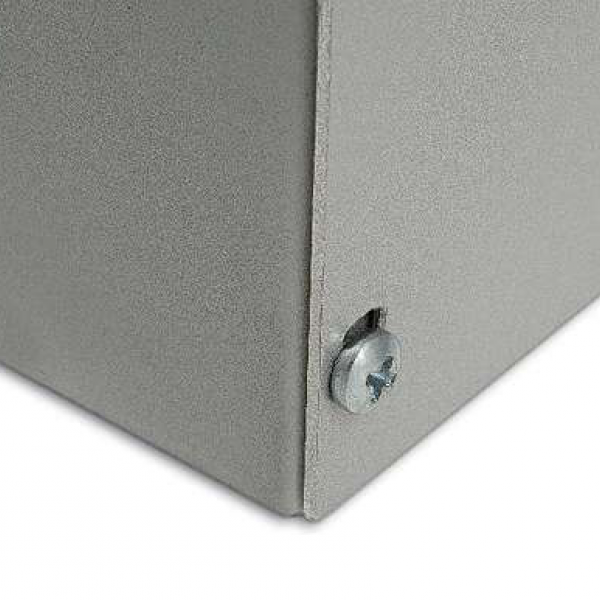

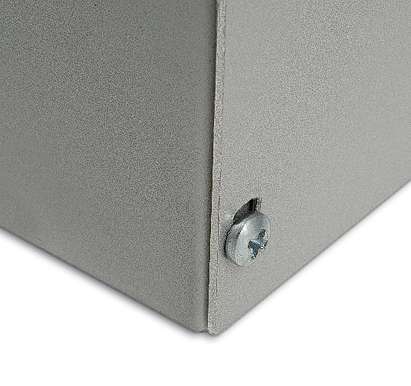

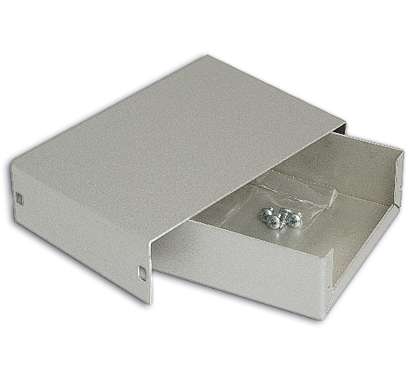

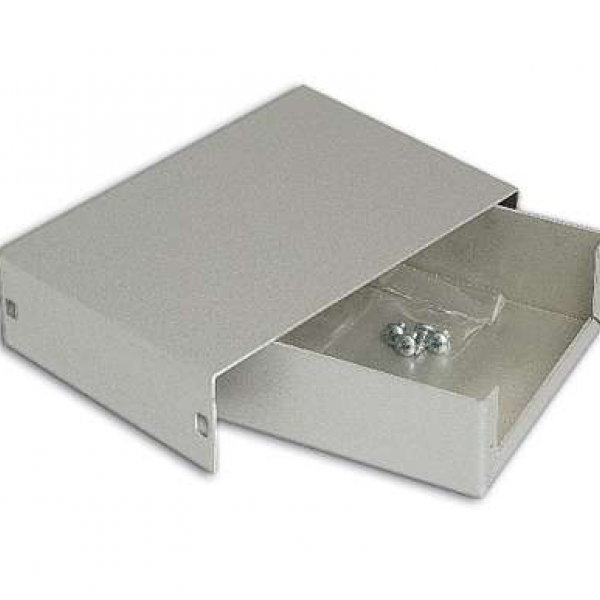

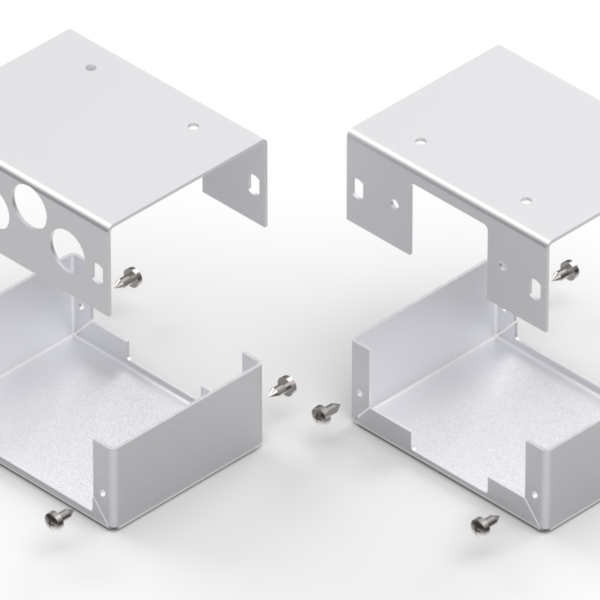

Aluminium enclosures with silver metalised base and cover. Simple and speedy to assemble, with four screws to put in place.

Details

Products

Model L (inch) W (inch) H (inch) Color (Ral) Material MAX PCB L (inch) MAX PCB W (inch) Screws Battery Accessories Drawings Other

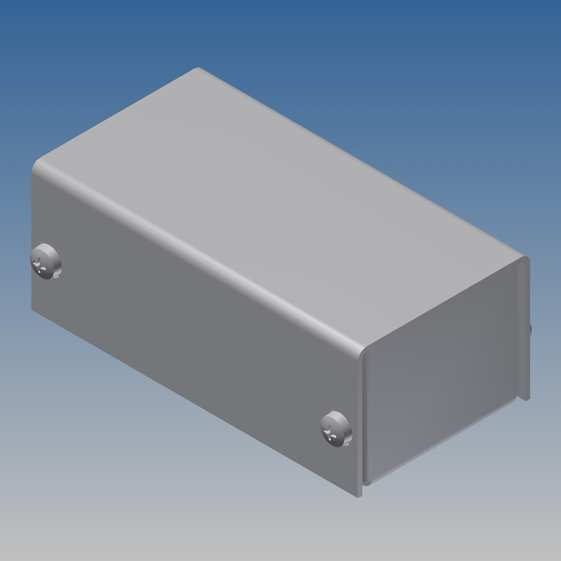

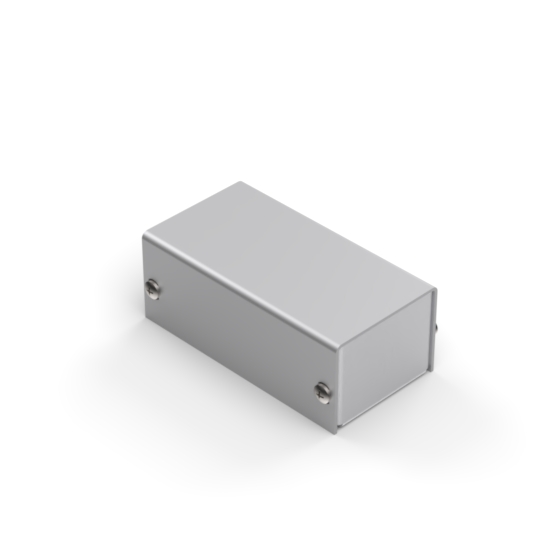

1/A.1 1,496 2,835 1,102 9006
EN AW-5010 H42  -  AW-3105 H46 - - 4 - PDF
DWG
View

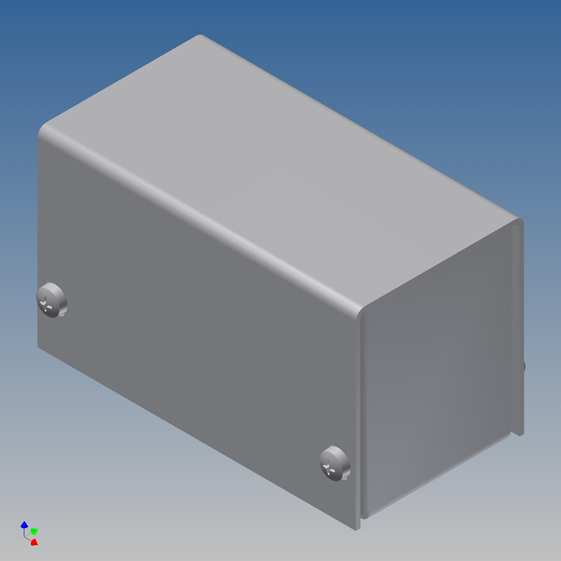

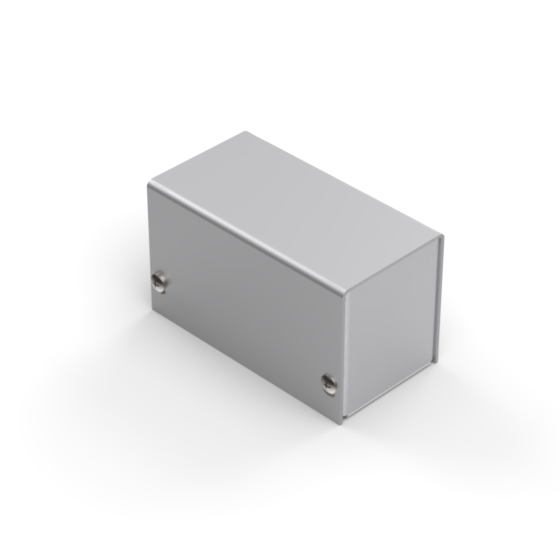

1/B.1 1,496 2,835 1,693 9006
EN AW-5010 H42  -  AW-3105 H46 - - 4 - PDF
DWG
View

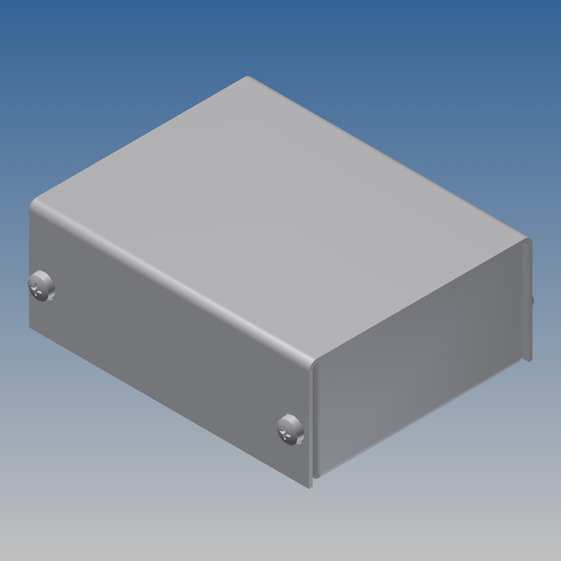

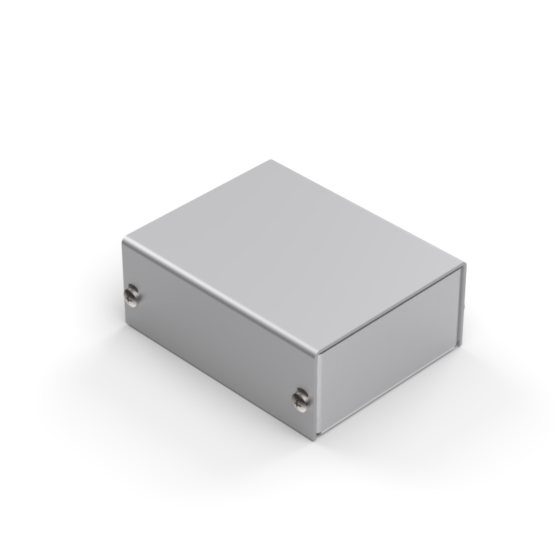

2/A.1 2,264 2,835 1,102 9006
EN AW-5010 H42  -  AW-3105 H46 - - 4 - PDF
DWG
View

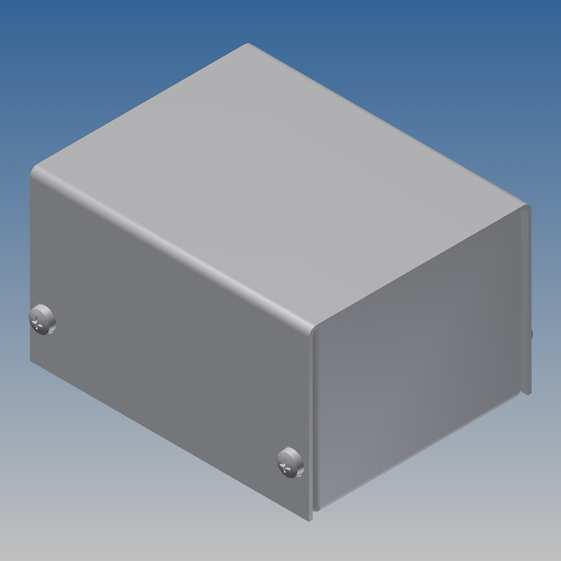

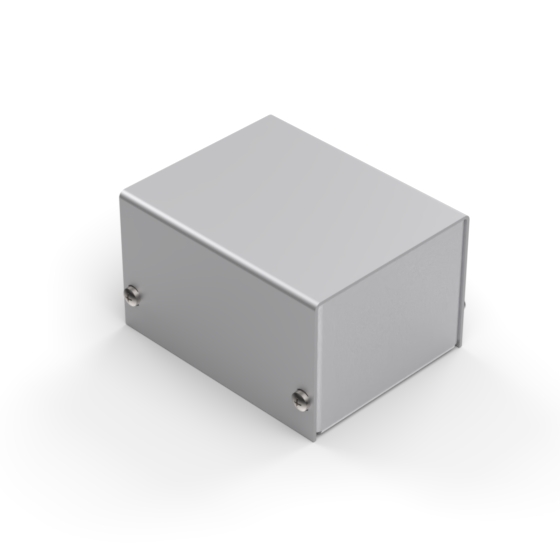

2/B.1 2,264 2,835 1,693 9006
EN AW-5010 H42  -  AW-3105 H46 - - 4 - PDF
DWG
View

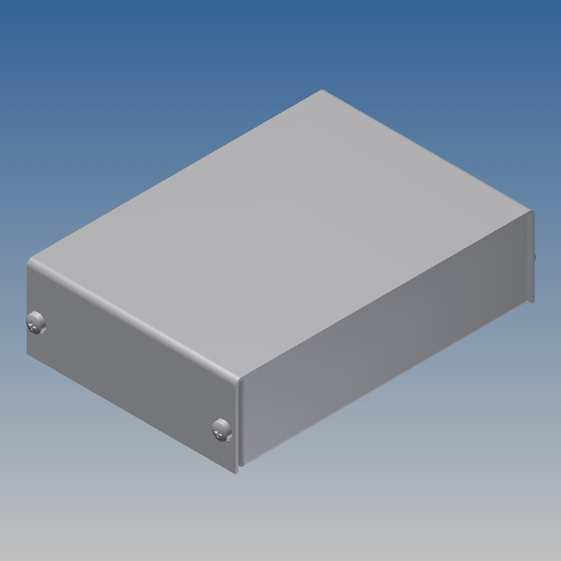

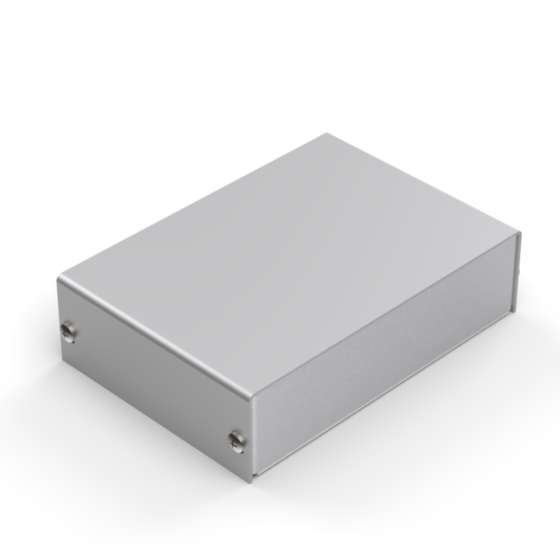

3/A.1 4,055 2,835 1,102 9006
EN AW-5010 H42  -  AW-3105 H46 - - 4 - PDF
DWG
View

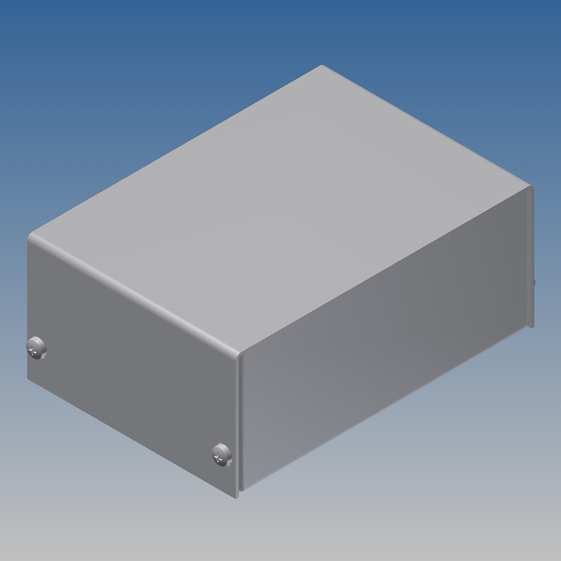

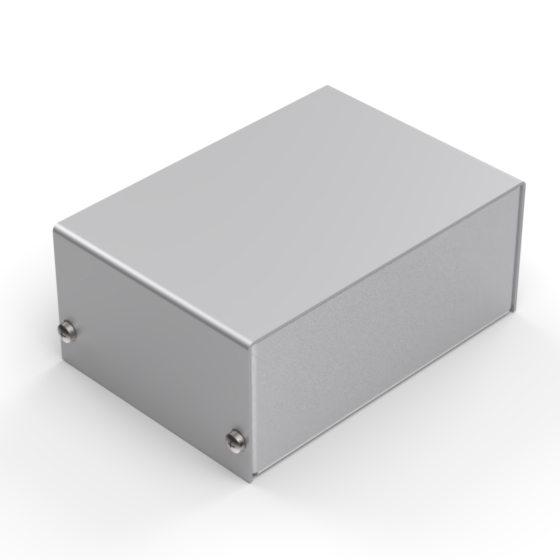

3/B.1 4,055 2,835 1,693 9006
EN AW-5010 H42  -  AW-3105 H46 - - 4 - PDF
DWG
View

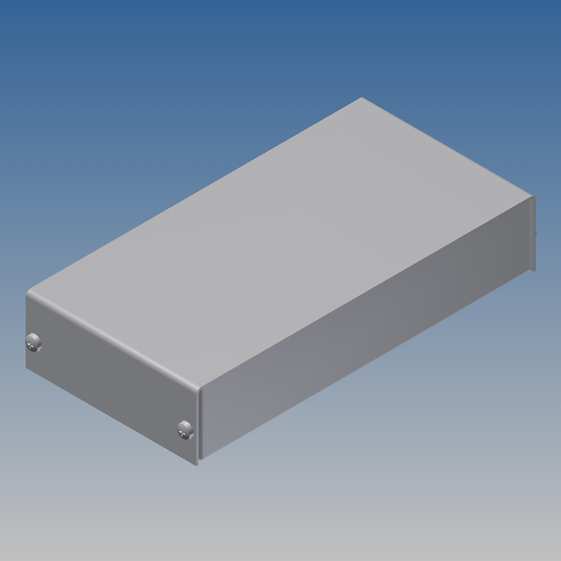

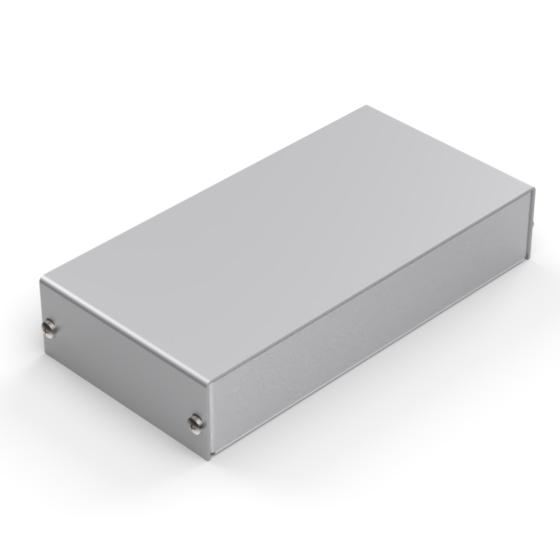

4/A.1 5,63 2,835 1,102 9006
EN AW-5010 H42  -  AW-3105 H46 - - 4 - PDF
DWG
View

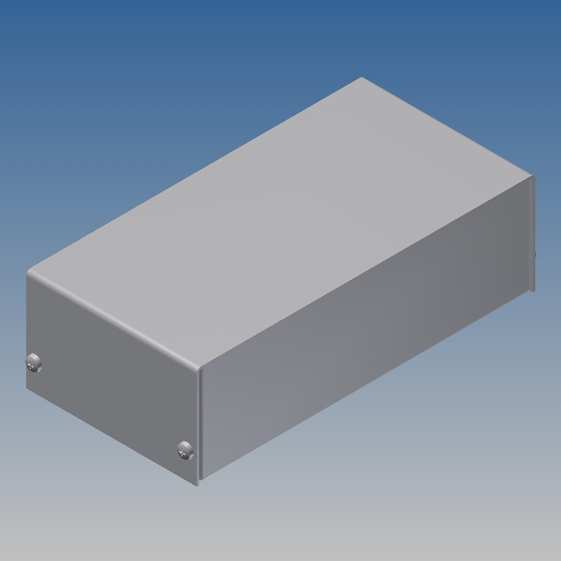

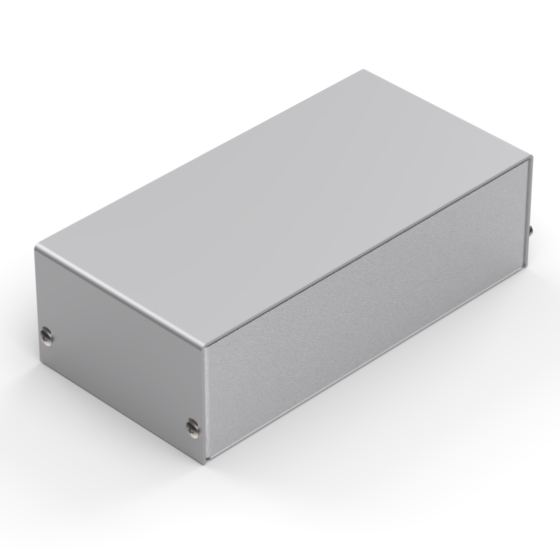

4/B.1 5,63 2,835 1,693 9006
EN AW-5010 H42  -  AW-3105 H46 - - 4 - PDF
DWG
View
