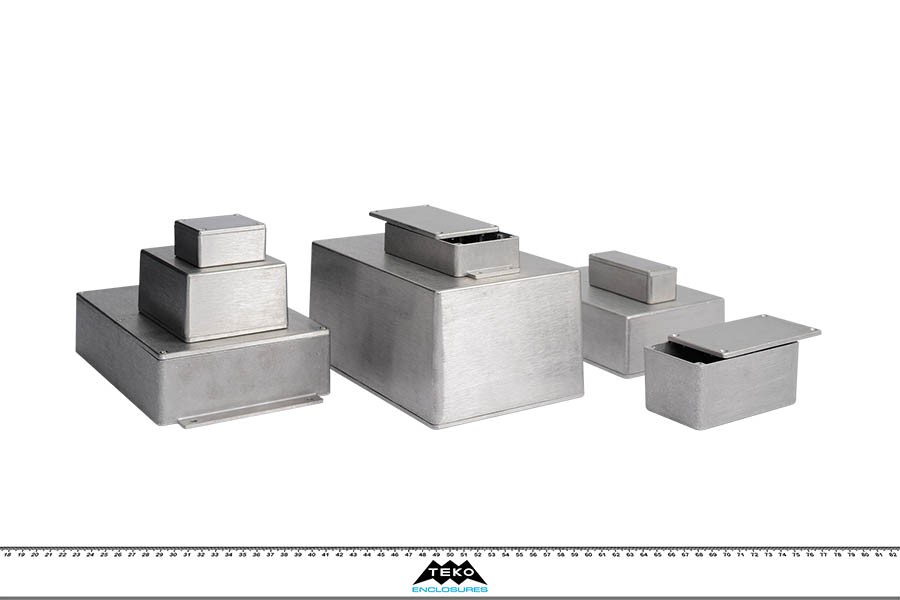

ALUTEK

Family Aluminium - Electronic enclosures - Metal

Description

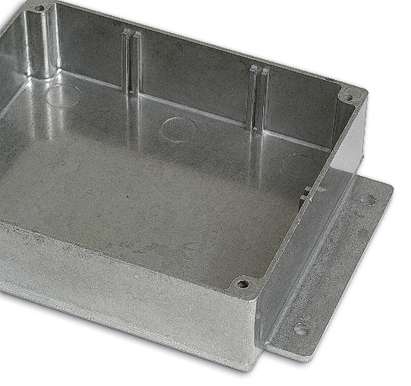

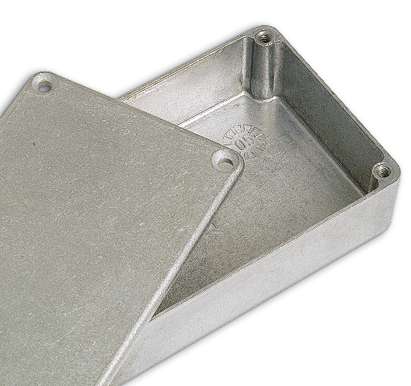

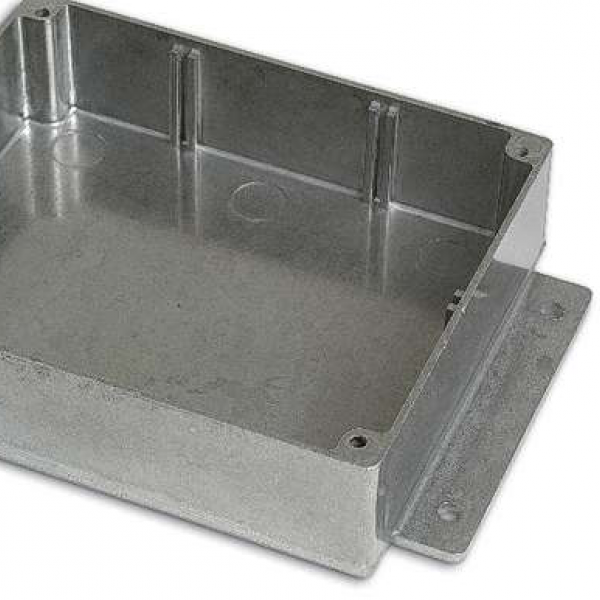

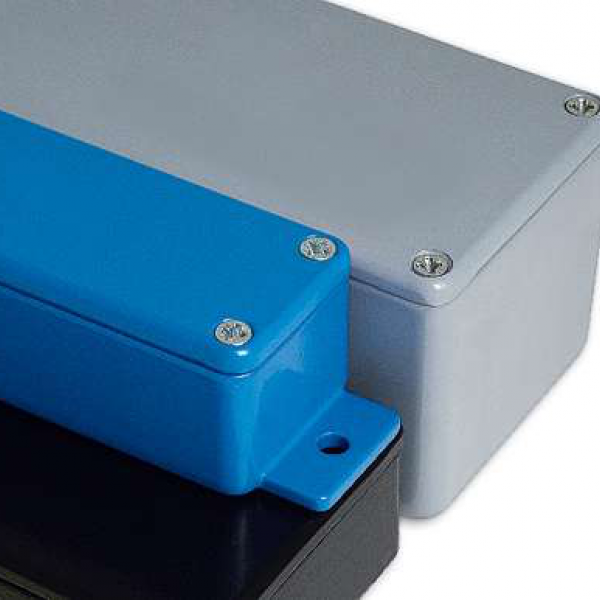

These aluminium die-cast enclosures provide excellent screening against EMI-RFI. Integral PCB guides are incorporated in some of the styles (X). The series from “AL16x” to “AL25x” have pre-drilled external mounting flanges, for quick and easy mounting. Part of the range has self-adhesive rubber seals which provide IP66 rating when attached to the box lids (SK-not available for the models AL1 and AL2). Upon request these enclosures can be supplied Nylon coated or stove enameled. Simple and speedy to assemble, with four or six stainless steel screws to put in place.

Details

Products

Model L (inch) W (inch) H (inch) Color (Ral) Material MAX PCB L (inch) MAX PCB W (inch) Screws Battery Accessories Drawings Other

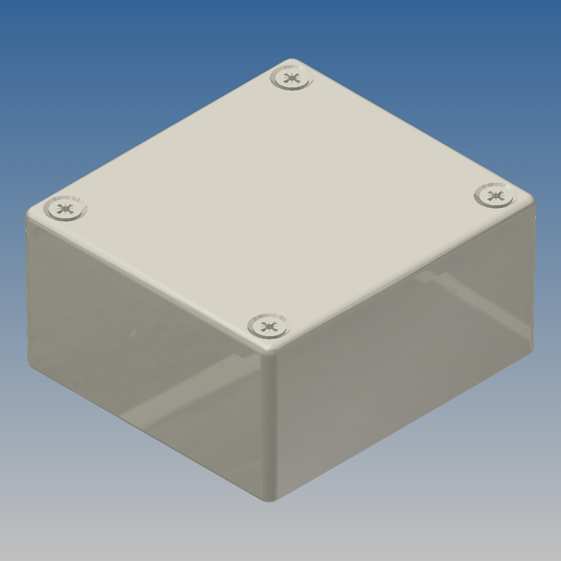

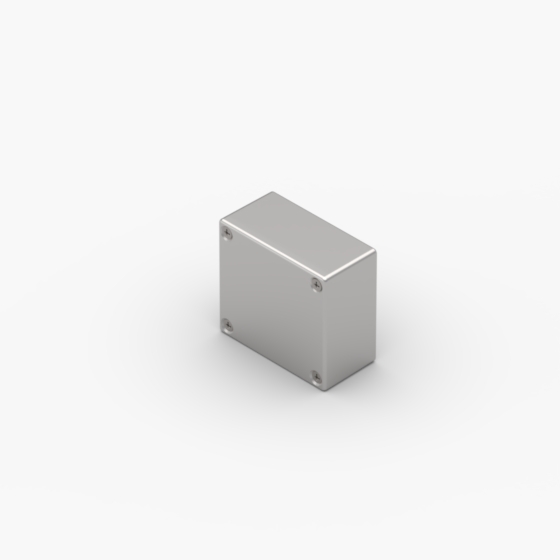

AL-1.0 2,362 2,165 1,181  -
LM 24 2,197 0,787 4 - PDF
DWG
View
  • Color (Ral):  -
  • Material: LM 24
  • MAX PCB L (mm): 55,8
  • MAX PCB W (mm): 20
  • Screws: 4
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

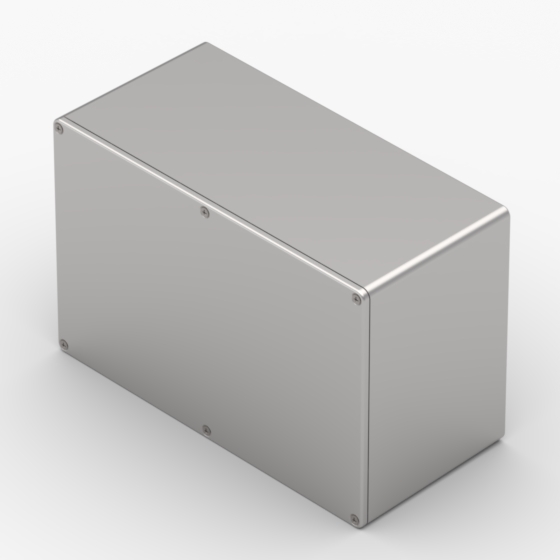

AL-10.0 8,752 5,748 4,134  -
LM 24 8,594 5,591 6 - PDF
DWG
View
  • Color (Ral):  -
  • Material: LM 24
  • MAX PCB L (mm): 218,3
  • MAX PCB W (mm): 142
  • Screws: 6
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

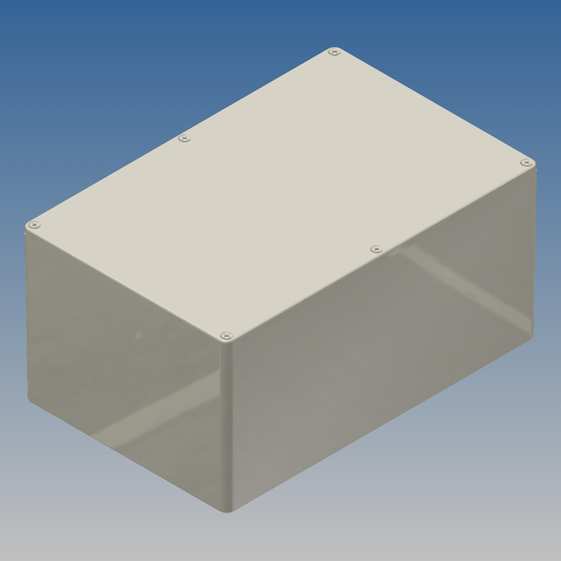

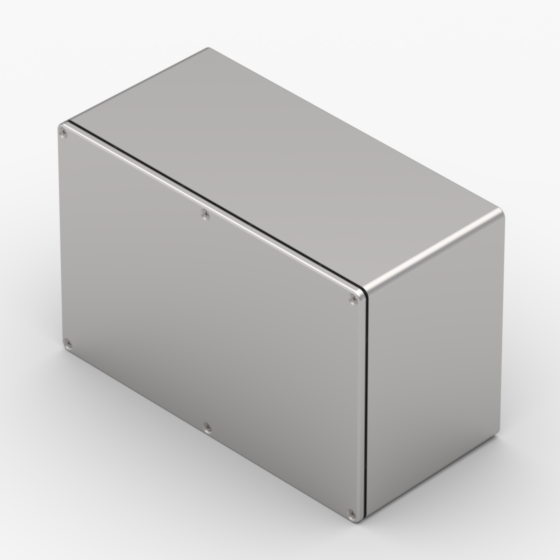

AL-10SK.0 8,752 5,748 4,134  -
LM 24 8,594 5,591 6 - PDF
DWG
View
  • Color (Ral):  -
  • Material: LM 24
  • MAX PCB L (mm): 218,3
  • MAX PCB W (mm): 142
  • Screws: 6
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

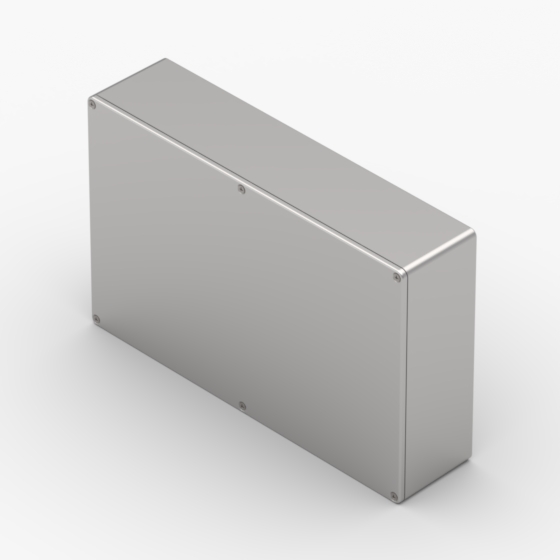

AL-11X.0 10,827 6,89 2,559  -
LM 24 10,650 2,185 6 - PDF
DWG
View
  • Color (Ral):  -
  • Material: LM 24
  • MAX PCB L (mm): 270,5
  • MAX PCB W (mm): 55,5
  • Screws: 6
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

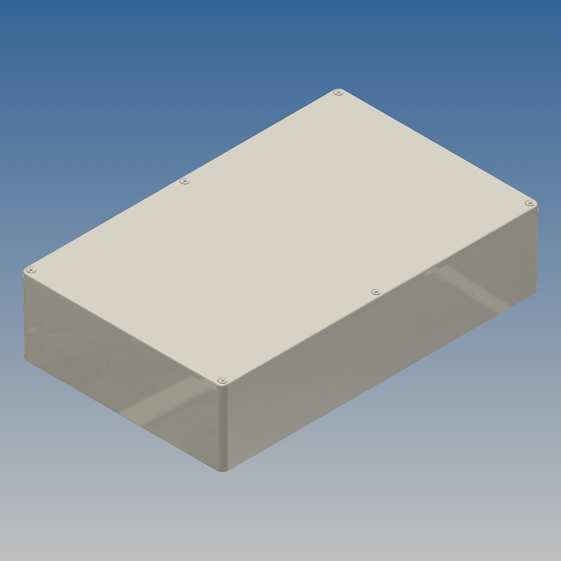

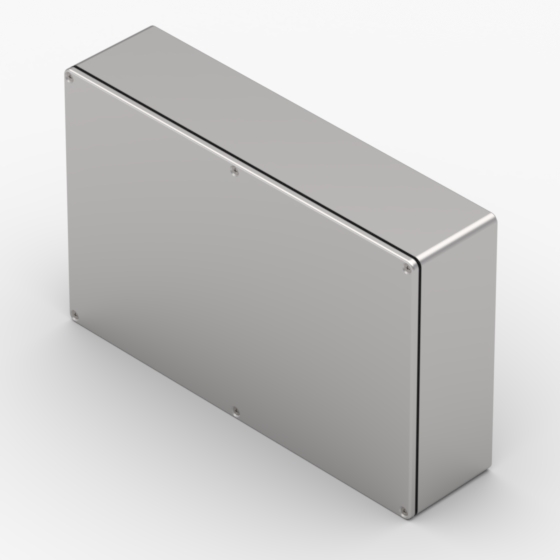

AL-11XSK.0 10,827 6,89 2,559  -
LM 24 10,650 2,185 6 - PDF
DWG
View
  • Color (Ral):  -
  • Material: LM 24
  • MAX PCB L (mm): 270,5
  • MAX PCB W (mm): 55,5
  • Screws: 6
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

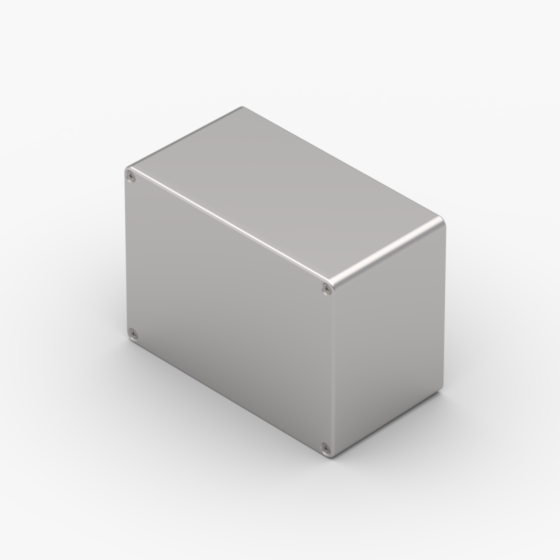

AL-12X.0 5,5 4 2,992  -
LM 24 5,323 2,618 4 - PDF
DWG
View
  • Color (Ral):  -
  • Material: LM 24
  • MAX PCB L (mm): 135,2
  • MAX PCB W (mm): 66,5
  • Screws: 4
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

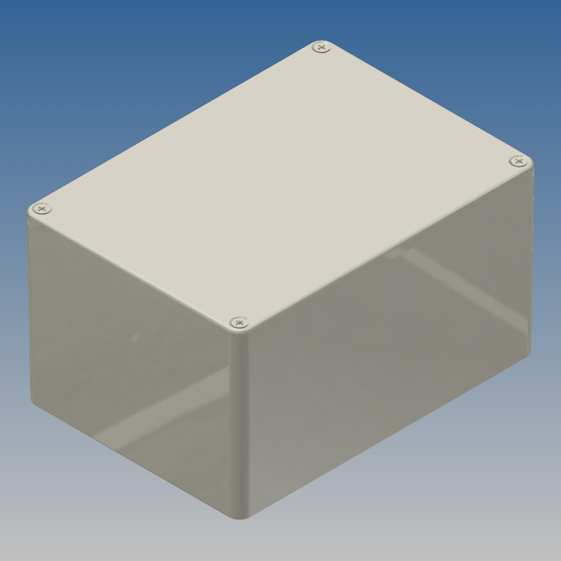

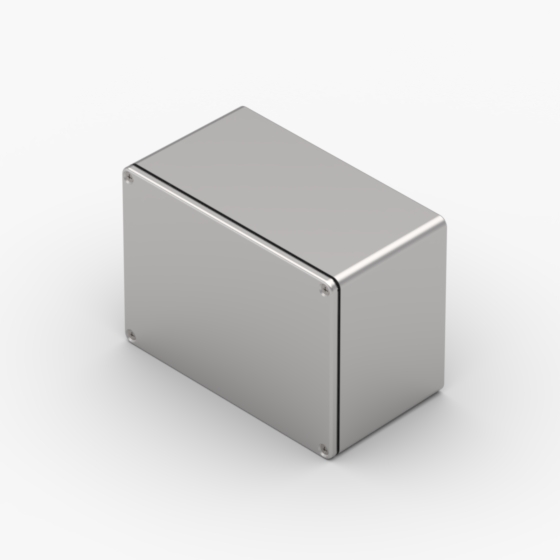

AL-12XSK.0 5,5 4 2,992  -
LM 24 5,323 2,618 4 - PDF
DWG
View
  • Color (Ral):  -
  • Material: LM 24
  • MAX PCB L (mm): 135,2
  • MAX PCB W (mm): 66,5
  • Screws: 4
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

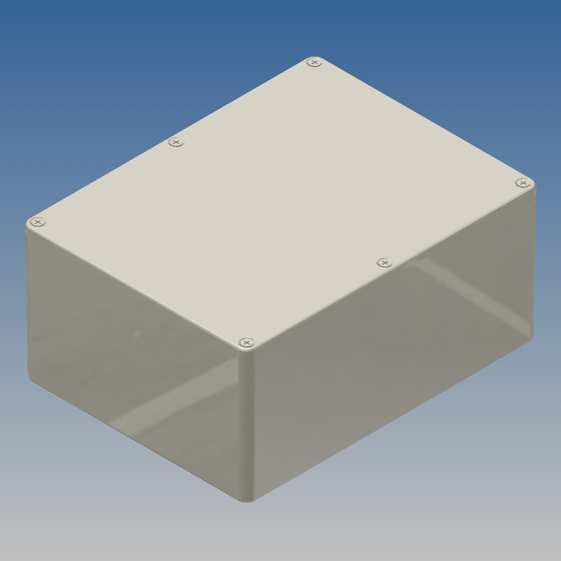

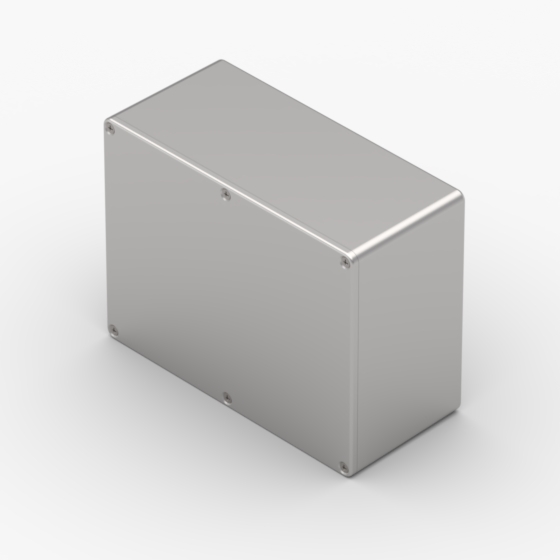

AL-13X.0 6,496 5 2,992  -
LM 24 6,358 2,618 6 - PDF
DWG
View
  • Color (Ral):  -
  • Material: LM 24
  • MAX PCB L (mm): 161,5
  • MAX PCB W (mm): 66,5
  • Screws: 6
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

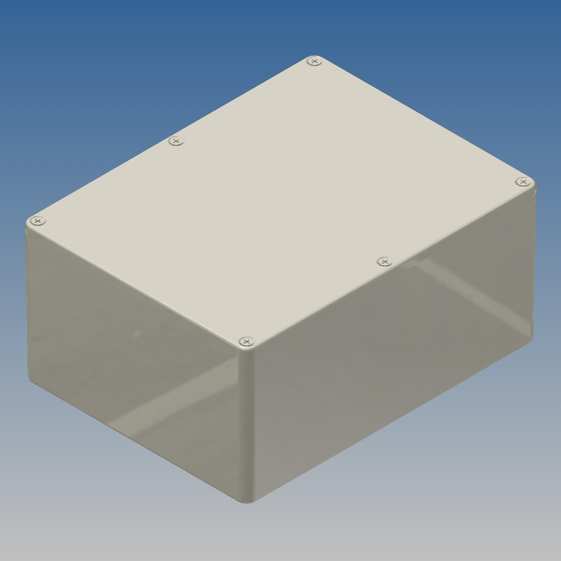

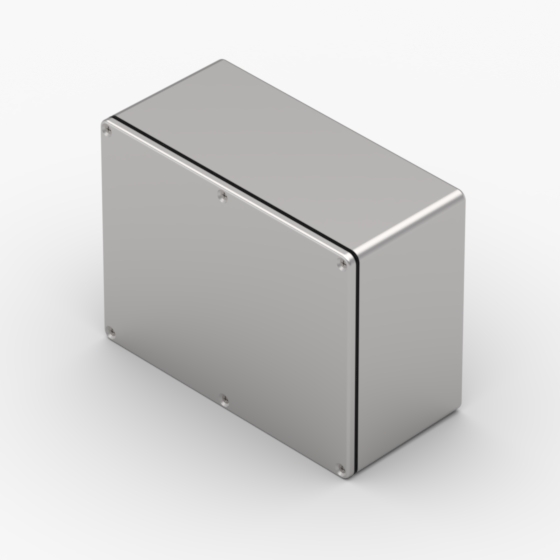

AL-13XSK.0 6,496 5 2,992  -
LM 24 6,358 2,618 6 - PDF
DWG
View
  • Color (Ral):  -
  • Material: LM 24
  • MAX PCB L (mm): 161,5
  • MAX PCB W (mm): 66,5
  • Screws: 6
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

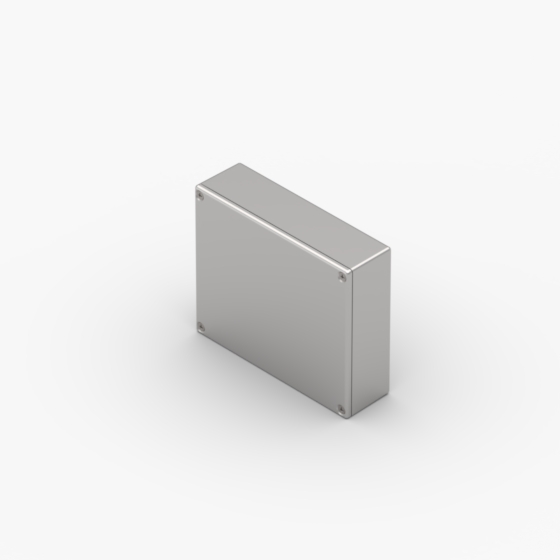

AL-14X.0 4,724 3,937 1,378  -
LM 24 4,587 1,004 4 - PDF
DWG
View
  • Color (Ral):  -
  • Material: LM 24
  • MAX PCB L (mm): 116,5
  • MAX PCB W (mm): 25,5
  • Screws: 4
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

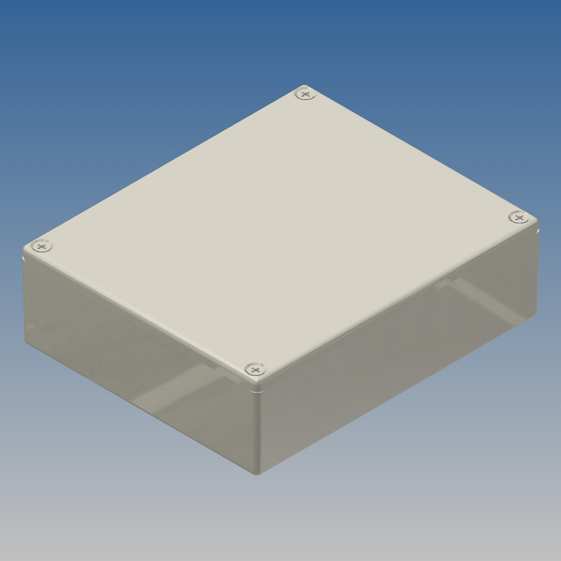

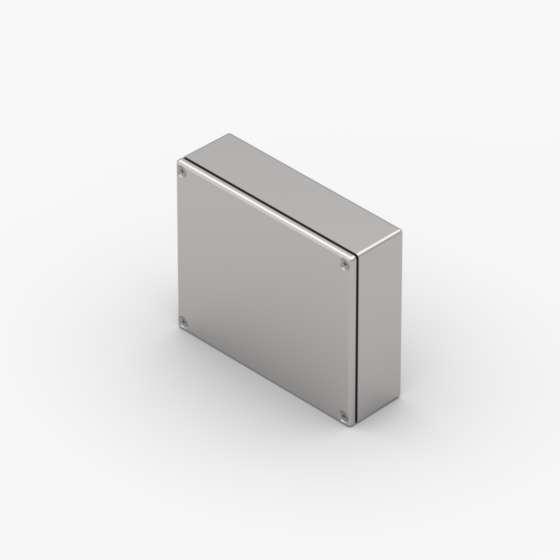

AL-14XSK.0 4,724 3,937 1,378  -
LM 24 4,587 1,004 4 - PDF
DWG
View
  • Color (Ral):  -
  • Material: LM 24
  • MAX PCB L (mm): 116,5
  • MAX PCB W (mm): 25,5
  • Screws: 4
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

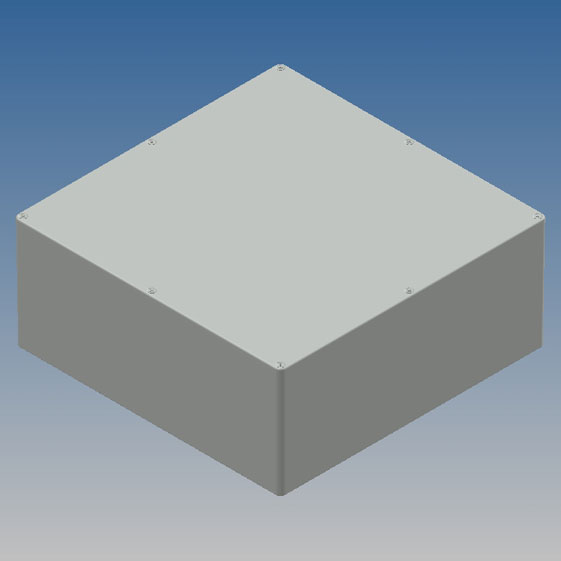

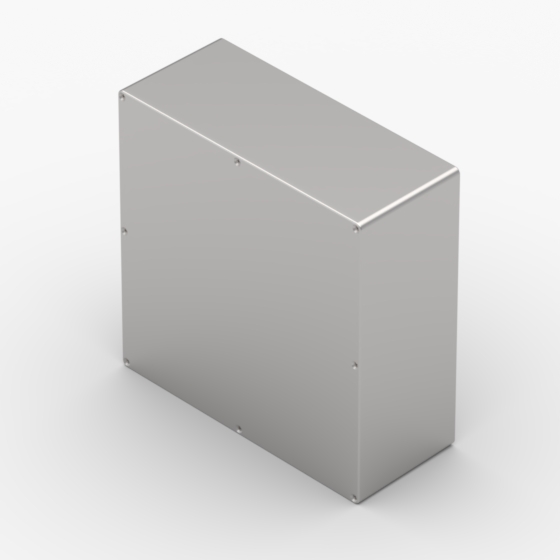

AL-15X.0 9,842 9,842 3,937  -
LM 24 9,685 9,685 8 - PDF
DWG
View
  • Color (Ral):  -
  • Material: LM 24
  • MAX PCB L (mm): 246
  • MAX PCB W (mm): 246
  • Screws: 8
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

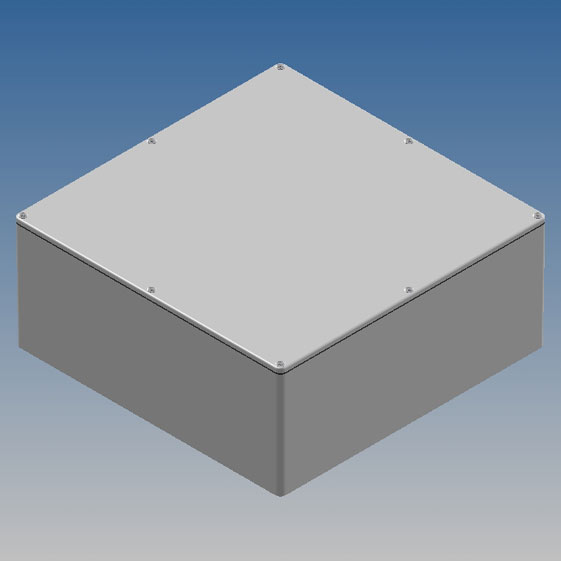

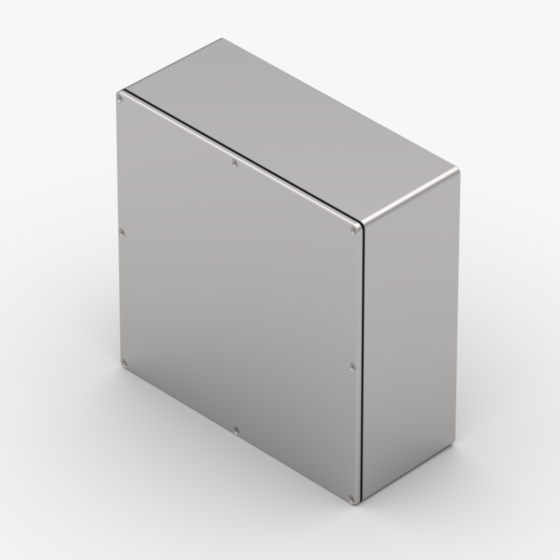

AL-15XSK.0 9,842 9,842 3,937  -
LM 24 9,685 9,685 8 - PDF
DWG
View
  • Color (Ral):  -
  • Material: LM 24
  • MAX PCB L (mm): 246
  • MAX PCB W (mm): 246
  • Screws: 8
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

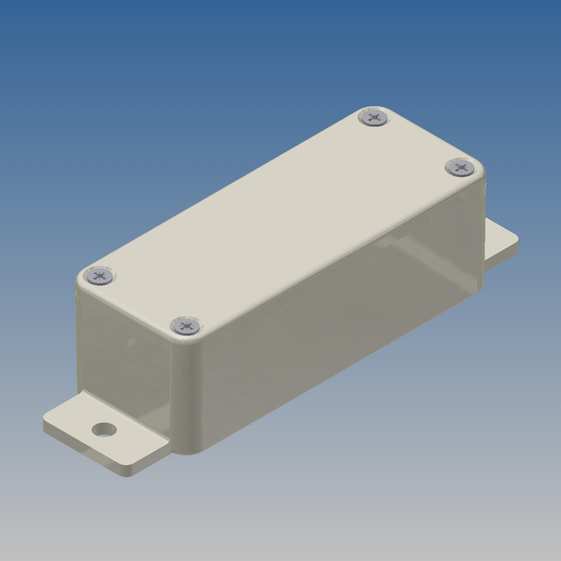

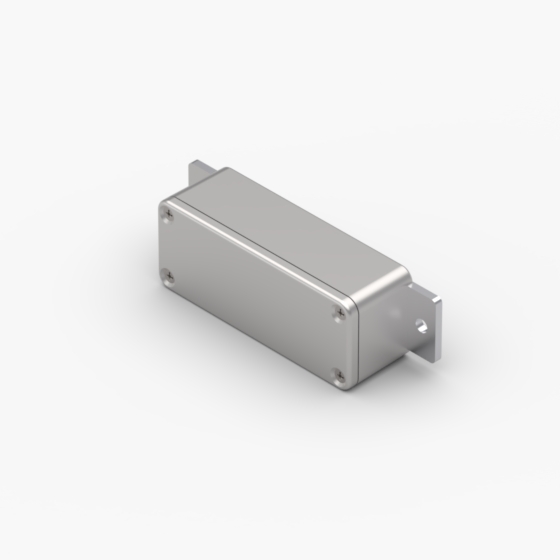

AL-16X.0 4,488 1,382 1,161  -
LM 24 1,232 0,787 4 - PDF
DWG
View
  • Color (Ral):  -
  • Material: LM 24
  • MAX PCB L (mm): 31,3
  • MAX PCB W (mm): 20
  • Screws: 4
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

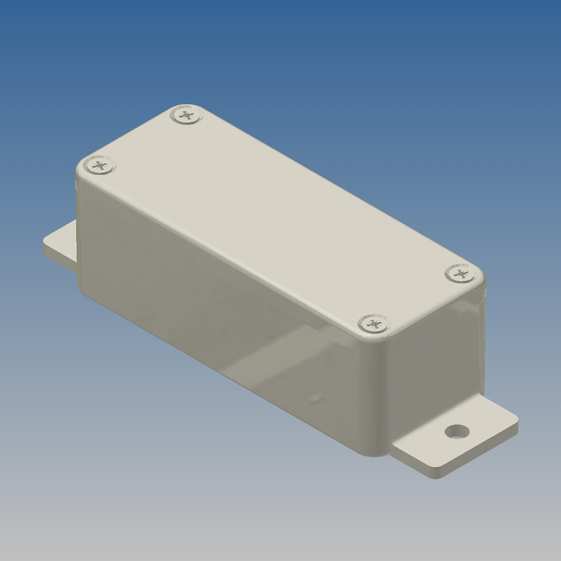

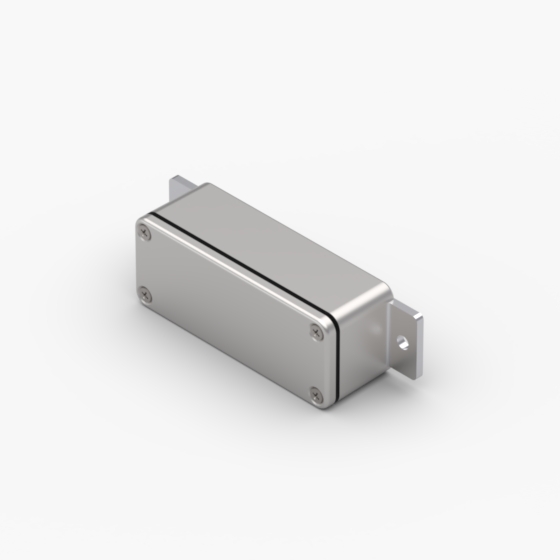

AL-16XSK.0 4,488 1,382 1,161  -
LM 24 1,232 0,787 4 - PDF
DWG
View
  • Color (Ral):  -
  • Material: LM 24
  • MAX PCB L (mm): 31,3
  • MAX PCB W (mm): 20
  • Screws: 4
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

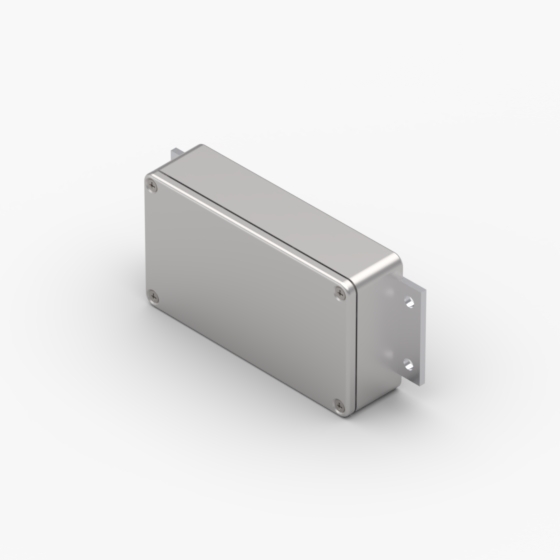

AL-17X.0 5,5 2,504 1,161  -
LM 24 4,362 0,791 4 - PDF
DWG
View
  • Color (Ral):  -
  • Material: LM 24
  • MAX PCB L (mm): 110,8
  • MAX PCB W (mm): 20,1
  • Screws: 4
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

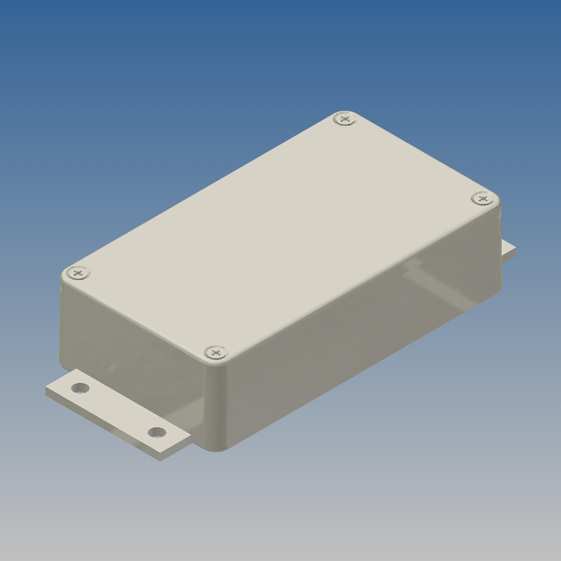

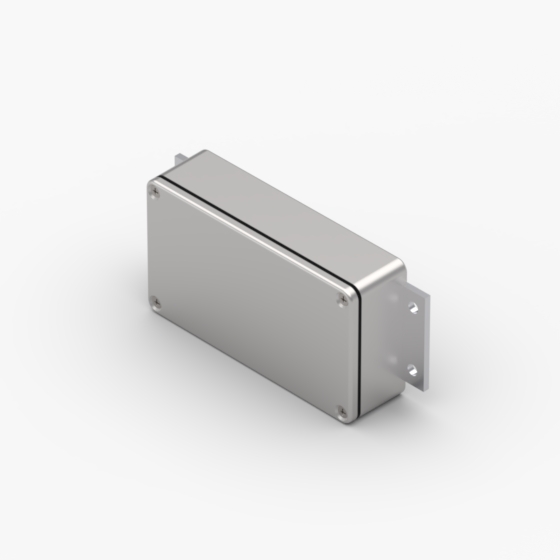

AL-17XSK.0 5,5 2,504 1,161  -
LM 24 4,362 0,791 4 - PDF
DWG
View
  • Color (Ral):  -
  • Material: LM 24
  • MAX PCB L (mm): 110,8
  • MAX PCB W (mm): 20,1
  • Screws: 4
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

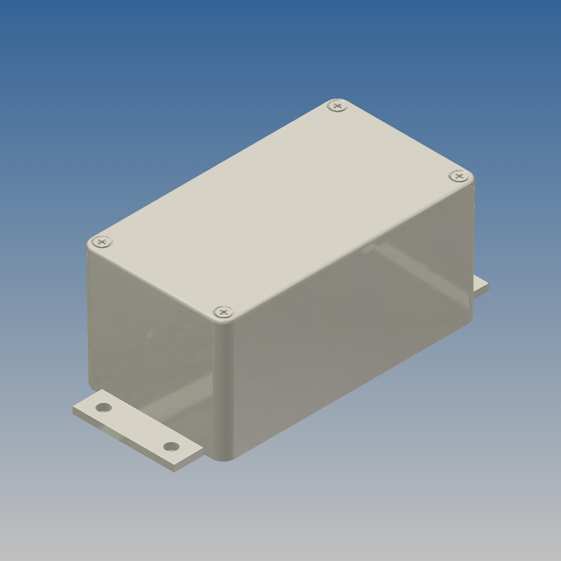

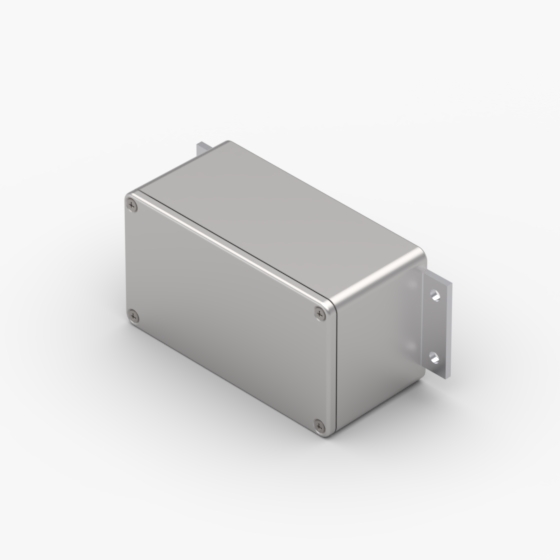

AL-18X.0 5,5 2,508 2,161  -
LM 24 4,362 1,795 4 - PDF
DWG
View
  • Color (Ral):  -
  • Material: LM 24
  • MAX PCB L (mm): 110,8
  • MAX PCB W (mm): 45,6
  • Screws: 4
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

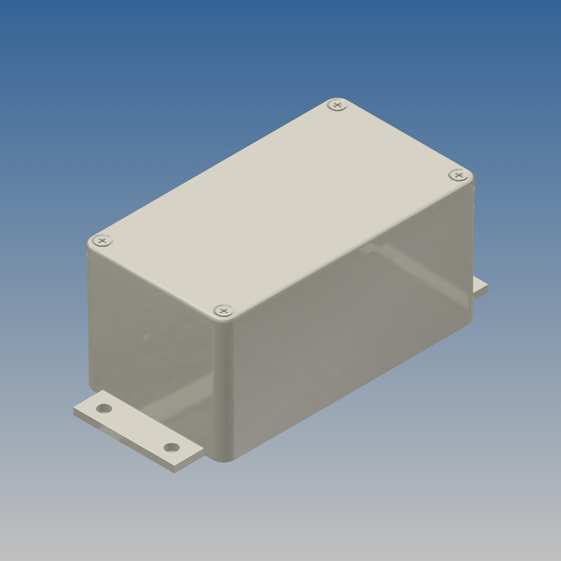

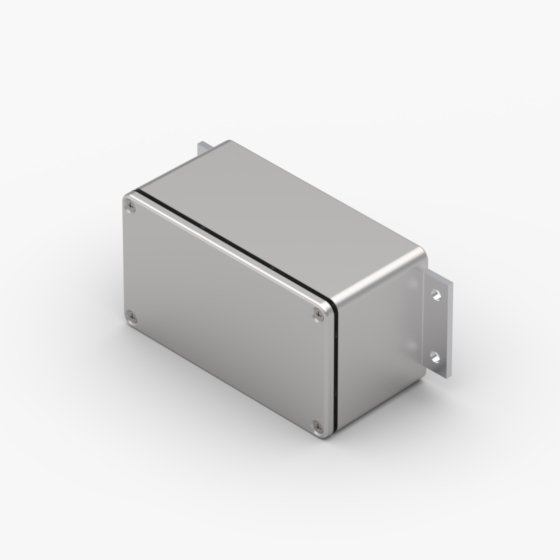

AL-18XSK.0 5,5 2,508 2,161  -
LM 24 4,362 1,795 4 - PDF
DWG
View
  • Color (Ral):  -
  • Material: LM 24
  • MAX PCB L (mm): 110,8
  • MAX PCB W (mm): 45,6
  • Screws: 4
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

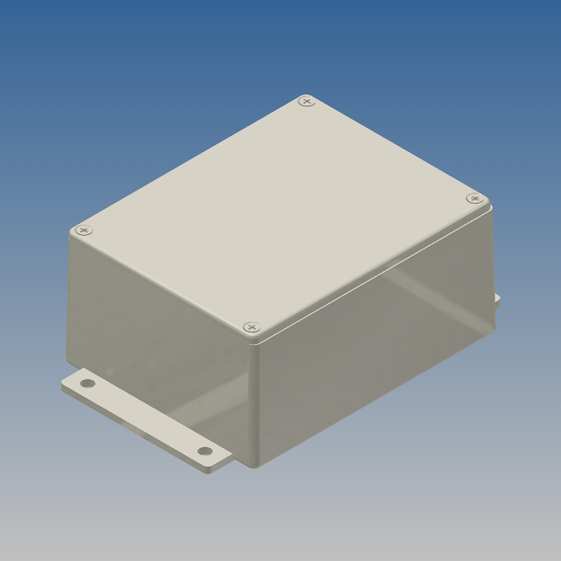

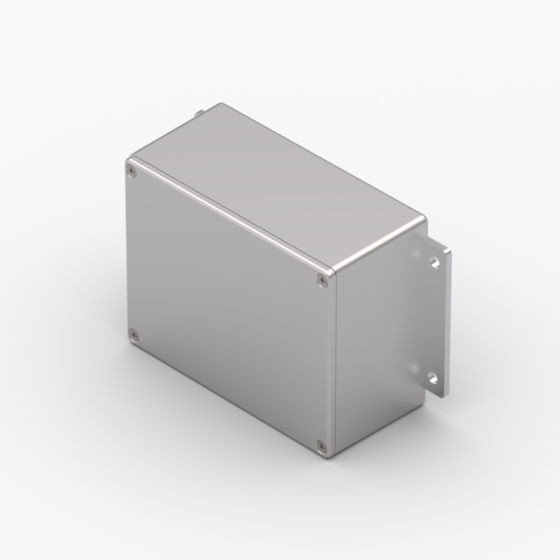

AL-19X.0 5,5 3,508 2,161  -
LM 24 4,350 1,823 4 - PDF
DWG
View
  • Color (Ral):  -
  • Material: LM 24
  • MAX PCB L (mm): 110,5
  • MAX PCB W (mm): 46,3
  • Screws: 4
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

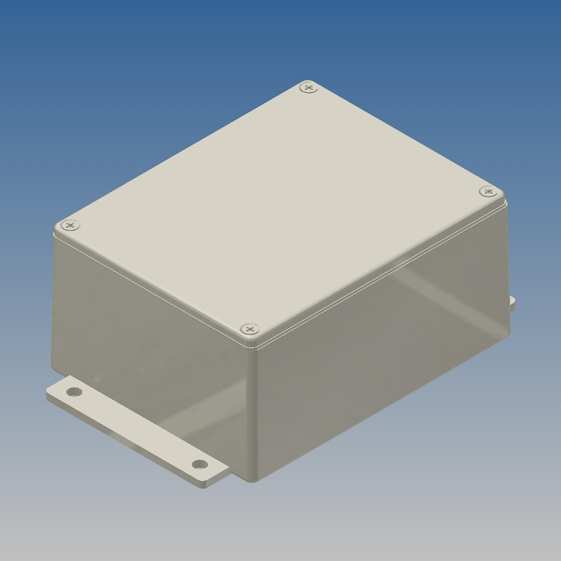

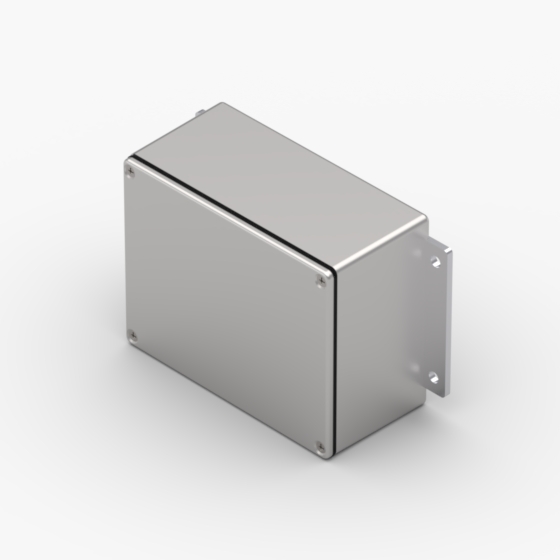

AL-19XSK.0 5,5 3,508 2,161  -
LM 24 4,350 1,823 4 - PDF
DWG
View
  • Color (Ral):  -
  • Material: LM 24
  • MAX PCB L (mm): 110,5
  • MAX PCB W (mm): 46,3
  • Screws: 4
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

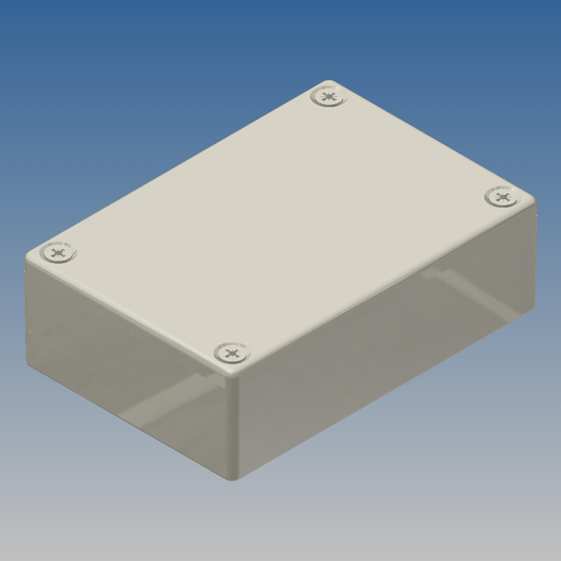

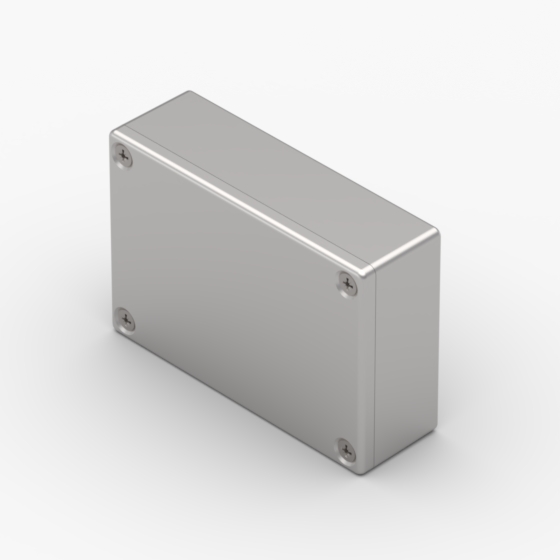

AL-2.0 3,15 2,165 0,984  -
LM 24 2,984 0,591 4 - PDF
DWG
View
  • Color (Ral):  -
  • Material: LM 24
  • MAX PCB L (mm): 75,8
  • MAX PCB W (mm): 15
  • Screws: 4
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

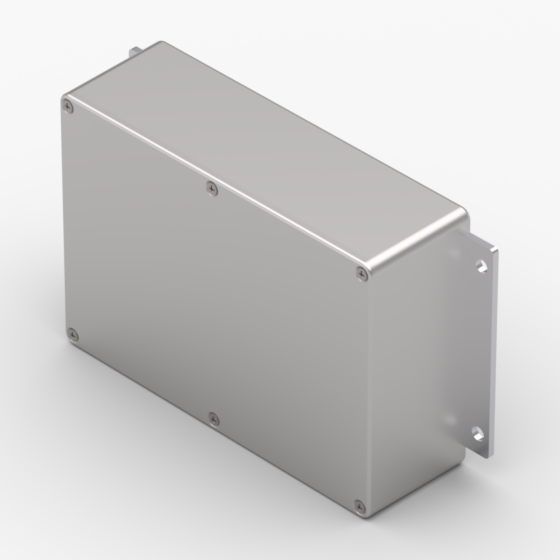

AL-20X.0 7,953 4,756 2,161  -
LM 24 6,614 1,795 6 - PDF
DWG
View
  • Color (Ral):  -
  • Material: LM 24
  • MAX PCB L (mm): 168
  • MAX PCB W (mm): 45,6
  • Screws: 6
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

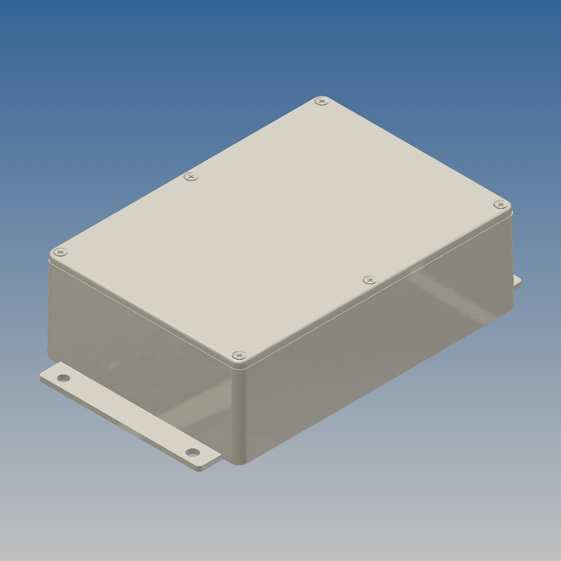

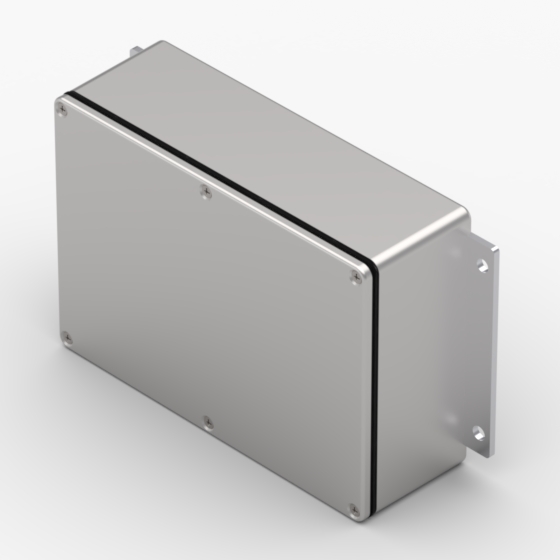

AL-20XSK.0 7,953 4,756 2,161  -
LM 24 6,614 1,795 6 - PDF
DWG
View
  • Color (Ral):  -
  • Material: LM 24
  • MAX PCB L (mm): 168
  • MAX PCB W (mm): 45,6
  • Screws: 6
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

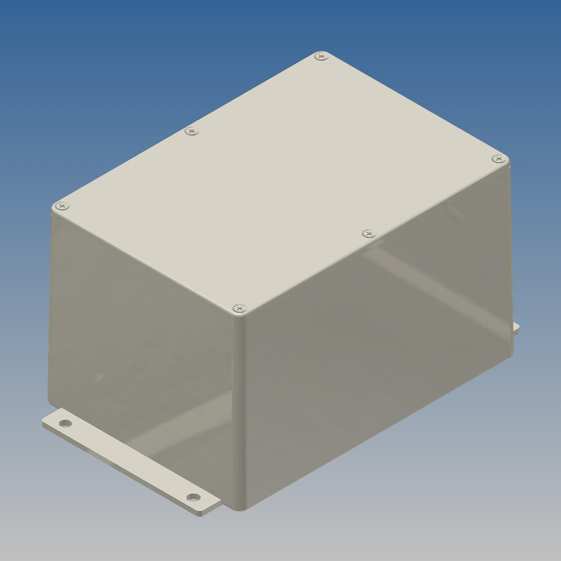

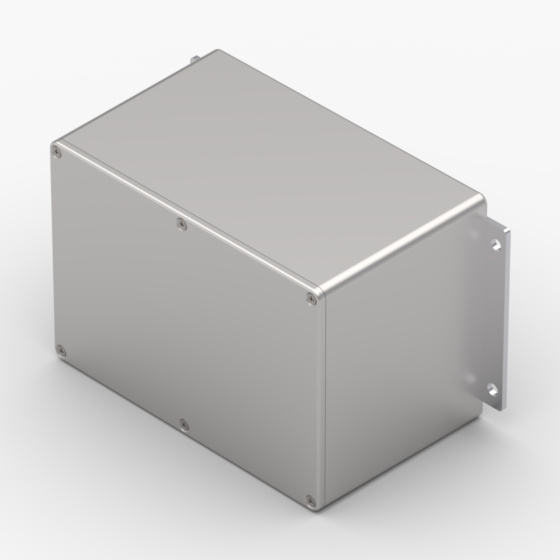

AL-21X.0 7,953 4,756 4,161  -
LM 24 6,614 3,803 6 - PDF
DWG
View
  • Color (Ral):  -
  • Material: LM 24
  • MAX PCB L (mm): 168
  • MAX PCB W (mm): 96,6
  • Screws: 6
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG
AL-21XSK.0 7,953 4,756 4,161  -
LM 24 6,614 3,803 6 - PDF
DWG
View
  • Color (Ral):  -
  • Material: LM 24
  • MAX PCB L (mm): 168
  • MAX PCB W (mm): 96,6
  • Screws: 6
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

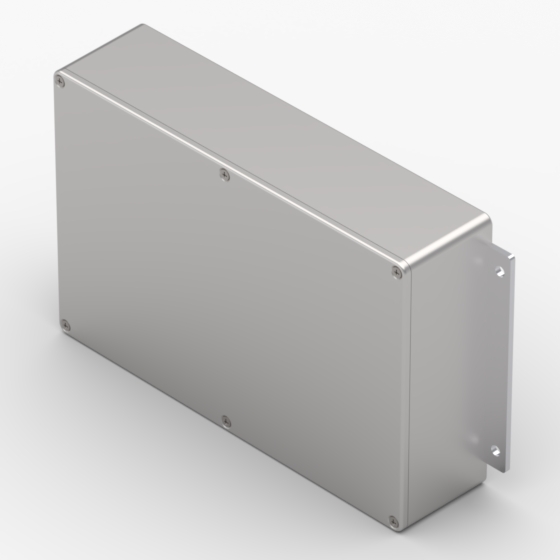

AL-22X.0 9,921 5,748 2,161  -
LM 24 8,575 1,795 6 - PDF
DWG
View
  • Color (Ral):  -
  • Material: LM 24
  • MAX PCB L (mm): 217,8
  • MAX PCB W (mm): 45,6
  • Screws: 6
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

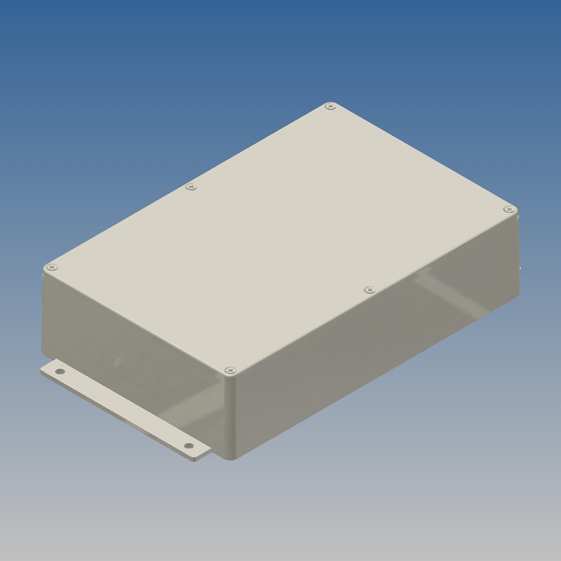

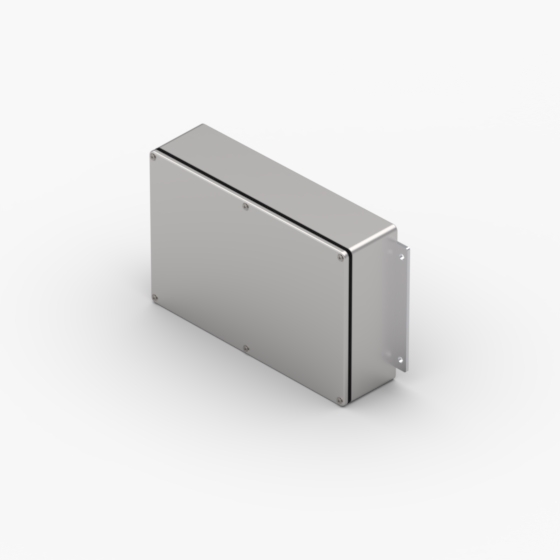

AL-22XSK.0 9,921 5,748 2,161  -
LM 24 8,575 1,795 6 - PDF
DWG
View
  • Color (Ral):  -
  • Material: LM 24
  • MAX PCB L (mm): 217,8
  • MAX PCB W (mm): 45,6
  • Screws: 6
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

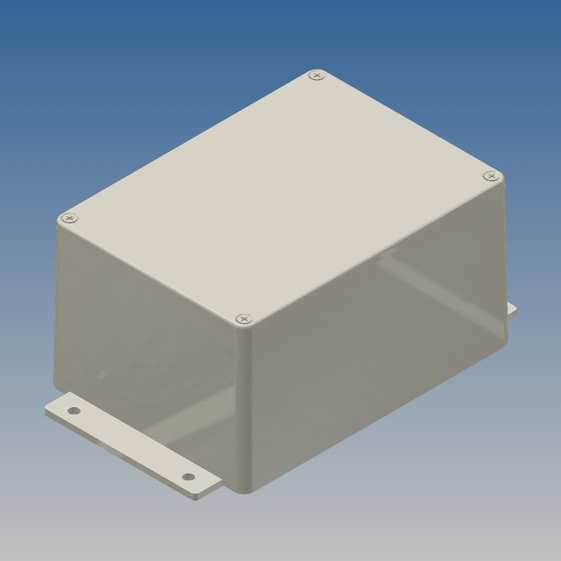

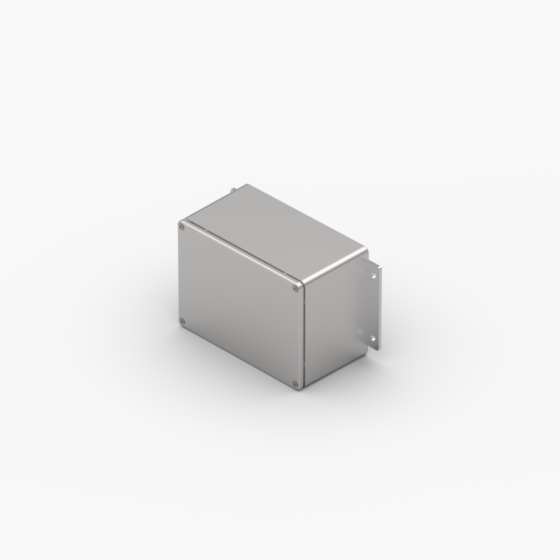

AL-23X.0 6,693 4 2,992  -
LM 24 5,323 2,618 4 - PDF
DWG
View
  • Color (Ral):  -
  • Material: LM 24
  • MAX PCB L (mm): 135,2
  • MAX PCB W (mm): 66,5
  • Screws: 4
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

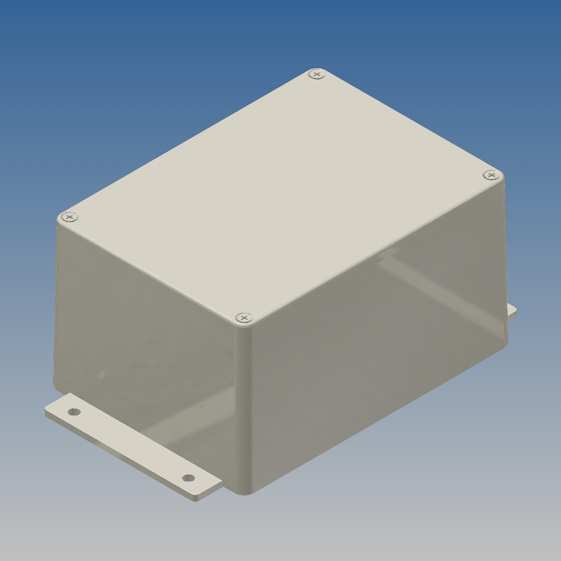

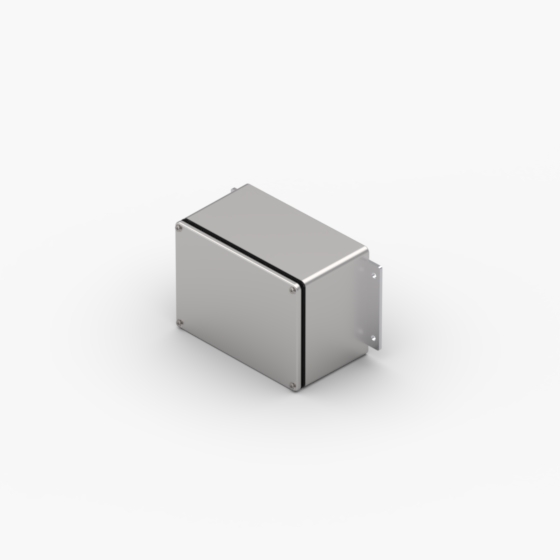

AL-23XSK.0 6,693 4 2,992  -
LM 24 5,323 2,618 4 - PDF
DWG
View
  • Color (Ral):  -
  • Material: LM 24
  • MAX PCB L (mm): 135,2
  • MAX PCB W (mm): 66,5
  • Screws: 4
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

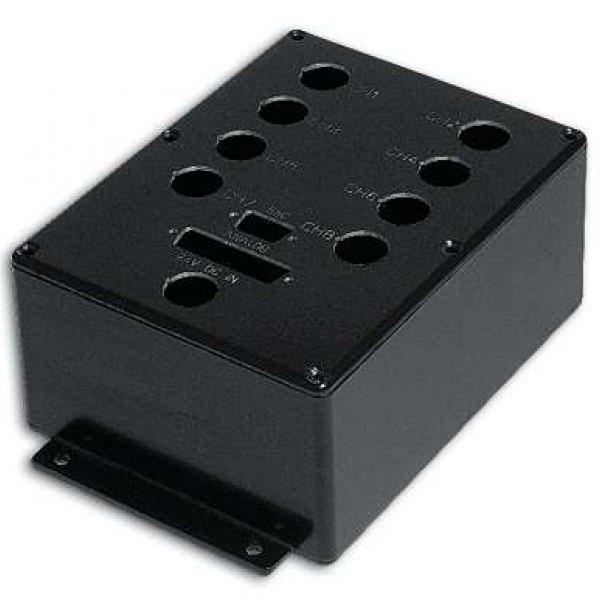

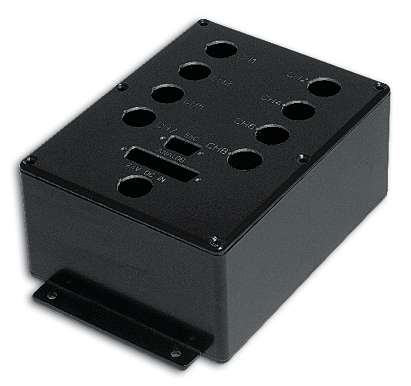

AL-24X.0 7,677 4,996 2,992  -
LM 24 6,358 2,618 6 - PDF
DWG
View
  • Color (Ral):  -
  • Material: LM 24
  • MAX PCB L (mm): 161,5
  • MAX PCB W (mm): 66,5
  • Screws: 6
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG
AL-24XSK.0 7,677 4,996 2,992  -
LM 24 6,358 2,618 6 - PDF
DWG
View
  • Color (Ral):  -
  • Material: LM 24
  • MAX PCB L (mm): 161,5
  • MAX PCB W (mm): 66,5
  • Screws: 6
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

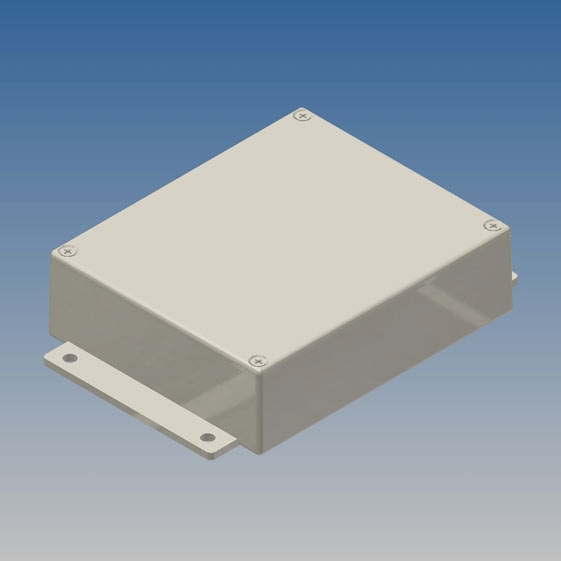

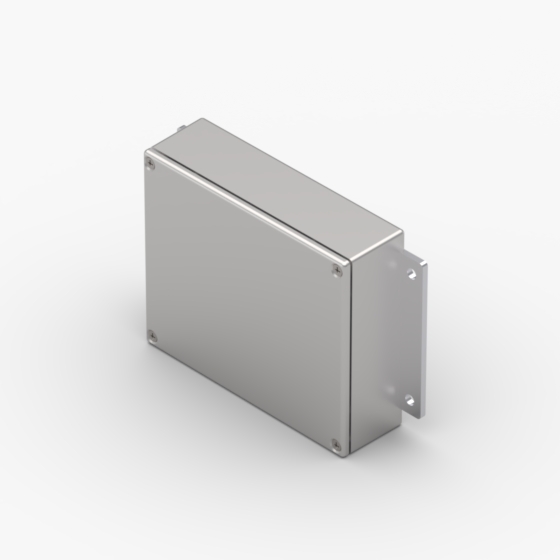

AL-25X.0 5,906 3,937 1,378  -
LM 24 4,587 1,004 4 - PDF
DWG
View
  • Color (Ral):  -
  • Material: LM 24
  • MAX PCB L (mm): 116,5
  • MAX PCB W (mm): 25,5
  • Screws: 4
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

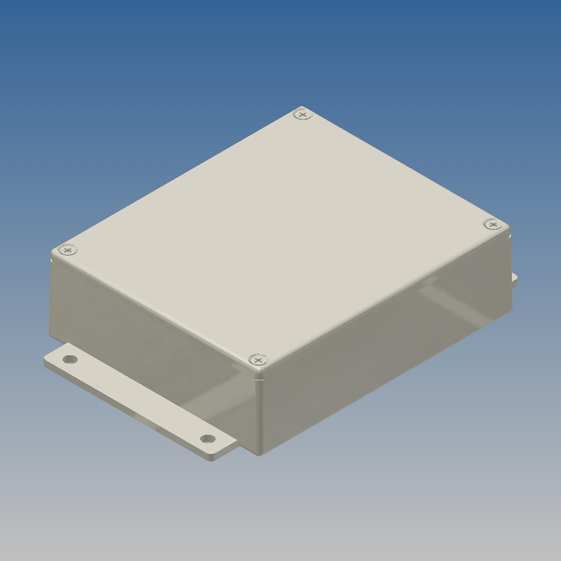

AL-25XSK.0 5,906 3,937 1,378  -
LM 24 4,587 1,004 4 - PDF
DWG
View
  • Color (Ral):  -
  • Material: LM 24
  • MAX PCB L (mm): 116,5
  • MAX PCB W (mm): 25,5
  • Screws: 4
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

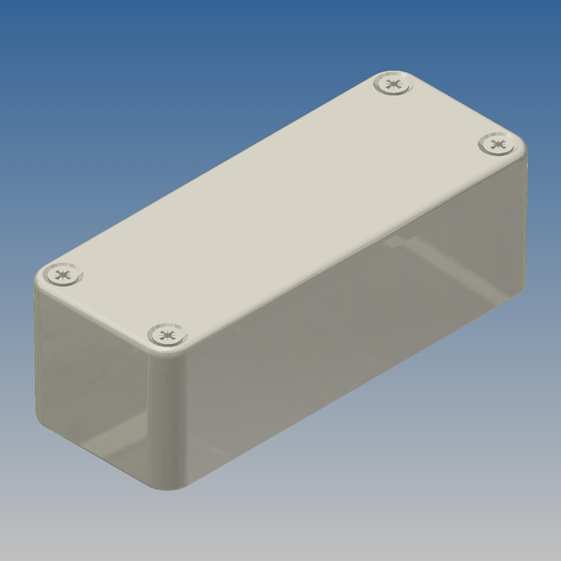

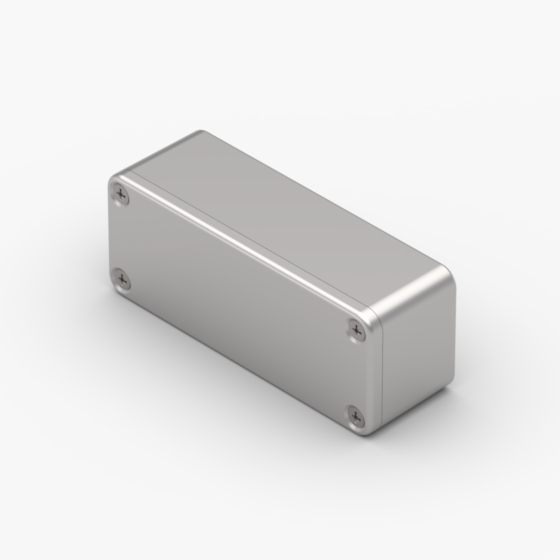

AL-3.0 3,5 1,374 1,161  -
LM 24 1,201 0,787 4 - PDF
DWG
View
  • Color (Ral):  -
  • Material: LM 24
  • MAX PCB L (mm): 30,5
  • MAX PCB W (mm): 20
  • Screws: 4
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG
AL-3SK.0 3,5 1,374 1,161  -
LM 24 1,201 0,787 4 - PDF
DWG
View
  • Color (Ral):  -
  • Material: LM 24
  • MAX PCB L (mm): 30,5
  • MAX PCB W (mm): 20
  • Screws: 4
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

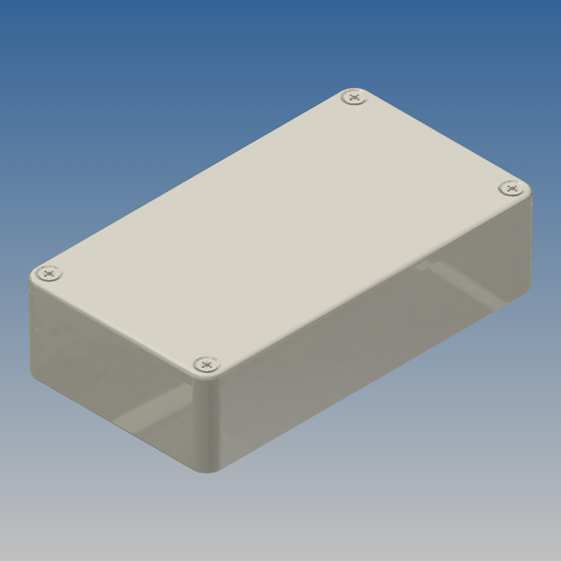

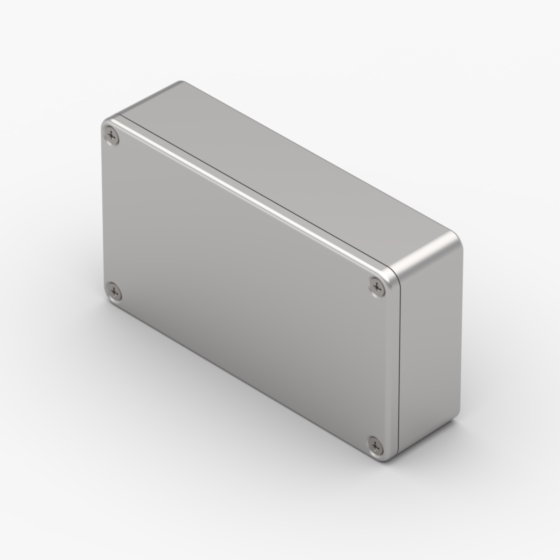

AL-4.0 4,5 2,5 1,161  -
LM 24 4,350 2,362 4 - PDF
DWG
View
  • Color (Ral):  -
  • Material: LM 24
  • MAX PCB L (mm): 110,5
  • MAX PCB W (mm): 60
  • Screws: 4
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

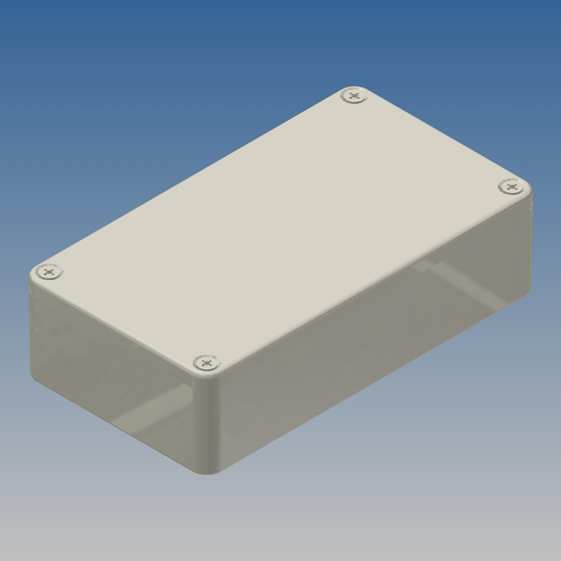

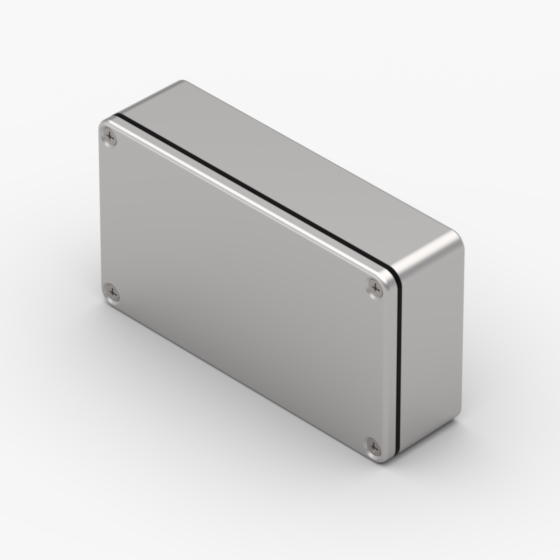

AL-4SK.0 4,5 2,5 1,161  -
LM 24 4,350 2,362 4 - PDF
DWG
View
  • Color (Ral):  -
  • Material: LM 24
  • MAX PCB L (mm): 110,5
  • MAX PCB W (mm): 60
  • Screws: 4
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

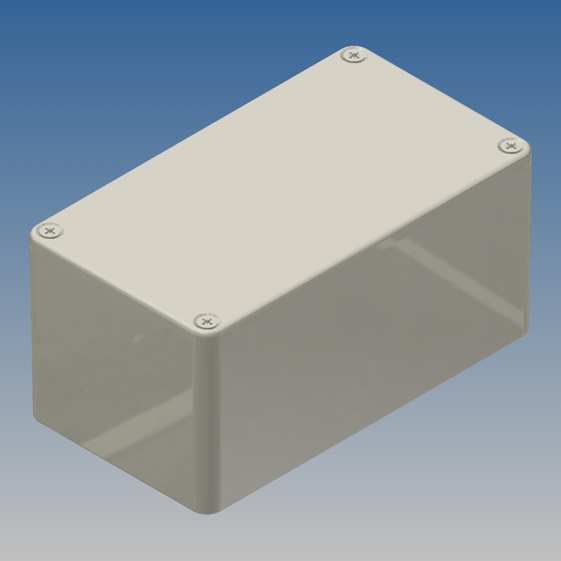

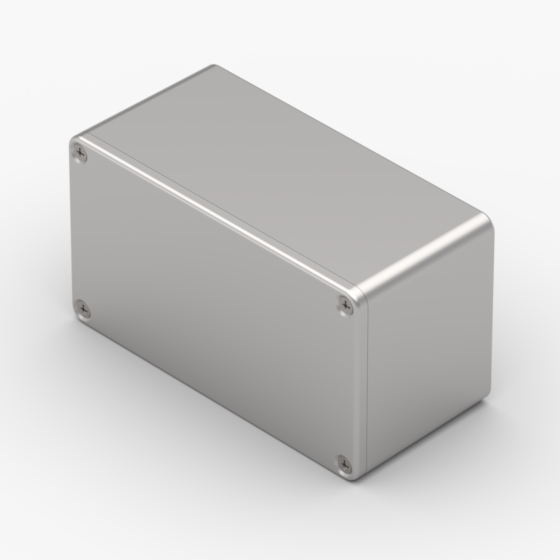

AL-5.0 4,5 2,5 2,161  -
LM 24 4,350 2,362 4 - PDF
DWG
View
  • Color (Ral):  -
  • Material: LM 24
  • MAX PCB L (mm): 110,5
  • MAX PCB W (mm): 60
  • Screws: 4
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

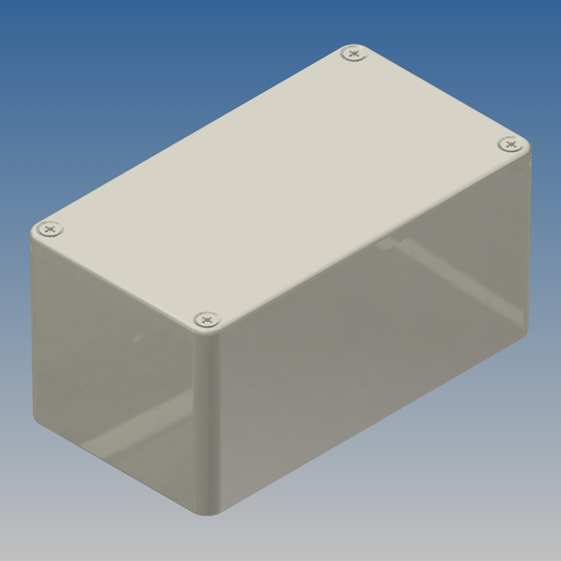

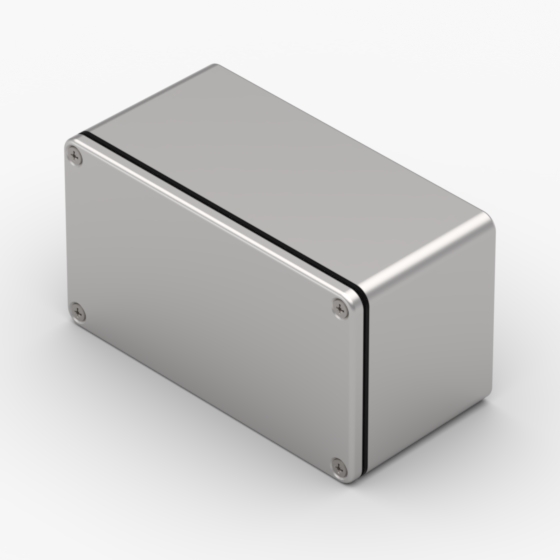

AL-5SK.0 4,5 2,5 2,161  -
LM 24 4,350 2,362 4 - PDF
DWG
View
  • Color (Ral):  -
  • Material: LM 24
  • MAX PCB L (mm): 110,5
  • MAX PCB W (mm): 60
  • Screws: 4
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

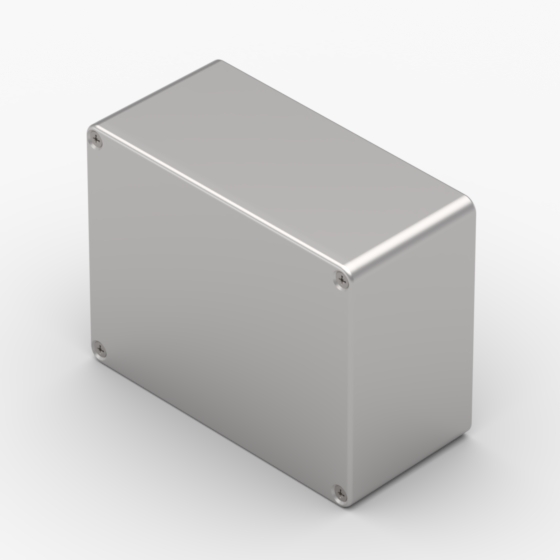

AL-6.0 4,5 3,5 2,161  -
LM 24 4,370 3,374 4 - PDF
DWG
View
  • Color (Ral):  -
  • Material: LM 24
  • MAX PCB L (mm): 111
  • MAX PCB W (mm): 85,7
  • Screws: 4
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

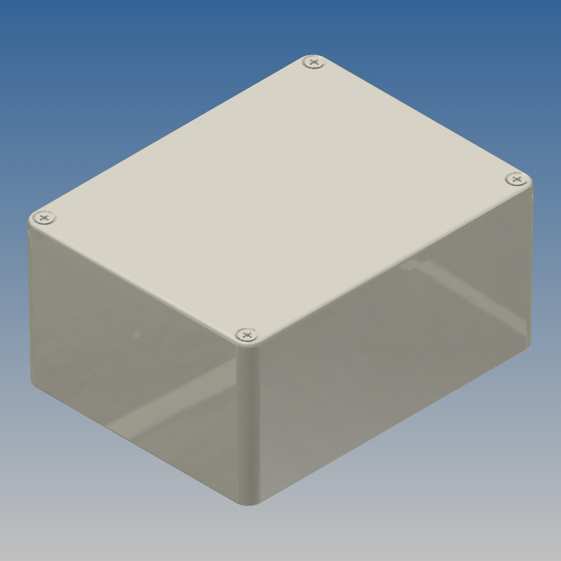

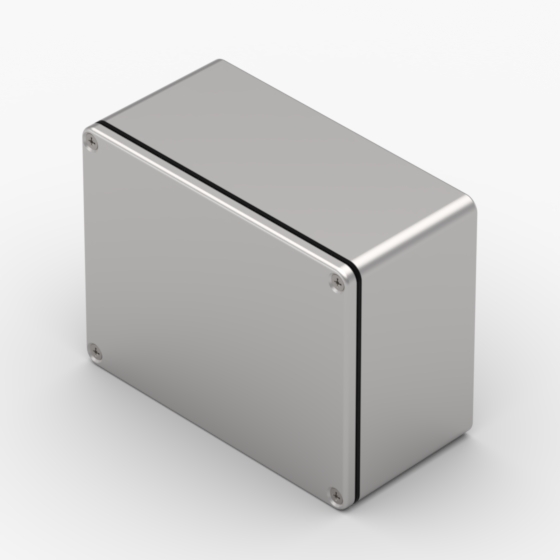

AL-6SK.0 4,5 3,5 2,161  -
LM 24 4,370 3,374 4 - PDF
DWG
View
  • Color (Ral):  -
  • Material: LM 24
  • MAX PCB L (mm): 111
  • MAX PCB W (mm): 85,7
  • Screws: 4
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

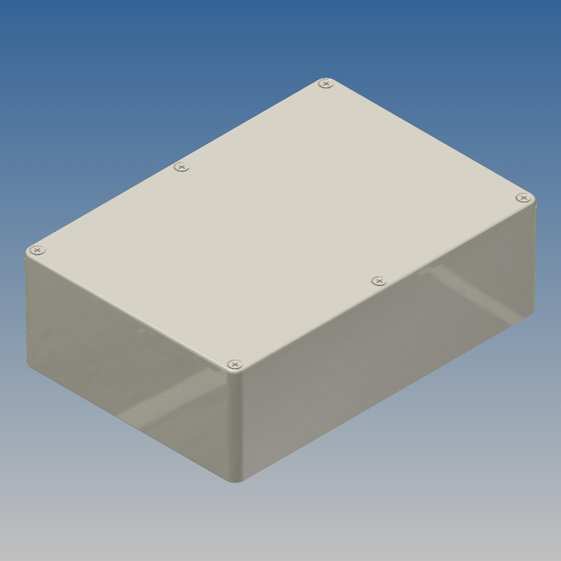

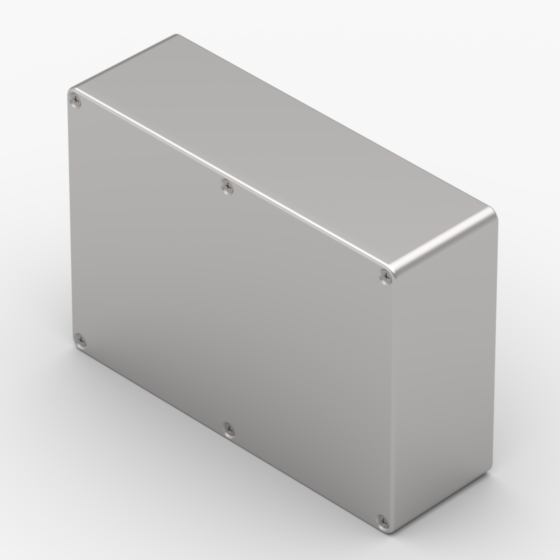

AL-7.0 6,752 4,748 2,161  -
LM 24 6,594 4,587 6 - PDF
DWG
View
  • Color (Ral):  -
  • Material: LM 24
  • MAX PCB L (mm): 167,5
  • MAX PCB W (mm): 116,5
  • Screws: 6
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

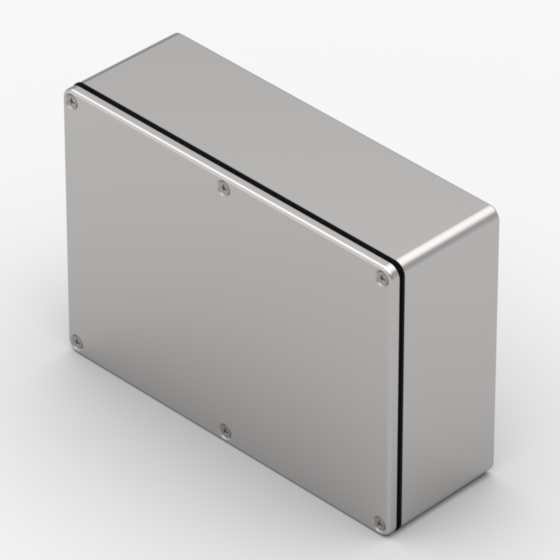

AL-7SK.0 6,752 4,748 2,161  -
LM 24 6,594 4,587 6 - PDF
DWG
View
  • Color (Ral):  -
  • Material: LM 24
  • MAX PCB L (mm): 167,5
  • MAX PCB W (mm): 116,5
  • Screws: 6
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

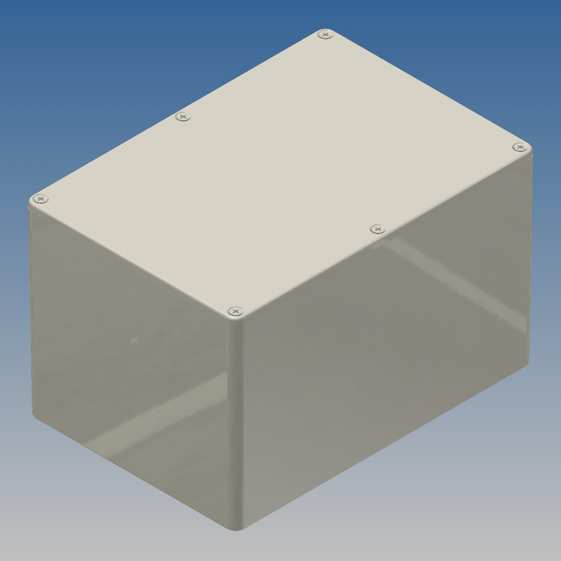

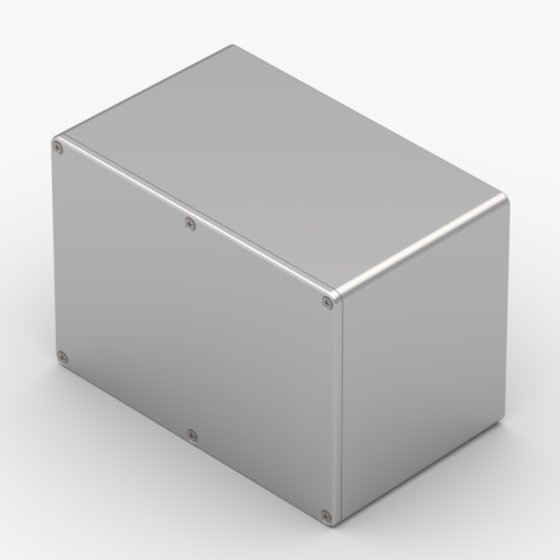

AL-8.0 6,752 4,748 4,161  -
LM 24 6,594 4,587 6 - PDF
DWG
View
  • Color (Ral):  -
  • Material: LM 24
  • MAX PCB L (mm): 167,5
  • MAX PCB W (mm): 116,5
  • Screws: 6
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

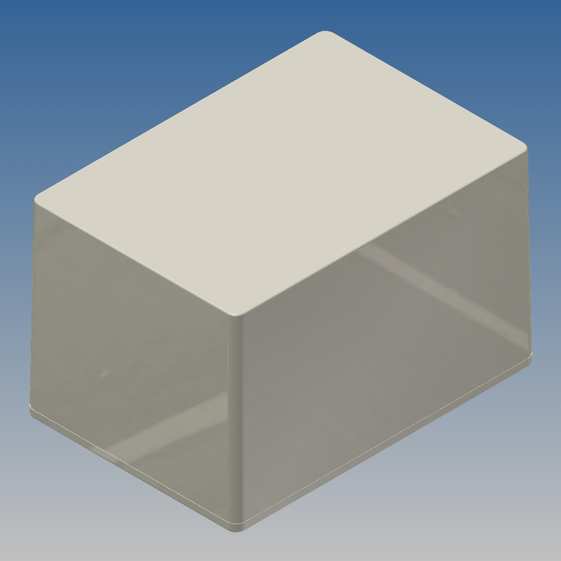

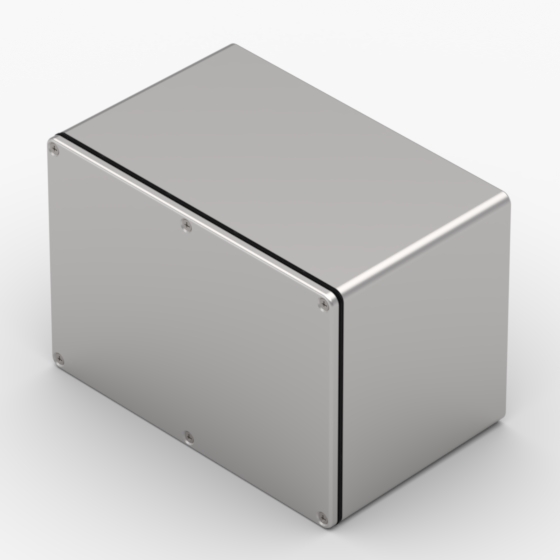

AL-8SK.0 6,752 4,748 4,161  -
LM 24 6,594 4,587 6 - PDF
DWG
View
  • Color (Ral):  -
  • Material: LM 24
  • MAX PCB L (mm): 167,5
  • MAX PCB W (mm): 116,5
  • Screws: 6
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

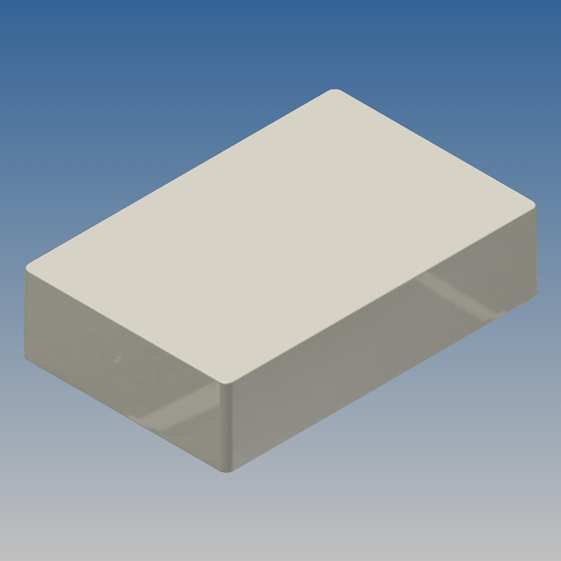

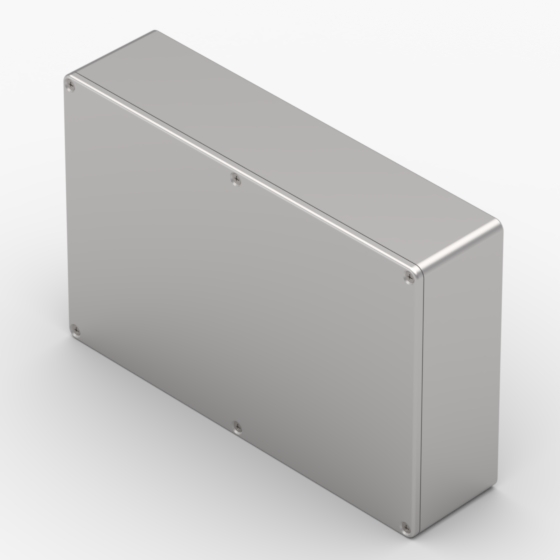

AL-9.0 8,752 5,748 2,165  -
LM 24 8,594 5,591 6 - PDF
DWG
View
  • Color (Ral):  -
  • Material: LM 24
  • MAX PCB L (mm): 218,3
  • MAX PCB W (mm): 142
  • Screws: 6
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

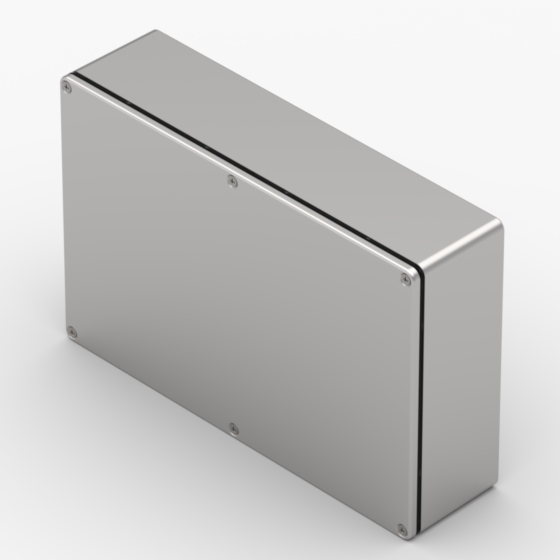

AL-9SK.0 8,752 5,748 2,165  -
LM 24 8,594 5,591 6 - PDF
DWG
View
  • Color (Ral):  -
  • Material: LM 24
  • MAX PCB L (mm): 218,3
  • MAX PCB W (mm): 142
  • Screws: 6
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG
12 product families, 144 series. You can't find what you're looking for? Contact us
