CH-BC

Family Aluminium - Electronic enclosures - Metal

Description

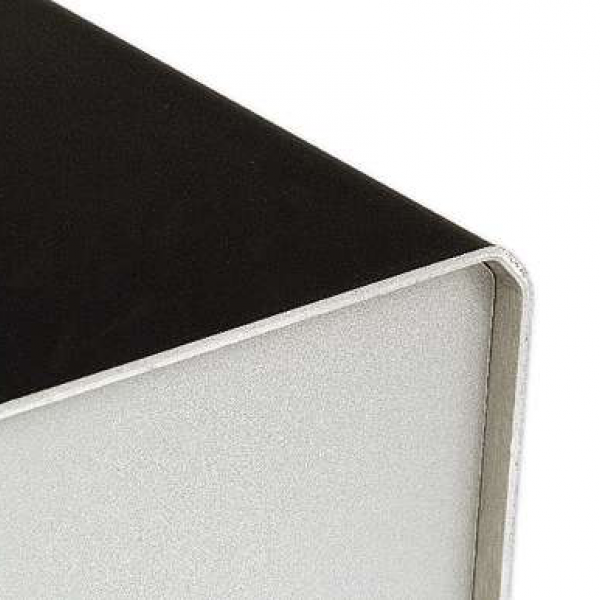

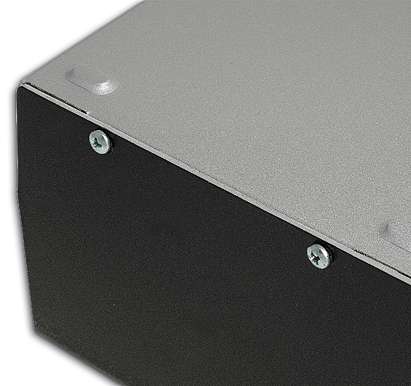

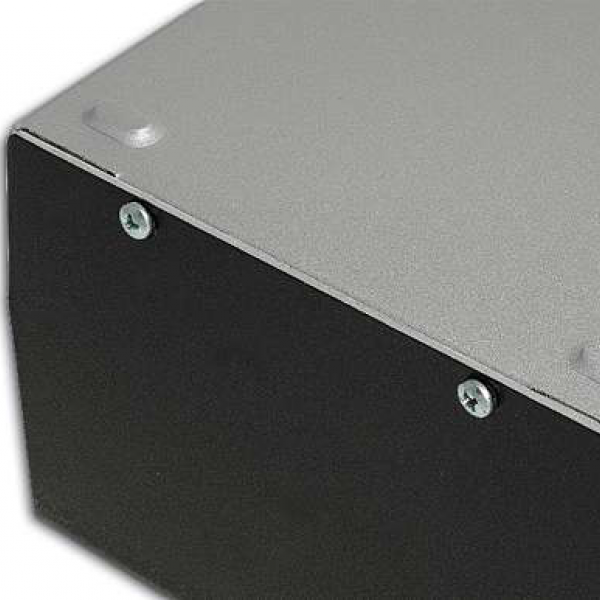

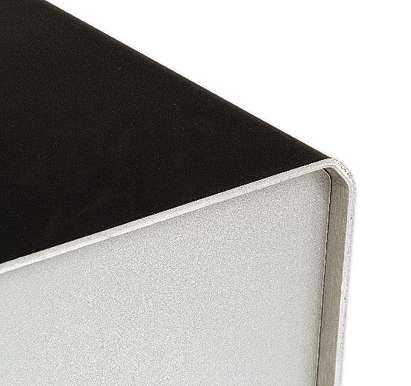

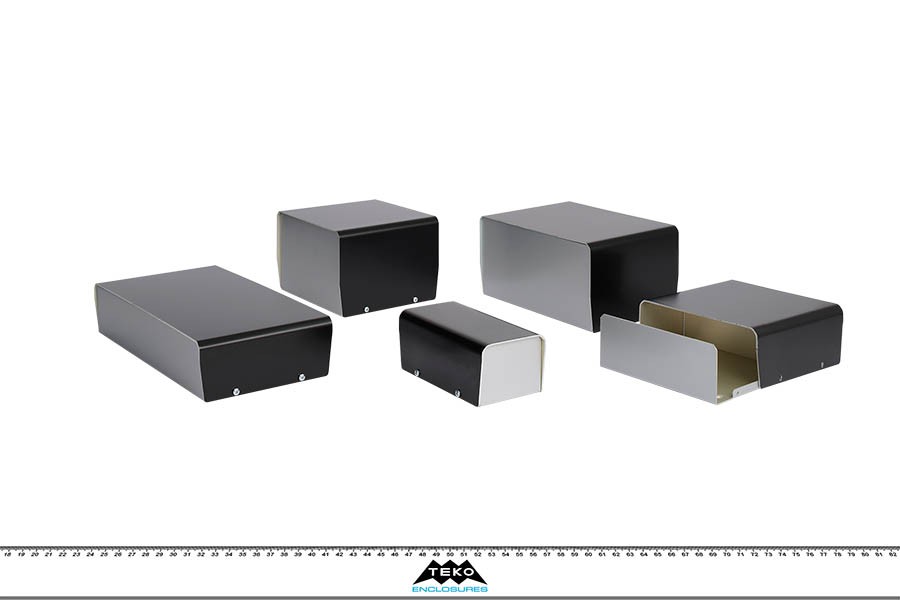

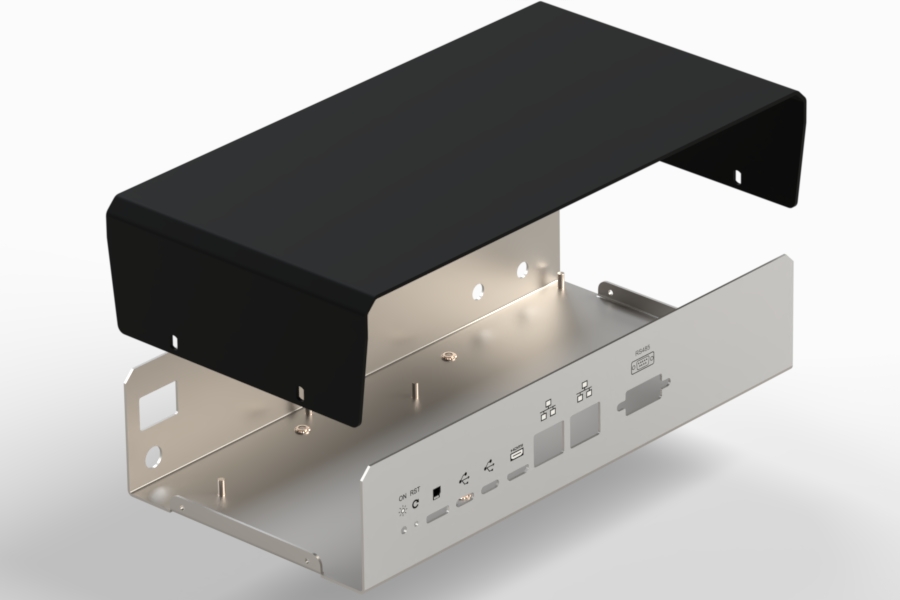

Aluminium enclosures with silver metalised base and black cover. Simple and speedy to assemble, with four screws to put in place.

Details

Products

Model L (inch) W (inch) H (inch) Color (Ral) Material MAX PCB L (inch) MAX PCB W (inch) Screws Battery Accessories Drawings Other

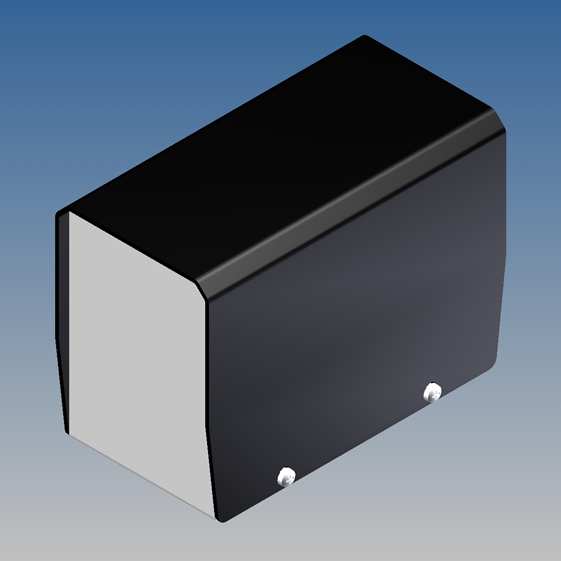

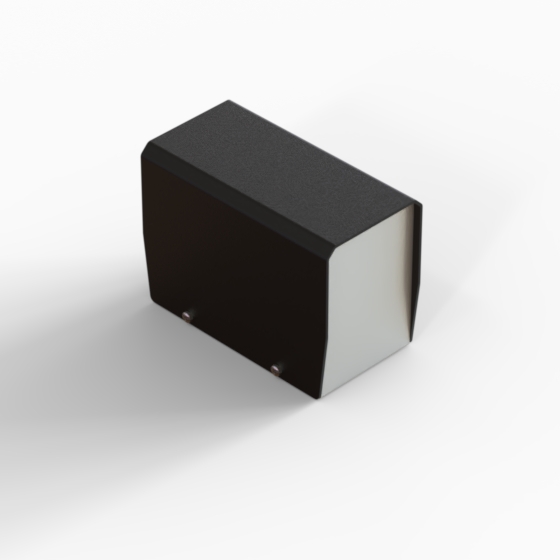

BC/1.18 2,402 4,646 3,307 9004 9006
EN AW-5010 H42  -  AW-3105 H46 - - 4 - PDF
DWG
View

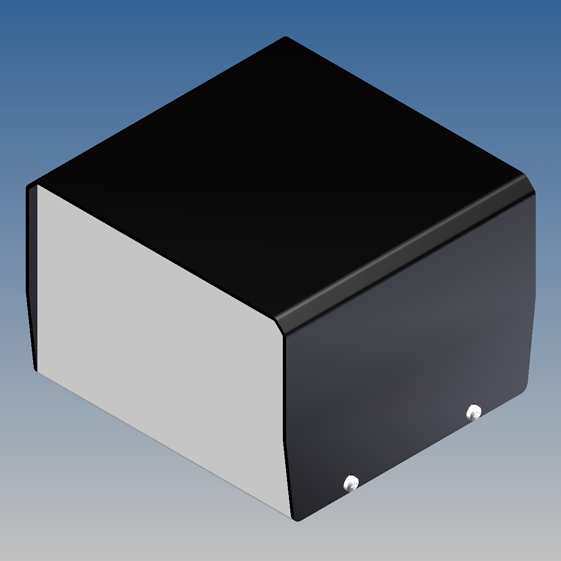

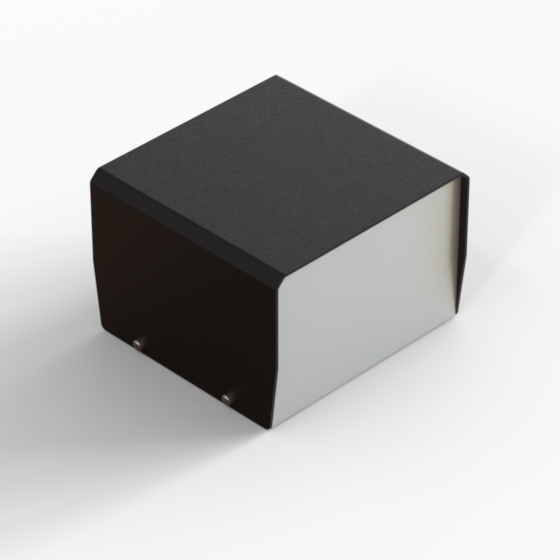

BC/2.18 4,882 4,646 3,307 9004 9006
EN AW-5010 H42  -  AW-3105 H46 - - 4 - PDF
DWG
View

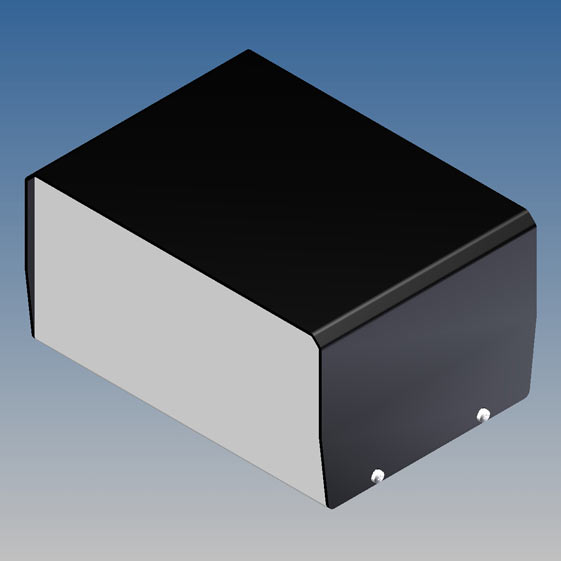

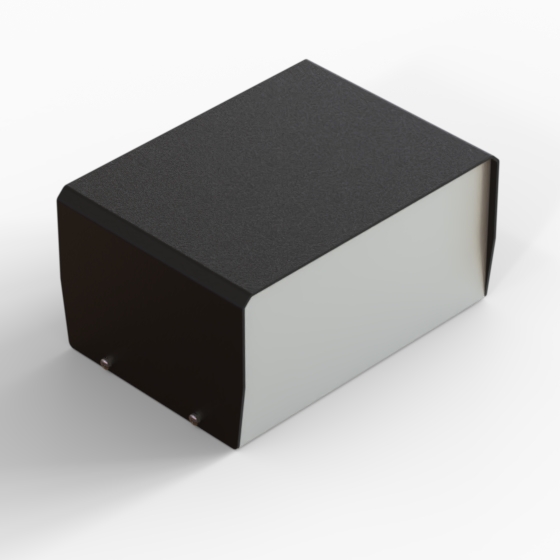

BC/3.18 6,417 4,646 3,307 9004 9006
EN AW-5010 H42  -  AW-3105 H46 - - 4 - PDF
DWG
View

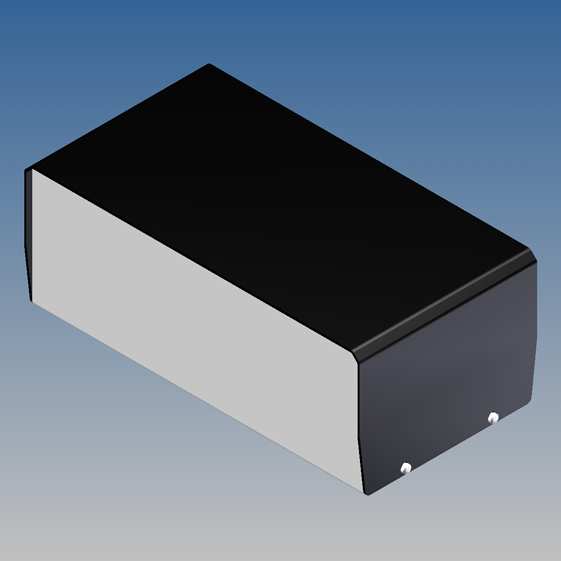

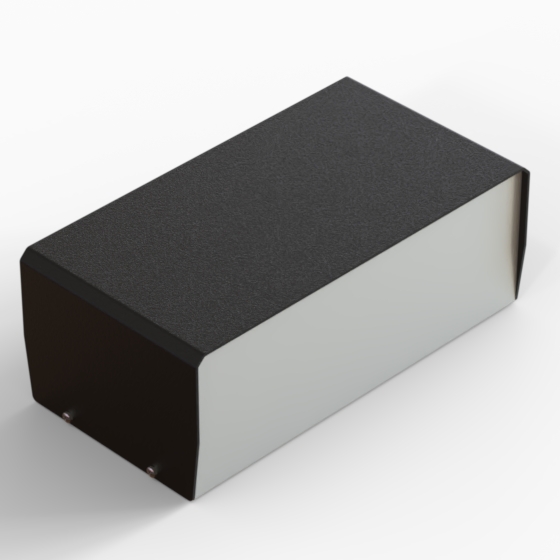

BC/4.18 8,78 4,646 3,307 9004 9006
EN AW-5010 H42  -  AW-3105 H46 - - 4 - PDF
DWG
View

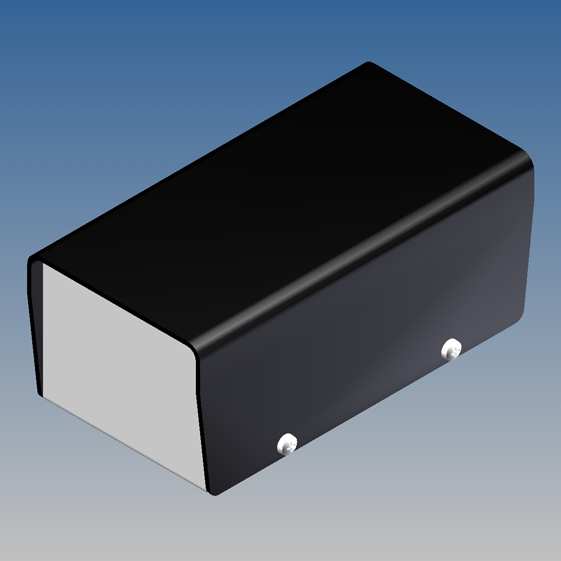

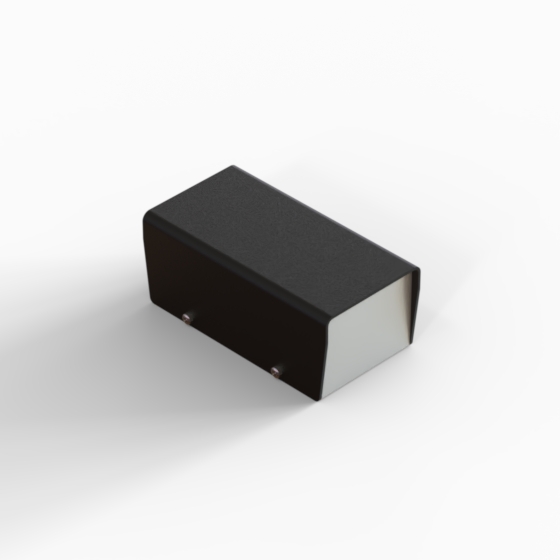

CH/1.18 2,402 4,646 1,89 9004 9006
EN AW-5010 H42  -  AW-3105 H46 - - 4 - PDF
DWG
View

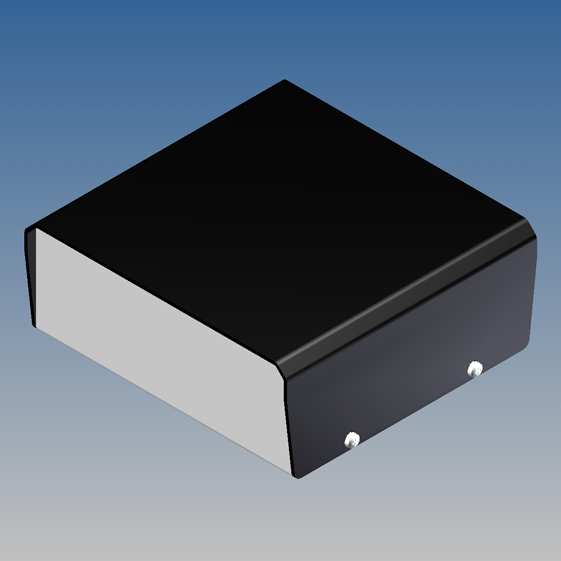

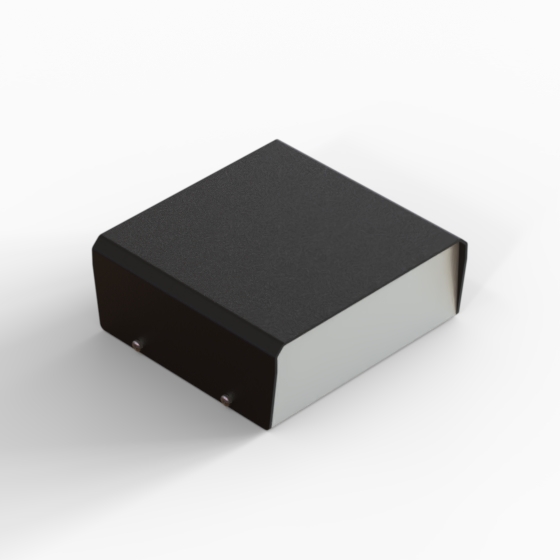

CH/2.18 4,882 4,646 1,89 9004 9006
EN AW-5010 H42  -  AW-3105 H46 - - 4 - PDF
DWG
View

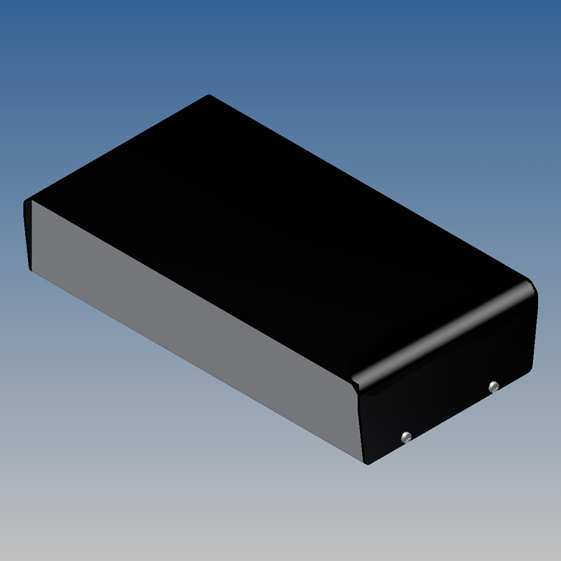

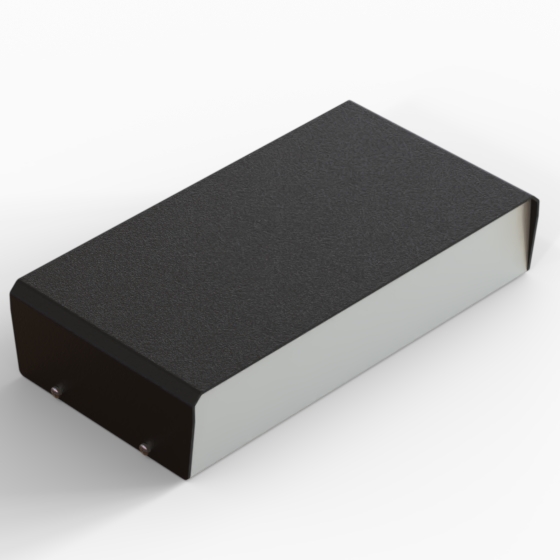

CH/4.18 8,78 4,646 1,89 9004 9006
EN AW-5010 H42  -  AW-3105 H46 - - 4 - PDF
DWG
View
