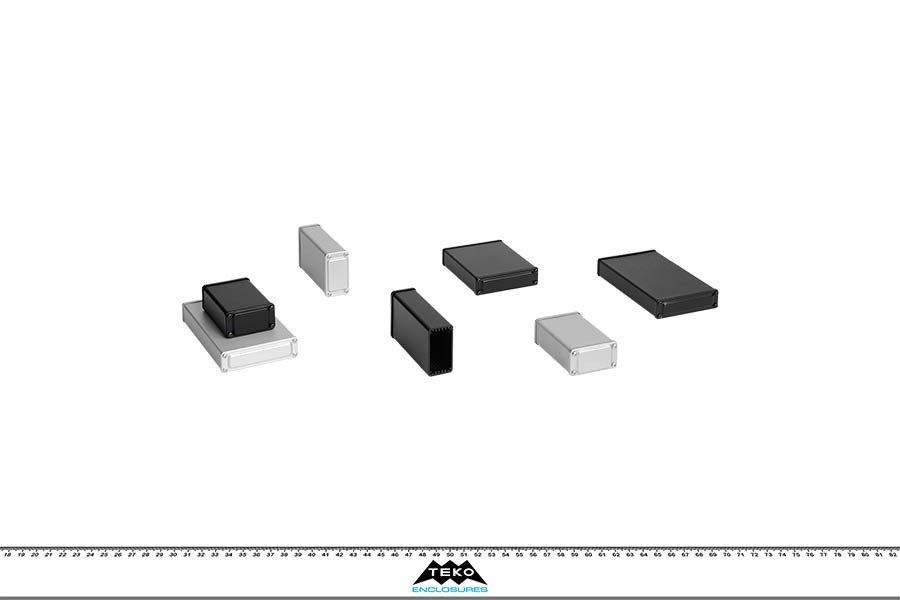

MINITEKAL

Family Aluminium - Electronic enclosures - Metal

Description

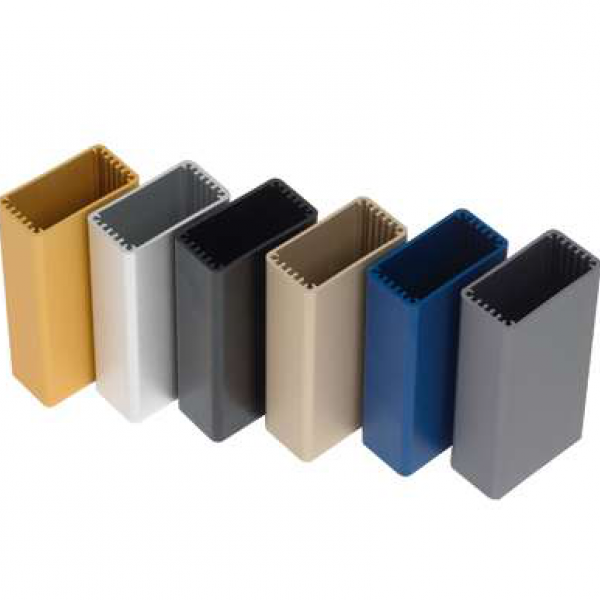

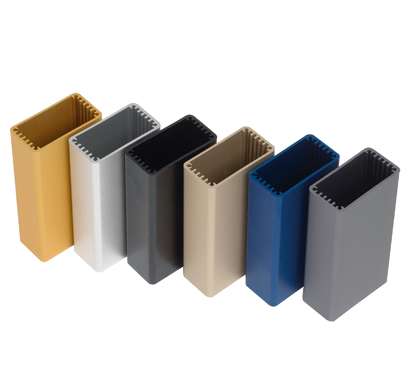

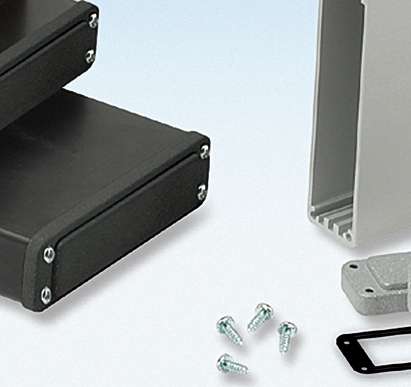

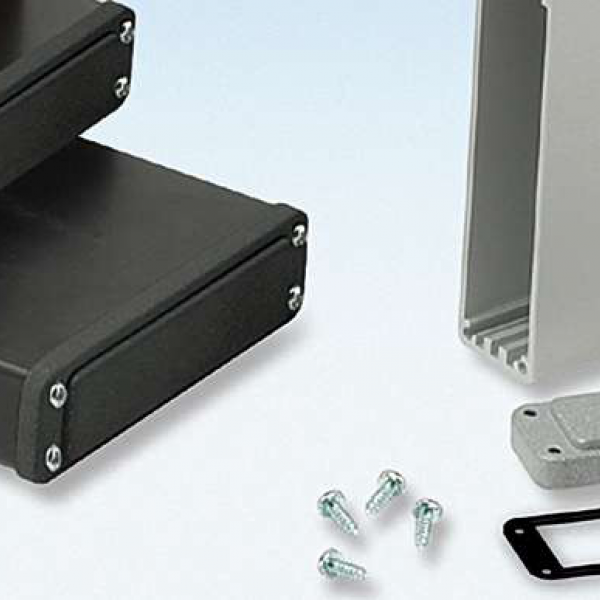

Compact extruded aluminium case with powder coating. Two aluminium front cover panels with two rubber sealing kits to protect against water and from dust. Internal slots for PCB’s. Closing by eight screws.

Details

Products

Model L (inch) W (inch) H (inch) Color (Ral) Material MAX PCB L (inch) MAX PCB W (inch) Screws Battery Accessories Drawings Other

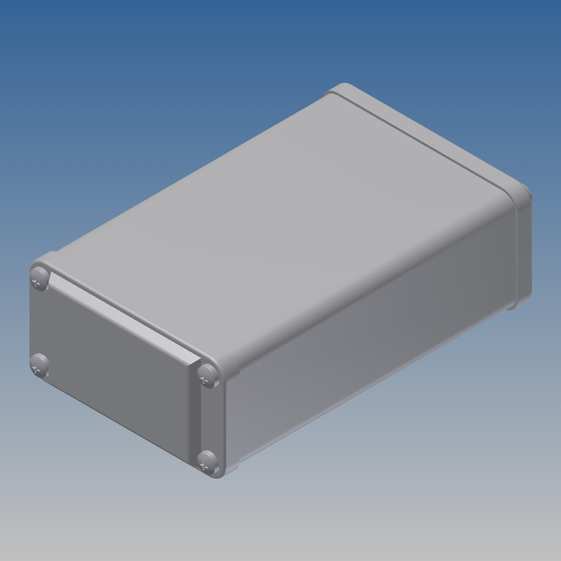

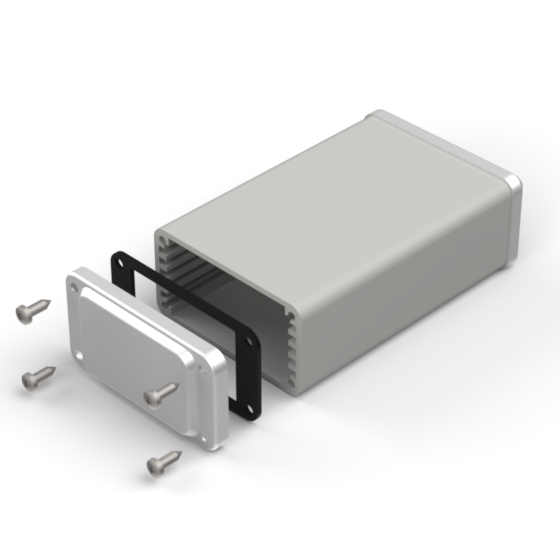

MTK465.1 2,677 1,693 0,906 9006
ALLOY 6060 2,559 1,551 8 - PDF
DWG
View
  • Color (Ral): 9006
  • Material: ALLOY 6060
  • MAX PCB L (mm): 65
  • MAX PCB W (mm): 39,4
  • Screws: 8
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

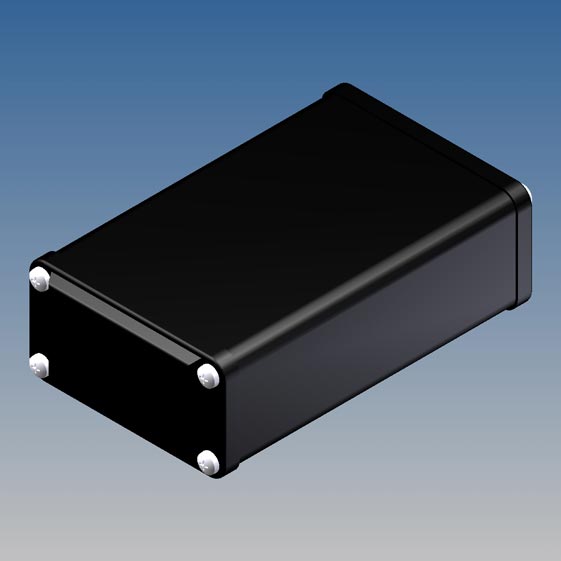

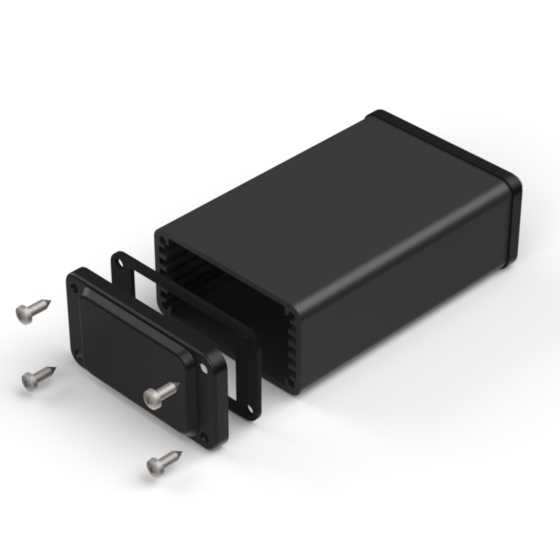

MTK465.9 2,677 1,693 0,906 9004
ALLOY 6060 2,559 1,551 8 - PDF
DWG
View
  • Color (Ral): 9004
  • Material: ALLOY 6060
  • MAX PCB L (mm): 65
  • MAX PCB W (mm): 39,4
  • Screws: 8
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

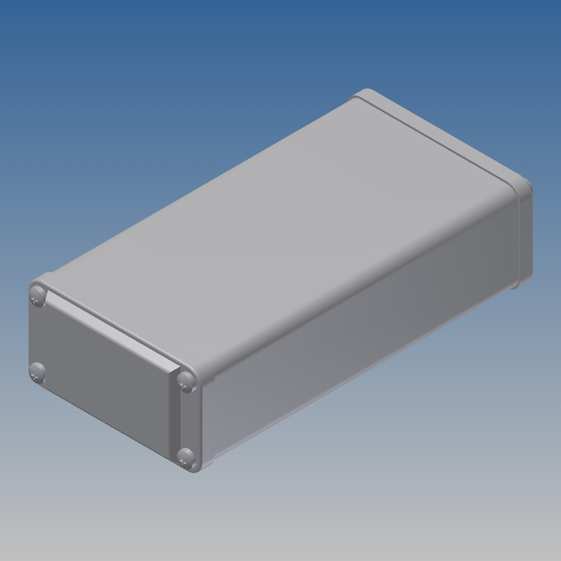

MTK480.1 3,268 1,693 0,906 9006
ALLOY 6060 3,150 1,551 8 - PDF
DWG
View
  • Color (Ral): 9006
  • Material: ALLOY 6060
  • MAX PCB L (mm): 80
  • MAX PCB W (mm): 39,4
  • Screws: 8
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

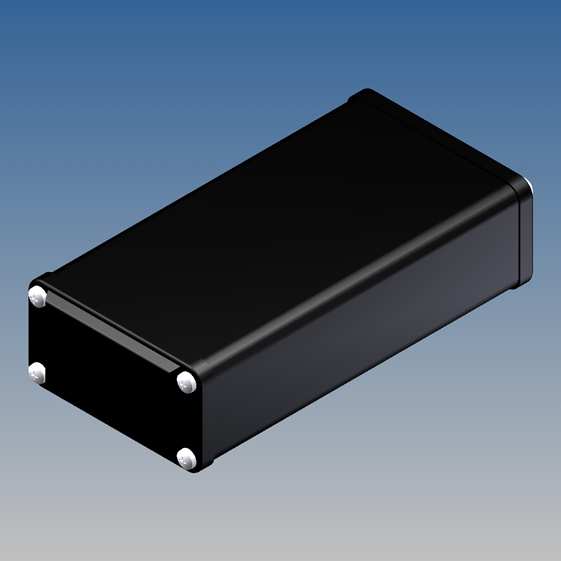

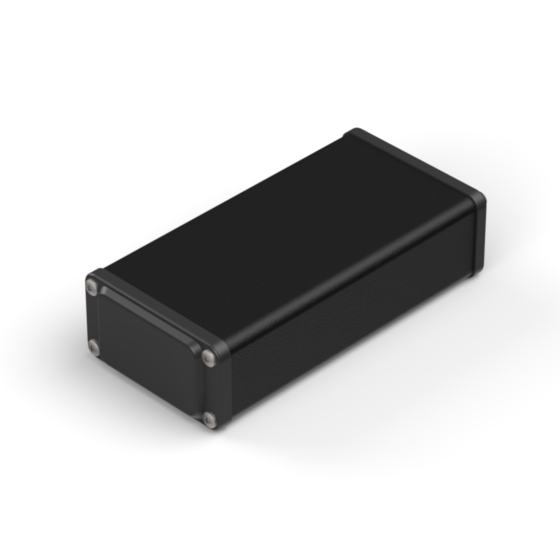

MTK480.9 3,268 1,693 0,906 9004
ALLOY 6060 3,150 1,551 8 - PDF
DWG
View
  • Color (Ral): 9004
  • Material: ALLOY 6060
  • MAX PCB L (mm): 80
  • MAX PCB W (mm): 39,4
  • Screws: 8
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

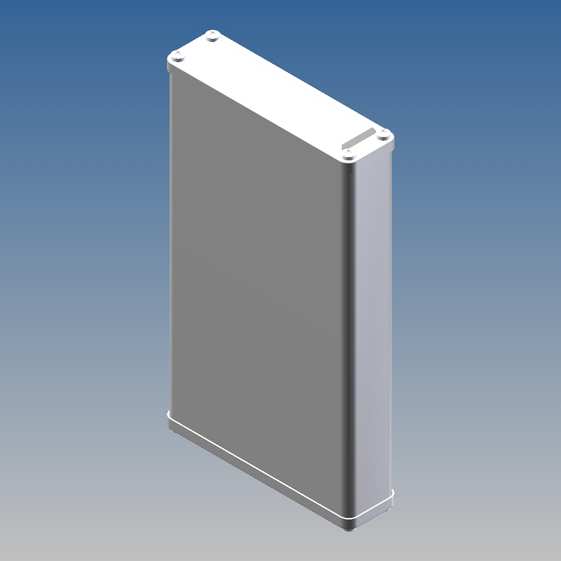

MTK6110.1 4,449 2,598 0,709 9006
ALLOY 6060 4,331 2,457 8 - PDF
DWG
View
  • Color (Ral): 9006
  • Material: ALLOY 6060
  • MAX PCB L (mm): 110
  • MAX PCB W (mm): 62,4
  • Screws: 8
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

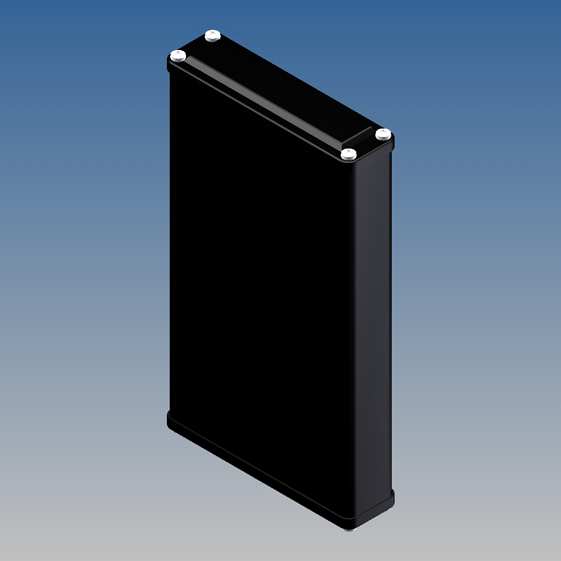

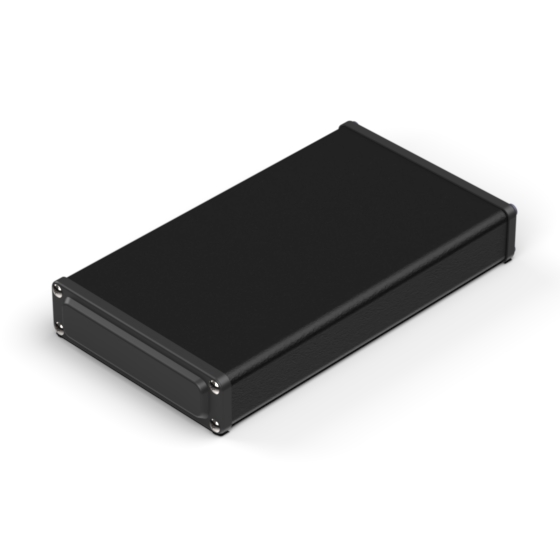

MTK6110.9 4,449 2,598 0,709 9004
ALLOY 6060 4,331 2,457 8 - PDF
DWG
View
  • Color (Ral): 9004
  • Material: ALLOY 6060
  • MAX PCB L (mm): 110
  • MAX PCB W (mm): 62,4
  • Screws: 8
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

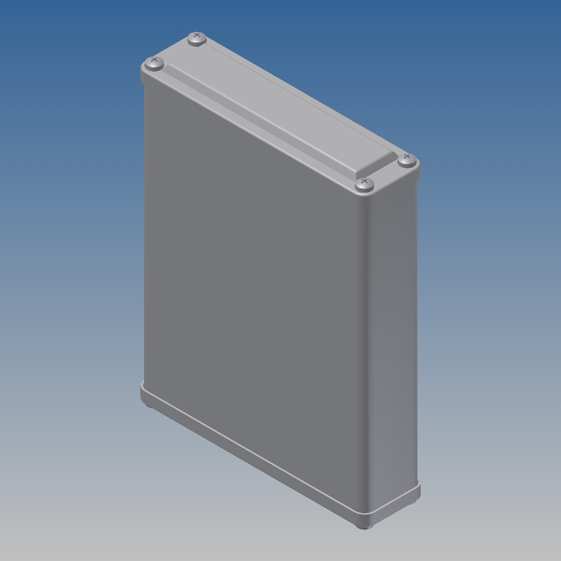

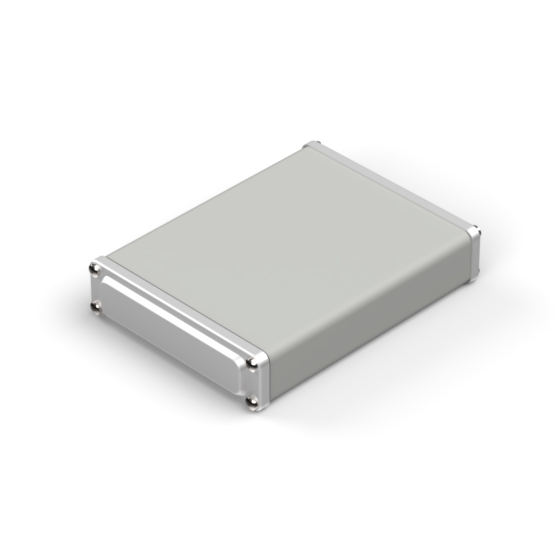

MTK680.1 3,268 2,598 0,709 9006
ALLOY 6060 3,150 2,457 8 - PDF
DWG
View
  • Color (Ral): 9006
  • Material: ALLOY 6060
  • MAX PCB L (mm): 80
  • MAX PCB W (mm): 62,4
  • Screws: 8
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

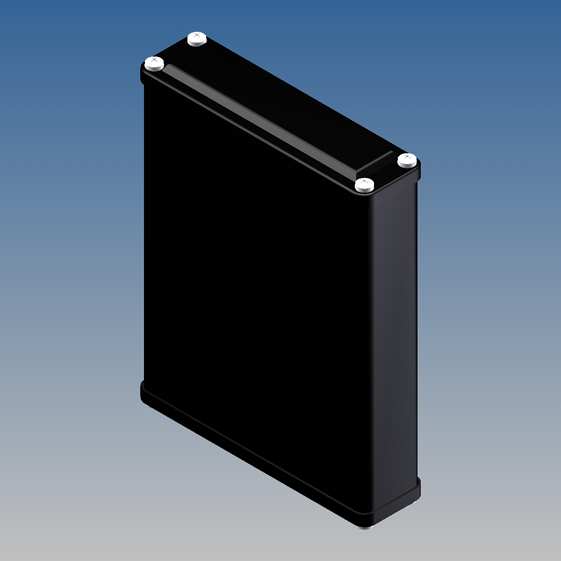

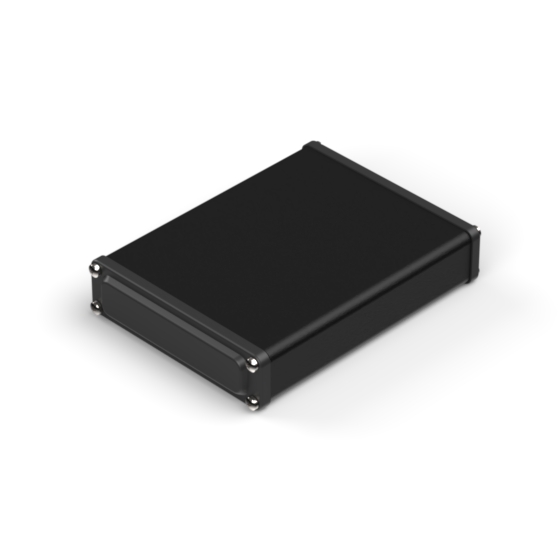

MTK680.9 3,268 2,598 0,709 9004
ALLOY 6060 3,150 2,457 8 - PDF
DWG
View
  • Color (Ral): 9004
  • Material: ALLOY 6060
  • MAX PCB L (mm): 80
  • MAX PCB W (mm): 62,4
  • Screws: 8
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG
