MINITEKMAG

Family Aluminium - Electronic enclosures - Metal

Description

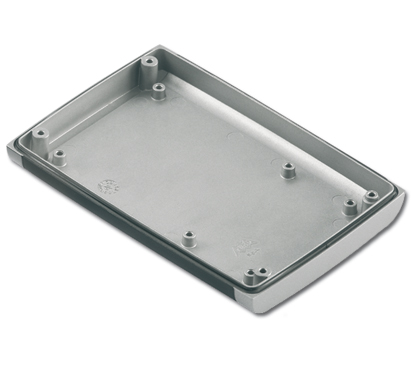

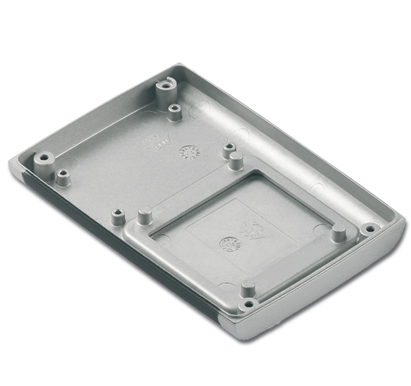

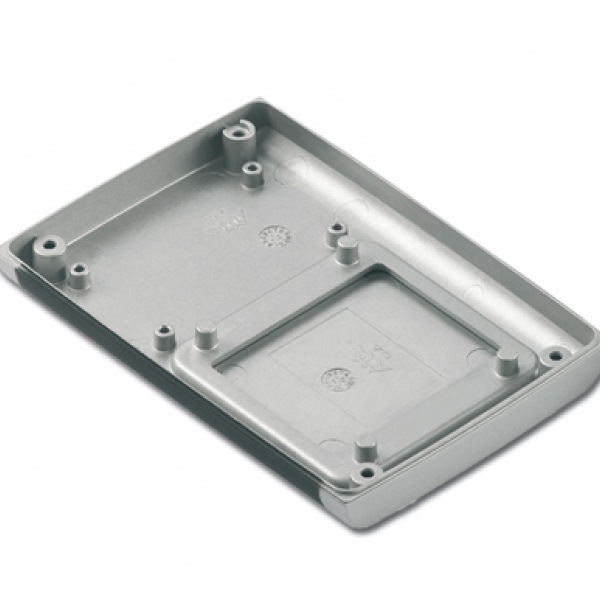

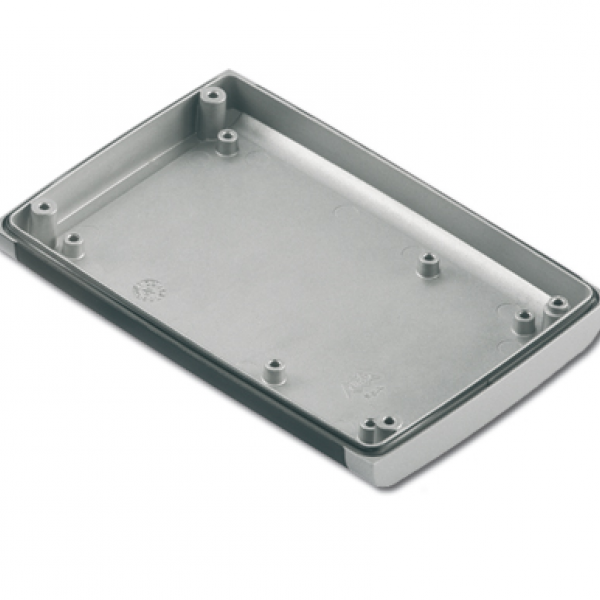

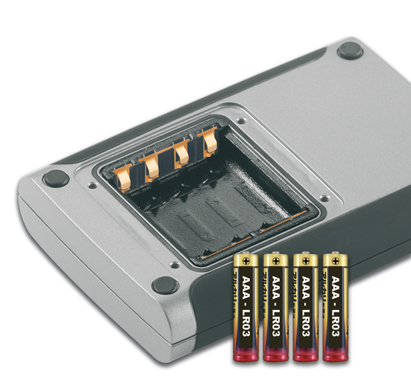

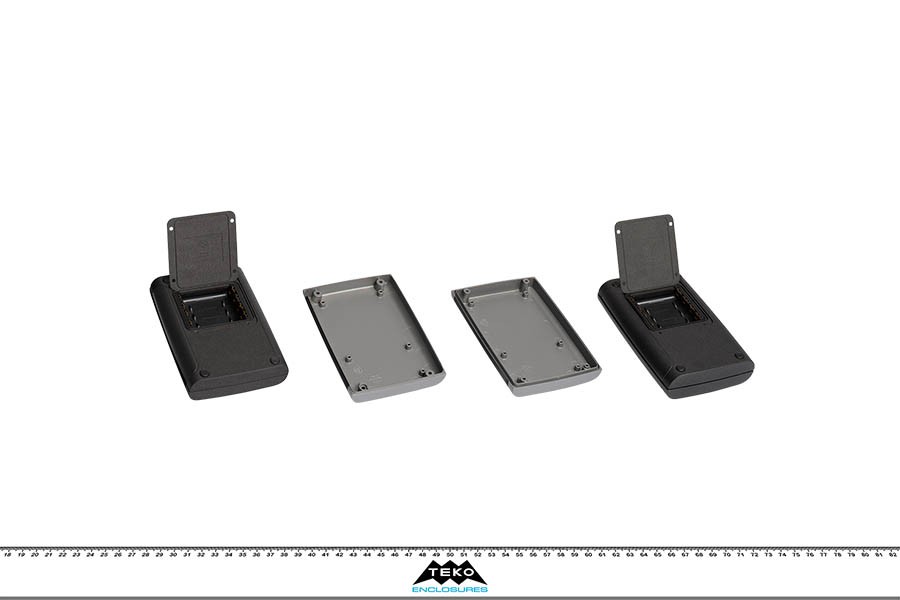

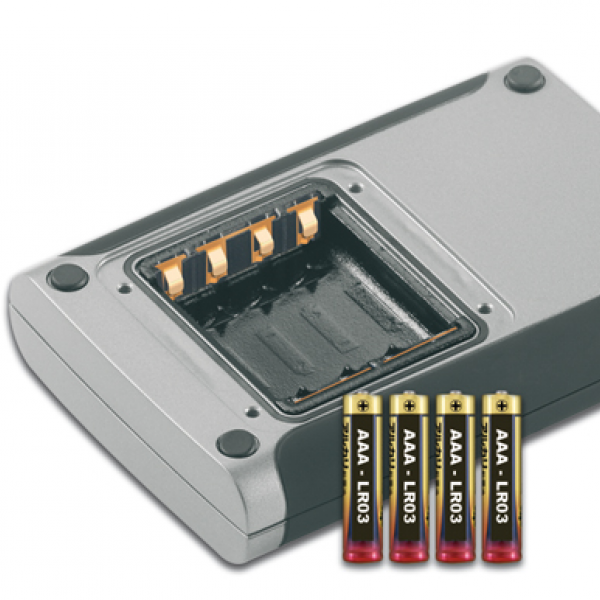

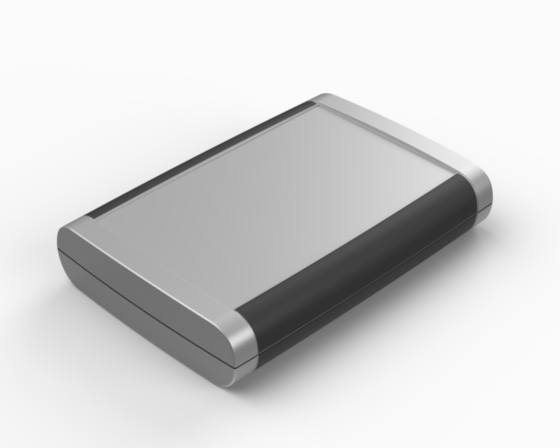

TEKO introduces a new model in the TEKMAG range with different dimensions. Hand-held enclosure , moulded in TEKNIUM®, a special magnesium alloy, that will convince You thanks to the ultra-light weight, the absolute strength, and the shielding properties of the three models available. The side profiles have a special black soft-feel surface to assure a secure grip. The model is equipped with IP67 sealing kits. The versions with “B” have a battery compartment for two 1,5 mignon cells (AAA) while the models with “B2” have a battery compartment for four 1,5V mignon cells (AAA). The recessed area on the covers can accept a keypad membrane or a LCD display. Closure by four screws. Two-tone colour version: Graphite grey /Black RAL 9004.

Details

Products

Model L (inch) W (inch) H (inch) Color (Ral) Material MAX PCB L (inch) MAX PCB W (inch) Screws Battery Accessories Drawings Other
MTG01-B2K.34 4,921 3,425 0,925 9004
AZ91D 4,528 3,031 4+4 4 x AAA PDF
View
  • Color (Ral): 9004
  • Material: AZ91D
  • MAX PCB L (mm): 115
  • MAX PCB W (mm): 77
  • Screws: 4+4
  • Battery: 4 x AAA
  • Accessories:
  • Drawings:  PDF
MTG01-BK.34 4,921 3,425 0,925 9004
AZ91D 4,528 3,031 4+4 2 x AAA PDF
View
  • Color (Ral): 9004
  • Material: AZ91D
  • MAX PCB L (mm): 115
  • MAX PCB W (mm): 77
  • Screws: 4+4
  • Battery: 2 x AAA
  • Accessories:
  • Drawings:  PDF

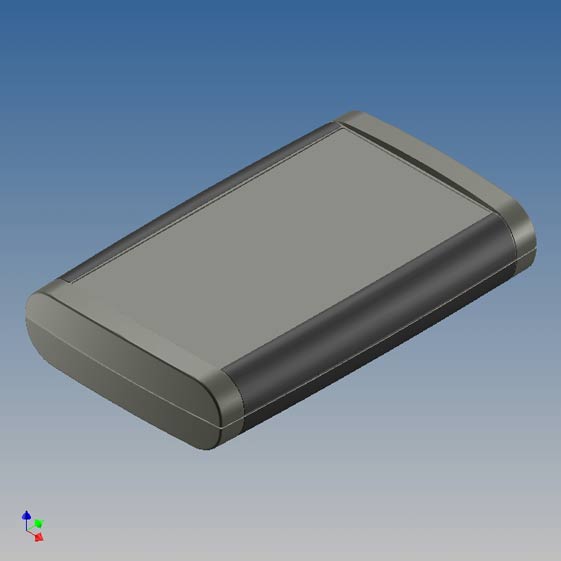

MTG01K.34 4,921 3,425 0,925 9004
AZ91D 4,528 3,031 4 - PDF
View
  • Color (Ral): 9004
  • Material: AZ91D
  • MAX PCB L (mm): 115
  • MAX PCB W (mm): 77
  • Screws: 4
  • Battery: -
  • Accessories:
  • Drawings:  PDF
