TEKAL 1

Family Aluminium - Electronic enclosures - Metal

Description

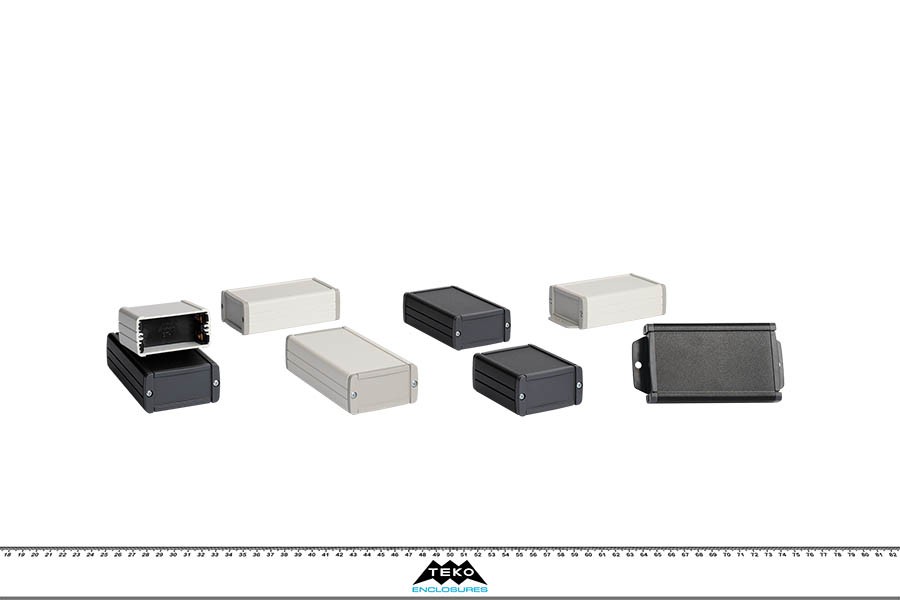

Extruded aluminium cases with high quality painted finishing. Two ABS front panels, internal slots for PCB’s and a recessed area for a keypad membrane. The model with “-B” has a battery compartment for two 1,5V mignon-cells (AA) or one 9V battery (PP3). Twelve standard models are available with different sizes. Closing by four screws.

Details

Products

Model L (inch) W (inch) H (inch) Color (Ral) Material MAX PCB L (inch) MAX PCB W (inch) Screws Battery Accessories Drawings Other

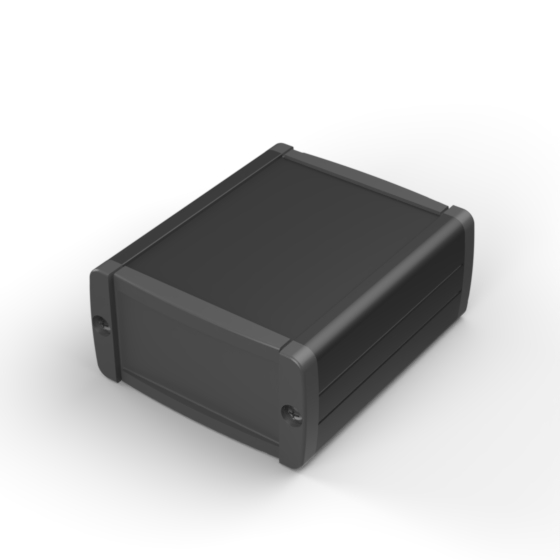

TEKAL-11.29 2,756 2,358 1,217 9004 7012
ALLOY 6060  -  1640 AS 2,362 2,185 4 - ALP-1
PDF
DWG
View

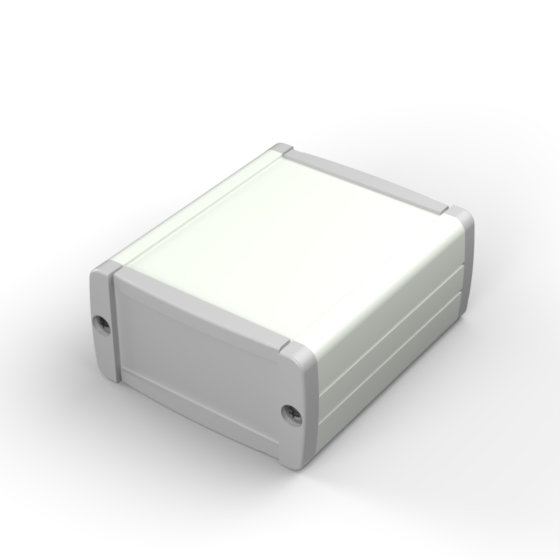

TEKAL-11.30 2,756 2,358 1,217 9002 9018
ALLOY 6060  -  1640 AS 2,362 2,185 4 - ALP-1
PDF
DWG
View

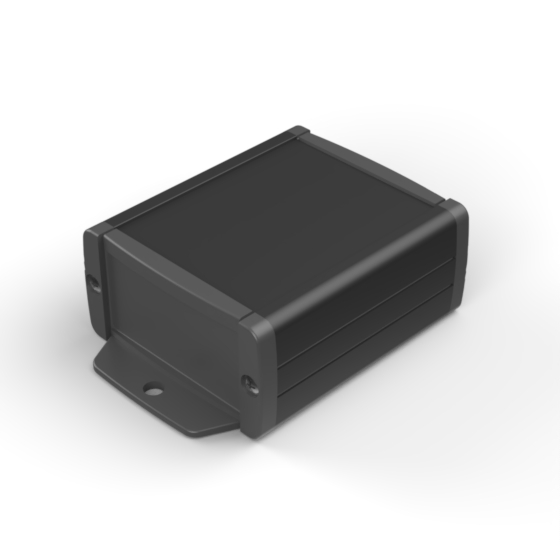

TEKAL-11/E.29 2,756 2,358 1,217 9004 7012
ALLOY 6060  -  1640 AS 2,362 2,185 4 - ALP-1
PDF
DWG
View

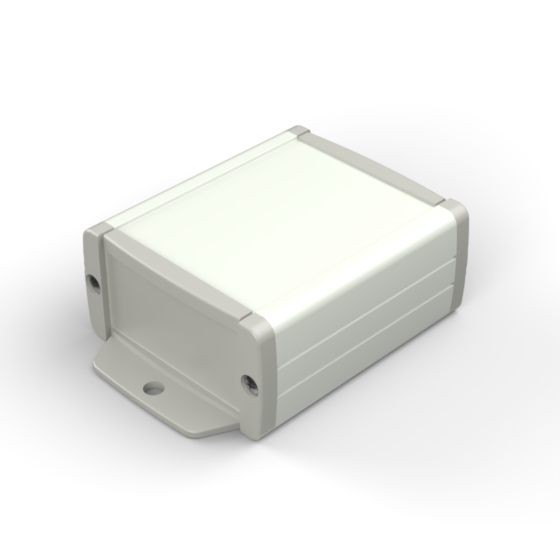

TEKAL-11/E.30 2,756 2,358 1,217 9002 9018
ALLOY 6060  -  1640 AS 2,362 2,185 4 - ALP-1
PDF
DWG
View

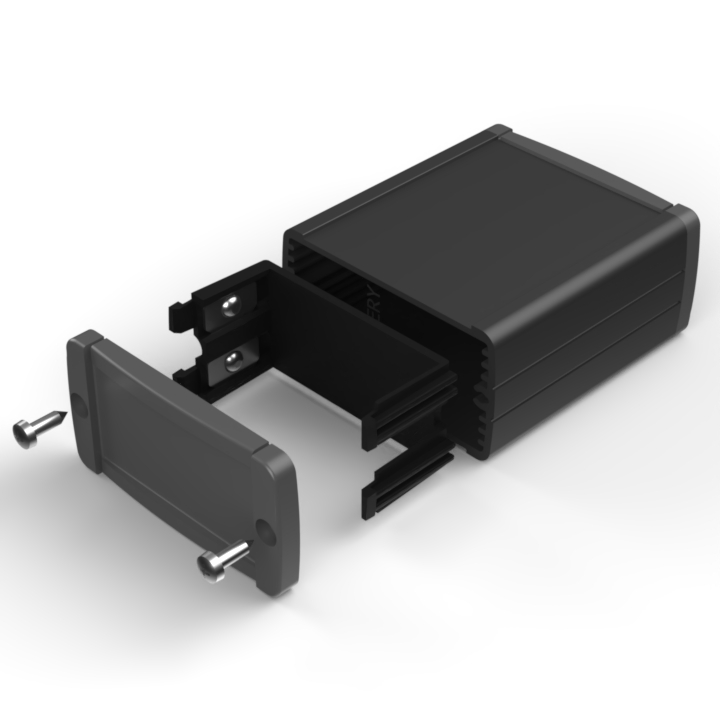

TEKAL-11B.29 2,756 2,358 1,217 9004 7012
ALLOY 6060  -  1640 AS 1,496 2,185 4 1 x 9V ALP-1
PDF
DWG
View

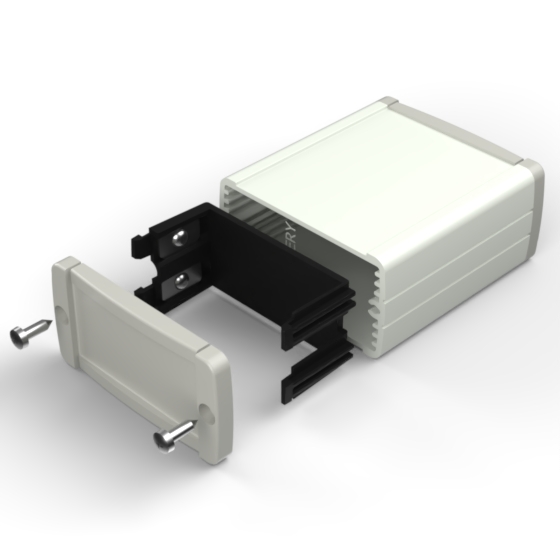

TEKAL-11B.30 2,756 2,358 1,217 9002 9018
ALLOY 6060  -  1640 AS 1,496 2,185 4 1 x 9V ALP-1
PDF
DWG
View

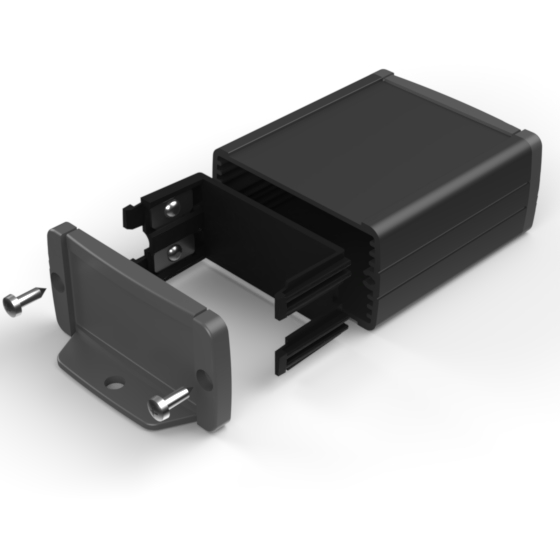

TEKAL-11B/E.29 2,756 2,358 1,217 9004 7012
ALLOY 6060  -  1640 AS 1,496 2,185 4 1 x 9V ALP-1
PDF
DWG
View

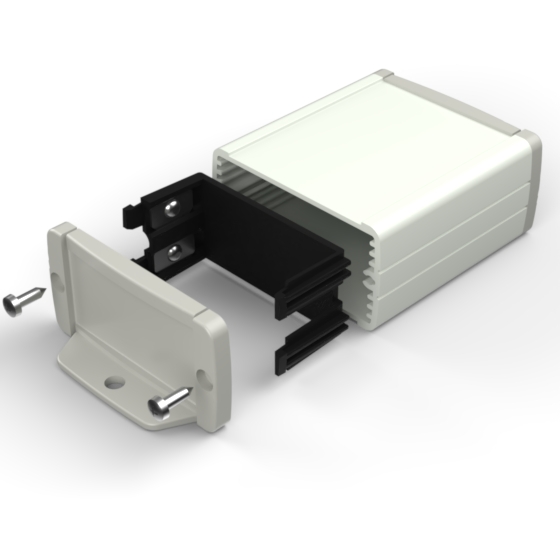

TEKAL-11B/E.30 2,756 2,358 1,217 9002 9018
ALLOY 6060  -  1640 AS 1,496 2,185 4 1 x 9V ALP-1
PDF
DWG
View

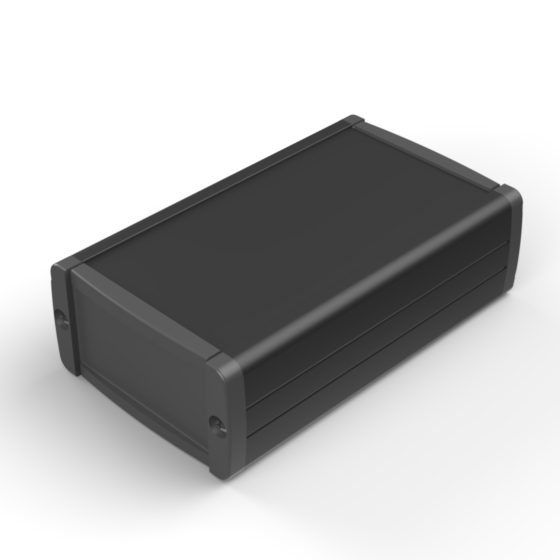

TEKAL-12.29 3,937 2,358 1,217 9004 7012
ALLOY 6060  -  1640 AS 3,543 2,185 4 - ALP-1
PDF
DWG
View

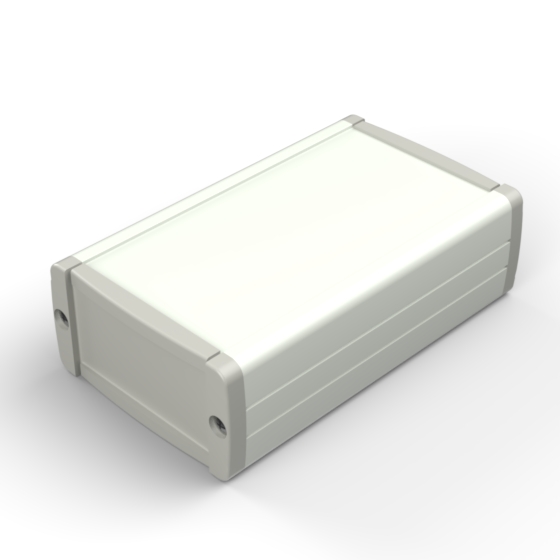

TEKAL-12.30 3,937 2,358 1,217 9002 9018
ALLOY 6060  -  1640 AS 3,543 2,185 4 - ALP-1
PDF
DWG
View

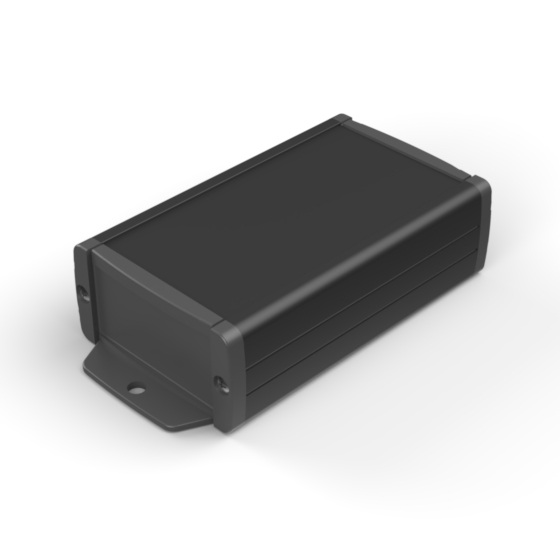

TEKAL-12/E.29 3,937 2,358 1,217 9004 7012
ALLOY 6060  -  1640 AS 3,543 2,185 4 - ALP-1
PDF
DWG
View

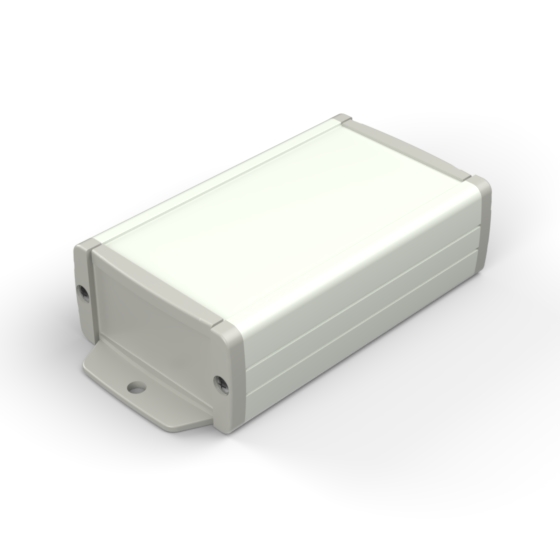

TEKAL-12/E.30 3,937 2,358 1,217 9002 9018
ALLOY 6060  -  1640 AS 3,543 2,185 4 - ALP-1
PDF
DWG
View

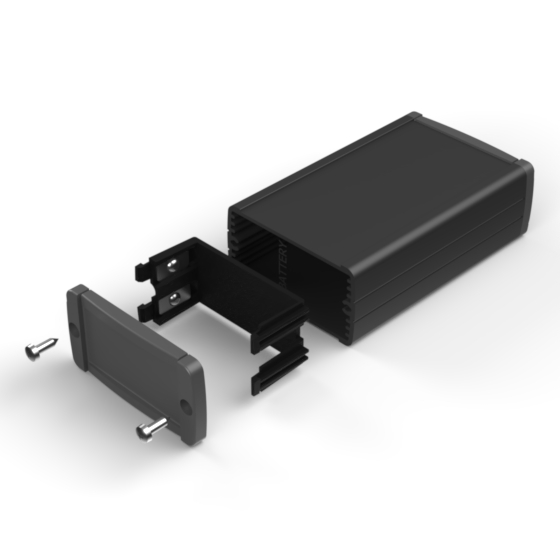

TEKAL-12B.29 3,937 2,358 1,217 9004 7012
ALLOY 6060  -  1640 AS 2,677 2,185 4 1 x 9V ALP-1
PDF
DWG
View

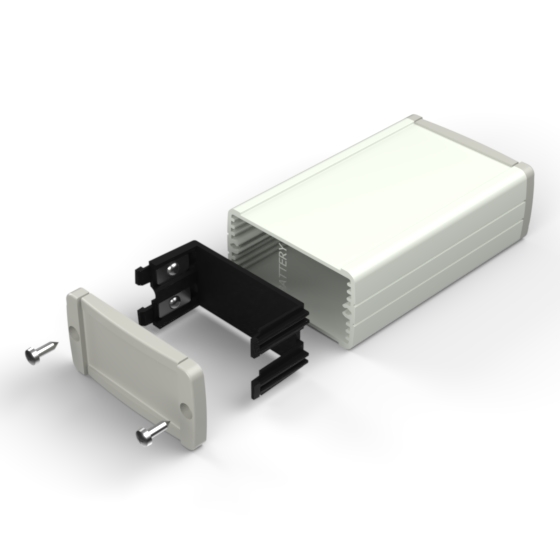

TEKAL-12B.30 3,937 2,358 1,217 9002 9018
ALLOY 6060  -  1640 AS 2,677 2,185 4 1 x 9V ALP-1
PDF
DWG
View

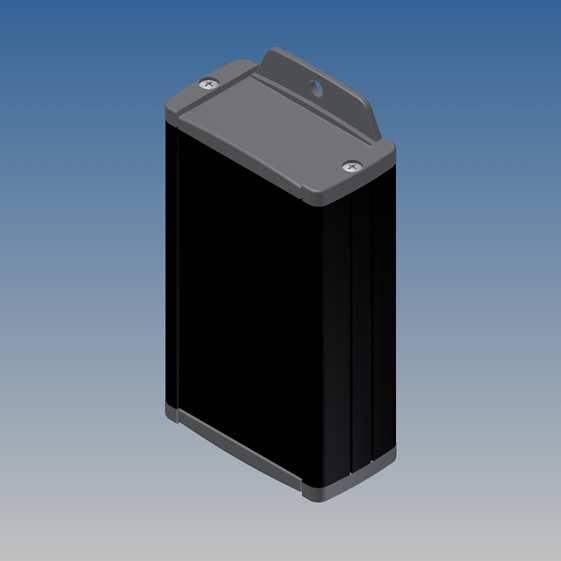

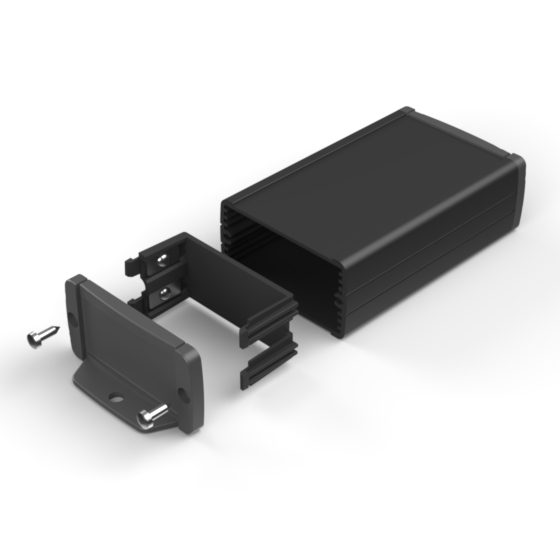

TEKAL-12B/E.29 3,937 2,358 1,217 9004 7012
ALLOY 6060  -  1640 AS 2,677 2,185 4 1 x 9V ALP-1
PDF
DWG
View

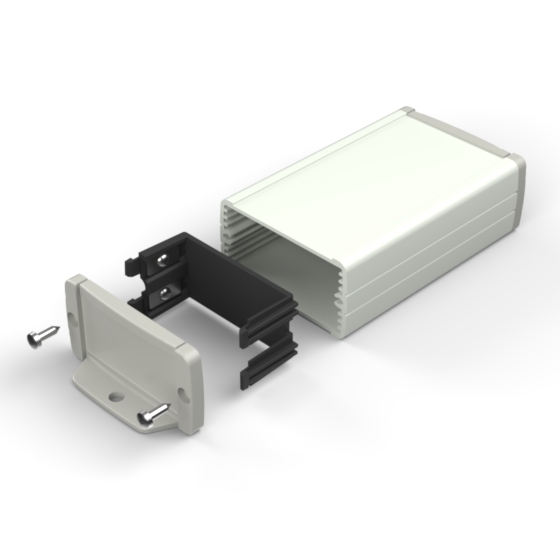

TEKAL-12B/E.30 3,937 2,358 1,217 9002 9018
ALLOY 6060  -  1640 AS 2,677 2,185 4 1 x 9V ALP-1
PDF
DWG
View

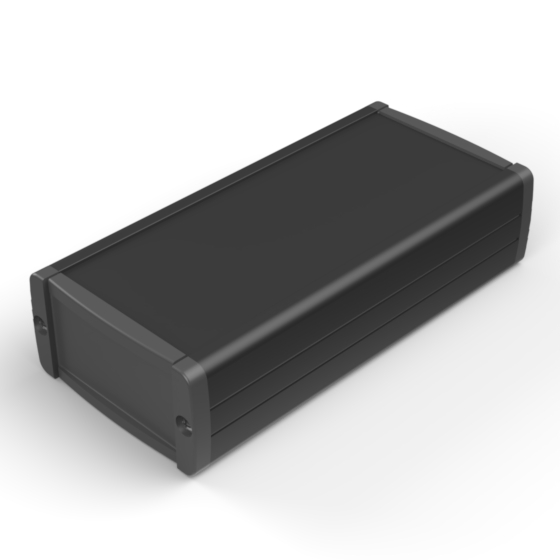

TEKAL-13.29 4,921 2,358 1,217 9004 7012
ALLOY 6060  -  1640 AS 4,528 2,185 4 - ALP-1
PDF
DWG
View

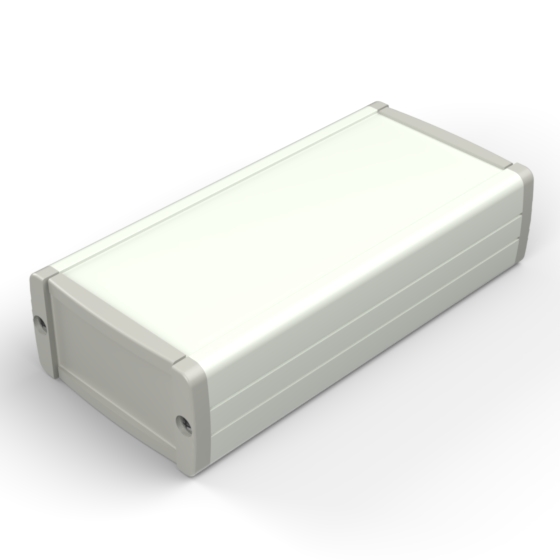

TEKAL-13.30 4,921 2,358 1,217 9002 9018
ALLOY 6060  -  1640 AS 4,528 2,185 4 - ALP-1
PDF
DWG
View

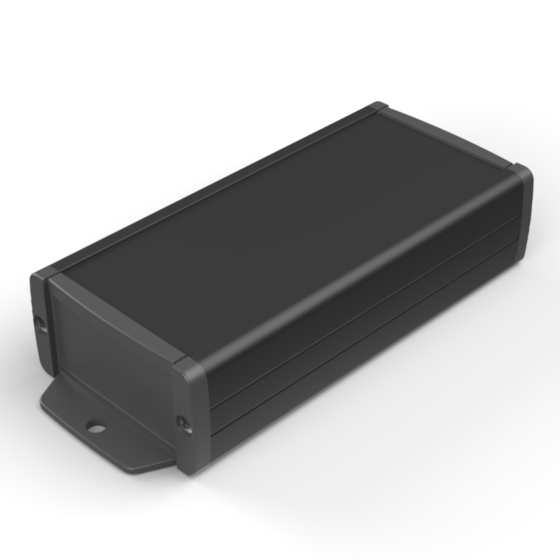

TEKAL-13/E.29 4,921 2,358 1,217 9004 7012
ALLOY 6060  -  1640 AS 4,528 2,185 4 - ALP-1
PDF
DWG
View

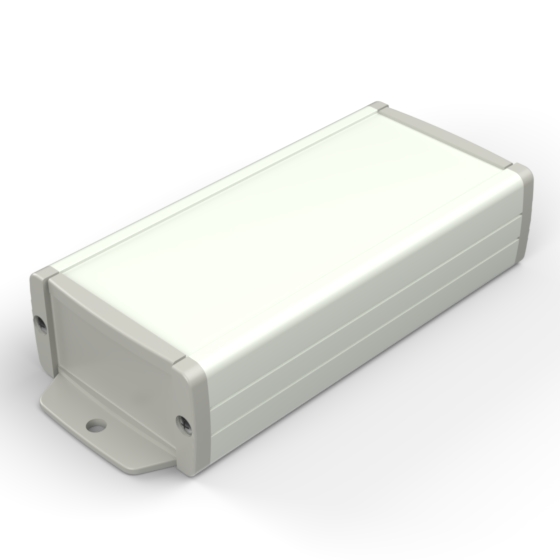

TEKAL-13/E.30 4,921 2,358 1,217 9002 9018
ALLOY 6060  -  1640 AS 4,528 2,185 4 - ALP-1
PDF
DWG
View

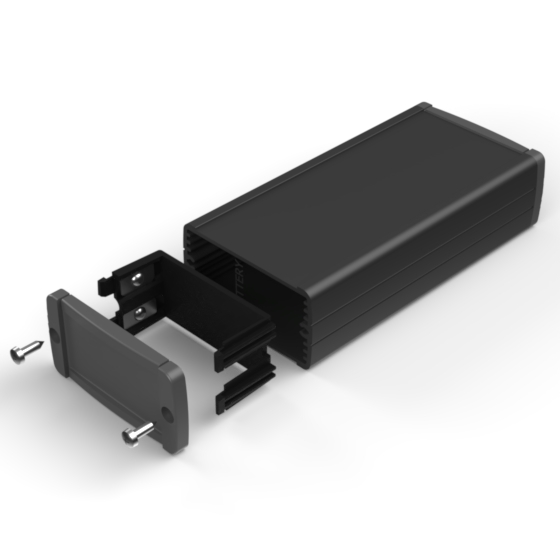

TEKAL-13B.29 4,921 2,358 1,217 9004 7012
ALLOY 6060  -  1640 AS 3,661 2,185 4 1 x 9V ALP-1
PDF
DWG
View

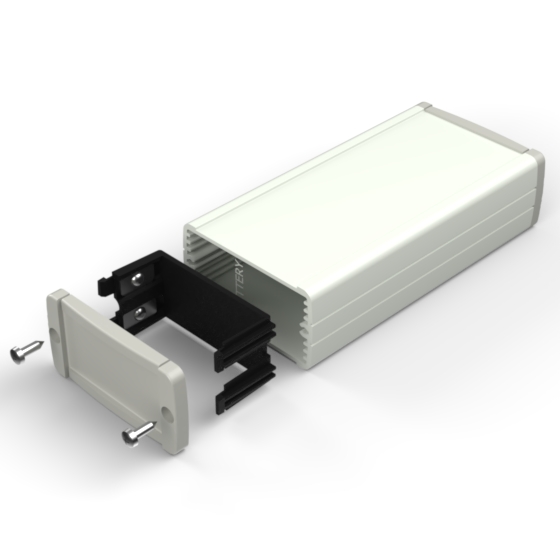

TEKAL-13B.30 4,921 2,358 1,217 9002 9018
ALLOY 6060  -  1640 AS 3,661 2,185 4 1 x 9V ALP-1
PDF
DWG
View

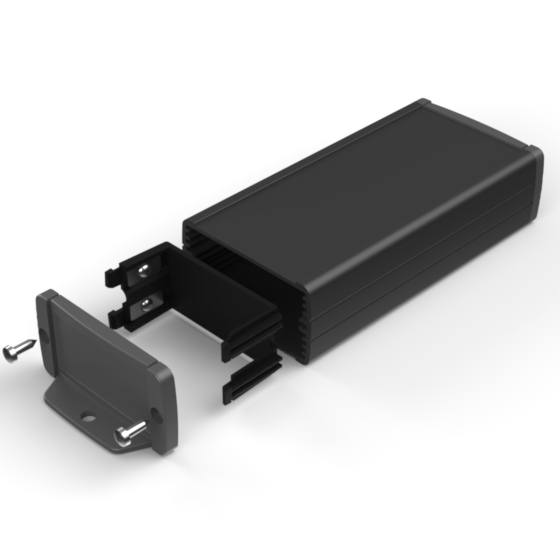

TEKAL-13B/E.29 4,921 2,358 1,217 9004 7012
ALLOY 6060  -  1640 AS 3,661 2,185 4 1 x 9V ALP-1
PDF
DWG
View

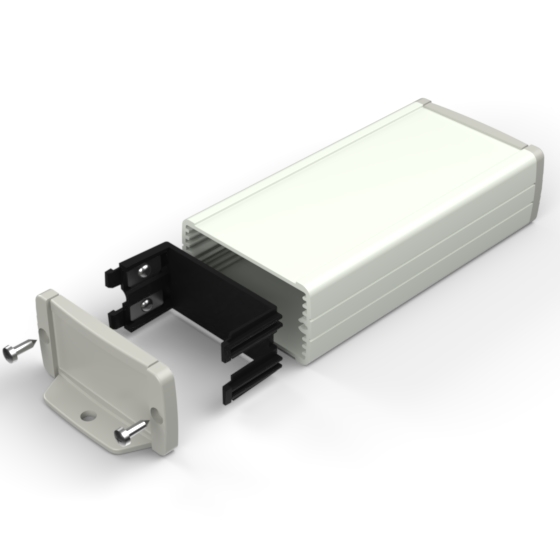

TEKAL-13B/E.30 4,921 2,358 1,217 9002 9018
ALLOY 6060  -  1640 AS 3,661 2,185 4 1 x 9V ALP-1
PDF
DWG
View
12 product families, 144 series. You can't find what you're looking for? Contact us
