TEKAL 2

Family Aluminium - Electronic enclosures - Metal

Description

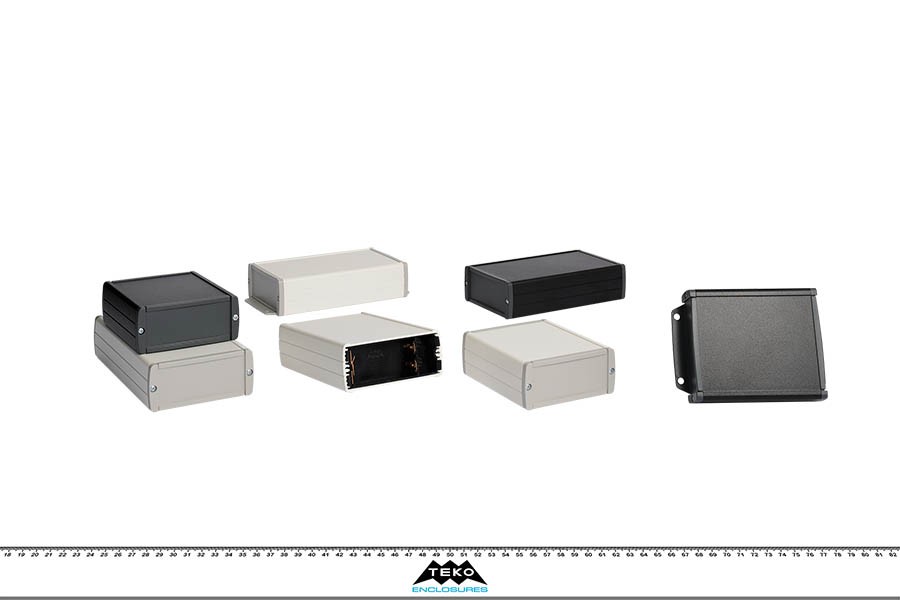

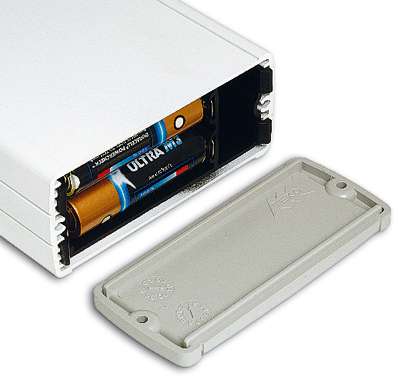

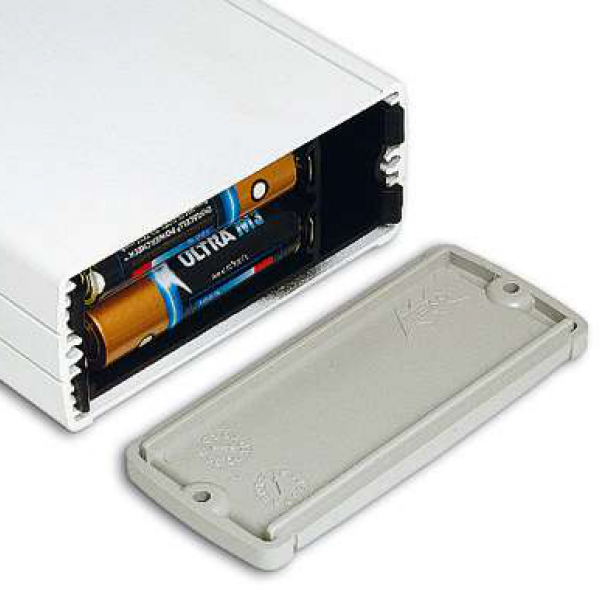

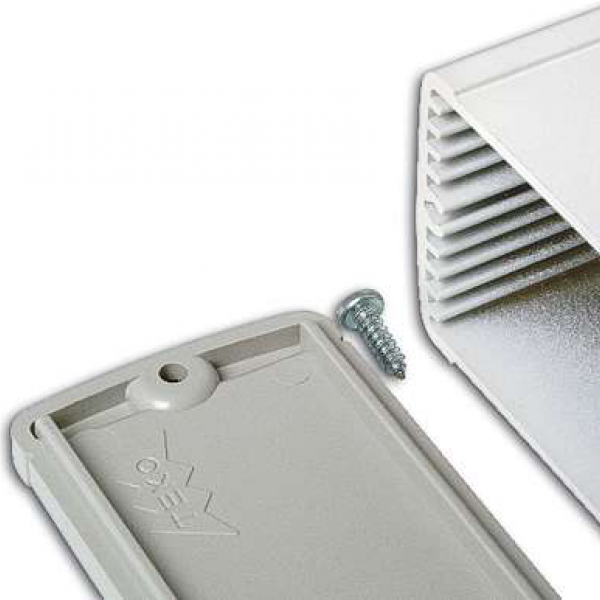

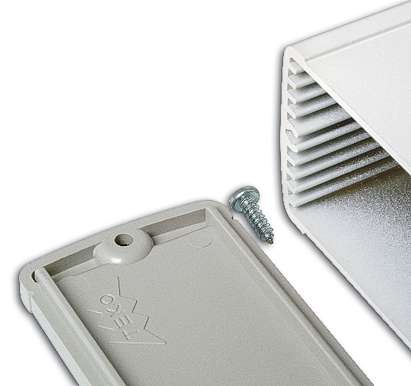

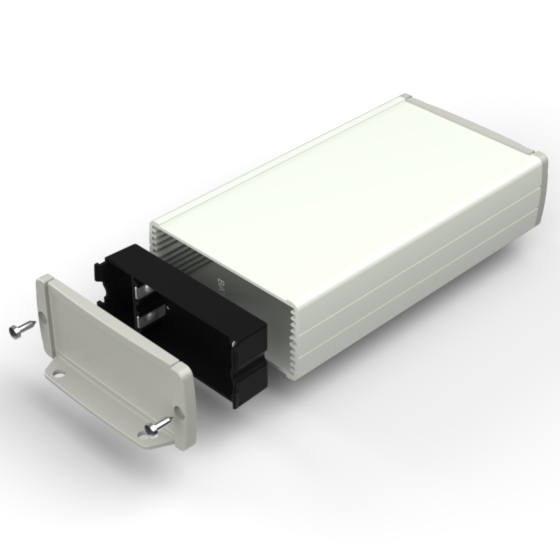

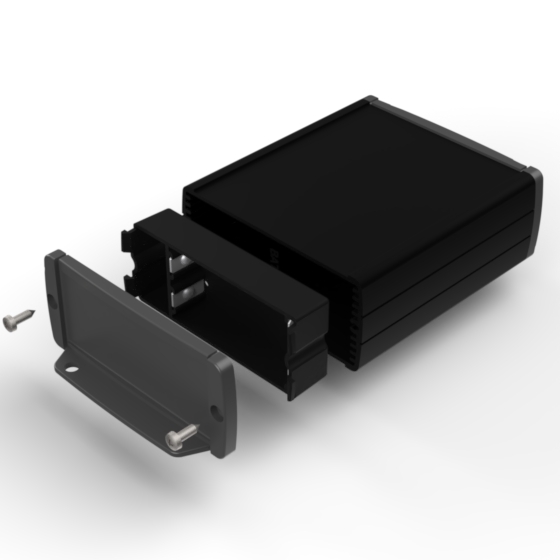

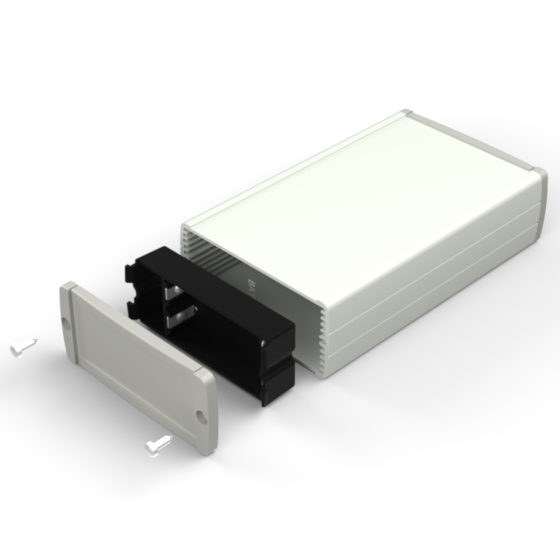

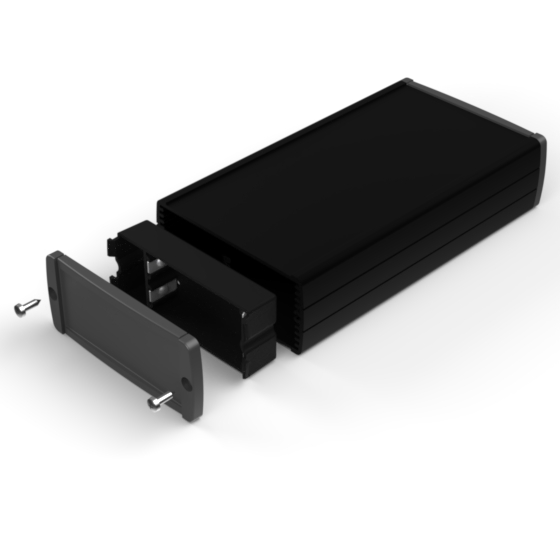

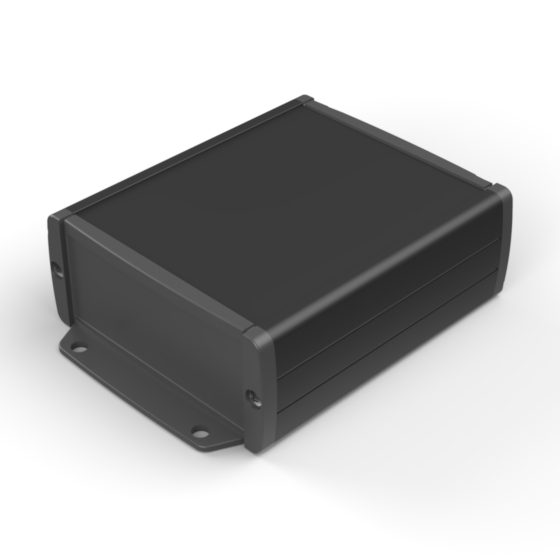

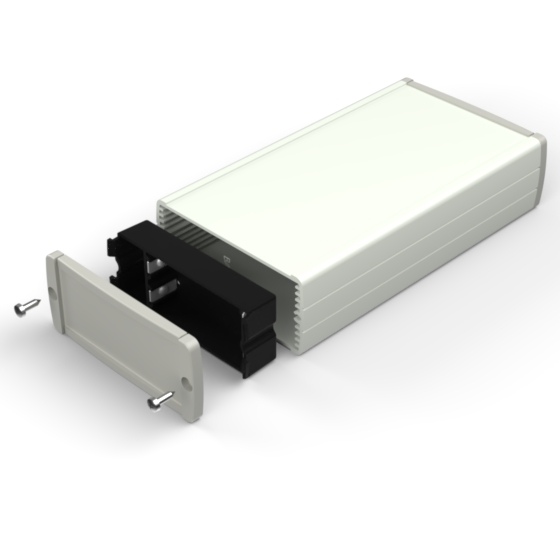

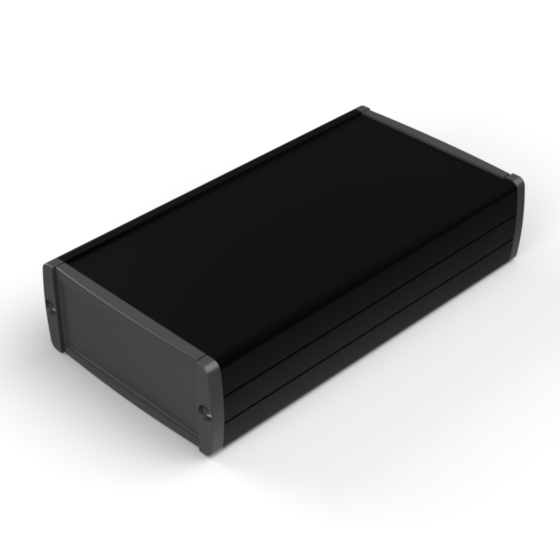

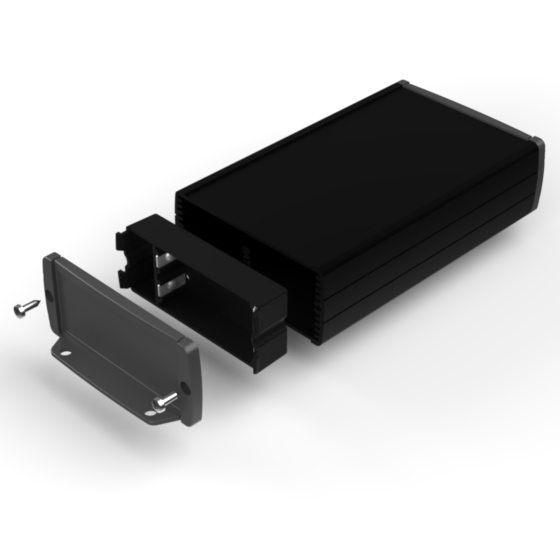

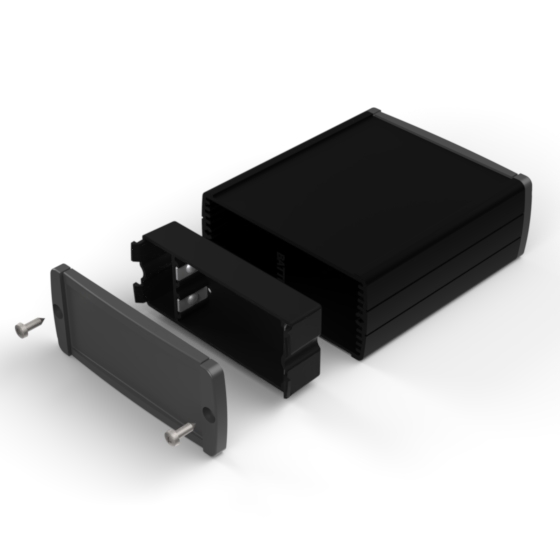

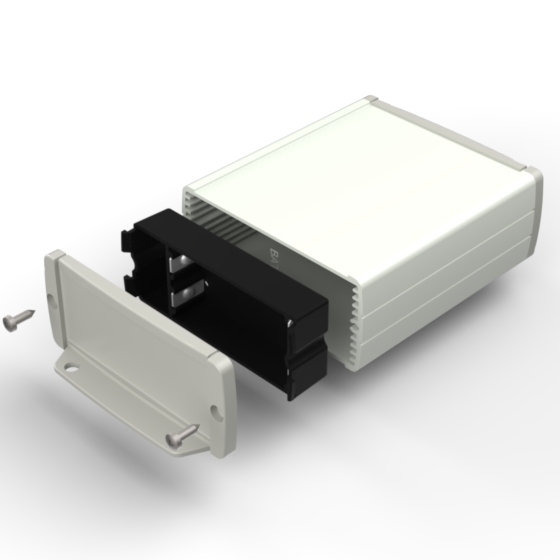

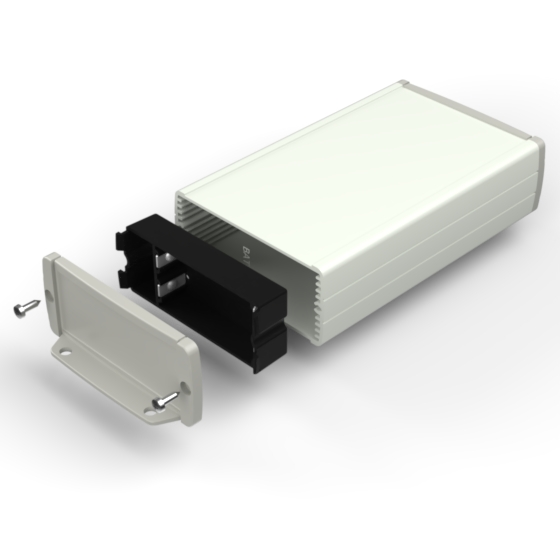

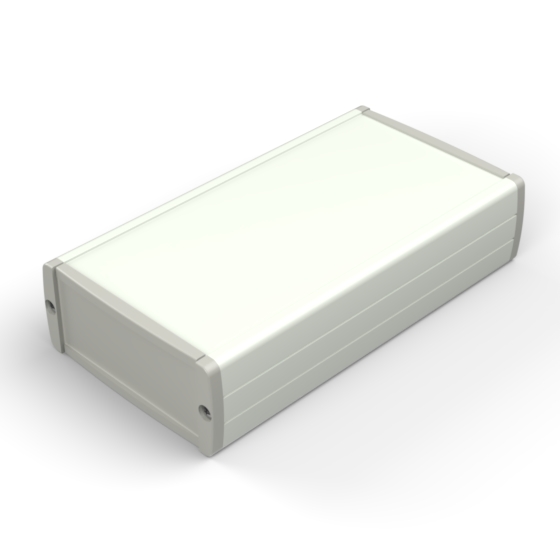

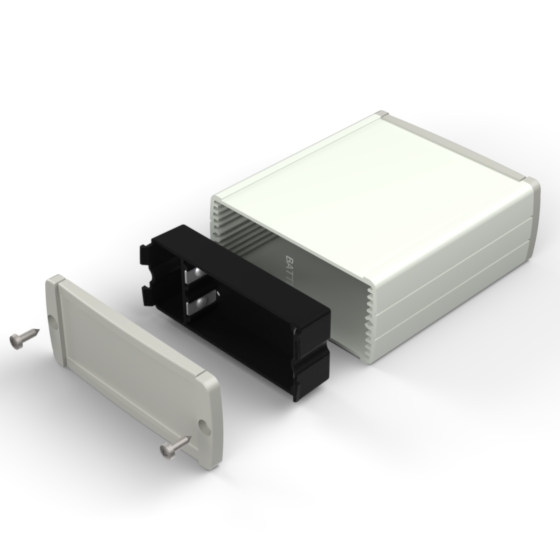

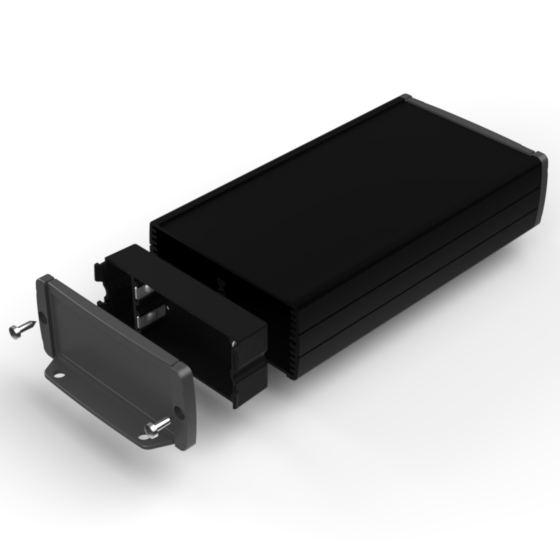

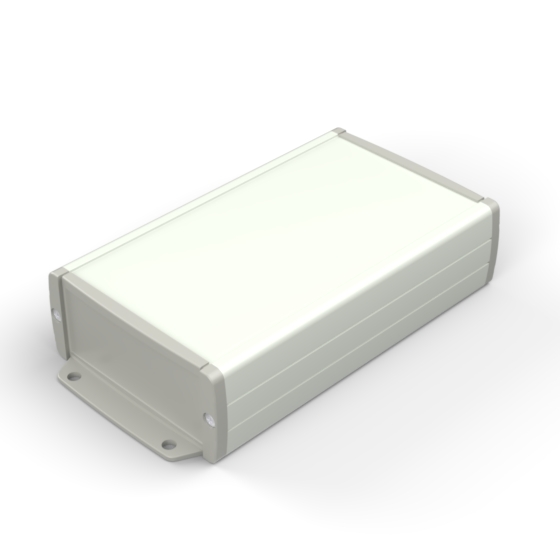

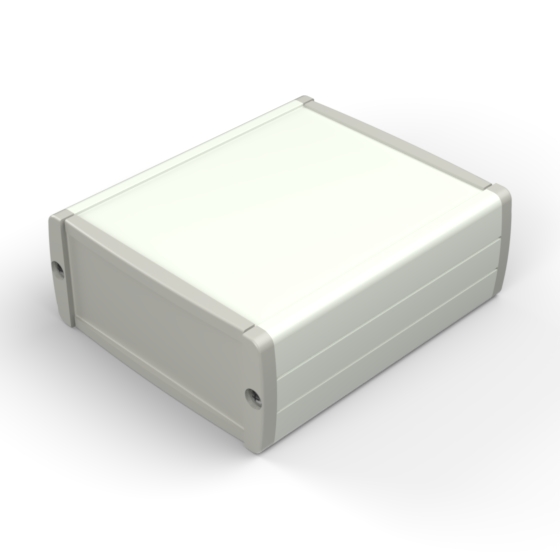

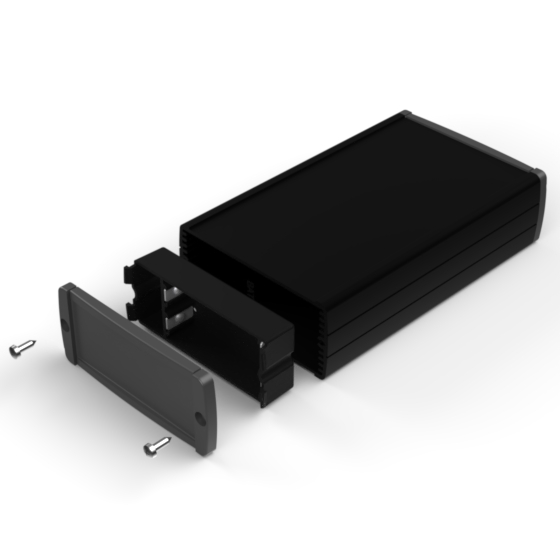

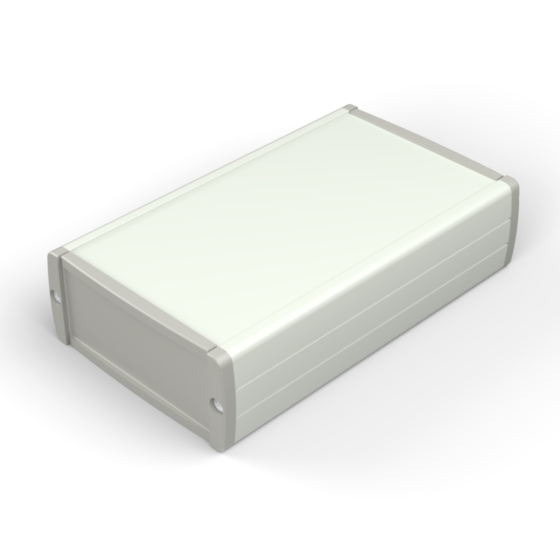

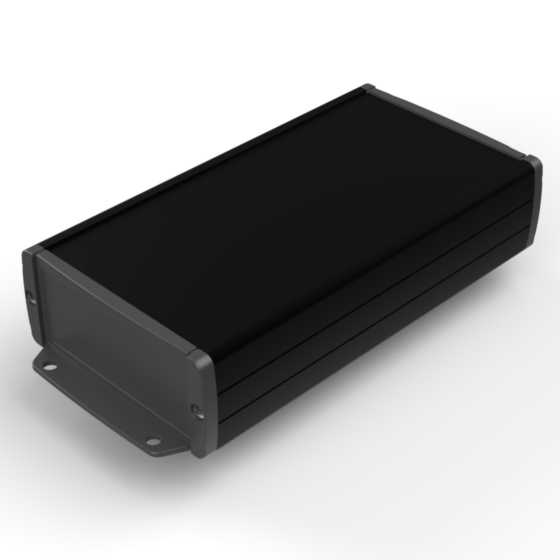

Extruded aluminium cases with high quality painted finishing. Two ABS front panels, internal slots for PCB’s and a recessed area for a keypad membrane. The model with “-B” has a battery compartment for two 1,5V mignon-cells (AA) or one 9V battery (PP3). Twelve standard models are available with different sizes. Closing by four screws.

Details

Products

Model L (inch) W (inch) H (inch) Color (Ral) Material MAX PCB L (inch) MAX PCB W (inch) Screws Battery Accessories Drawings Other

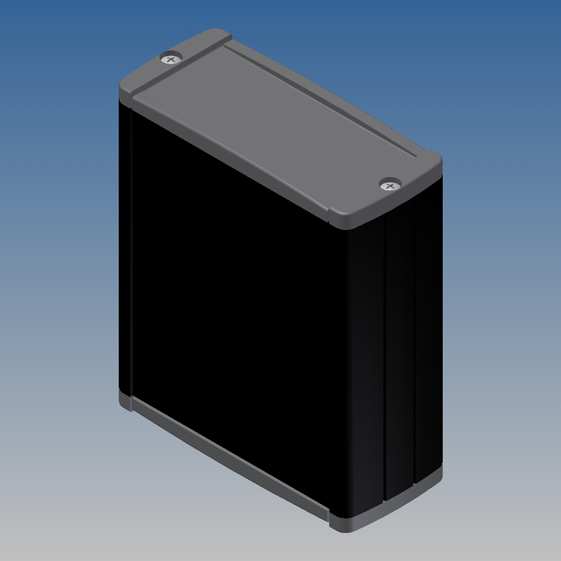

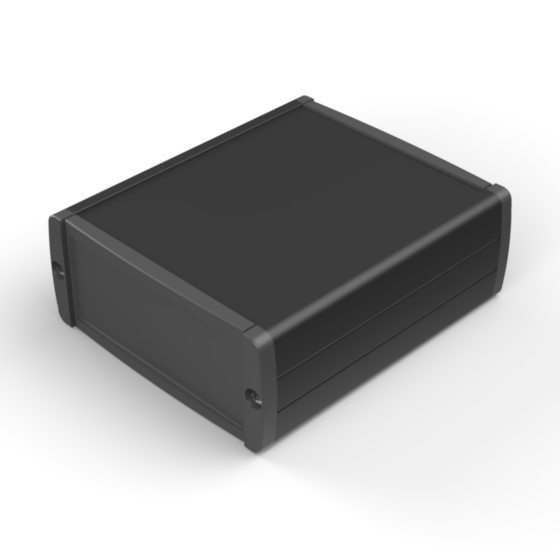

TEKAL-21.29 3,937 3,378 1,453 9004 7012
ALLOY 6060  -  1640 AS 3,543 3,169 4 - ALP-2
PDF
DWG
View

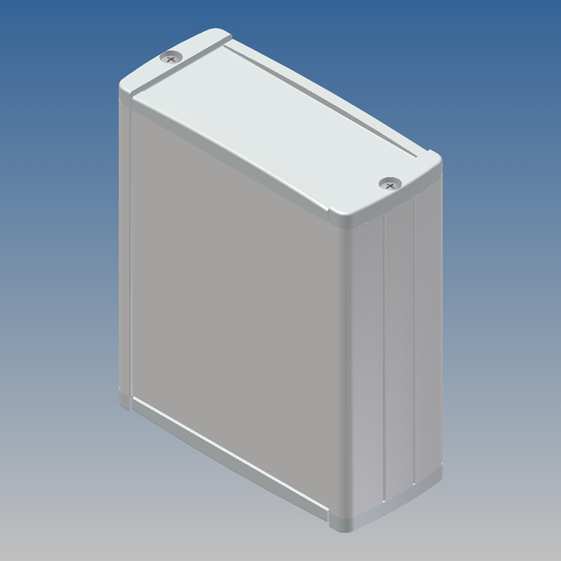

TEKAL-21.30 3,937 3,378 1,453 9002 9018
ALLOY 6060  -  1640 AS 3,543 3,169 4 - ALP-2
PDF
DWG
View

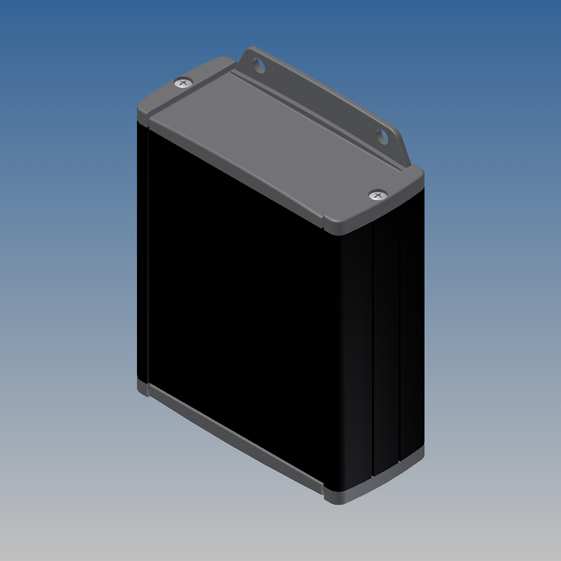

TEKAL-21/E.29 3,937 3,378 1,453 9004 7012
ALLOY 6060  -  1640 AS 3,543 3,169 4 - ALP-2
PDF
DWG
View

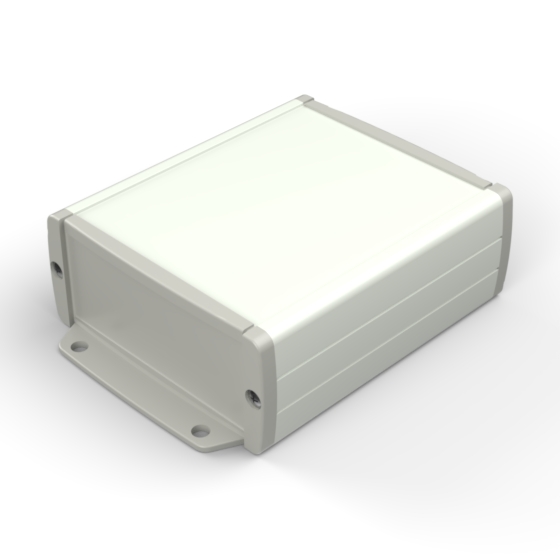

TEKAL-21/E.30 3,937 3,378 1,453 9002 9018
ALLOY 6060  -  1640 AS 3,543 3,169 4 - ALP-2
PDF
DWG
View
TEKAL-21B.29 3,937 3,378 1,453 9004 7012
ALLOY 6060  -  1640 AS 2,835 3,169 4 2 x AA / 1 x 9V ALP-2
PDF
DWG
View
TEKAL-21B.30 3,937 3,378 1,453 9002 9018
ALLOY 6060  -  1640 AS 2,835 3,169 4 2 x AA / 1 x 9V ALP-2
PDF
DWG
View

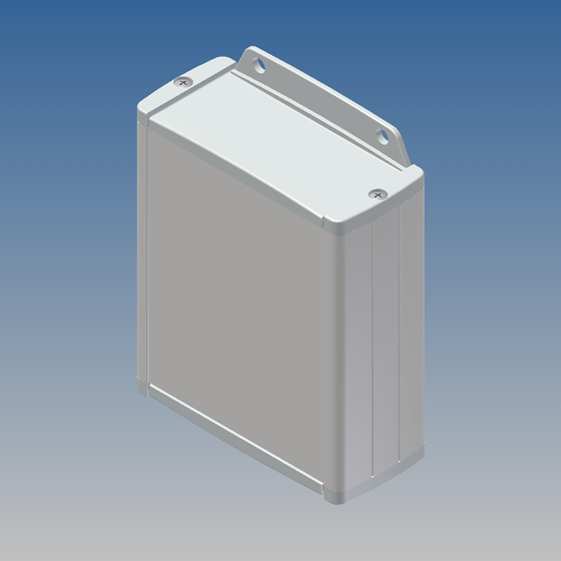

TEKAL-21B/E.29 3,937 3,378 1,453 9004 7012
ALLOY 6060  -  1640 AS 2,835 3,169 4 2 x AA / 1 x 9V ALP-2
PDF
DWG
View
TEKAL-21B/E.30 3,937 3,378 1,453 9002 9018
ALLOY 6060  -  1640 AS 2,835 3,169 4 2 x AA / 1 x 9V ALP-2
PDF
DWG
View

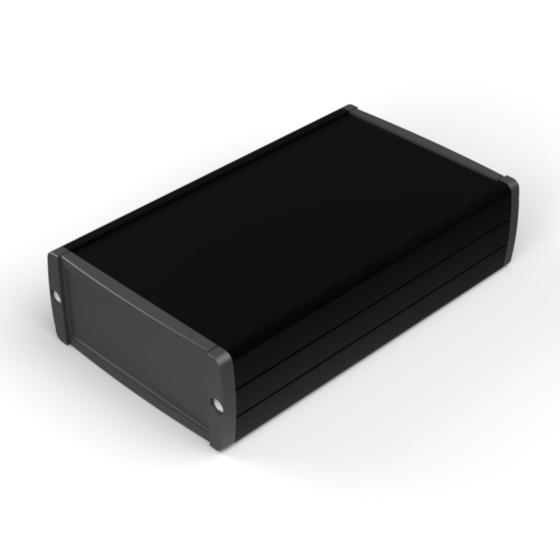

TEKAL-22.29 5,709 3,378 1,453 9004 7012
ALLOY 6060  -  1640 AS 5,315 3,169 4 - ALP-2
M
M58
M59
MW
PDF
DWG
View

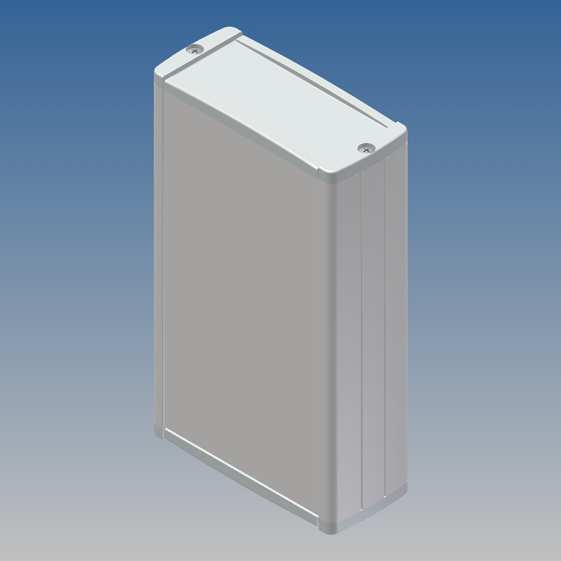

TEKAL-22.30 5,709 3,378 1,453 9002 9018
ALLOY 6060  -  1640 AS 5,315 3,169 4 - ALP-2
M
M58
M59
MW
PDF
DWG
View

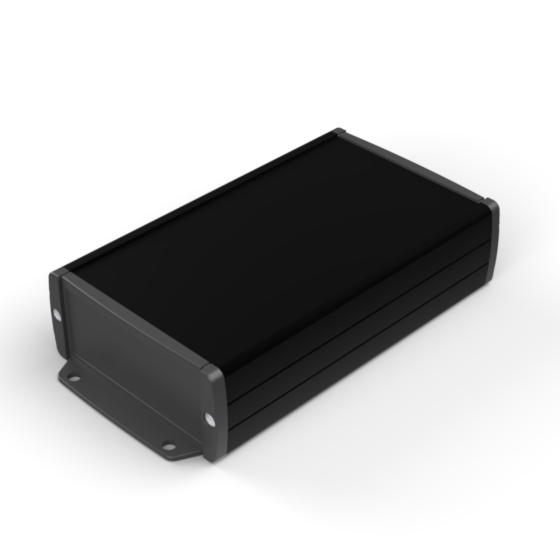

TEKAL-22/E.29 5,709 3,378 1,453 9004 7012
ALLOY 6060  -  1640 AS 5,315 3,169 4 - ALP-2
PDF
DWG
View

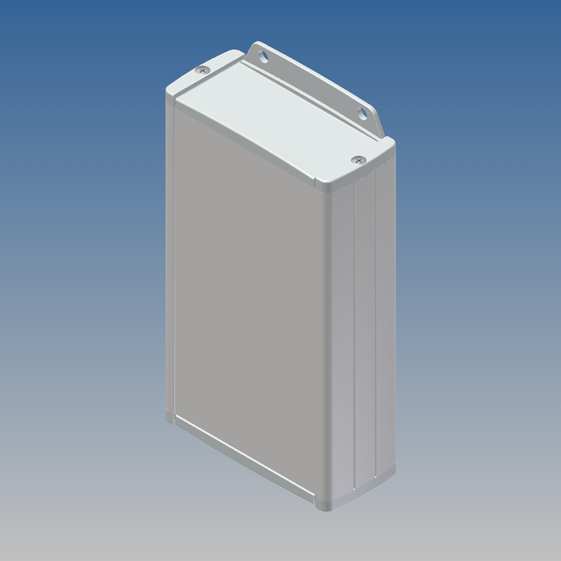

TEKAL-22/E.30 5,709 3,378 1,453 9002 9018
ALLOY 6060  -  1640 AS 5,315 3,169 4 - ALP-2
PDF
DWG
View

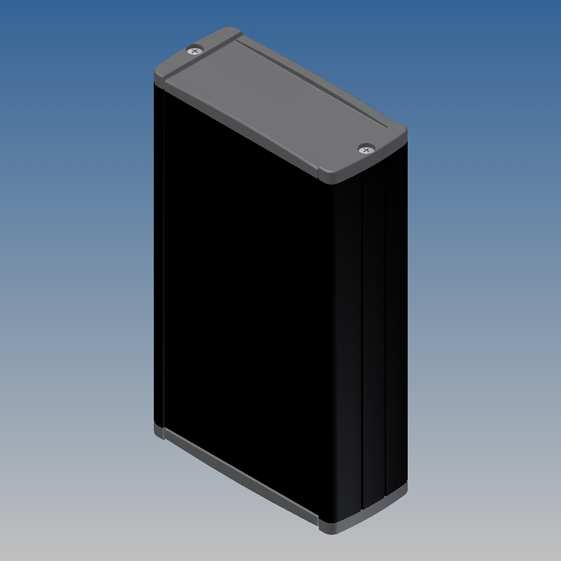

TEKAL-22B.29 5,709 3,378 1,453 9004 7012
ALLOY 6060  -  1640 AS 4,606 3,169 4 2 x AA / 1 x 9V ALP-2
M
M58
M59
MW
PDF
DWG
View
TEKAL-22B.30 5,709 3,378 1,453 9002 9018
ALLOY 6060  -  1640 AS 4,606 3,169 4 2 x AA / 1 x 9V ALP-2
M
M58
M59
MW
PDF
DWG
View

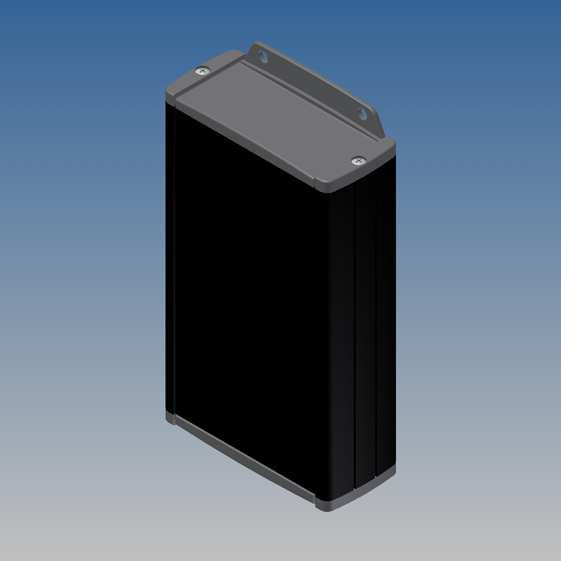

TEKAL-22B/E.29 5,709 3,378 1,453 9004 7012
ALLOY 6060  -  1640 AS 4,606 3,169 4 2 x AA / 1 x 9V ALP-2
PDF
DWG
View
TEKAL-22B/E.30 5,709 3,378 1,453 9002 9018
ALLOY 6060  -  1640 AS 4,606 3,169 4 2 x AA / 1 x 9V ALP-2
PDF
DWG
View

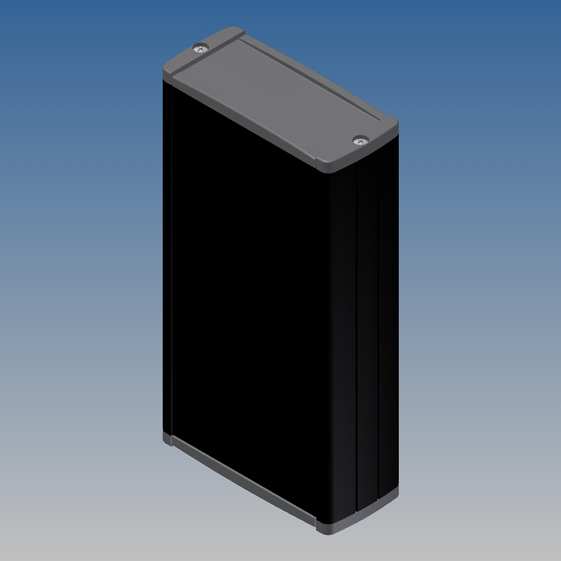

TEKAL-23.29 6,299 3,378 1,453 9004 7012
ALLOY 6060  -  1640 AS 5,906 3,169 4 - ALP-2
PDF
DWG
View

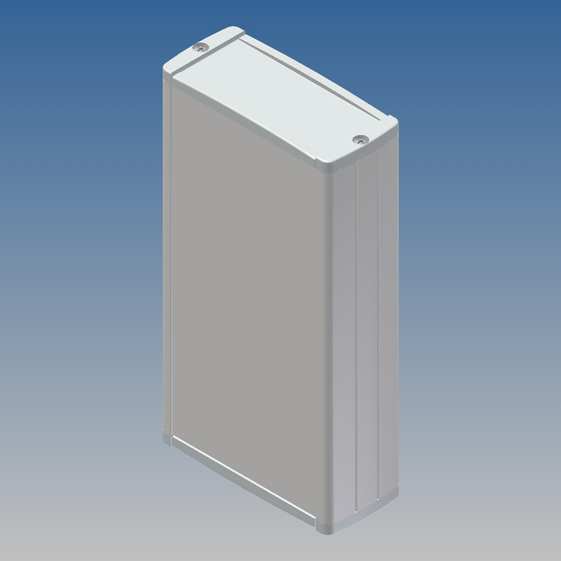

TEKAL-23.30 6,299 3,378 1,453 9002 9018
ALLOY 6060  -  1640 AS 5,906 3,169 4 - ALP-2
PDF
DWG
View
TEKAL-23/E.29 6,299 3,378 1,453 9004 7012
ALLOY 6060  -  1640 AS 5,906 3,169 4 - ALP-2
PDF
DWG
View

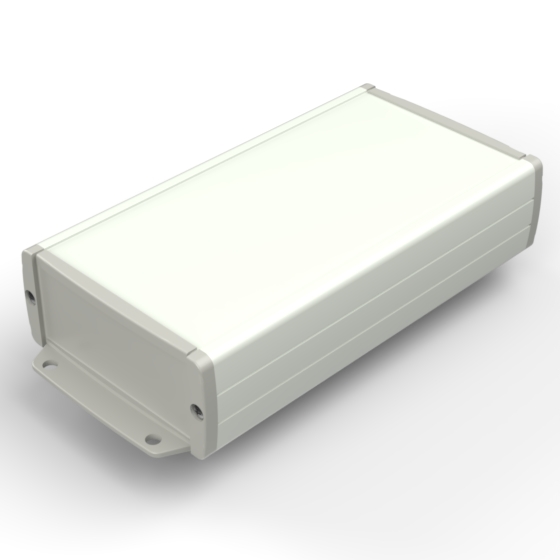

TEKAL-23/E.30 6,299 3,378 1,453 9002 9018
ALLOY 6060  -  1640 AS 5,906 3,169 4 - ALP-2
PDF
DWG
View
TEKAL-23B.29 6,299 3,378 1,453 9004 7012
ALLOY 6060  -  1640 AS 5,197 3,169 4 2 x AA / 1 x 9V ALP-2
PDF
DWG
View
TEKAL-23B.30 6,299 3,378 1,453 9002 9018
ALLOY 6060  -  1640 AS 5,197 3,169 4 2 x AA / 1 x 9V ALP-2
PDF
DWG
View

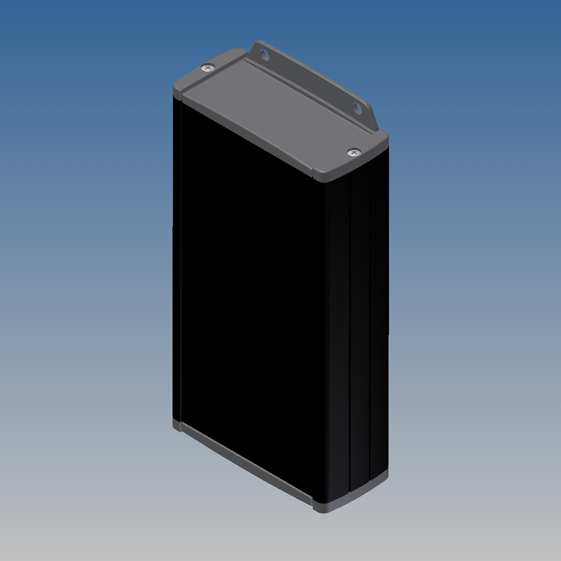

TEKAL-23B/E.29 6,299 3,378 1,453 9004 7012
ALLOY 6060  -  1640 AS 5,197 3,169 4 2 x AA / 1 x 9V ALP-2
PDF
DWG
View

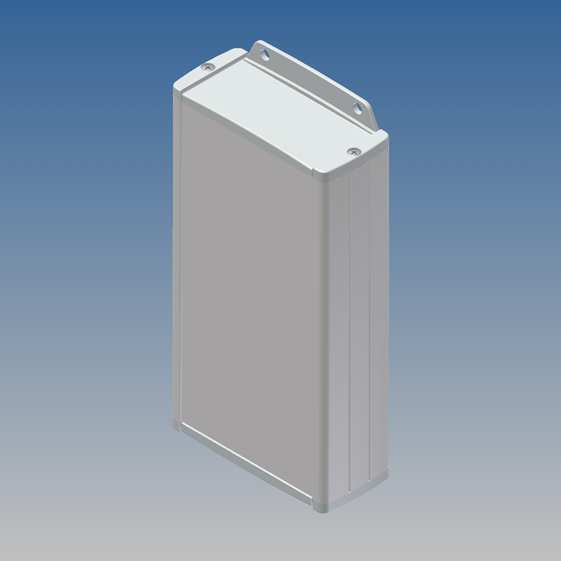

TEKAL-23B/E.30 6,299 3,378 1,453 9002 9018
ALLOY 6060  -  1640 AS 5,197 3,169 4 2 x AA / 1 x 9V ALP-2
PDF
DWG
View
