TEKAL 4

Family Aluminium - Electronic enclosures - Metal

Description

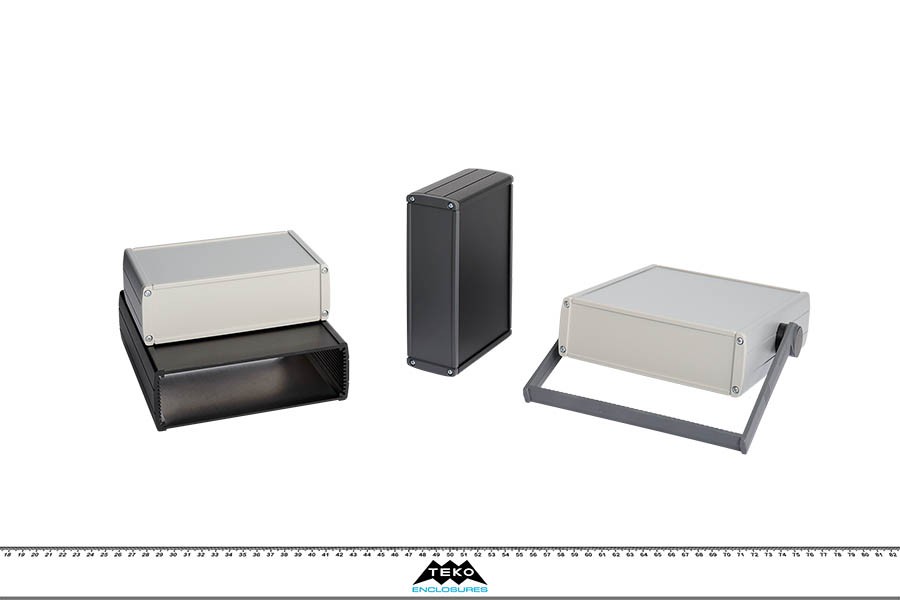

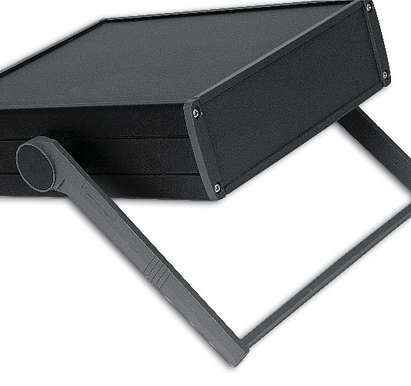

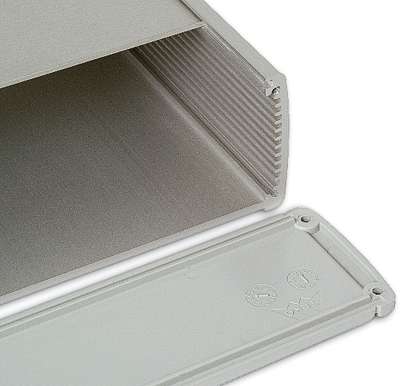

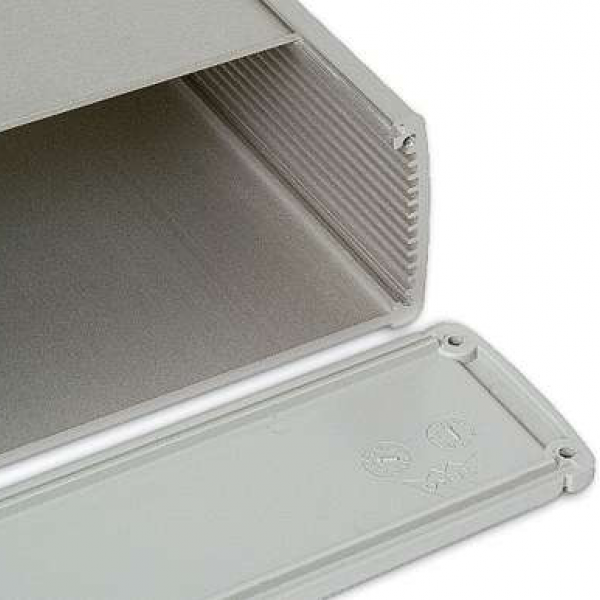

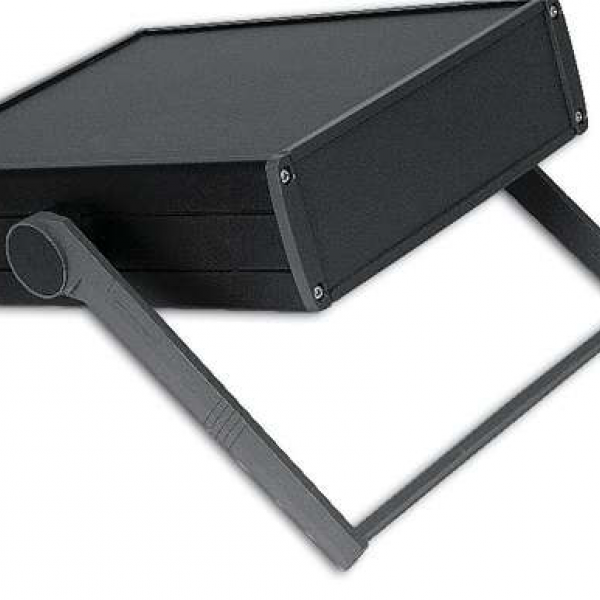

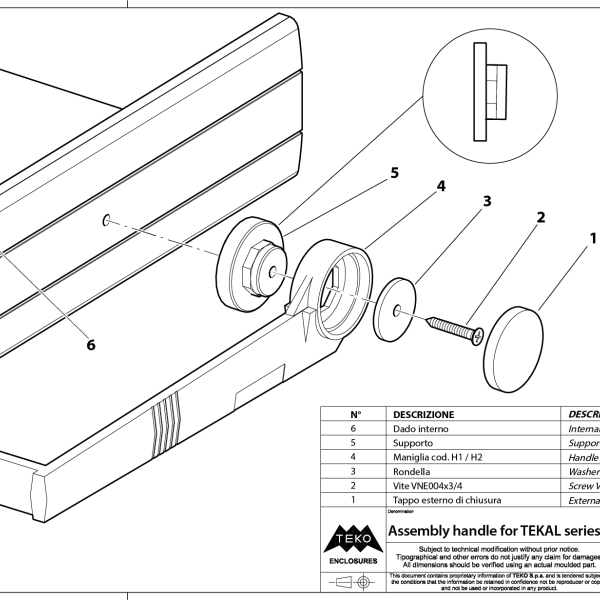

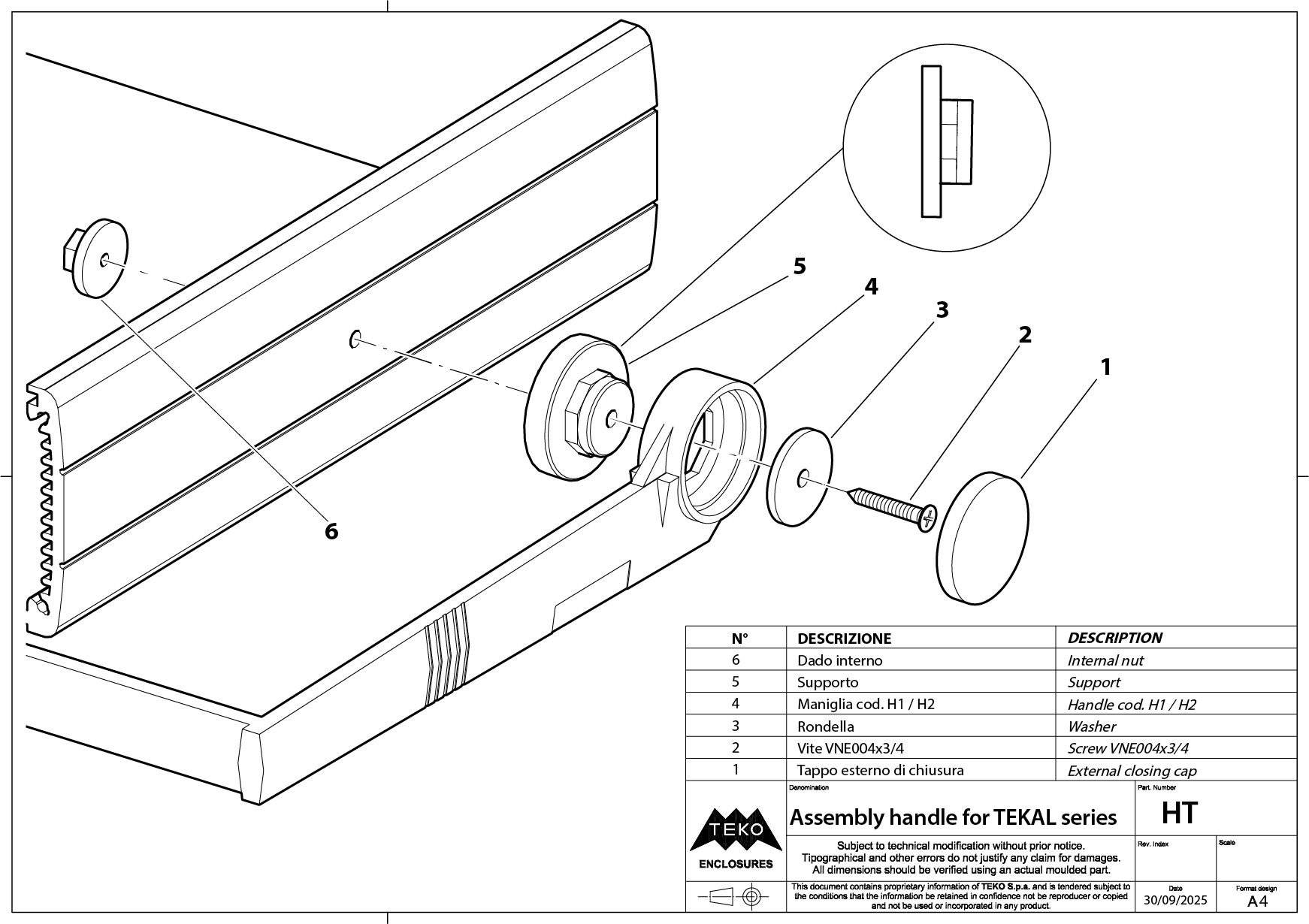

Extruded aluminium cases with high quality painted finishing and sliding cover aluminium panel. Two ABS front panels, internal slots for PCB’s. The models with “-H” have a plastic handle bar with eight position locking. Two different lengths. Closing by eight screws.

Details

Products

Model L (inch) W (inch) H (inch) Color (Ral) Material MAX PCB L (inch) MAX PCB W (inch) Screws Battery Accessories Drawings Other

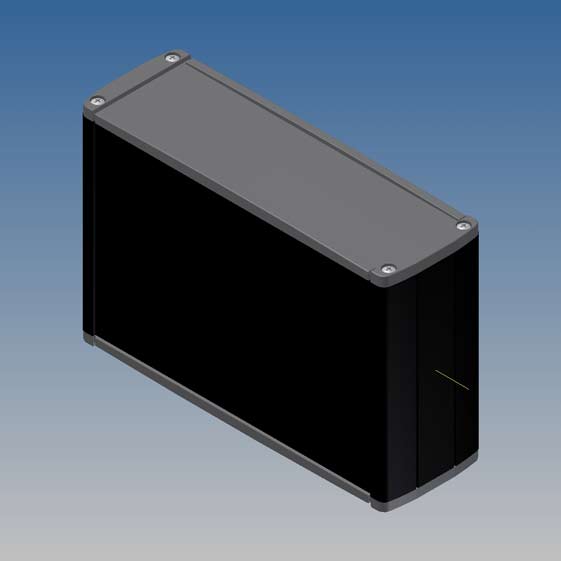

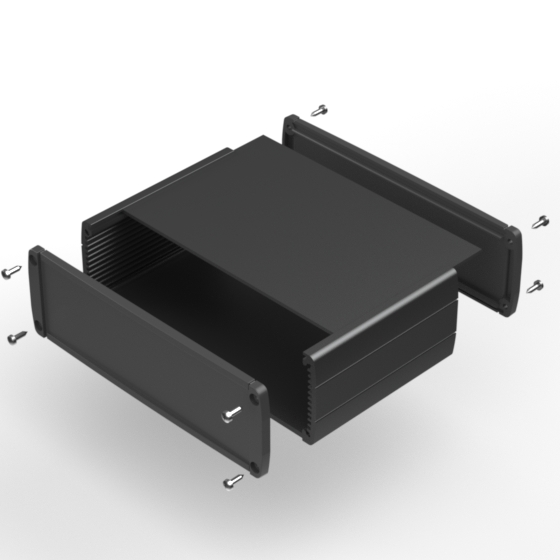

TEKAL-41.29 4,331 6,575 2,087 9004 7012

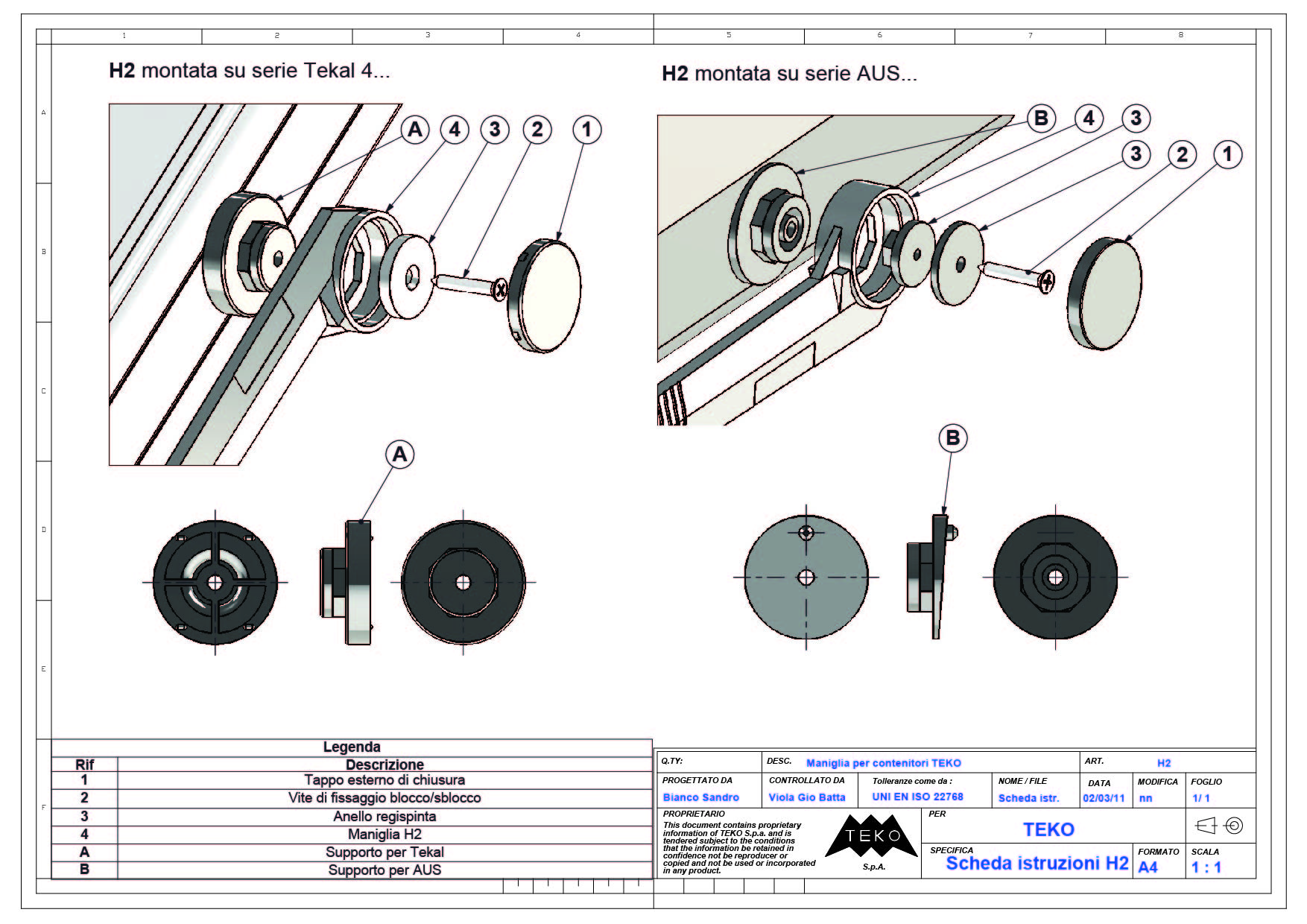

ALLOY 6060  -  1640 AS 3,937 6,299 8 - H2
PDF
DWG
View

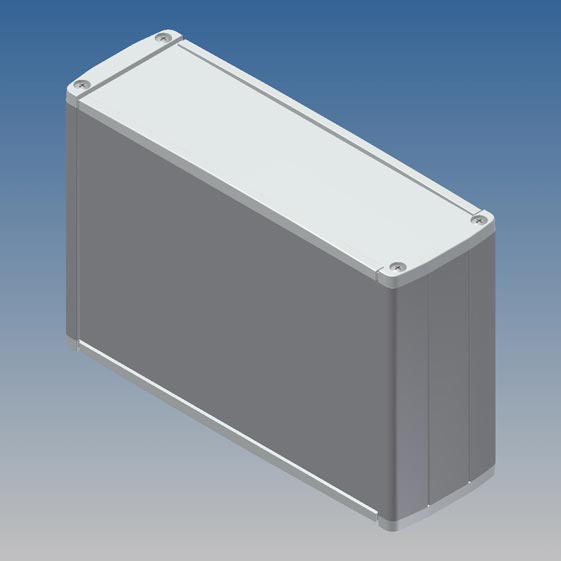

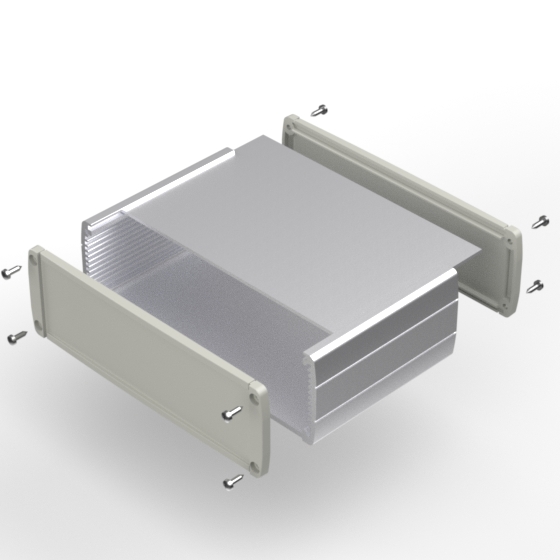

TEKAL-41.31 4,331 6,575 2,087 9006 9018
ALLOY 6060  -  1640 AS 3,937 6,299 8 - H2
PDF
DWG
View

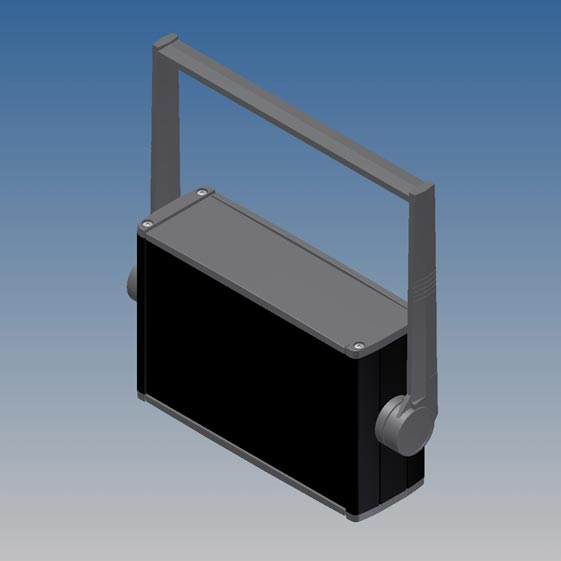

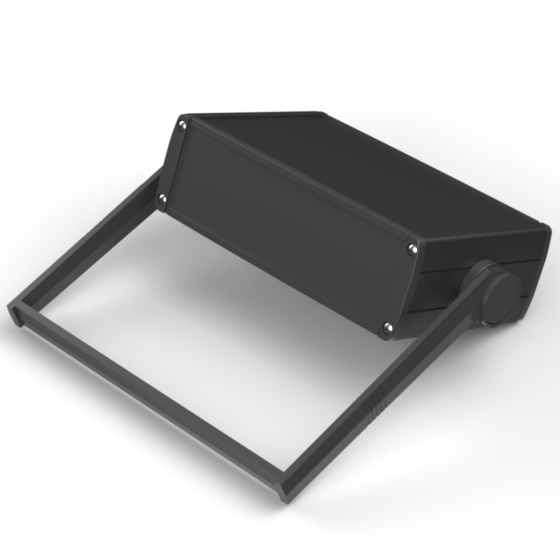

TEKAL-41/H.29 4,331 6,575 2,087 9004 7012
ALLOY 6060  -  1640 AS 3,937 6,299 8 - PDF
DWG
View

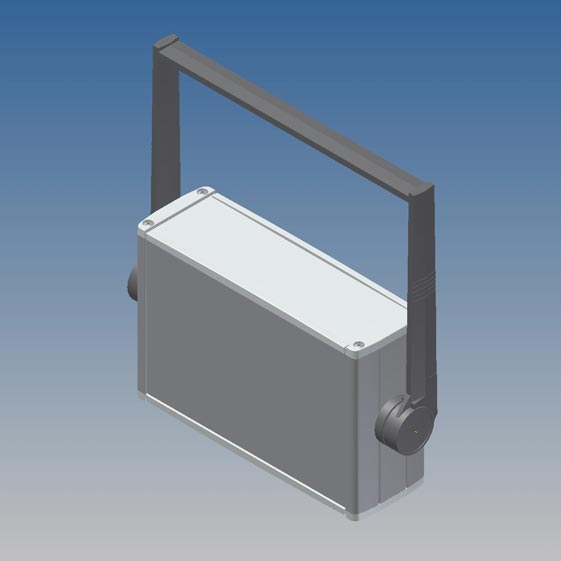

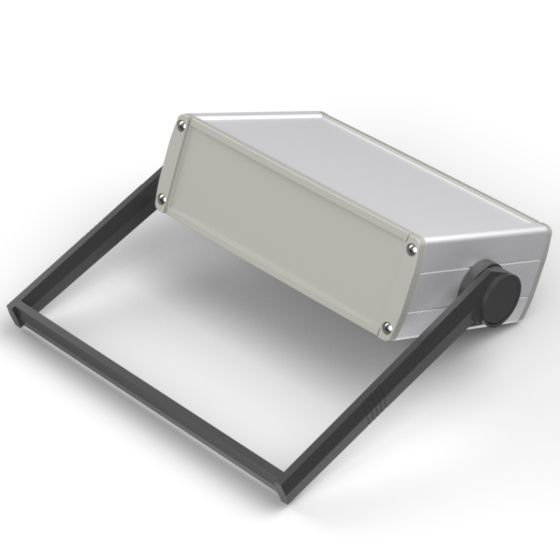

TEKAL-41/H.31 4,331 6,575 2,087 9006 9018
ALLOY 6060  -  1640 AS 3,937 6,299 8 - PDF
DWG
View

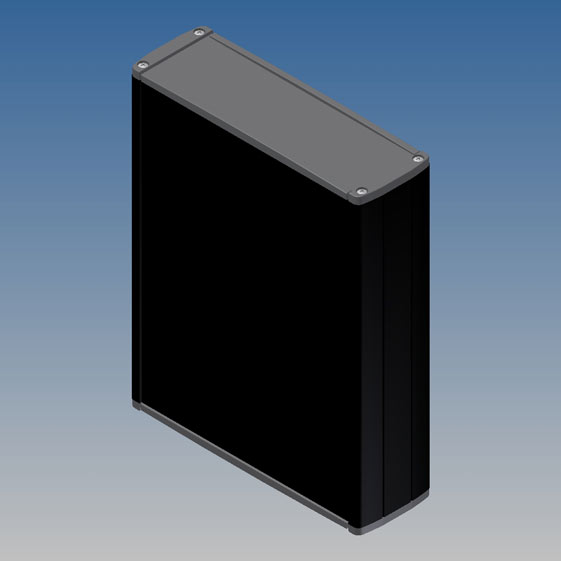

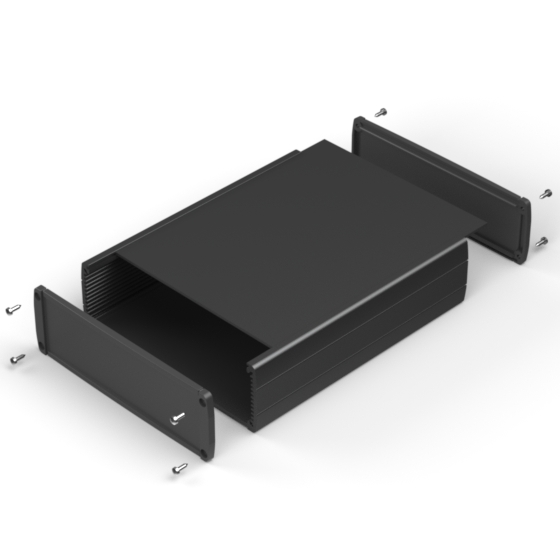

TEKAL-42.29 8,268 6,575 2,087 9004 7012
ALLOY 6060  -  1640 AS 7,874 6,299 8 - H2
PDF
DWG
View

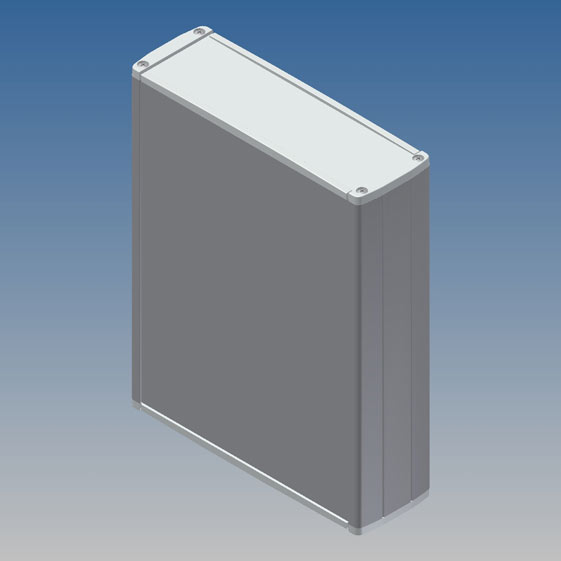

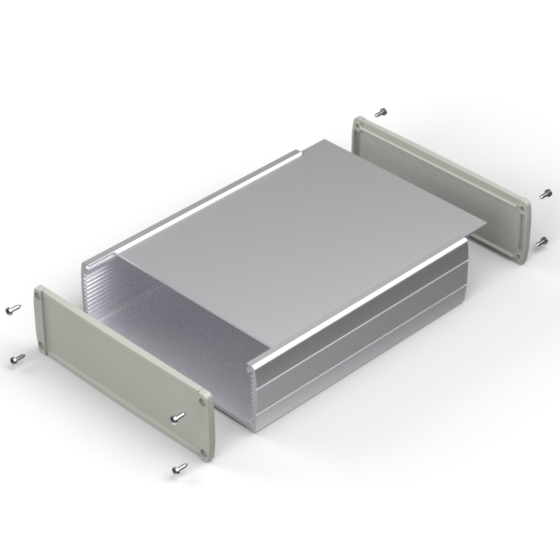

TEKAL-42.31 8,268 6,575 2,087 9006 9018
ALLOY 6060  -  1640 AS 7,874 6,299 8 - H2
PDF
DWG
View

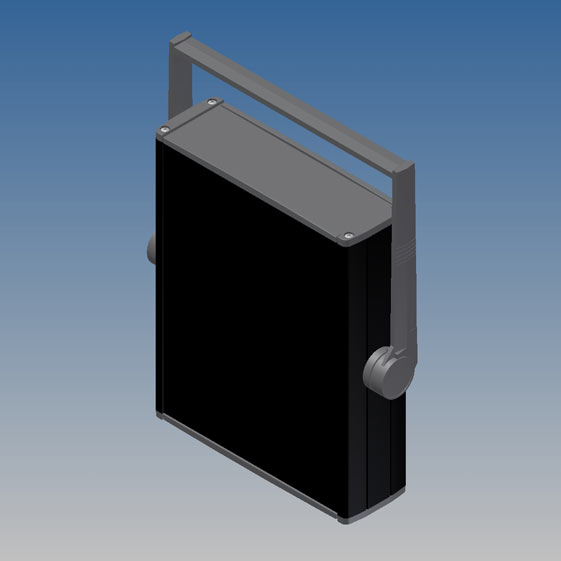

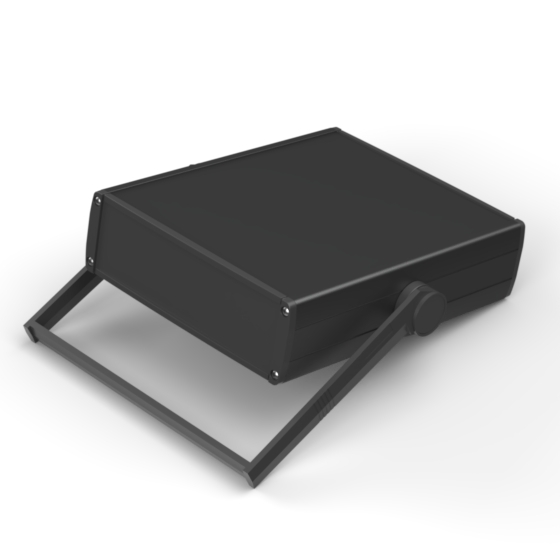

TEKAL-42/H.29 8,268 6,575 2,087 9004 7012
ALLOY 6060  -  1640 AS 7,874 6,299 8 - PDF
DWG
View

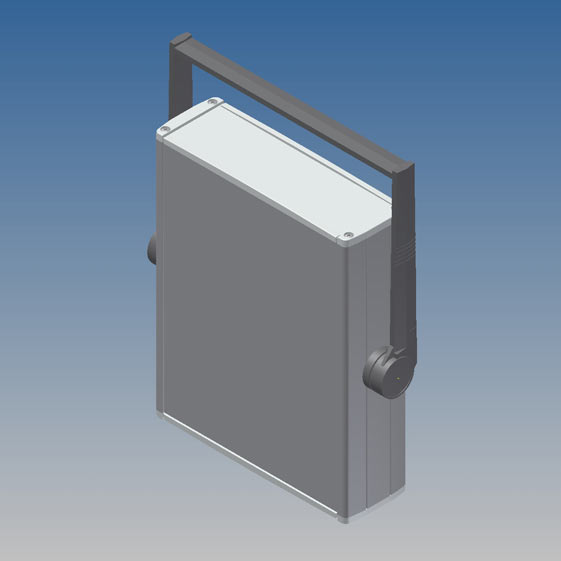

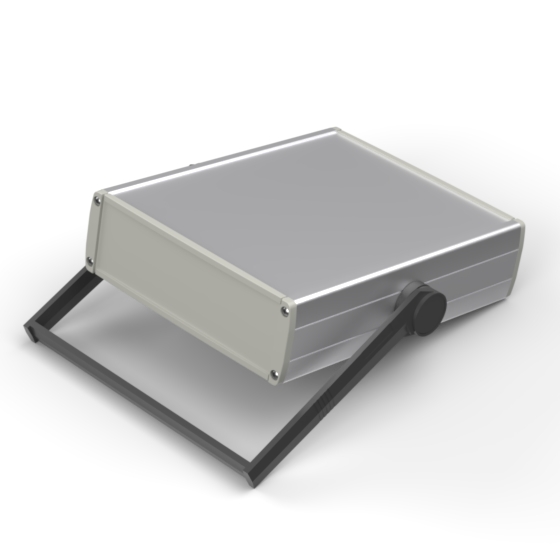

TEKAL-42/H.31 8,268 6,575 2,087 9006 9018
ALLOY 6060  -  1640 AS 7,874 6,299 8 - PDF
DWG
View
