Family Front Panel - Electronic enclosures - Plastic

Description

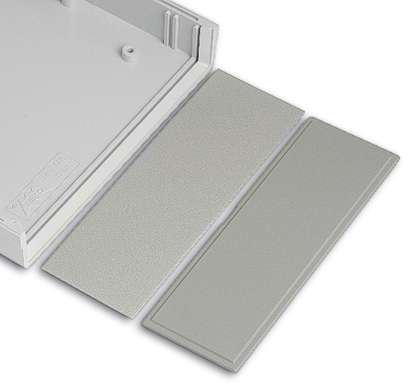

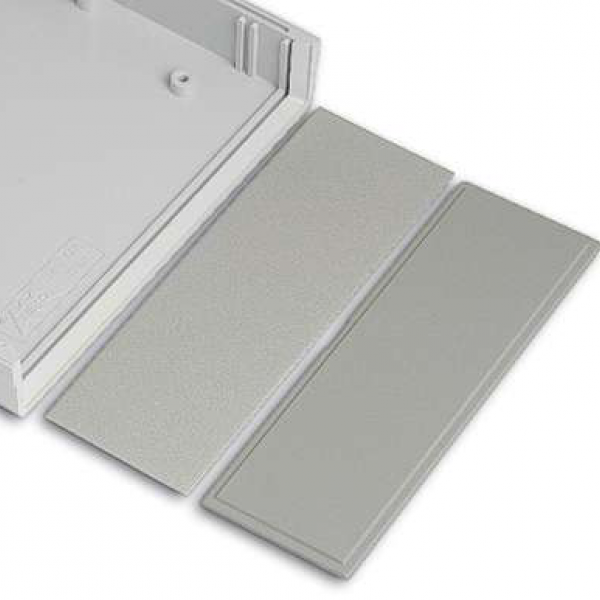

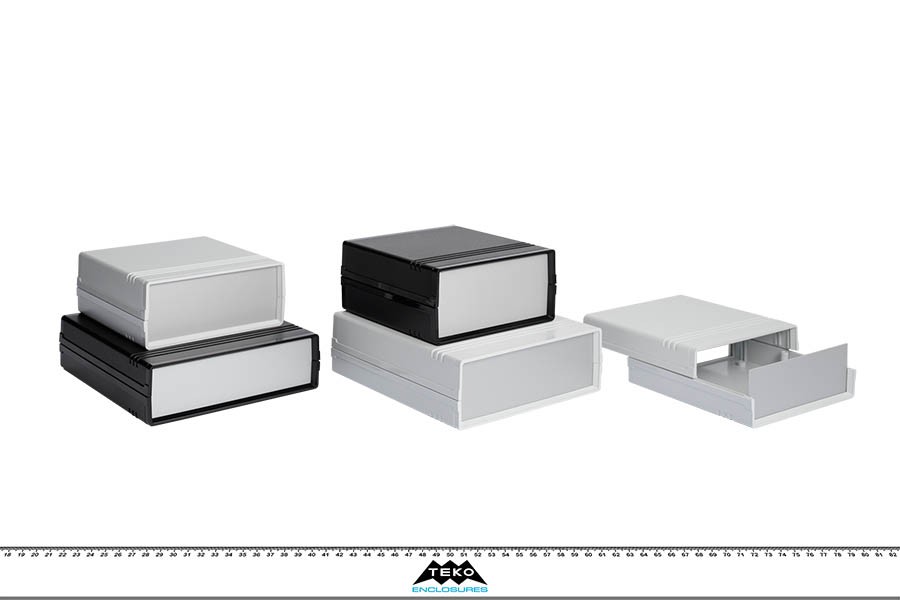

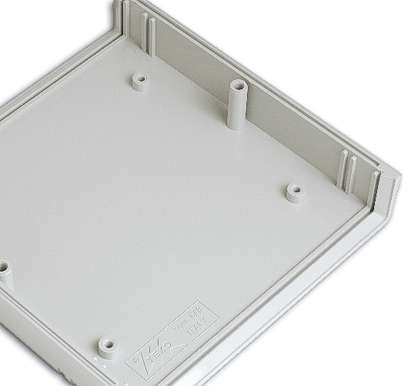

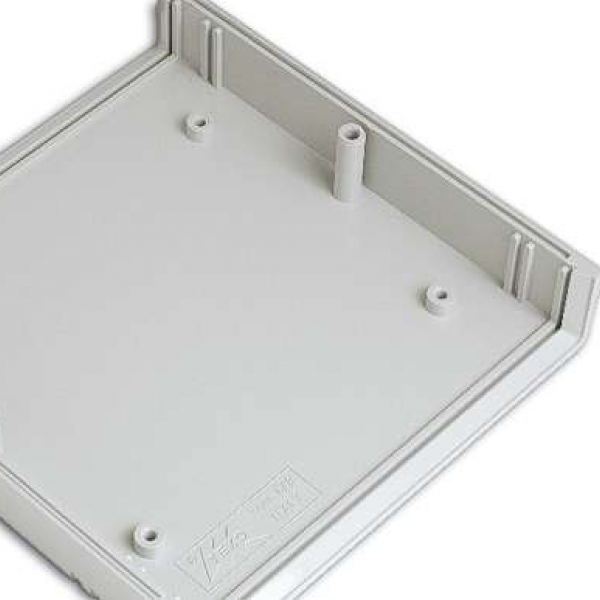

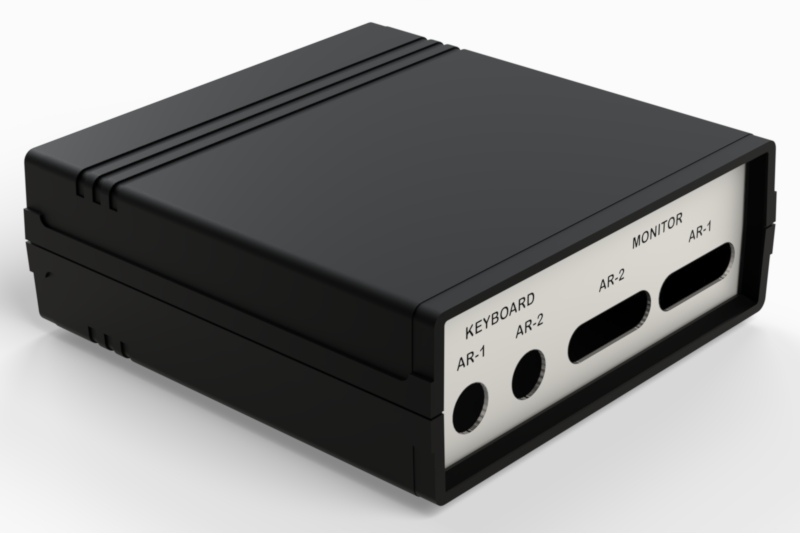

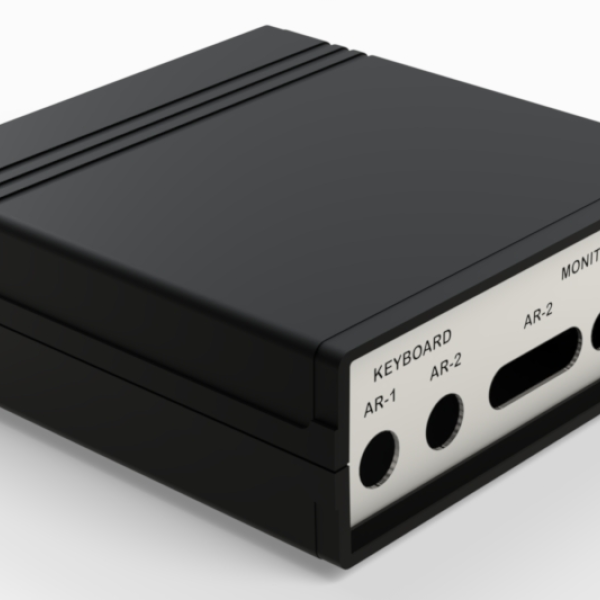

An ABS enclosure with two 1 mm aluminium panels. Each half-shell has integral PCB guides and mounting studs. Matt surface finish. Closing by only two screws. Available also front and rear panels manufactured from ABS (.13).

Details

Products

Model L (inch) W (inch) H (inch) Color (Ral) Material MAX PCB L (inch) MAX PCB W (inch) Screws Battery Accessories Drawings Other

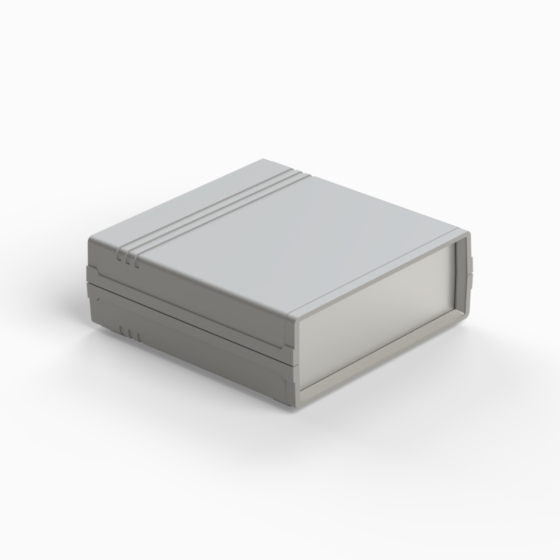

011.5 5,276 5,079 1,85 9018
AG-ATY 4,567 4,528 2 - PP11
PDF
DWG
View
  • Color (Ral): 9018
  • Material: AG-ATY
  • MAX PCB L (mm): 116
  • MAX PCB W (mm): 115
  • Screws: 2
  • Battery: -
  • Accessories: PP11
  • Drawings:  PDF  DWG

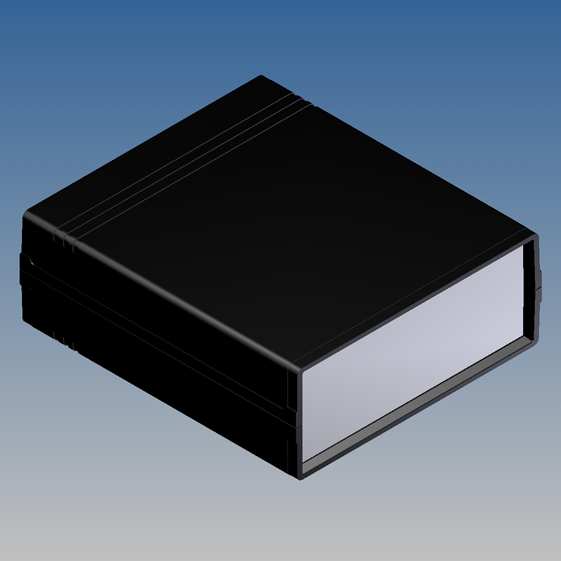

011.9 5,276 5,079 1,85 9004
P2H-AT 4,567 4,528 2 - PP11
PDF
DWG
View
  • Color (Ral): 9004
  • Material: P2H-AT
  • MAX PCB L (mm): 116
  • MAX PCB W (mm): 115
  • Screws: 2
  • Battery: -
  • Accessories: PP11
  • Drawings:  PDF  DWG
012.5 5,276 5,079 2,126 9018
AG-ATY 4,567 4,528 2 - PP12
PDF
DWG
View
  • Color (Ral): 9018
  • Material: AG-ATY
  • MAX PCB L (mm): 116
  • MAX PCB W (mm): 115
  • Screws: 2
  • Battery: -
  • Accessories: PP12
  • Drawings:  PDF  DWG

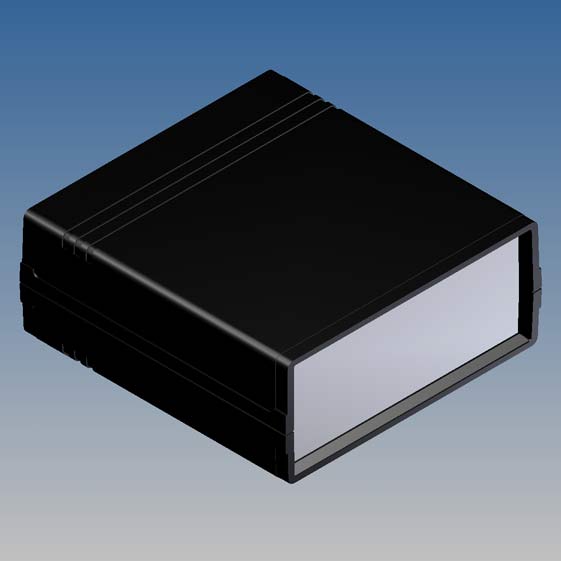

012.9 5,276 5,079 2,126 9004
P2H-AT 4,567 4,528 2 - PP12
PDF
DWG
View
  • Color (Ral): 9004
  • Material: P2H-AT
  • MAX PCB L (mm): 116
  • MAX PCB W (mm): 115
  • Screws: 2
  • Battery: -
  • Accessories: PP12
  • Drawings:  PDF  DWG

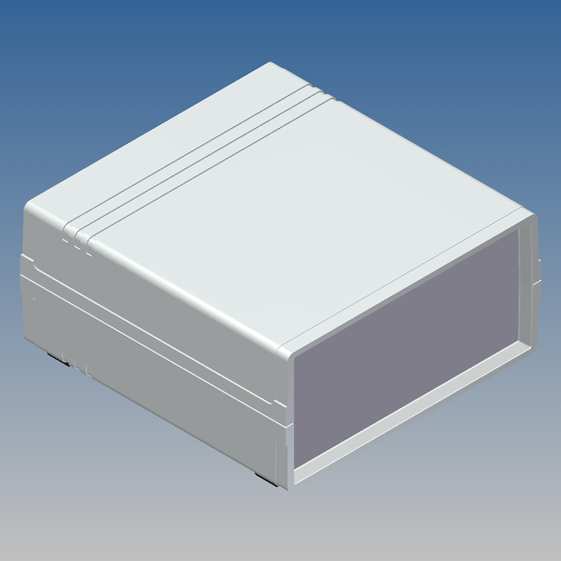

022.5 5,276 5,079 2,402 9018
AG-ATY 4,567 4,528 2 - PP22
PDF
DWG
View
  • Color (Ral): 9018
  • Material: AG-ATY
  • MAX PCB L (mm): 116
  • MAX PCB W (mm): 115
  • Screws: 2
  • Battery: -
  • Accessories: PP22
  • Drawings:  PDF  DWG

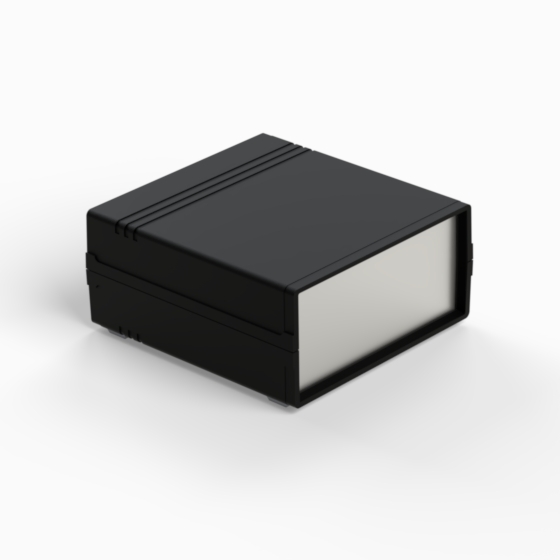

022.9 5,276 5,079 2,402 9004
P2H-AT 4,567 4,528 2 - PP22
PDF
DWG
View
  • Color (Ral): 9004
  • Material: P2H-AT
  • MAX PCB L (mm): 116
  • MAX PCB W (mm): 115
  • Screws: 2
  • Battery: -
  • Accessories: PP22
  • Drawings:  PDF  DWG

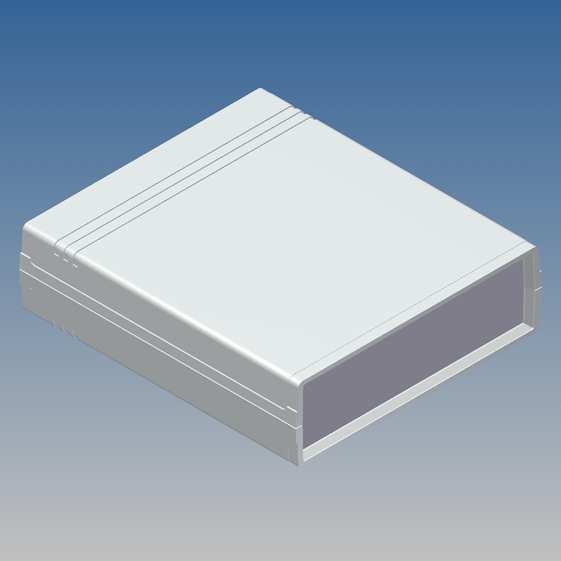

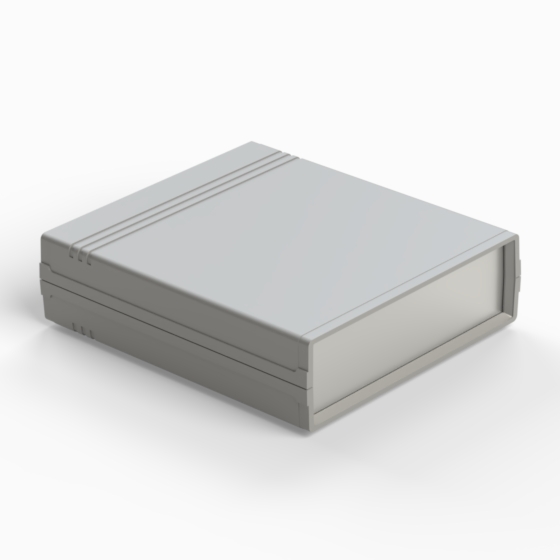

222.5 6,811 6,063 1,85 9018
AG-ATY 6,063 5,512 2 - PP222
PDF
DWG
View
  • Color (Ral): 9018
  • Material: AG-ATY
  • MAX PCB L (mm): 154
  • MAX PCB W (mm): 140
  • Screws: 2
  • Battery: -
  • Accessories: PP222
  • Drawings:  PDF  DWG

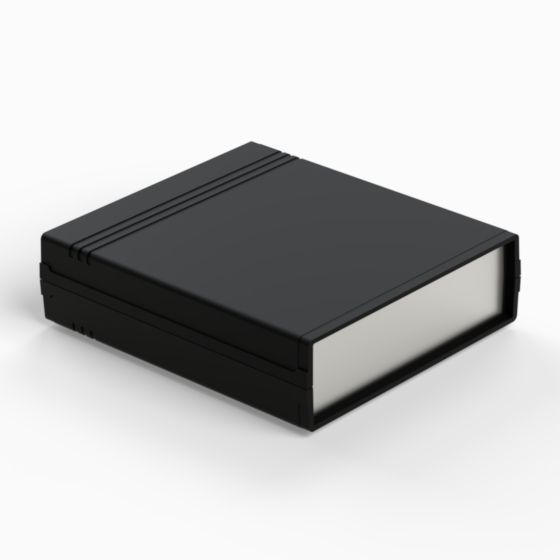

222.9 6,811 6,063 1,85 9004
P2H-AT 6,063 5,512 2 - PP222
PDF
DWG
View
  • Color (Ral): 9004
  • Material: P2H-AT
  • MAX PCB L (mm): 154
  • MAX PCB W (mm): 140
  • Screws: 2
  • Battery: -
  • Accessories: PP222
  • Drawings:  PDF  DWG

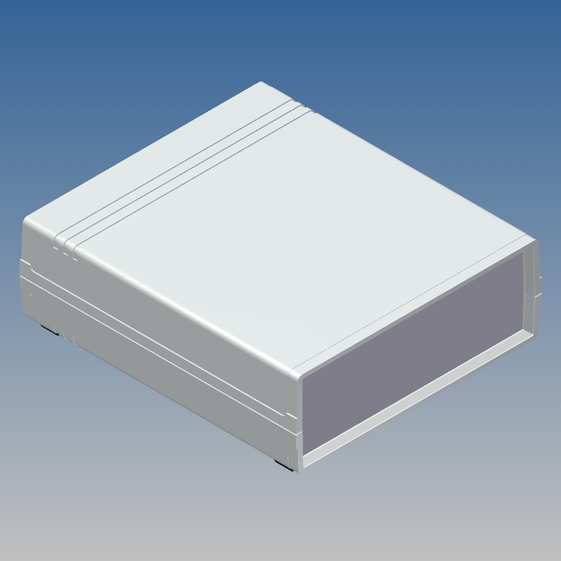

223.5 6,811 6,063 2,126 9018
AG-ATY 6,063 5,512 2 - PP223
PDF
DWG
View
  • Color (Ral): 9018
  • Material: AG-ATY
  • MAX PCB L (mm): 154
  • MAX PCB W (mm): 140
  • Screws: 2
  • Battery: -
  • Accessories: PP223
  • Drawings:  PDF  DWG

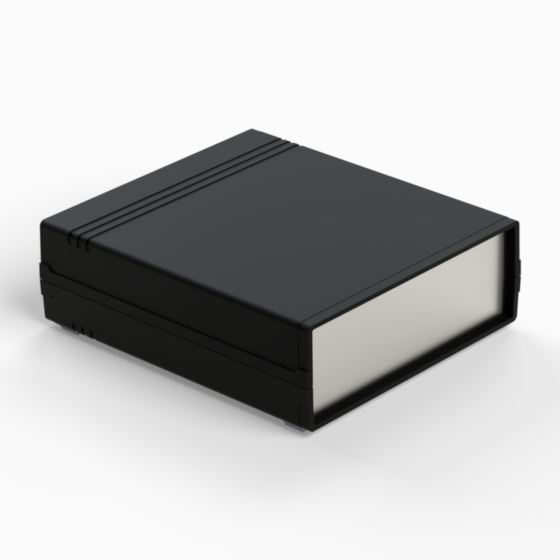

223.9 6,811 6,063 2,126 9004
P2H-AT 6,063 5,512 2 - PP223
PDF
DWG
View
  • Color (Ral): 9004
  • Material: P2H-AT
  • MAX PCB L (mm): 154
  • MAX PCB W (mm): 140
  • Screws: 2
  • Battery: -
  • Accessories: PP223
  • Drawings:  PDF  DWG

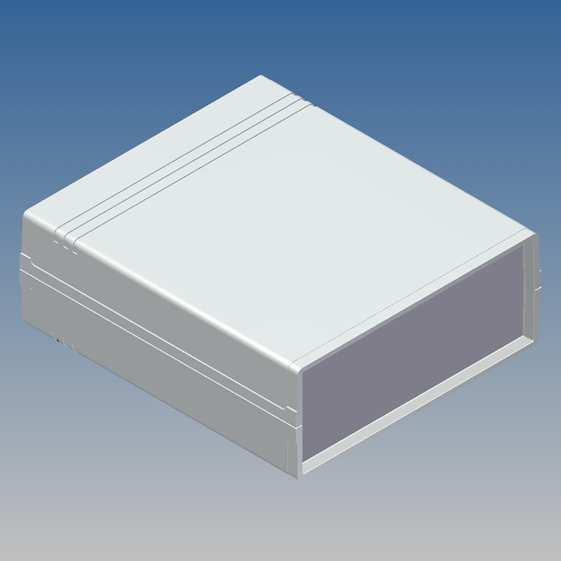

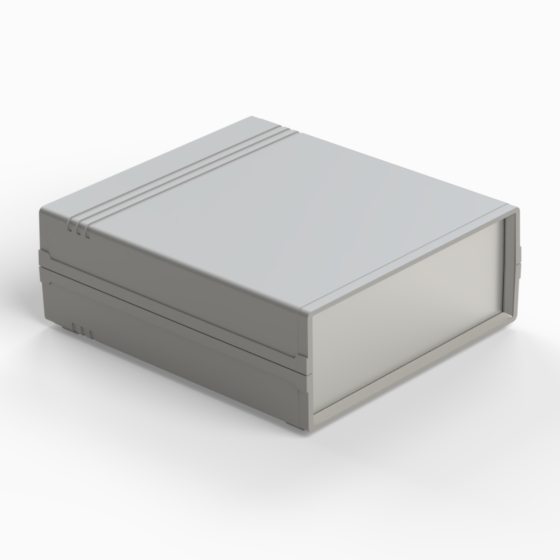

233.5 6,811 6,063 2,402 9018
AG-ATY 6,063 5,512 2 - PP233
PDF
DWG
View
  • Color (Ral): 9018
  • Material: AG-ATY
  • MAX PCB L (mm): 154
  • MAX PCB W (mm): 140
  • Screws: 2
  • Battery: -
  • Accessories: PP233
  • Drawings:  PDF  DWG
233.9 6,811 6,063 2,402 9004
P2H-AT 6,063 5,512 2 - PP233
PDF
DWG
View
  • Color (Ral): 9004
  • Material: P2H-AT
  • MAX PCB L (mm): 154
  • MAX PCB W (mm): 140
  • Screws: 2
  • Battery: -
  • Accessories: PP233
  • Drawings:  PDF  DWG
12 product families, 144 series. You can't find what you're looking for? Contact us
