CAB B

Family Front Panel - Electronic enclosures - Plastic

Description

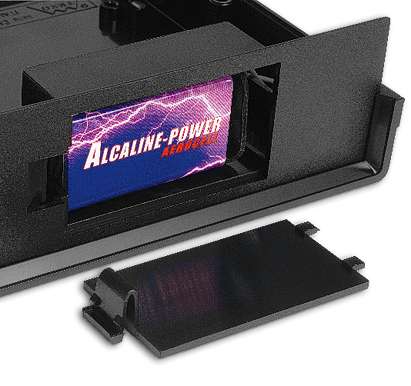

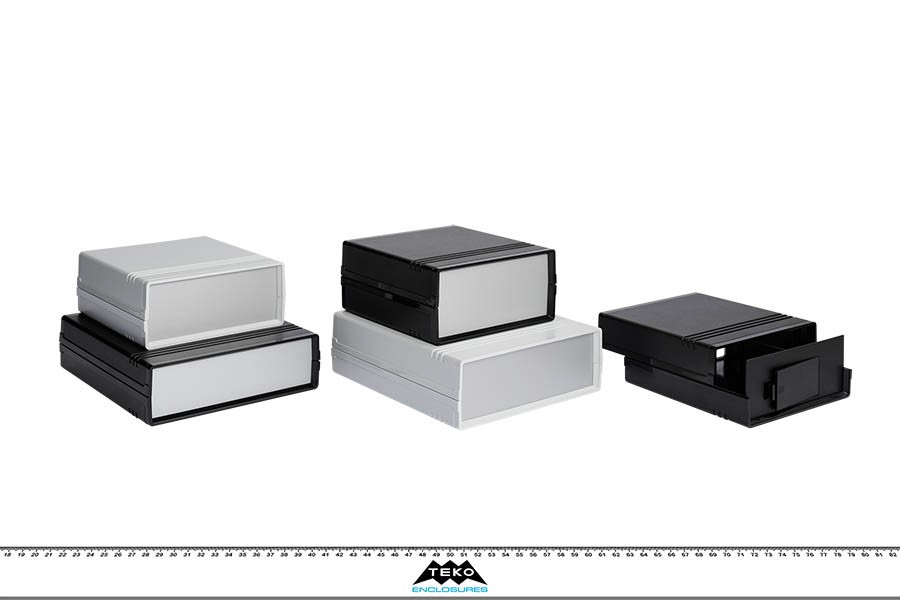

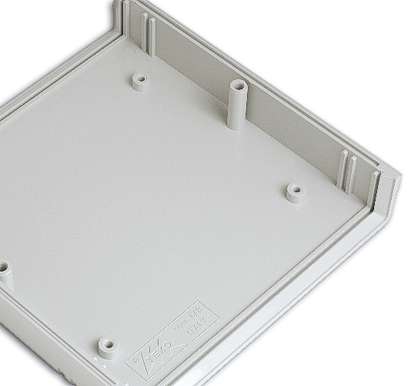

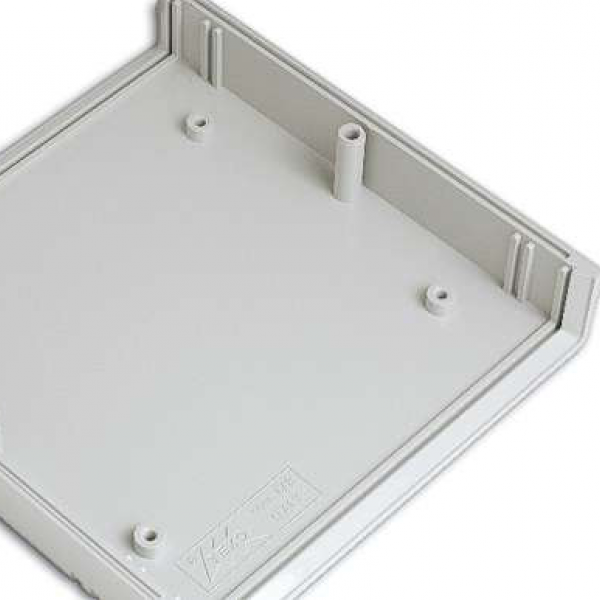

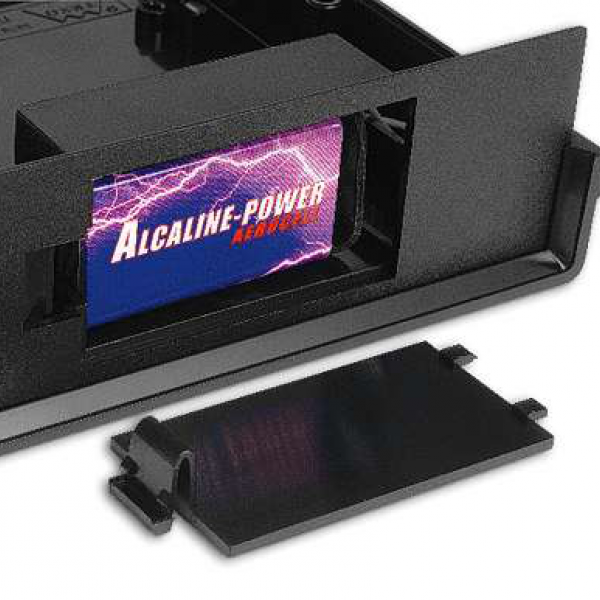

An ABS enclosure with a 9V battery compartment in the rear panel. Each half-shell has integral PCB guides and mounting studs. Matt surface finish. Closing by only two screws. Available also ABS front panels (.13).

Details

Products

Model L (inch) W (inch) H (inch) Color (Ral) Material MAX PCB L (inch) MAX PCB W (inch) Screws Battery Accessories Drawings Other

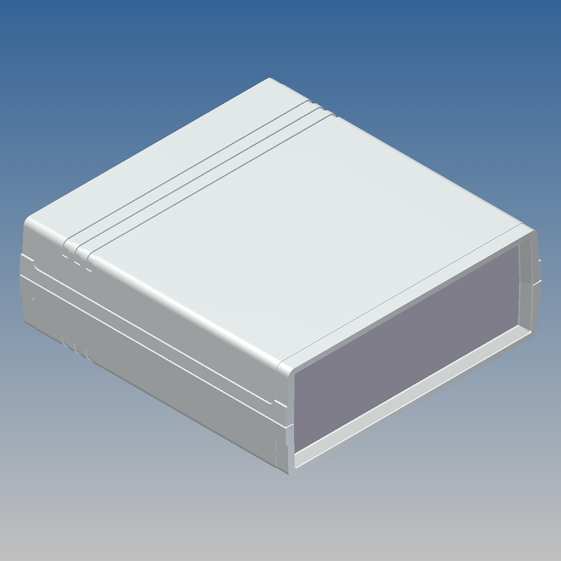

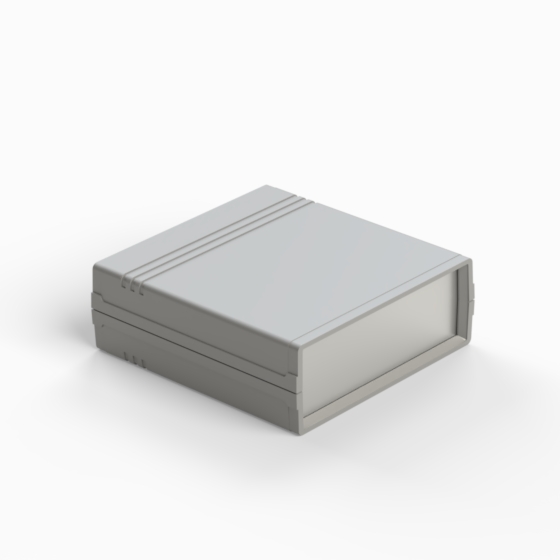

011-B.5 5,276 5,079 1,85 9018
AG-ATY 4,567 4,528 2 1 x 9V AB9
PP11
PDF
DWG
View
  • Color (Ral): 9018
  • Material: AG-ATY
  • MAX PCB L (mm): 116
  • MAX PCB W (mm): 115
  • Screws: 2
  • Battery: 1 x 9V
  • Accessories: AB9 PP11
  • Drawings:  PDF  DWG

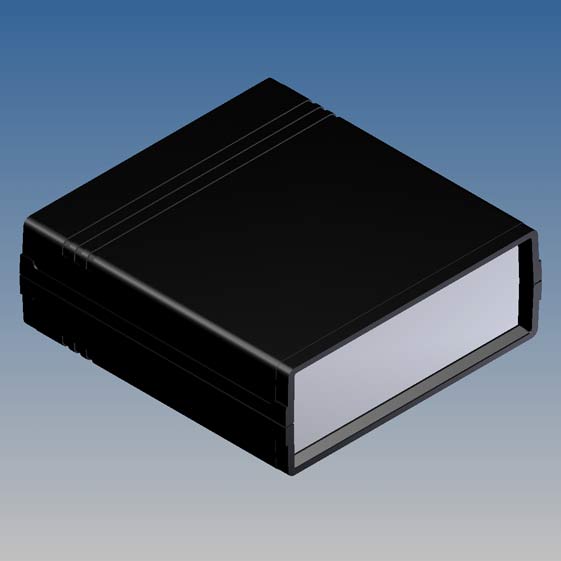

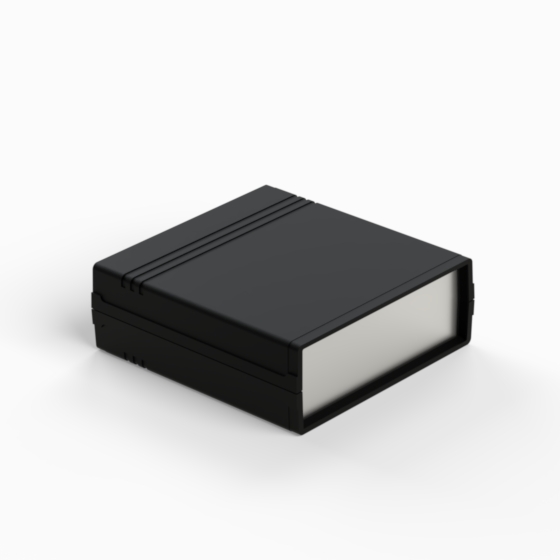

011-B.9 5,276 5,079 1,85 9004
P2H-AT 4,567 4,528 2 1 x 9V AB9
PP11
PDF
DWG
View
  • Color (Ral): 9004
  • Material: P2H-AT
  • MAX PCB L (mm): 116
  • MAX PCB W (mm): 115
  • Screws: 2
  • Battery: 1 x 9V
  • Accessories: AB9 PP11
  • Drawings:  PDF  DWG

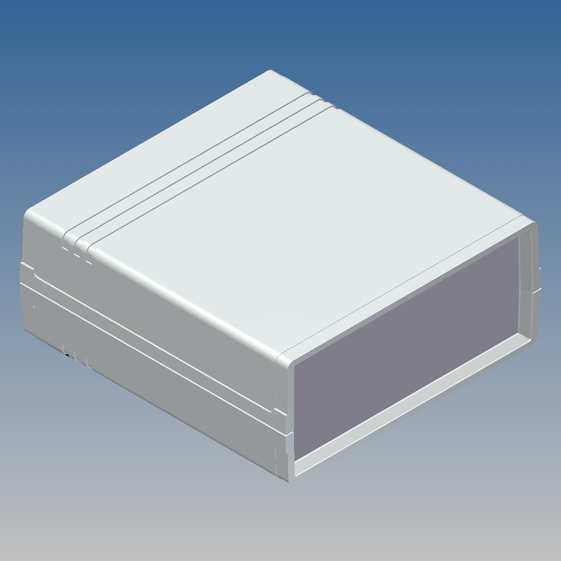

012-B.5 5,276 5,079 2,126 9018
AG-ATY 4,567 4,528 2 1 x 9V AB9
PP12
PDF
DWG
View
  • Color (Ral): 9018
  • Material: AG-ATY
  • MAX PCB L (mm): 116
  • MAX PCB W (mm): 115
  • Screws: 2
  • Battery: 1 x 9V
  • Accessories: AB9 PP12
  • Drawings:  PDF  DWG

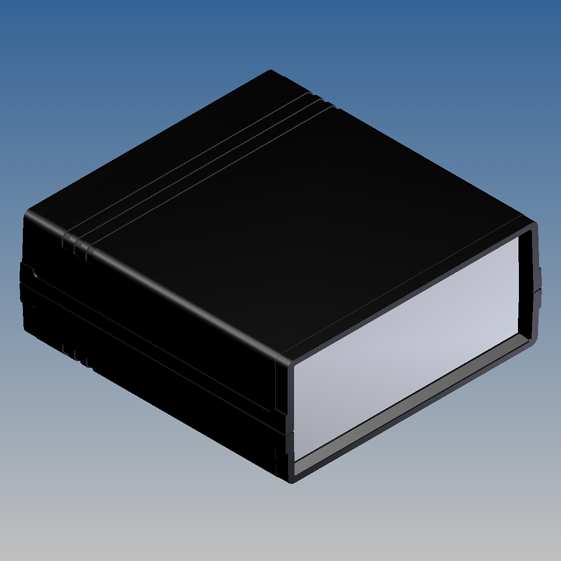

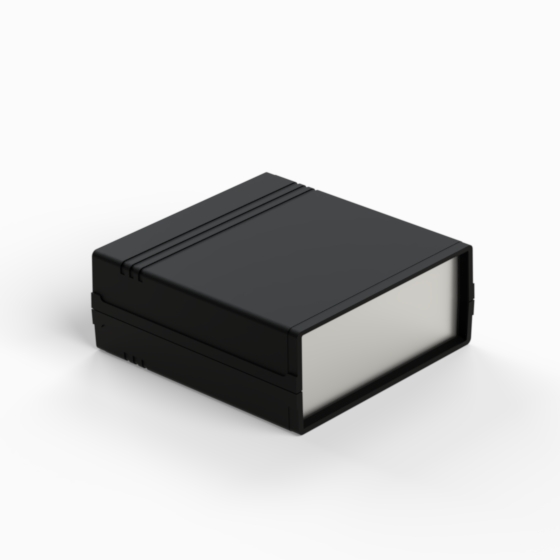

012-B.9 5,276 5,079 2,126 9004
P2H-AT 4,567 4,528 2 1 x 9V AB9
PP12
PDF
DWG
View
  • Color (Ral): 9004
  • Material: P2H-AT
  • MAX PCB L (mm): 116
  • MAX PCB W (mm): 115
  • Screws: 2
  • Battery: 1 x 9V
  • Accessories: AB9 PP12
  • Drawings:  PDF  DWG

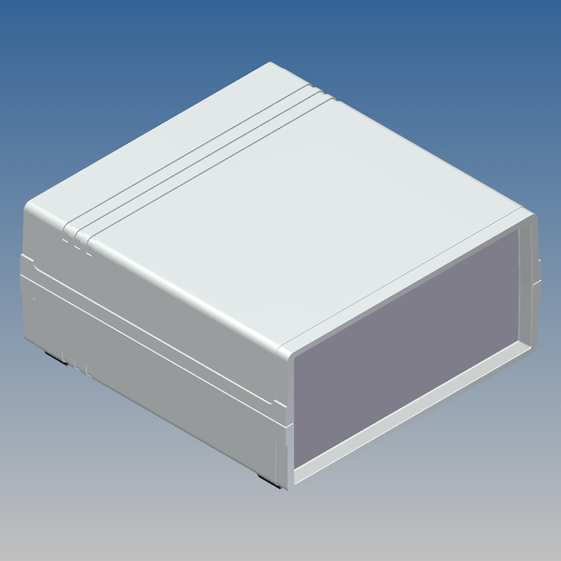

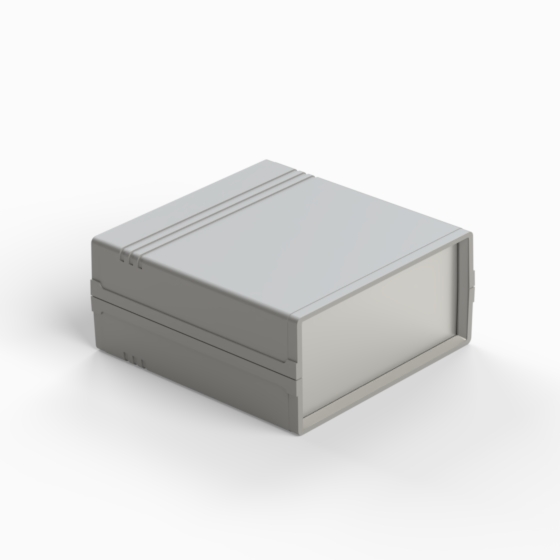

022-B.5 5,276 5,079 2,402 9018
AG-ATY 4,567 4,528 2 1 x 9V AB9
PP22
PDF
DWG
View
  • Color (Ral): 9018
  • Material: AG-ATY
  • MAX PCB L (mm): 116
  • MAX PCB W (mm): 115
  • Screws: 2
  • Battery: 1 x 9V
  • Accessories: AB9 PP22
  • Drawings:  PDF  DWG

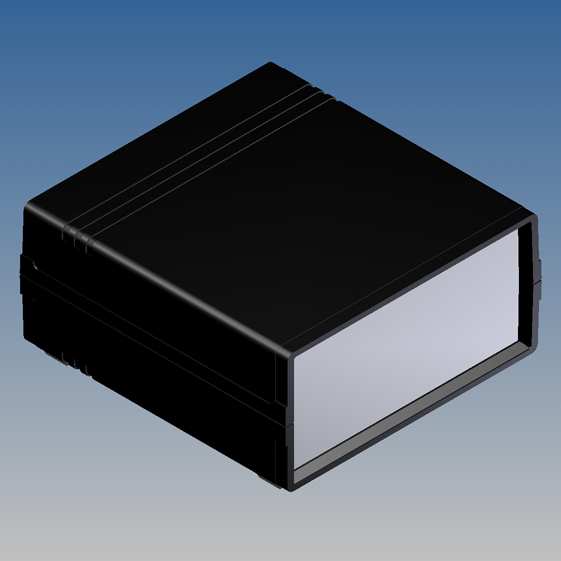

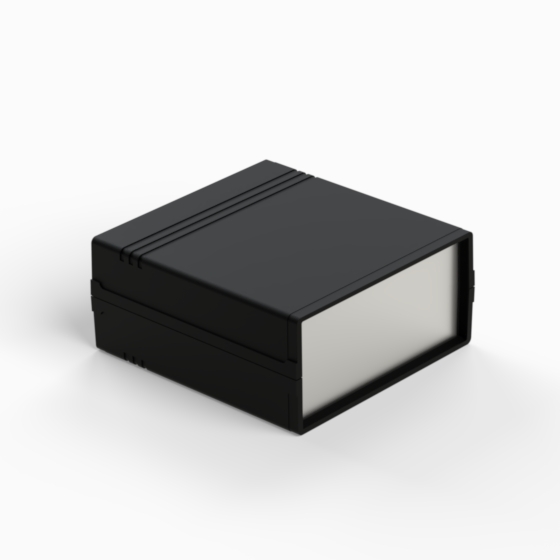

022-B.9 5,276 5,079 2,402 9004
P2H-AT 4,567 4,528 2 1 x 9V AB9
PP22
PDF
DWG
View
  • Color (Ral): 9004
  • Material: P2H-AT
  • MAX PCB L (mm): 116
  • MAX PCB W (mm): 115
  • Screws: 2
  • Battery: 1 x 9V
  • Accessories: AB9 PP22
  • Drawings:  PDF  DWG

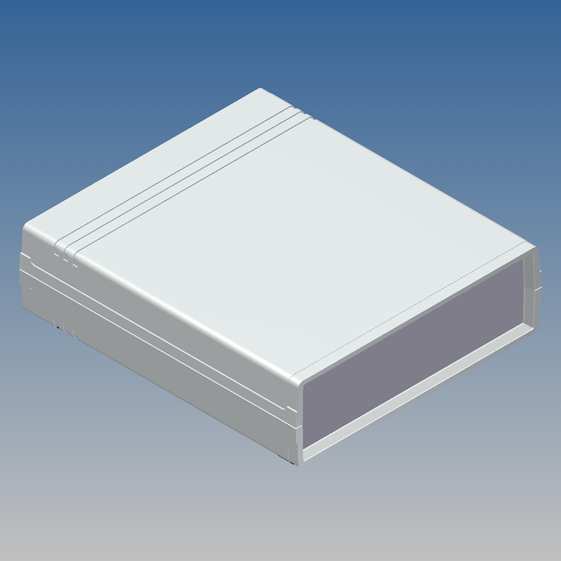

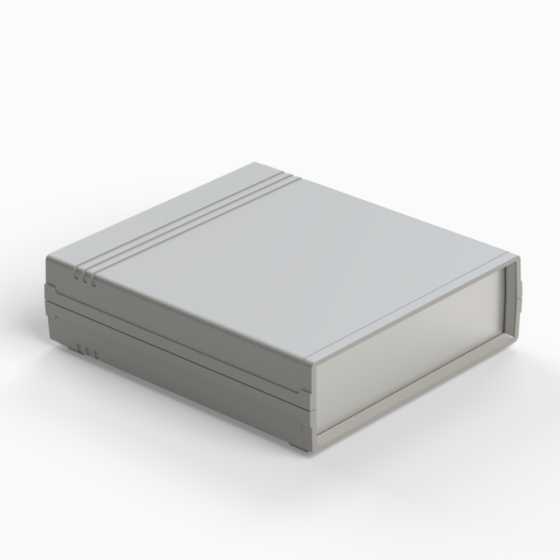

222-B.5 6,811 6,063 1,85 9018
AG-ATY 6,063 5,512 2 1 x 9V AB9
PP222
PDF
DWG
View

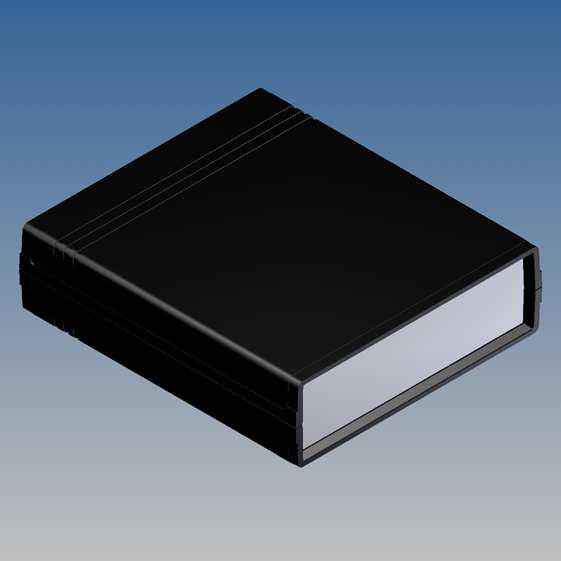

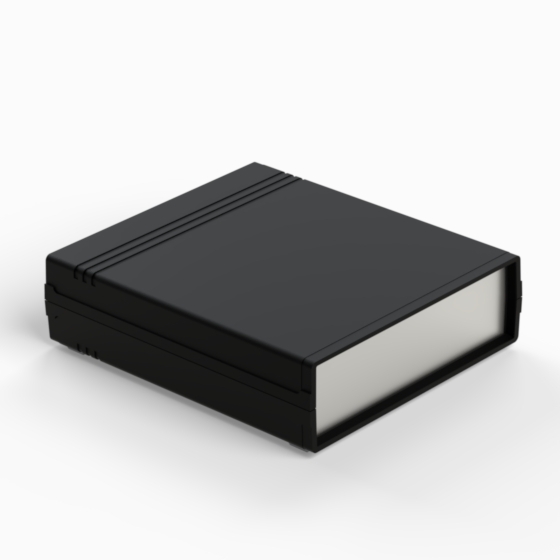

222-B.9 6,811 6,063 1,85 9004
P2H-AT 6,063 5,512 2 1 x 9V AB9
PP222
PDF
DWG
View

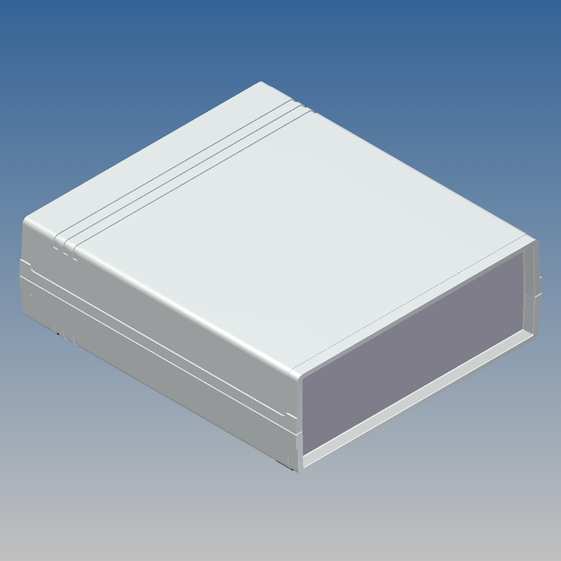

223-B.5 6,811 6,063 2,126 9018
AG-ATY 6,063 5,512 2 1 x 9V AB9
PP223
PDF
DWG
View

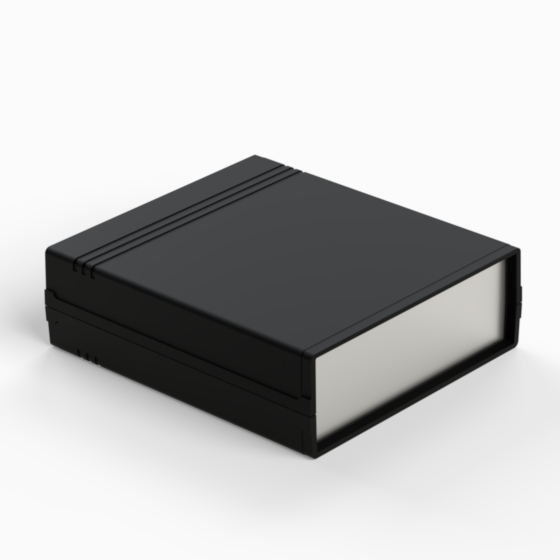

223-B.9 6,811 6,063 2,126 9004
P2H-AT 6,063 5,512 2 1 x 9V AB9
PP223
PDF
DWG
View

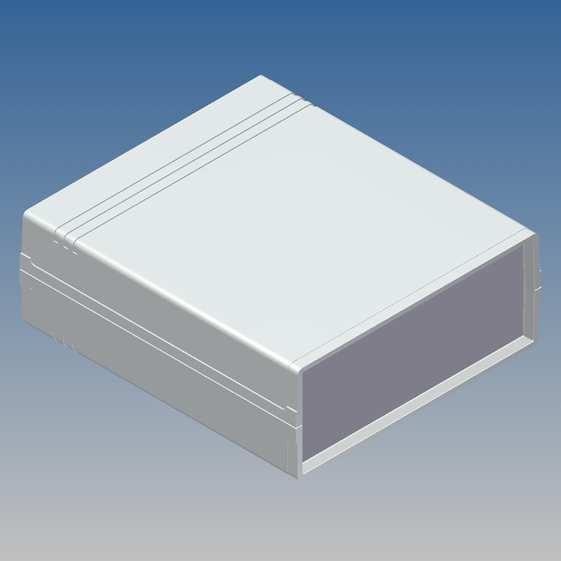

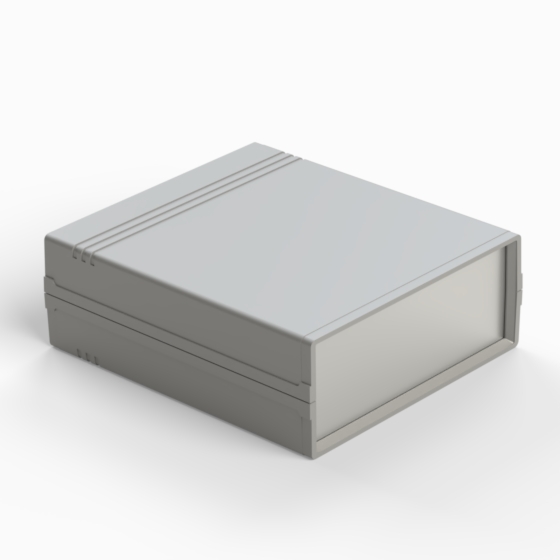

233-B.5 6,811 6,063 2,402 9018
AG-ATY 6,063 5,512 2 1 x 9V AB9
PP233
PDF
DWG
View

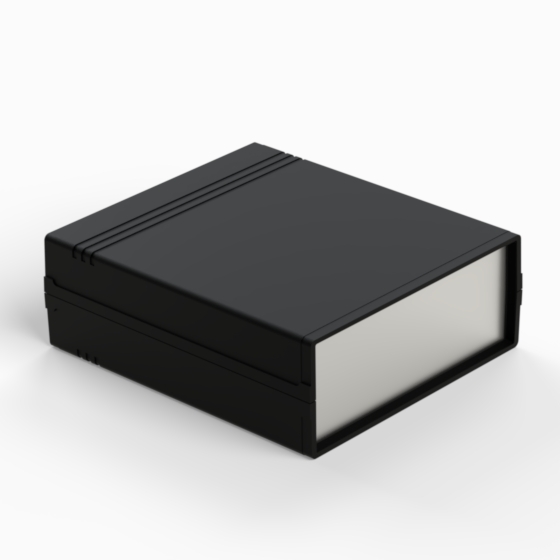

233-B.9 6,811 6,063 2,402 9004
P2H-AT 6,063 5,512 2 1 x 9V AB9
PP233
PDF
DWG
View
