CAB PULPIT

Family Front Panel - Electronic enclosures - Plastic

Description

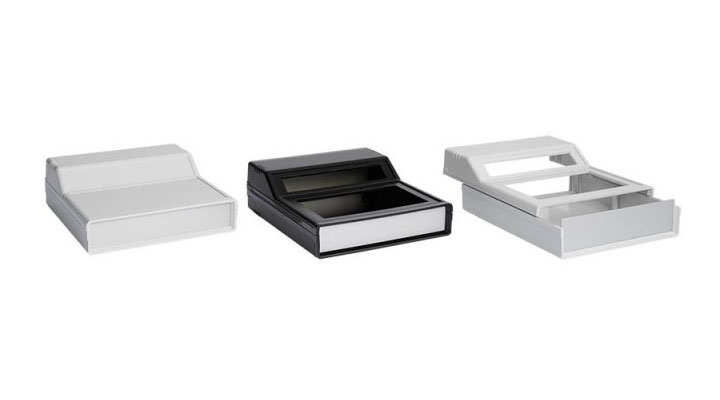

ABS enclosures with two 1 mm aluminium panels. Each half-shell has integral PCB guides and mounting studs. Matt surface finish. The models “242” and “243” have a 45° inclined display area. The models “242/O” and “243/O” have two cutouts in the recessed areas. Closing by only two screws. Upon request dark gray ABS panels (Mod. PP11, PP12, PP22, PP222, PP223, PP233). Dual miniature clip for 9V battery (AB9).

Details

Products

Model L (inch) W (inch) H (inch) Color (Ral) Material MAX PCB L (inch) MAX PCB W (inch) Screws Battery Accessories Drawings Other
242.5 6,811 6,063 2,126 9018
AG-ATY 6,063 5,512 2 - PP223
PDF
DWG
View
  • Color (Ral): 9018
  • Material: AG-ATY
  • MAX PCB L (mm): 154
  • MAX PCB W (mm): 140
  • Screws: 2
  • Battery: -
  • Accessories: PP223
  • Drawings:  PDF  DWG
242.9 6,811 6,063 2,126 9004
P2H-AT 6,063 5,512 2 - PP223
PDF
DWG
View
  • Color (Ral): 9004
  • Material: P2H-AT
  • MAX PCB L (mm): 154
  • MAX PCB W (mm): 140
  • Screws: 2
  • Battery: -
  • Accessories: PP223
  • Drawings:  PDF  DWG
242-B.5 6,811 6,063 2,126 9018
AG-ATY 6,063 5,512 2 1 x 9V AB9
PP223
PDF
DWG
View
242-B.9 6,811 6,063 2,126 9004
P2H-AT 6,063 5,512 2 1 x 9V AB9
PP223
PDF
DWG
View
242/O.5 6,811 6,063 2,126 9018
AG-ATY 6,063 5,512 2 - PP223
PDF
DWG
View
  • Color (Ral): 9018
  • Material: AG-ATY
  • MAX PCB L (mm): 154
  • MAX PCB W (mm): 140
  • Screws: 2
  • Battery: -
  • Accessories: PP223
  • Drawings:  PDF  DWG
242/O.9 6,811 6,063 2,126 9004
P2H-AT 6,063 5,512 2 - PP223
PDF
DWG
View
  • Color (Ral): 9004
  • Material: P2H-AT
  • MAX PCB L (mm): 154
  • MAX PCB W (mm): 140
  • Screws: 2
  • Battery: -
  • Accessories: PP223
  • Drawings:  PDF  DWG

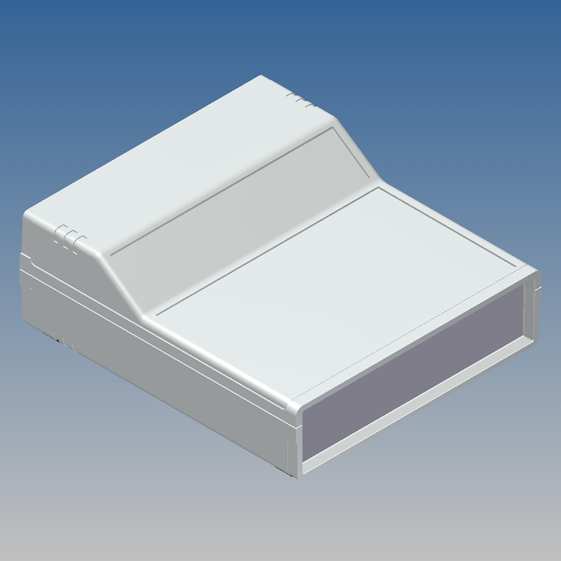

243.5 6,811 6,063 2,402 9018
AG-ATY 6,063 5,512 2 - PP233
PDF
DWG
View
  • Color (Ral): 9018
  • Material: AG-ATY
  • MAX PCB L (mm): 154
  • MAX PCB W (mm): 140
  • Screws: 2
  • Battery: -
  • Accessories: PP233
  • Drawings:  PDF  DWG
243.9 6,811 6,063 2,402 9004
P2H-AT 6,063 5,512 2 - PP233
PDF
DWG
View
  • Color (Ral): 9004
  • Material: P2H-AT
  • MAX PCB L (mm): 154
  • MAX PCB W (mm): 140
  • Screws: 2
  • Battery: -
  • Accessories: PP233
  • Drawings:  PDF  DWG
243-B.5 6,811 6,063 2,402 9018
AG-ATY 6,063 5,512 2 1 x 9V AB9
PP233
PDF
DWG
View
243-B.9 6,811 6,063 2,402 9004
P2H-AT 6,063 5,512 2 1 x 9V AB9
PP233
PDF
DWG
View
243/O.5 6,811 6,063 2,402 9018
AG-ATY 6,063 5,512 2 - PP233
PDF
DWG
View
  • Color (Ral): 9018
  • Material: AG-ATY
  • MAX PCB L (mm): 154
  • MAX PCB W (mm): 140
  • Screws: 2
  • Battery: -
  • Accessories: PP233
  • Drawings:  PDF  DWG
243/O.9 6,811 6,063 2,402 9004
P2H-AT 6,063 5,512 2 - PP233
PDF
DWG
View
  • Color (Ral): 9004
  • Material: P2H-AT
  • MAX PCB L (mm): 154
  • MAX PCB W (mm): 140
  • Screws: 2
  • Battery: -
  • Accessories: PP233
  • Drawings:  PDF  DWG
12 product families, 144 series. You can't find what you're looking for? Contact us
