Family Front Panel - Electronic enclosures - Plastic

Description

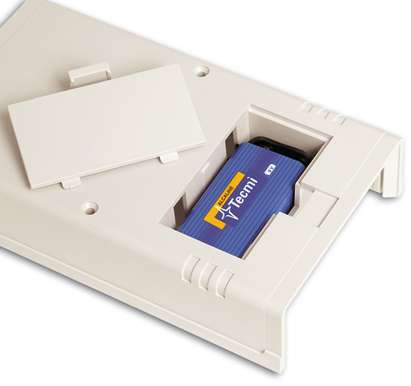

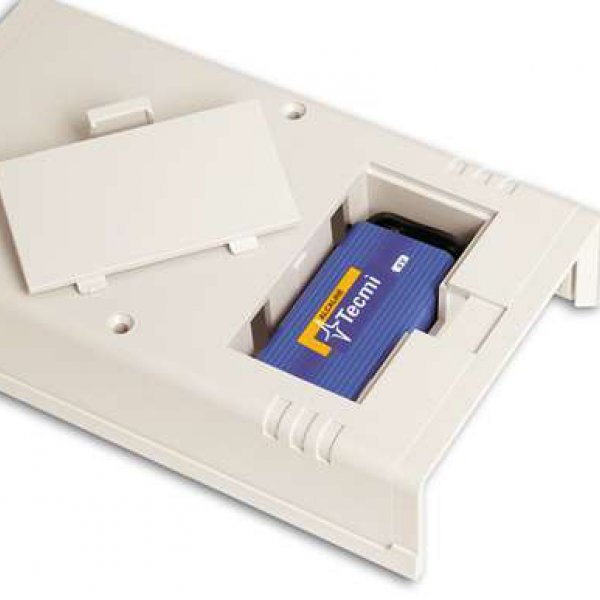

An ABS enclosure with two 1 mm aluminium panels. A 9V battery compartment with a Snap-On lid. Each half-shells has mounting studs. Mat surface finish. Closing by only two screws. Available with plastic panels (Mod. PPD1. PPD2, PPD3).

Details

Products

Model L (inch) W (inch) H (inch) Color (Ral) Material MAX PCB L (inch) MAX PCB W (inch) Screws Battery Accessories Drawings Other

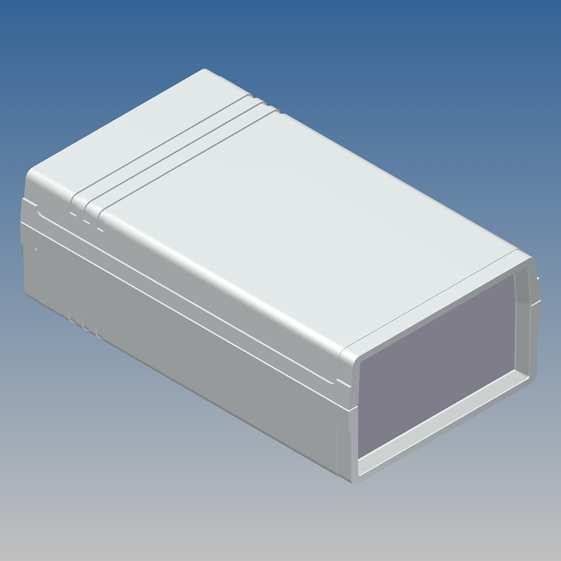

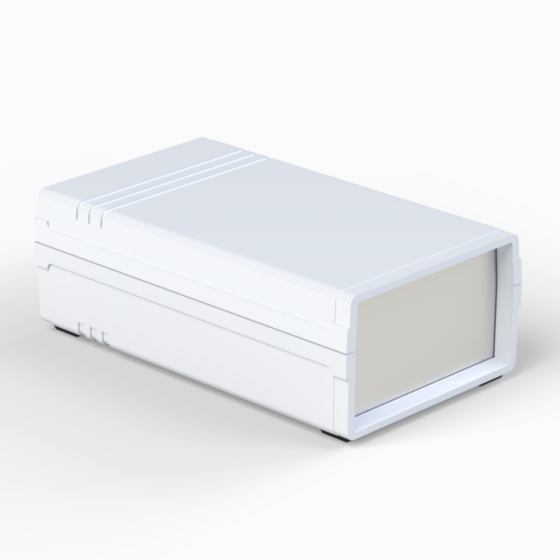

10002-B.5 5,709 3,346 1,929 9018
AG-ATY 4,961 2,835 2 1 x 9V PPD2
PDF
DWG
View
  • Color (Ral): 9018
  • Material: AG-ATY
  • MAX PCB L (mm): 126
  • MAX PCB W (mm): 72
  • Screws: 2
  • Battery: 1 x 9V
  • Accessories: PPD2
  • Drawings:  PDF  DWG

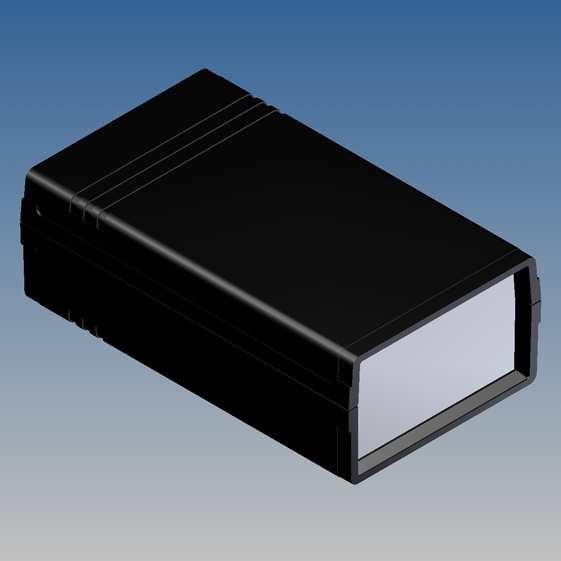

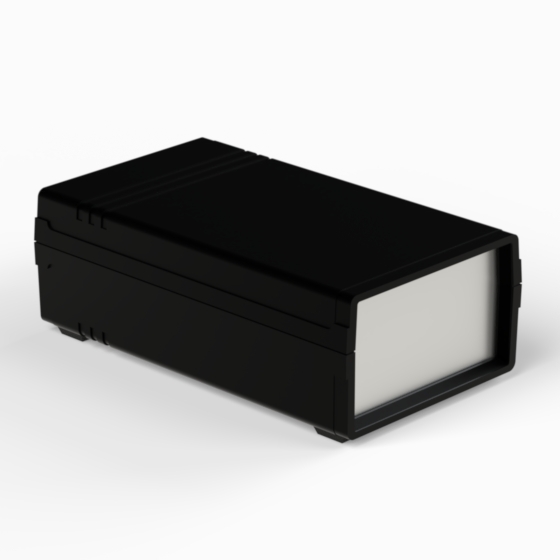

10002-B.9 5,709 3,346 1,929 9004
P2H-AT 4,961 2,835 2 1 x 9V PPD2
PDF
DWG
View
  • Color (Ral): 9004
  • Material: P2H-AT
  • MAX PCB L (mm): 126
  • MAX PCB W (mm): 72
  • Screws: 2
  • Battery: 1 x 9V
  • Accessories: PPD2
  • Drawings:  PDF  DWG

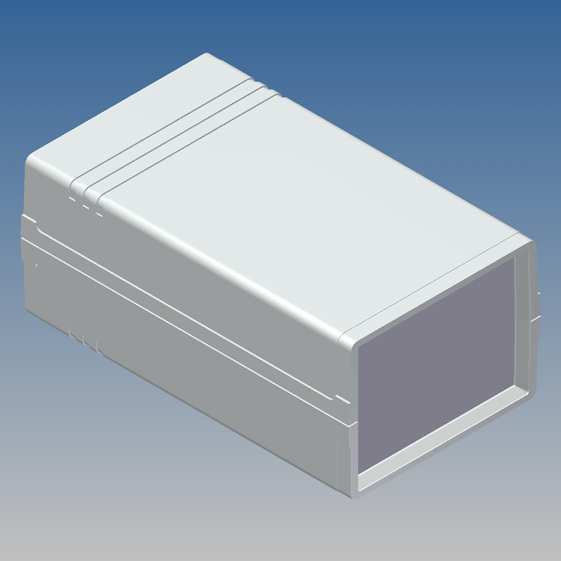

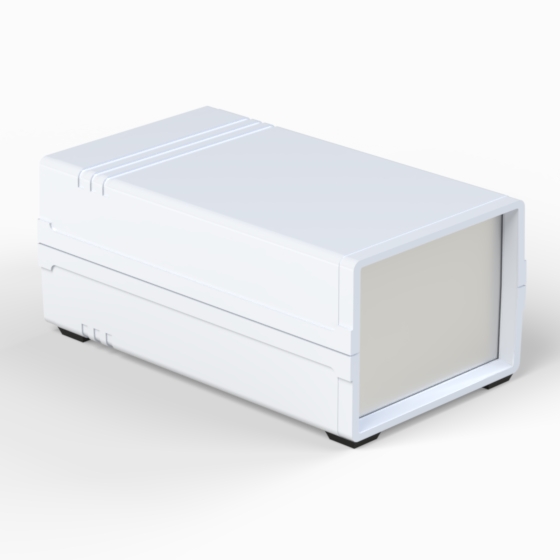

10003-B.5 5,709 3,346 2,402 9018
AG-ATY 4,961 2,835 2 1 x 9V PPD3
PDF
DWG
View
  • Color (Ral): 9018
  • Material: AG-ATY
  • MAX PCB L (mm): 126
  • MAX PCB W (mm): 72
  • Screws: 2
  • Battery: 1 x 9V
  • Accessories: PPD3
  • Drawings:  PDF  DWG

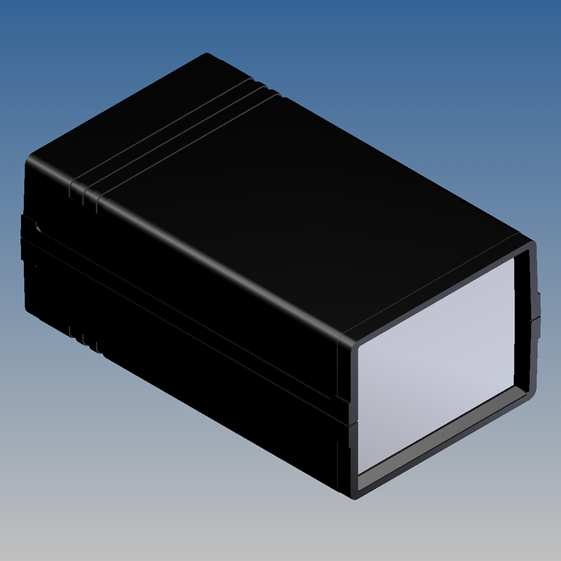

10003-B.9 5,709 3,346 2,402 9004
P2H-AT 4,961 2,835 2 1 x 9V PPD3
PDF
DWG
View
  • Color (Ral): 9004
  • Material: P2H-AT
  • MAX PCB L (mm): 126
  • MAX PCB W (mm): 72
  • Screws: 2
  • Battery: 1 x 9V
  • Accessories: PPD3
  • Drawings:  PDF  DWG
