Family Front Panel - Electronic enclosures - Plastic

Description

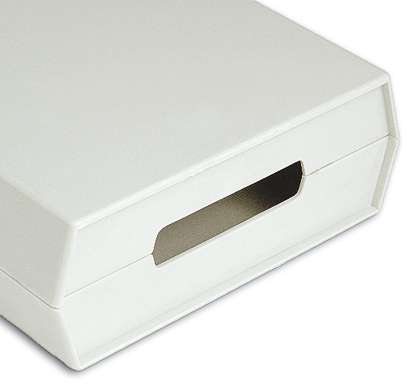

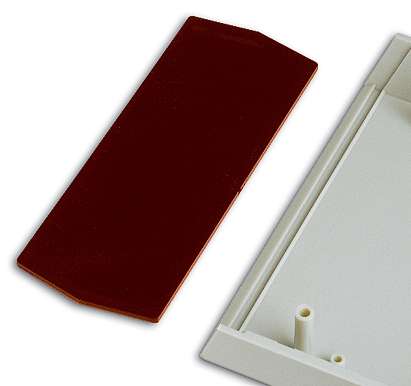

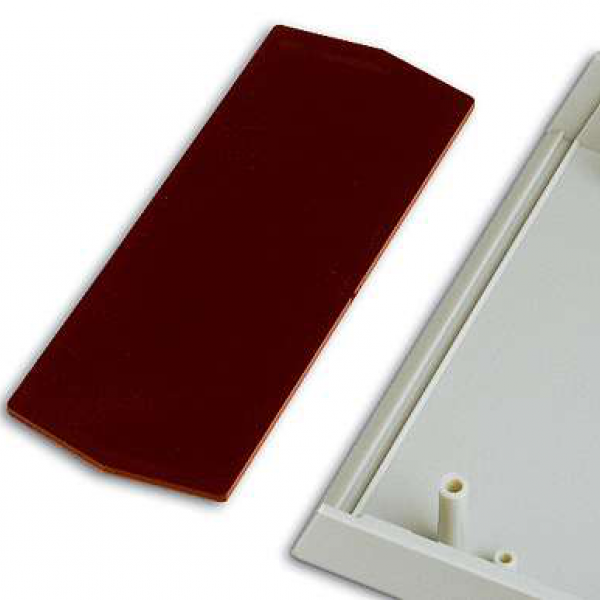

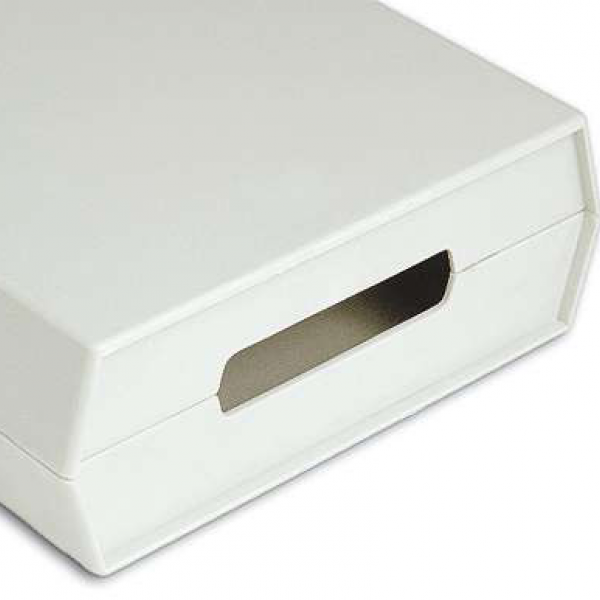

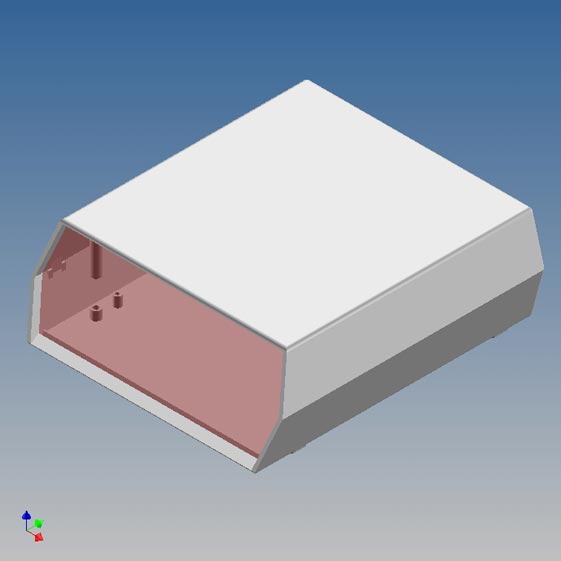

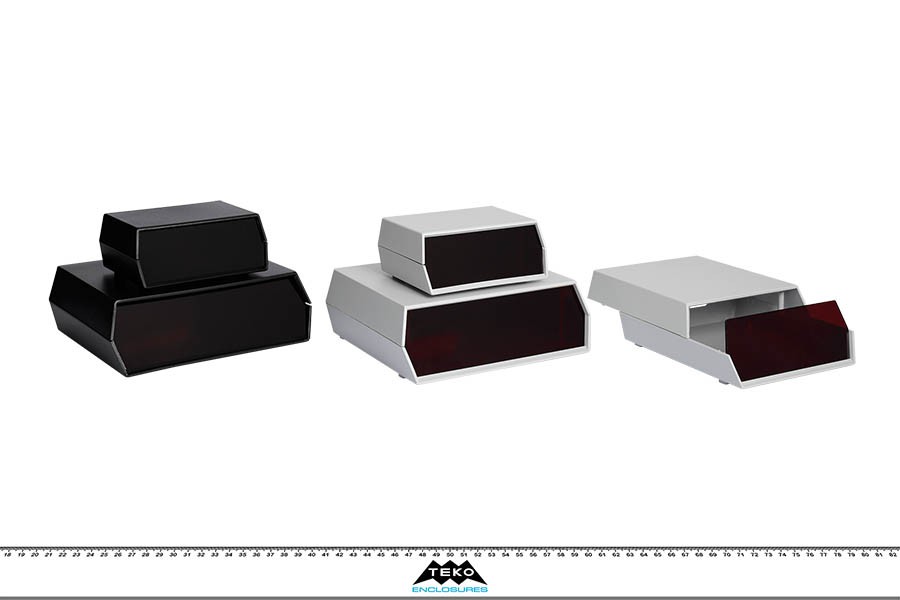

A polystyrene enclosure with a red polystyrene 20° inclined panel. Each half-shell has integral PCB mounting studs. The models “D/13” and “D/14” have in the rear side a cutout for cabling. Matt surface finish. Closing by four screws.

Details

Products

Model L (inch) W (inch) H (inch) Color (Ral) Material MAX PCB L (inch) MAX PCB W (inch) Screws Battery Accessories Drawings Other
D-12.5 4,705 3,504 1,968 9018
AG-ATY - - 4 - PDF
DWG
View
  • Color (Ral): 9018
  • Material: AG-ATY
  • MAX PCB L (mm): -
  • MAX PCB W (mm): -
  • Screws: 4
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG
D-12.9 4,705 3,504 1,968 9004
P2H-AT - - 4 - PDF
DWG
View
  • Color (Ral): 9004
  • Material: P2H-AT
  • MAX PCB L (mm): -
  • MAX PCB W (mm): -
  • Screws: 4
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG
D-13.5 5,315 5,906 2,126 9018
AG-ATY - - 4 - PDF
DWG
View
  • Color (Ral): 9018
  • Material: AG-ATY
  • MAX PCB L (mm): -
  • MAX PCB W (mm): -
  • Screws: 4
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG
D-13.9 5,315 5,906 2,126 9004
P2H-AT - - 4 - PDF
DWG
View
  • Color (Ral): 9004
  • Material: P2H-AT
  • MAX PCB L (mm): -
  • MAX PCB W (mm): -
  • Screws: 4
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG
D-14.5 7,126 6,102 2,362 9018
AG-ATY - - 4 - PDF
DWG
View
  • Color (Ral): 9018
  • Material: AG-ATY
  • MAX PCB L (mm): -
  • MAX PCB W (mm): -
  • Screws: 4
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG
D-14.9 7,126 6,102 2,362 9004
P2H-AT - - 4 - PDF
DWG
View
  • Color (Ral): 9004
  • Material: P2H-AT
  • MAX PCB L (mm): -
  • MAX PCB W (mm): -
  • Screws: 4
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG
