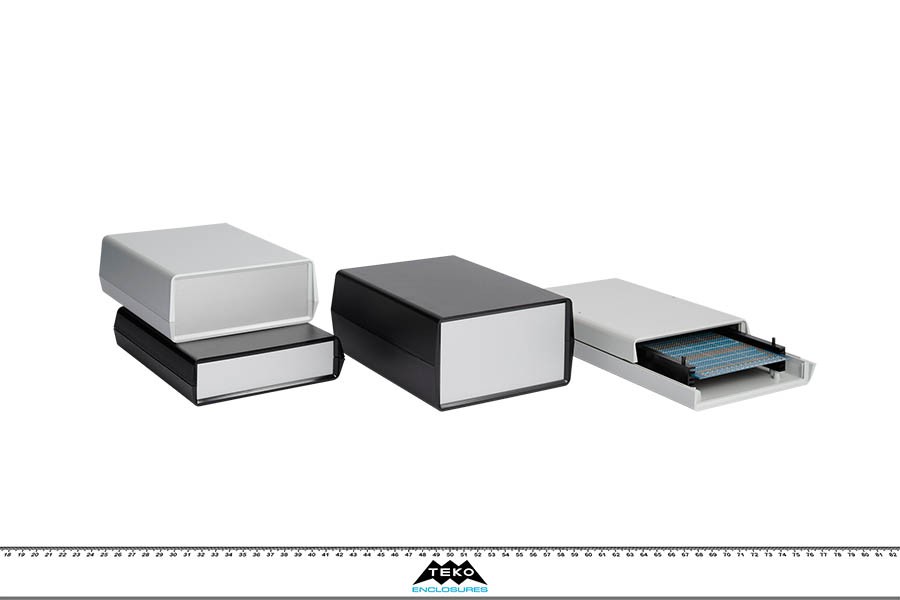

EURO 93

Family Front Panel - Electronic enclosures - Plastic

Description

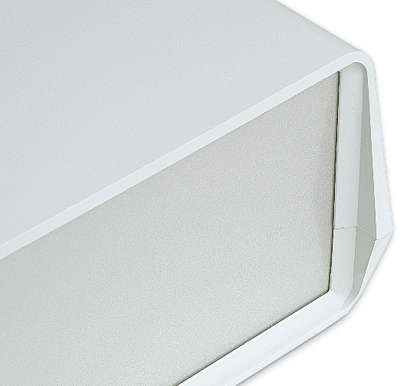

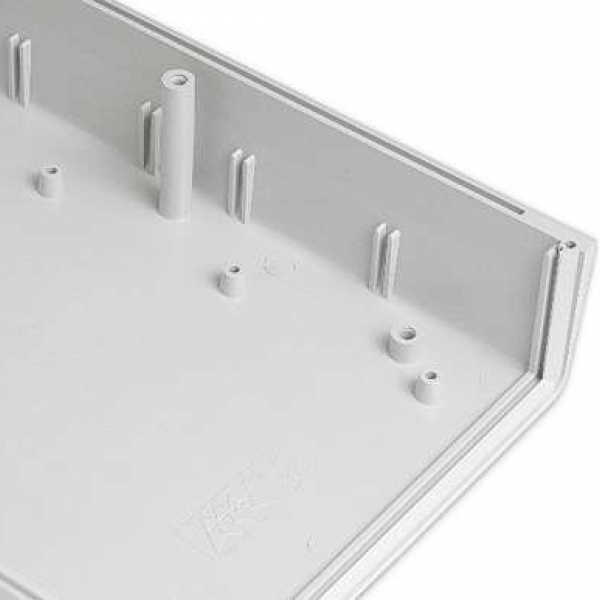

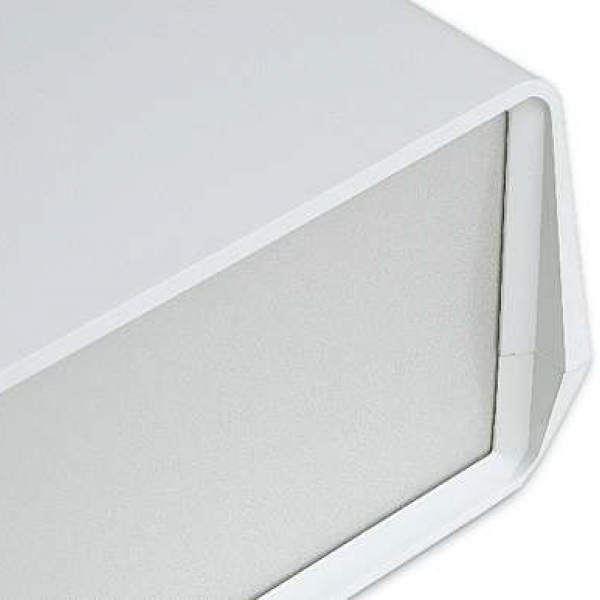

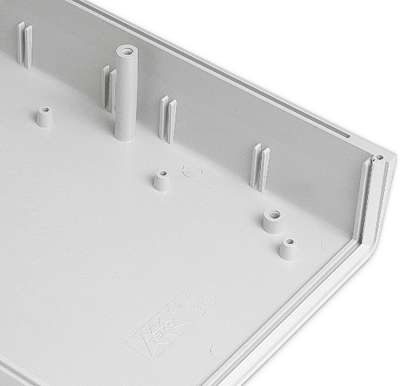

ABS enclosures with two 1 mm aluminium panels. Each half-shell has integral PCB guides and mounting studs. Matt surface finish. Closing by only two screws.

Details

Products

Model L (inch) W (inch) H (inch) Color (Ral) Material MAX PCB L (inch) MAX PCB W (inch) Screws Battery Accessories Drawings Other

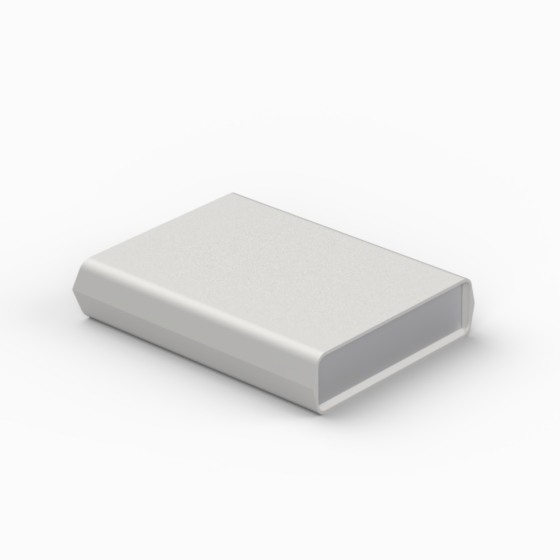

931.5 7,008 5,177 1,417 9018
AG-ATY 6,220 4,567 2 - PDF
DWG
View
  • Color (Ral): 9018
  • Material: AG-ATY
  • MAX PCB L (mm): 158
  • MAX PCB W (mm): 116
  • Screws: 2
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG
931.9 7,008 5,177 1,417 9004
P2H-AT 6,220 4,567 2 - PDF
DWG
View
  • Color (Ral): 9004
  • Material: P2H-AT
  • MAX PCB L (mm): 158
  • MAX PCB W (mm): 116
  • Screws: 2
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

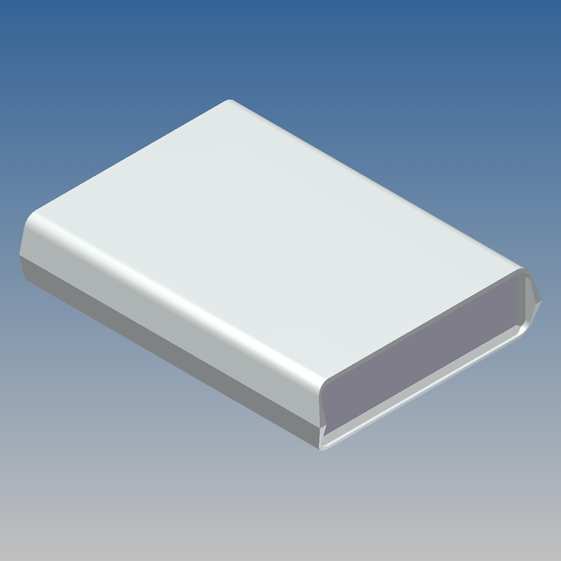

931-C.5 7,008 5,177 1,417 9018
AG-ATY 6,220 4,567 2 - PDF
DWG
View
  • Color (Ral): 9018
  • Material: AG-ATY
  • MAX PCB L (mm): 158
  • MAX PCB W (mm): 116
  • Screws: 2
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

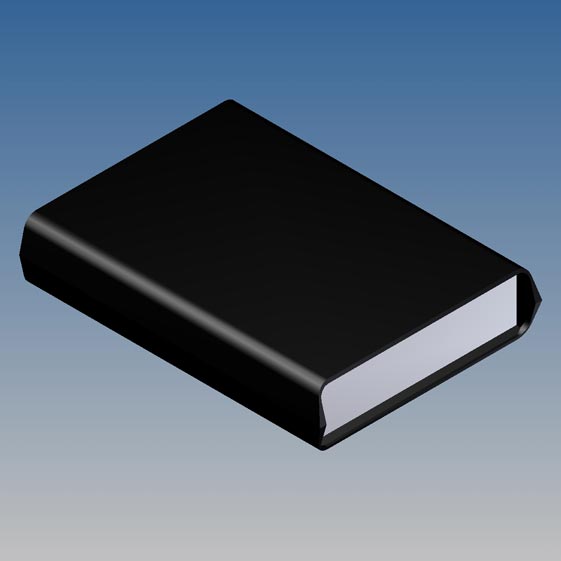

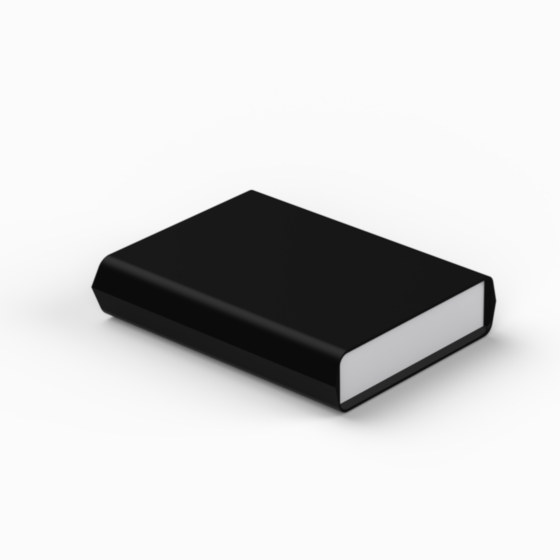

931-C.9 7,008 5,177 1,417 9004
P2H-AT 6,220 4,567 2 - PDF
DWG
View
  • Color (Ral): 9004
  • Material: P2H-AT
  • MAX PCB L (mm): 158
  • MAX PCB W (mm): 116
  • Screws: 2
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

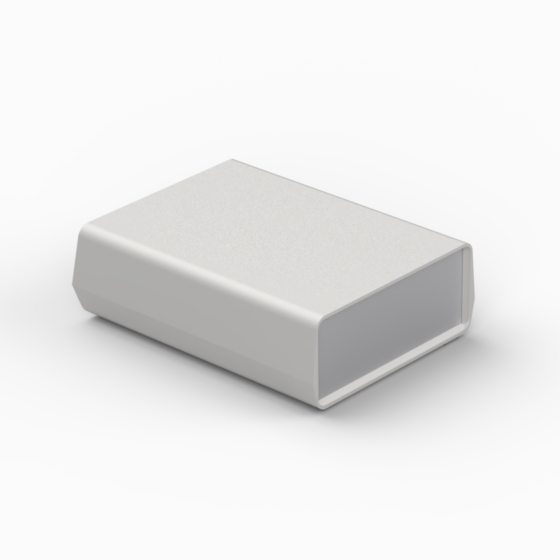

932.5 7,008 5,177 2,126 9018
AG-ATY 6,220 4,567 2 - PDF
DWG
View
  • Color (Ral): 9018
  • Material: AG-ATY
  • MAX PCB L (mm): 158
  • MAX PCB W (mm): 116
  • Screws: 2
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

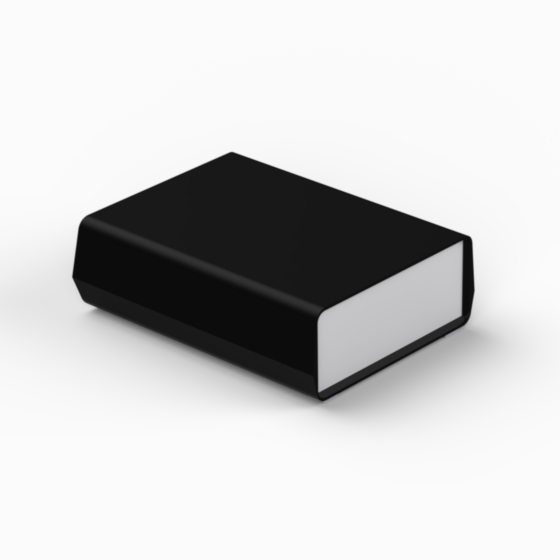

932.9 7,008 5,177 2,126 9004
P2H-AT 6,220 4,567 2 - PDF
DWG
View
  • Color (Ral): 9004
  • Material: P2H-AT
  • MAX PCB L (mm): 158
  • MAX PCB W (mm): 116
  • Screws: 2
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

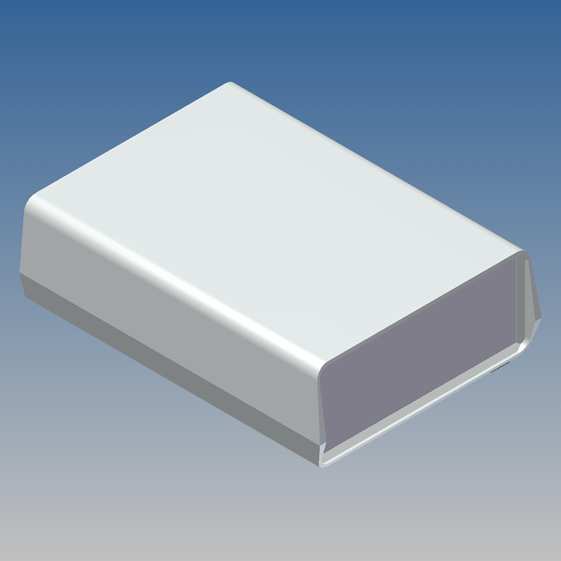

932-C.5 7,008 5,177 2,126 9018
AG-ATY 6,220 4,567 2 - PDF
DWG
View
  • Color (Ral): 9018
  • Material: AG-ATY
  • MAX PCB L (mm): 158
  • MAX PCB W (mm): 116
  • Screws: 2
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

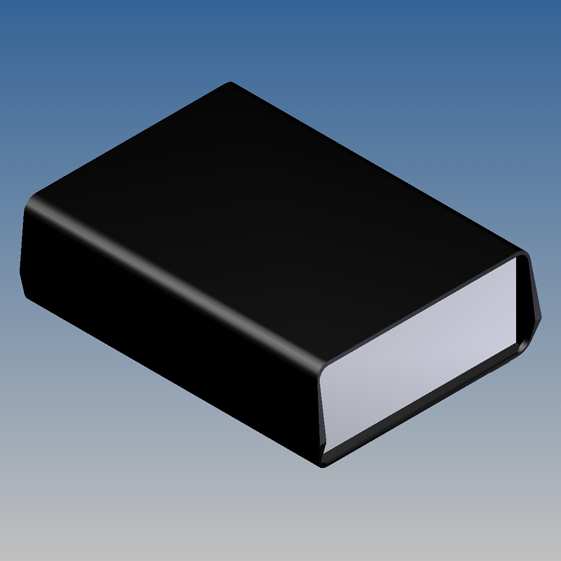

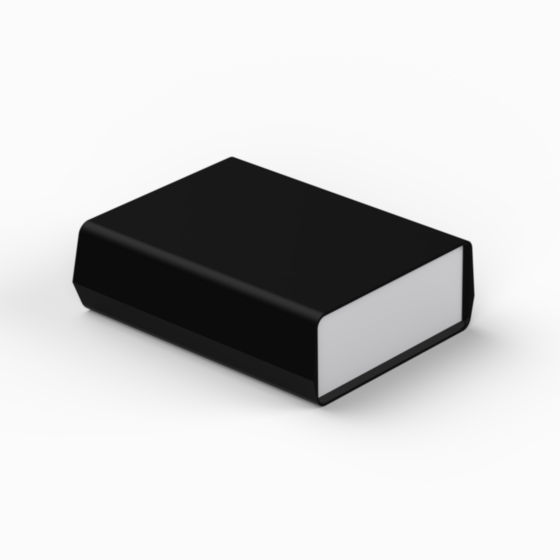

932-C.9 7,008 5,177 2,126 9004
P2H-AT 6,220 4,567 2 - PDF
DWG
View
  • Color (Ral): 9004
  • Material: P2H-AT
  • MAX PCB L (mm): 158
  • MAX PCB W (mm): 116
  • Screws: 2
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

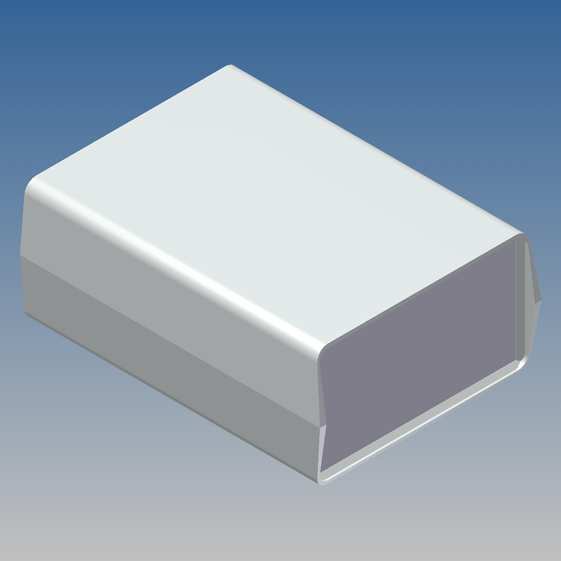

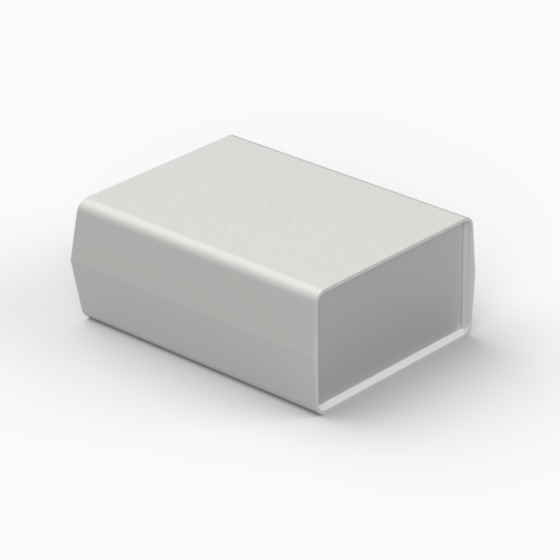

933.5 7,008 5,177 2,835 9018
AG-ATY 6,220 4,567 2 - PDF
DWG
View
  • Color (Ral): 9018
  • Material: AG-ATY
  • MAX PCB L (mm): 158
  • MAX PCB W (mm): 116
  • Screws: 2
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG
933.9 7,008 5,177 2,835 9004
P2H-AT 6,220 4,567 2 - PDF
DWG
View
  • Color (Ral): 9004
  • Material: P2H-AT
  • MAX PCB L (mm): 158
  • MAX PCB W (mm): 116
  • Screws: 2
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG
933-C.5 7,008 5,177 2,835 9018
AG-ATY 6,220 4,567 2 - PDF
DWG
View
  • Color (Ral): 9018
  • Material: AG-ATY
  • MAX PCB L (mm): 158
  • MAX PCB W (mm): 116
  • Screws: 2
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

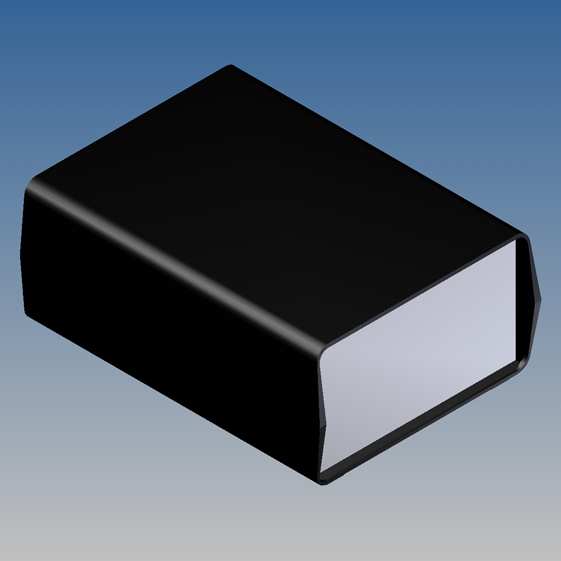

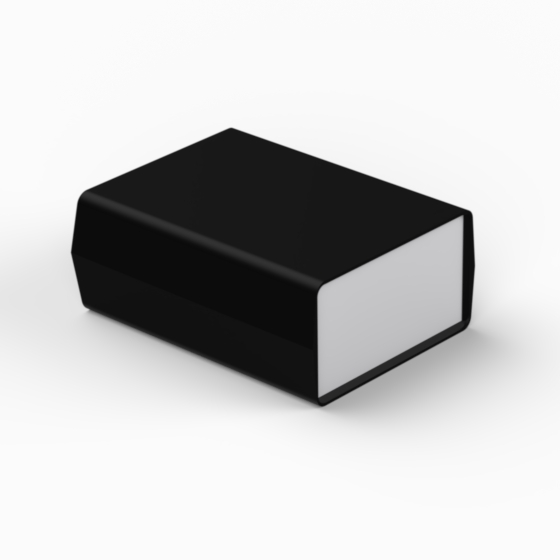

933-C.9 7,008 5,177 2,835 9004
P2H-AT 6,220 4,567 2 - PDF
DWG
View
  • Color (Ral): 9004
  • Material: P2H-AT
  • MAX PCB L (mm): 158
  • MAX PCB W (mm): 116
  • Screws: 2
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

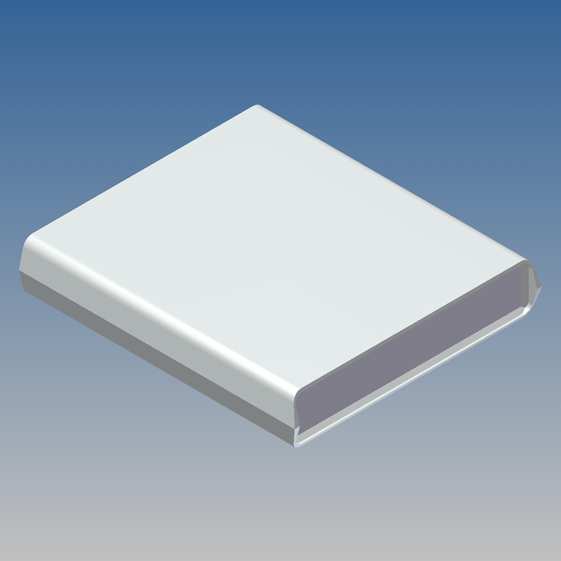

934.5 7,795 7,008 1,417 9018
AG-ATY 7,008 6,378 2 - PDF
DWG
View
  • Color (Ral): 9018
  • Material: AG-ATY
  • MAX PCB L (mm): 178
  • MAX PCB W (mm): 162
  • Screws: 2
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

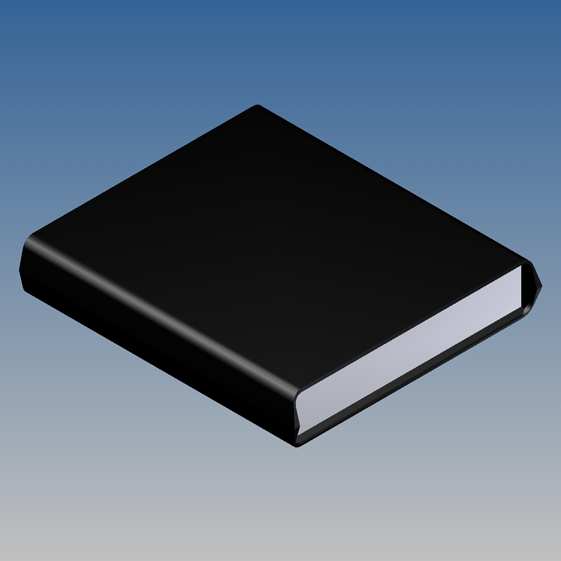

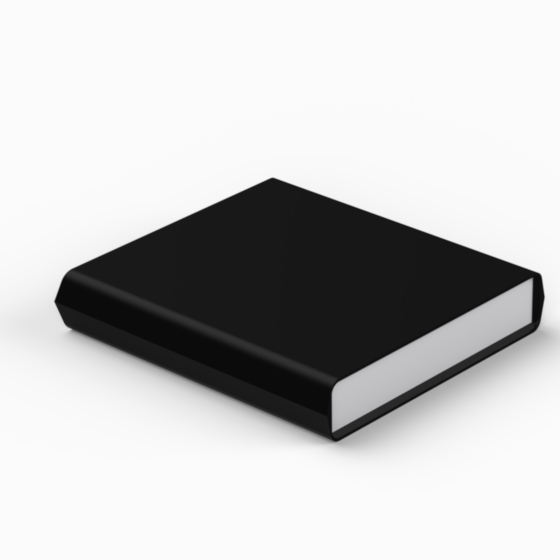

934.9 7,795 7,008 1,417 9004
P2H-AT 7,008 6,378 2 - PDF
DWG
View
  • Color (Ral): 9004
  • Material: P2H-AT
  • MAX PCB L (mm): 178
  • MAX PCB W (mm): 162
  • Screws: 2
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

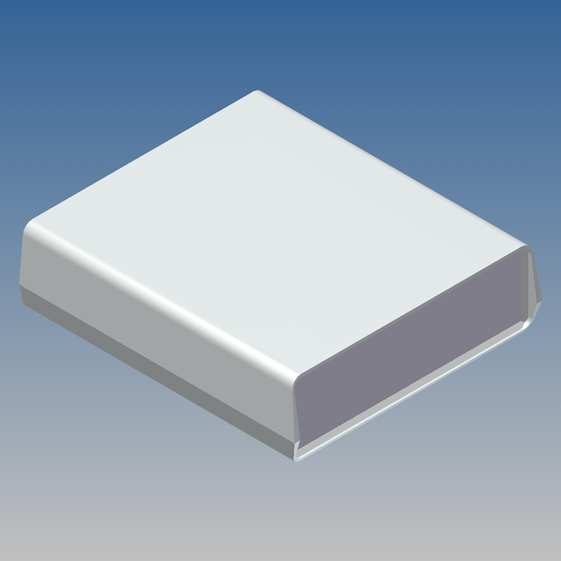

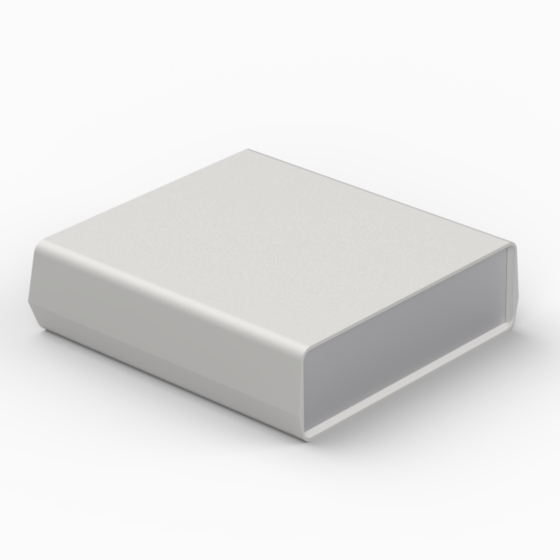

935.5 7,795 7,008 2,126 9018
AG-ATY 7,008 6,378 2 - PDF
DWG
View
  • Color (Ral): 9018
  • Material: AG-ATY
  • MAX PCB L (mm): 178
  • MAX PCB W (mm): 162
  • Screws: 2
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

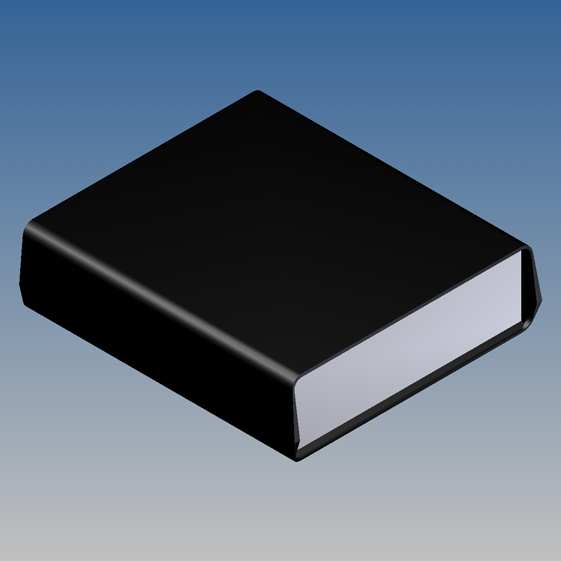

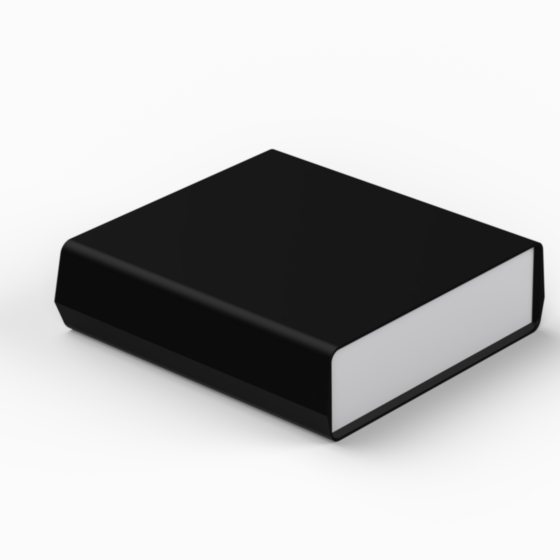

935.9 7,795 7,008 2,126 9004
P2H-AT 7,008 6,378 2 - PDF
DWG
View
  • Color (Ral): 9004
  • Material: P2H-AT
  • MAX PCB L (mm): 178
  • MAX PCB W (mm): 162
  • Screws: 2
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

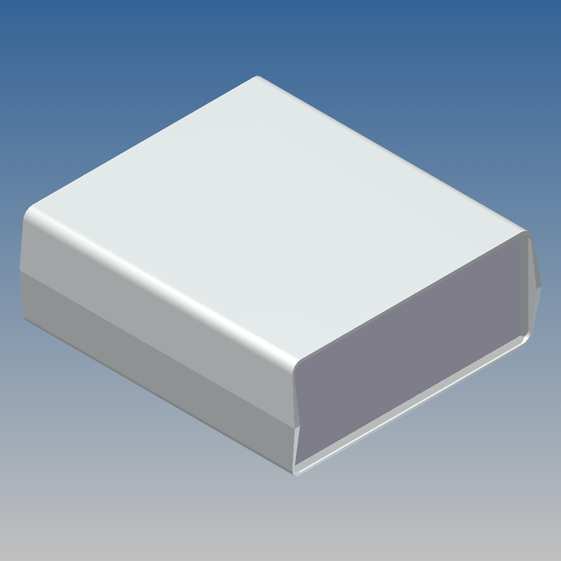

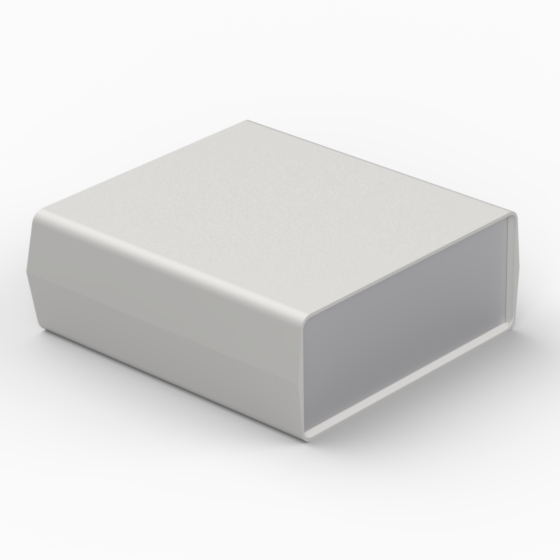

936.5 7,795 7,008 2,835 9018
AG-ATY 7,008 6,378 2 - PDF
DWG
View
  • Color (Ral): 9018
  • Material: AG-ATY
  • MAX PCB L (mm): 178
  • MAX PCB W (mm): 162
  • Screws: 2
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

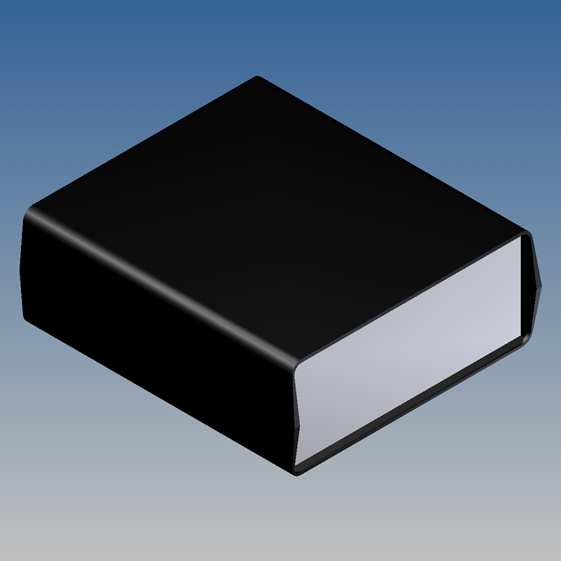

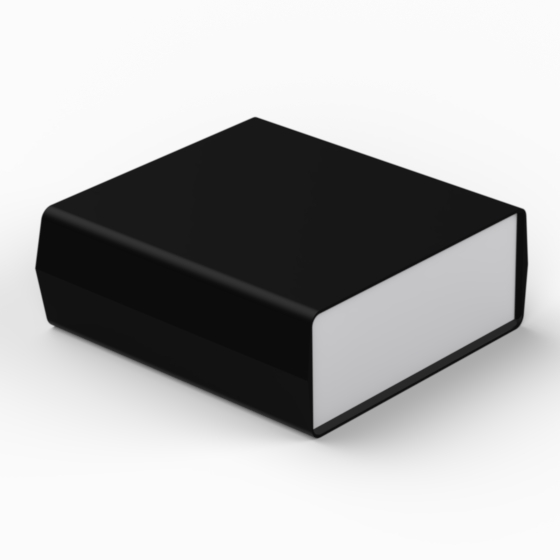

936.9 7,795 7,008 2,835 9004
P2H-AT 7,008 6,378 2 - PDF
DWG
View
  • Color (Ral): 9004
  • Material: P2H-AT
  • MAX PCB L (mm): 178
  • MAX PCB W (mm): 162
  • Screws: 2
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG
