KL-AUS HANDLE

Family Front Panel - Electronic enclosures - Plastic

Description

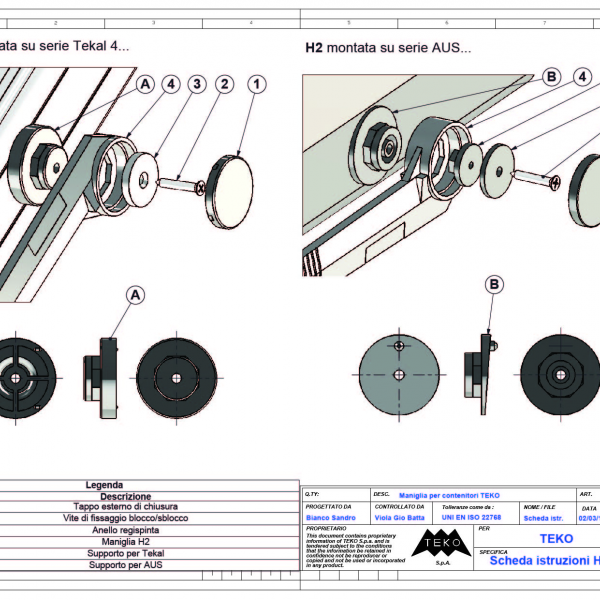

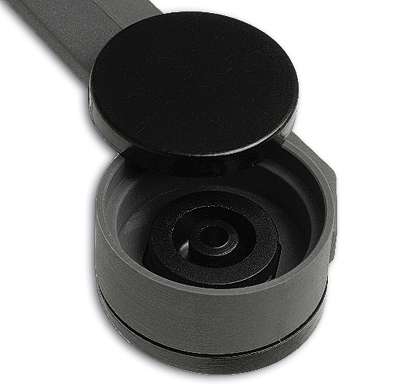

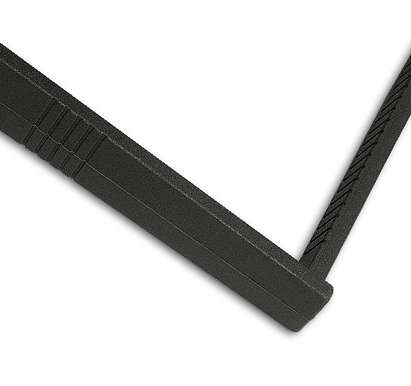

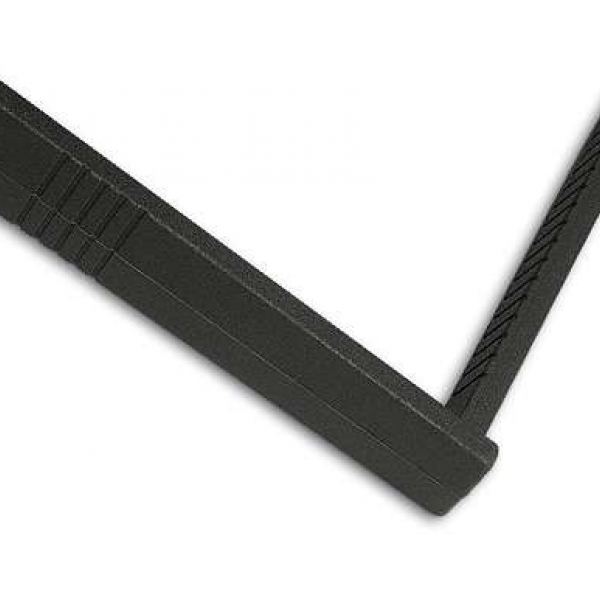

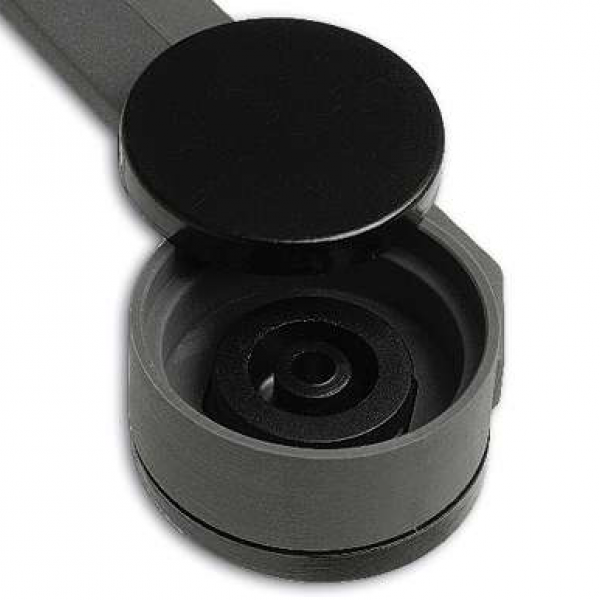

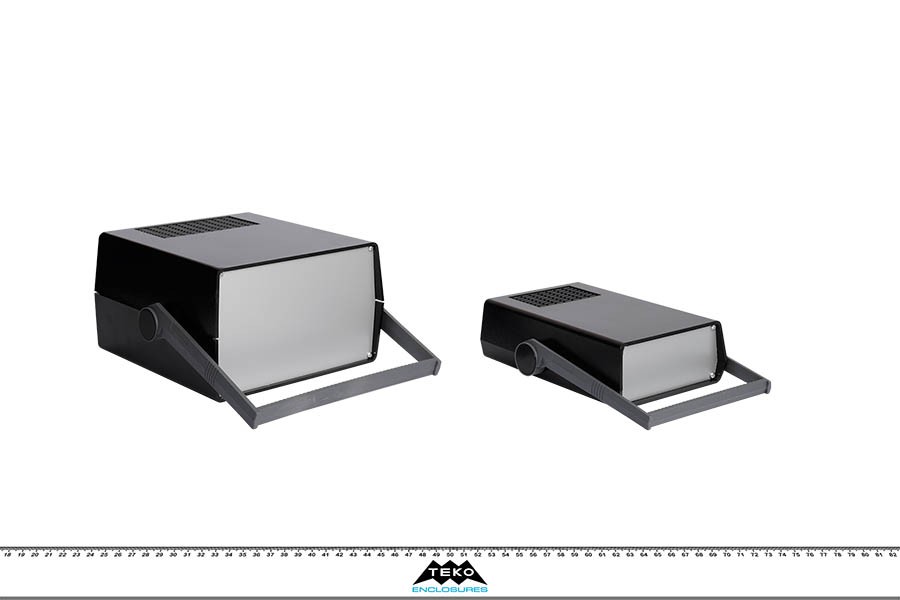

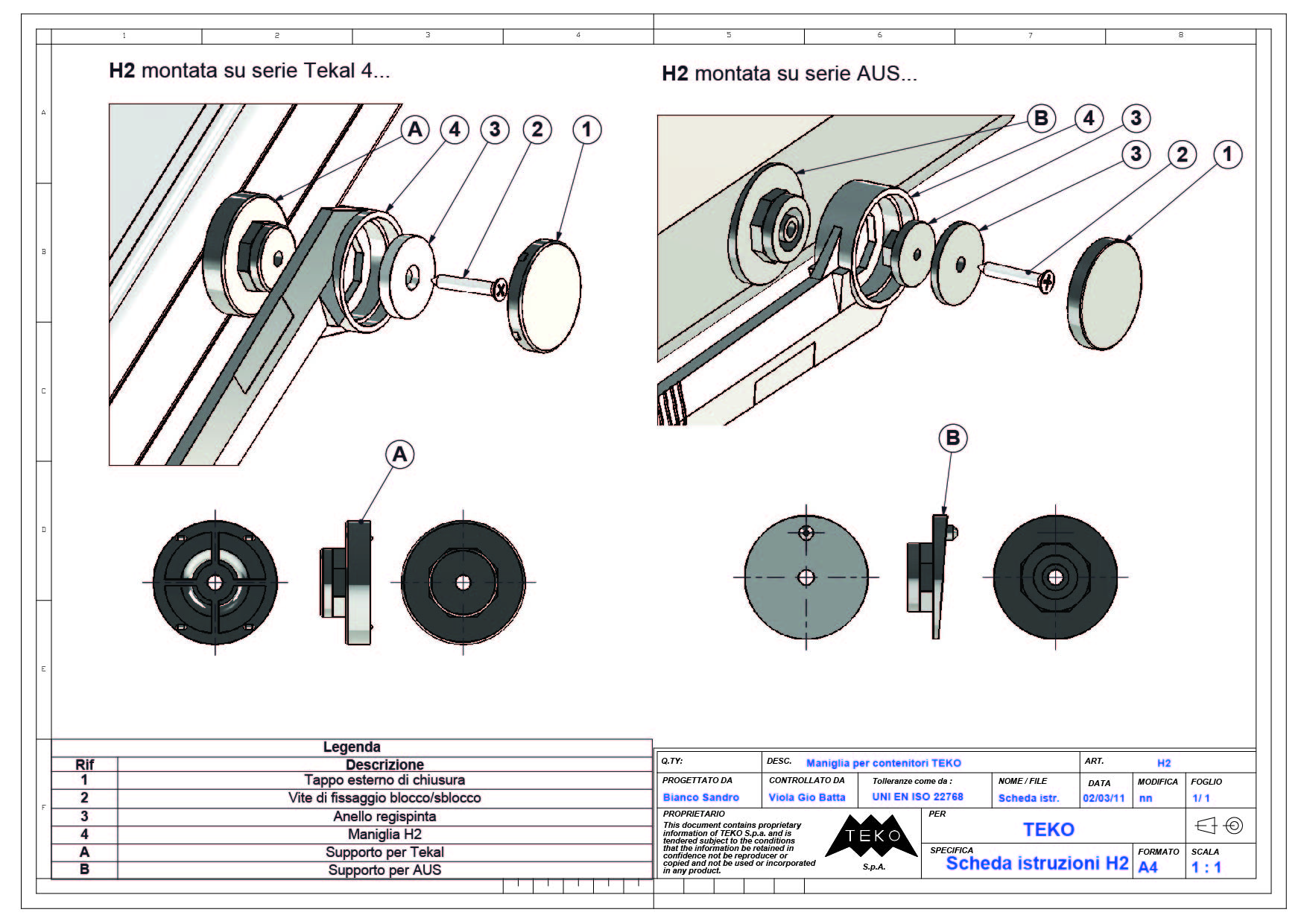

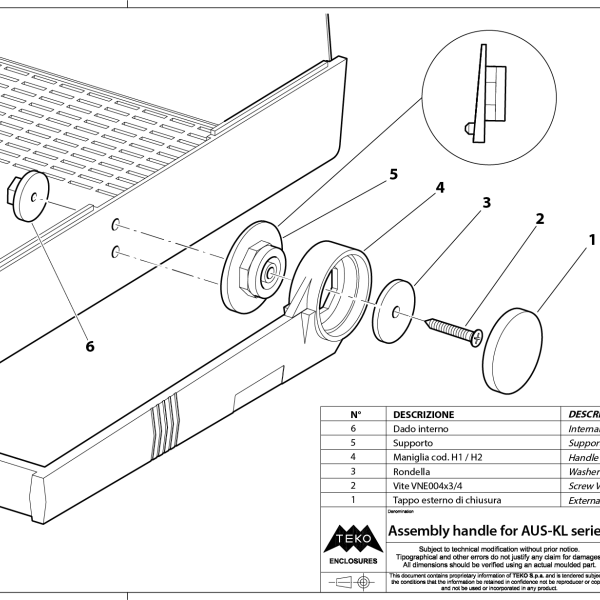

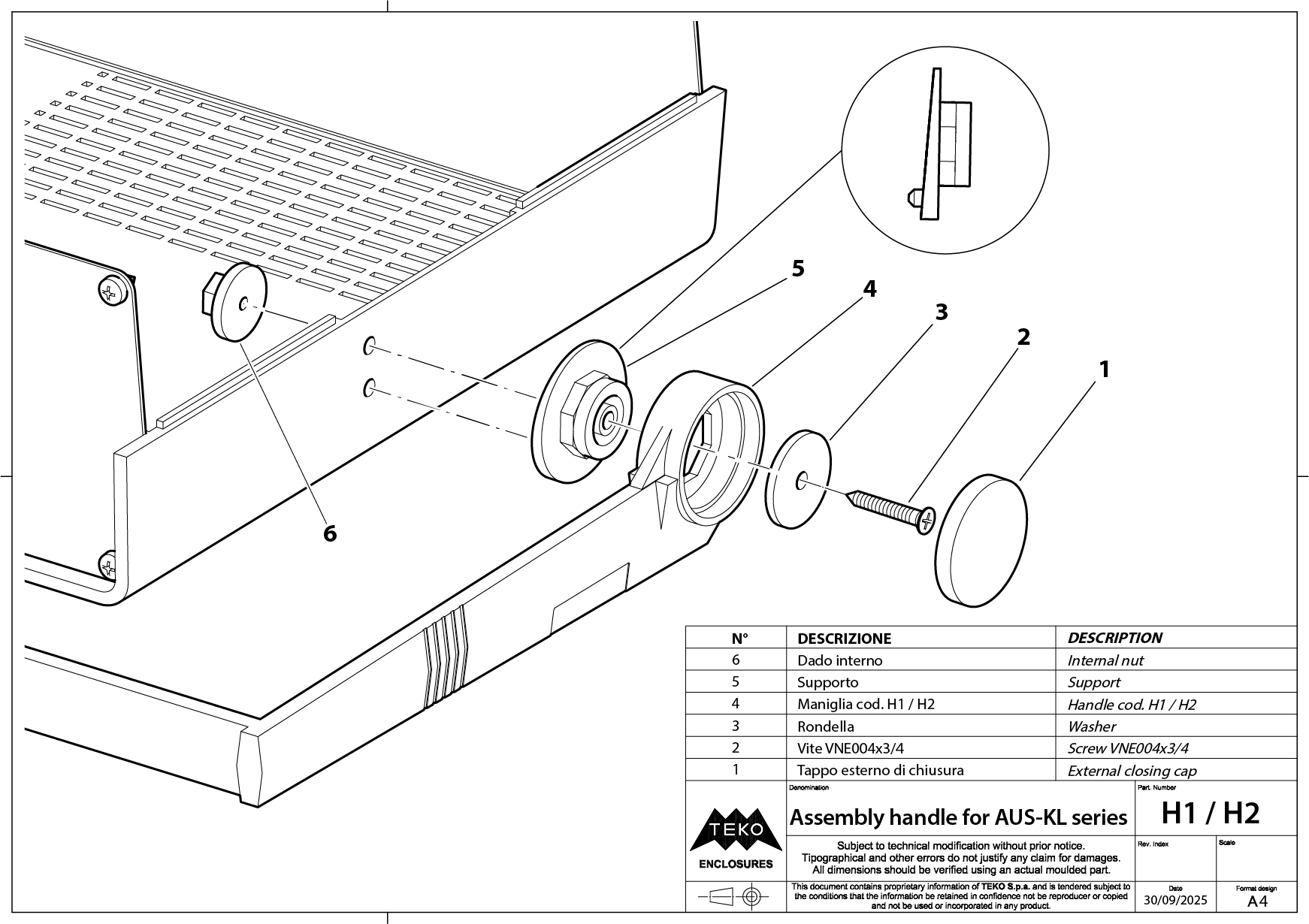

ABS enclosures with a handle that can be locked in any of eight positions and used as a stand. Vented cover and base for aeration. Front and rear 1 mm aluminium panels. Each half-shell has integral PCB guides and mounting studs. Matt surface finish. Closing by eight screws.

Details

Products

Model L (inch) W (inch) H (inch) Color (Ral) Material MAX PCB L (inch) MAX PCB W (inch) Screws Battery Accessories Drawings Other

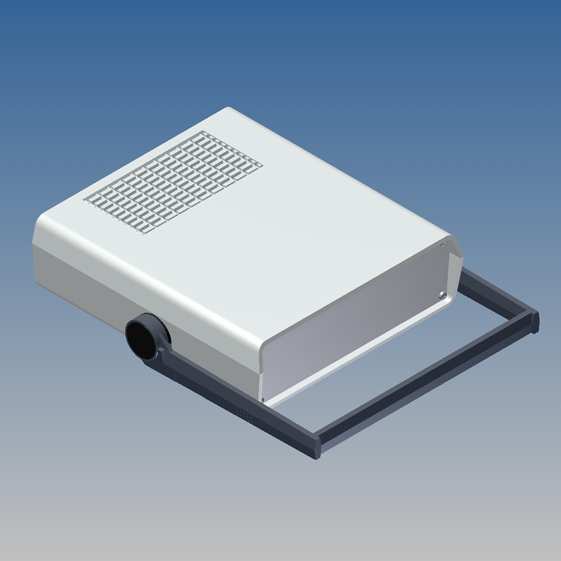

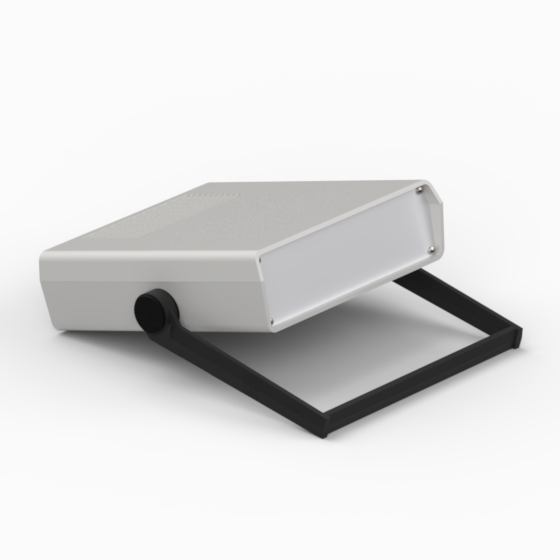

AUS-41.5 7,795 7,008 2,126 9018
AG-ATY 6,693 6,378 8 - PDF
DWG
View
  • Color (Ral): 9018
  • Material: AG-ATY
  • MAX PCB L (mm): 170
  • MAX PCB W (mm): 162
  • Screws: 8
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

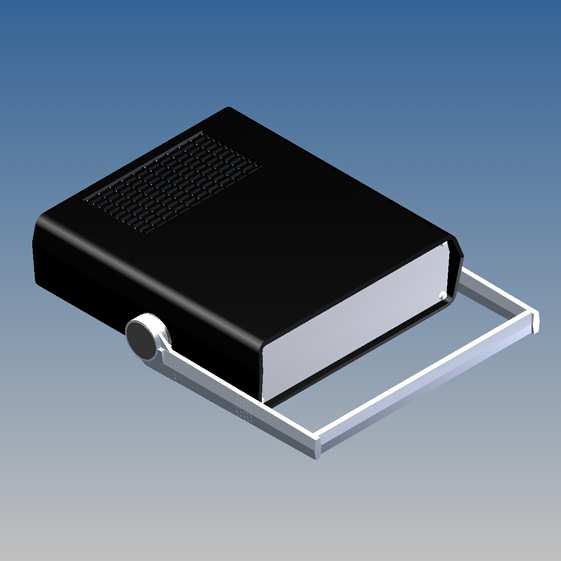

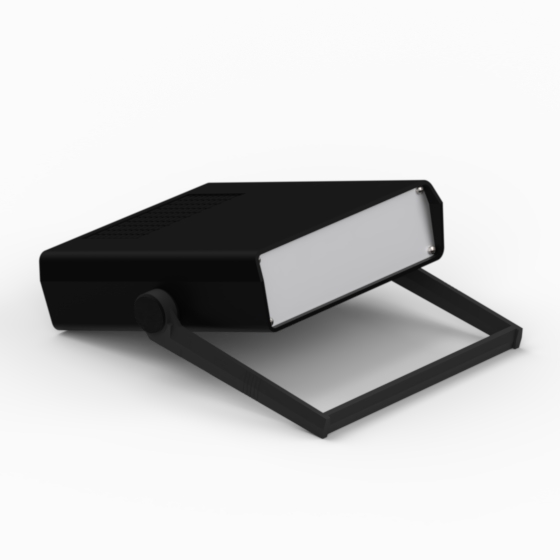

AUS-41.9 7,795 7,008 2,126 9004
P2H-AT 6,693 6,378 8 - PDF
DWG
View
  • Color (Ral): 9004
  • Material: P2H-AT
  • MAX PCB L (mm): 170
  • MAX PCB W (mm): 162
  • Screws: 8
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

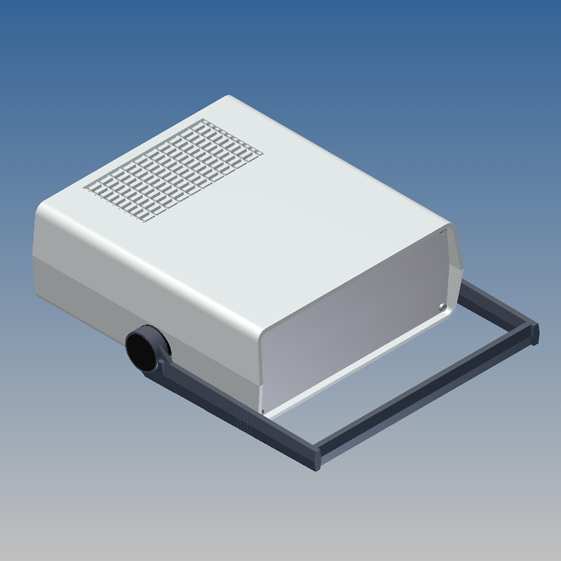

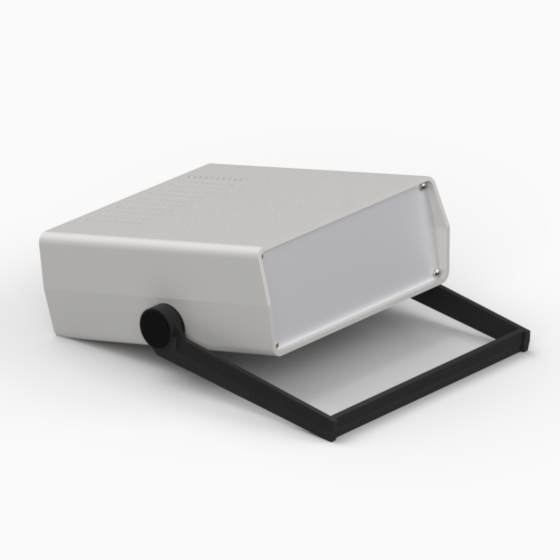

AUS-44.5 7,795 7,008 2,835 9018
AG-ATY 6,693 6,378 8 - PDF
DWG
View
  • Color (Ral): 9018
  • Material: AG-ATY
  • MAX PCB L (mm): 170
  • MAX PCB W (mm): 162
  • Screws: 8
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

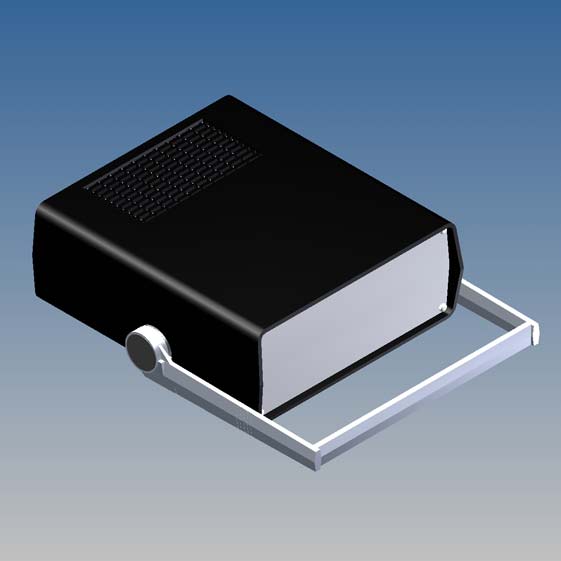

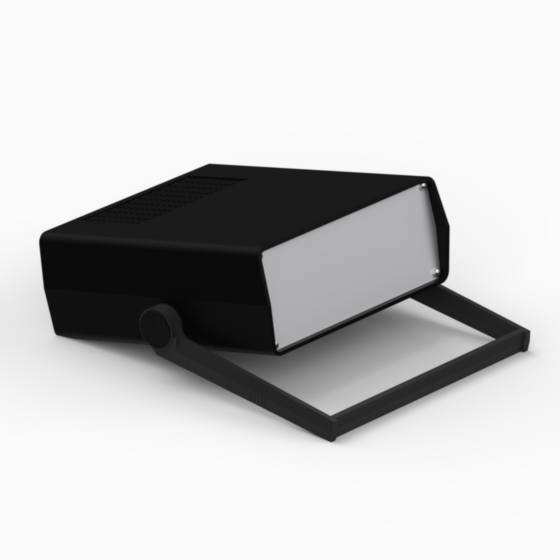

AUS-44.9 7,795 7,008 2,835 9004
P2H-AT 6,693 6,378 8 - PDF
DWG
View
  • Color (Ral): 9004
  • Material: P2H-AT
  • MAX PCB L (mm): 170
  • MAX PCB W (mm): 162
  • Screws: 8
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

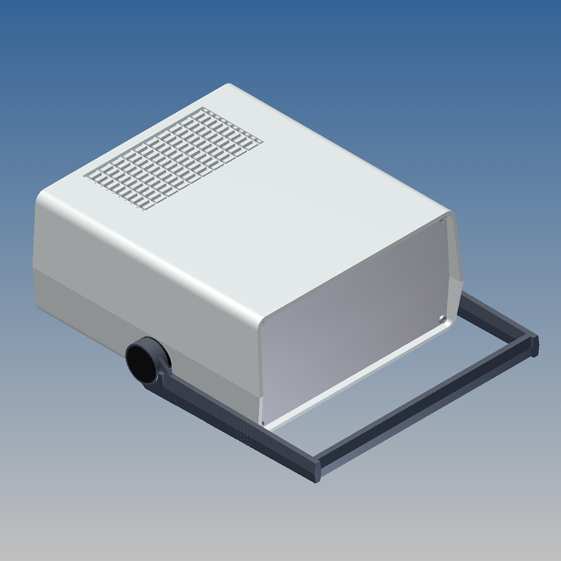

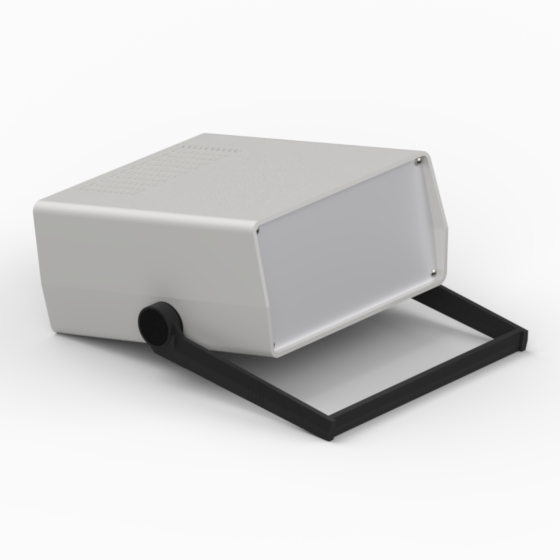

AUS-45.5 7,795 7,008 3,543 9018
AG-ATY 6,693 6,378 8 - PDF
DWG
View
  • Color (Ral): 9018
  • Material: AG-ATY
  • MAX PCB L (mm): 170
  • MAX PCB W (mm): 162
  • Screws: 8
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

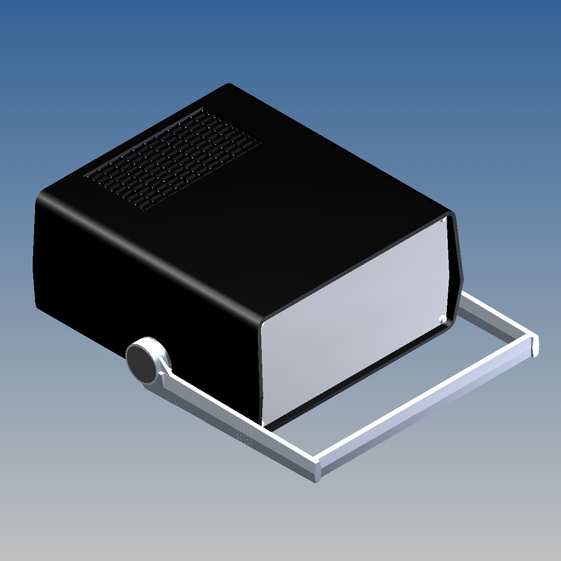

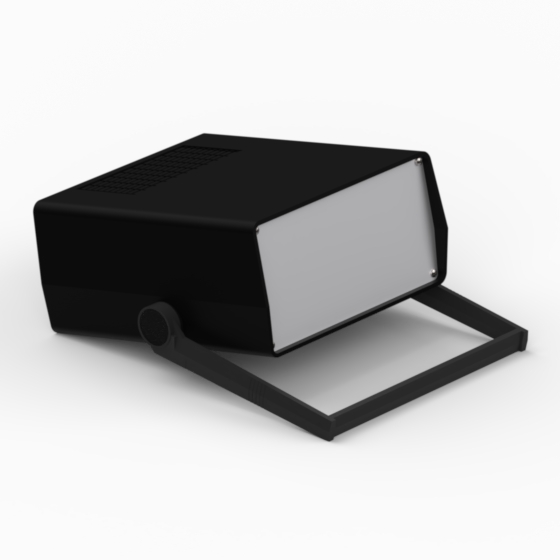

AUS-45.9 7,795 7,008 3,543 9004
P2H-AT 6,693 6,378 8 - PDF
DWG
View
  • Color (Ral): 9004
  • Material: P2H-AT
  • MAX PCB L (mm): 170
  • MAX PCB W (mm): 162
  • Screws: 8
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

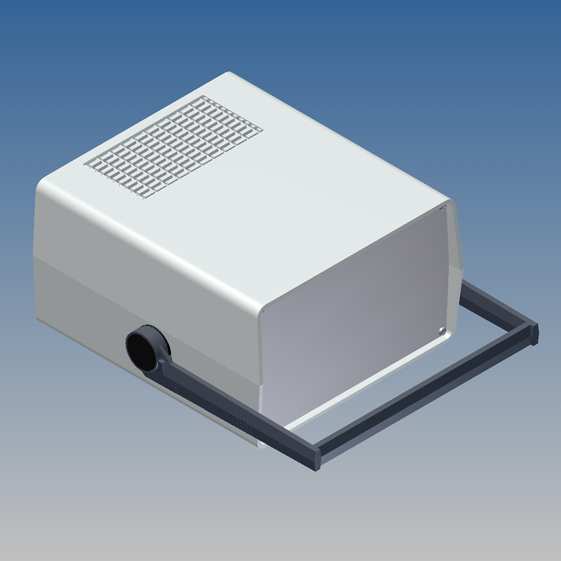

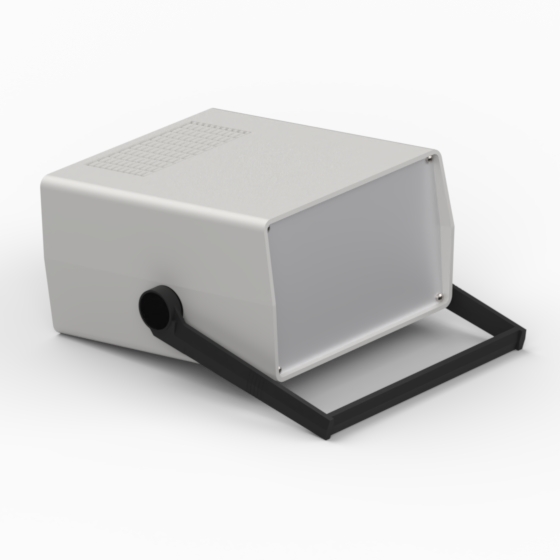

AUS-55.5 7,795 7,008 4,252 9018
AG-ATY 6,693 6,378 8 - PDF
DWG
View
  • Color (Ral): 9018
  • Material: AG-ATY
  • MAX PCB L (mm): 170
  • MAX PCB W (mm): 162
  • Screws: 8
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

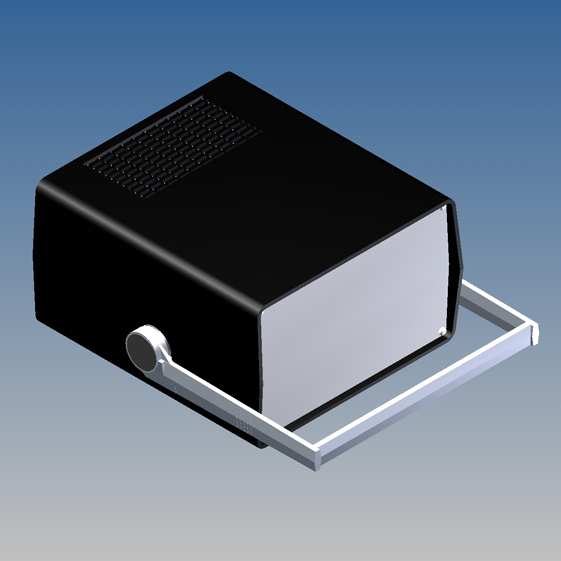

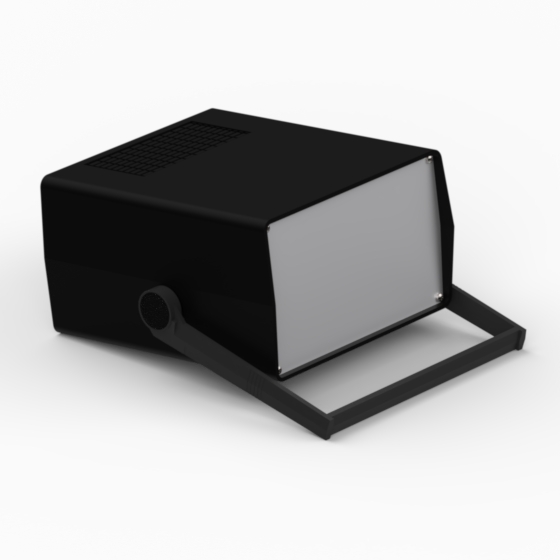

AUS-55.9 7,795 7,008 4,252 9004
P2H-AT 6,693 6,378 8 - PDF
DWG
View
  • Color (Ral): 9004
  • Material: P2H-AT
  • MAX PCB L (mm): 170
  • MAX PCB W (mm): 162
  • Screws: 8
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

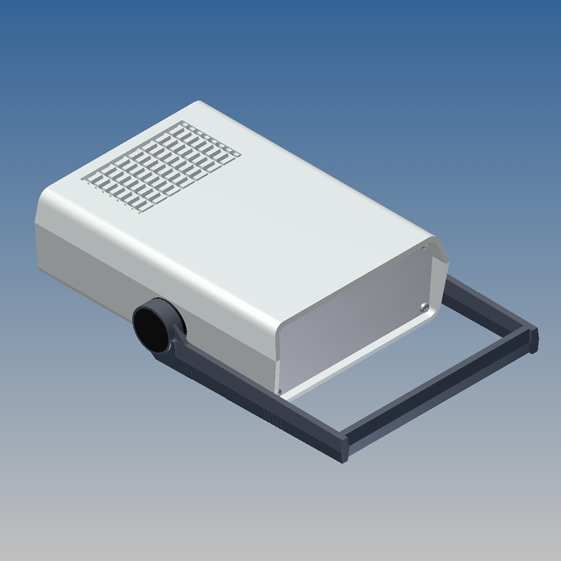

KL-41.5 7,008 5,039 2,126 9018
AG-ATY 5,906 4,528 8 - PDF
DWG
View
  • Color (Ral): 9018
  • Material: AG-ATY
  • MAX PCB L (mm): 150
  • MAX PCB W (mm): 115
  • Screws: 8
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

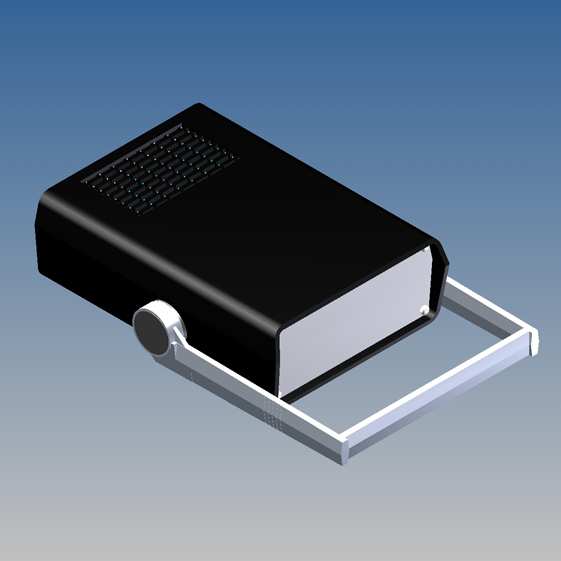

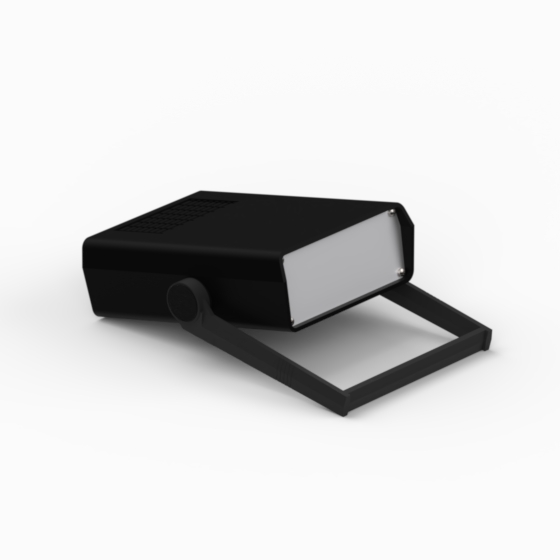

KL-41.9 7,008 5,039 2,126 9004
P2H-AT 5,906 4,528 8 - PDF
DWG
View
  • Color (Ral): 9004
  • Material: P2H-AT
  • MAX PCB L (mm): 150
  • MAX PCB W (mm): 115
  • Screws: 8
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

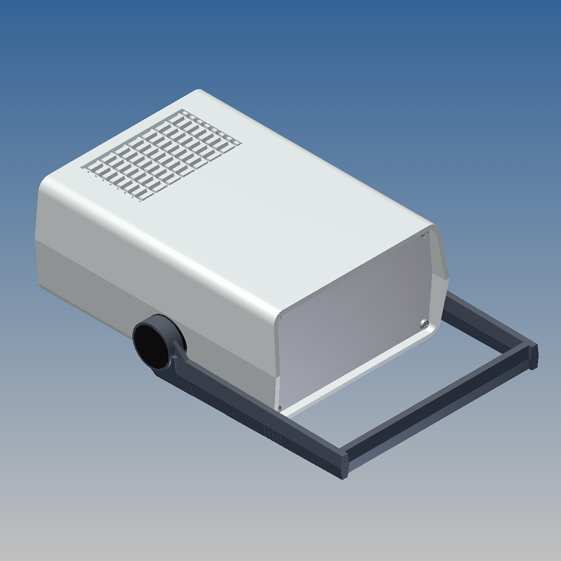

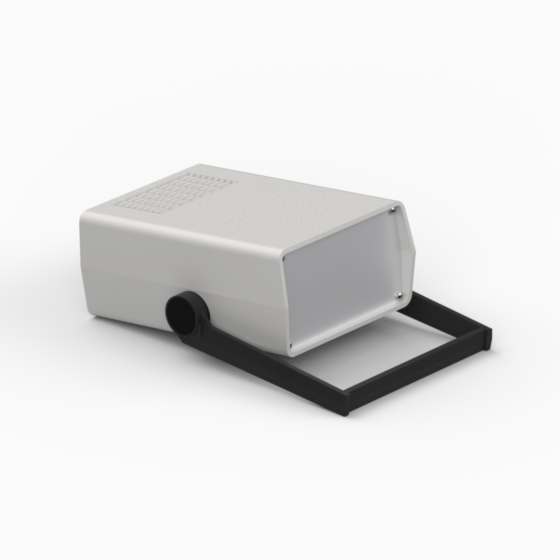

KL-44.5 7,008 5,039 2,835 9018
AG-ATY 5,906 4,528 8 - PDF
DWG
View
  • Color (Ral): 9018
  • Material: AG-ATY
  • MAX PCB L (mm): 150
  • MAX PCB W (mm): 115
  • Screws: 8
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

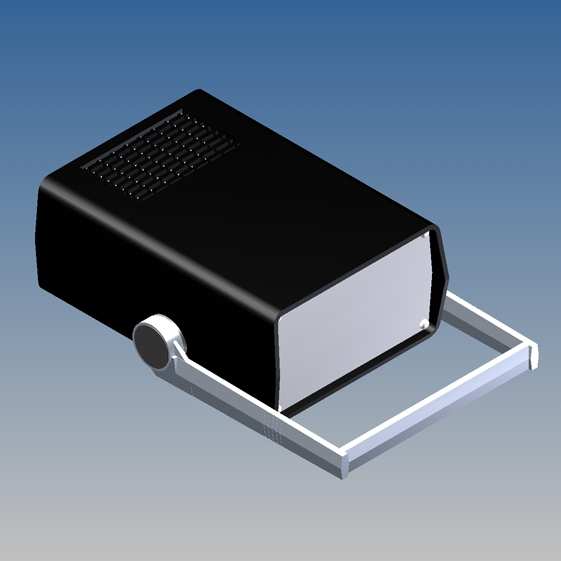

KL-44.9 7,008 5,039 2,835 9004
P2H-AT 5,906 4,528 8 - PDF
DWG
View
  • Color (Ral): 9004
  • Material: P2H-AT
  • MAX PCB L (mm): 150
  • MAX PCB W (mm): 115
  • Screws: 8
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG
