MINI CAB

Family Front Panel - Electronic enclosures - Plastic

Description

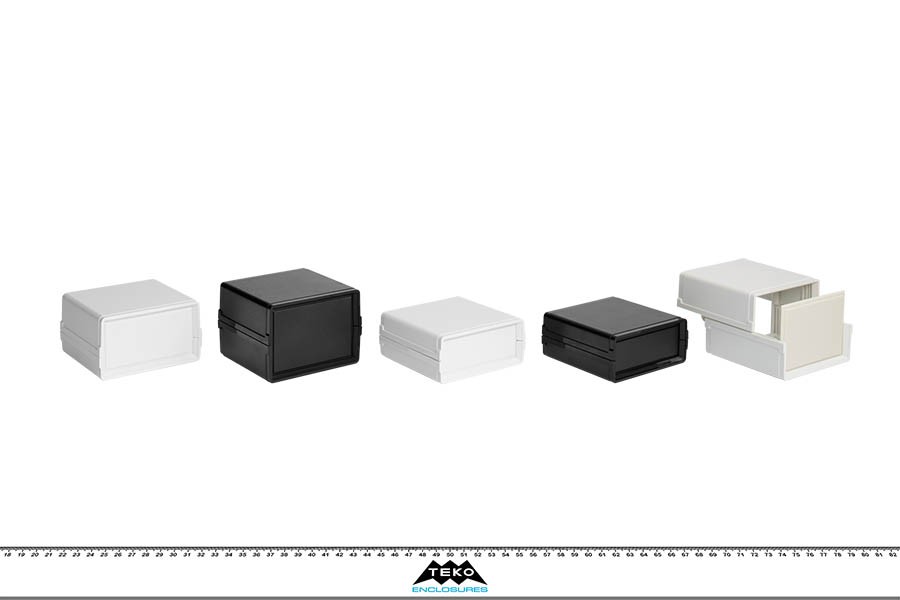

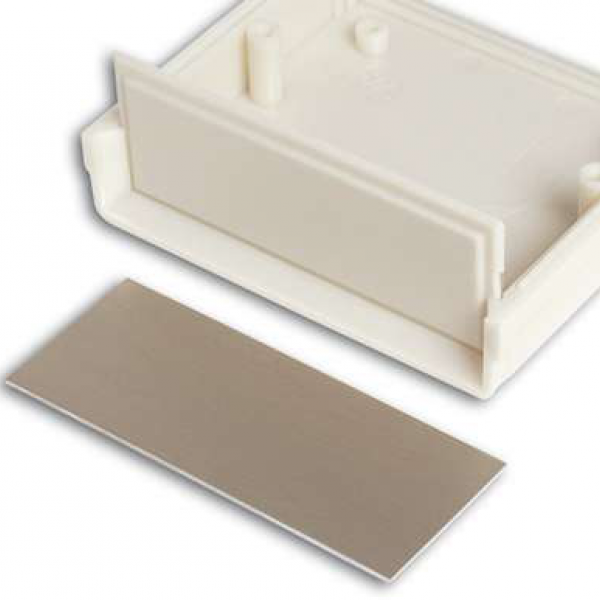

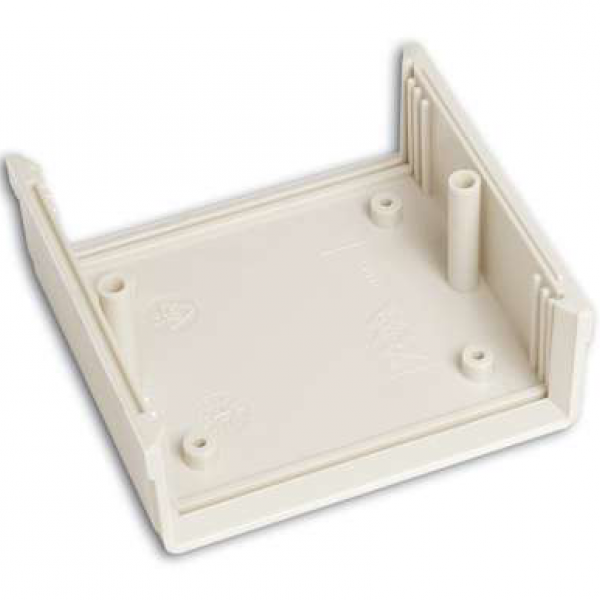

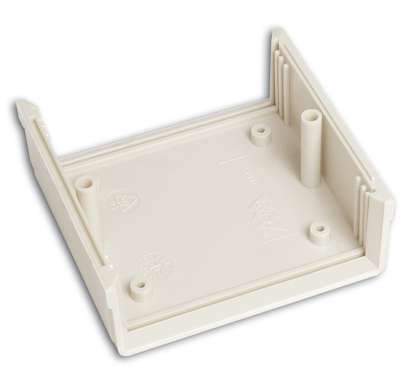

A small Polystyrene enclosure with a front and rear panel. Each half-shell has integral PCB guides and mounting studs. Matt surface finish. Closing by only two screws. Upon request aluminium panels (Mod. AP11, AP12, AP22).

Details

Products

Model L (inch) W (inch) H (inch) Color (Ral) Material MAX PCB L (inch) MAX PCB W (inch) Screws Battery Accessories Drawings Other

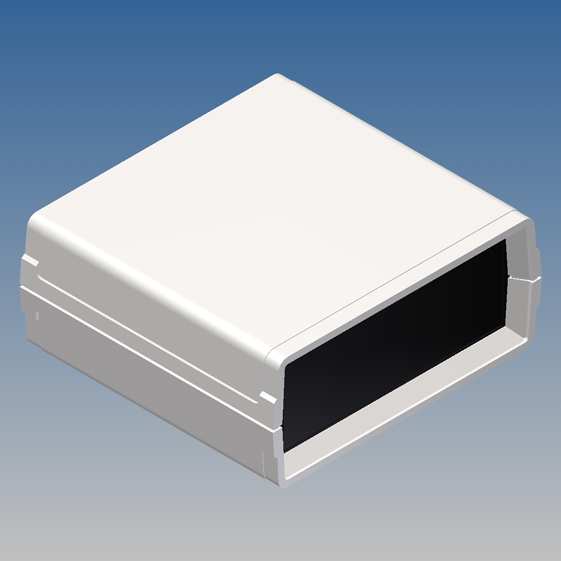

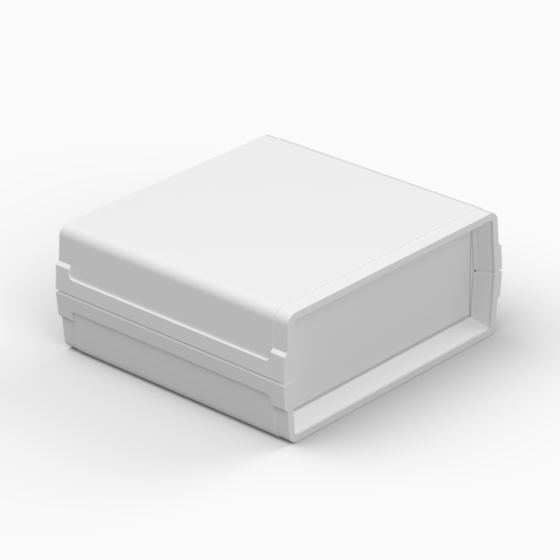

MC11.7 3,346 3,15 1,417 9002
L320 2,835 2,441 2 - AP11
PDF
DWG
View
  • Color (Ral): 9002
  • Material: L320
  • MAX PCB L (mm): 72
  • MAX PCB W (mm): 62
  • Screws: 2
  • Battery: -
  • Accessories: AP11
  • Drawings:  PDF  DWG

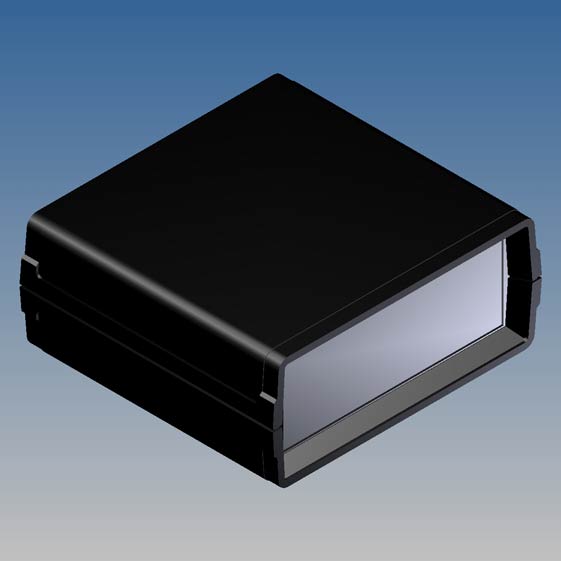

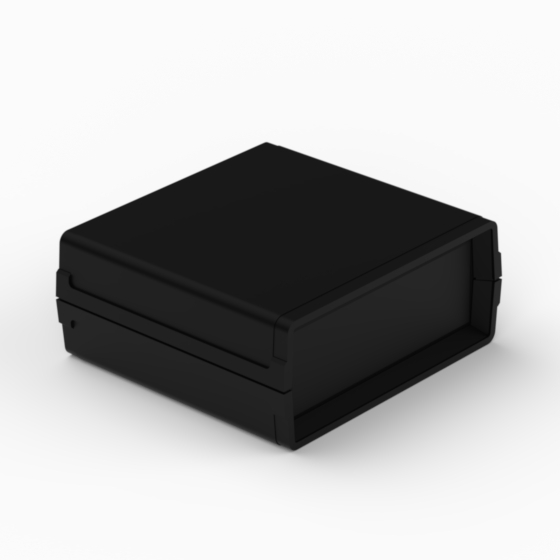

MC11.9 3,346 3,15 1,417 9004
P2H-AT 2,835 2,441 2 - AP11
PDF
DWG
View
  • Color (Ral): 9004
  • Material: P2H-AT
  • MAX PCB L (mm): 72
  • MAX PCB W (mm): 62
  • Screws: 2
  • Battery: -
  • Accessories: AP11
  • Drawings:  PDF  DWG

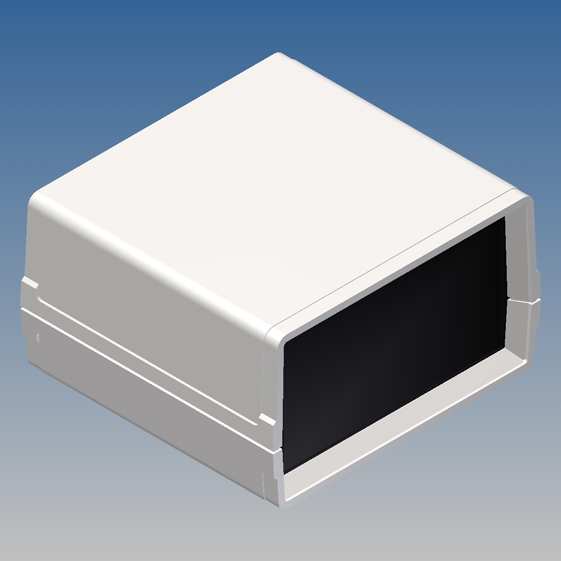

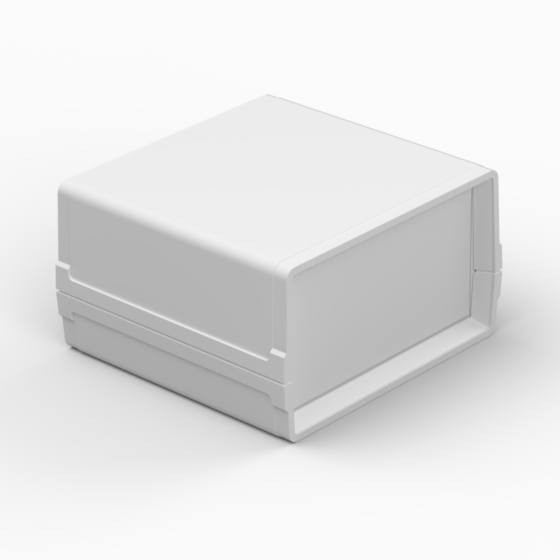

MC12.7 3,346 3,15 1,89 9002
L320 2,835 2,441 2 - AP12
PDF
DWG
View
  • Color (Ral): 9002
  • Material: L320
  • MAX PCB L (mm): 72
  • MAX PCB W (mm): 62
  • Screws: 2
  • Battery: -
  • Accessories: AP12
  • Drawings:  PDF  DWG

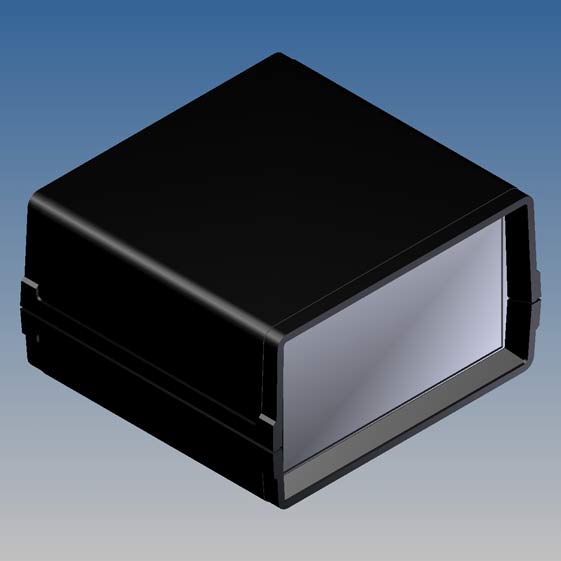

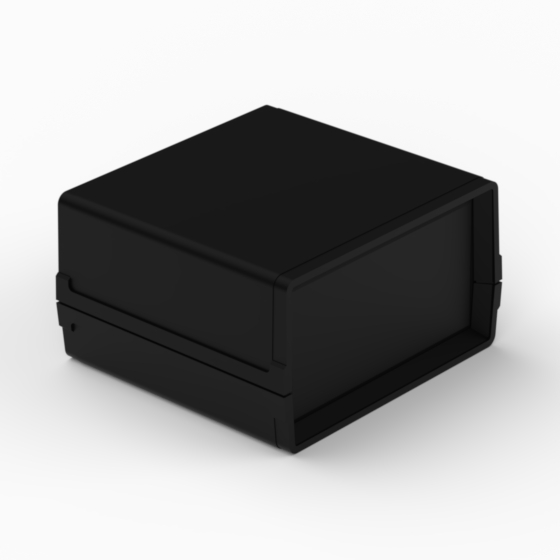

MC12.9 3,346 3,15 1,89 9004
P2H-AT 2,835 2,441 2 - AP12
PDF
DWG
View
  • Color (Ral): 9004
  • Material: P2H-AT
  • MAX PCB L (mm): 72
  • MAX PCB W (mm): 62
  • Screws: 2
  • Battery: -
  • Accessories: AP12
  • Drawings:  PDF  DWG

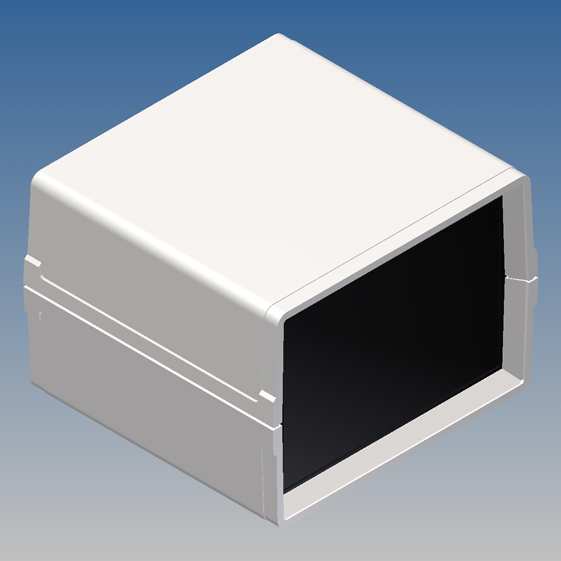

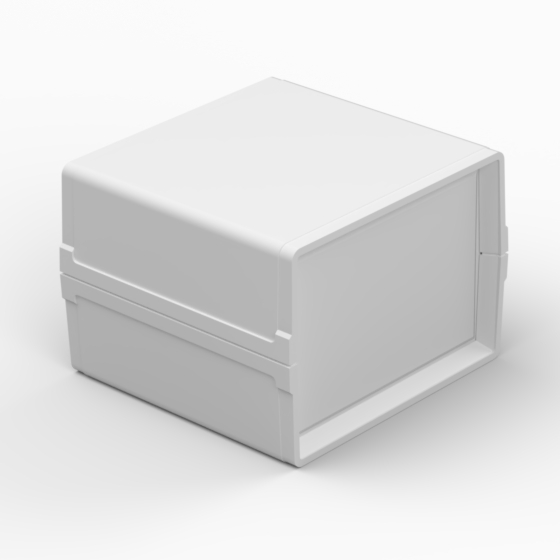

MC22.7 3,346 3,15 2,362 9002
L320 2,835 2,441 2 - AP22
PDF
DWG
View
  • Color (Ral): 9002
  • Material: L320
  • MAX PCB L (mm): 72
  • MAX PCB W (mm): 62
  • Screws: 2
  • Battery: -
  • Accessories: AP22
  • Drawings:  PDF  DWG

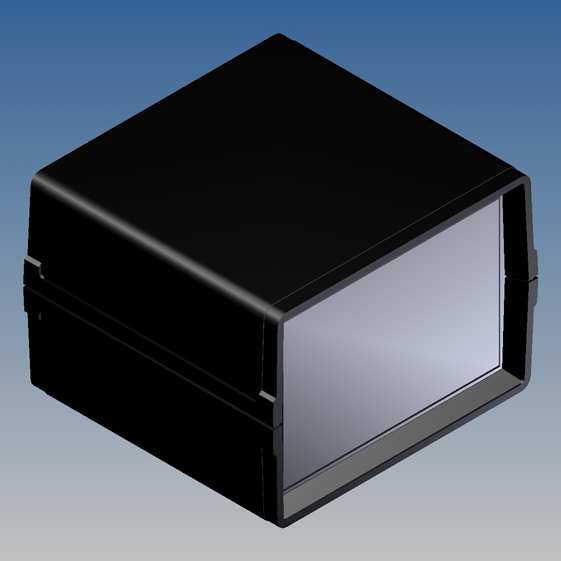

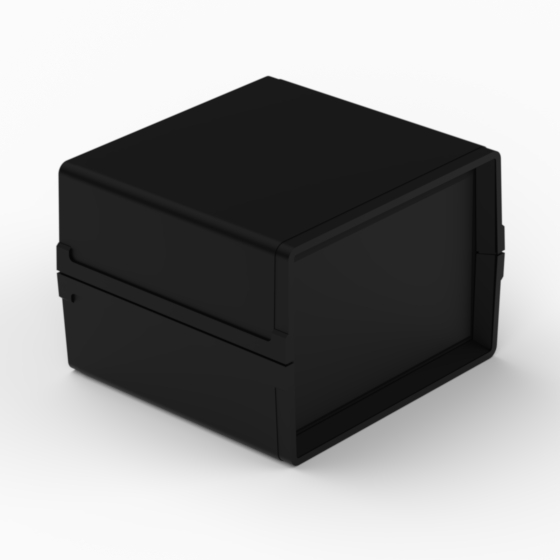

MC22.9 3,346 3,15 2,362 9004
P2H-AT 2,835 2,441 2 - AP22
PDF
DWG
View
  • Color (Ral): 9004
  • Material: P2H-AT
  • MAX PCB L (mm): 72
  • MAX PCB W (mm): 62
  • Screws: 2
  • Battery: -
  • Accessories: AP22
  • Drawings:  PDF  DWG
