Family Handheld - Electronic enclosures - Plastic

Description

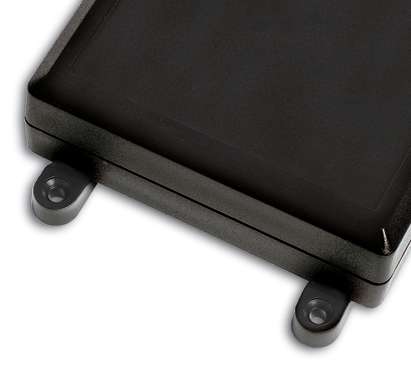

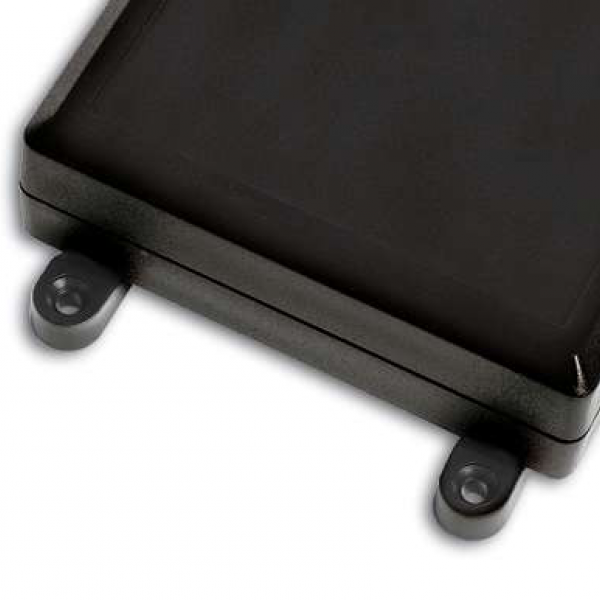

ABS enclosures with a recessed area to allow a 0.5 mm anodised aluminium panel. Base and cover have integral PCB mounting studs. The models with “-B” have 9V battery compartment with snap-on cover. Matt surface finish. Closing by four screws. Upon request ABS mounting tabs (Mod. MT1).

Details

Products

Model L (inch) W (inch) H (inch) Color (Ral) Material MAX PCB L (inch) MAX PCB W (inch) Screws Battery Accessories Drawings Other

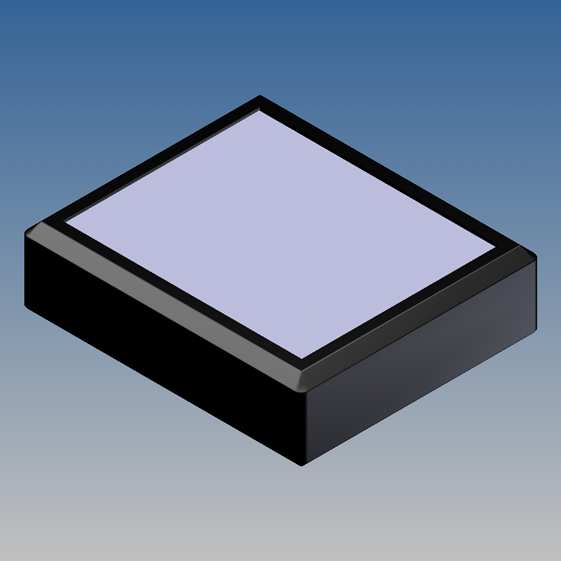

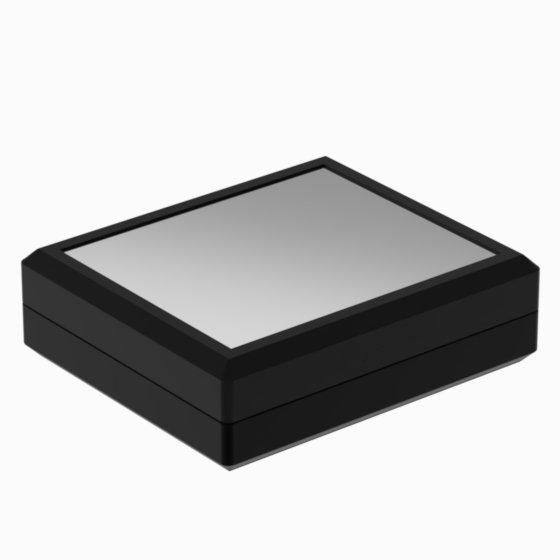

1111.9 3,346 2,854 0,984 9004
P2H-AT 2,992 2,461 4 - MT1
PDF
DWG
View
  • Color (Ral): 9004
  • Material: P2H-AT
  • MAX PCB L (mm): 76
  • MAX PCB W (mm): 62,5
  • Screws: 4
  • Battery: -
  • Accessories: MT1
  • Drawings:  PDF  DWG

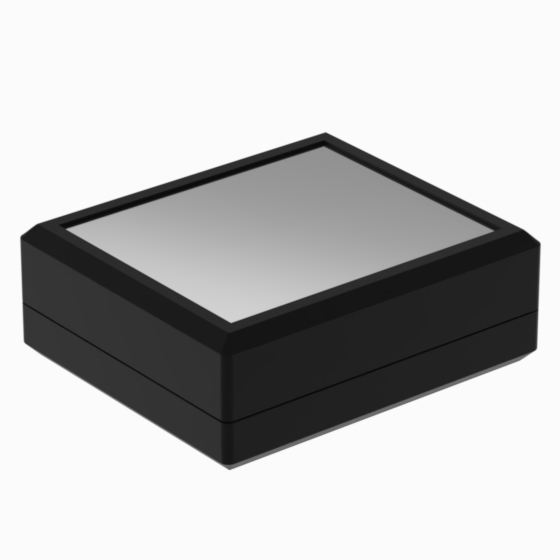

1122.9 3,346 2,854 1,201 9004
P2H-AT 2,992 2,461 4 - MT1
PDF
DWG
View
  • Color (Ral): 9004
  • Material: P2H-AT
  • MAX PCB L (mm): 76
  • MAX PCB W (mm): 62,5
  • Screws: 4
  • Battery: -
  • Accessories: MT1
  • Drawings:  PDF  DWG

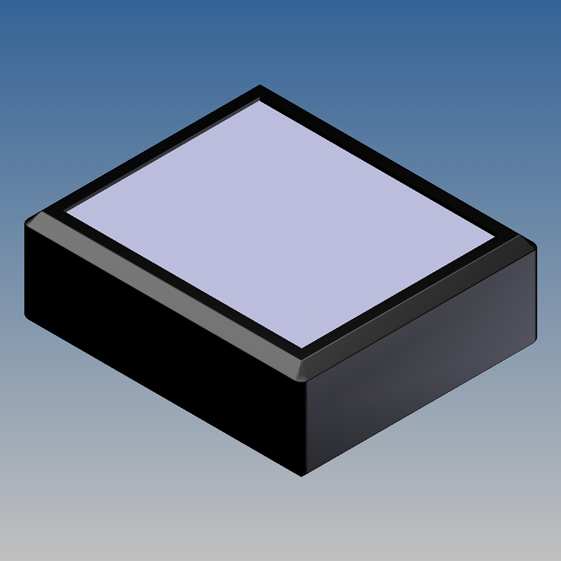

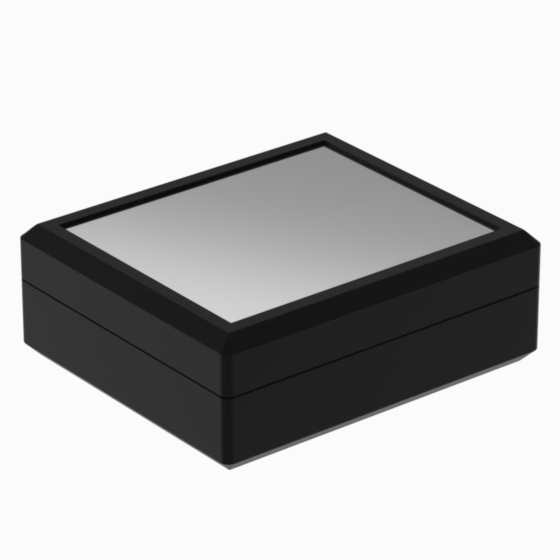

2211.9 3,346 2,854 1,201 9004
P2H-AT 2,992 2,461 4 - MT1
PDF
DWG
View
  • Color (Ral): 9004
  • Material: P2H-AT
  • MAX PCB L (mm): 76
  • MAX PCB W (mm): 62,5
  • Screws: 4
  • Battery: -
  • Accessories: MT1
  • Drawings:  PDF  DWG

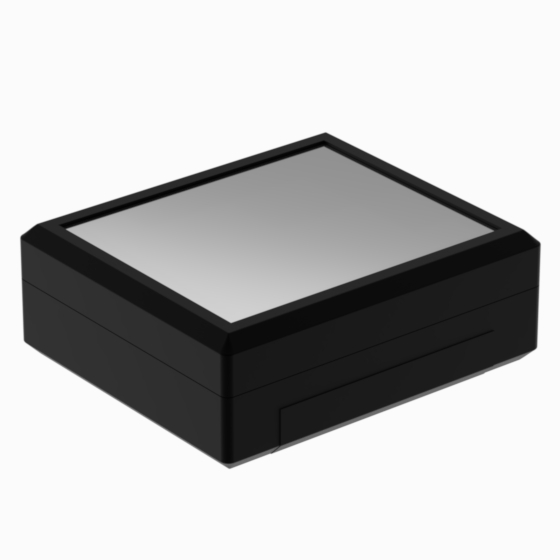

2211-B.9 3,346 2,854 1,201 9004
P2H-AT 2,992 1,181 4 - MT1
PDF
DWG
View
  • Color (Ral): 9004
  • Material: P2H-AT
  • MAX PCB L (mm): 76
  • MAX PCB W (mm): 30
  • Screws: 4
  • Battery: -
  • Accessories: MT1
  • Drawings:  PDF  DWG

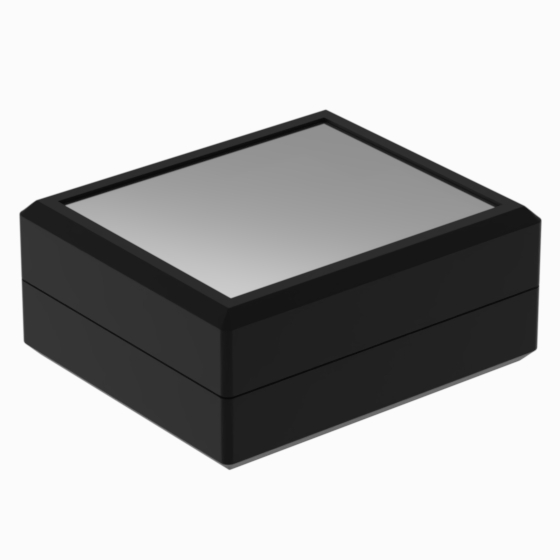

2222.9 3,346 2,854 1,417 9004
P2H-AT 2,992 2,461 4 - MT1
PDF
DWG
View
  • Color (Ral): 9004
  • Material: P2H-AT
  • MAX PCB L (mm): 76
  • MAX PCB W (mm): 62,5
  • Screws: 4
  • Battery: -
  • Accessories: MT1
  • Drawings:  PDF  DWG

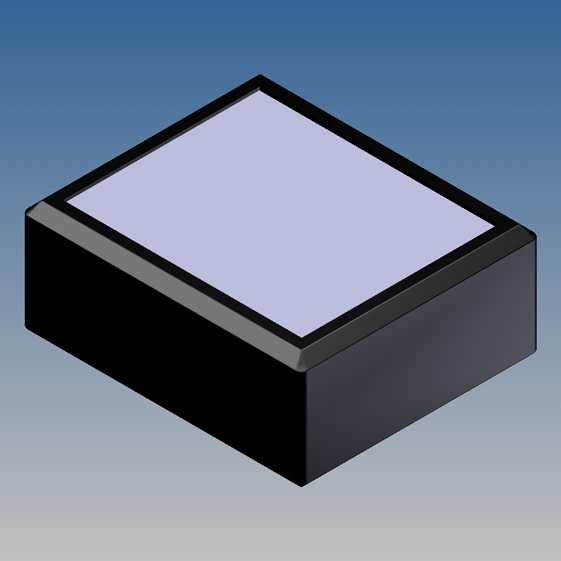

2222-B.9 3,346 2,854 1,417 9004
P2H-AT 2,992 1,181 4 - MT1
PDF
DWG
View
  • Color (Ral): 9004
  • Material: P2H-AT
  • MAX PCB L (mm): 76
  • MAX PCB W (mm): 30
  • Screws: 4
  • Battery: -
  • Accessories: MT1
  • Drawings:  PDF  DWG
