HANDY

Family Handheld - Electronic enclosures - Plastic

Description

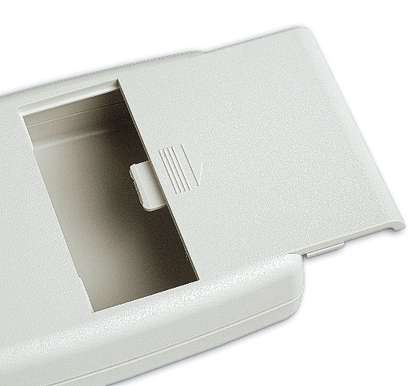

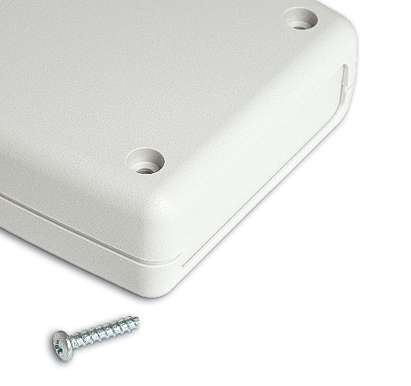

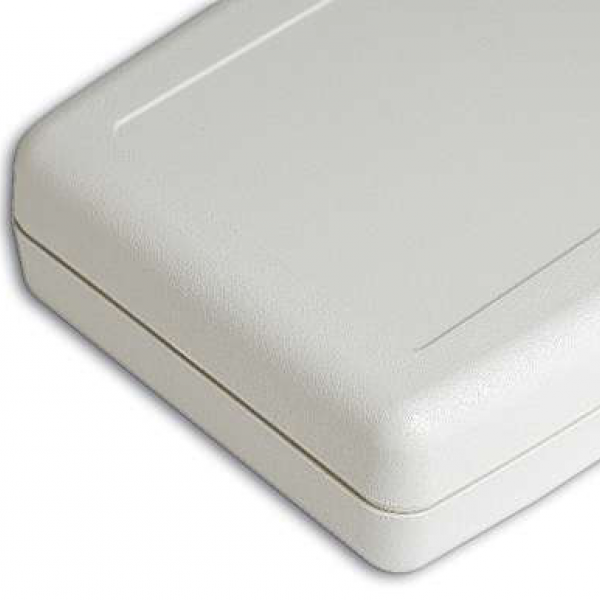

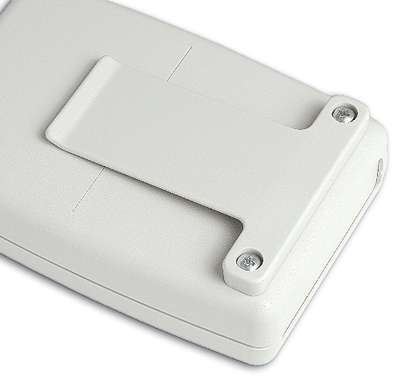

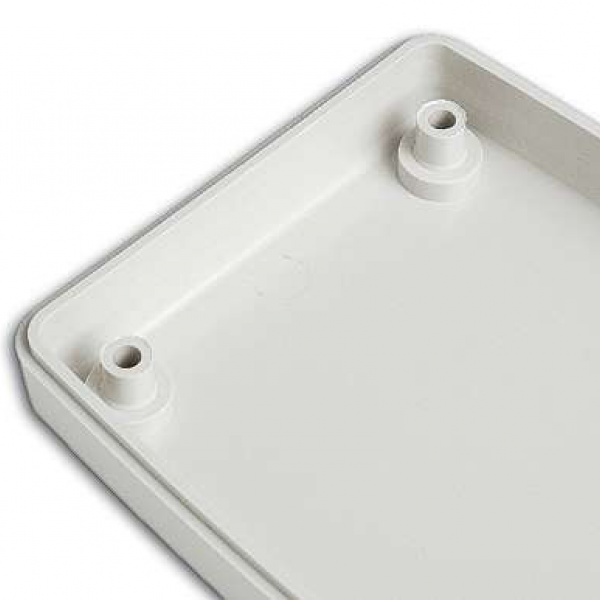

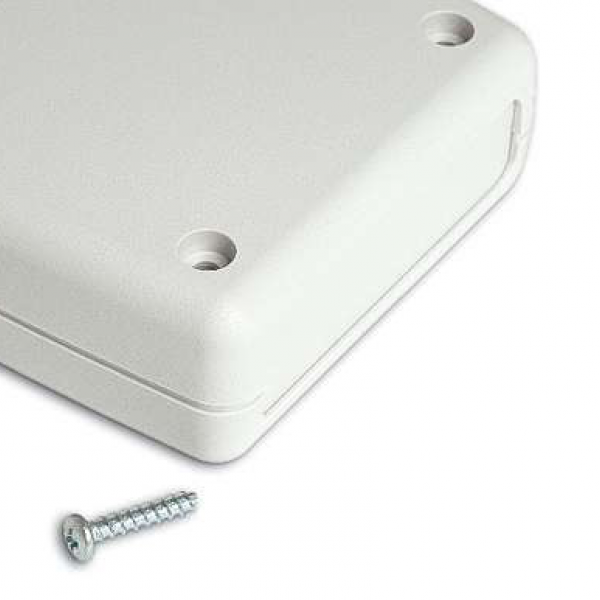

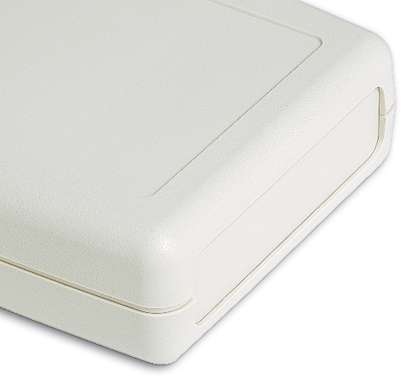

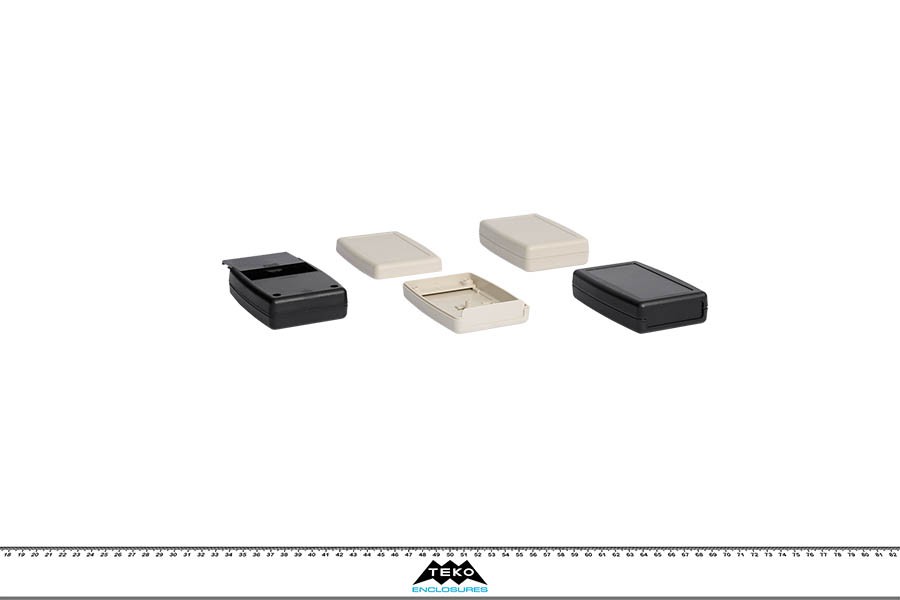

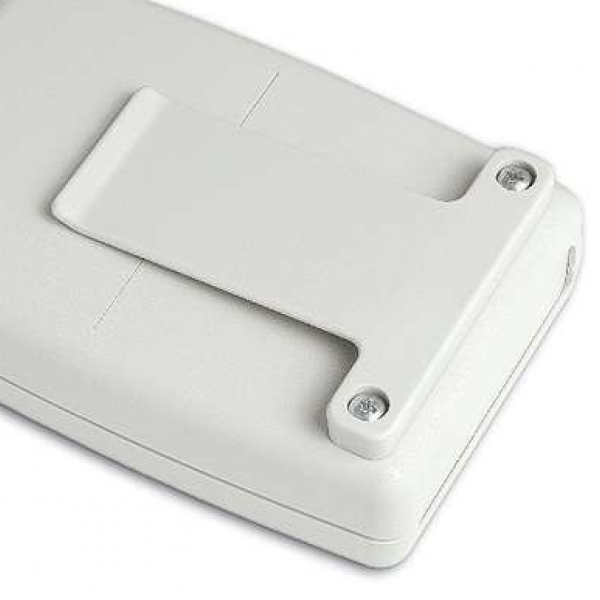

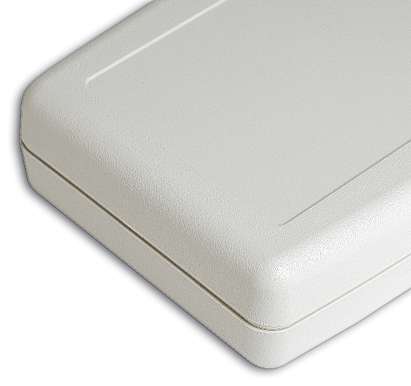

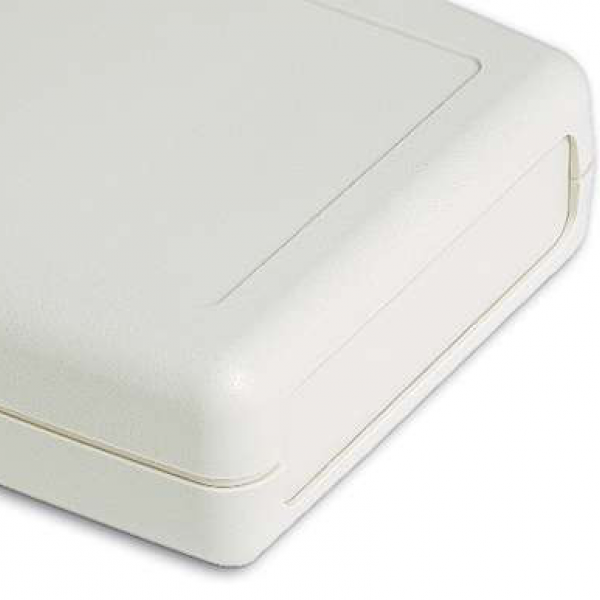

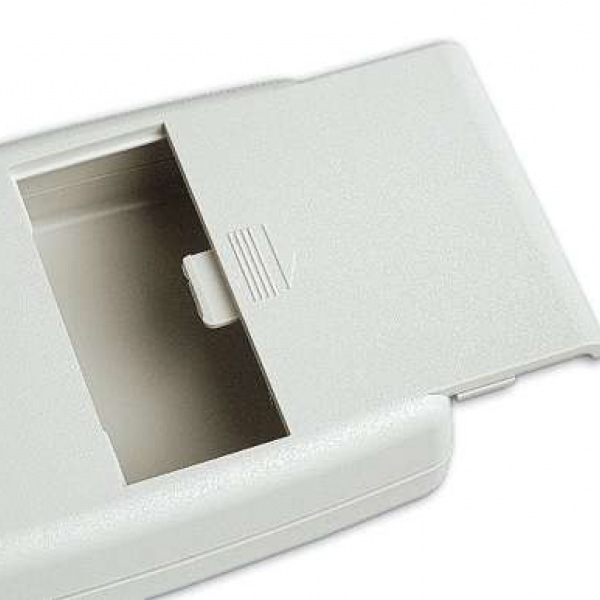

Ergonomic pocket ABS enclosures with a recessed area suitable for a membrane keypad. Four models available. The base has integral PCB mounting studs. The models with “-B” have a battery compartment with a sliding lid. The “P” version has an ABS front panel. Matt surface finish. Closing by four screws. Upon request plastic belt clip (Mod. CLY).

Details

Products

Model L (inch) W (inch) H (inch) Color (Ral) Material MAX PCB L (inch) MAX PCB W (inch) Screws Battery Accessories Drawings Other
HY.7 4,094 2,827 1 9002
PA-756 3,701 2,283 4 - CLY
PDF
DWG
View
  • Color (Ral): 9002
  • Material: PA-756
  • MAX PCB L (mm): 94
  • MAX PCB W (mm): 58
  • Screws: 4
  • Battery: -
  • Accessories: CLY
  • Drawings:  PDF  DWG
HY.9 4,094 2,827 1 9004
GP-22 3,701 2,283 4 - CLY
PDF
DWG
View
  • Color (Ral): 9004
  • Material: GP-22
  • MAX PCB L (mm): 94
  • MAX PCB W (mm): 58
  • Screws: 4
  • Battery: -
  • Accessories: CLY
  • Drawings:  PDF  DWG

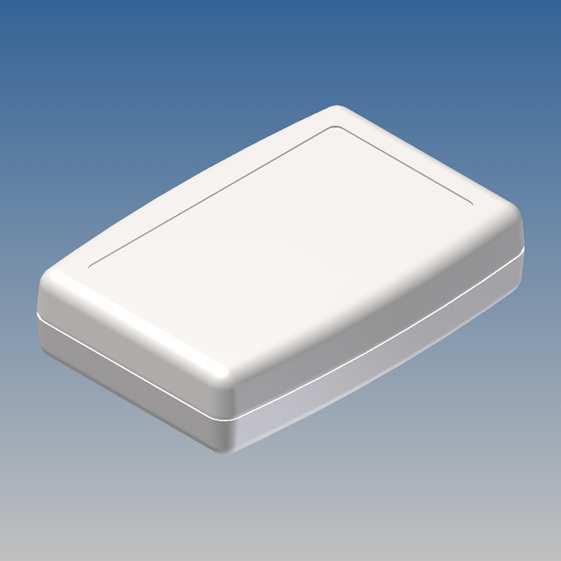

HY-B.7 4,094 2,827 1 9002
PA-756 3,701 2,283 4 - CLY
PDF
DWG
View
  • Color (Ral): 9002
  • Material: PA-756
  • MAX PCB L (mm): 94
  • MAX PCB W (mm): 58
  • Screws: 4
  • Battery: -
  • Accessories: CLY
  • Drawings:  PDF  DWG
HY-B.9 4,094 2,827 1 9004
GP-22 3,701 2,283 4 - CLY
PDF
DWG
View
  • Color (Ral): 9004
  • Material: GP-22
  • MAX PCB L (mm): 94
  • MAX PCB W (mm): 58
  • Screws: 4
  • Battery: -
  • Accessories: CLY
  • Drawings:  PDF  DWG

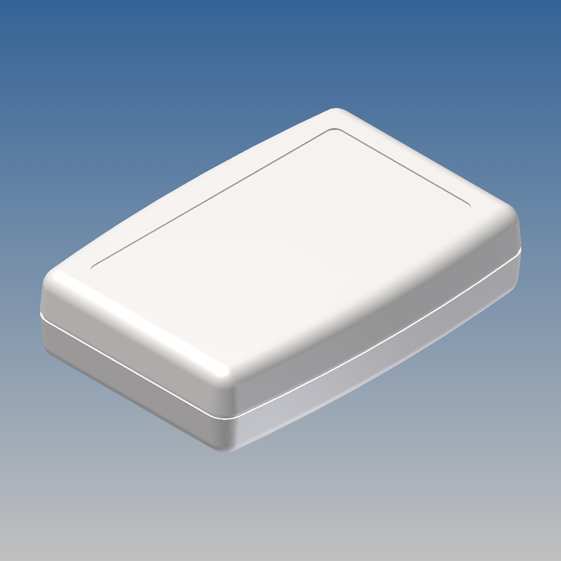

HYP.7 4,094 2,827 1 9002
PA-756 3,701 2,283 4 - CLY
PDF
DWG
View
  • Color (Ral): 9002
  • Material: PA-756
  • MAX PCB L (mm): 94
  • MAX PCB W (mm): 58
  • Screws: 4
  • Battery: -
  • Accessories: CLY
  • Drawings:  PDF  DWG
HYP.9 4,094 2,827 1 9004
GP-22 3,701 2,283 4 - CLY
PDF
DWG
View
  • Color (Ral): 9004
  • Material: GP-22
  • MAX PCB L (mm): 94
  • MAX PCB W (mm): 58
  • Screws: 4
  • Battery: -
  • Accessories: CLY
  • Drawings:  PDF  DWG

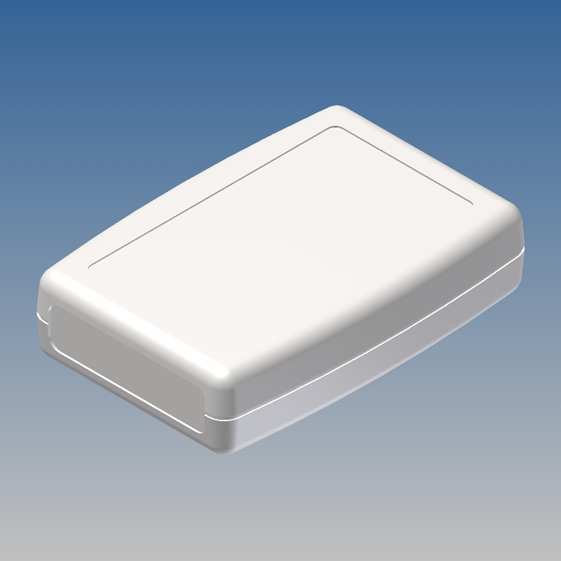

HYP-B.7 4,094 2,827 1 9002
PA-756 3,701 2,283 4 - CLY
PDF
DWG
View
  • Color (Ral): 9002
  • Material: PA-756
  • MAX PCB L (mm): 94
  • MAX PCB W (mm): 58
  • Screws: 4
  • Battery: -
  • Accessories: CLY
  • Drawings:  PDF  DWG

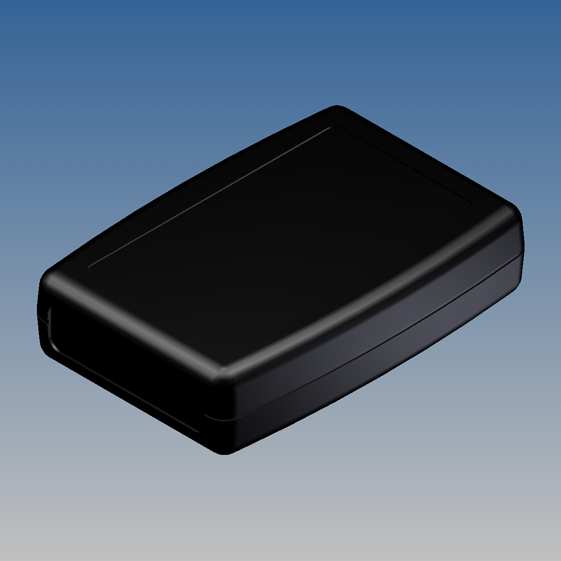

HYP-B.9 4,094 2,827 1 9004
GP-22 3,701 2,283 4 - CLY
PDF
DWG
View
  • Color (Ral): 9004
  • Material: GP-22
  • MAX PCB L (mm): 94
  • MAX PCB W (mm): 58
  • Screws: 4
  • Battery: -
  • Accessories: CLY
  • Drawings:  PDF  DWG
HYXL.7
NEW
5,35 3,66 1,38 9002
PA-756 4,6 2,6 4   PDF
DWG
View
  • Color (Ral): 9002
  • Material: PA-756
  • MAX PCB L (mm): 117,3
  • MAX PCB W (mm): 66,6
  • Screws: 4
  • Battery:
  • Accessories:
  • Drawings:  PDF  DWG

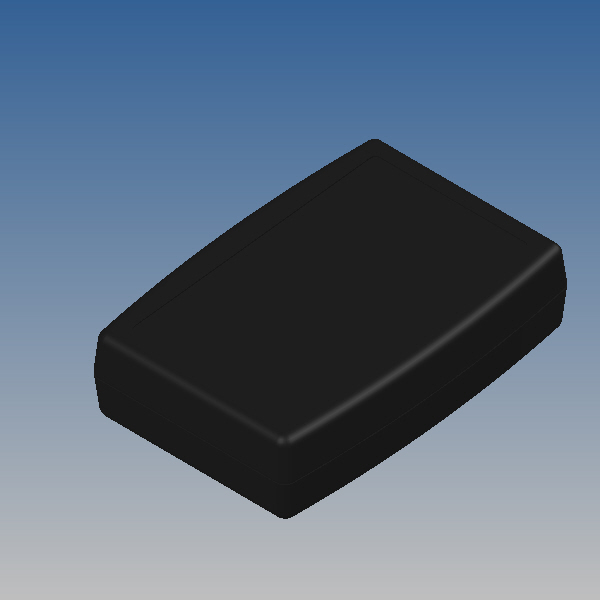

HYXL.9
NEW
5,35 3,66 1,38 9004
GP-22 4,6 2,6 4   PDF
DWG
View
  • Color (Ral): 9004
  • Material: GP-22
  • MAX PCB L (mm): 117,3
  • MAX PCB W (mm): 66,6
  • Screws: 4
  • Battery:
  • Accessories:
  • Drawings:  PDF  DWG
HYXL-B.7
NEW
5,35 3,66 1,38 9002
PA-756 4,6 2,6 4   PDF
DWG
View
  • Color (Ral): 9002
  • Material: PA-756
  • MAX PCB L (mm): 117,3
  • MAX PCB W (mm): 66,6
  • Screws: 4
  • Battery:
  • Accessories:
  • Drawings:  PDF  DWG
HYXL-B.9
NEW
5,35 3,66 1,38 9004
GP-22 4,6 2,6 4   PDF
DWG
View
  • Color (Ral): 9004
  • Material: GP-22
  • MAX PCB L (mm): 117,3
  • MAX PCB W (mm): 66,6
  • Screws: 4
  • Battery:
  • Accessories:
  • Drawings:  PDF  DWG

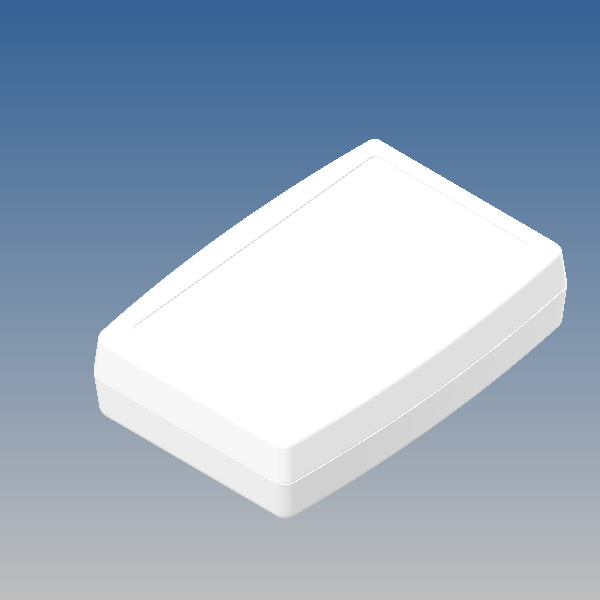

HYXL-P.7
NEW
5,35 3,66 1,38 9002
PA-756 4,6 2,6 4   PDF
DWG
View
  • Color (Ral): 9002
  • Material: PA-756
  • MAX PCB L (mm): 117,3
  • MAX PCB W (mm): 66,6
  • Screws: 4
  • Battery:
  • Accessories:
  • Drawings:  PDF  DWG
HYXL-P.9
NEW
5,35 3,66 1,38 9004
GP-22 4,6 2,6 4   PDF
DWG
View
  • Color (Ral): 9004
  • Material: GP-22
  • MAX PCB L (mm): 117,3
  • MAX PCB W (mm): 66,6
  • Screws: 4
  • Battery:
  • Accessories:
  • Drawings:  PDF  DWG
HYXLP-B.7
NEW
5,35 3,66 1,38 9002
PA-756 4,6 2,6 4   PDF
DWG
View
  • Color (Ral): 9002
  • Material: PA-756
  • MAX PCB L (mm): 117,3
  • MAX PCB W (mm): 66,6
  • Screws: 4
  • Battery:
  • Accessories:
  • Drawings:  PDF  DWG
HYXLP-B.9
NEW
5,35 3,66 1,38 9004
GP-22 4,6 2,6 4   PDF
DWG
View
  • Color (Ral): 9004
  • Material: GP-22
  • MAX PCB L (mm): 117,3
  • MAX PCB W (mm): 66,6
  • Screws: 4
  • Battery:
  • Accessories:
  • Drawings:  PDF  DWG
