HS

Family Handheld - Electronic enclosures - Plastic

Description

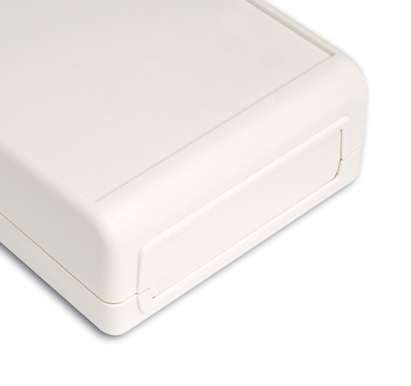

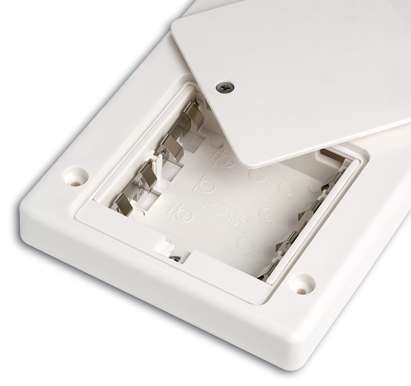

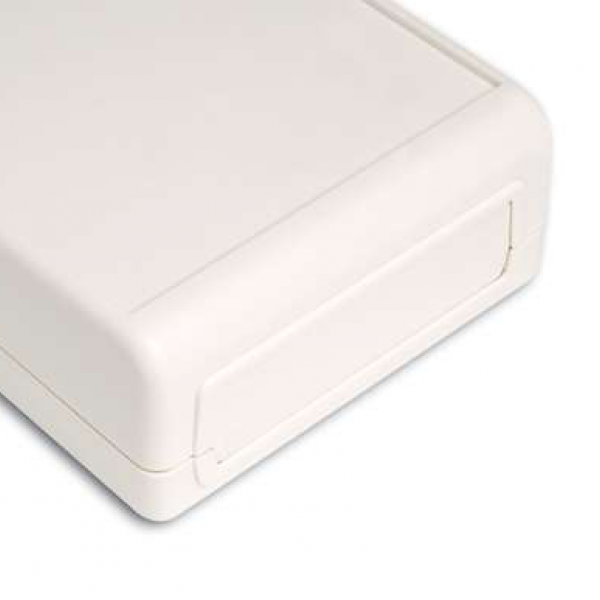

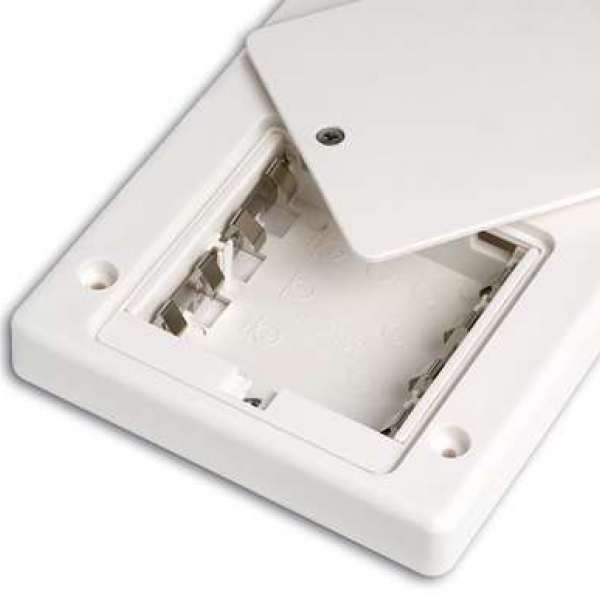

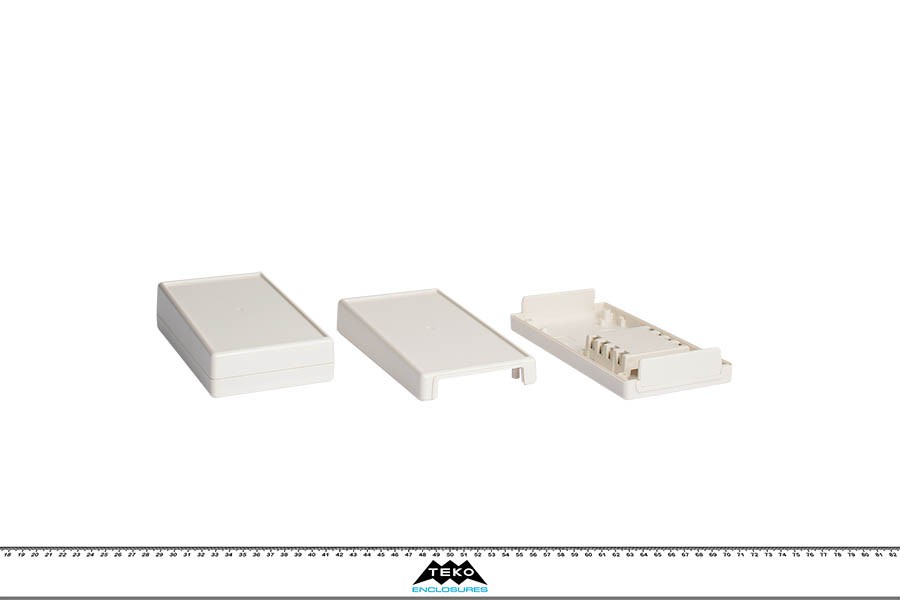

Hand-held enclosures are moulded in polycarbonate and consist of two halves closed by four stainless steel screws. The cover has a recessed area suitable for a membrane keypad. Ten models available. The version “W” has a front and a rear panel, the version “-B” has a compartment for four battery 1.5V. The models with “K” are available with a sealing kit for IP65 protection.

Details

Products

Model L (inch) W (inch) H (inch) Color (Ral) Material MAX PCB L (inch) MAX PCB W (inch) Screws Battery Accessories Drawings Other
HS.3 7,874 3,937 1,752 9003
2405 - - 4 - PDF
DWG
View
  • Color (Ral): 9003
  • Material: 2405
  • MAX PCB L (mm): -
  • MAX PCB W (mm): -
  • Screws: 4
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

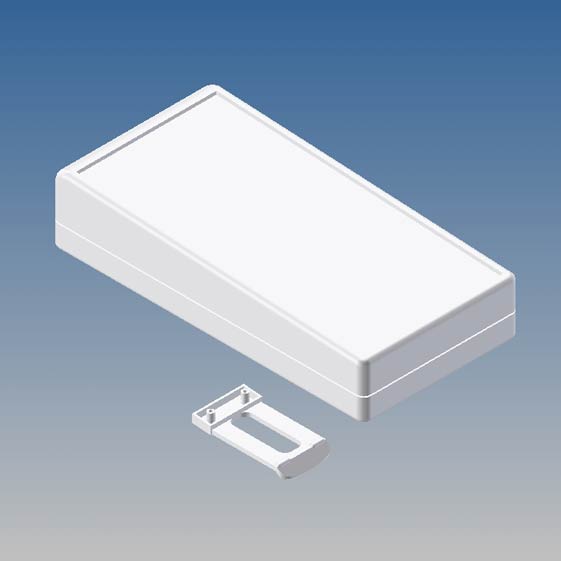

HS-B.3 7,874 3,937 1,752 9003
2405 - - 4 4 x AA PDF
DWG
View
  • Color (Ral): 9003
  • Material: 2405
  • MAX PCB L (mm): -
  • MAX PCB W (mm): -
  • Screws: 4
  • Battery: 4 x AA
  • Accessories:
  • Drawings:  PDF  DWG

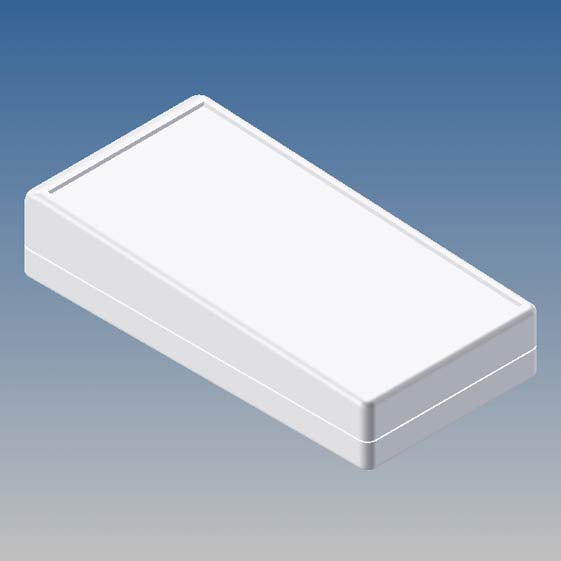

HSK.3 7,874 3,937 1,752 9003
2405 - - 4 - PDF
DWG
View
  • Color (Ral): 9003
  • Material: 2405
  • MAX PCB L (mm): -
  • MAX PCB W (mm): -
  • Screws: 4
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

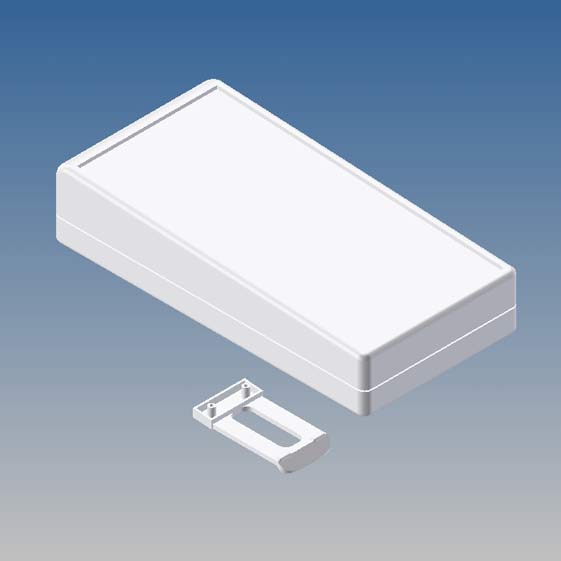

HSK-B.3 7,874 3,937 1,752 9003
2405 - - 4 4 x AA PDF
DWG
View
  • Color (Ral): 9003
  • Material: 2405
  • MAX PCB L (mm): -
  • MAX PCB W (mm): -
  • Screws: 4
  • Battery: 4 x AA
  • Accessories:
  • Drawings:  PDF  DWG

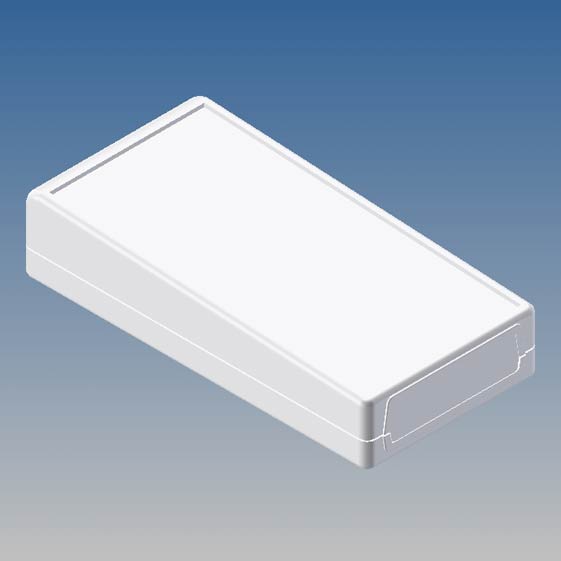

HSW.3 7,874 3,937 1,752 9003
2405 - - 4 - PDF
DWG
View
  • Color (Ral): 9003
  • Material: 2405
  • MAX PCB L (mm): -
  • MAX PCB W (mm): -
  • Screws: 4
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

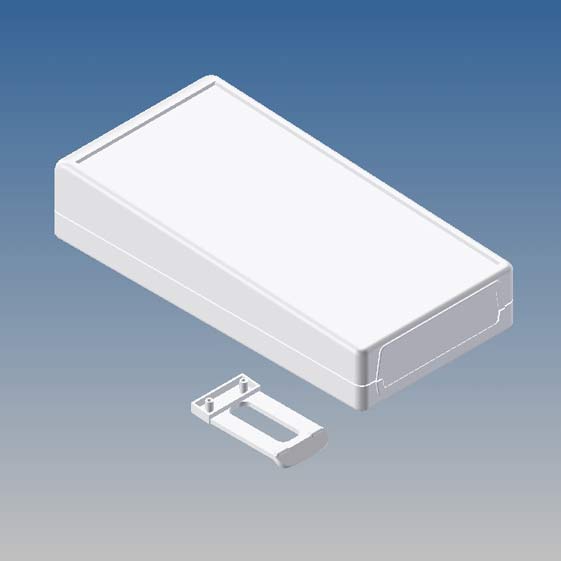

HSW-B.3 7,874 3,937 1,752 9003
2405 - - 4 4 x AA PDF
DWG
View
  • Color (Ral): 9003
  • Material: 2405
  • MAX PCB L (mm): -
  • MAX PCB W (mm): -
  • Screws: 4
  • Battery: 4 x AA
  • Accessories:
  • Drawings:  PDF  DWG
