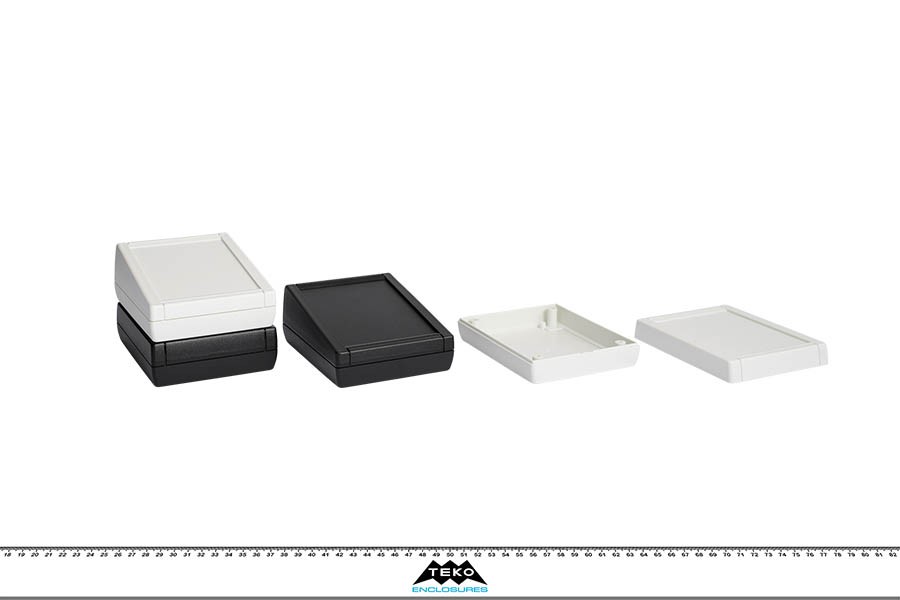

MINI TK

Family Handheld - Electronic enclosures - Plastic

Description

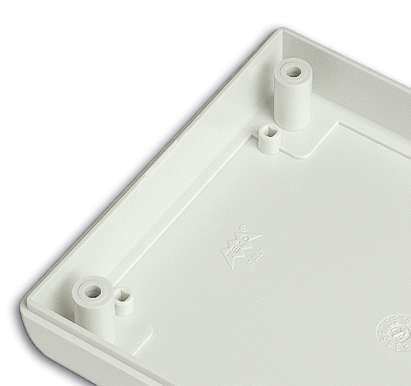

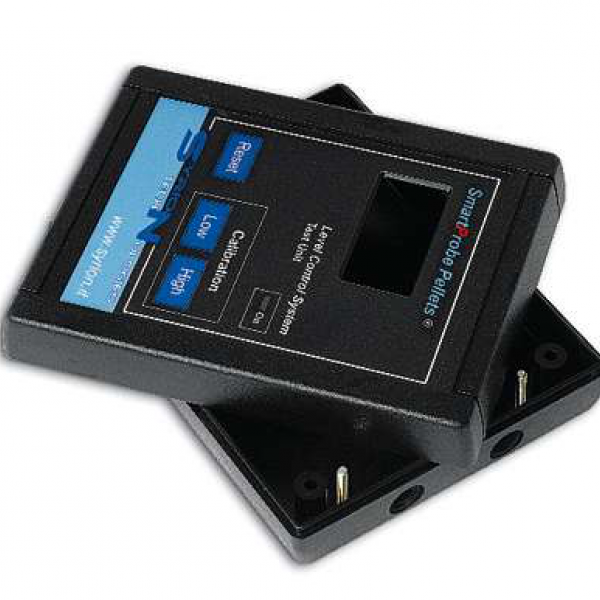

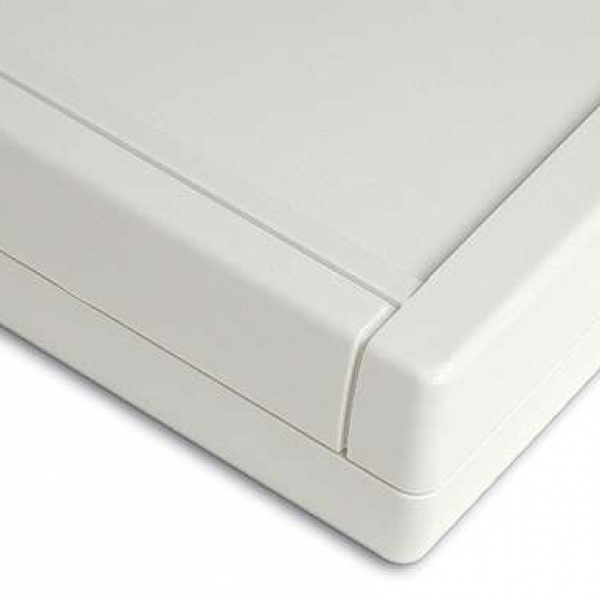

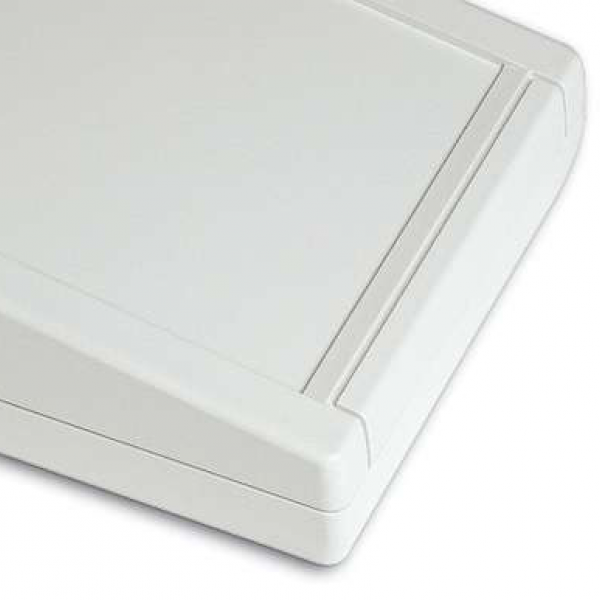

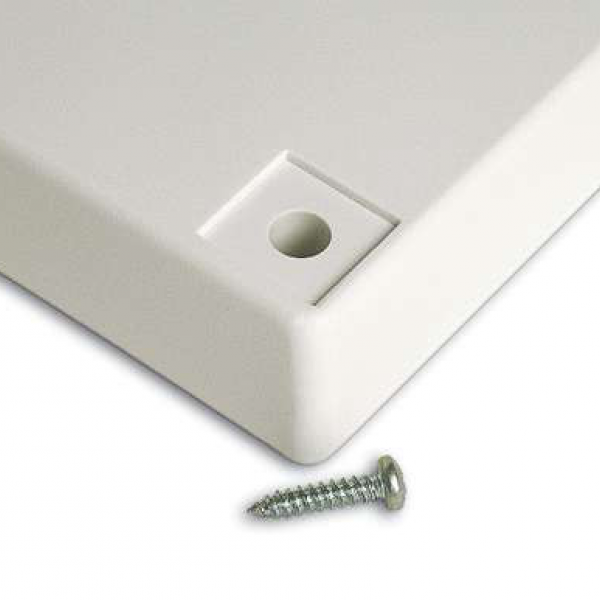

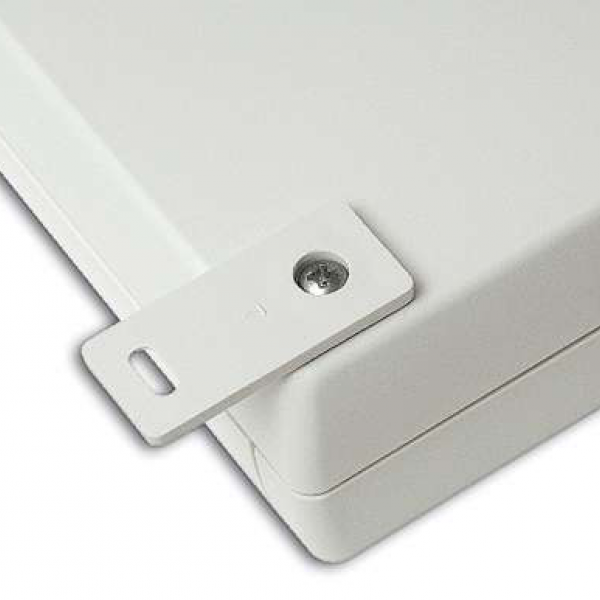

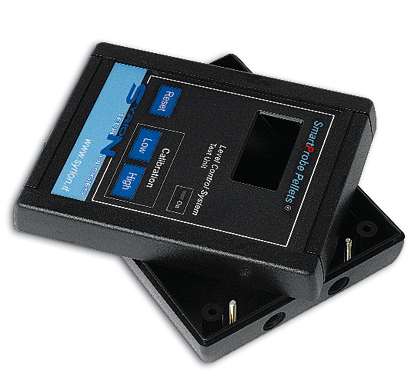

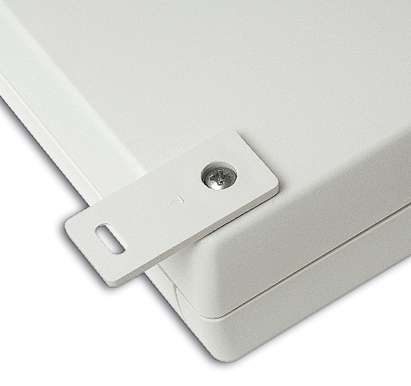

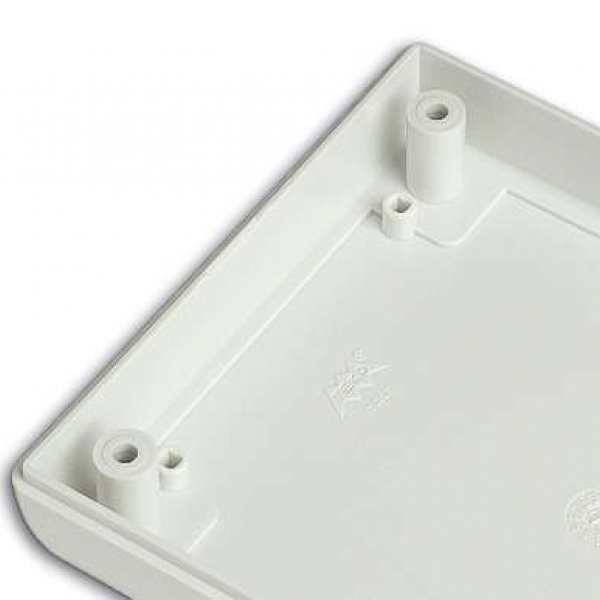

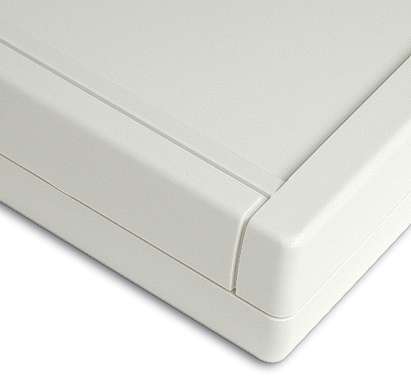

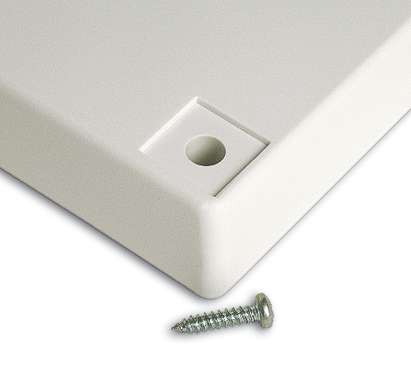

Compact ABS enclosures with a 1.8 mm recessed area suitable for a keypad membrane or an aluminium panel. Base and cover have integral PCB mounting studs. The model “TK-S” has inclined cover. Matt surface finish. Closing by four screws. Upon request ABS mounting tabs “MT2”.

Details

Products

Model L (inch) W (inch) H (inch) Color (Ral) Material MAX PCB L (inch) MAX PCB W (inch) Screws Battery Accessories Drawings Other

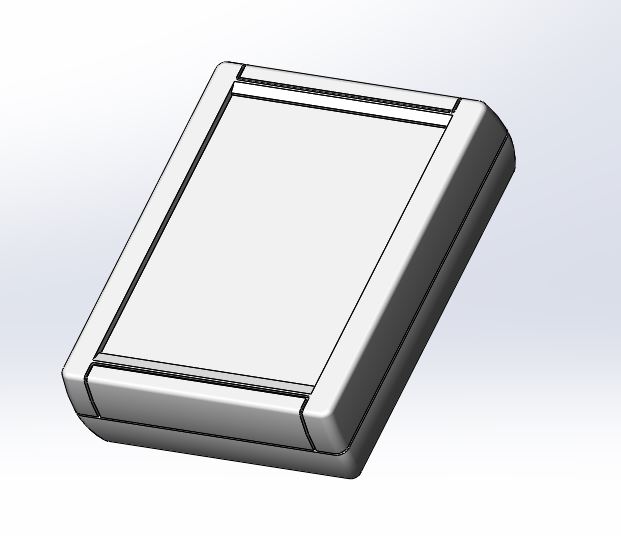

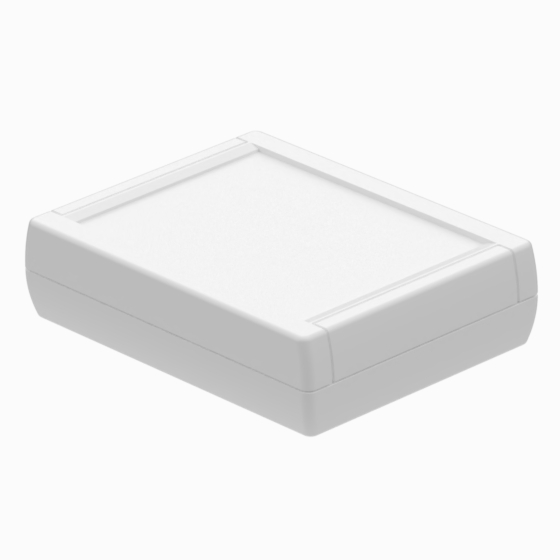

TK-F.7 5,118 3,937 1,346 9002
L320 4,803 3,622 4 - M53
MT2
PDF
DWG
View
  • Color (Ral): 9002
  • Material: L320
  • MAX PCB L (mm): 122
  • MAX PCB W (mm): 92
  • Screws: 4
  • Battery: -
  • Accessories: M53 MT2
  • Drawings:  PDF  DWG

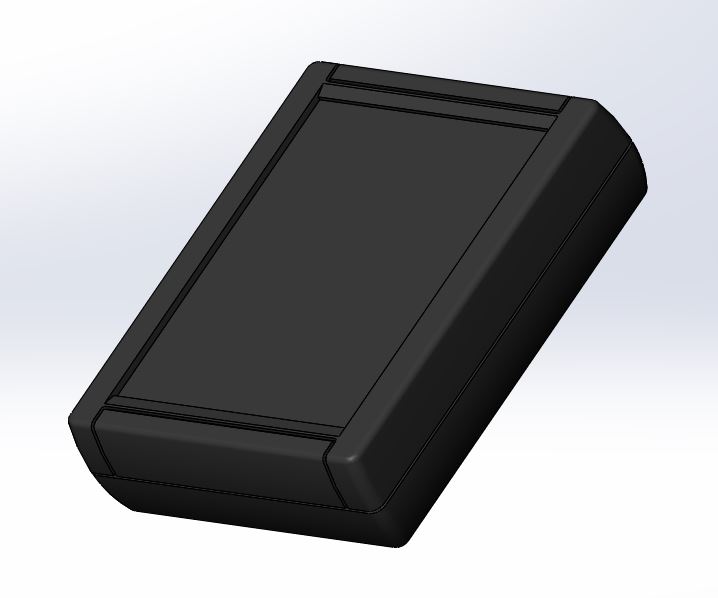

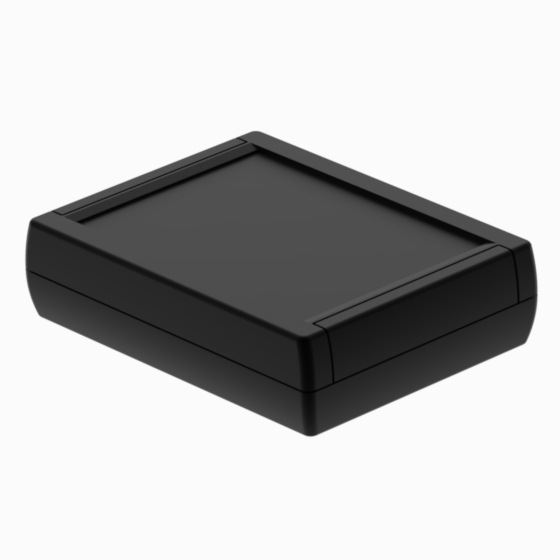

TK-F.9 5,118 3,937 1,346 9004
P2H-AT 4,803 3,622 4 - M53
MT2
PDF
DWG
View

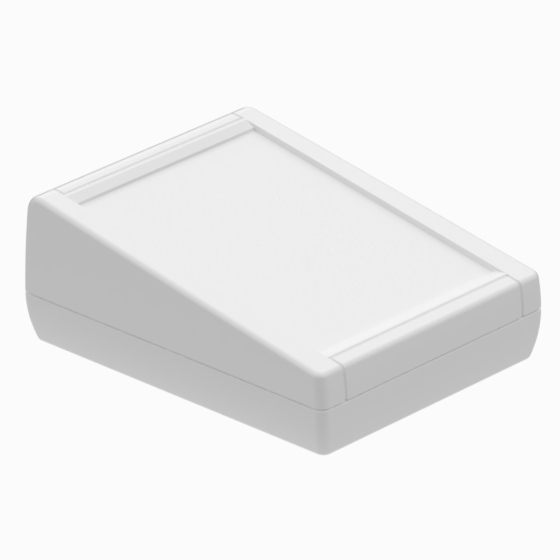

TK-S.7 5,118 3,937 1,968 9002
L320 4,803 3,622 4 - M53
MT2
PDF
DWG
View
  • Color (Ral): 9002
  • Material: L320
  • MAX PCB L (mm): 122
  • MAX PCB W (mm): 92
  • Screws: 4
  • Battery: -
  • Accessories: M53 MT2
  • Drawings:  PDF  DWG

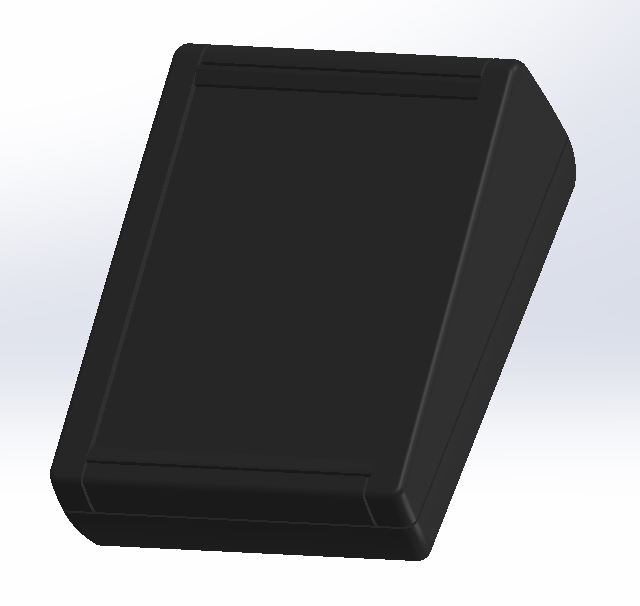

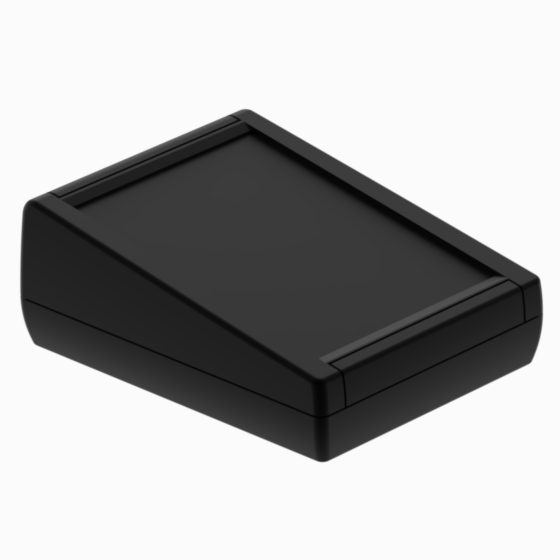

TK-S.9 5,118 3,937 1,968 9004
P2H-AT 4,803 3,622 4 - M53
MT2
PDF
DWG
View
