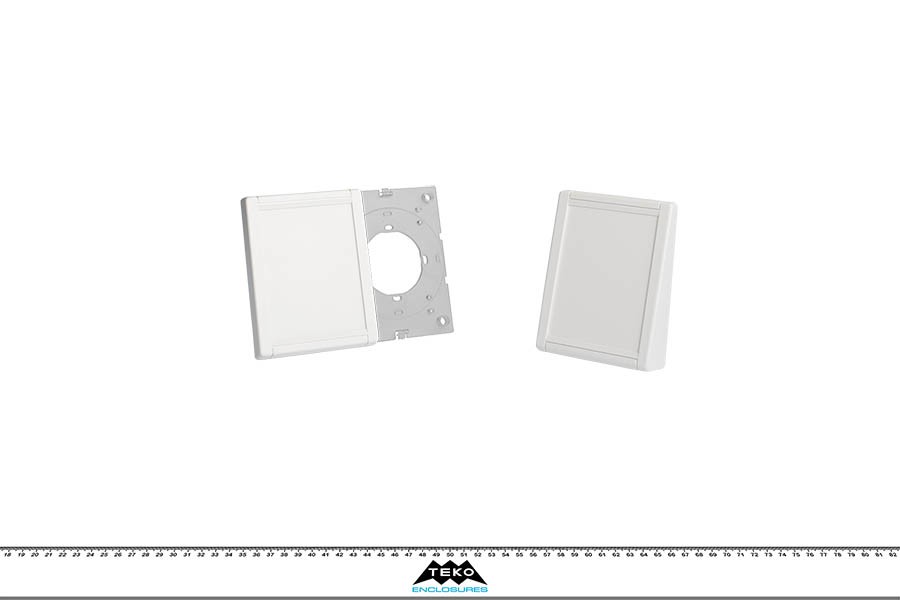

MINI TK WALL

Family Handheld - Electronic enclosures - Plastic

Description

ABS enclosure with matt surface finish. On front side, 1,8 mm recessed area for keypad membrane or display. Base and cover have integral mounting studs for PCB. The bottom is manufactured by transparent Bayblend® and it is suitable for fixing on a 2 / 6-module standard box 503. Snap-on closing.

Products

Model L (inch) W (inch) H (inch) Color (Ral) Material MAX PCB L (inch) MAX PCB W (inch) Screws Battery Accessories Drawings Other

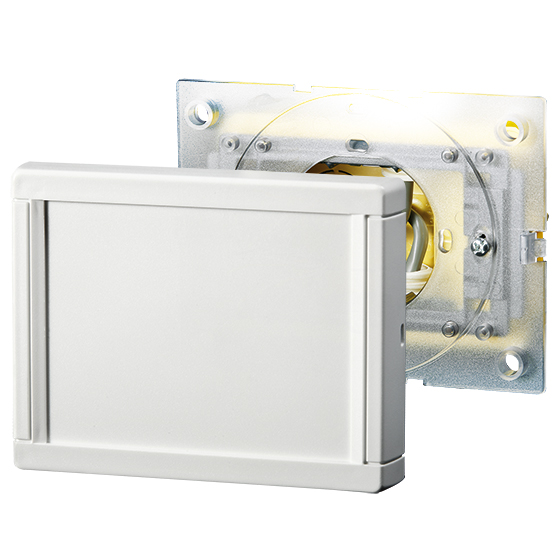

MTK-F.7 5,157 3,957 0,693 9002
L320 4,803 3,622   - M53
PDF
DWG
View
  • Color (Ral): 9002
  • Material: L320
  • MAX PCB L (mm): 122
  • MAX PCB W (mm): 92
  • Screws:
  • Battery: -
  • Accessories: M53
  • Drawings:  PDF  DWG

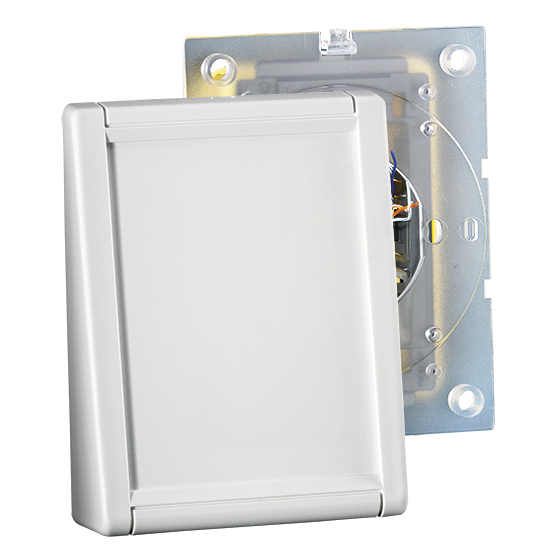

MTK-S.7 5,157 3,957 1,323 9002
L320 4,803 3,622   - M53
PDF
DWG
View
  • Color (Ral): 9002
  • Material: L320
  • MAX PCB L (mm): 122
  • MAX PCB W (mm): 92
  • Screws:
  • Battery: -
  • Accessories: M53
  • Drawings:  PDF  DWG
