OVOTEK WALL

Family Handheld - Electronic enclosures - Plastic

Description

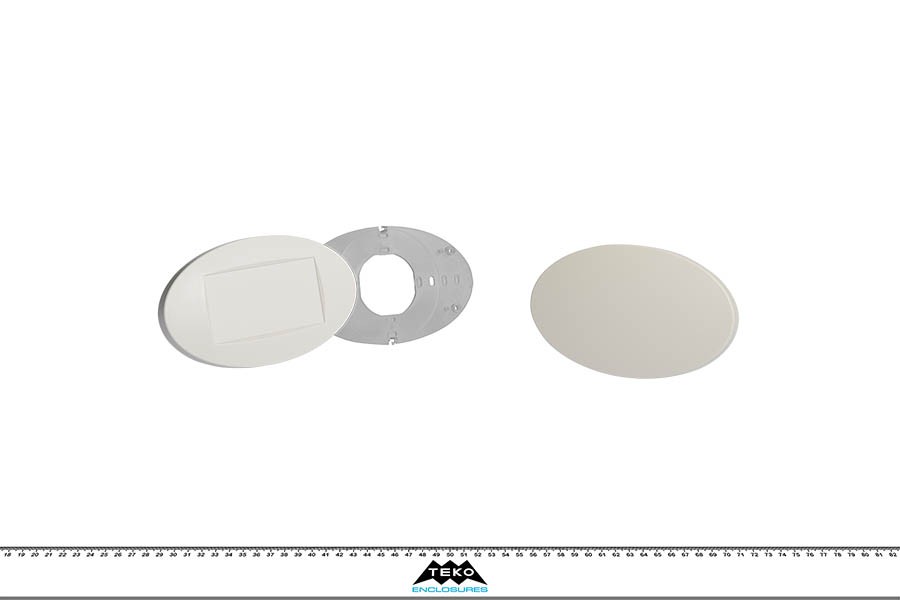

ABS enclosure with matt surface finish. Model MOK1 has a recessed area for keypad membrane or display. Base and cover have integral mounting studs for PCB. The bottom is manufactured by transparent Bayblend® and it is suitable for fixing on a 2 / 6-module standard box 503. Snap-on closing.

Products

Model L (inch) W (inch) H (inch) Color (Ral) Material MAX PCB L (inch) MAX PCB W (inch) Screws Battery Accessories Drawings Other

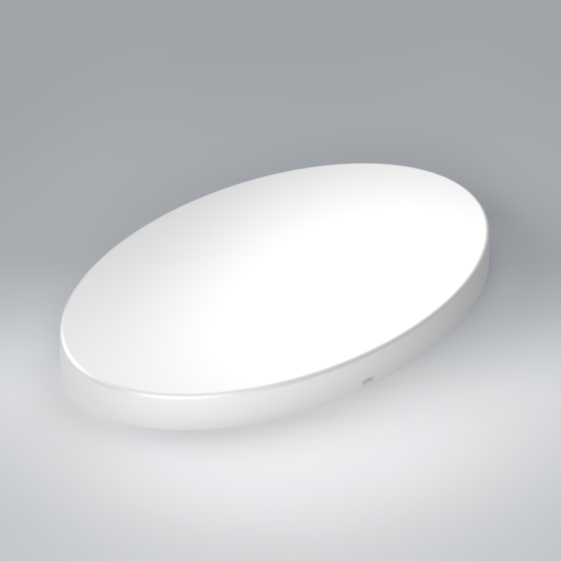

MOK1.7 6,508 4,063 0,799 9002
UG UV 0120 4,409 3,74   - PDF
DWG
View
  • Color (Ral): 9002
  • Material: UG UV 0120
  • MAX PCB L (mm): 112
  • MAX PCB W (mm): 95
  • Screws:
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

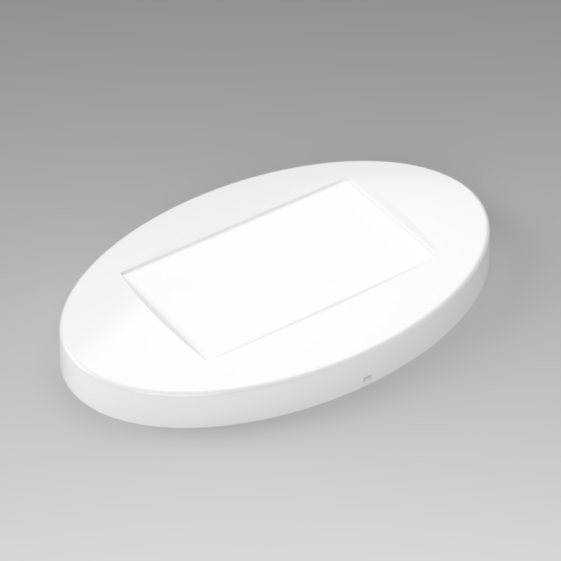

MOK2.7 6,508 4,063 0,717 9002
UG UV 0120 4,409 3,74   - PDF
DWG
View
  • Color (Ral): 9002
  • Material: UG UV 0120
  • MAX PCB L (mm): 112
  • MAX PCB W (mm): 95
  • Screws:
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG
