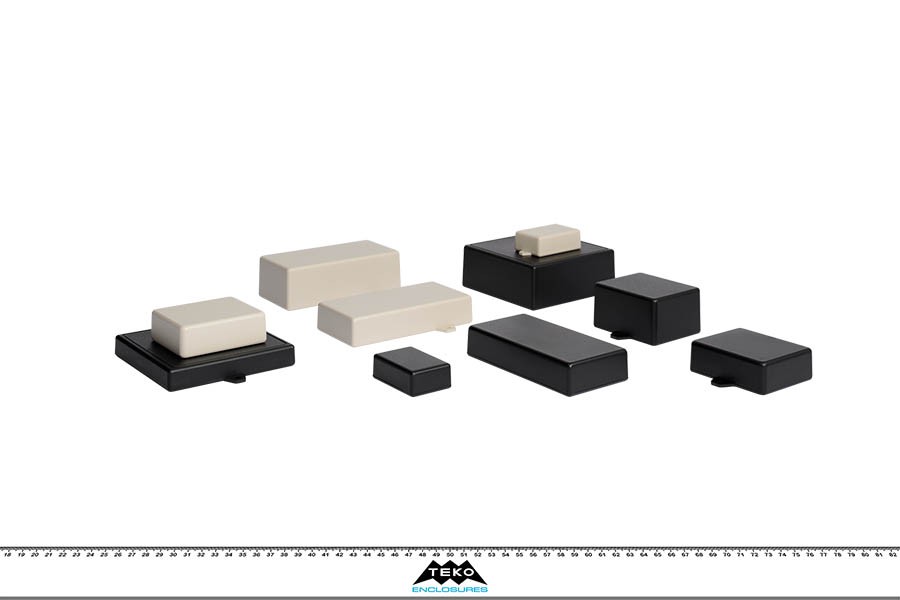

SMART

Description

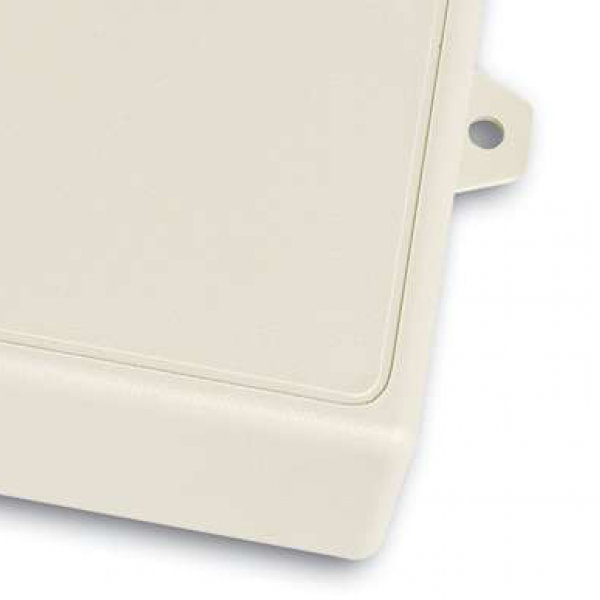

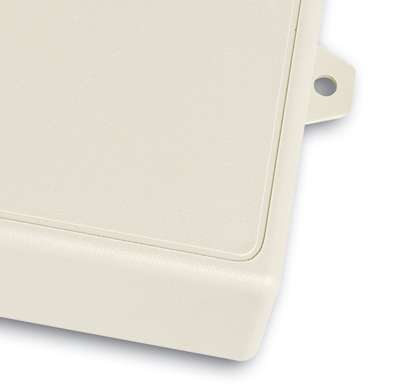

ABS enclosures with rounded corners. Easy assembly. Matt surfaces finish. The models “-E” have mounting ears. Closing by two and four screws.

Details

Products

Model L (inch) W (inch) H (inch) Color (Ral) Material MAX PCB L (inch) MAX PCB W (inch) Screws Battery Accessories Drawings Other

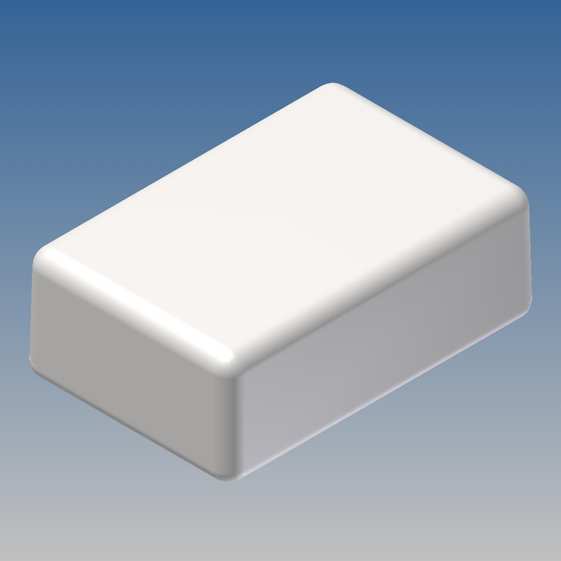

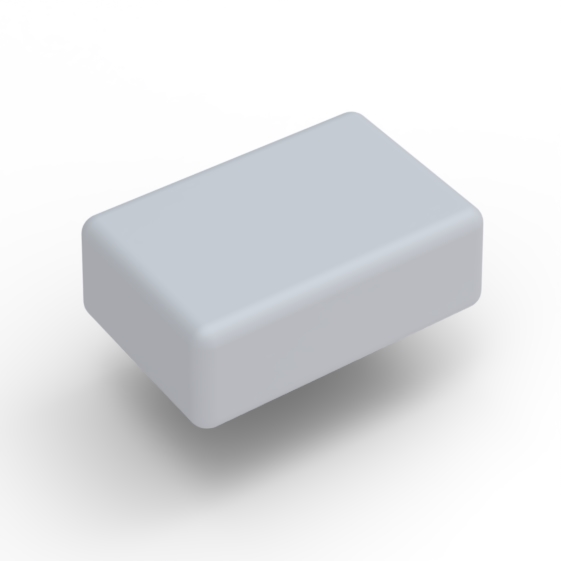

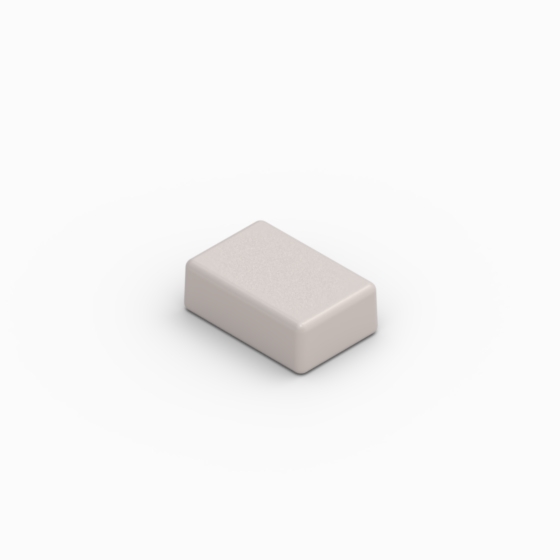

SR01.7 2,244 1,496 0,787 9002
 PA-756 1,969 1,220 2 - PDF
DWG
View
  • Color (Ral): 9002
  • Material: PA-756
  • MAX PCB L (mm): 50
  • MAX PCB W (mm): 31
  • Screws: 2
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

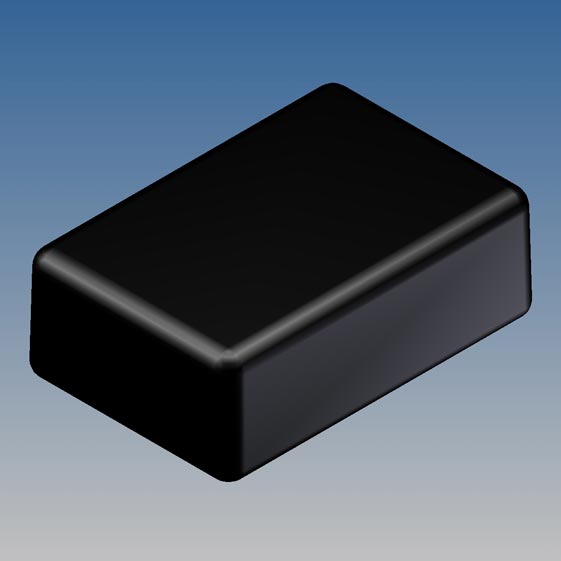

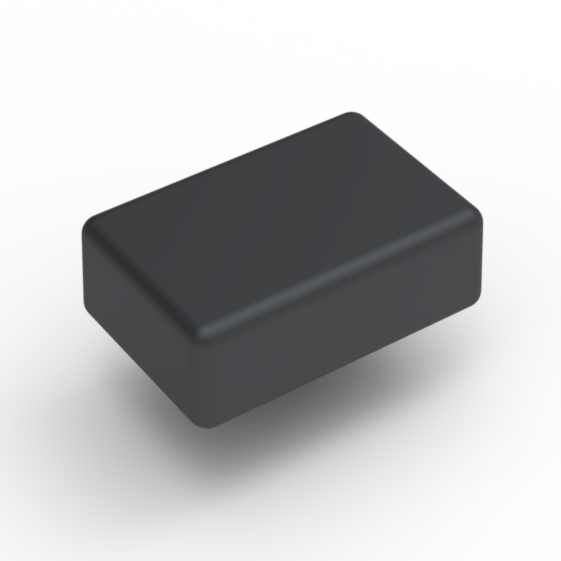

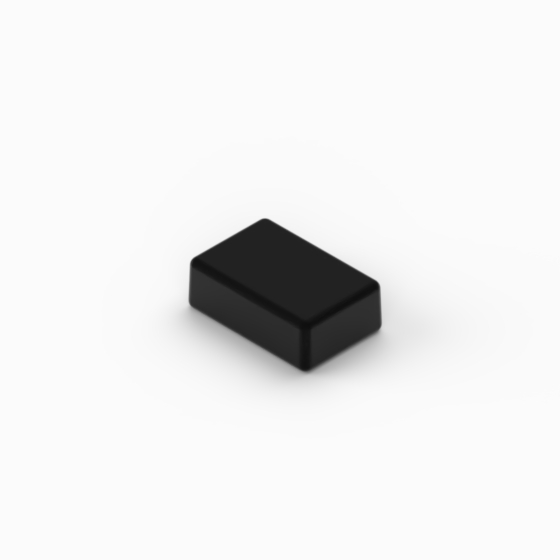

SR01.9 2,244 1,496 0,787 9004
 TERLURAN GP-35 1,969 1,220 2 - PDF
DWG
View

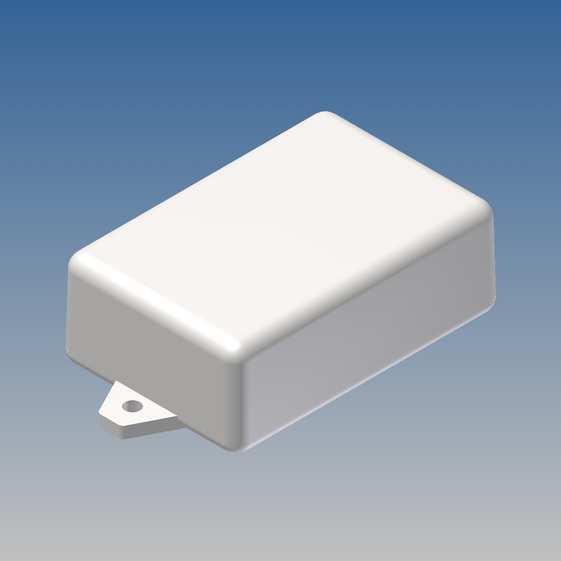

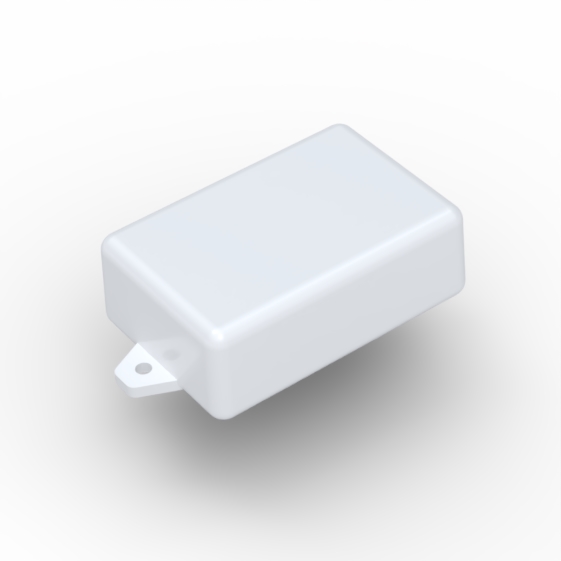

SR01-E.7 2,244 1,496 0,787 9002
 PA-756 1,969 1,220 2 - PDF
DWG
View
  • Color (Ral): 9002
  • Material: PA-756
  • MAX PCB L (mm): 50
  • MAX PCB W (mm): 31
  • Screws: 2
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

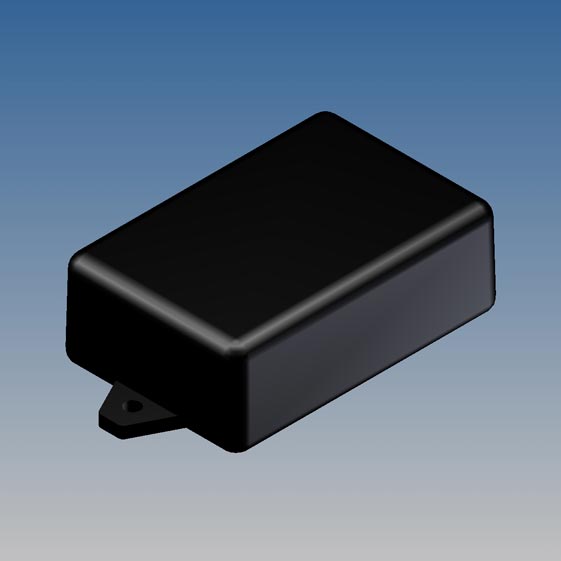

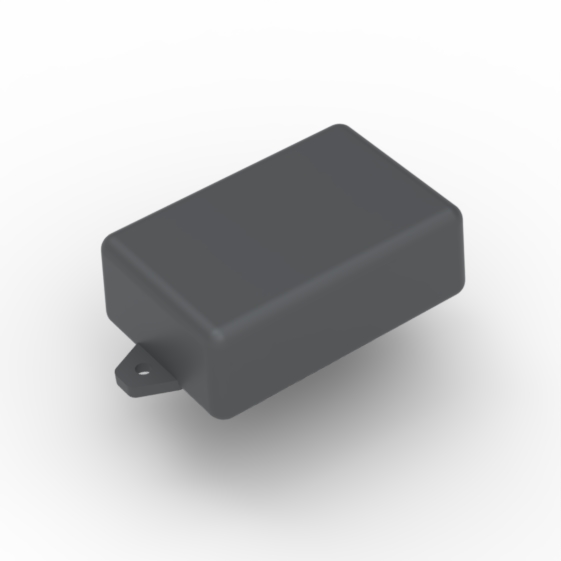

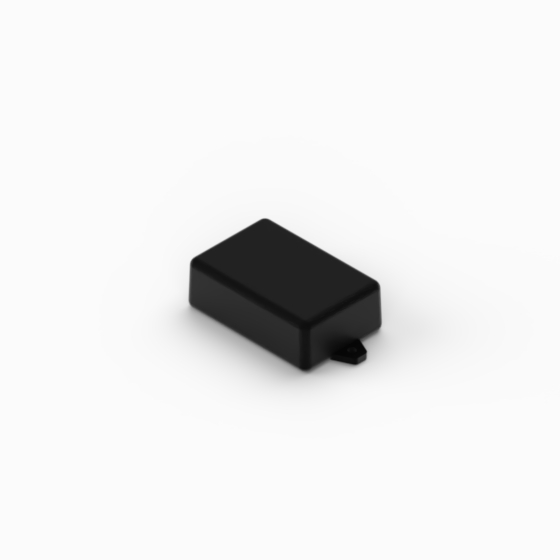

SR01-E.9 2,244 1,496 0,787 9004
 TERLURAN GP-35 1,969 1,220 2 - PDF
DWG
View

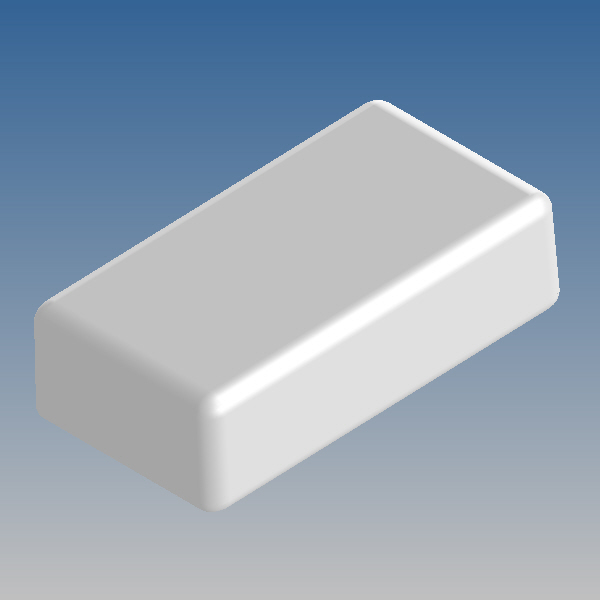

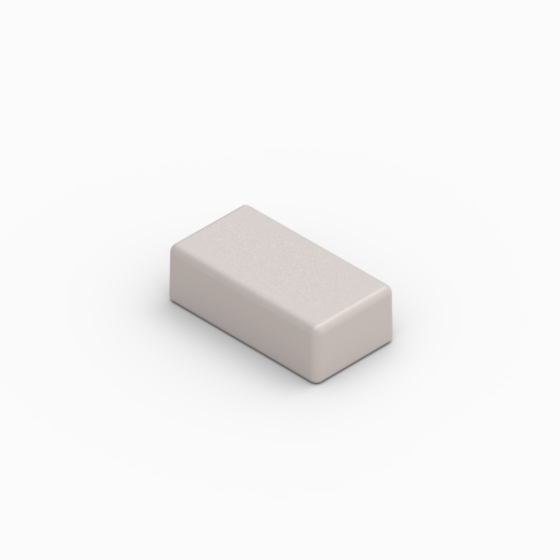

SR02.7
NEW 		2,815 1,505 0,900 9002
 PA-756 2,545 1,235 2   PDF
DWG
View
  • Color (Ral): 9002
  • Material: PA-756
  • MAX PCB L (mm): 64,5
  • MAX PCB W (mm): 31
  • Screws: 2
  • Battery:
  • Accessories:
  • Drawings:  PDF  DWG

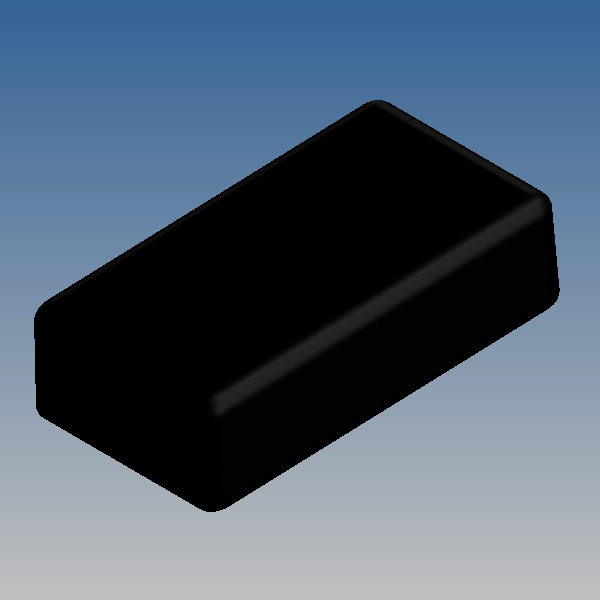

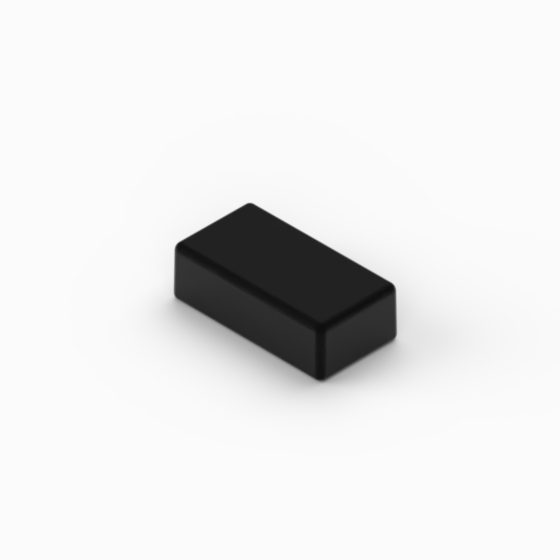

SR02.9
NEW 		2,815 1,505 0,900 9004
 TERLURAN GP-35 2,545 1,235 2   PDF
DWG
View

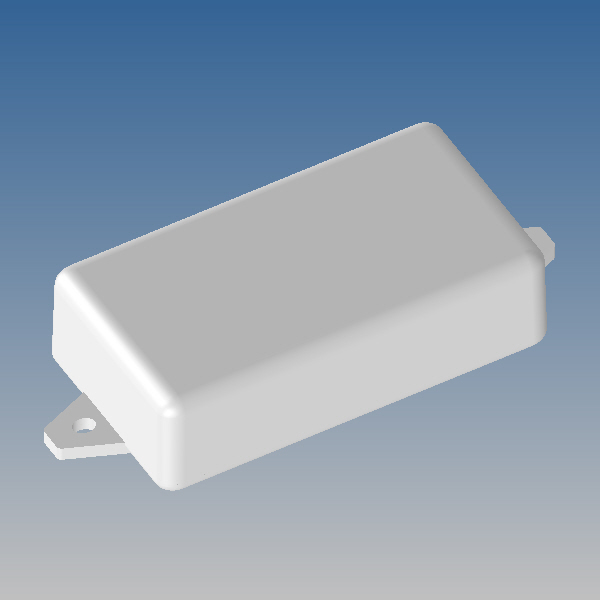

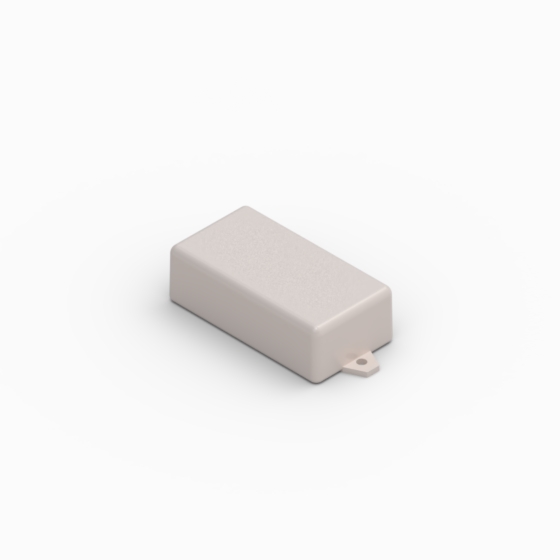

SR02-E.7
NEW 		2,815 1,505 0,900 9002
 PA-756 2,545 1,235 2   PDF
DWG
View
  • Color (Ral): 9002
  • Material: PA-756
  • MAX PCB L (mm): 64,5
  • MAX PCB W (mm): 31
  • Screws: 2
  • Battery:
  • Accessories:
  • Drawings:  PDF  DWG

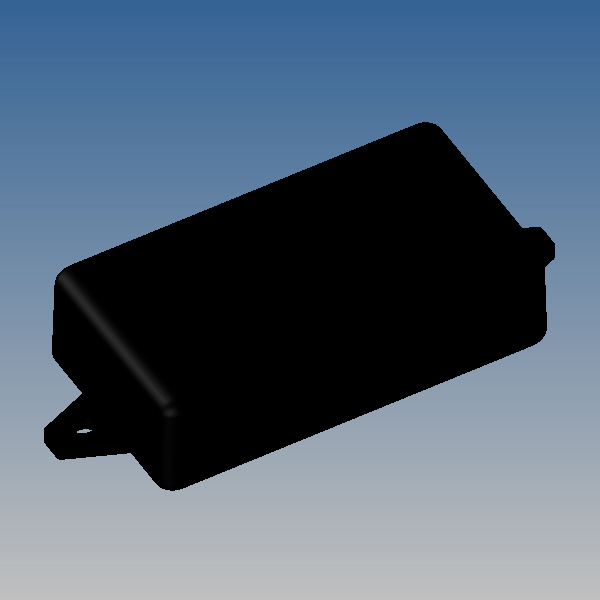

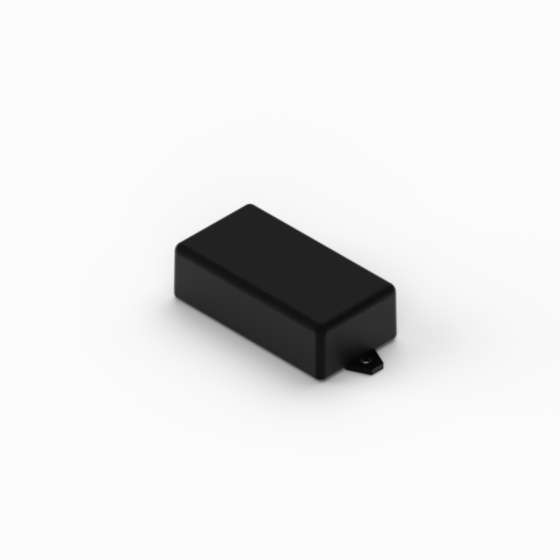

SR02-E.9
NEW 		2,815 1,505 0,900 9004
 TERLURAN GP-35 2,545 1,235 2   PDF
DWG
View

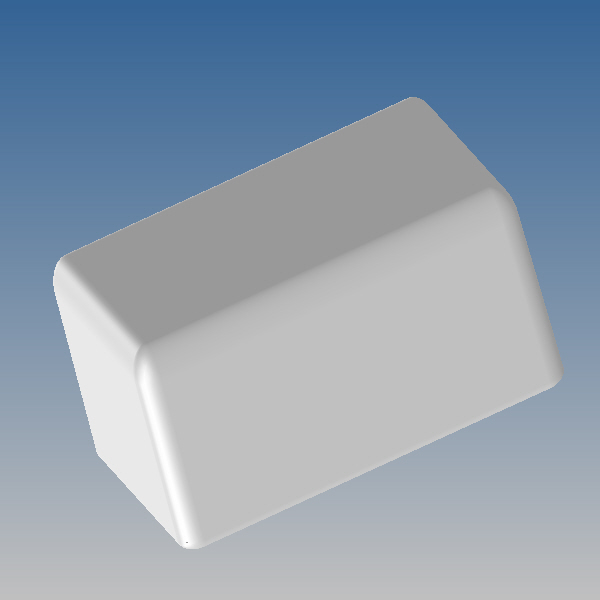

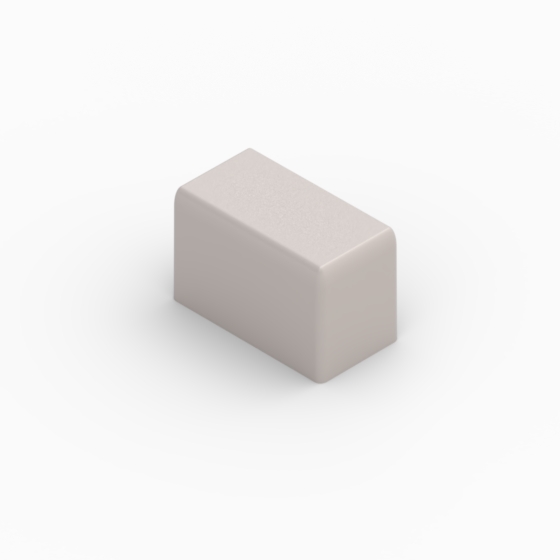

SR03.7
NEW 		2,815 1,505 1,610 9002
 PA-756 2,545 1,235 2   PDF
DWG
View
  • Color (Ral): 9002
  • Material: PA-756
  • MAX PCB L (mm): 64,5
  • MAX PCB W (mm): 31
  • Screws: 2
  • Battery:
  • Accessories:
  • Drawings:  PDF  DWG

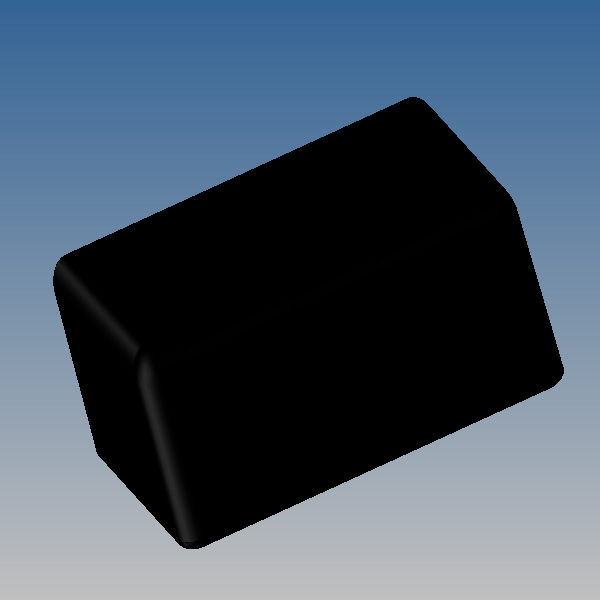

SR03.9
NEW 		2,815 1,505 1,610 9004
 TERLURAN GP-35 2,545 1,235 2   PDF
DWG
View

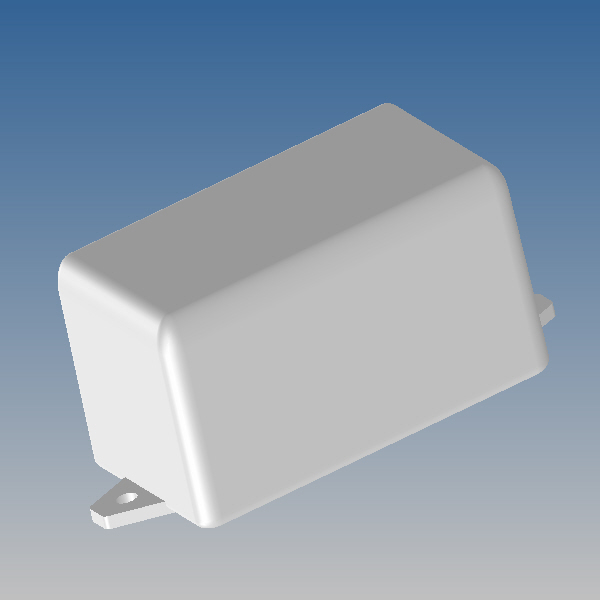

SR03-E.7
NEW 		2,815 1,505 1,610 9002
 PA-756 2,545 1,235 2   PDF
DWG
View
  • Color (Ral): 9002
  • Material: PA-756
  • MAX PCB L (mm): 64,5
  • MAX PCB W (mm): 31
  • Screws: 2
  • Battery:
  • Accessories:
  • Drawings:  PDF  DWG

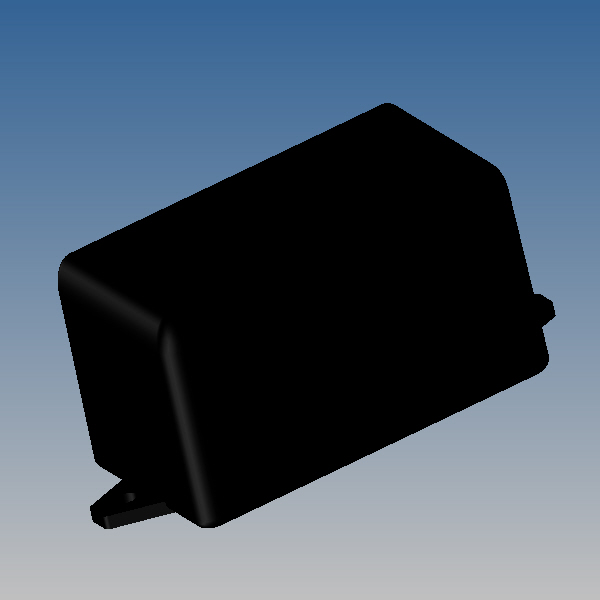

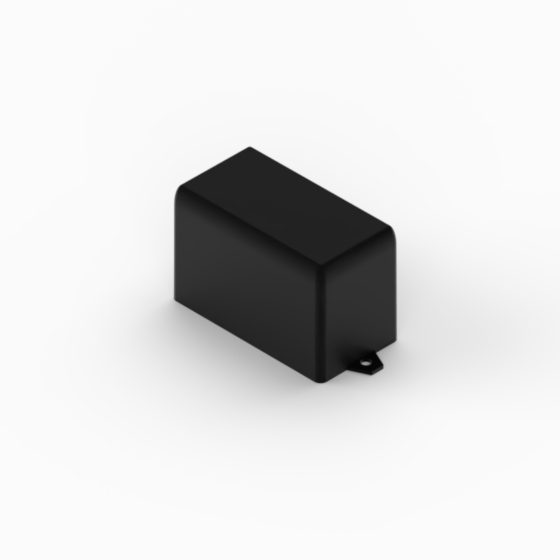

SR03-E.9
NEW 		2,815 1,505 1,610 9004
 TERLURAN GP-35 2,545 1,235 2   PDF
DWG
View

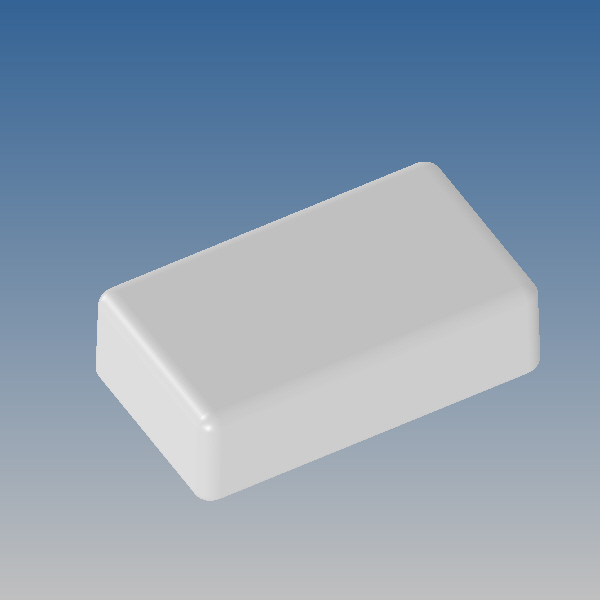

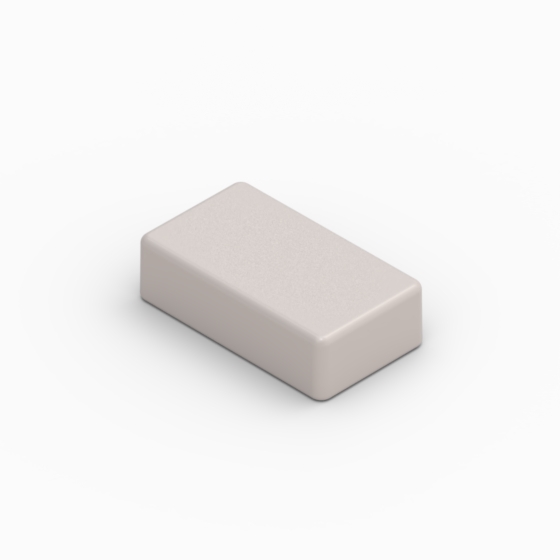

SR04.7
NEW 		3,5 2 1,005 9002
 PA-756 3,24 1,74 4   PDF
DWG
View
  • Color (Ral): 9002
  • Material: PA-756
  • MAX PCB L (mm): 82
  • MAX PCB W (mm): 44
  • Screws: 4
  • Battery:
  • Accessories:
  • Drawings:  PDF  DWG

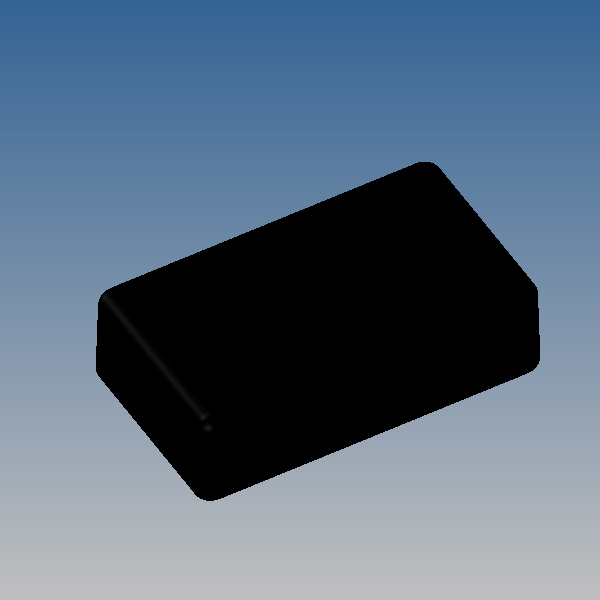

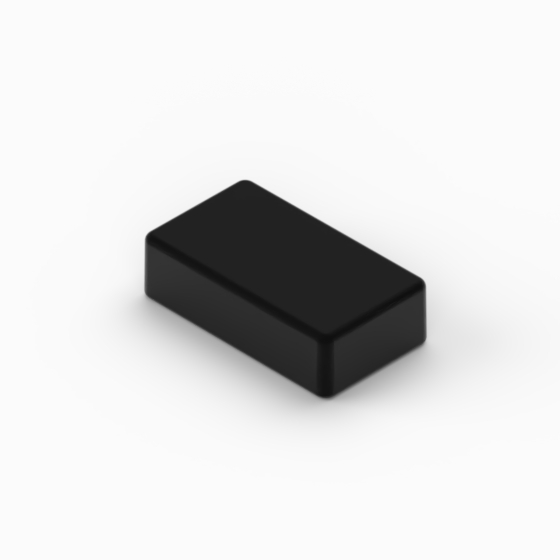

SR04.9
NEW 		3,5 2 1,005 9004
 TERLURAN GP-35 3,24 1,74 4   PDF
DWG
View

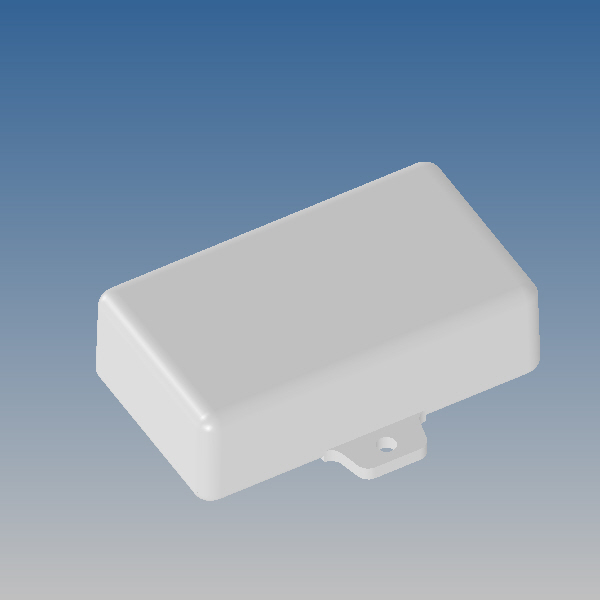

SR04-E.7
NEW 		3,5 2 1,005 9002
 PA-756 3,24 1,74 4   PDF
DWG
View
  • Color (Ral): 9002
  • Material: PA-756
  • MAX PCB L (mm): 82
  • MAX PCB W (mm): 44
  • Screws: 4
  • Battery:
  • Accessories:
  • Drawings:  PDF  DWG

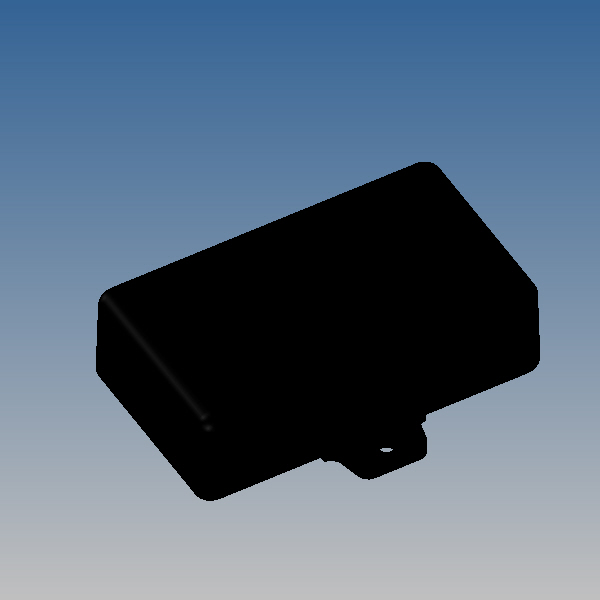

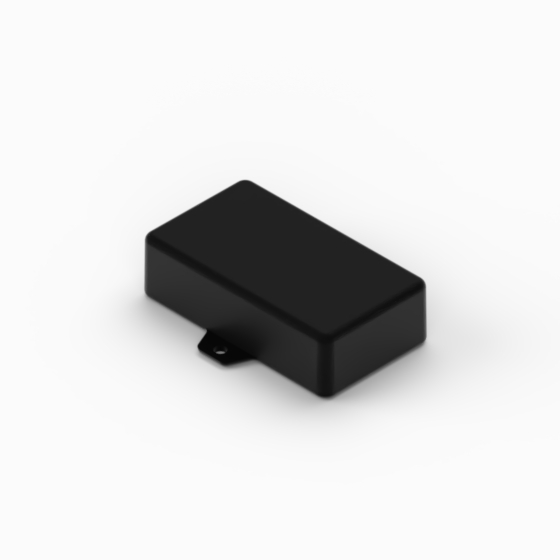

SR04-E.9
NEW 		3,5 2 1,005 9004
 TERLURAN GP-35 3,24 1,74 4   PDF
DWG
View

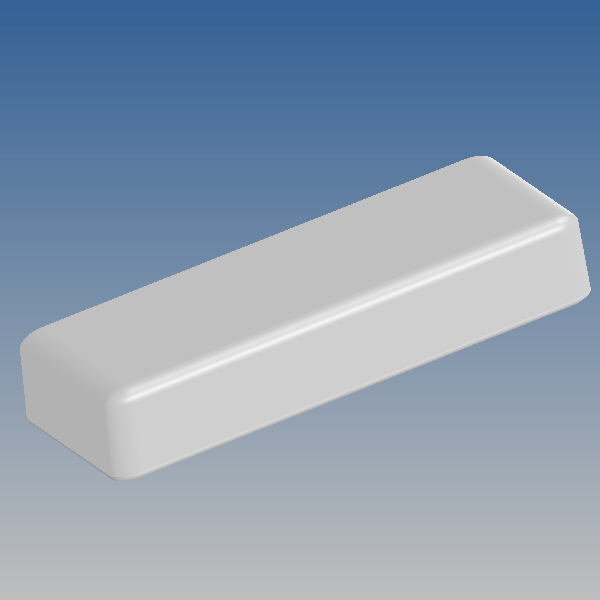

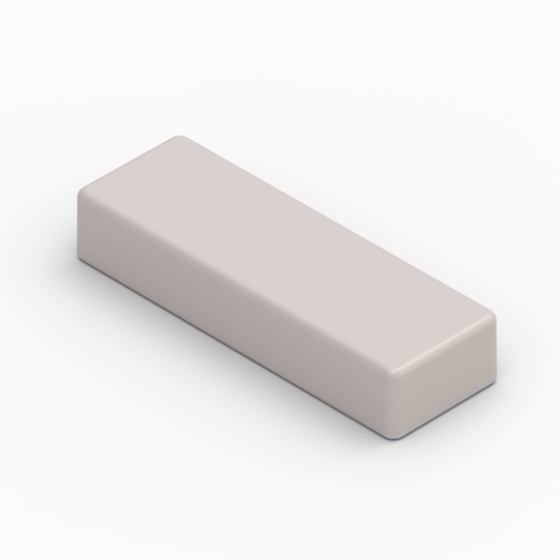

SR06.7
NEW 		6,025 2,050 1,10 9002
 PA-756 5,66 1,69 4   PDF
DWG
View
  • Color (Ral): 9002
  • Material: PA-756
  • MAX PCB L (mm): 144
  • MAX PCB W (mm): 43
  • Screws: 4
  • Battery:
  • Accessories:
  • Drawings:  PDF  DWG

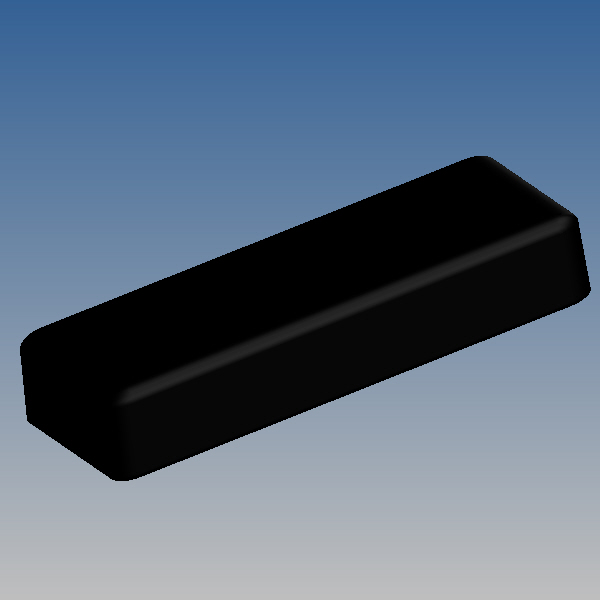

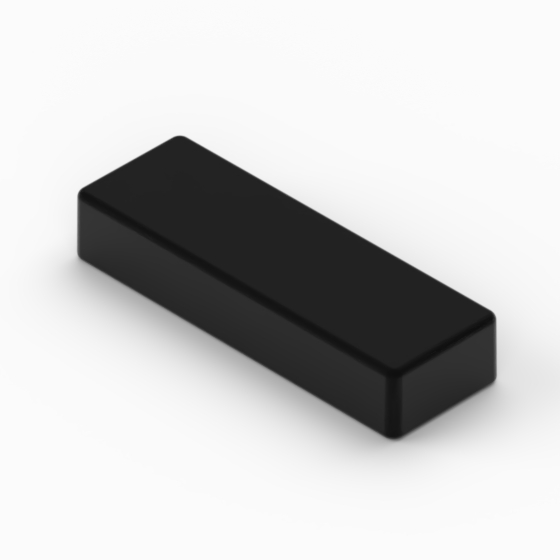

SR06.9
NEW 		6,025 2,050 1,10 9004
 TERLURAN GP-35 5,66 1,69 4   PDF
DWG
View

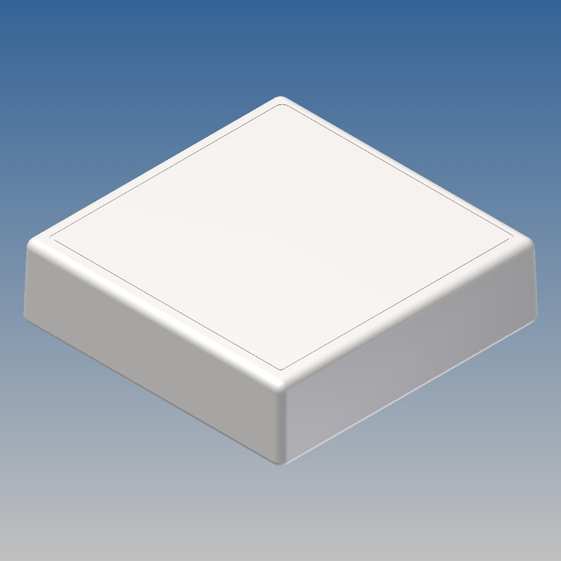

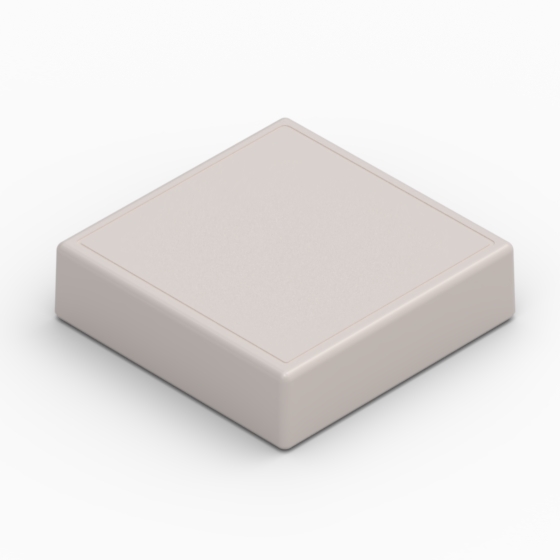

SR120.7 4,374 4,374 1,22 9002
 PA-756 4,075 4,075 4 - PDF
DWG
View
  • Color (Ral): 9002
  • Material: PA-756
  • MAX PCB L (mm): 103,5
  • MAX PCB W (mm): 103,5
  • Screws: 4
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

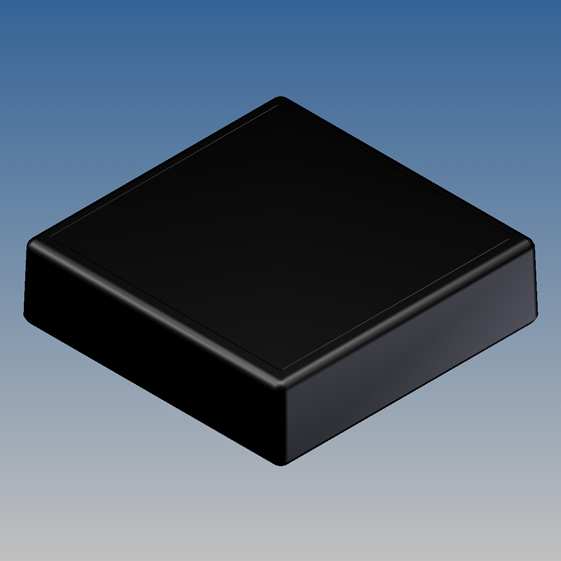

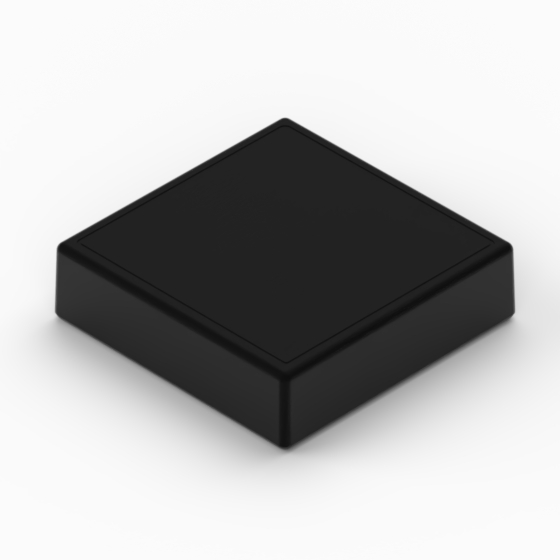

SR120.9 4,374 4,374 1,22 9004
 TERLURAN GP-35 4,075 4,075 4 - PDF
DWG
View

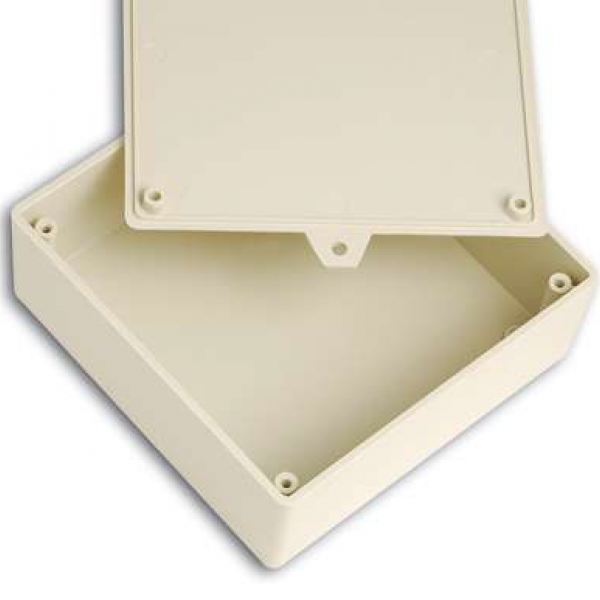

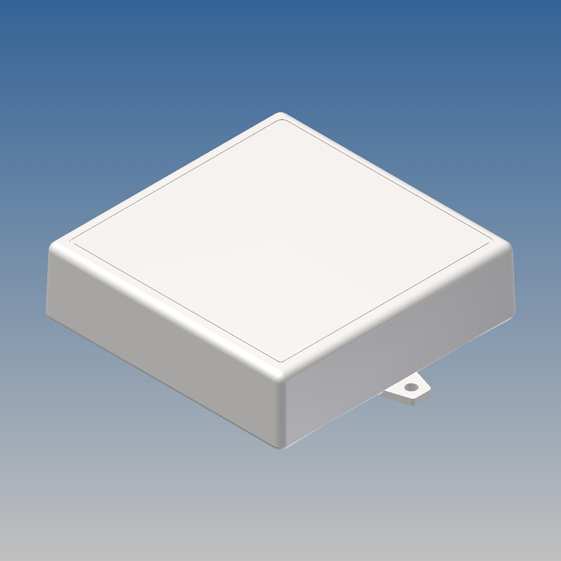

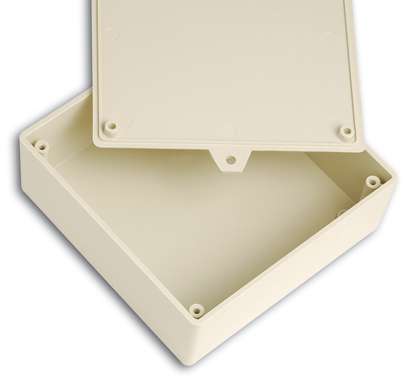

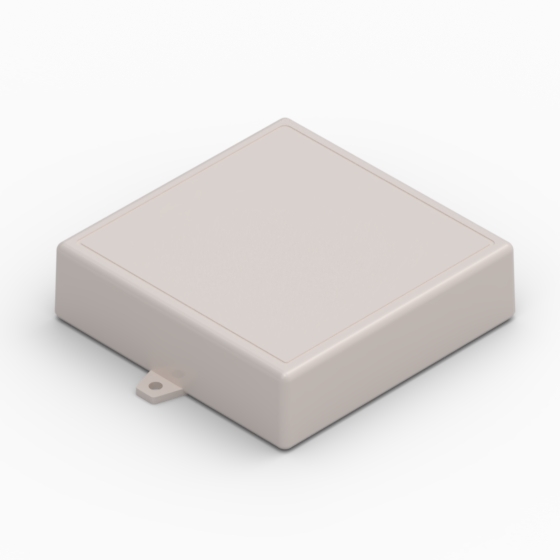

SR120-E.7 4,374 4,374 1,22 9002
 PA-756 4,075 4,075 4 - PDF
DWG
View
  • Color (Ral): 9002
  • Material: PA-756
  • MAX PCB L (mm): 103,5
  • MAX PCB W (mm): 103,5
  • Screws: 4
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

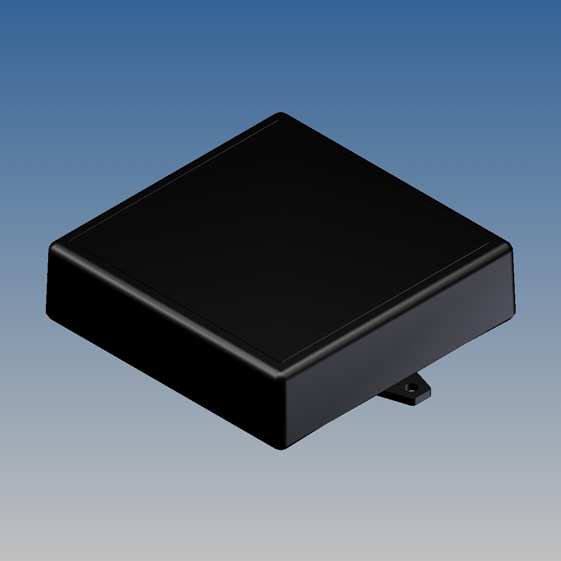

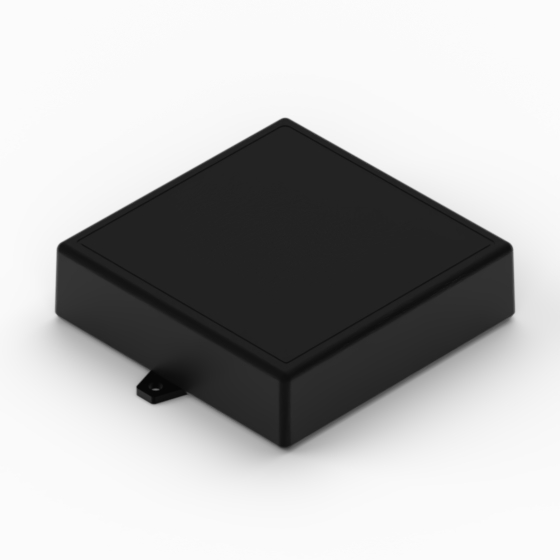

SR120-E.9 4,374 4,374 1,22 9004
 TERLURAN GP-35 4,075 4,075 4 - PDF
DWG
View

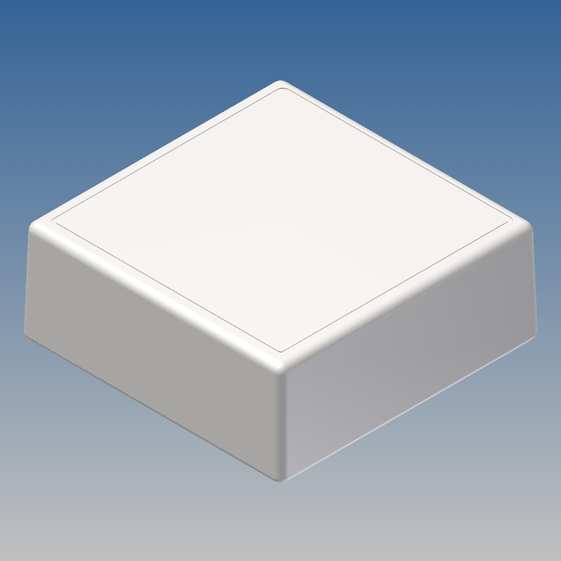

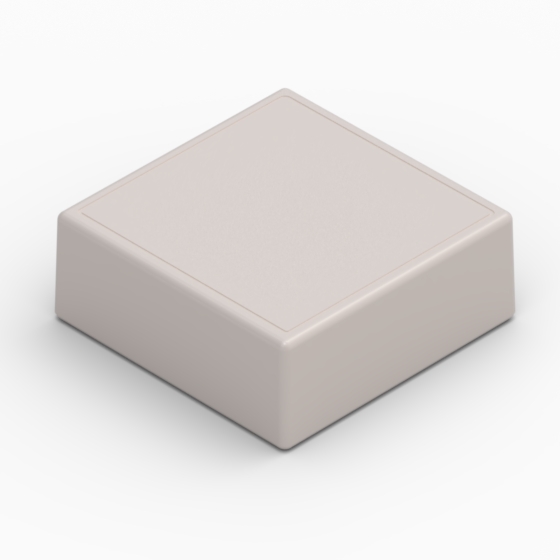

SR170.7 4,374 4,374 1,709 9002
 PA-756 4,075 4,075 4 - PDF
DWG
View
  • Color (Ral): 9002
  • Material: PA-756
  • MAX PCB L (mm): 103,5
  • MAX PCB W (mm): 103,5
  • Screws: 4
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

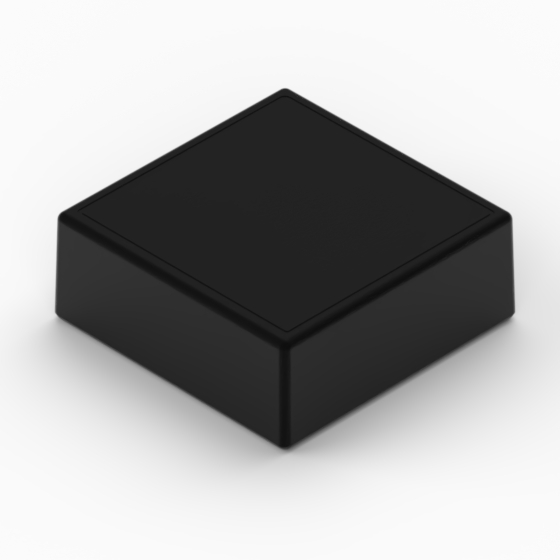

SR170.9 4,374 4,374 1,709 9004
 TERLURAN GP-35 4,075 4,075 4 - PDF
DWG
View

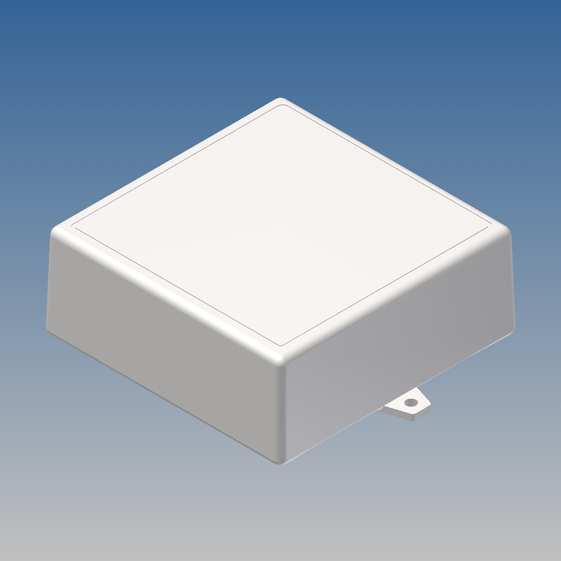

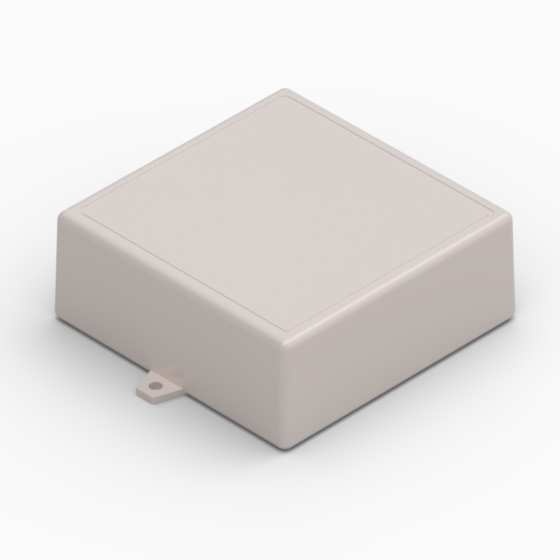

SR170-E.7 4,374 4,374 1,709 9002
 PA-756 4,075 4,075 4 - PDF
DWG
View
  • Color (Ral): 9002
  • Material: PA-756
  • MAX PCB L (mm): 103,5
  • MAX PCB W (mm): 103,5
  • Screws: 4
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

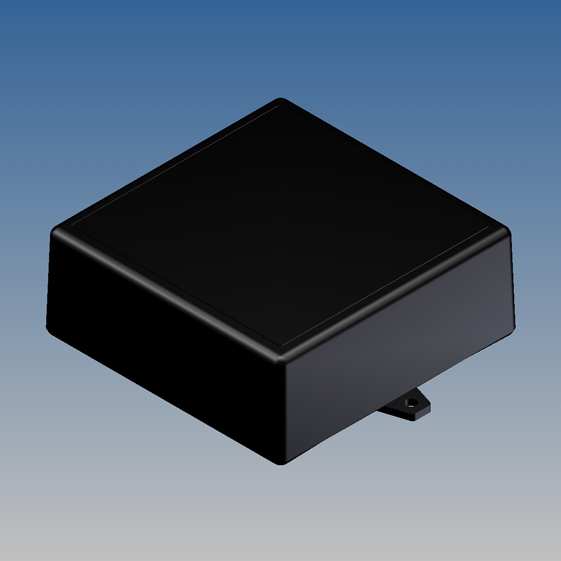

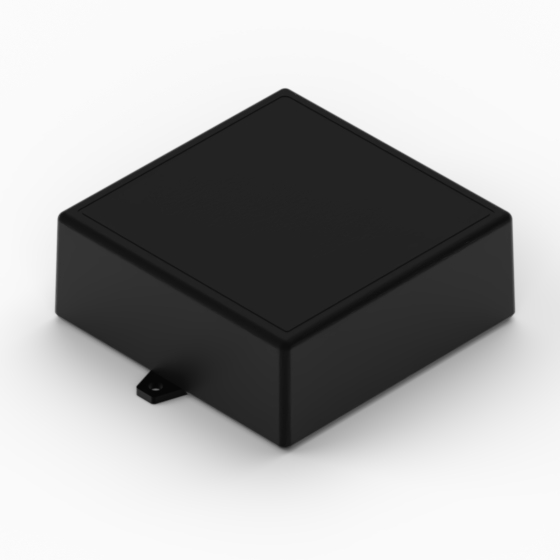

SR170-E.9 4,374 4,374 1,709 9004
 TERLURAN GP-35 4,075 4,075 4 - PDF
DWG
View

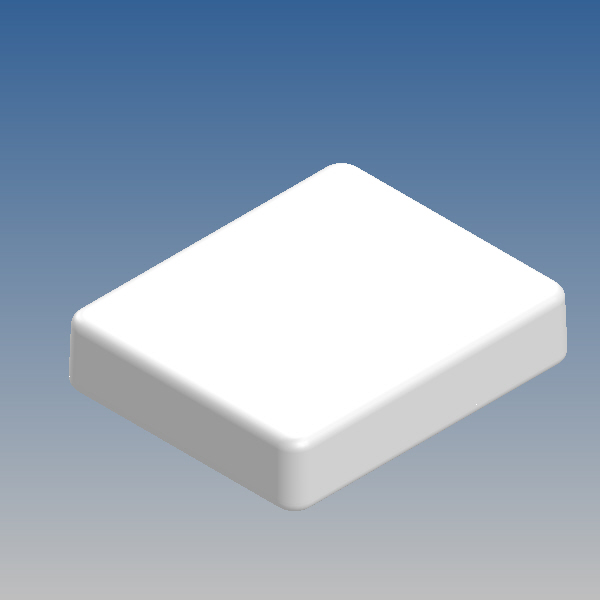

SR21.7
NEW 		3 2,5 0,655 9002
 PA-756 2,78 2,28 4   PDF
DWG
View
  • Color (Ral): 9002
  • Material: PA-756
  • MAX PCB L (mm): 70,6
  • MAX PCB W (mm): 57.9
  • Screws: 4
  • Battery:
  • Accessories:
  • Drawings:  PDF  DWG

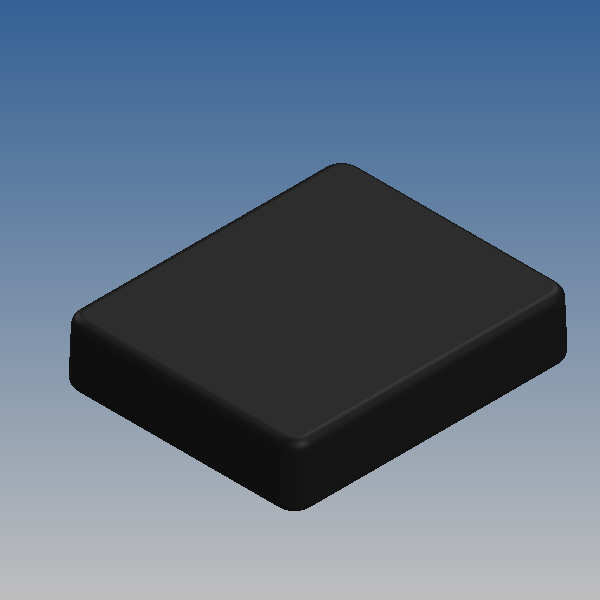

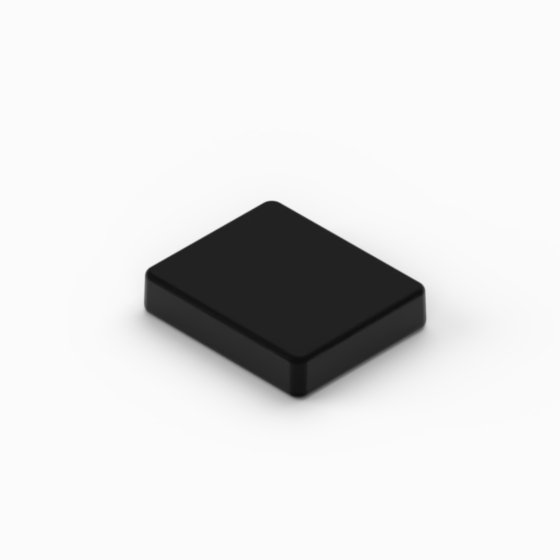

SR21.9
NEW 		3 2,5 0,655 9004
 TERLURAN GP-35 2,78 2,28 4   PDF
DWG
View

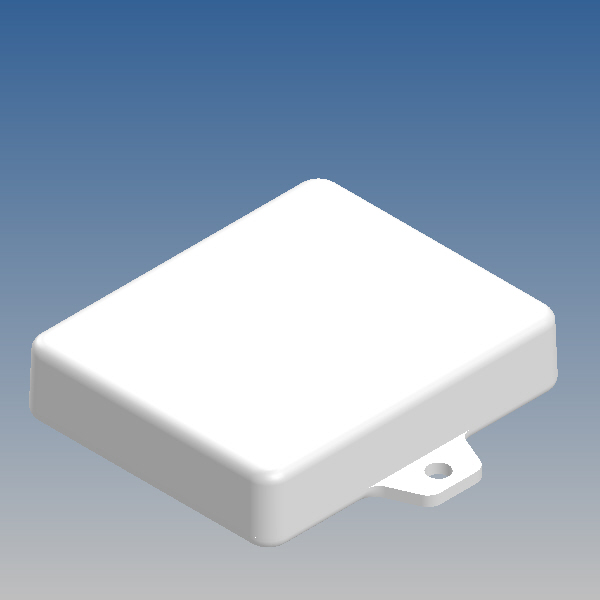

SR21-E.7
NEW 		3 2,5 0,655 9002
 PA-756 2,78 2,28 4   PDF
DWG
View
  • Color (Ral): 9002
  • Material: PA-756
  • MAX PCB L (mm): 70,6
  • MAX PCB W (mm): 57.9
  • Screws: 4
  • Battery:
  • Accessories:
  • Drawings:  PDF  DWG

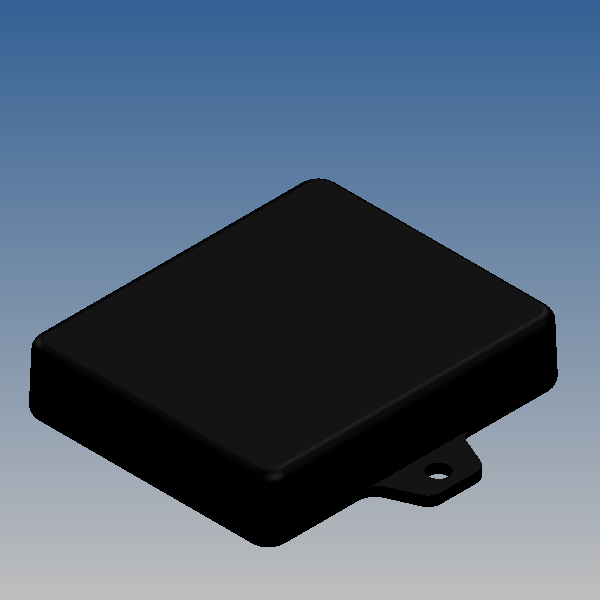

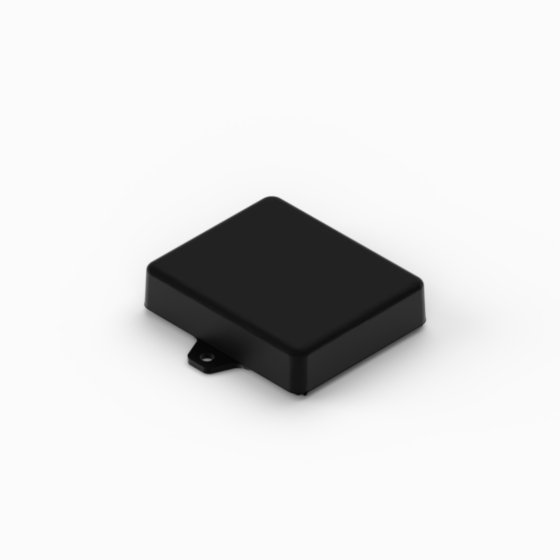

SR21-E.9
NEW 		3 2,5 0,655 9004
 TERLURAN GP-35 2,78 2,28 4   PDF
DWG
View

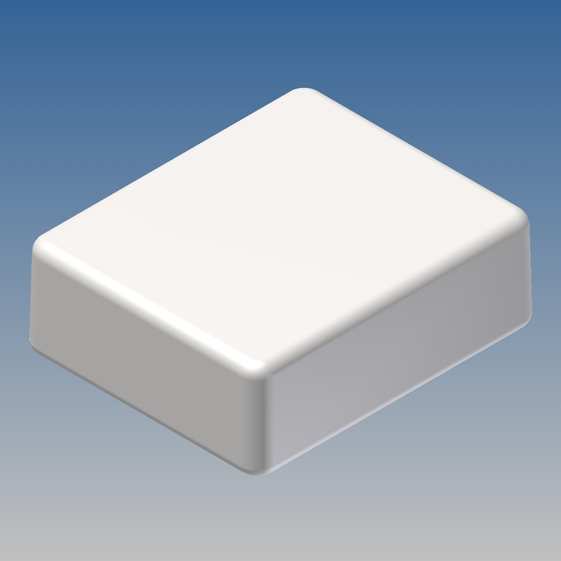

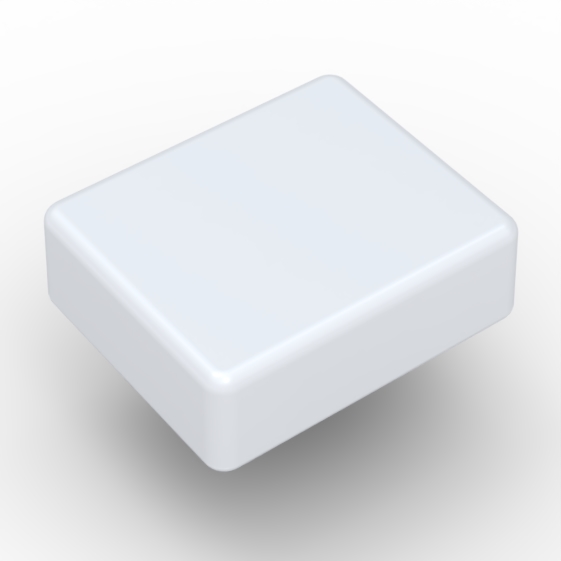

SR22.7 2,992 2,5 1,024 9002
 PA-756 2,661 2,169 4 - PDF
DWG
View
  • Color (Ral): 9002
  • Material: PA-756
  • MAX PCB L (mm): 67,6
  • MAX PCB W (mm): 55,1
  • Screws: 4
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

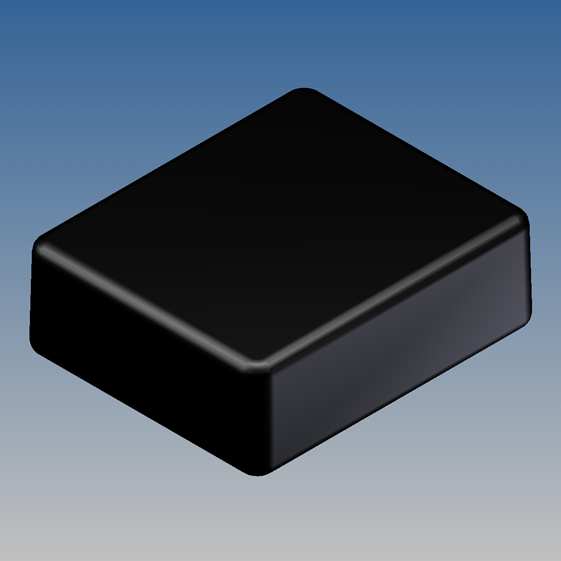

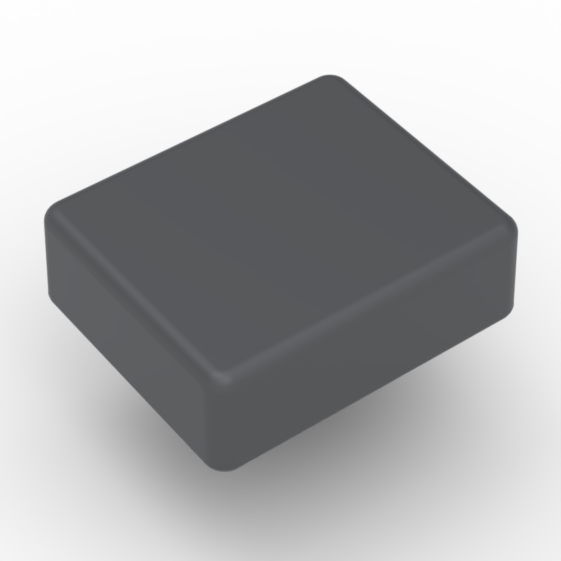

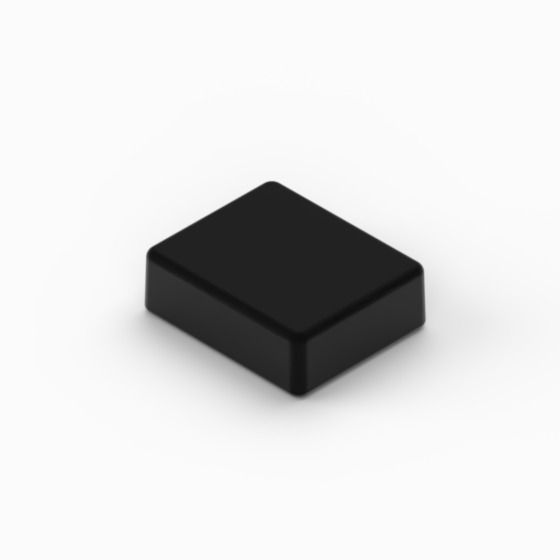

SR22.9 2,992 2,5 1,024 9004
 TERLURAN GP-35 2,661 2,169 4 - PDF
DWG
View

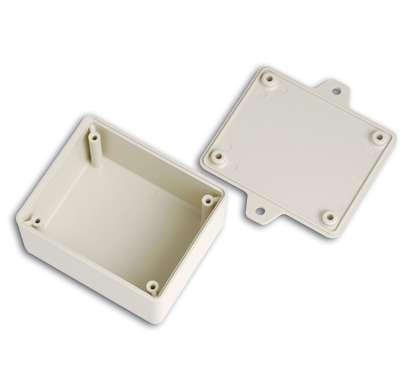

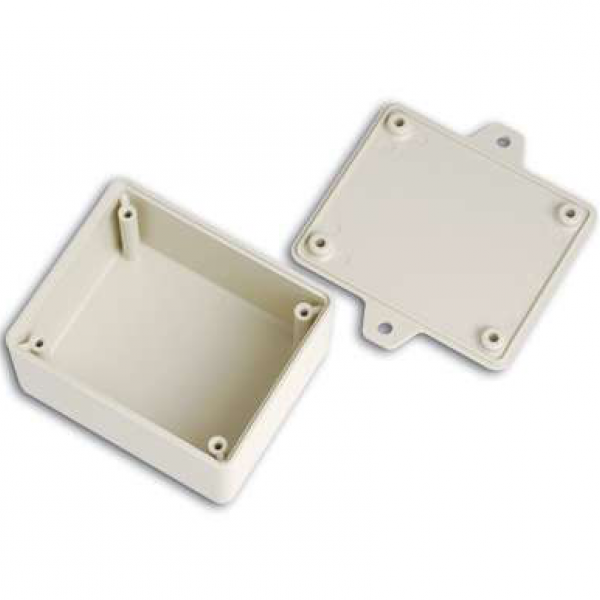

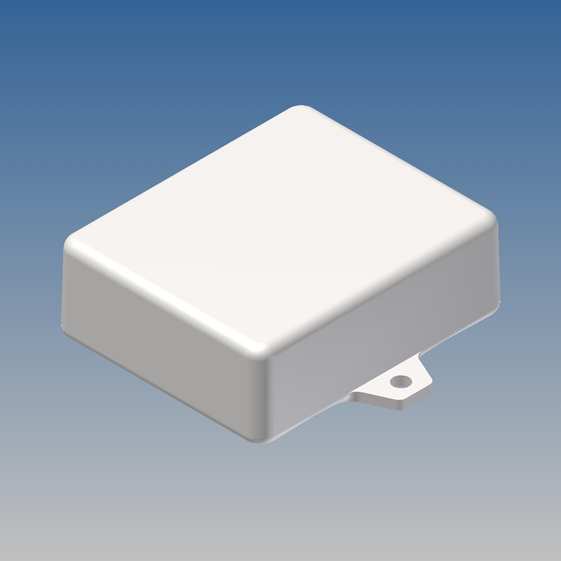

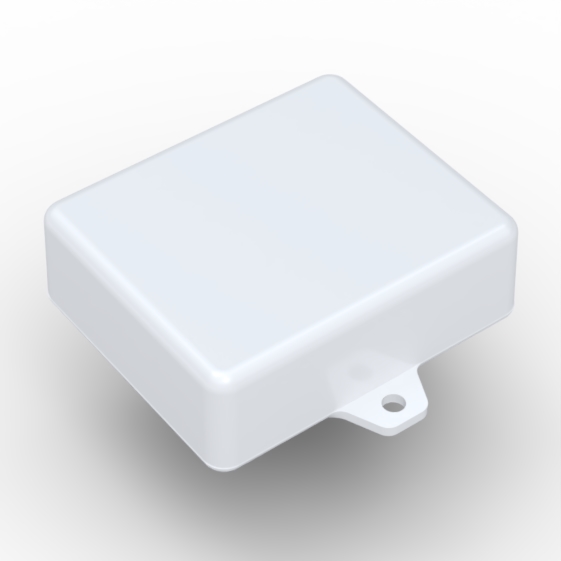

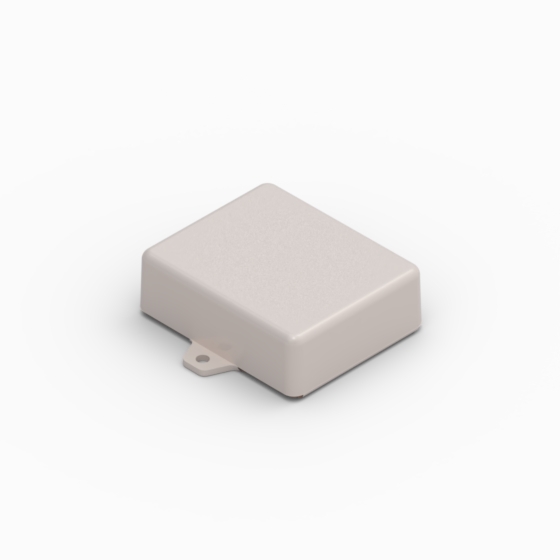

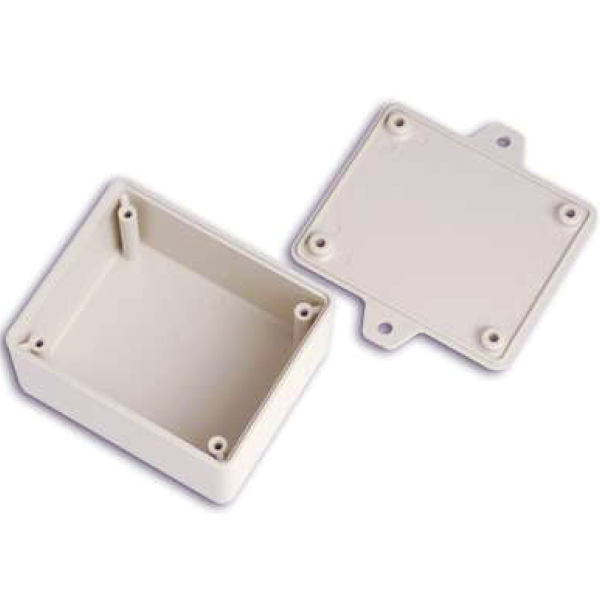

SR22-E.7 2,992 2,5 1,024 9002
 PA-756 2,661 2,169 4 - PDF
DWG
View
  • Color (Ral): 9002
  • Material: PA-756
  • MAX PCB L (mm): 67,6
  • MAX PCB W (mm): 55,1
  • Screws: 4
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

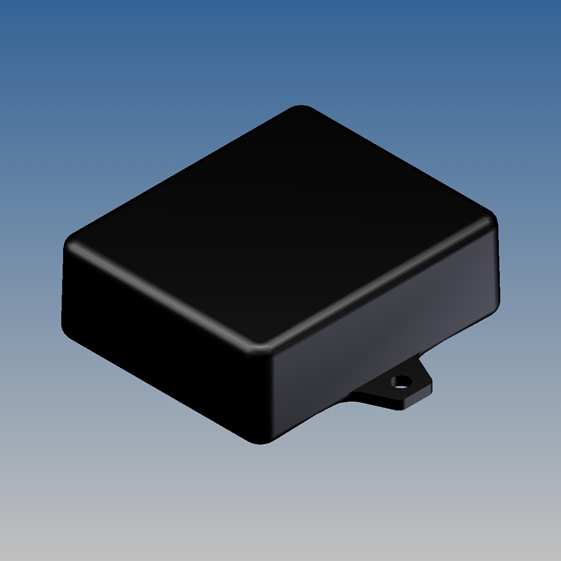

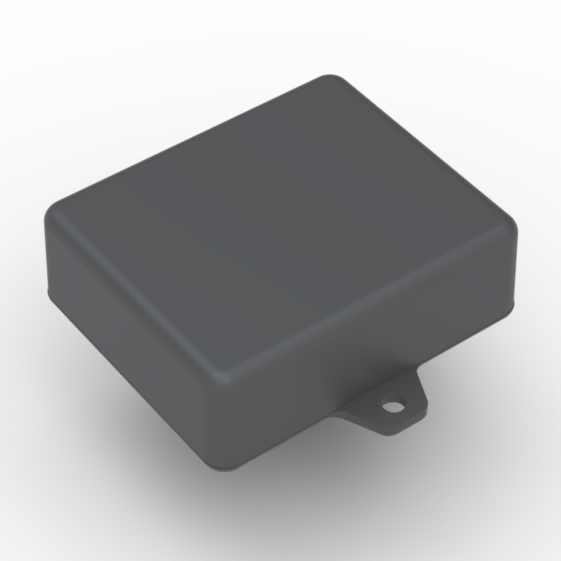

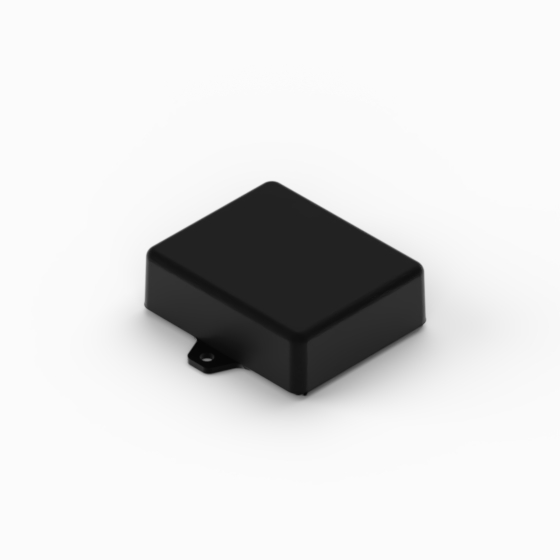

SR22-E.9 2,992 2,5 1,024 9004
 TERLURAN GP-35 2,661 2,169 4 - PDF
DWG
View

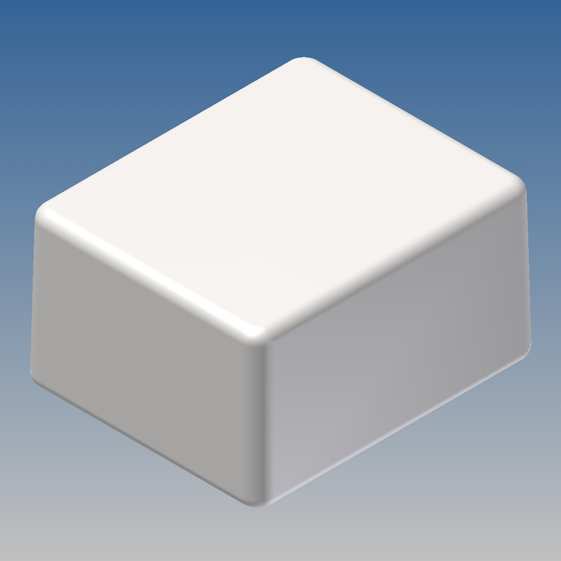

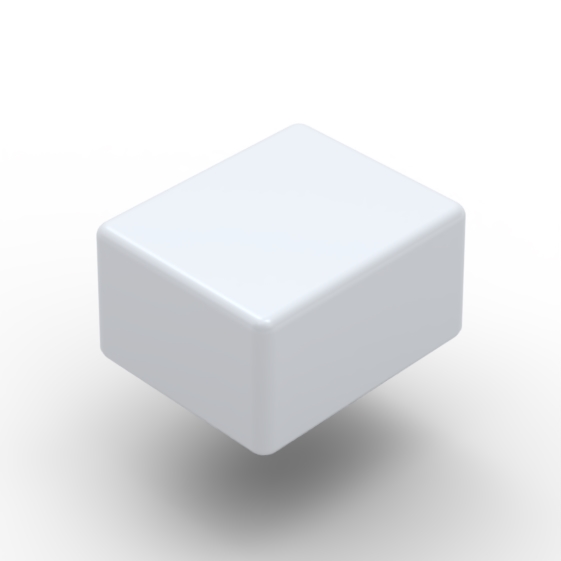

SR23.7 2,992 2,5 1,614 9002
 PA-756 2,661 2,169 4 - PDF
DWG
View
  • Color (Ral): 9002
  • Material: PA-756
  • MAX PCB L (mm): 67,6
  • MAX PCB W (mm): 55,1
  • Screws: 4
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

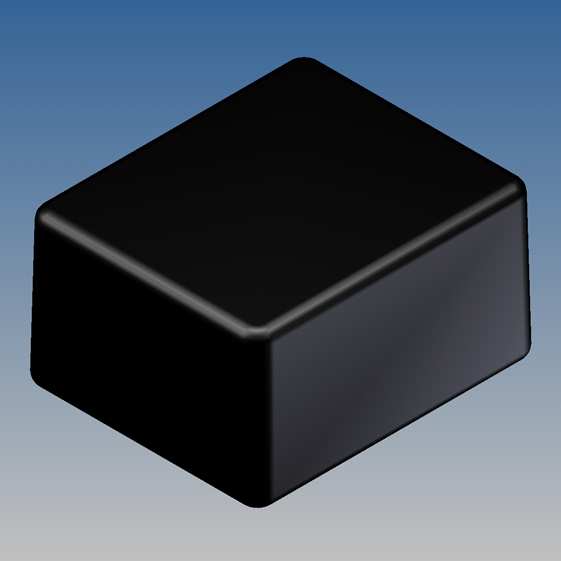

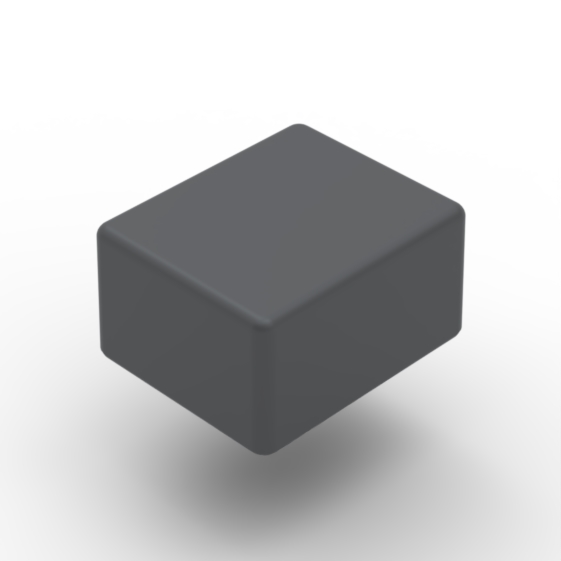

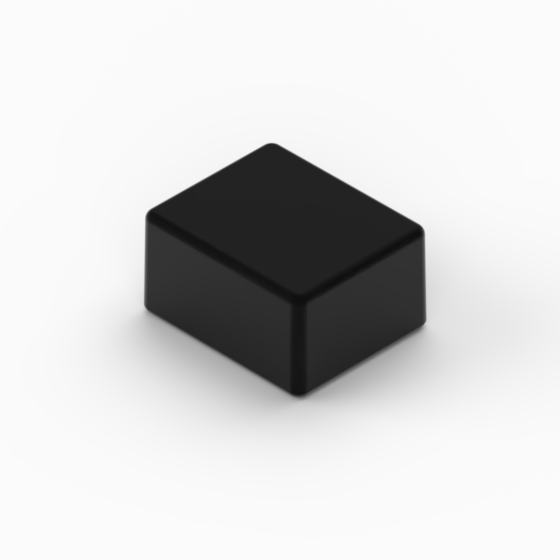

SR23.9 2,992 2,5 1,614 9004
 TERLURAN GP-35 2,661 2,169 4 - PDF
DWG
View

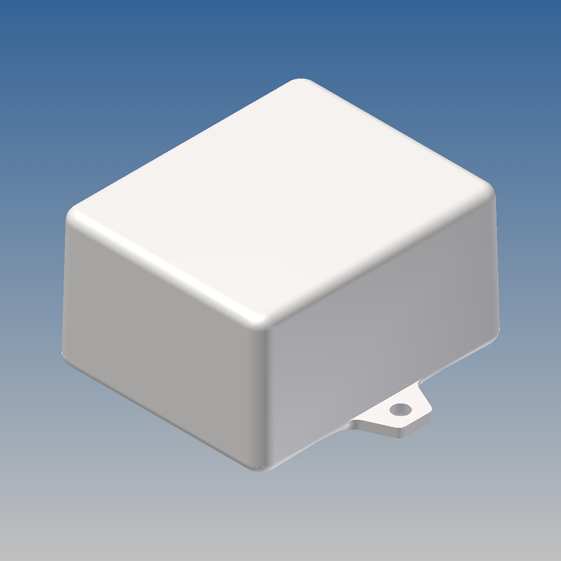

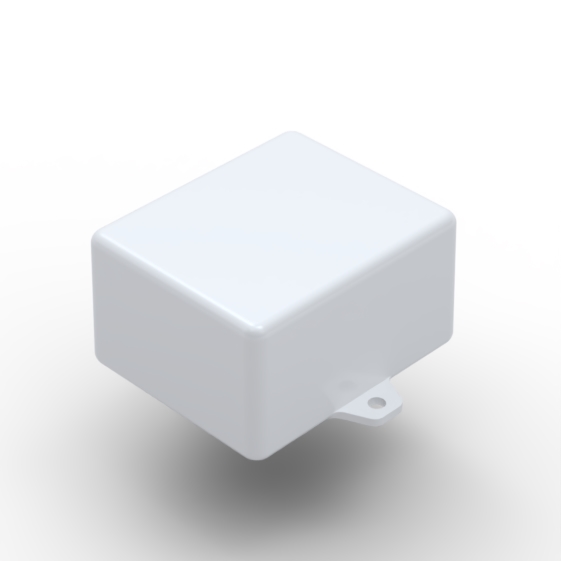

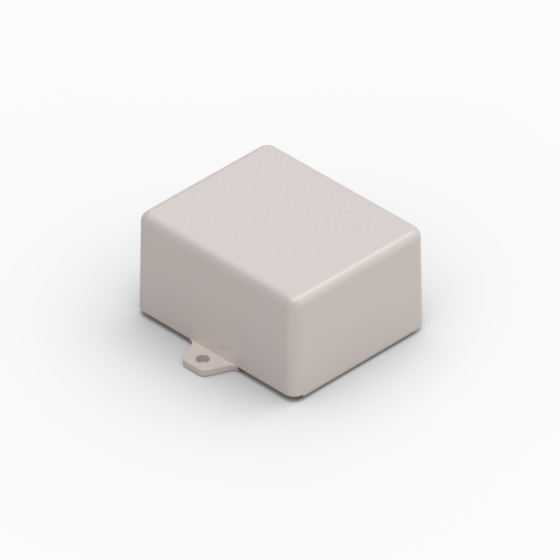

SR23-E.7 2,992 2,5 1,614 9002
 PA-756 2,661 2,169 4 - PDF
DWG
View
  • Color (Ral): 9002
  • Material: PA-756
  • MAX PCB L (mm): 67,6
  • MAX PCB W (mm): 55,1
  • Screws: 4
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

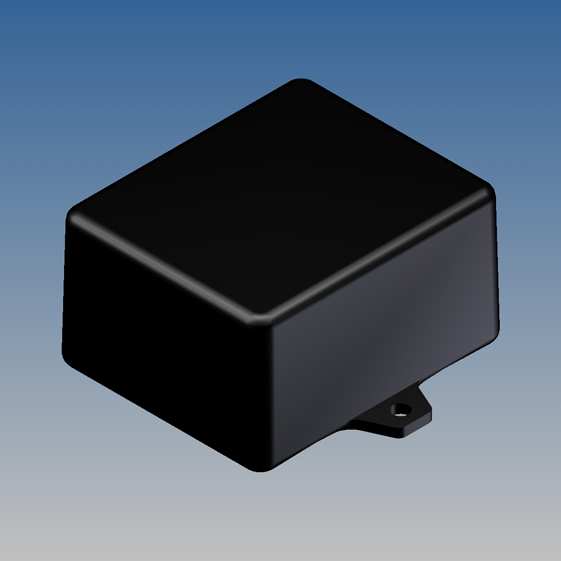

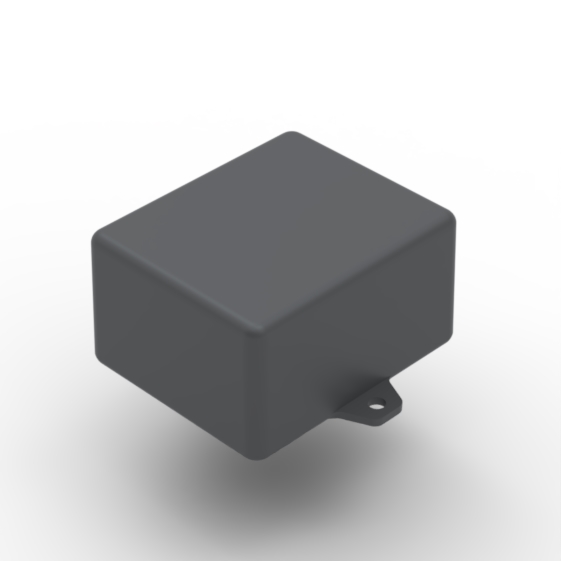

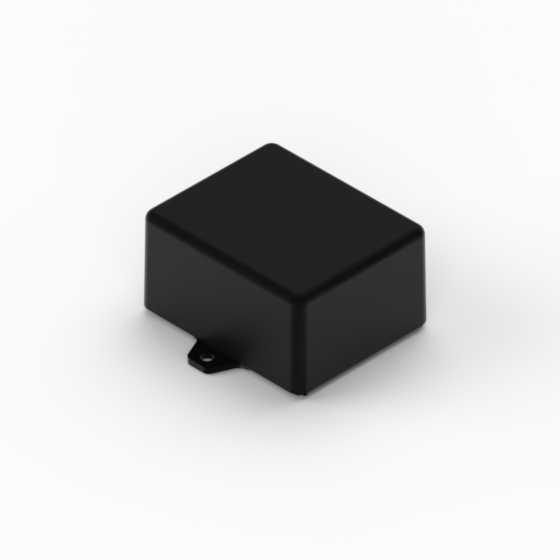

SR23-E.9 2,992 2,5 1,614 9004
 TERLURAN GP-35 2,661 2,169 4 - PDF
DWG
View

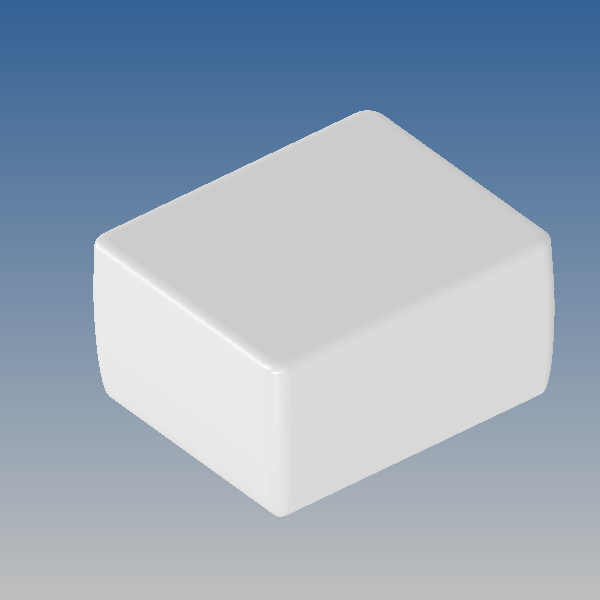

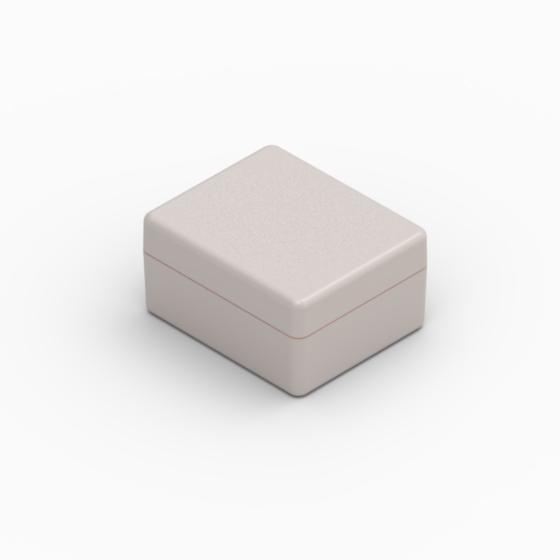

SR24-DB.7
NEW 		3 2,5 1,525 9002
 PA-756 2,66 2,16 4   PDF
DWG
View
  • Color (Ral): 9002
  • Material: PA-756
  • MAX PCB L (mm): 67,6
  • MAX PCB W (mm): 55,1
  • Screws: 4
  • Battery:
  • Accessories:
  • Drawings:  PDF  DWG

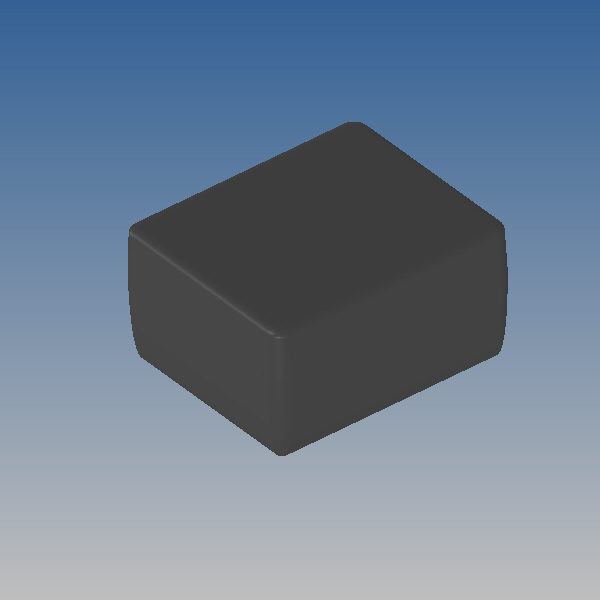

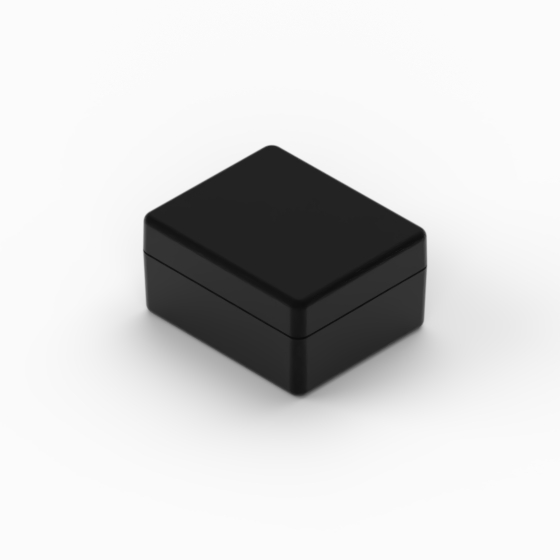

SR24-DB.9
NEW 		3 2,5 1,525 9004
 TERLURAN GP-35 2,66 2,16 4   PDF
DWG
View

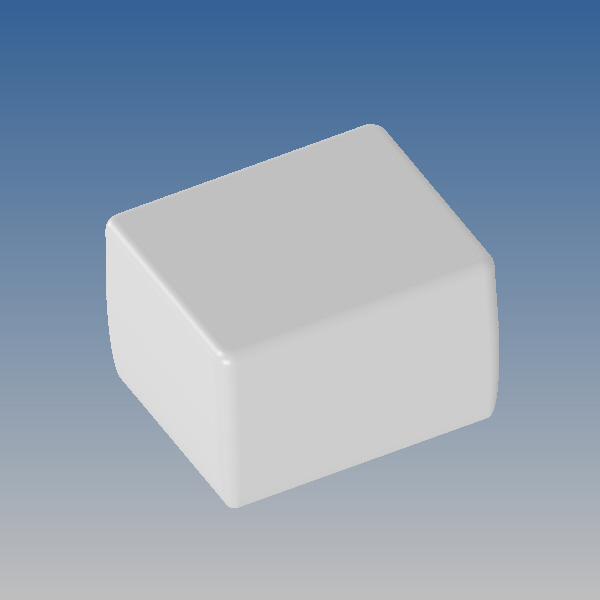

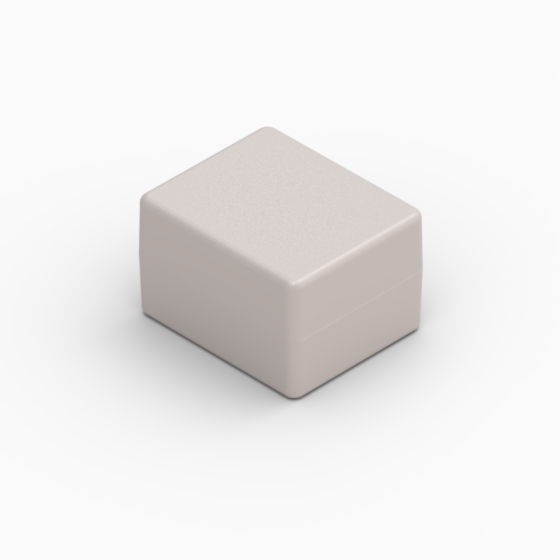

SR25-DB.7
NEW 		3 2,5 1,88 9002
 PA-756 2,66 2,16 4   PDF
DWG
View
  • Color (Ral): 9002
  • Material: PA-756
  • MAX PCB L (mm): 67,6
  • MAX PCB W (mm): 55,1
  • Screws: 4
  • Battery:
  • Accessories:
  • Drawings:  PDF  DWG

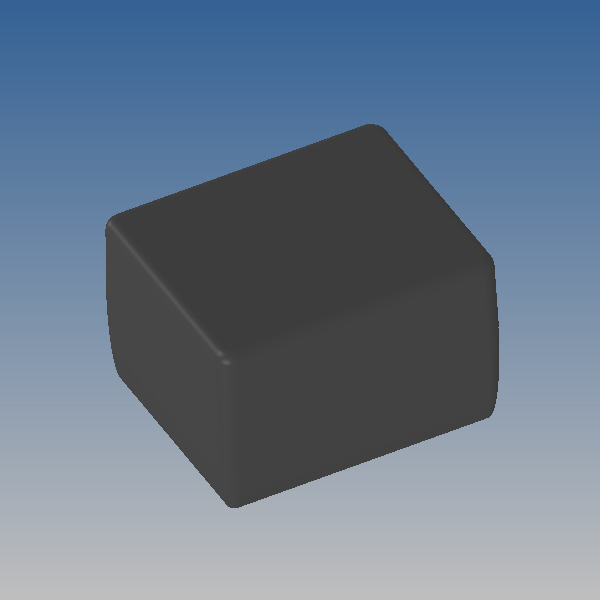

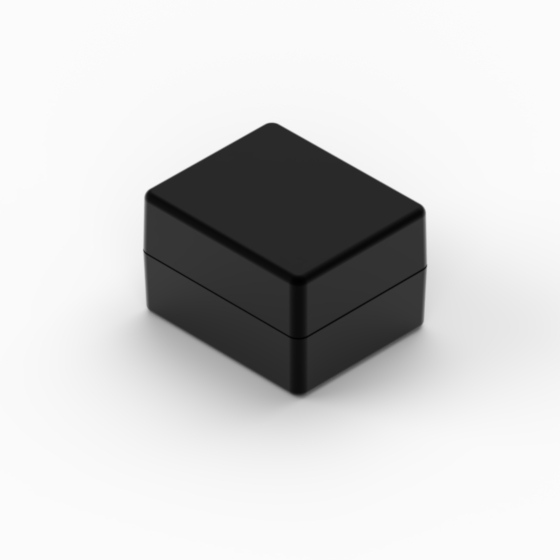

SR25-DB.9
NEW 		3 2,5 1,88 9004
 TERLURAN GP-35 2,66 2,16 4   PDF
DWG
View

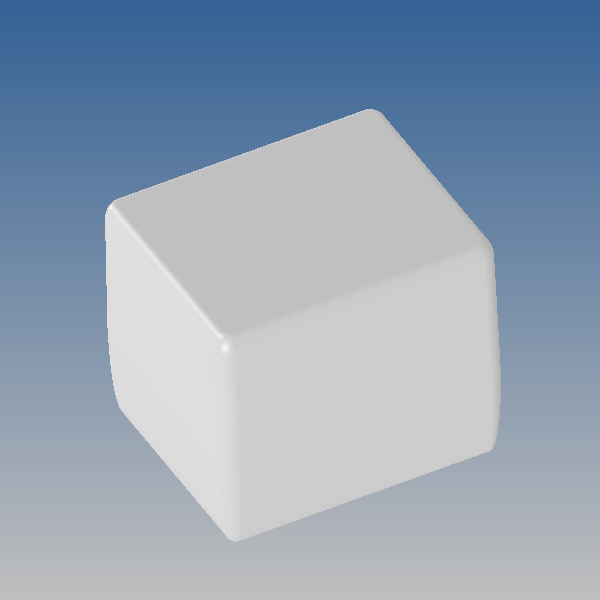

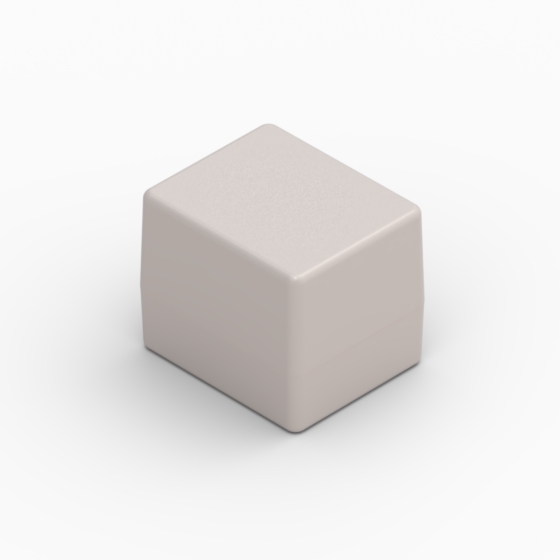

SR26-DB.7
NEW 		6,025 2,050 2,5 9002
 PA-756 2,66 2,16 4   PDF
DWG
View
  • Color (Ral): 9002
  • Material: PA-756
  • MAX PCB L (mm): 67,6
  • MAX PCB W (mm): 55,1
  • Screws: 4
  • Battery:
  • Accessories:
  • Drawings:  PDF  DWG

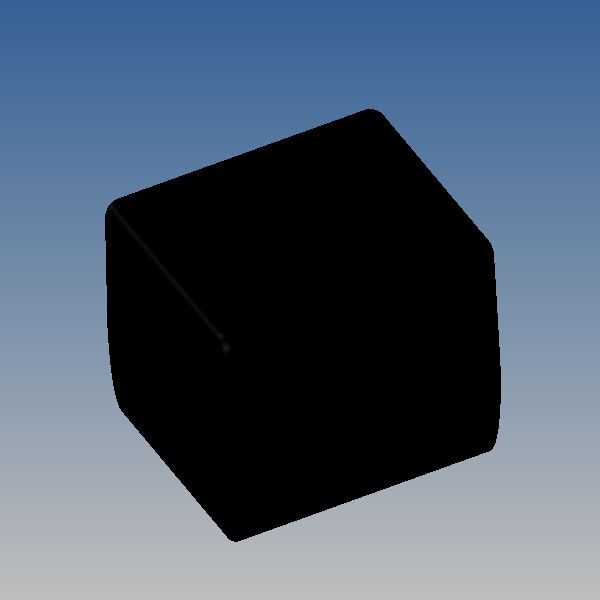

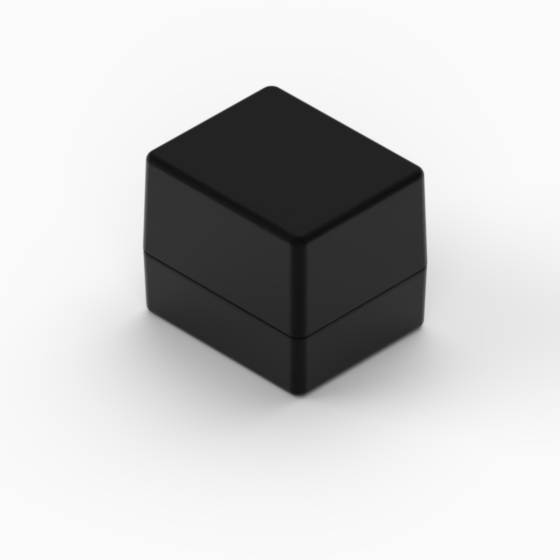

SR26-DB.9
NEW 		6,025 2,050 2,5 9004
 TERLURAN GP-35 2,66 2,16 4   PDF
DWG
View

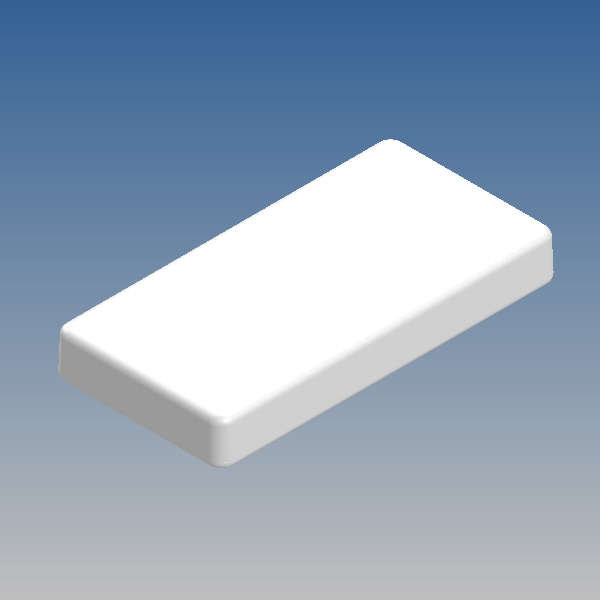

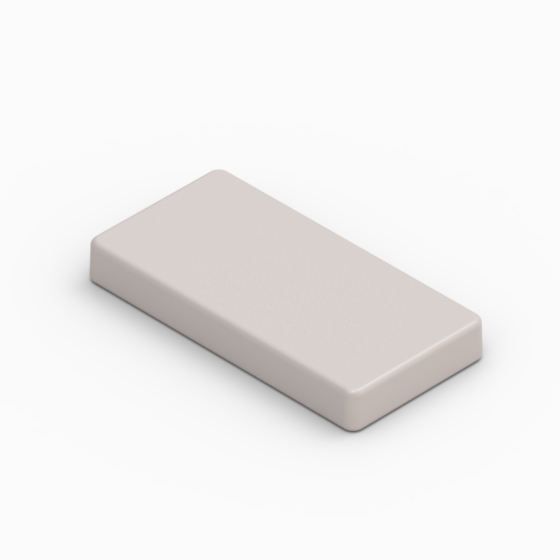

SR31.7
NEW 		5,050 2.53 0,65 9002
 PA-756 4,736 2,220 4   PDF
DWG
View
  • Color (Ral): 9002
  • Material: PA-756
  • MAX PCB L (mm): 120,3
  • MAX PCB W (mm): 56,4
  • Screws: 4
  • Battery:
  • Accessories:
  • Drawings:  PDF  DWG

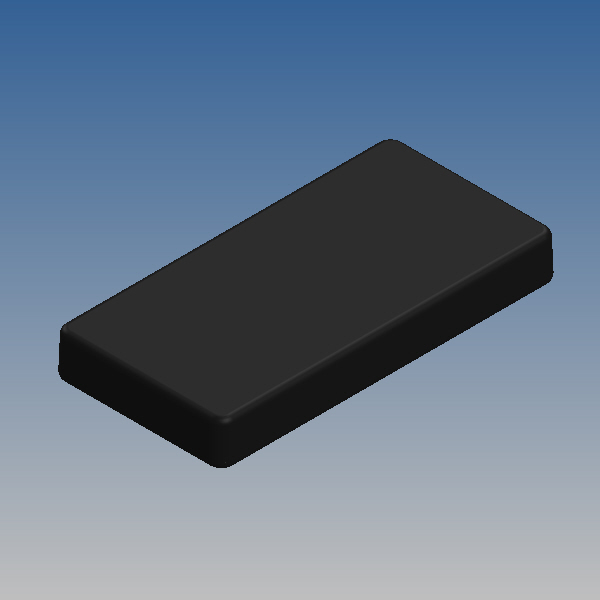

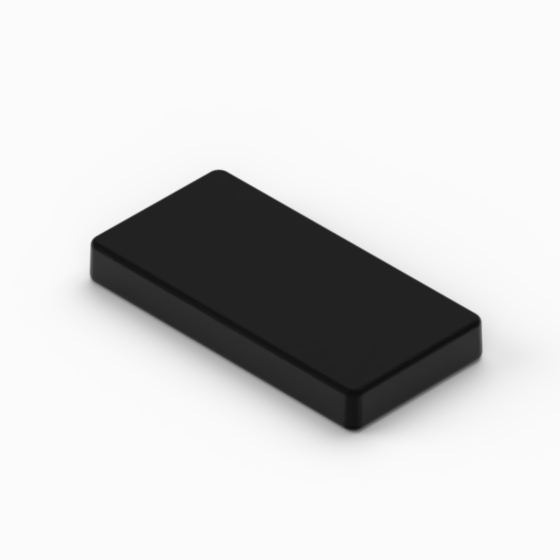

SR31.9
NEW 		5,050 2.53 0,65 9004
 TERLURAN GP-35 4,736 2,220 4   PDF
DWG
View

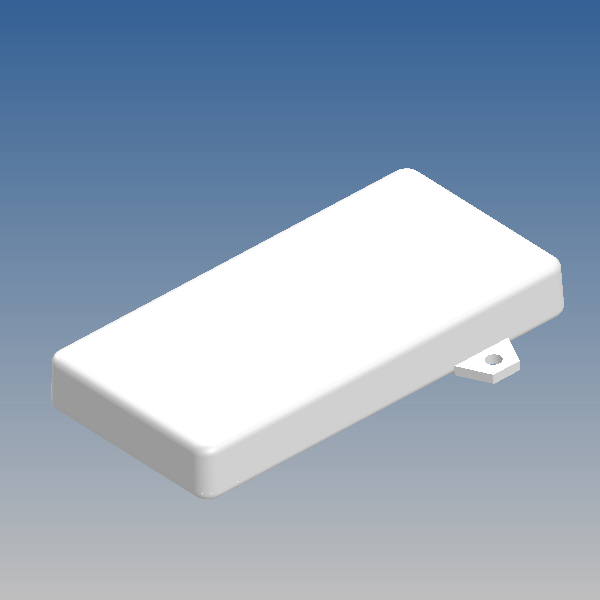

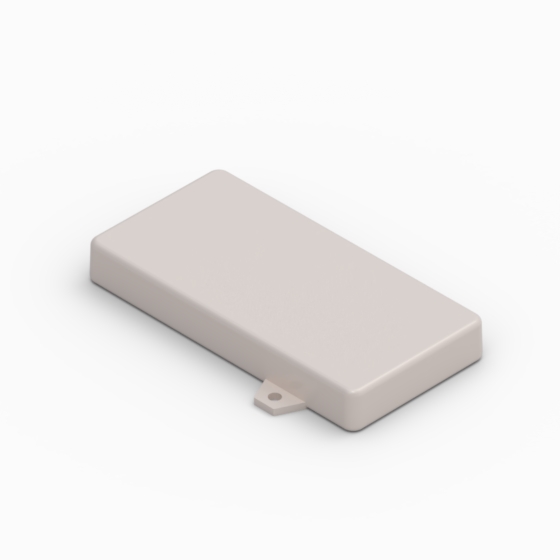

SR31-E.7
NEW 		5,050 2.53 0,65 9002
 PA-756 4,736 2,220 4   PDF
DWG
View
  • Color (Ral): 9002
  • Material: PA-756
  • MAX PCB L (mm): 120,3
  • MAX PCB W (mm): 56,4
  • Screws: 4
  • Battery:
  • Accessories:
  • Drawings:  PDF  DWG

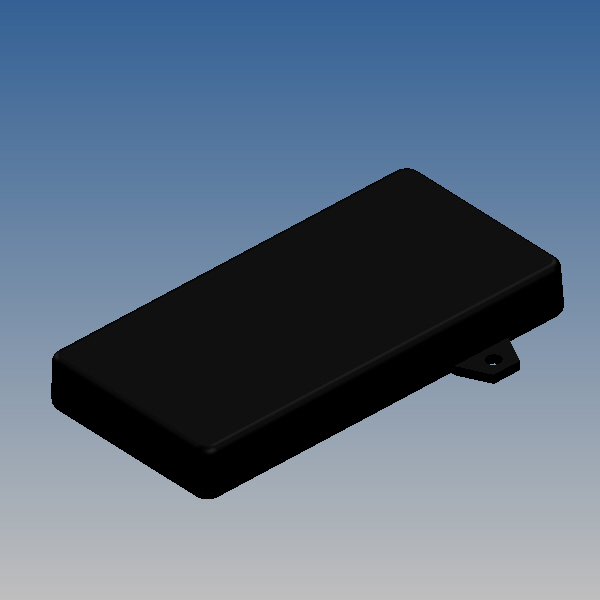

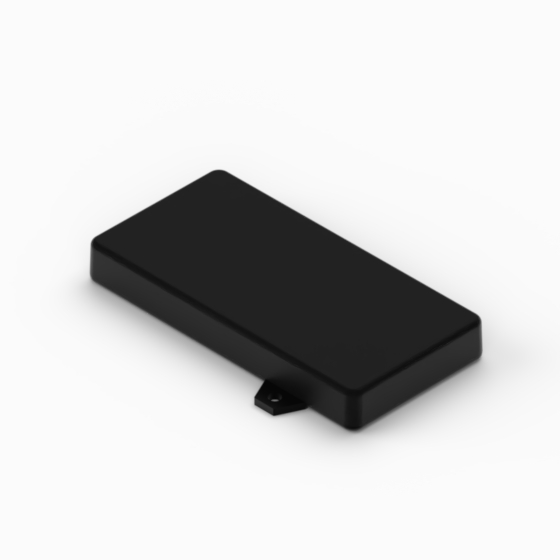

SR31-E.9
NEW 		5,050 2.53 0,65 9004
 TERLURAN GP-35 4,736 2,220 4   PDF
DWG
View

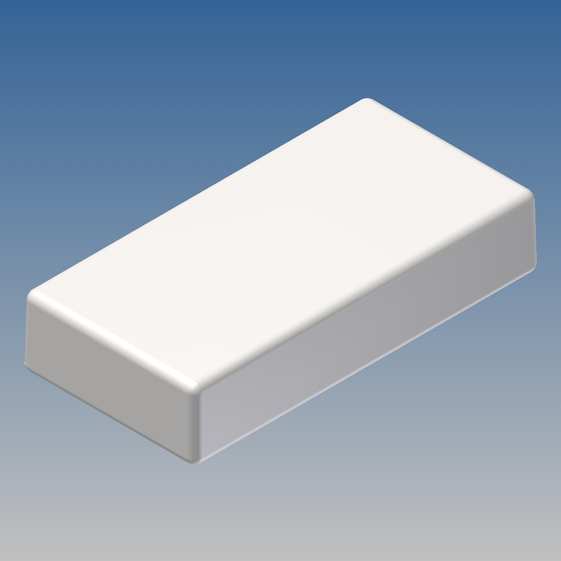

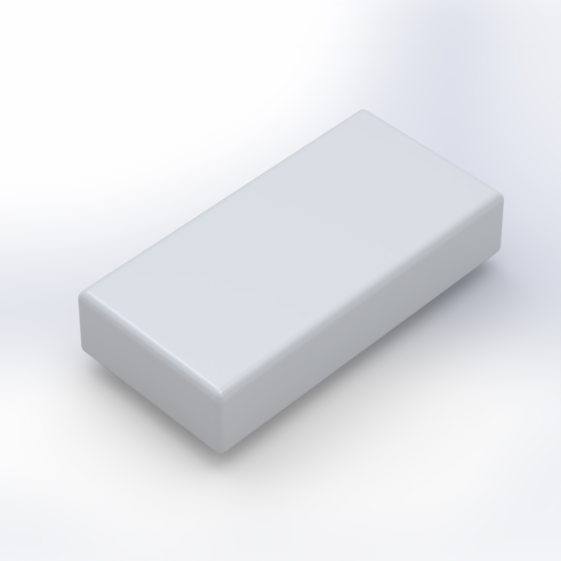

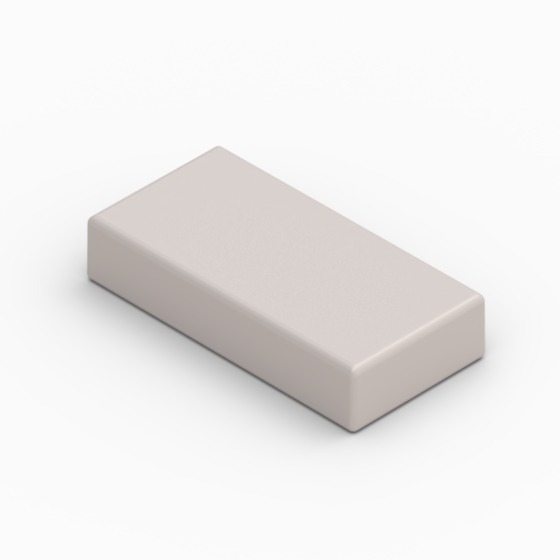

SR33.7 5,039 2,52 1,024 9002
 PA-756 4,736 2,220 4 - PDF
DWG
View
  • Color (Ral): 9002
  • Material: PA-756
  • MAX PCB L (mm): 120,3
  • MAX PCB W (mm): 56,4
  • Screws: 4
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

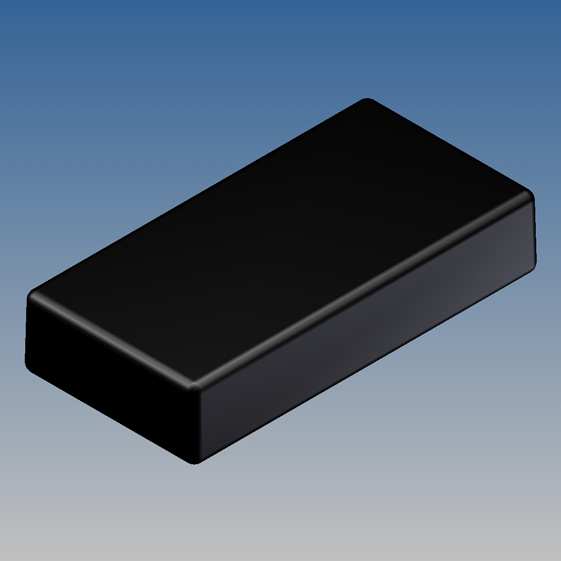

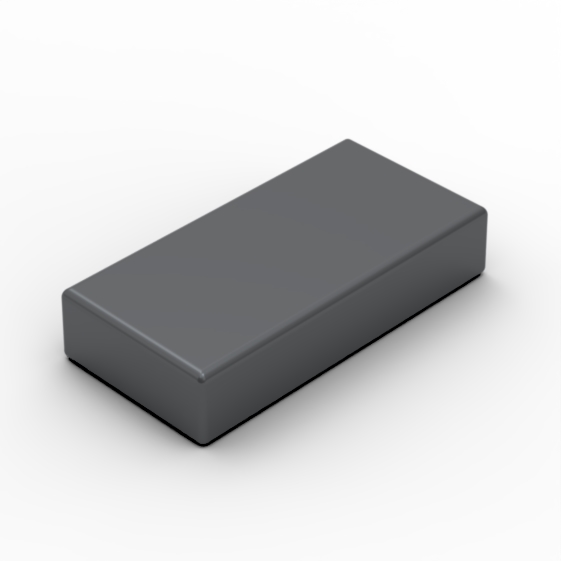

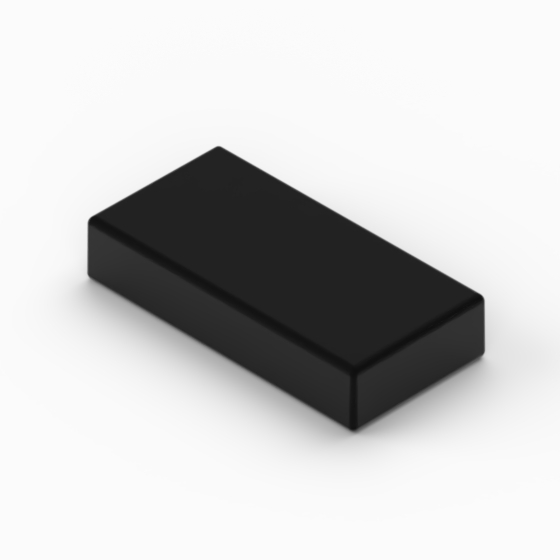

SR33.9 5,039 2,52 1,024 9004
 TERLURAN GP-35 4,736 2,220 4 - PDF
DWG
View

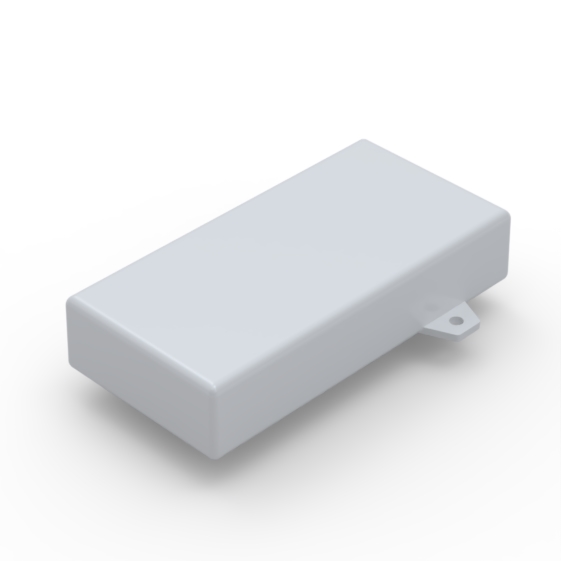

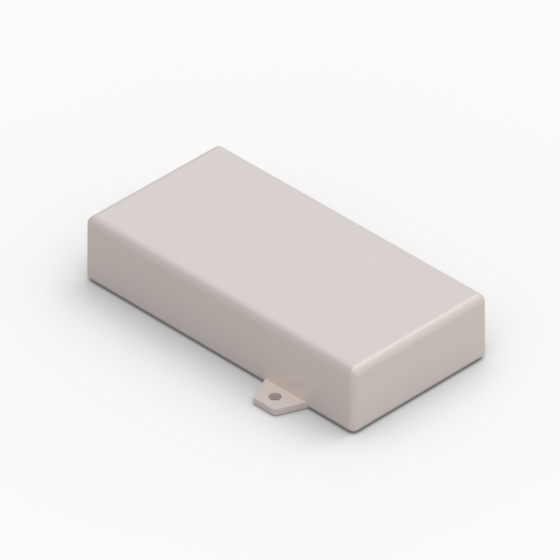

SR33-E.7 5,039 2,52 1,024 9002
 PA-756 4,736 2,220 4 - PDF
DWG
View
  • Color (Ral): 9002
  • Material: PA-756
  • MAX PCB L (mm): 120,3
  • MAX PCB W (mm): 56,4
  • Screws: 4
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

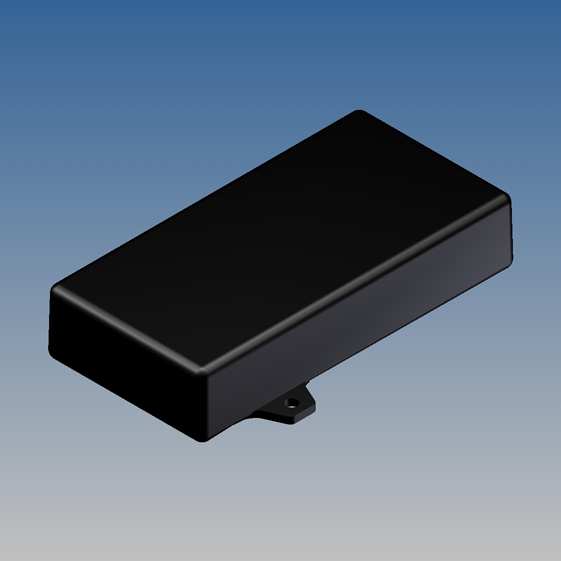

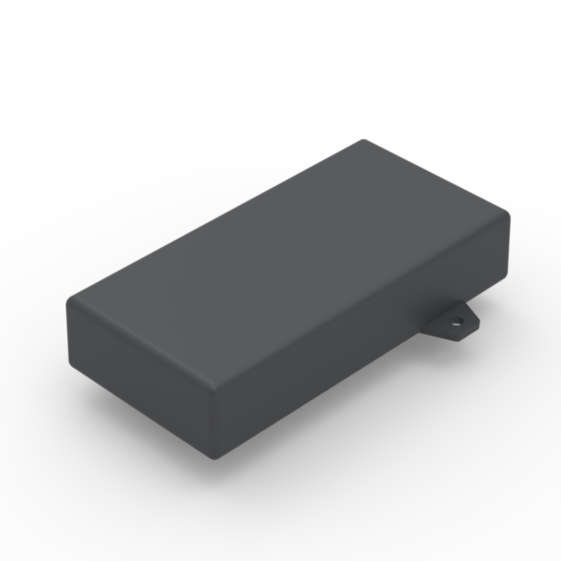

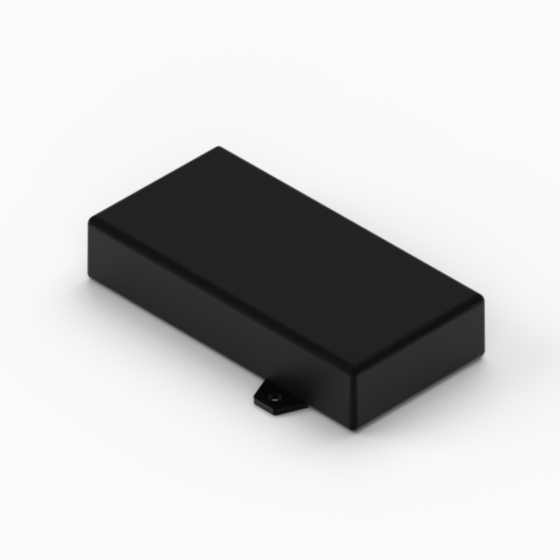

SR33-E.9 5,039 2,52 1,024 9004
 TERLURAN GP-35 4,736 2,220 4 - PDF
DWG
View

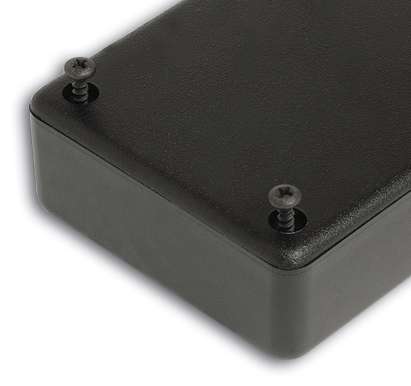

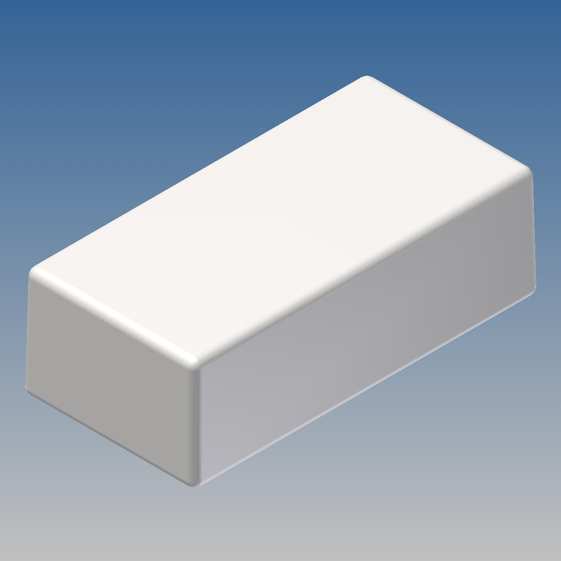

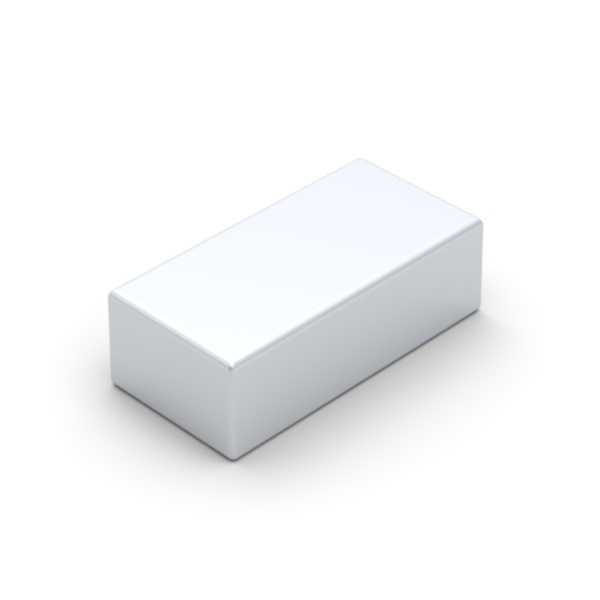

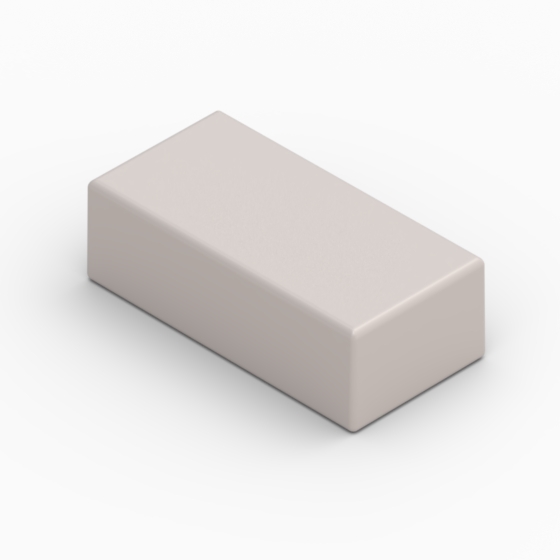

SR34.7 5,039 2,52 1,614 9002
 PA-756 4,736 2,220 4 - PDF
DWG
View
  • Color (Ral): 9002
  • Material: PA-756
  • MAX PCB L (mm): 120,3
  • MAX PCB W (mm): 56,4
  • Screws: 4
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

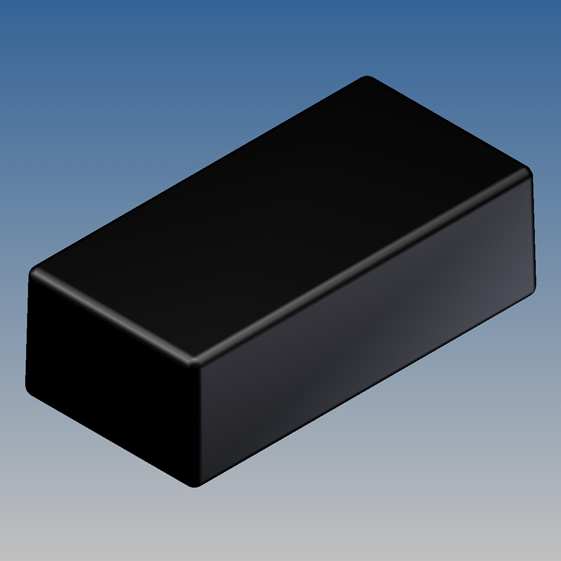

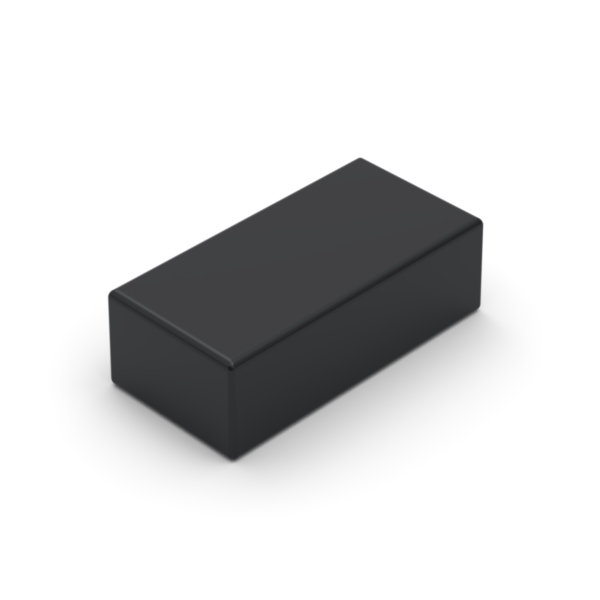

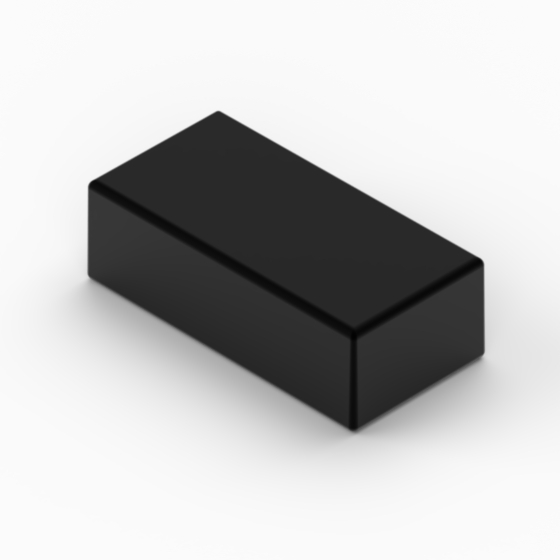

SR34.9 5,039 2,52 1,614 9004
 TERLURAN GP-35 4,736 2,220 4 - PDF
DWG
View

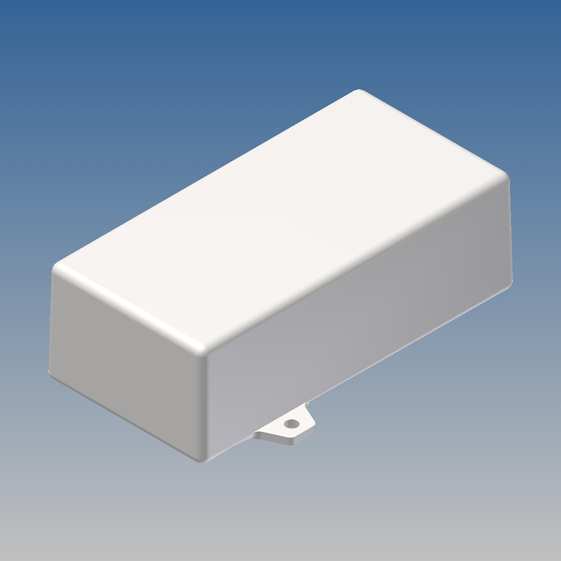

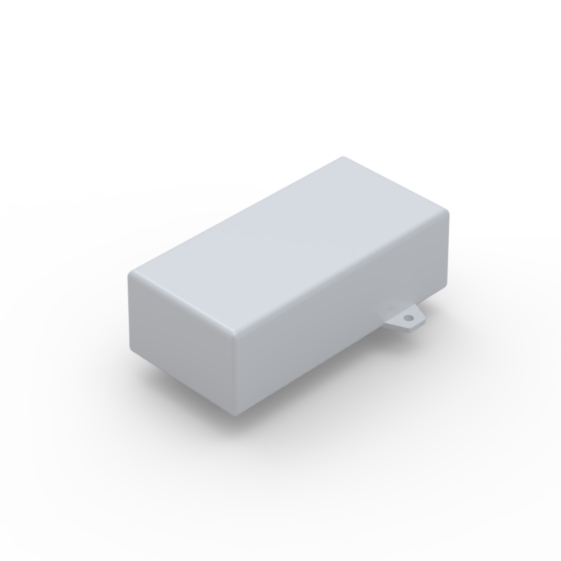

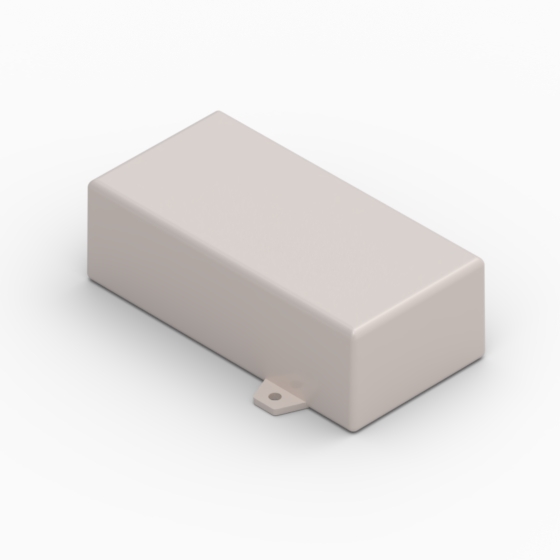

SR34-E.7 5,039 2,52 1,614 9002
 PA-756 4,736 2,220 4 - PDF
DWG
View
  • Color (Ral): 9002
  • Material: PA-756
  • MAX PCB L (mm): 120,3
  • MAX PCB W (mm): 56,4
  • Screws: 4
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

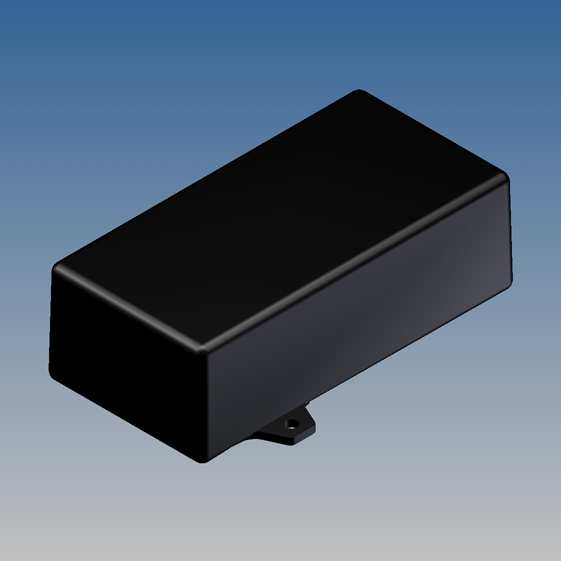

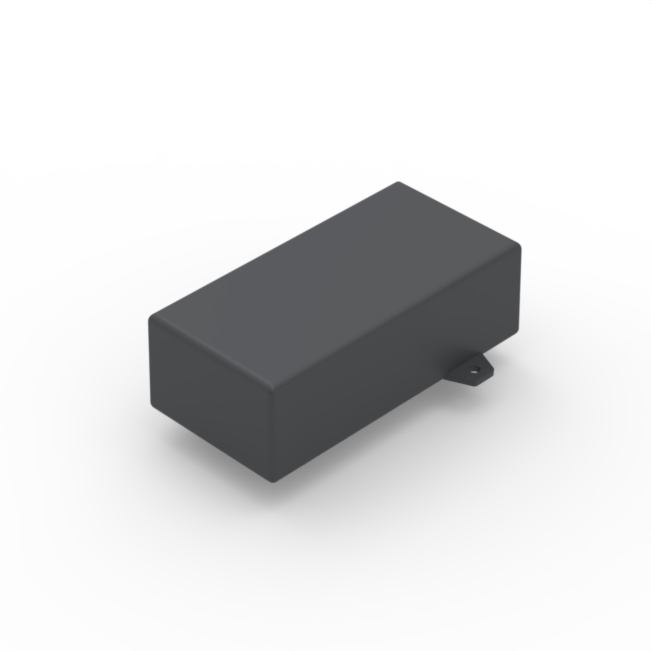

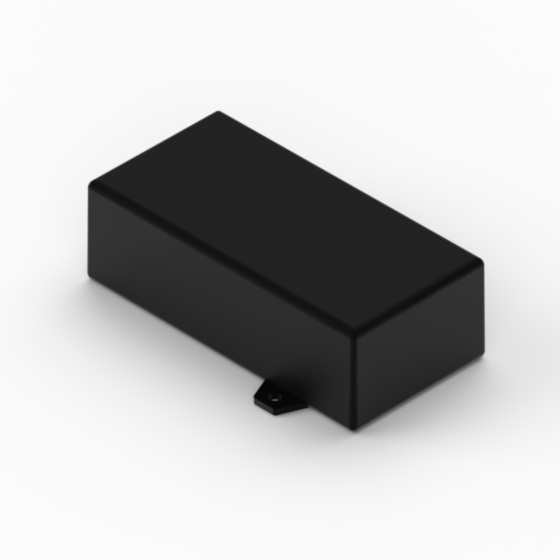

SR34-E.9 5,039 2,52 1,614 9004
 TERLURAN GP-35 4,736 2,220 4 - PDF
DWG
View

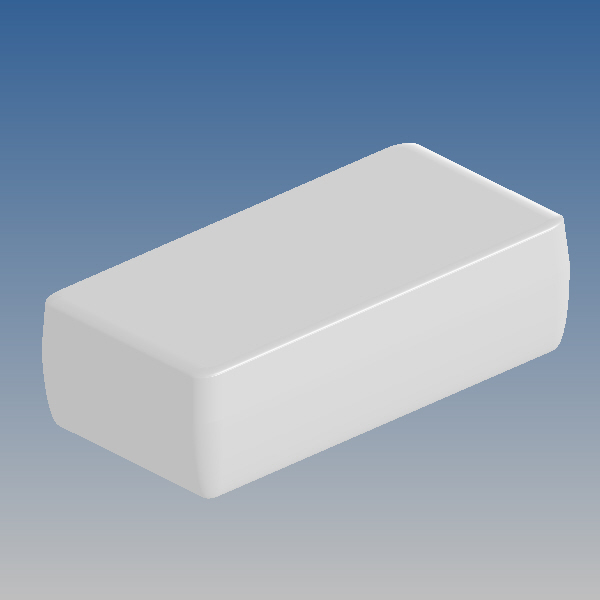

SR35-DB.7
NEW 		5,050 2,5 1,525 9002
 PA-756 4,736 2,220 4   PDF
DWG
View
  • Color (Ral): 9002
  • Material: PA-756
  • MAX PCB L (mm): 120,3
  • MAX PCB W (mm): 56,4
  • Screws: 4
  • Battery:
  • Accessories:
  • Drawings:  PDF  DWG

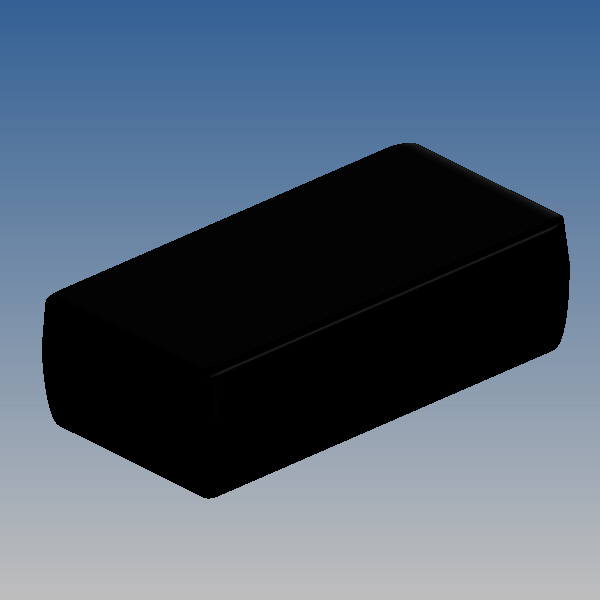

SR35-DB.9
NEW 		5,050 2,5 1,525 9004
 TERLURAN GP-35 4,736 2,220 4   PDF
DWG
View

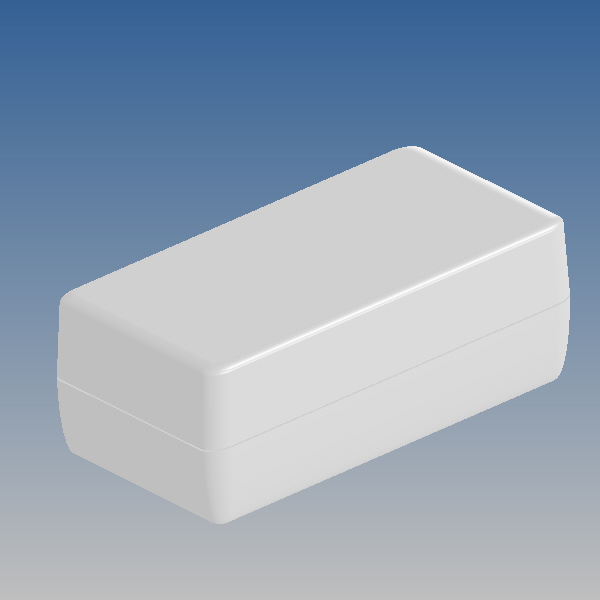

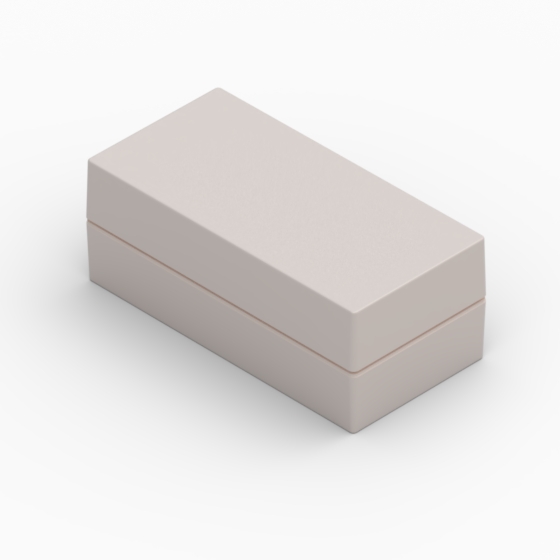

SR36-DB.7
NEW 		5,050 2,5 1,88 9002
 PA-756 4,736 2,220 4   PDF
DWG
View
  • Color (Ral): 9002
  • Material: PA-756
  • MAX PCB L (mm): 120,3
  • MAX PCB W (mm): 56,4
  • Screws: 4
  • Battery:
  • Accessories:
  • Drawings:  PDF  DWG

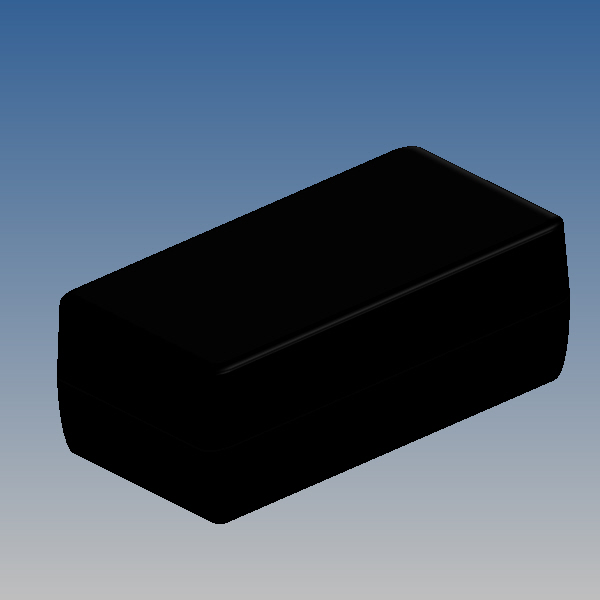

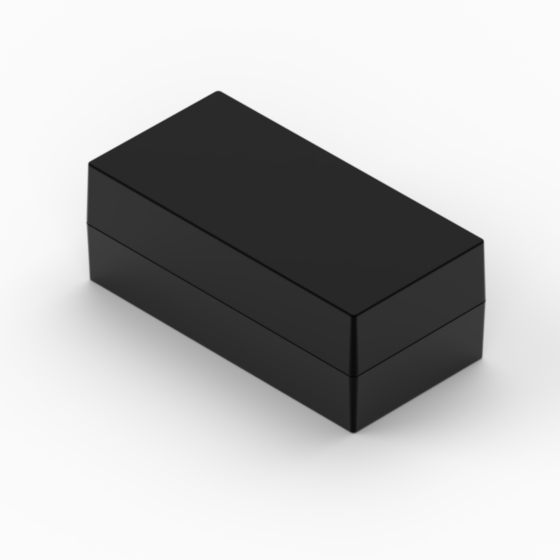

SR36-DB.9
NEW 		5,050 2,5 1,88 9004
 TERLURAN GP-35 4,736 2,220 4   PDF
DWG
View

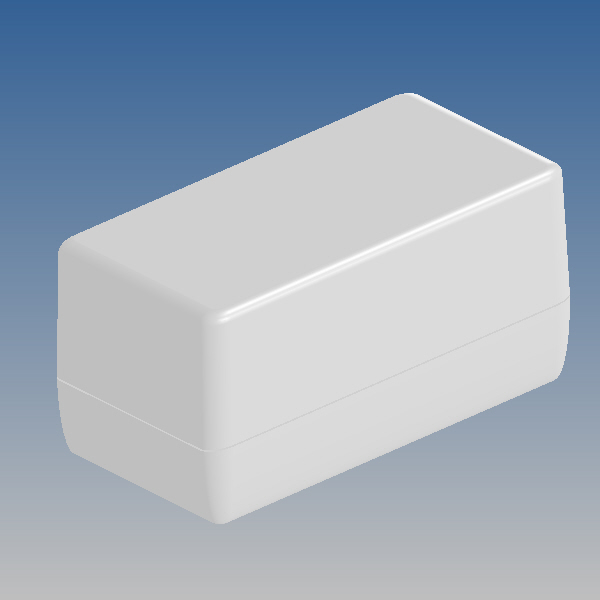

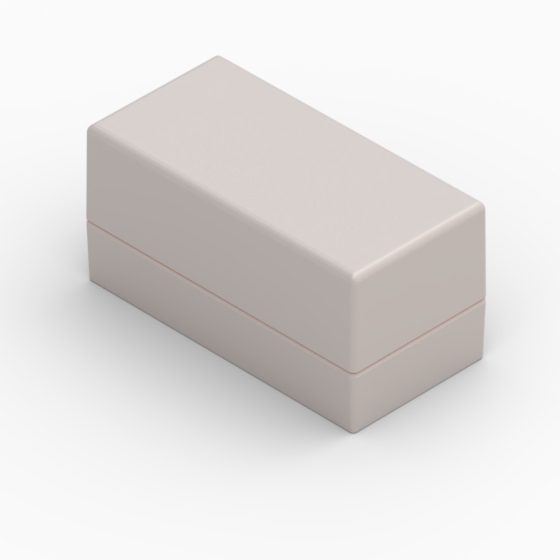

SR37-DB.7
NEW 		5,050 2,5 2,48 9002
 PA-756 4,736 2,220 4   PDF
DWG
View
  • Color (Ral): 9002
  • Material: PA-756
  • MAX PCB L (mm): 120,3
  • MAX PCB W (mm): 56,4
  • Screws: 4
  • Battery:
  • Accessories:
  • Drawings:  PDF  DWG

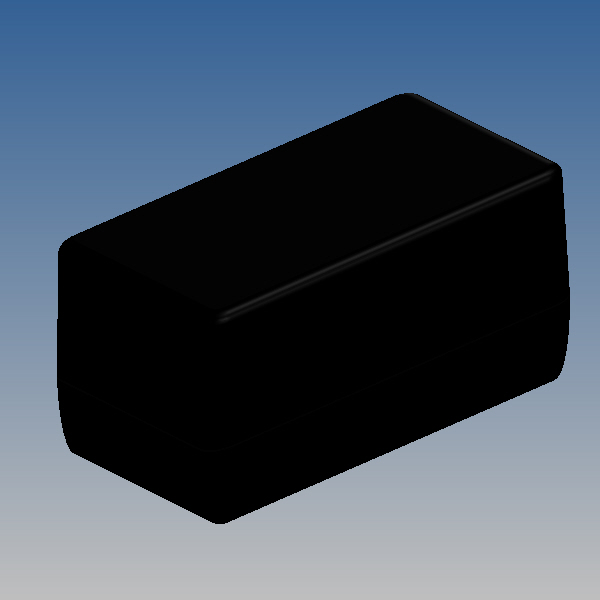

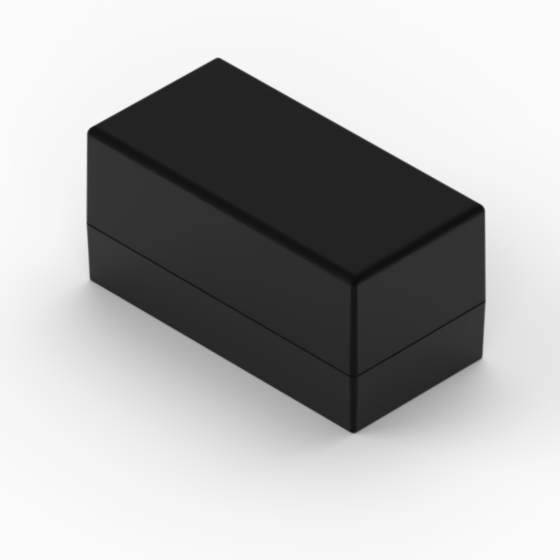

SR37-DB.9
NEW 		5,050 2,5 2,48 9004
 TERLURAN GP-35 4,736 2,220 4   PDF
DWG
View

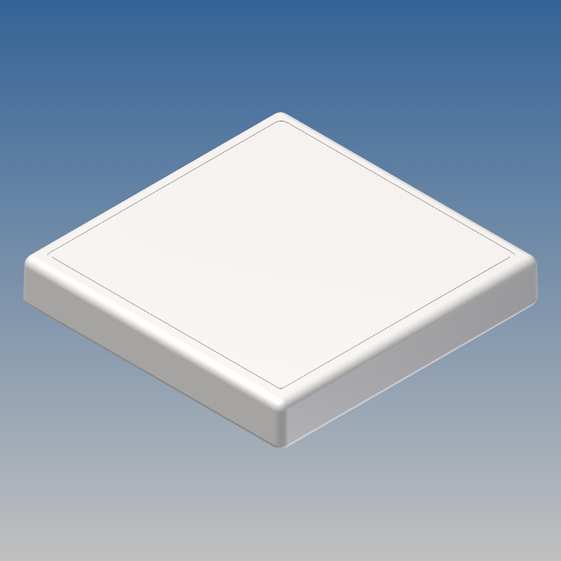

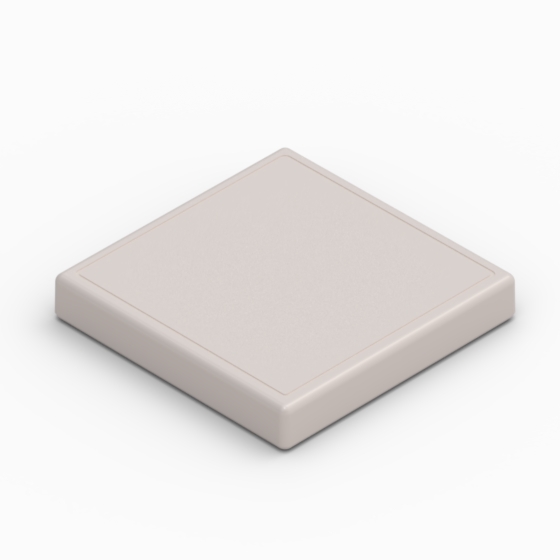

SR75.7 4,374 4,374 0,717 9002
 PA-756 4,075 4,075 4 - PDF
DWG
View
  • Color (Ral): 9002
  • Material: PA-756
  • MAX PCB L (mm): 103,5
  • MAX PCB W (mm): 103,5
  • Screws: 4
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

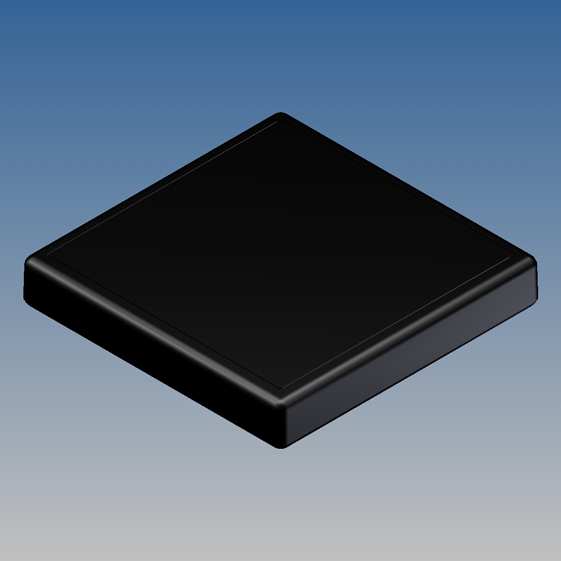

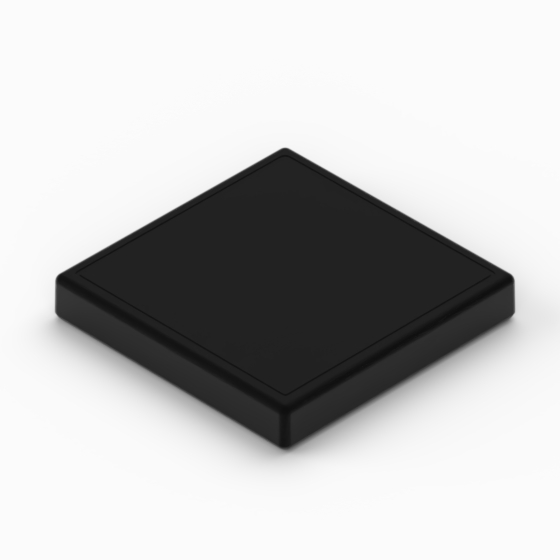

SR75.9 4,374 4,374 0,717 9004
 TERLURAN GP-35 4,075 4,075 4 - PDF
DWG
View

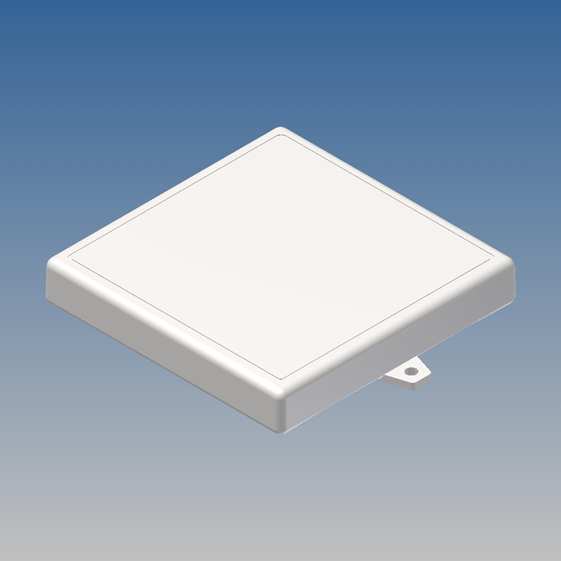

SR75-E.7 4,374 4,374 0,717 9002
 PA-756 4,075 4,075 4 - PDF
DWG
View
  • Color (Ral): 9002
  • Material: PA-756
  • MAX PCB L (mm): 103,5
  • MAX PCB W (mm): 103,5
  • Screws: 4
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

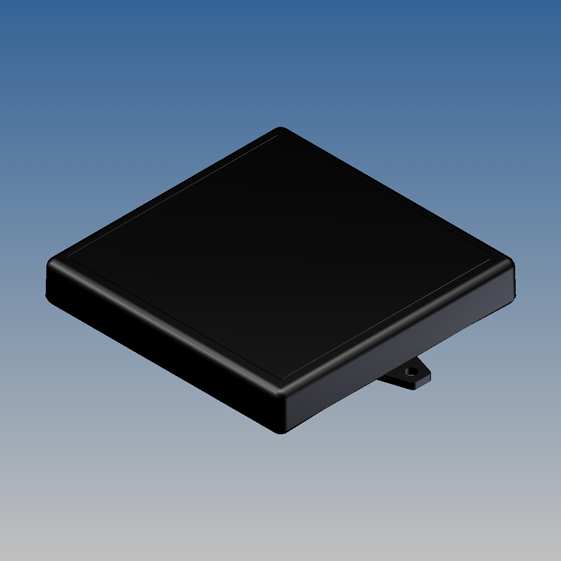

SR75-E.9 4,374 4,374 0,717 9004
 TERLURAN GP-35 4,075 4,075 4 - PDF
DWG
View
12 product families, 152 series. You can't find what you're looking for? Contact us
