SPRINT

Family Handheld - Electronic enclosures - Plastic

Description

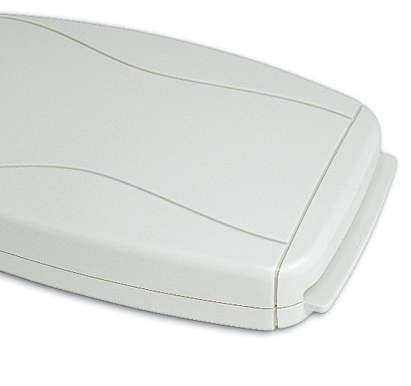

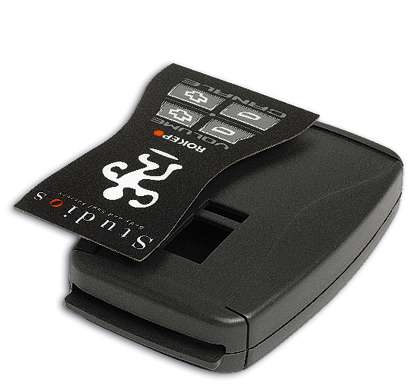

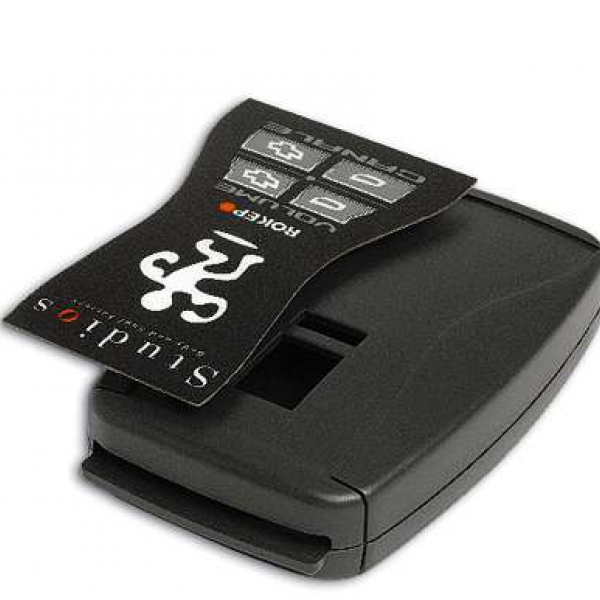

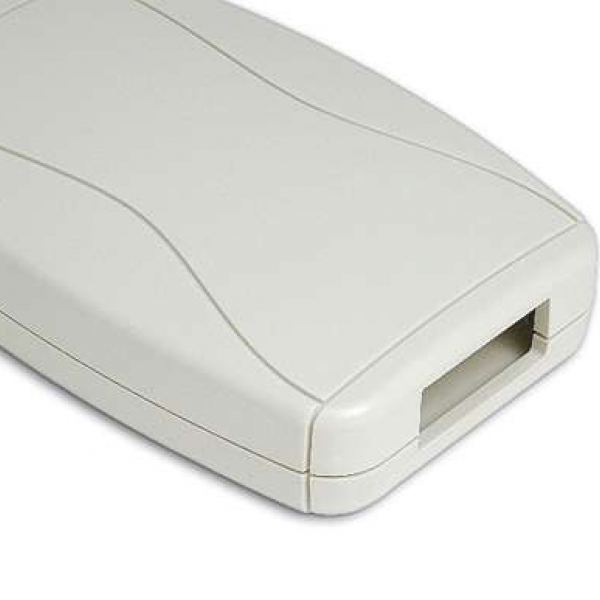

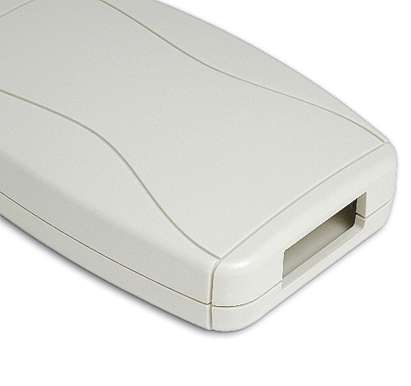

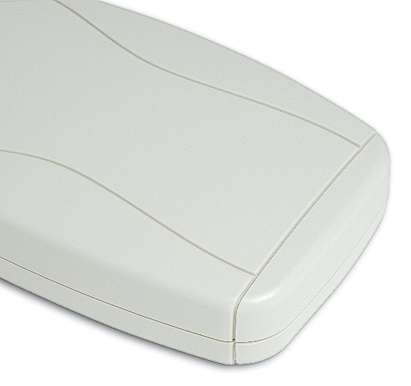

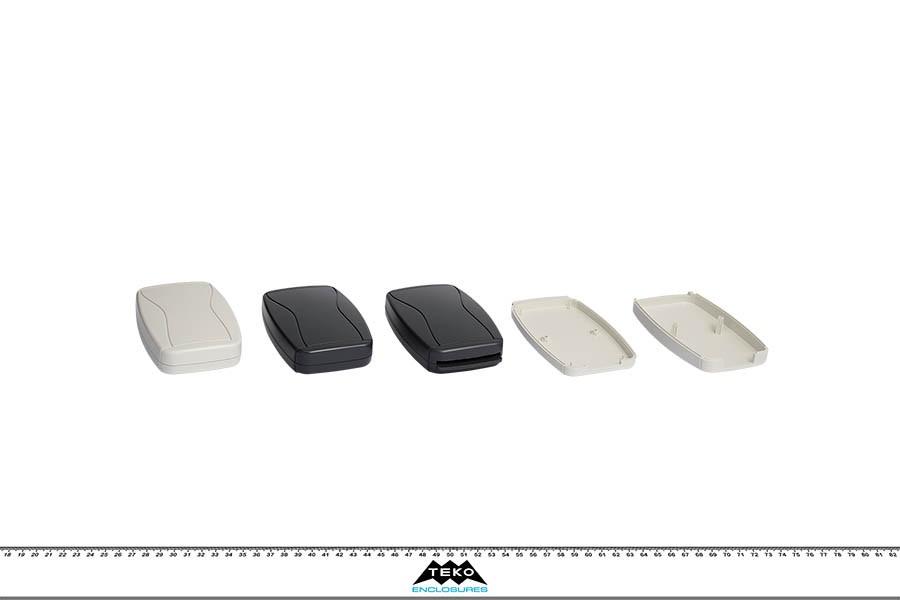

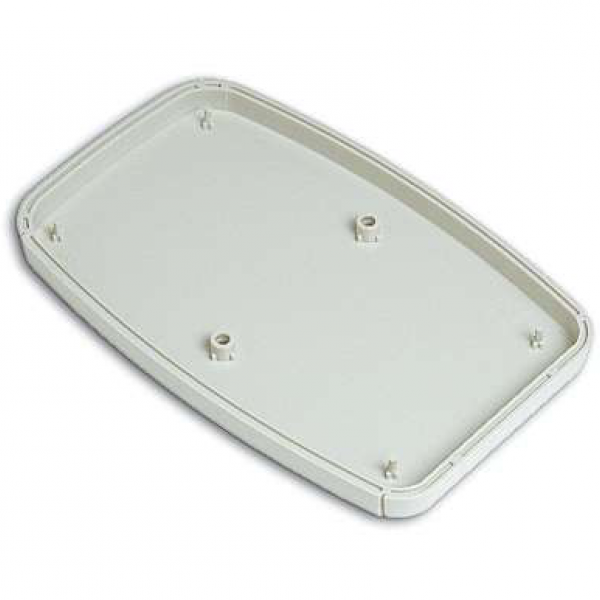

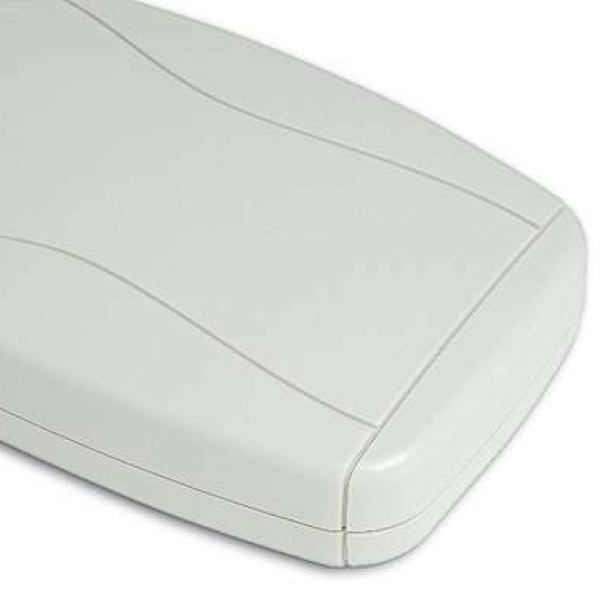

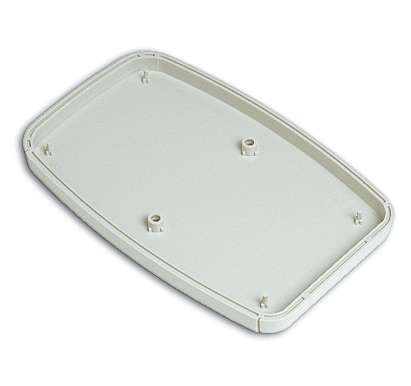

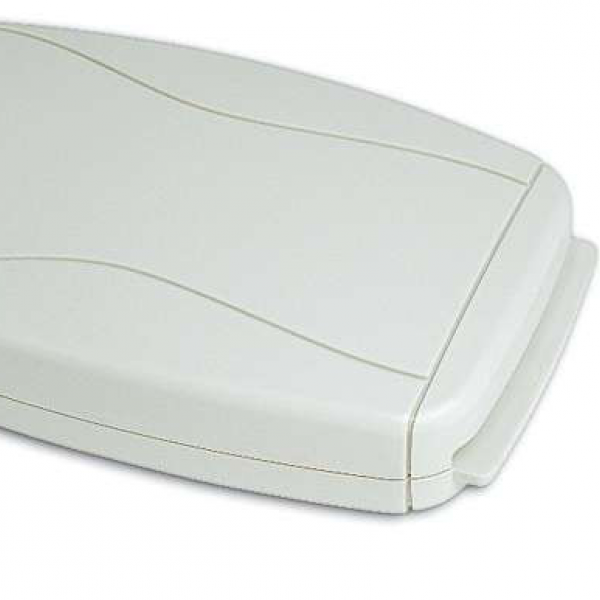

Ergonomic designed ABS enclosures. Pillars prepared for mounting PCBs in the base. Two models available. The model “ST1-C2” is specially designed for Smart Card readers with rear cutout (30mm X 11mm) for DB9 connector. Matt surface finish. Fixed by two screws.

Details

Products

Model L (inch) W (inch) H (inch) Color (Ral) Material MAX PCB L (inch) MAX PCB W (inch) Screws Battery Accessories Drawings Other

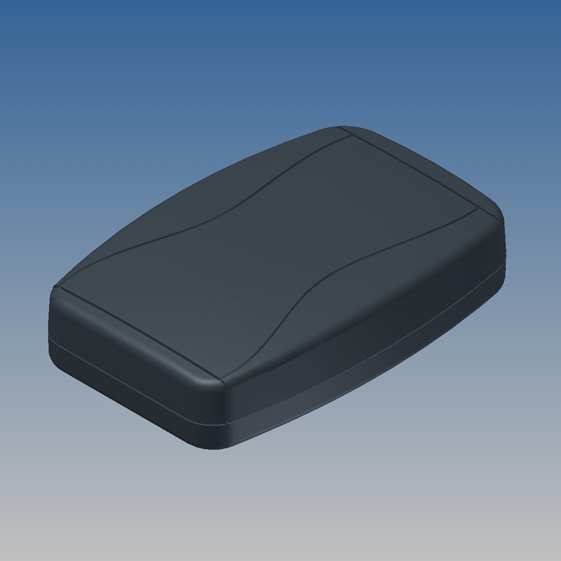

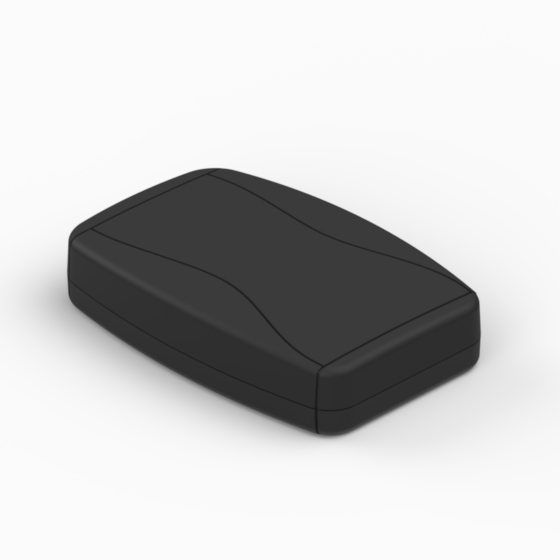

ST1.4 4,488 2,913 0,972 7016
GP40 3,957 2,106 2 - PDF
DWG
View
  • Color (Ral): 7016
  • Material: GP40
  • MAX PCB L (mm): 100,5
  • MAX PCB W (mm): 53,5
  • Screws: 2
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

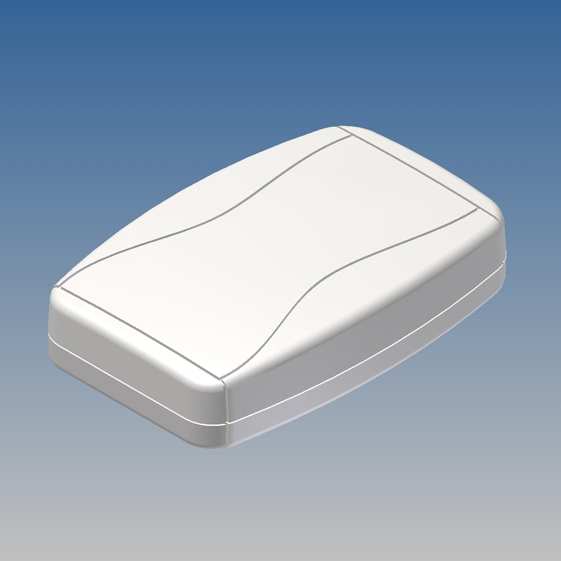

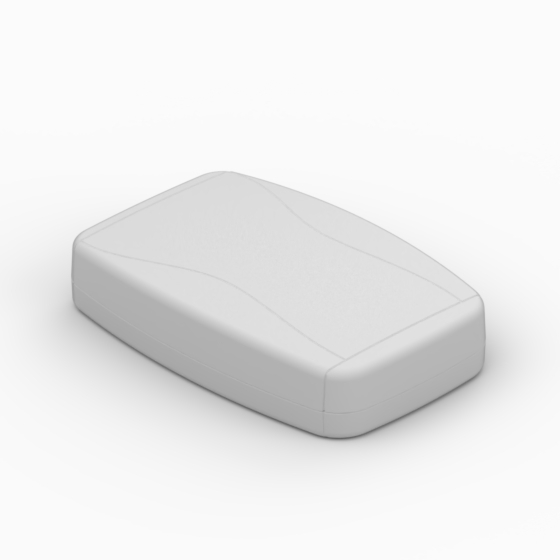

ST1.7 4,488 2,913 0,972 9002
TR-UV 3,957 2,106 2 - PDF
DWG
View
  • Color (Ral): 9002
  • Material: TR-UV
  • MAX PCB L (mm): 100,5
  • MAX PCB W (mm): 53,5
  • Screws: 2
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

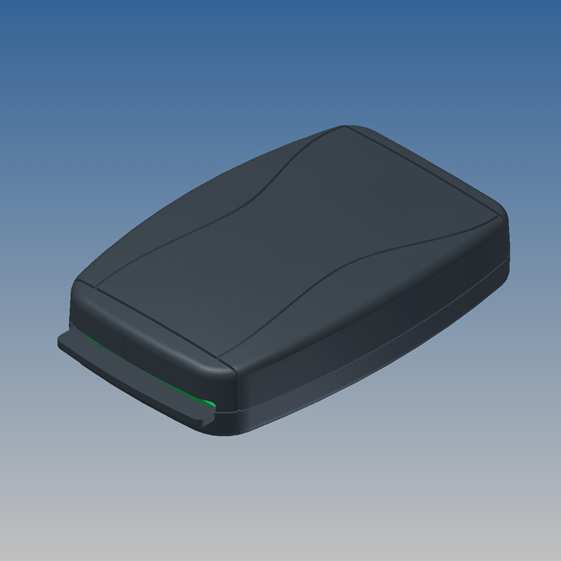

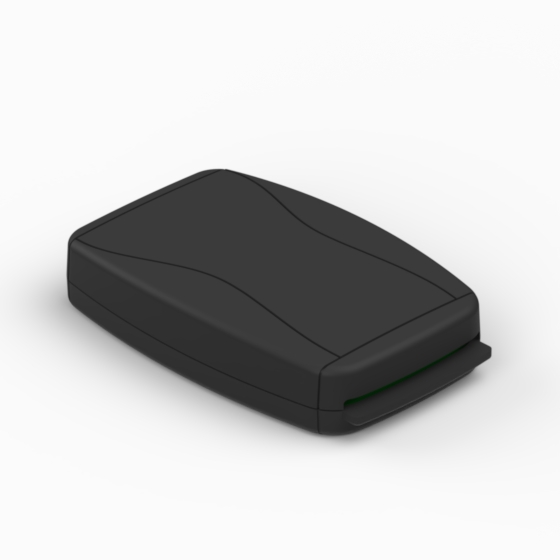

ST1-C2.4 4,488 2,913 0,972 7016
GP40 3,957 2,106 2 - PDF
DWG
View
  • Color (Ral): 7016
  • Material: GP40
  • MAX PCB L (mm): 100,5
  • MAX PCB W (mm): 53,5
  • Screws: 2
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

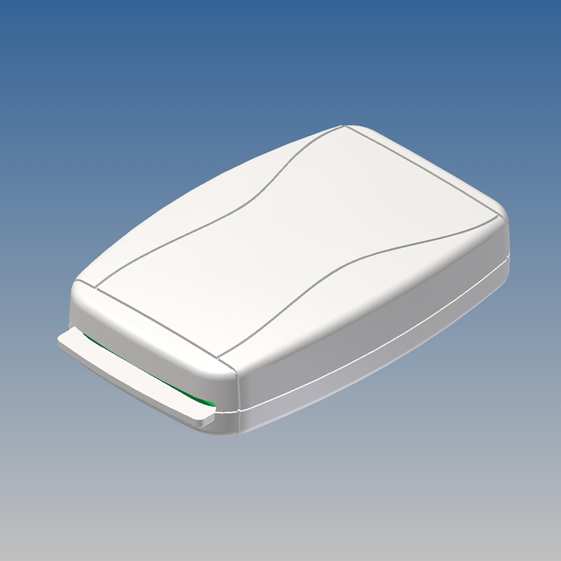

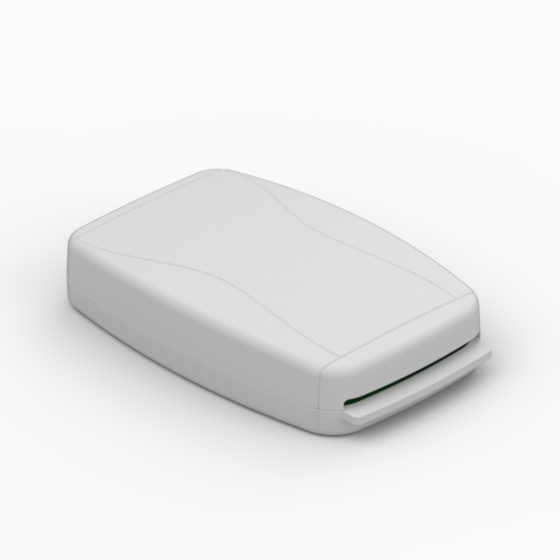

ST1-C2.7 4,488 2,913 0,972 9002
TR-UV 3,957 2,106 2 - PDF
DWG
View
  • Color (Ral): 9002
  • Material: TR-UV
  • MAX PCB L (mm): 100,5
  • MAX PCB W (mm): 53,5
  • Screws: 2
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG
