TBT

Family Handheld - Electronic enclosures - Plastic

Description

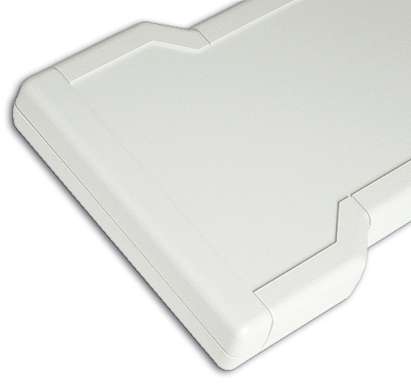

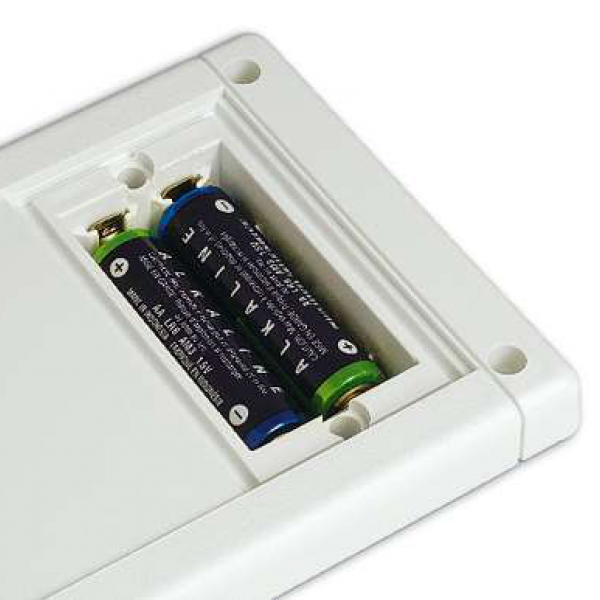

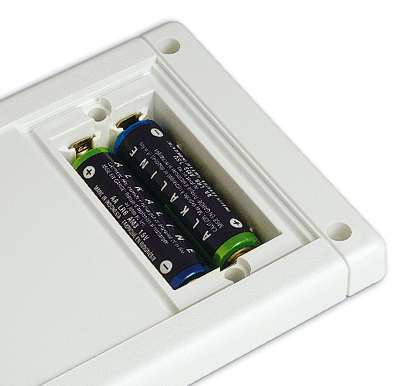

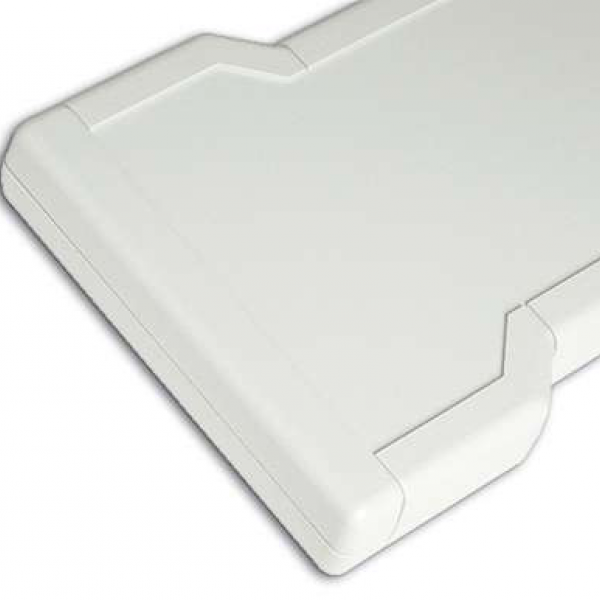

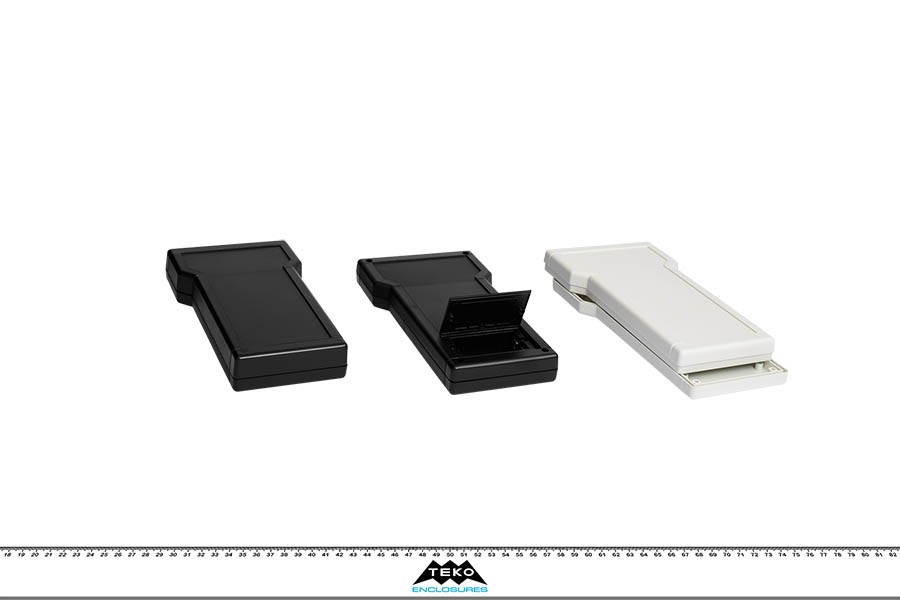

ABS enclosures with a recessed operating area for membrane keyboards. Base and cover have integral PCB guides and mounting studs. Matt surface finish. The models with “B” have a battery compartment for two mignon-cells 1.5V or one flat battery 9V. The models with “K” are able to accept the IP65 sealing kit. Closing by four screws.

Details

Products

Model L (inch) W (inch) H (inch) Color (Ral) Material MAX PCB L (inch) MAX PCB W (inch) Screws Battery Accessories Drawings Other

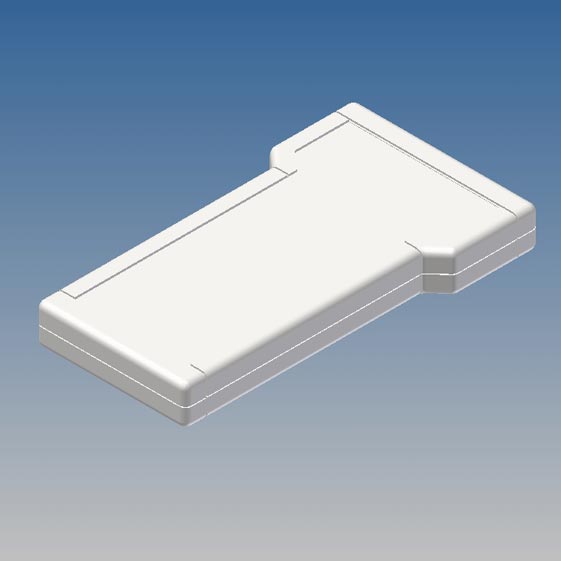

TBT-1.7 8,268 4,567 0,984 9002
L320 7,717 3,150/4,016 4 - M
M58
M59
MT1
MW
MW60
PDF
DWG
View
TBT-1.9 8,268 4,567 0,984 9004
P2H-AT 7,717 3,150/4,016 4 - M
M58
M59
MT1
MW
MW60
PDF
DWG
View
TBT-1B.7 8,268 4,567 0,984 9002
L320 5,835 3,150/4,016 4 2 x AA / 1 x 9V AB9
M
M58
M59
MT1
MW
MW60
PDF
DWG
View

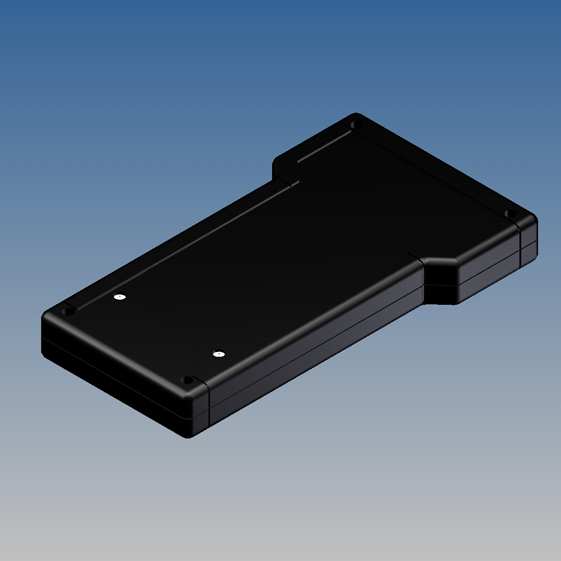

TBT-1B.9 8,268 4,567 0,984 9004
P2H-AT 5,835 3,150/4,016 4 2 x AA / 1 x 9V AB9
M
M58
M59
MT1
MW
MW60
PDF
DWG
View

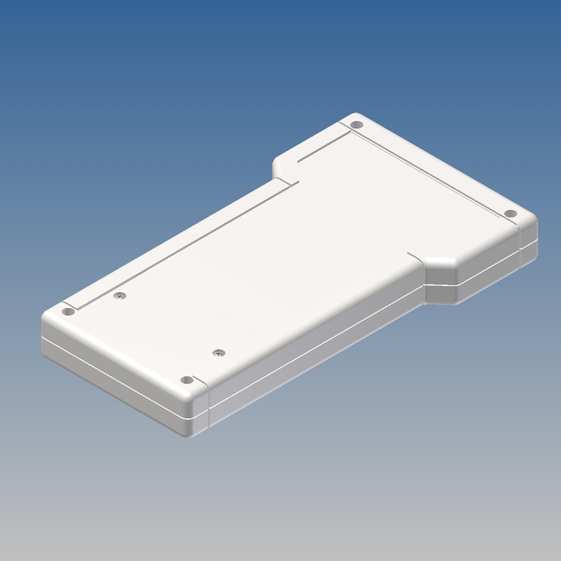

TBT-1BK.7 8,268 4,567 0,984 9002
L320 5,835 3,150/4,016 4 2 x AA / 1 x 9V AB9
M
M58
M59
MT1
MW
MW60
PDF
DWG
View
TBT-1BK.9 8,268 4,567 0,984 9004
P2H-AT 5,835 3,150/4,016 4 2 x AA / 1 x 9V AB9
M
M58
M59
MT1
MW
MW60
PDF
DWG
View
TBT-1K.7 8,268 4,567 0,984 9002
L320 7,717 3,150/4,016 4 - M
M58
M59
MT1
MW
MW60
PDF
DWG
View

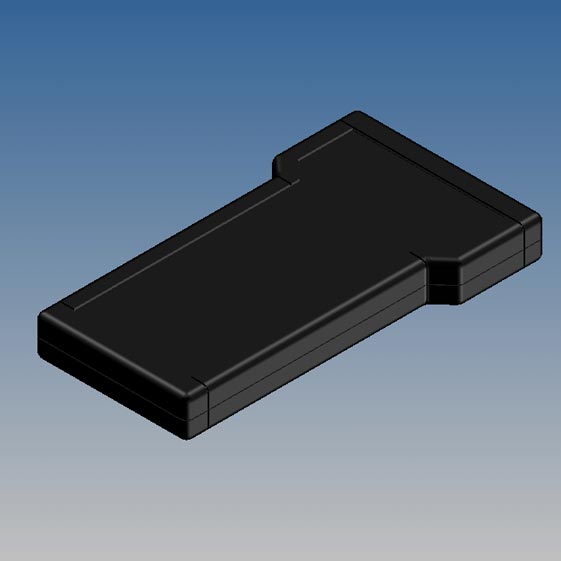

TBT-1K.9 8,268 4,567 0,984 9004
P2H-AT 7,717 3,150/4,016 4 - M
M58
M59
MT1
MW
MW60
PDF
DWG
View
TBT-2.7 8,268 4,567 1,24 9002
L320 7,717 3,150/4,016 4 - M
M58
M59
MT1
MW
MW60
PDF
DWG
View

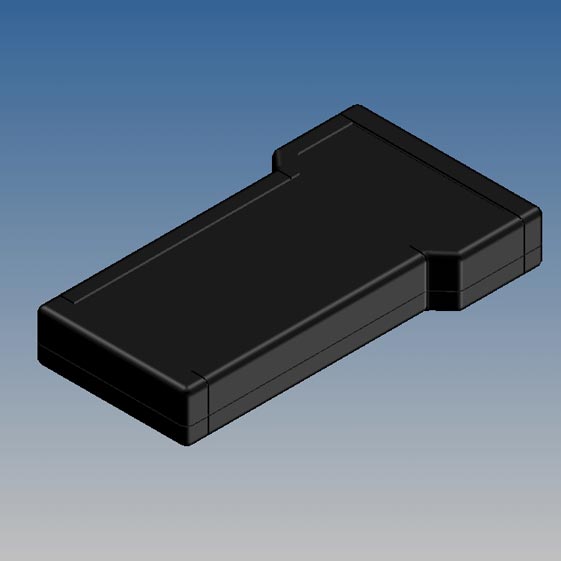

TBT-2.9 8,268 4,567 1,24 9004
P2H-AT 7,717 3,150/4,016 4 - M
M58
M59
MT1
MW
MW60
PDF
DWG
View
TBT-2B.7 8,268 4,567 1,24 9002
L320 5,835 3,150/4,016 4 2 x AA / 1 x 9V AB9
M
M58
M59
MT1
MW
MW60
PDF
DWG
View
TBT-2B.9 8,268 4,567 1,24 9004
P2H-AT 5,835 3,150/4,016 4 2 x AA / 1 x 9V AB9
M
M58
M59
MT1
MW
MW60
PDF
DWG
View

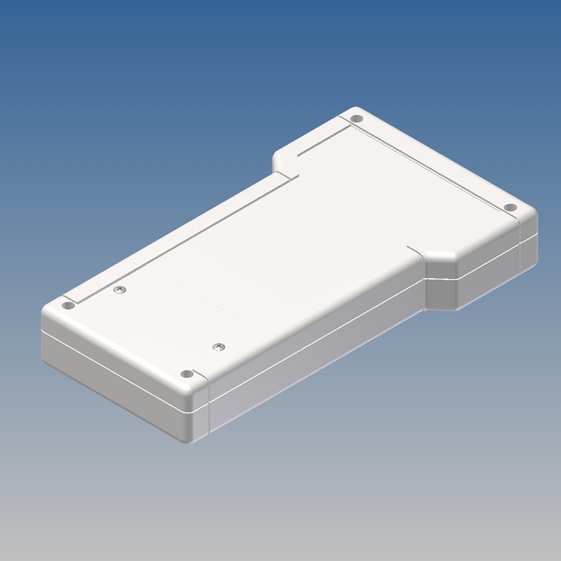

TBT-2BK.7 8,268 4,567 1,24 9002
L320 5,835 3,150/4,016 4 2 x AA / 1 x 9V AB9
M
M58
M59
MT1
MW
MW60
PDF
DWG
View

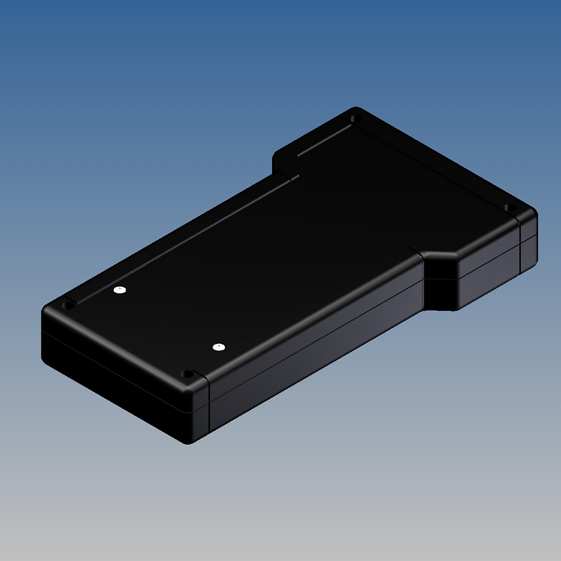

TBT-2BK.9 8,268 4,567 1,24 9004
P2H-AT 5,835 3,150/4,016 4 2 x AA / 1 x 9V AB9
M
M58
M59
MT1
MW
MW60
PDF
DWG
View

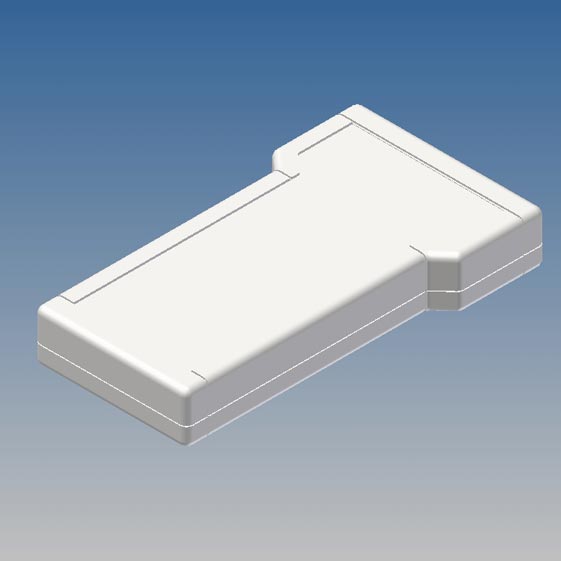

TBT-2K.7 8,268 4,567 1,24 9002
L320 7,717 3,150/4,016 4 - M
M58
M59
MT1
MW
MW60
PDF
DWG
View
TBT-2K.9 8,268 4,567 1,24 9004
P2H-AT 7,717 3,150/4,016 4 - M
M58
M59
MT1
MW
MW60
PDF
DWG
View
