Description

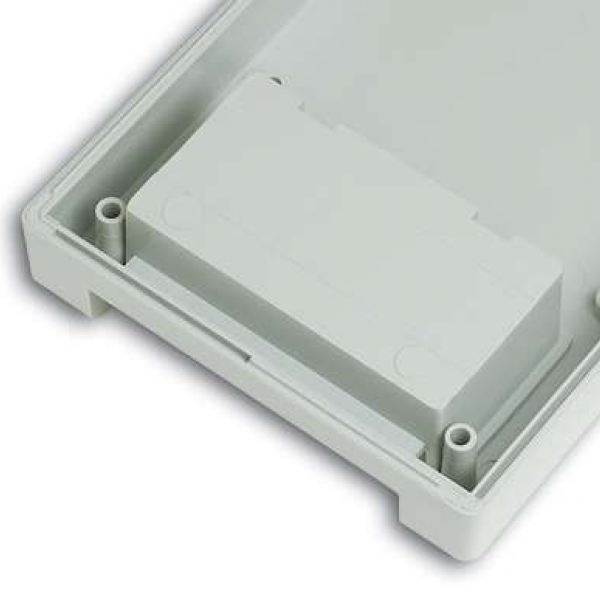

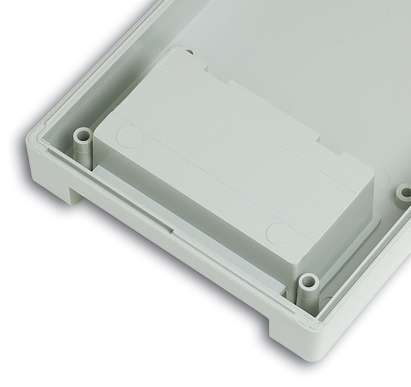

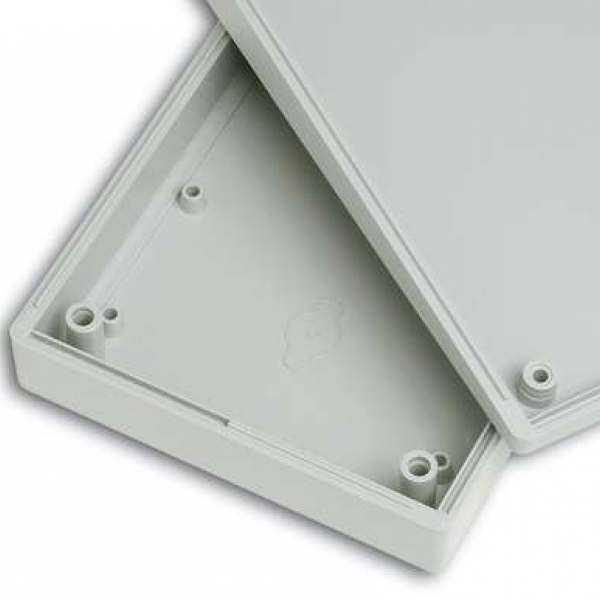

ABS enclosures with a recessed area to allow an 0.5 mm anodised aluminium panel. Base and cover have integral PCB mounting studs. The models with “F-B” have 9V battery compartment with snap-on cover. Matt surface finish. Closing by four screws. The models with “F” and “F-B” have neither aluminium panel nor recessed area. Upon request ABS mounting tabs (Mod. MT1).
Details
Products
| Model | L (inch) | W (inch) | H (inch) | Color (Ral) | Material | MAX PCB L (inch) | MAX PCB W (inch) | Screws | Battery | Accessories | Drawings | Other | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

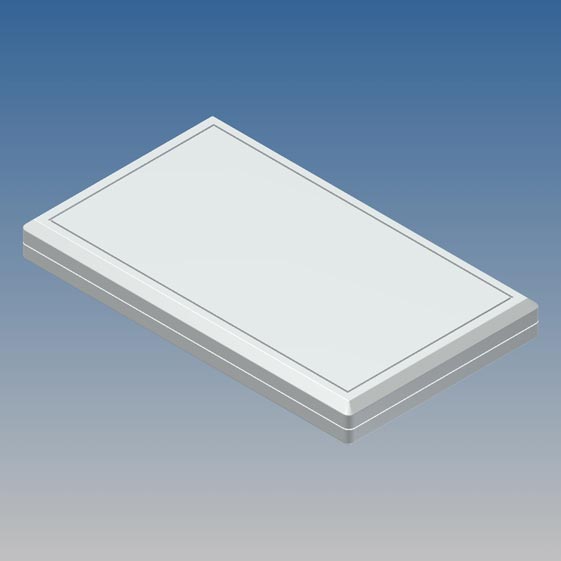

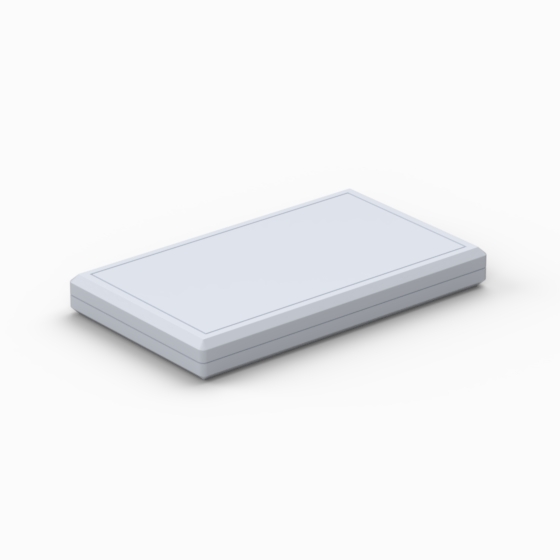

450F.5 | 5,709 | 3,346 | 0,669 |
9018 |
AG-ATY | 5,323 | 2,961 | 4 | - |
M M58 M59 MT1 |
PDF DWG |
|
|

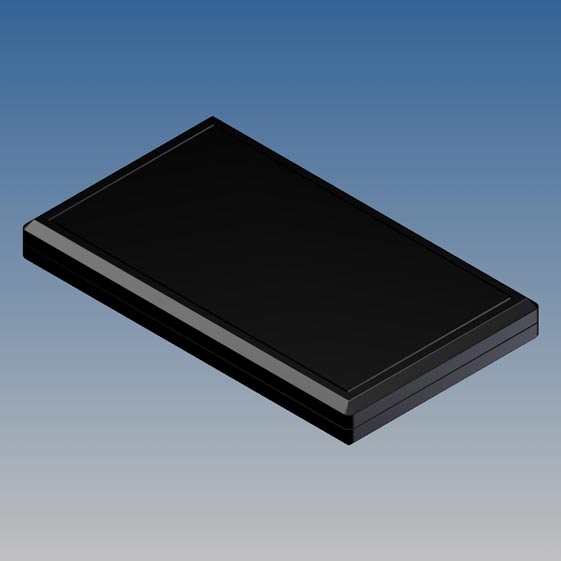

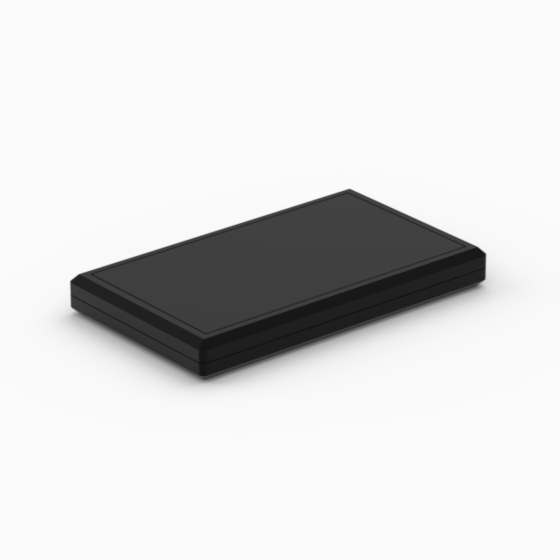

450F.9 | 5,709 | 3,346 | 0,669 |
9004 |
TERLURAN GP-35 | 5,323 | 2,961 | 4 | - |
M M58 M59 MT1 |
PDF DWG |
|
|

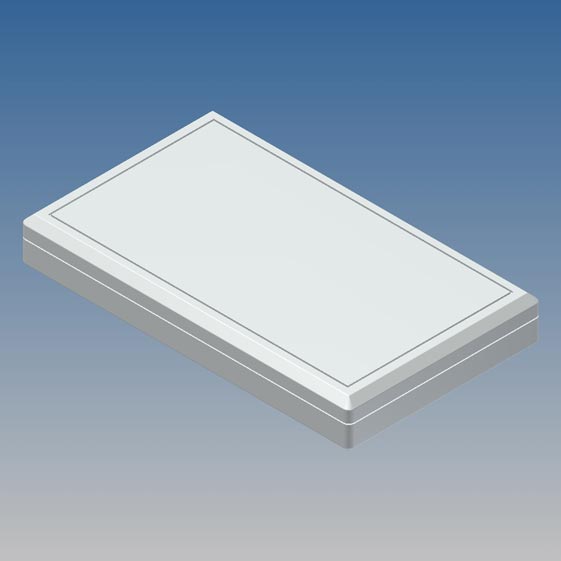

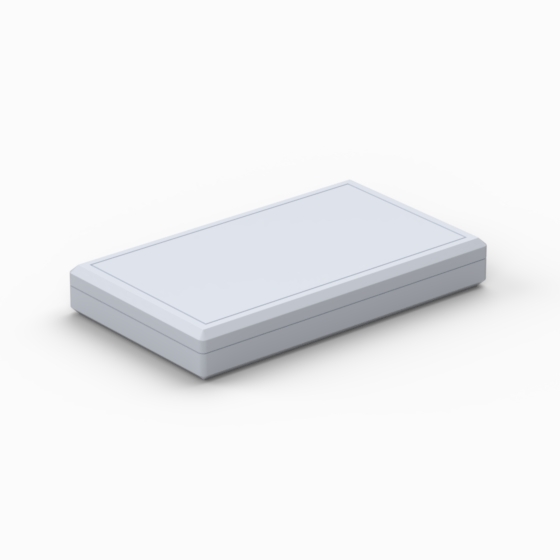

550F.5 | 5,709 | 3,346 | 0,827 |
9018 |
AG-ATY | 5,323 | 2,961 | 4 | - |
M M58 M59 MT1 |
PDF DWG |
|
|

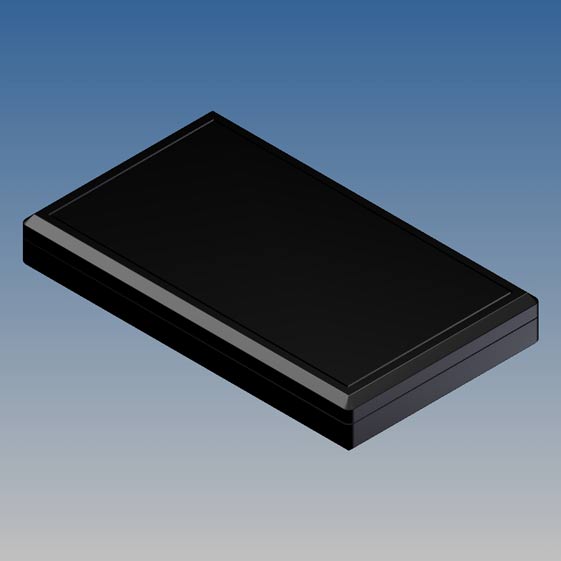

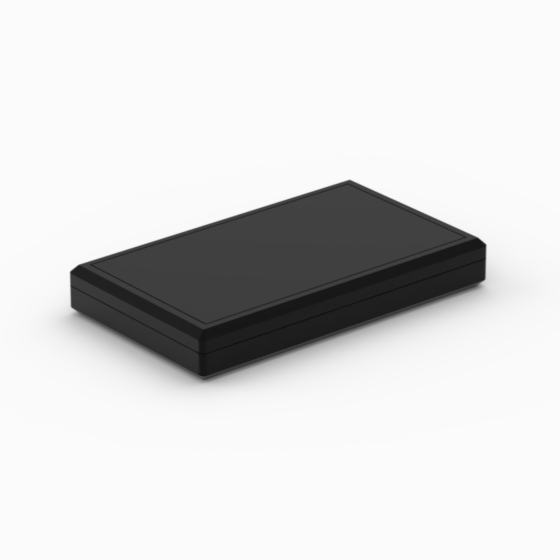

550F.9 | 5,709 | 3,346 | 0,827 |
9004 |
TERLURAN GP-35 | 5,323 | 2,961 | 4 | - |
M M58 M59 MT1 |
PDF DWG |
|
|

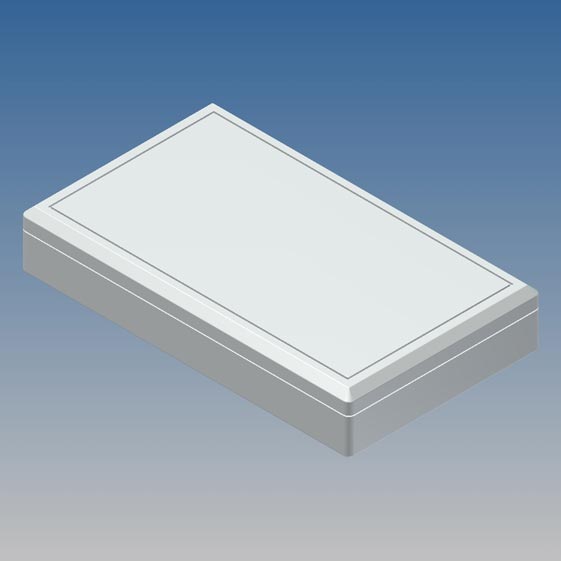

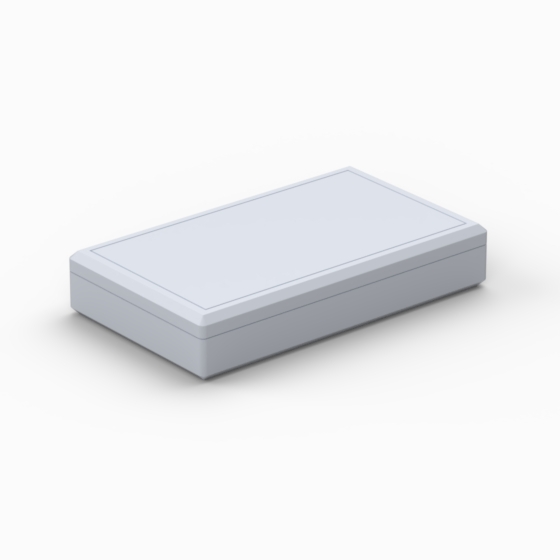

660F.5 | 5,709 | 3,346 | 1,063 |
9018 |
AG-ATY | 5,323 | 2,961 | 4 | - |
M M58 M59 MT1 |
PDF DWG |
|
|

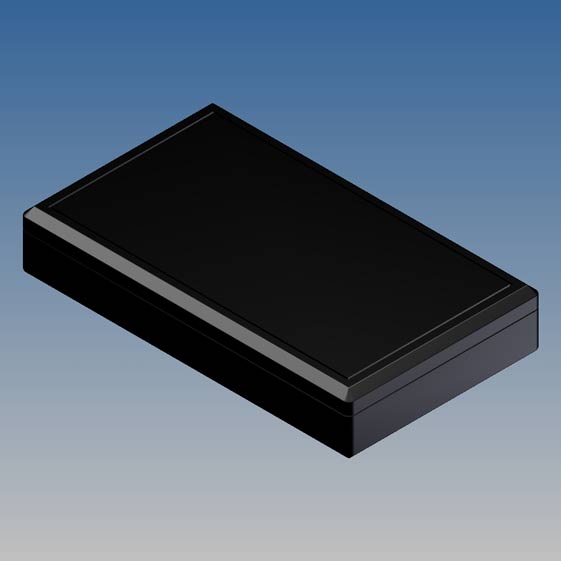

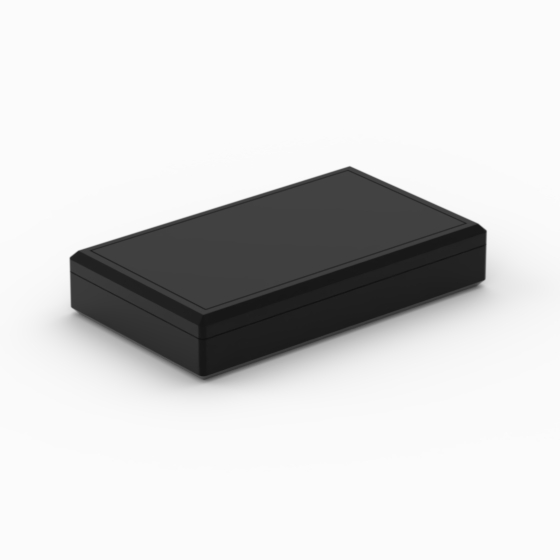

660F.9 | 5,709 | 3,346 | 1,063 |
9004 |
TERLURAN GP-35 | 5,323 | 2,961 | 4 | - |
M M58 M59 MT1 |
PDF DWG |
|
|

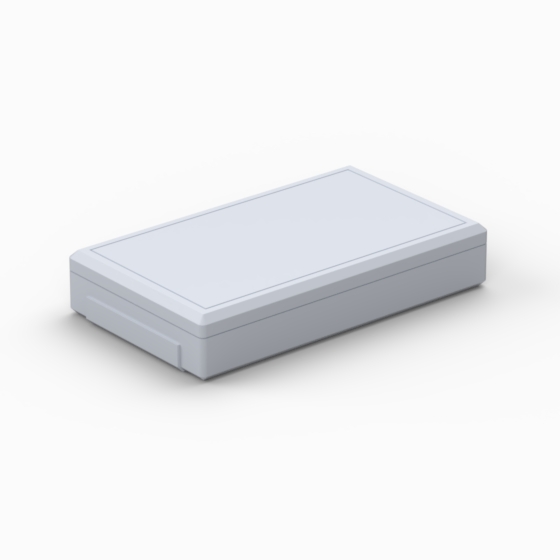

660F-B.5 | 5,709 | 3,346 | 1,063 |
9018 |
AG-ATY | 3,843 | 2,961 | 4 | 1 x 9V |
AB9 M M58 M59 |
PDF DWG |
|
|

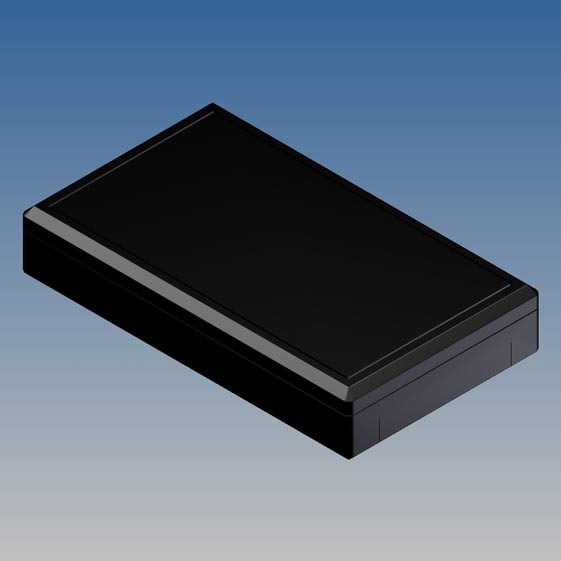

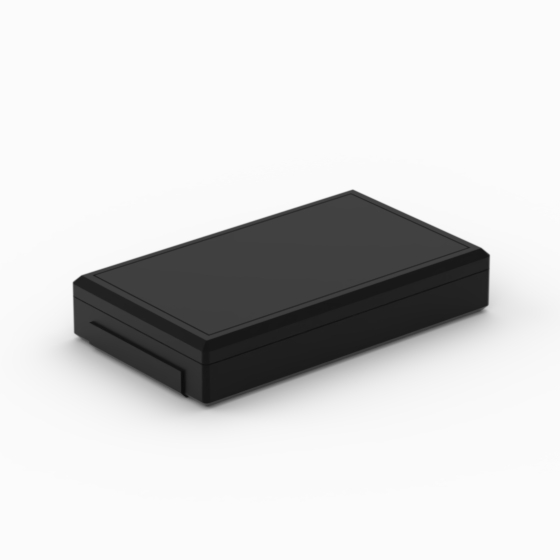

660F-B.9 | 5,709 | 3,346 | 1,063 |
9004 |
TERLURAN GP-35 | 3,843 | 2,961 | 4 | 1 x 9V |
AB9 M M58 M59 |
PDF DWG |
|
|

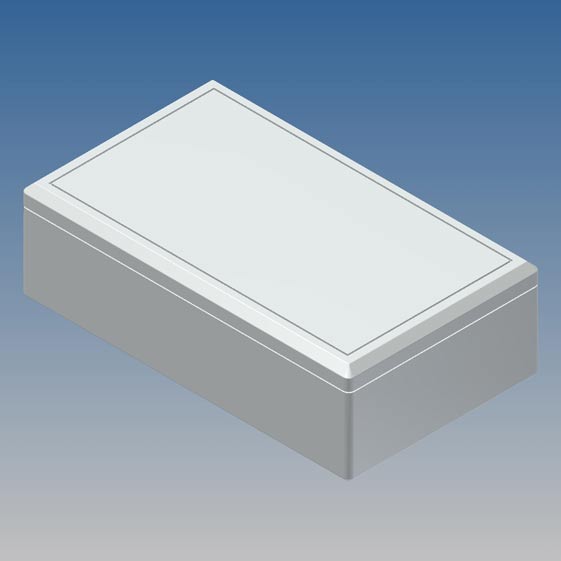

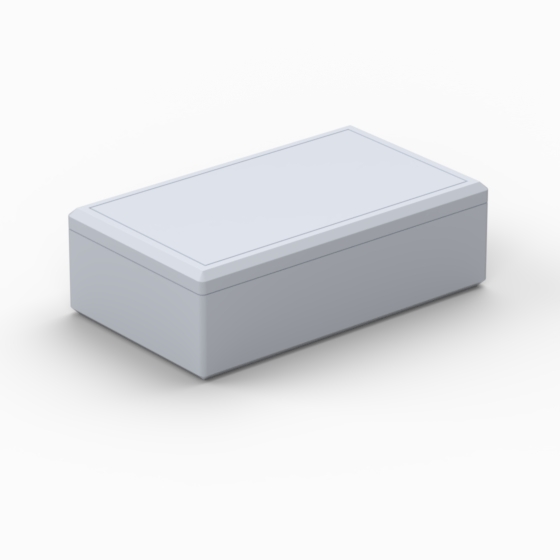

770F.5 | 5,709 | 3,346 | 1,772 |
9018 |
AG-ATY | 5,323 | 2,961 | 4 | - |
M M58 M59 MT1 |
PDF DWG |
|
|

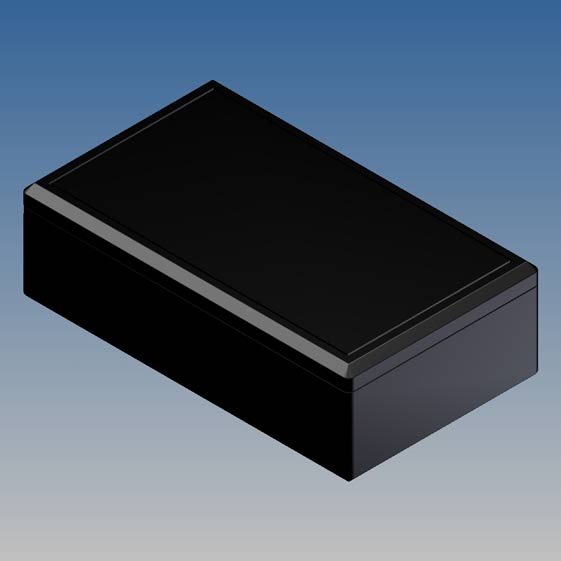

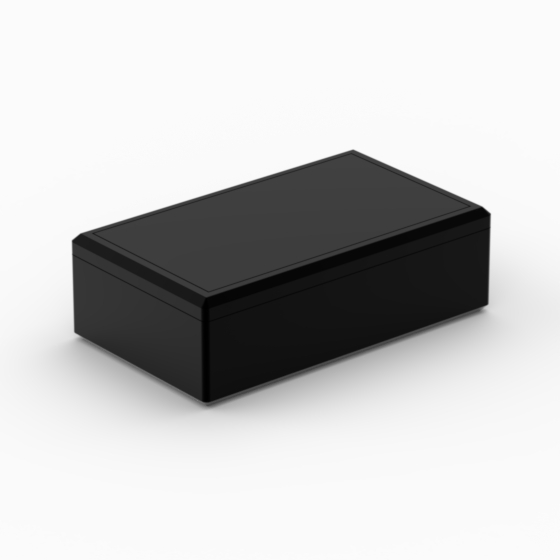

770F.9 | 5,709 | 3,346 | 1,772 |
9004 |
TERLURAN GP-35 | 5,323 | 2,961 | 4 | - |
M M58 M59 MT1 |
PDF DWG |
