TK

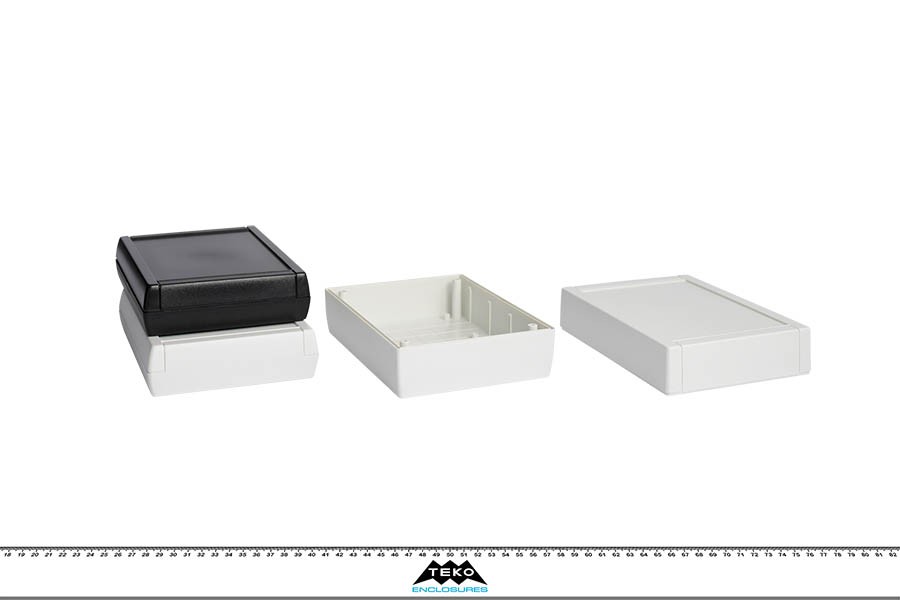

Family Handheld - Electronic enclosures - Plastic

Description

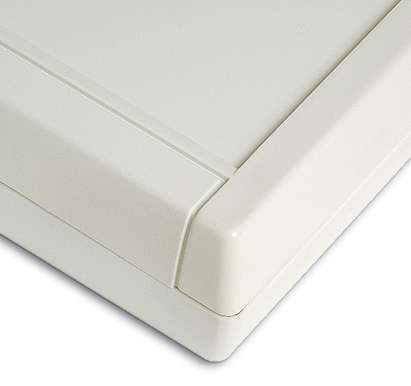

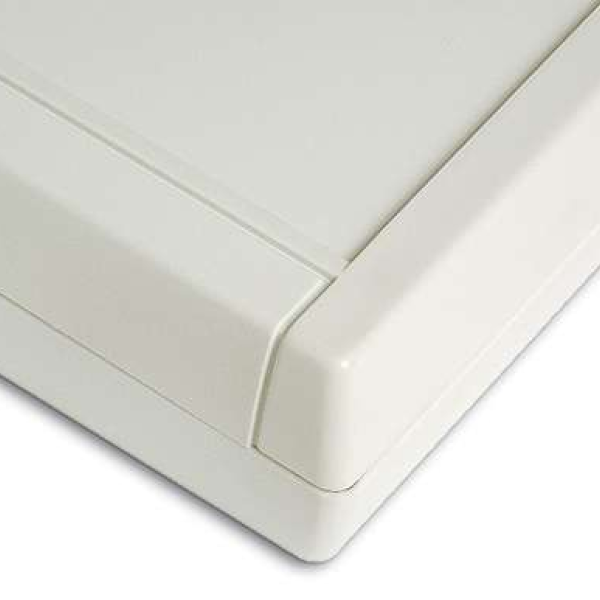

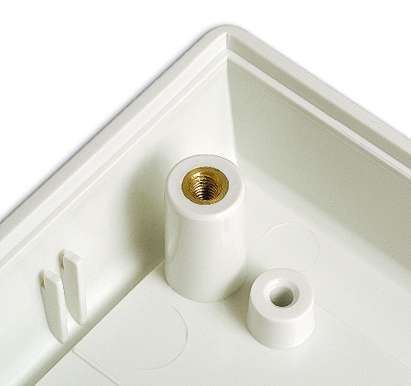

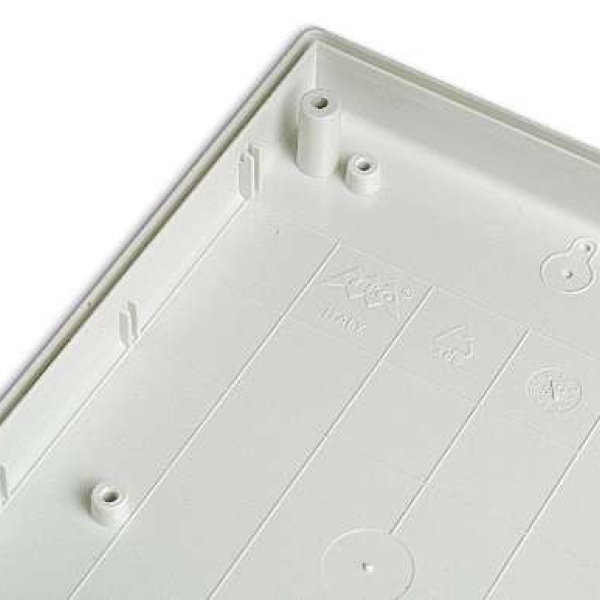

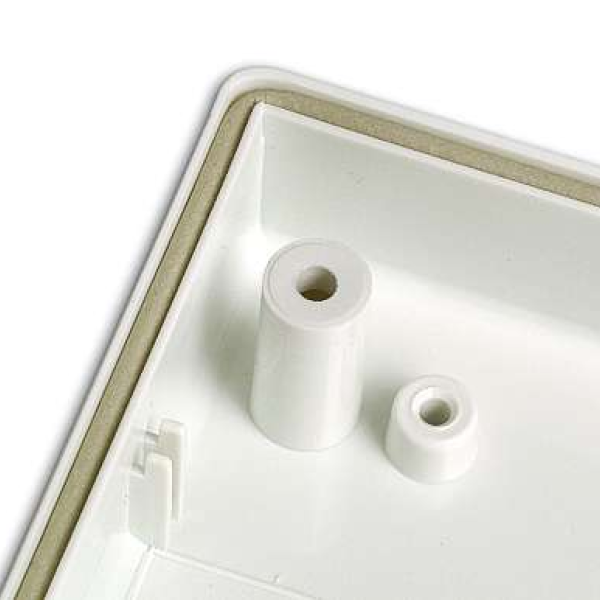

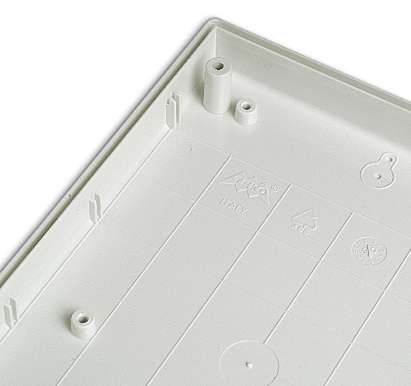

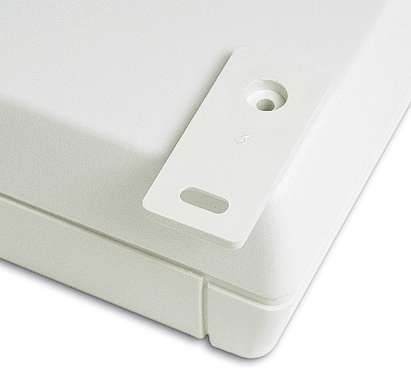

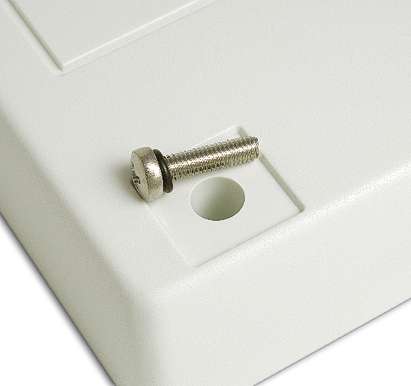

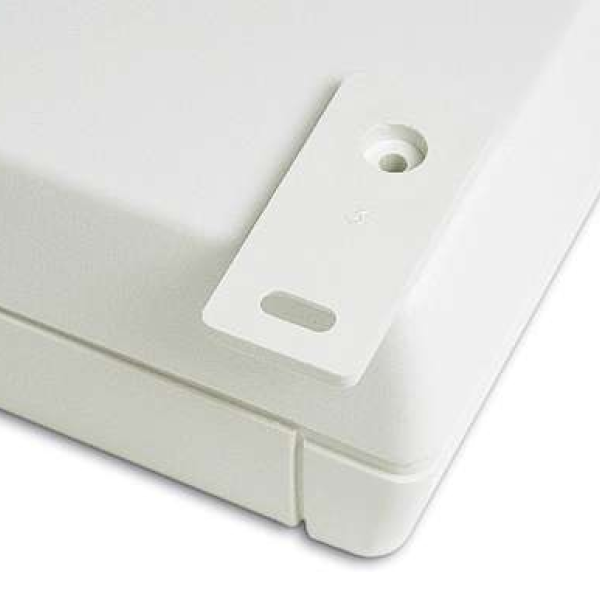

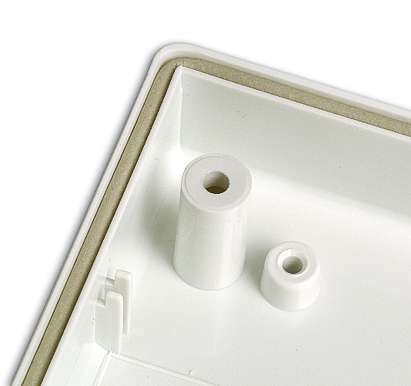

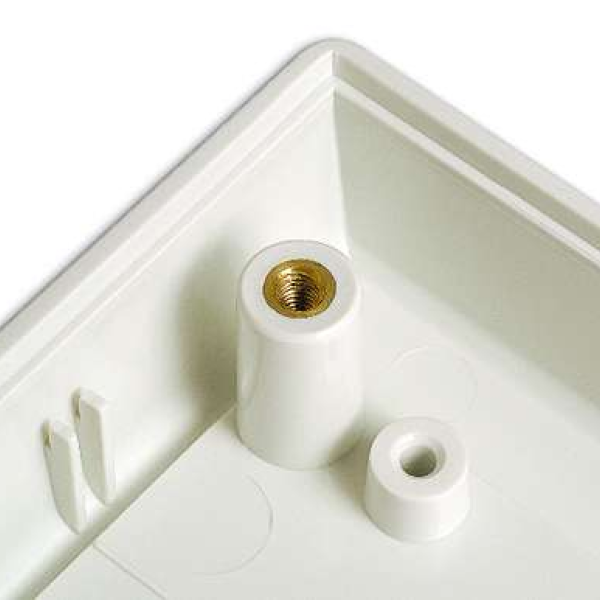

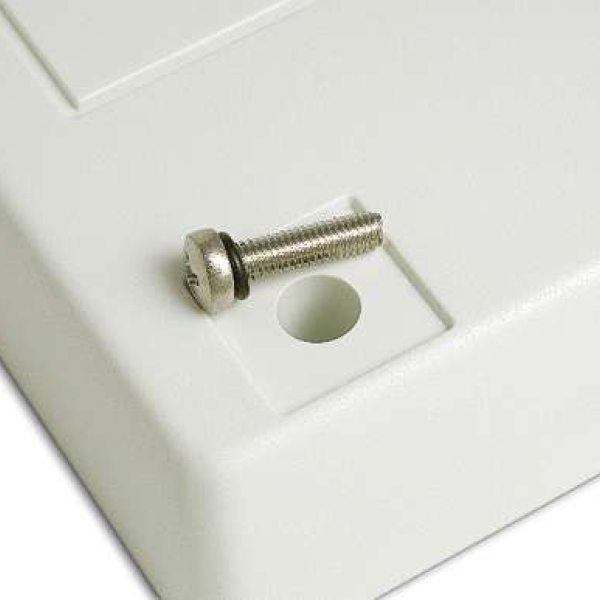

ABS enclosures with a 1.8 mm recessed area suitable for a keypad membrane or an aluminium panel. Base and cover have integral PCB guides (Eurocard 100 x 160 mm) and mounting studs. Matt surface finish. The models with “KK” have an IP65 sealing kit. Closing by four screws. Upon request aluminium panel (Mod. APTK), ABS wall mounting tabs (Mod. MT2).

Products

Model L (inch) W (inch) H (inch) Color (Ral) Material MAX PCB L (inch) MAX PCB W (inch) Screws Battery Accessories Drawings Other

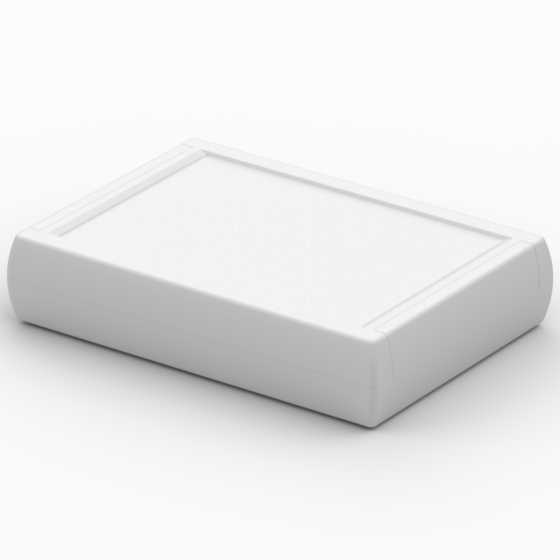

TK11.7 7,421 5,256 1,555 9002
L320 6,929 4,685 4 - APTK
MT2
PDF
DWG
View
  • Color (Ral): 9002
  • Material: L320
  • MAX PCB L (mm): 176
  • MAX PCB W (mm): 119
  • Screws: 4
  • Battery: -
  • Accessories: APTK MT2
  • Drawings:  PDF  DWG

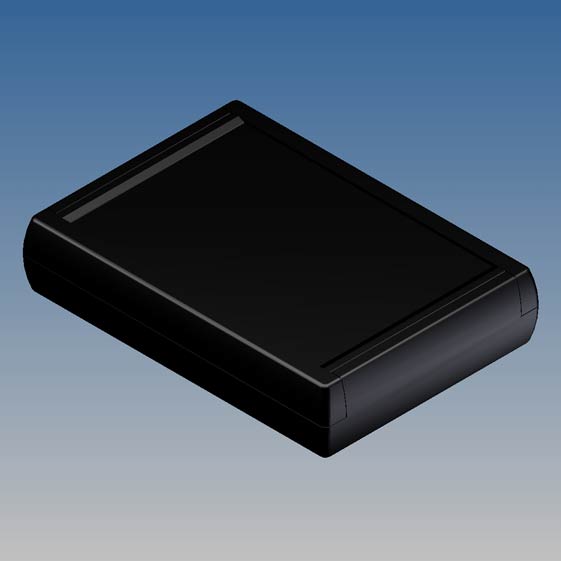

TK11.9 7,421 5,256 1,555 9004
P2H-AT 6,929 4,685 4 - APTK
MT2
PDF
DWG
View

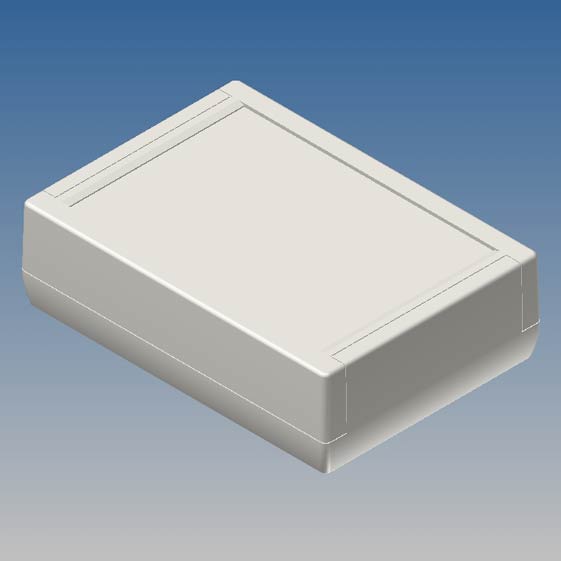

TK22.7 7,421 5,256 2,185 9002
L320 6,929 4,685 4 - APTK
MT2
PDF
DWG
View
  • Color (Ral): 9002
  • Material: L320
  • MAX PCB L (mm): 176
  • MAX PCB W (mm): 119
  • Screws: 4
  • Battery: -
  • Accessories: APTK MT2
  • Drawings:  PDF  DWG

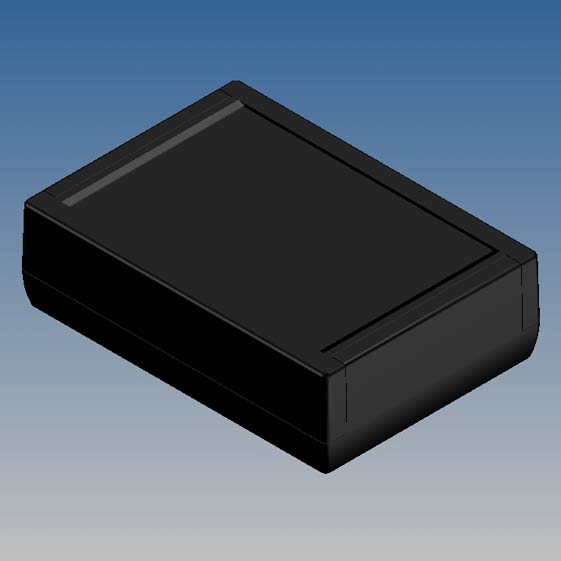

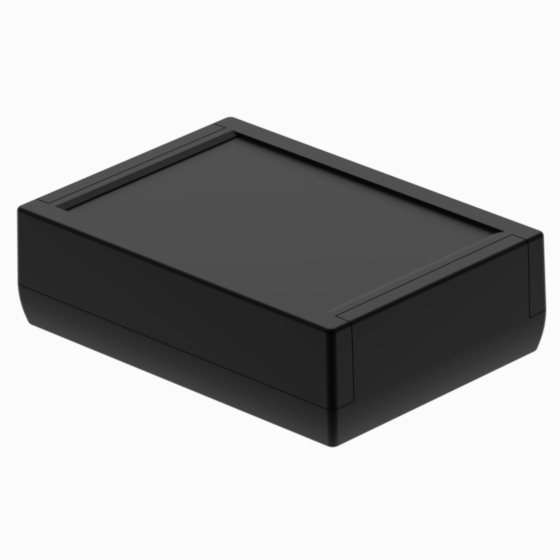

TK22.9 7,421 5,256 2,185 9004
P2H-AT 6,929 4,685 4 - APTK
MT2
PDF
DWG
View

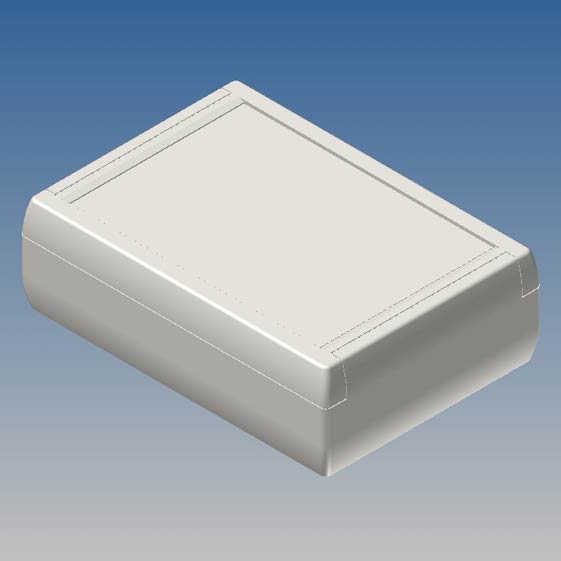

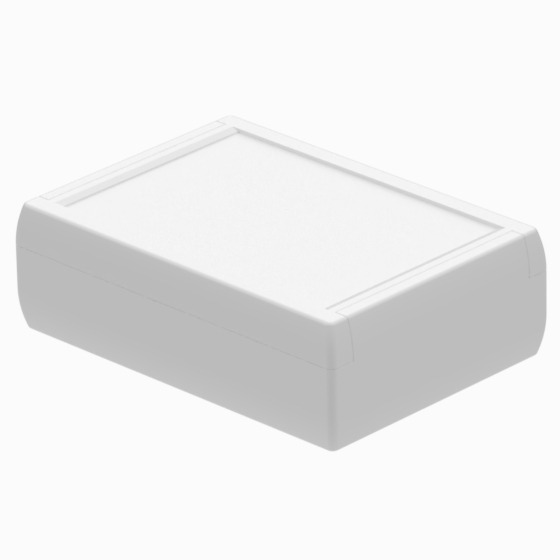

TK33.7 7,421 5,256 2,323 9002
L320 6,929 4,685 4 - MT2
PDF
DWG
View
  • Color (Ral): 9002
  • Material: L320
  • MAX PCB L (mm): 176
  • MAX PCB W (mm): 119
  • Screws: 4
  • Battery: -
  • Accessories: MT2
  • Drawings:  PDF  DWG
TK33.9 7,421 5,256 2,323 9004
P2H-AT 6,929 4,685 4 - MT2
PDF
DWG
View
  • Color (Ral): 9004
  • Material: P2H-AT
  • MAX PCB L (mm): 176
  • MAX PCB W (mm): 119
  • Screws: 4
  • Battery: -
  • Accessories: MT2
  • Drawings:  PDF  DWG

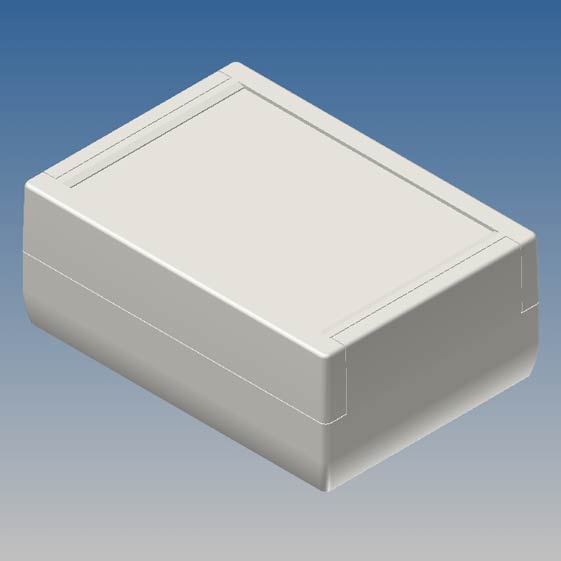

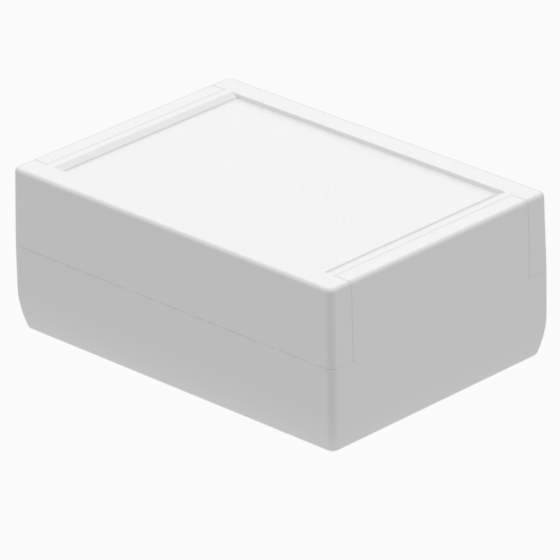

TK44.7 7,421 5,256 2,972 9002
L320 6,929 4,685 4 - MT2
PDF
DWG
View
  • Color (Ral): 9002
  • Material: L320
  • MAX PCB L (mm): 176
  • MAX PCB W (mm): 119
  • Screws: 4
  • Battery: -
  • Accessories: MT2
  • Drawings:  PDF  DWG

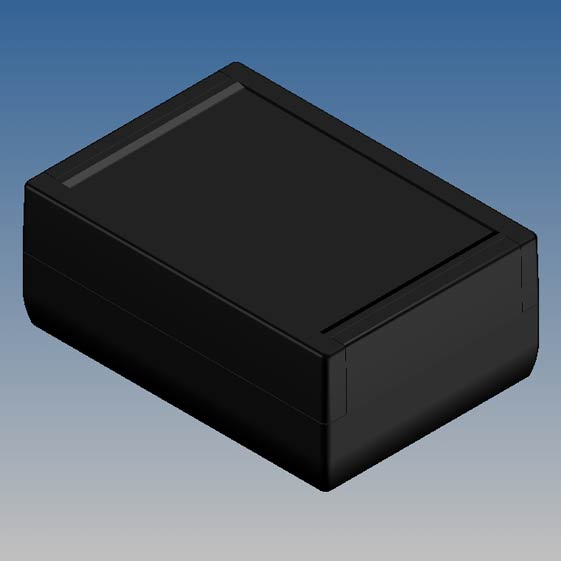

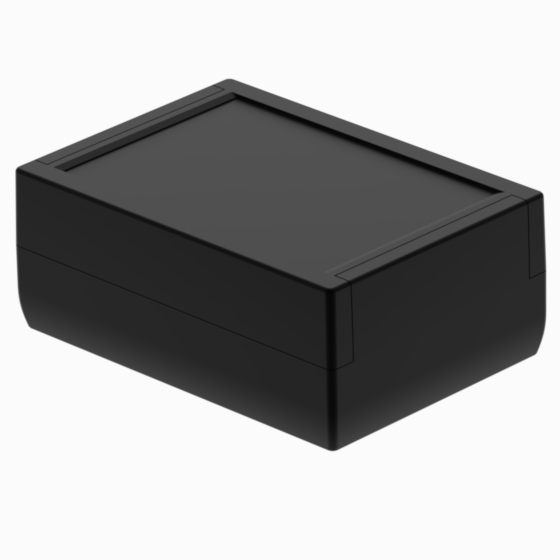

TK44.9 7,421 5,256 2,972 9004
P2H-AT 6,929 4,685 4 - MT2
PDF
DWG
View
  • Color (Ral): 9004
  • Material: P2H-AT
  • MAX PCB L (mm): 176
  • MAX PCB W (mm): 119
  • Screws: 4
  • Battery: -
  • Accessories: MT2
  • Drawings:  PDF  DWG

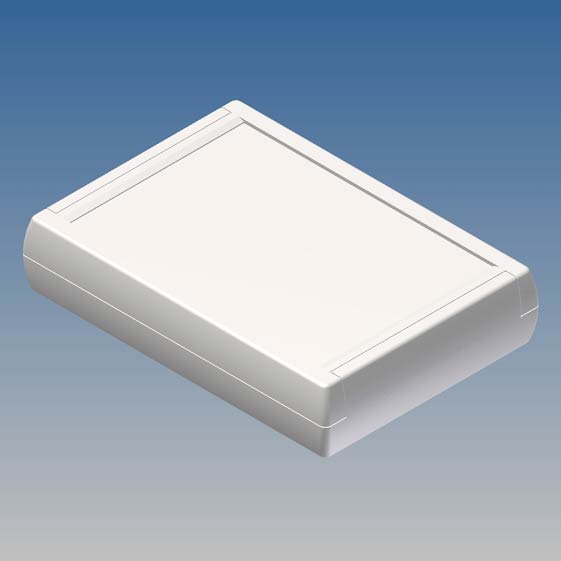

TKK11.7 7,421 5,256 1,555 9002
L320 6,929 4,685 4 - APTK
MT2
PDF
DWG
View
  • Color (Ral): 9002
  • Material: L320
  • MAX PCB L (mm): 176
  • MAX PCB W (mm): 119
  • Screws: 4
  • Battery: -
  • Accessories: APTK MT2
  • Drawings:  PDF  DWG

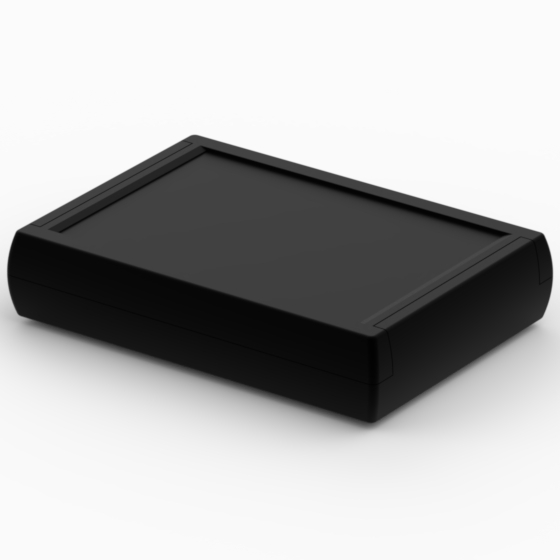

TKK11.9 7,421 5,256 1,555 9004
P2H-AT 6,929 4,685 4 - APTK
MT2
PDF
DWG
View

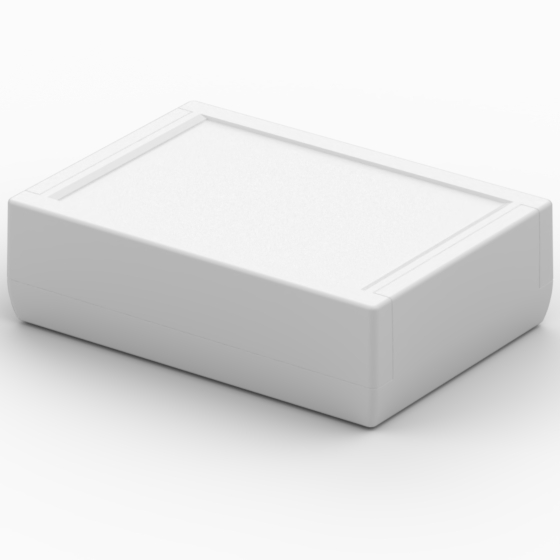

TKK22.7 7,421 5,256 2,185 9002
L320 6,929 4,685 4 - APTK
MT2
PDF
DWG
View
  • Color (Ral): 9002
  • Material: L320
  • MAX PCB L (mm): 176
  • MAX PCB W (mm): 119
  • Screws: 4
  • Battery: -
  • Accessories: APTK MT2
  • Drawings:  PDF  DWG

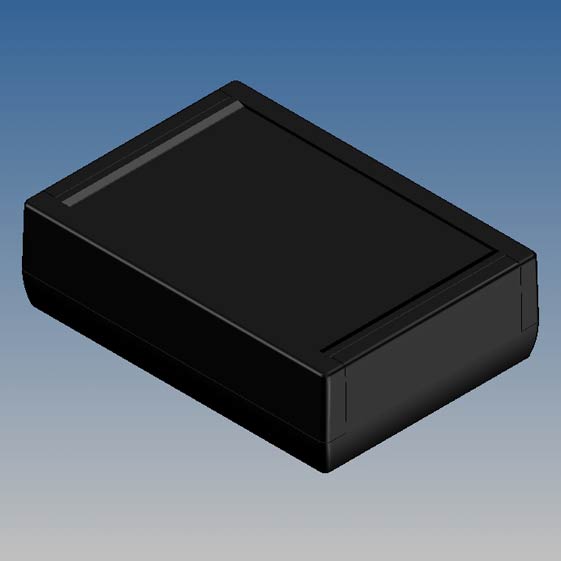

TKK22.9 7,421 5,256 2,185 9004
P2H-AT 6,929 4,685 4 - APTK
MT2
PDF
DWG
View
TKK33.7 7,421 5,256 2,323 9002
L320 6,929 4,685 4 - MT2
PDF
DWG
View
  • Color (Ral): 9002
  • Material: L320
  • MAX PCB L (mm): 176
  • MAX PCB W (mm): 119
  • Screws: 4
  • Battery: -
  • Accessories: MT2
  • Drawings:  PDF  DWG

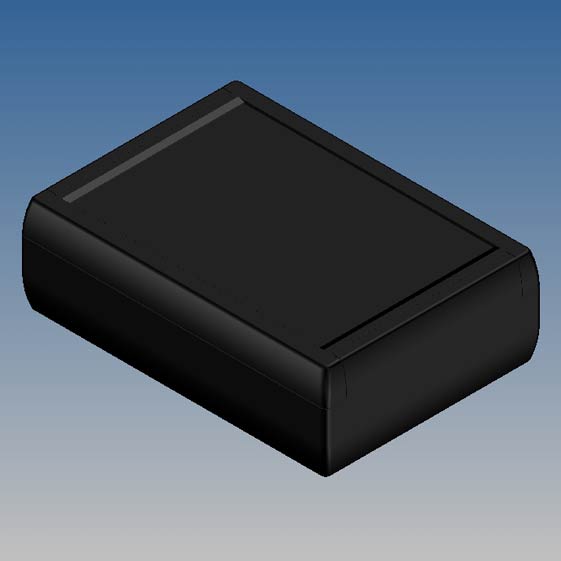

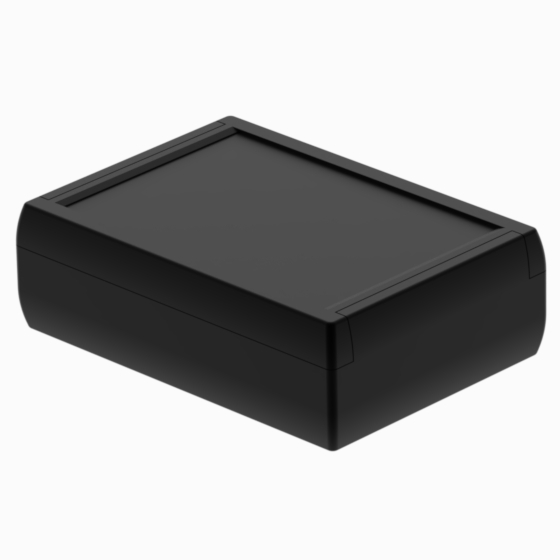

TKK33.9 7,421 5,256 2,323 9004
P2H-AT 6,929 4,685 4 - MT2
PDF
DWG
View
  • Color (Ral): 9004
  • Material: P2H-AT
  • MAX PCB L (mm): 176
  • MAX PCB W (mm): 119
  • Screws: 4
  • Battery: -
  • Accessories: MT2
  • Drawings:  PDF  DWG
TKK44.7 7,421 5,256 2,972 9002
L320 6,929 4,685 4 - MT2
PDF
DWG
View
  • Color (Ral): 9002
  • Material: L320
  • MAX PCB L (mm): 176
  • MAX PCB W (mm): 119
  • Screws: 4
  • Battery: -
  • Accessories: MT2
  • Drawings:  PDF  DWG
TKK44.9 7,421 5,256 2,972 9004
P2H-AT 6,929 4,685 4 - MT2
PDF
DWG
View
  • Color (Ral): 9004
  • Material: P2H-AT
  • MAX PCB L (mm): 176
  • MAX PCB W (mm): 119
  • Screws: 4
  • Battery: -
  • Accessories: MT2
  • Drawings:  PDF  DWG
