TK SP

Family Handheld - Electronic enclosures - Plastic

Description

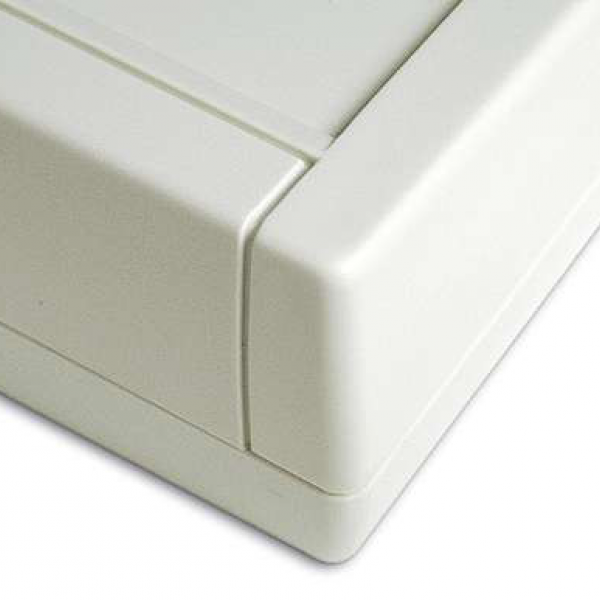

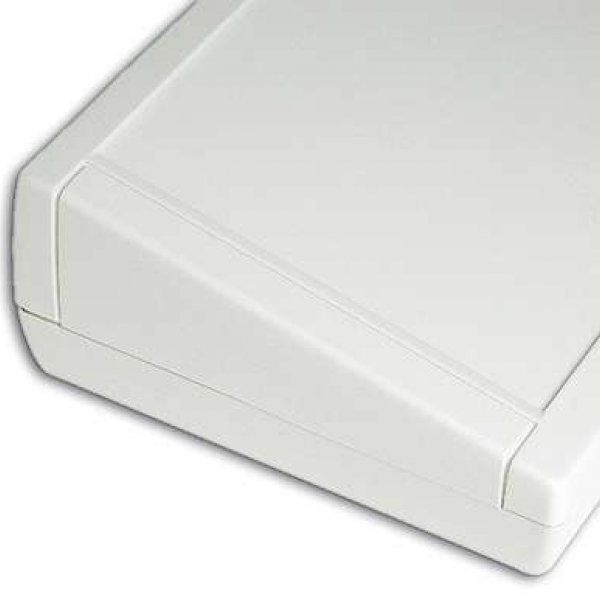

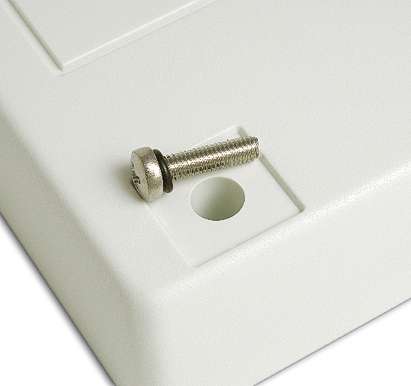

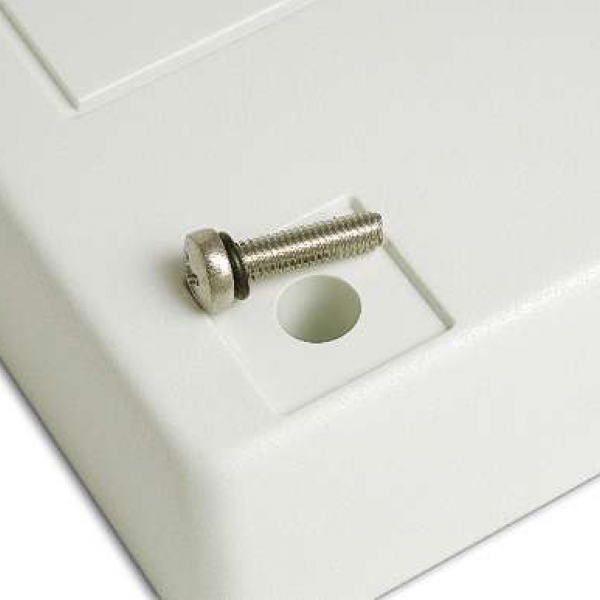

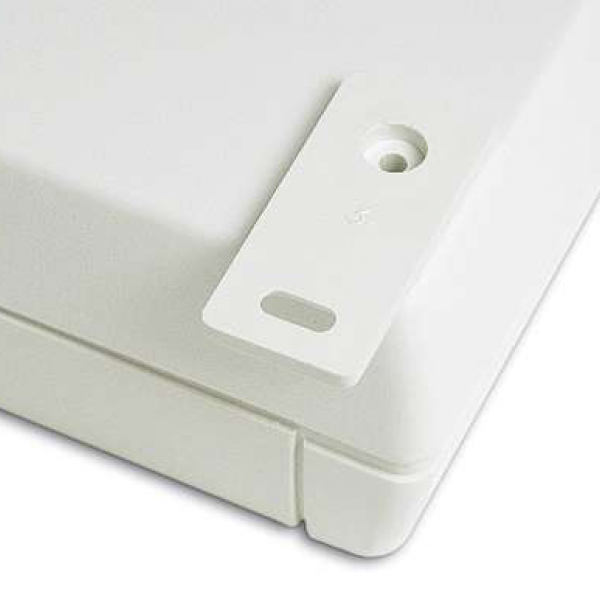

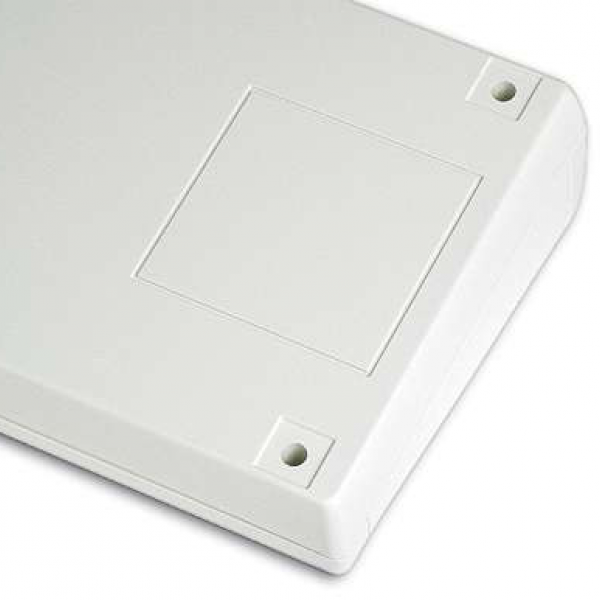

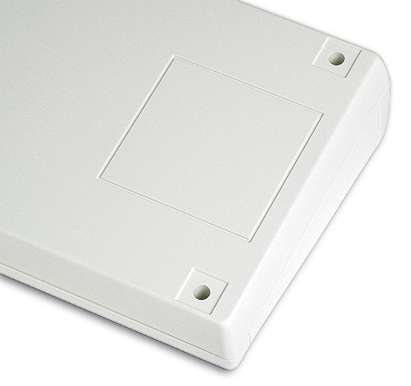

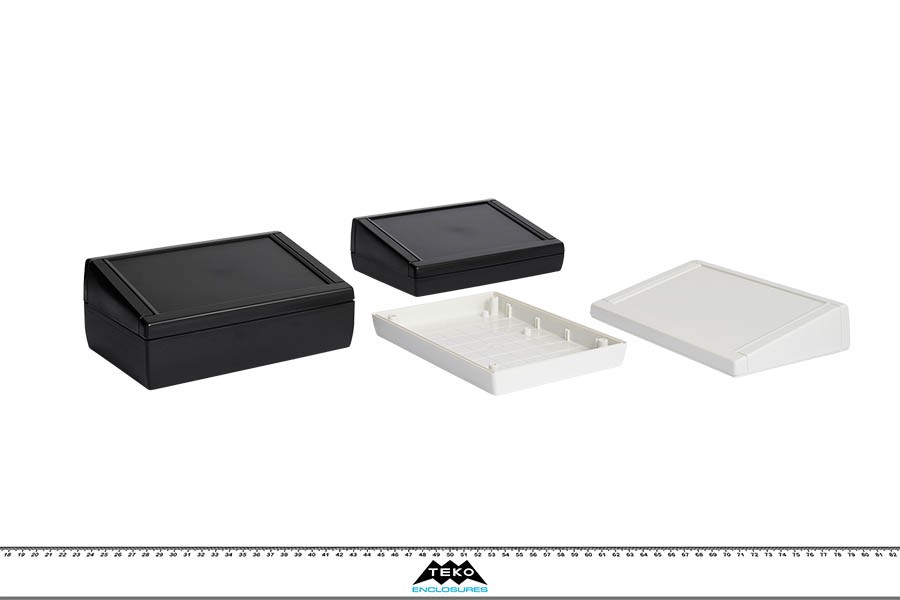

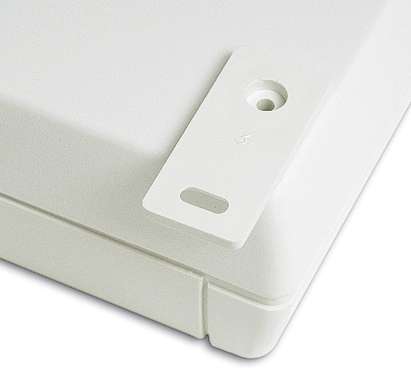

ABS enclosures with a 1.8 mm recessed area suitable for a keypad membrane or an aluminium panel. Base and cover have integral PCB guides (Eurocard 100 x 160 mm) and mounting studs. Matt surface finish. The models with “KK” have an IP65 sealing kit. Closing by four screws. Upon request aluminium panel (Mod. APTK), ABS wall mounting tabs (Mod. MT2).

Details

Products

Model L (inch) W (inch) H (inch) Color (Ral) Material MAX PCB L (inch) MAX PCB W (inch) Screws Battery Accessories Drawings Other

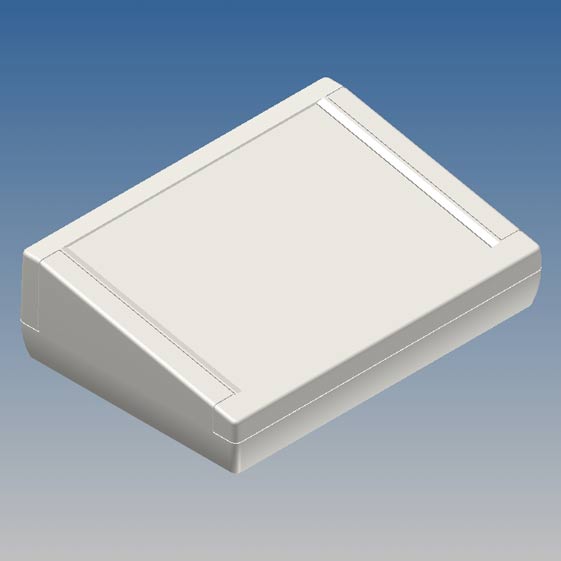

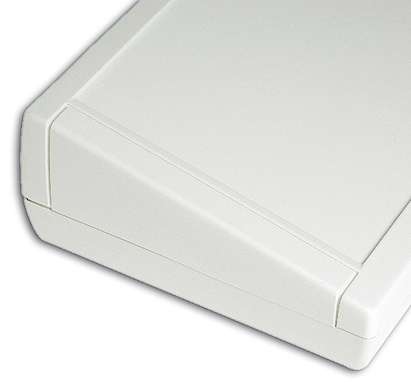

TK11SP.7 7,421 5,256 2,224 9002
L320 6,929 4,685 4 - APTK
MT2
PDF
DWG
View
  • Color (Ral): 9002
  • Material: L320
  • MAX PCB L (mm): 176
  • MAX PCB W (mm): 119
  • Screws: 4
  • Battery: -
  • Accessories: APTK MT2
  • Drawings:  PDF  DWG

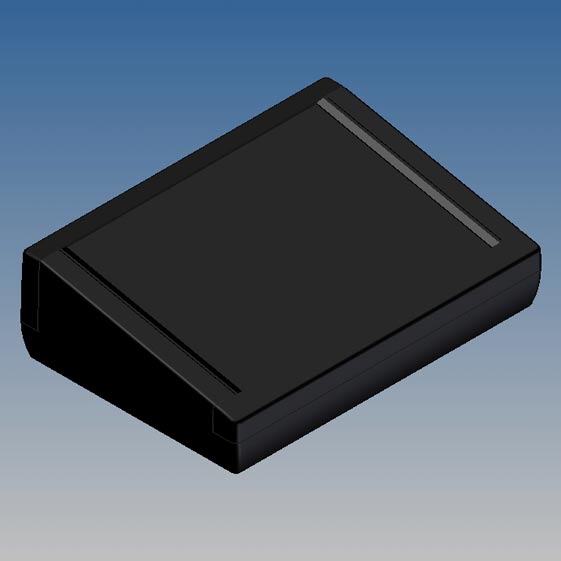

TK11SP.9 7,421 5,256 2,224 9004
P2H-AT 6,929 4,685 4 - APTK
MT2
PDF
DWG
View
TK33SP.7 7,421 5,256 3,012 9002
L320 6,929 4,685 4 - MT2
PDF
DWG
View
  • Color (Ral): 9002
  • Material: L320
  • MAX PCB L (mm): 176
  • MAX PCB W (mm): 119
  • Screws: 4
  • Battery: -
  • Accessories: MT2
  • Drawings:  PDF  DWG

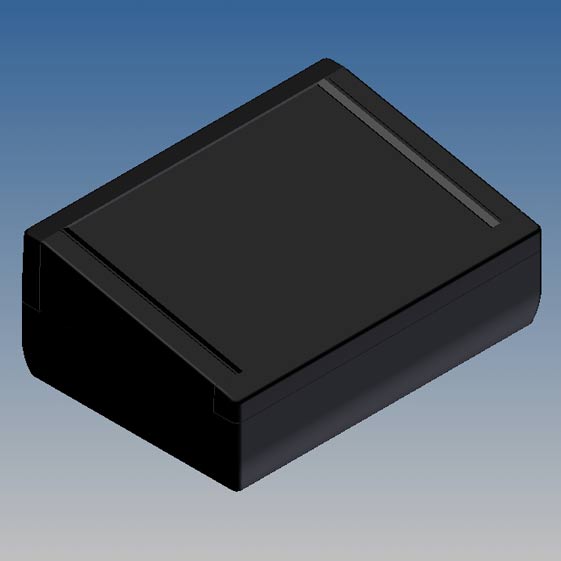

TK33SP.9 7,421 5,256 3,012 9004
P2H-AT 6,929 4,685 4 - MT2
PDF
DWG
View
  • Color (Ral): 9004
  • Material: P2H-AT
  • MAX PCB L (mm): 176
  • MAX PCB W (mm): 119
  • Screws: 4
  • Battery: -
  • Accessories: MT2
  • Drawings:  PDF  DWG

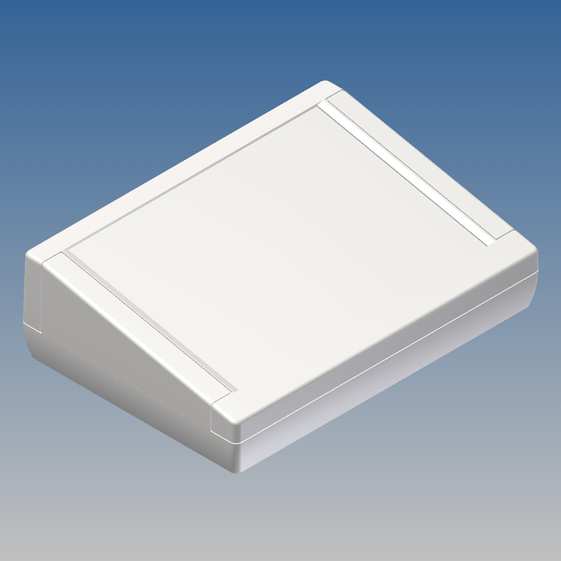

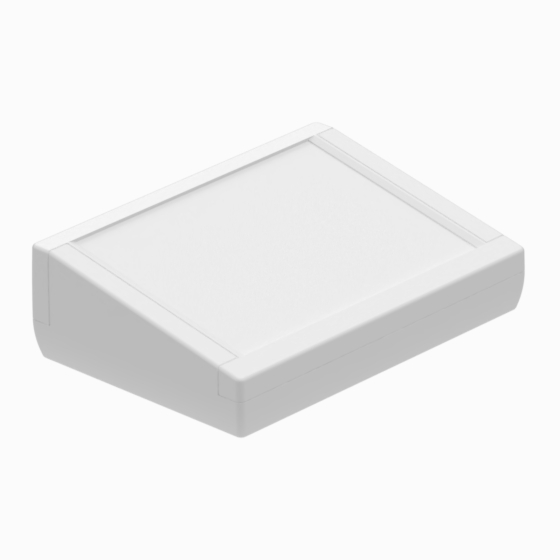

TKK11SP.7 7,421 5,256 2,224 9002
L320 6,929 4,685 4 - APTK
MT2
PDF
DWG
View
  • Color (Ral): 9002
  • Material: L320
  • MAX PCB L (mm): 176
  • MAX PCB W (mm): 119
  • Screws: 4
  • Battery: -
  • Accessories: APTK MT2
  • Drawings:  PDF  DWG

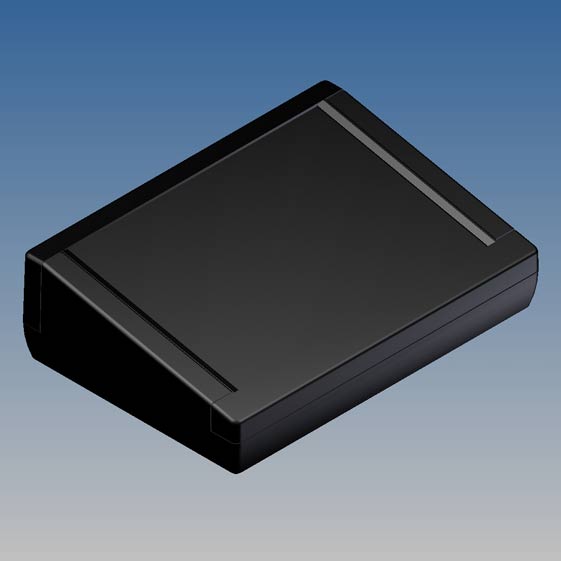

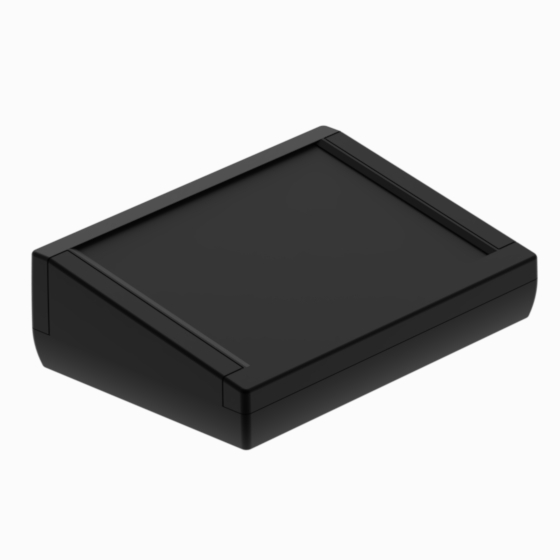

TKK11SP.9 7,421 5,256 2,224 9004
P2H-AT 6,929 4,685 4 - APTK
MT2
PDF
DWG
View

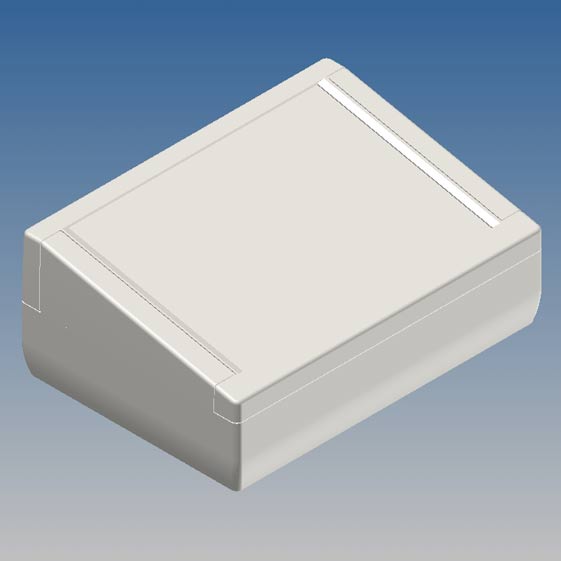

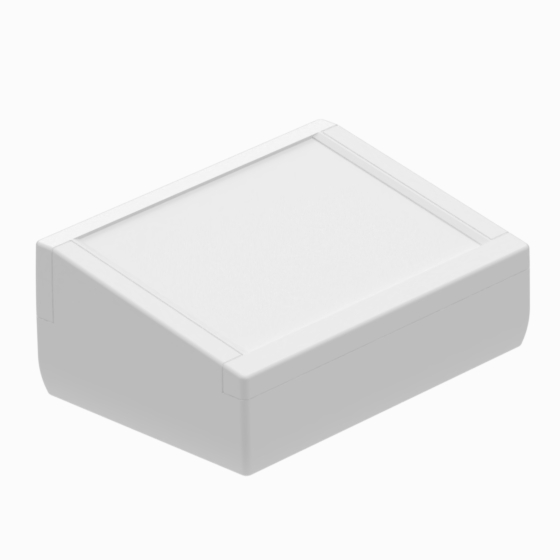

TKK33SP.7 7,421 5,256 3,012 9002
L320 6,929 4,685 4 - MT2
PDF
DWG
View
  • Color (Ral): 9002
  • Material: L320
  • MAX PCB L (mm): 176
  • MAX PCB W (mm): 119
  • Screws: 4
  • Battery: -
  • Accessories: MT2
  • Drawings:  PDF  DWG

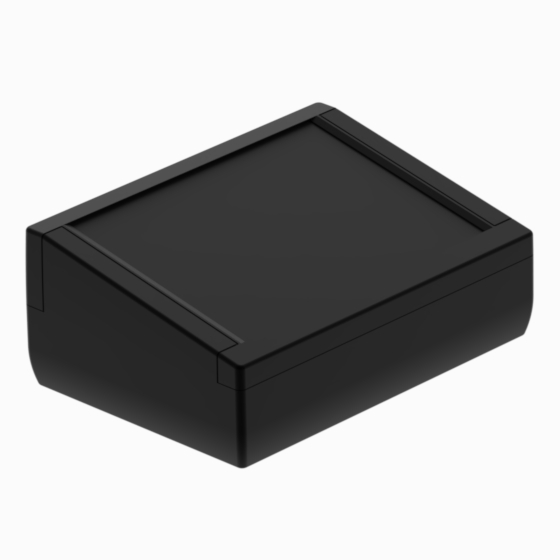

TKK33SP.9 7,421 5,256 3,012 9004
P2H-AT 6,929 4,685 4 - MT2
PDF
DWG
View
  • Color (Ral): 9004
  • Material: P2H-AT
  • MAX PCB L (mm): 176
  • MAX PCB W (mm): 119
  • Screws: 4
  • Battery: -
  • Accessories: MT2
  • Drawings:  PDF  DWG
