10016

Family Pocket - Electronic enclosures - Plastic

Description

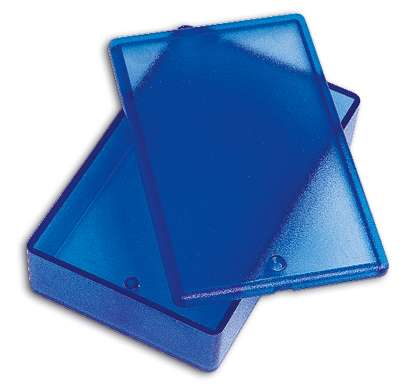

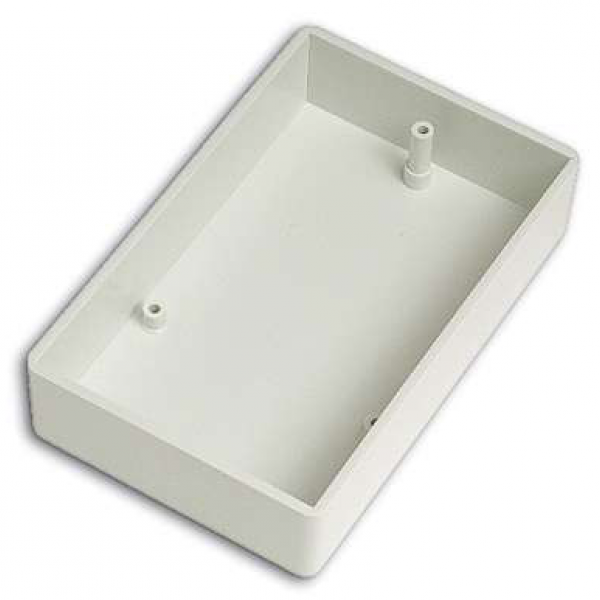

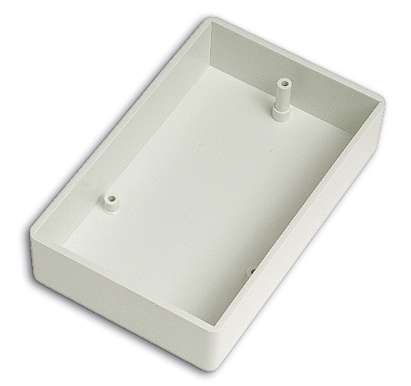

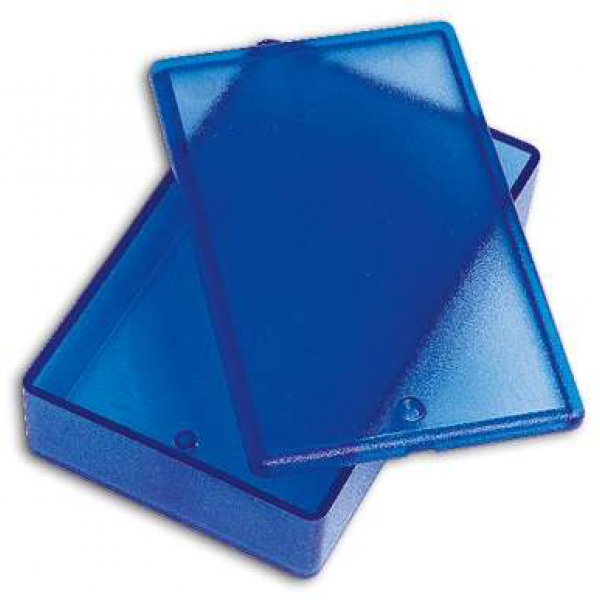

ABS enclosure with rounded corners. Base and cover have integral PCB mounting studs. They are moulded in white and transparent blue. Matt surface finish. Closing by one screw.

Details

Products

Model L (inch) W (inch) H (inch) Color (Ral) Material MAX PCB L (inch) MAX PCB W (inch) Screws Battery Accessories Drawings Other

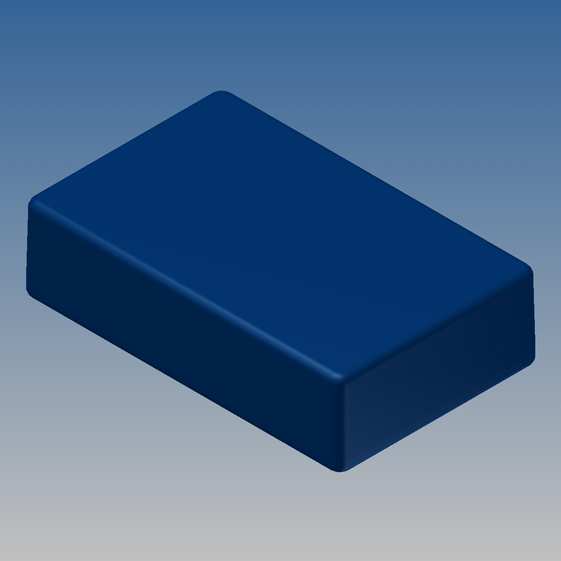

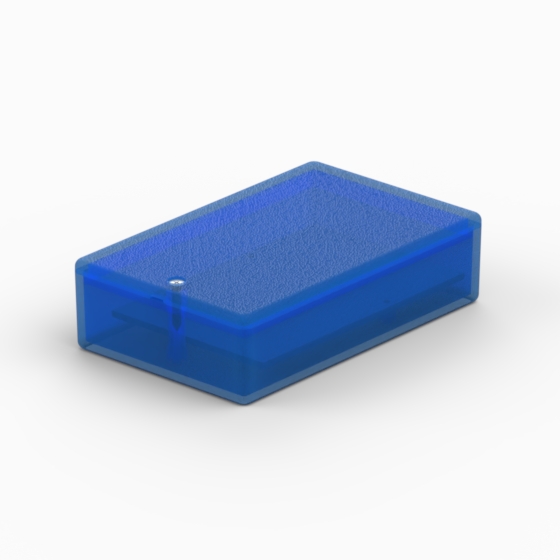

10016.33 3,567 2,252 0,937  -
ZYLAR-631 2,992 1,957 1 - PDF
DWG
View
  • Color (Ral):  -
  • Material: ZYLAR-631
  • MAX PCB L (mm): 76
  • MAX PCB W (mm): 49,7
  • Screws: 1
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

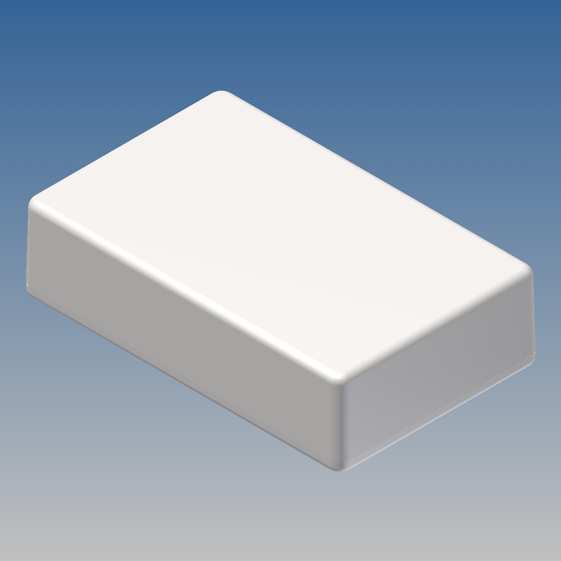

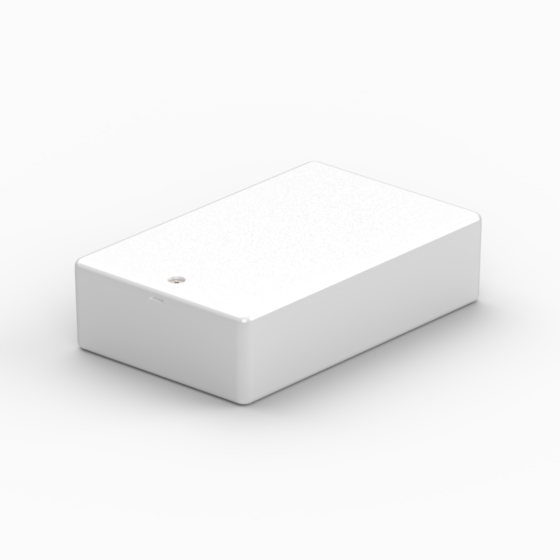

10016.7 3,567 2,252 0,937 9002
L320 2,992 1,957 1 - PDF
DWG
View
  • Color (Ral): 9002
  • Material: L320
  • MAX PCB L (mm): 76
  • MAX PCB W (mm): 49,7
  • Screws: 1
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG
