OVO-1

Family Pocket - Electronic enclosures - Plastic

Description

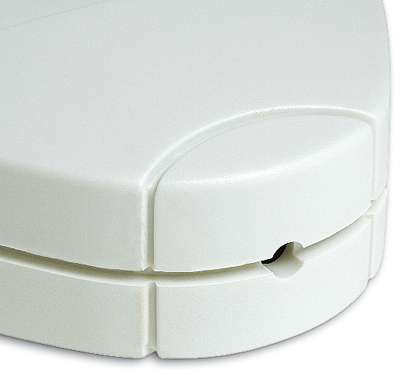

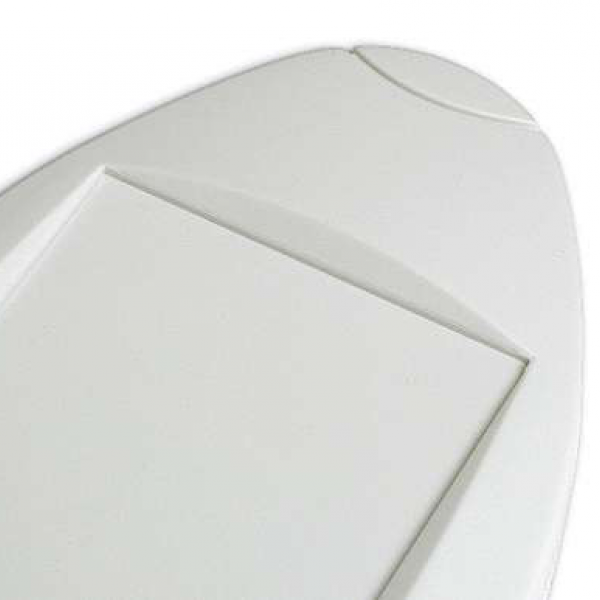

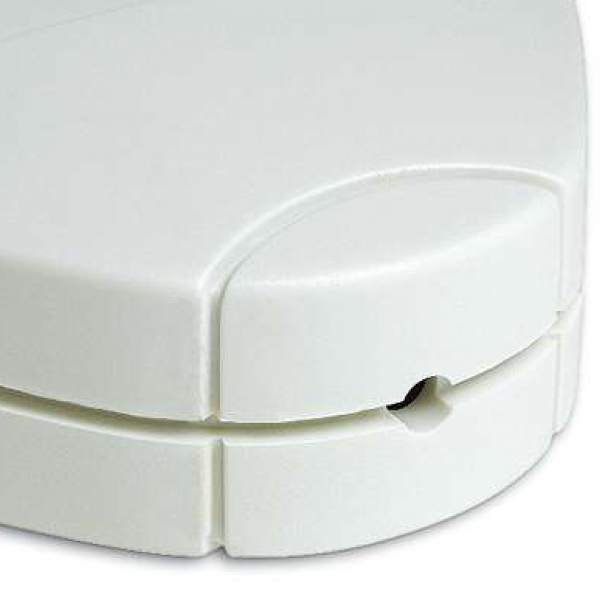

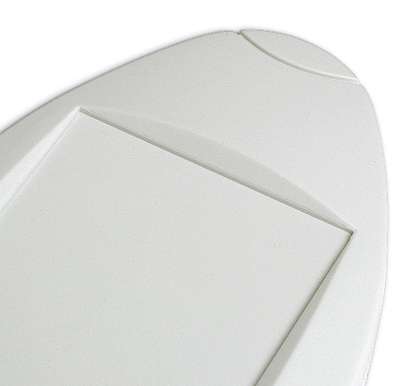

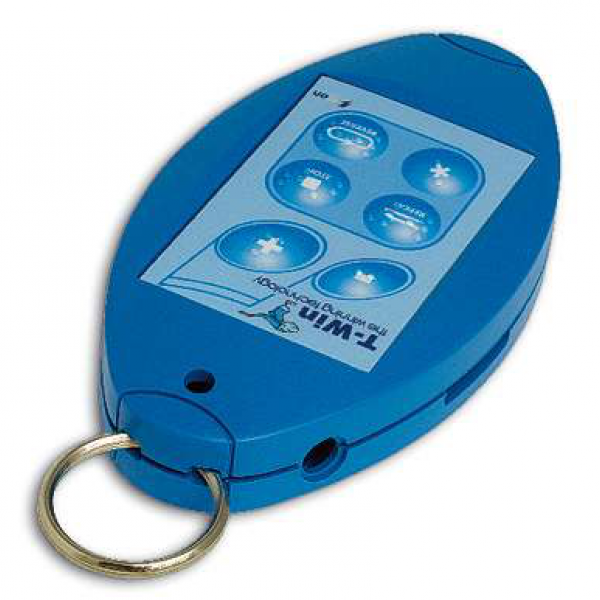

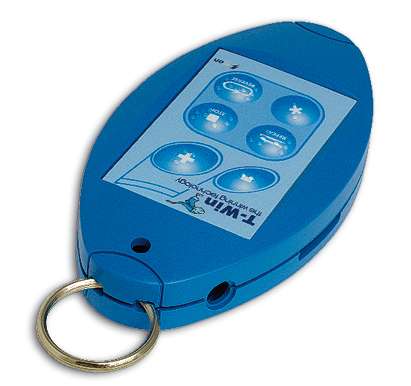

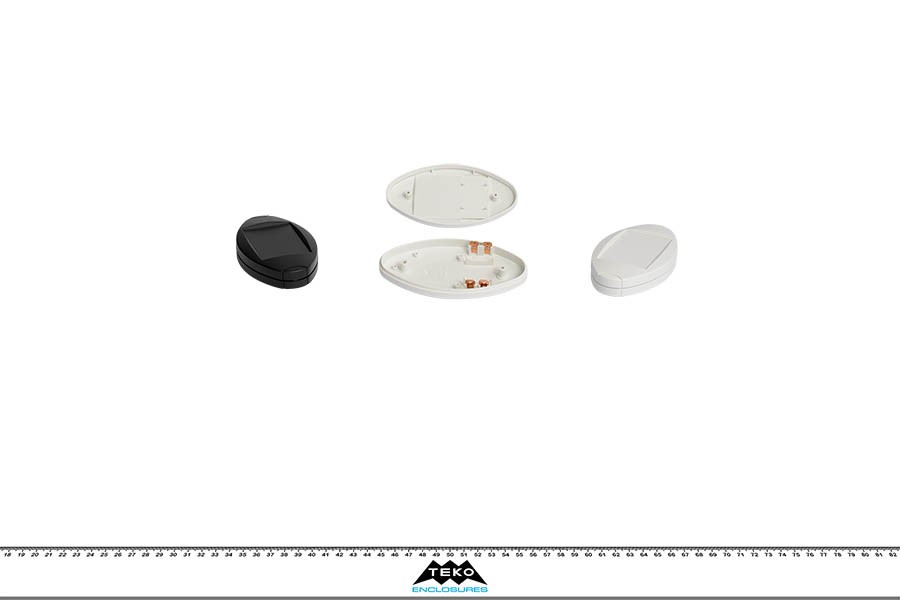

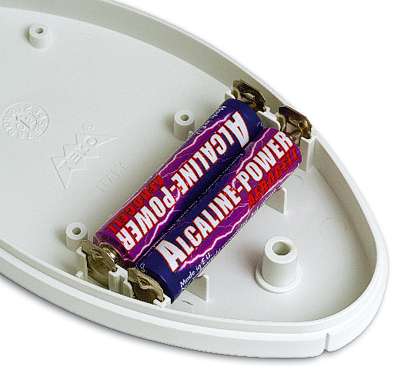

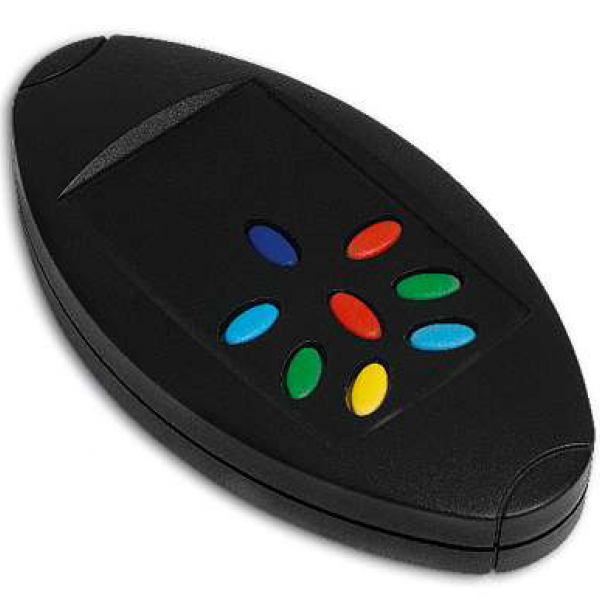

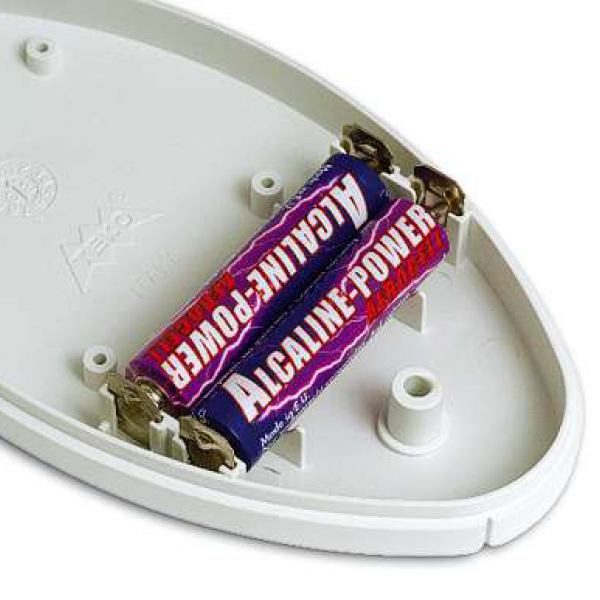

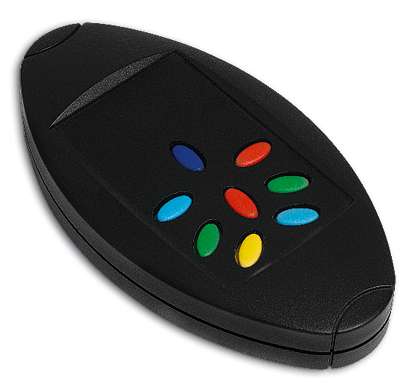

Ergonomic designed ABS enclosures with a recessed operating area for membrane keyboard. Matt surface finish. Integrated supports for two 1.5V microcells (AAA). The model “OVO-1IR” has a front opening for a LED. Closing by two screws.

Details

Products

Model L (inch) W (inch) H (inch) Color (Ral) Material MAX PCB L (inch) MAX PCB W (inch) Screws Battery Accessories Drawings Other

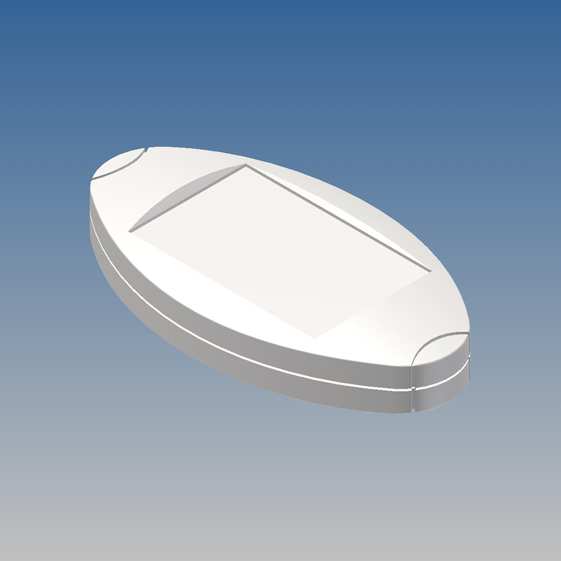

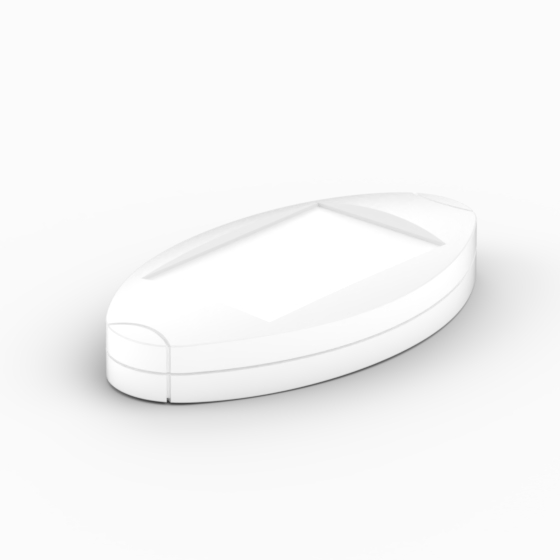

OVO-1.7 4,89 2,61 0,906 9002
L320 2,579 2,256 2 2 x AAA PDF
DWG
View
  • Color (Ral): 9002
  • Material: L320
  • MAX PCB L (mm): 65,5
  • MAX PCB W (mm): 57,3
  • Screws: 2
  • Battery: 2 x AAA
  • Accessories:
  • Drawings:  PDF  DWG

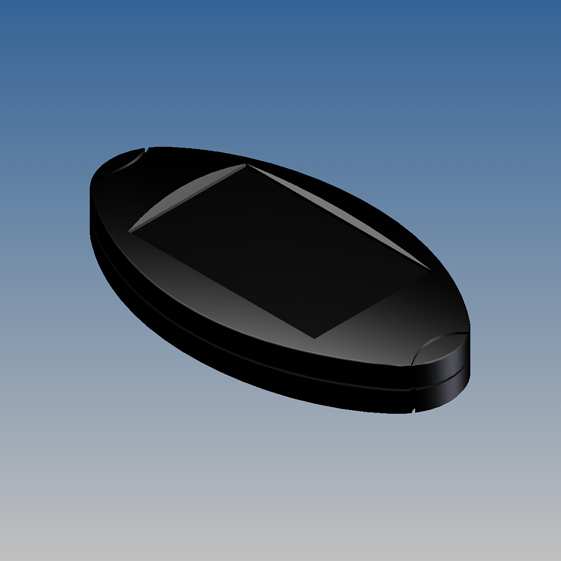

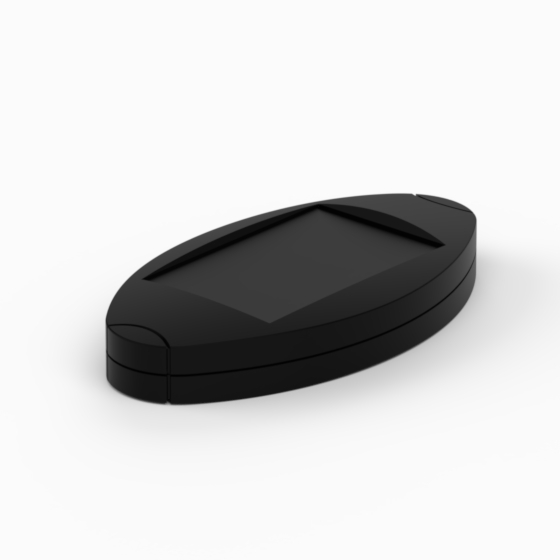

OVO-1.9 4,89 2,61 0,906 9004
P2H-AT 2,579 2,256 2 2 x AAA PDF
DWG
View
  • Color (Ral): 9004
  • Material: P2H-AT
  • MAX PCB L (mm): 65,5
  • MAX PCB W (mm): 57,3
  • Screws: 2
  • Battery: 2 x AAA
  • Accessories:
  • Drawings:  PDF  DWG

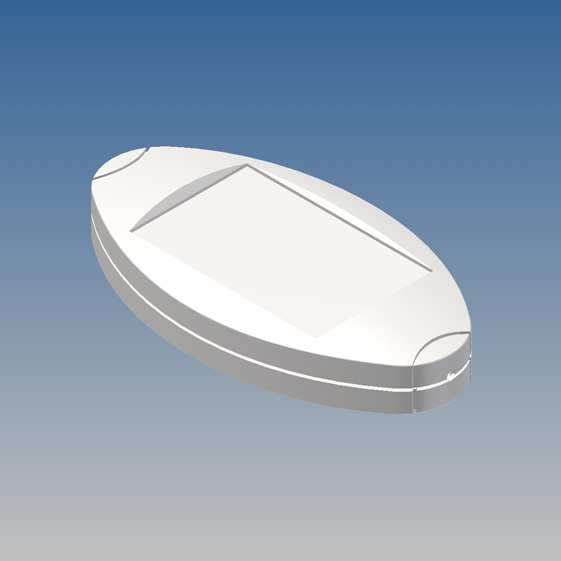

OVO-1IR.7 4,89 2,61 0,906 9002
L320 2,579 2,256 2 2 x AAA PDF
DWG
View
  • Color (Ral): 9002
  • Material: L320
  • MAX PCB L (mm): 65,5
  • MAX PCB W (mm): 57,3
  • Screws: 2
  • Battery: 2 x AAA
  • Accessories:
  • Drawings:  PDF  DWG

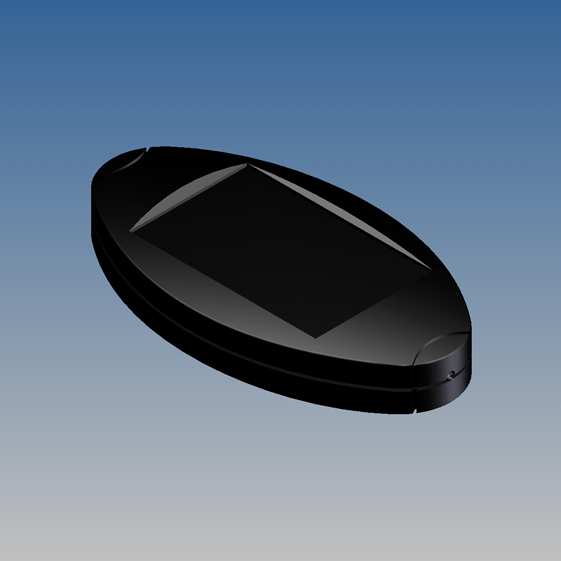

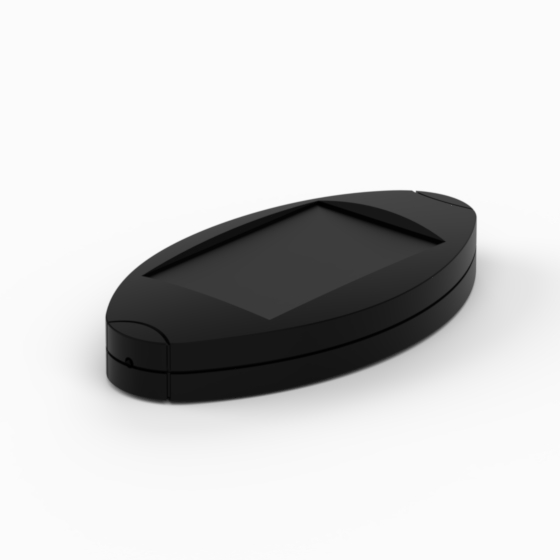

OVO-1IR.9 4,89 2,61 0,906 9004
P2H-AT 2,579 2,256 2 2 x AAA PDF
DWG
View
  • Color (Ral): 9004
  • Material: P2H-AT
  • MAX PCB L (mm): 65,5
  • MAX PCB W (mm): 57,3
  • Screws: 2
  • Battery: 2 x AAA
  • Accessories:
  • Drawings:  PDF  DWG
