OVO-3

Family Pocket - Electronic enclosures - Plastic

Description

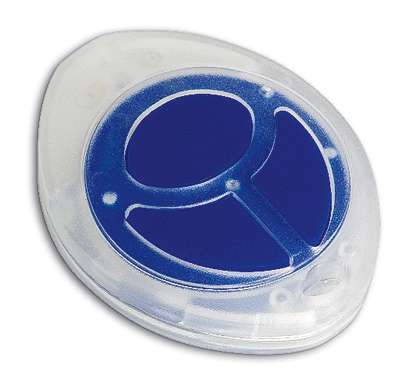

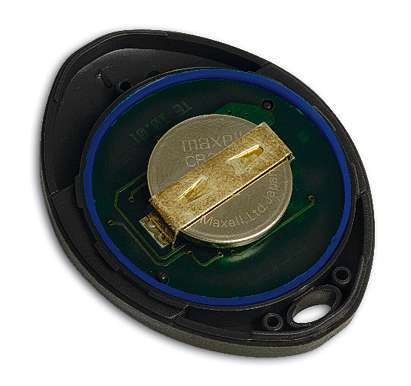

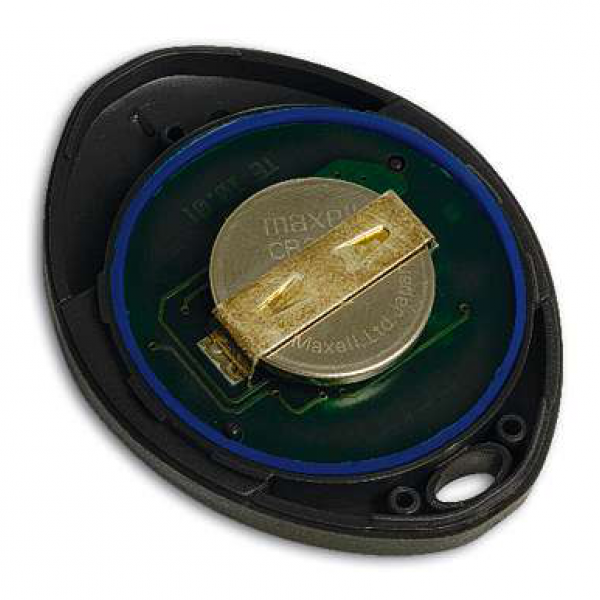

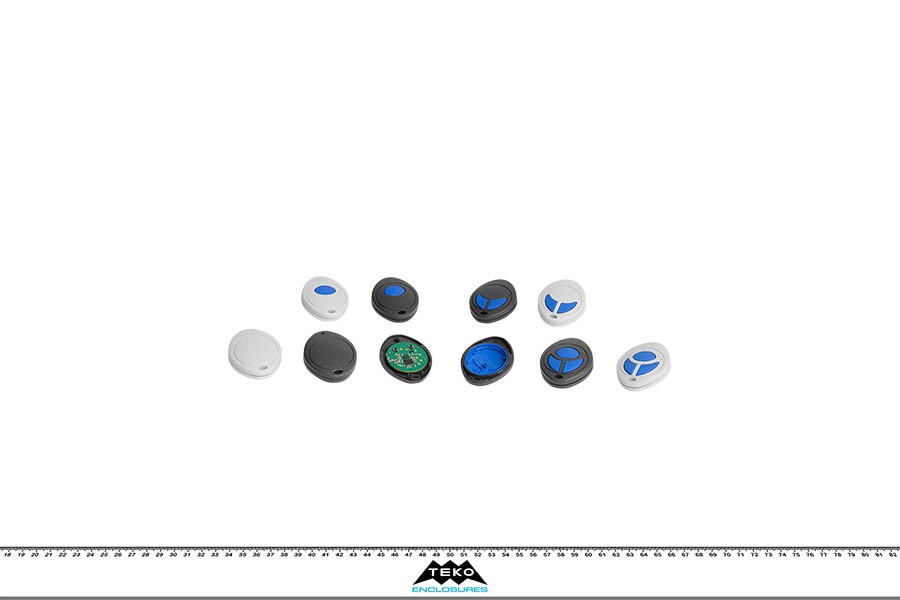

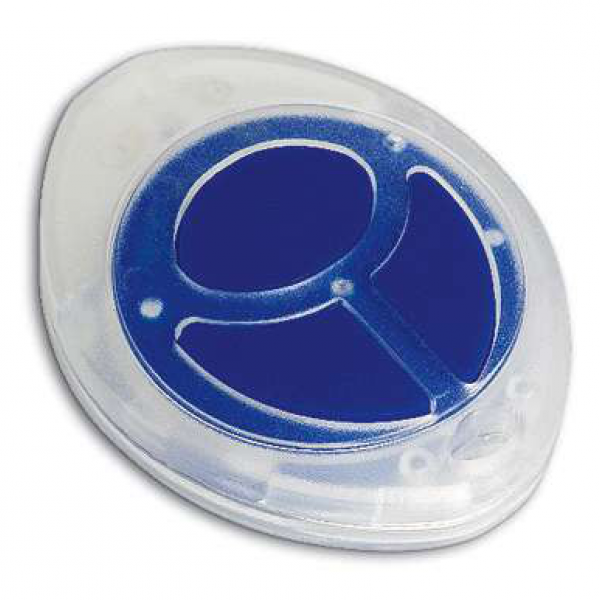

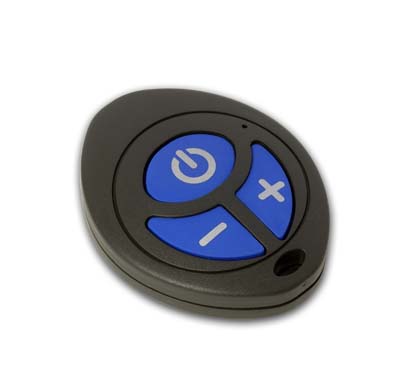

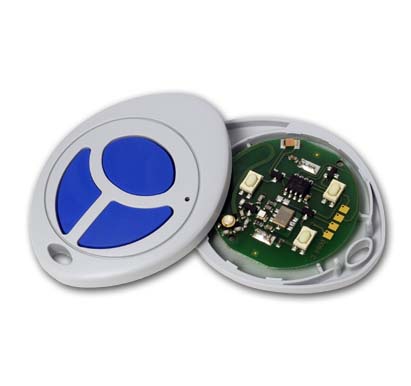

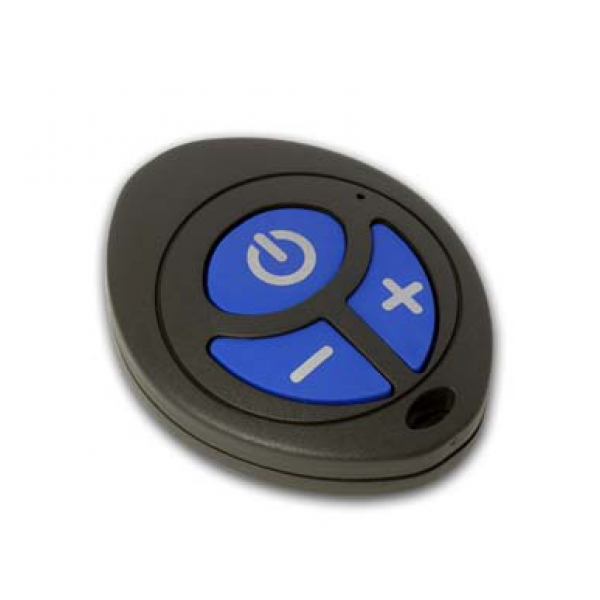

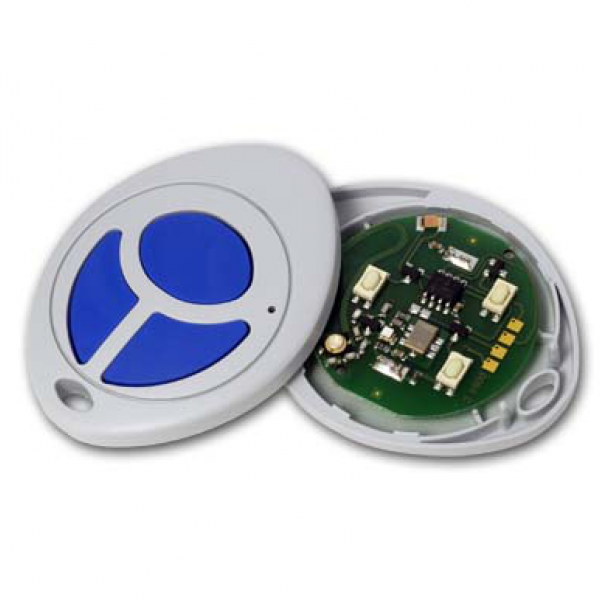

Ergonomic designed ABS pocket enclosures with one, two or three push-buttons,available in six different colours, configuration. Space for round PCB (35 mm.) with button cells batteries. The model “OVO-3/0” has no buttons. Matt surface finish.

Details

Products

Model L (inch) W (inch) H (inch) Color (Ral) Material MAX PCB L (inch) MAX PCB W (inch) Screws Battery Accessories Drawings Other

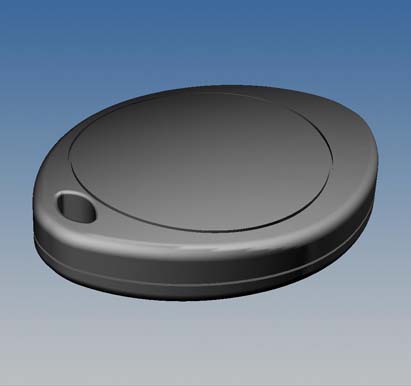

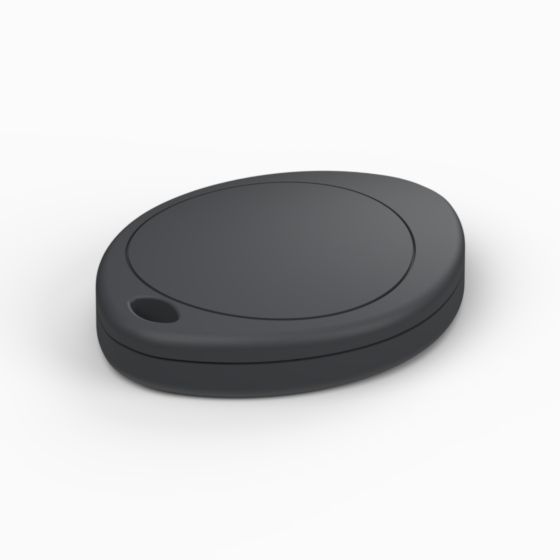

OVO-3/0.4 2,165 1,72 0,551 7016
GP40 Ø 1,354 - - AB2032
PDF
DWG
View
  • Color (Ral): 7016
  • Material: GP40
  • MAX PCB L (mm): Ø
  • MAX PCB W (mm): 34,4
  • Screws: -
  • Battery: -
  • Accessories: AB2032
  • Drawings:  PDF  DWG

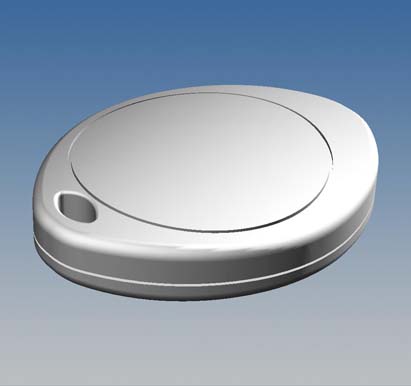

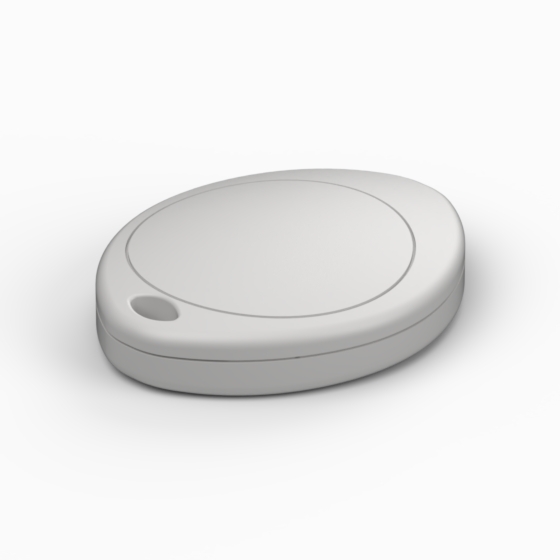

OVO-3/0.5 2,165 1,72 0,551 9018
AG-ATY Ø 1,354 - - AB2032
PDF
DWG
View

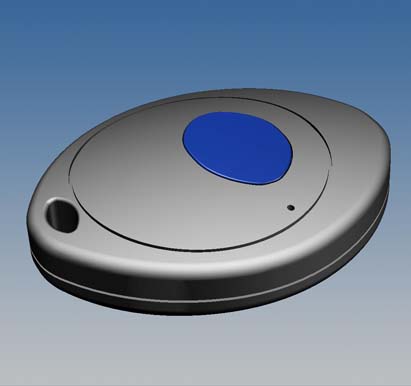

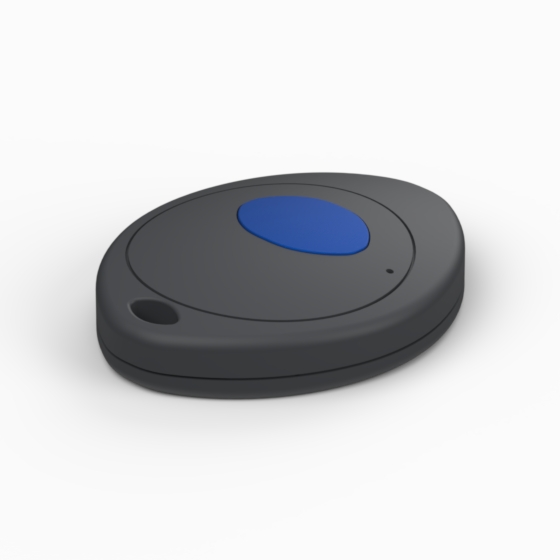

OVO-3/1.4 2,165 1,72 0,551 7016
GP40 Ø 1,354 - - AB2032
OT1
PDF
DWG
View

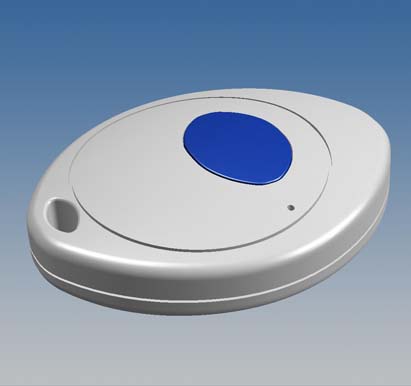

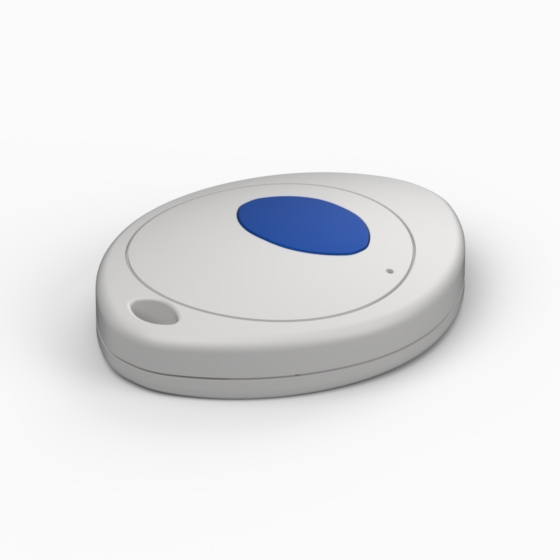

OVO-3/1.5 2,165 1,72 0,551 9018
AG-ATY Ø 1,354 - - AB2032
OT1
PDF
DWG
View
OVO-3/2.4 2,165 1,72 0,551 7016
GP40 Ø 1,354 - - AB2032
OT2
PDF
DWG
View

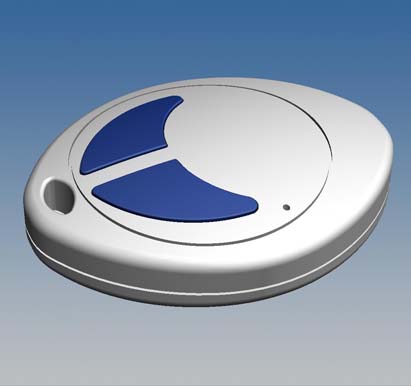

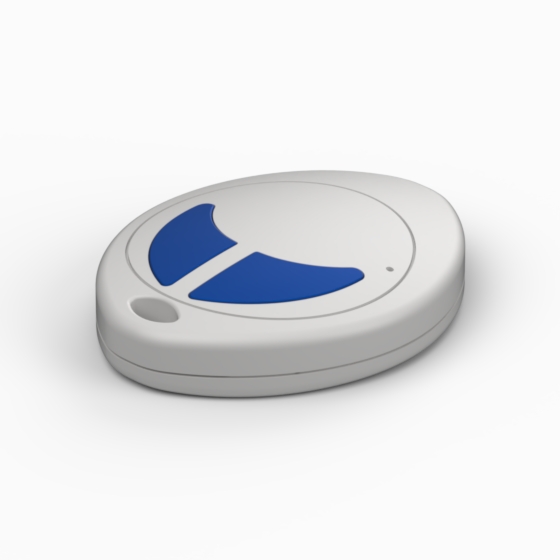

OVO-3/2.5 2,165 1,72 0,551 9018
AG-ATY Ø 1,354 - - AB2032
OT2
PDF
DWG
View

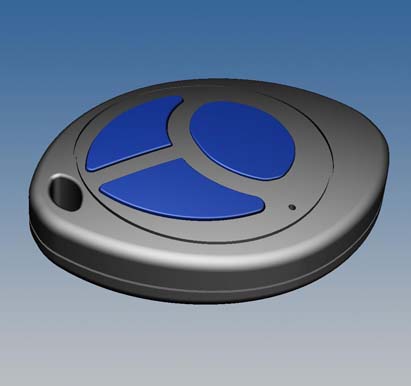

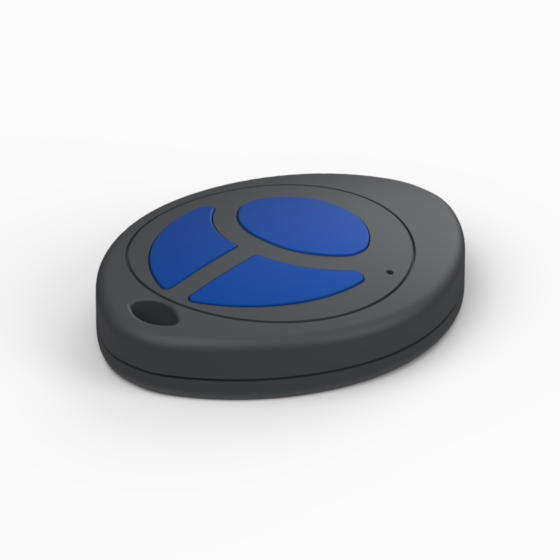

OVO-3/3.4 2,165 1,72 0,551 7016
GP40 Ø 1,354 - - AB2032

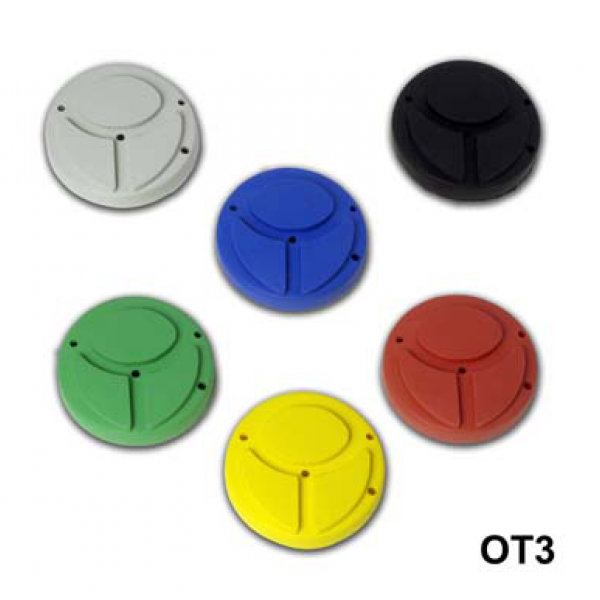

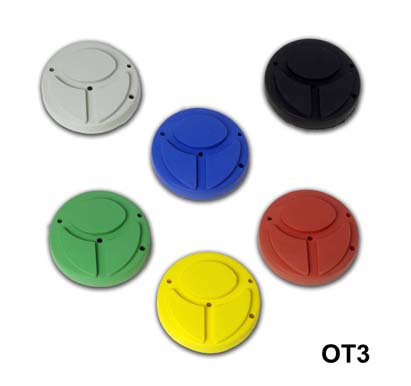

OT3
PDF
DWG
View

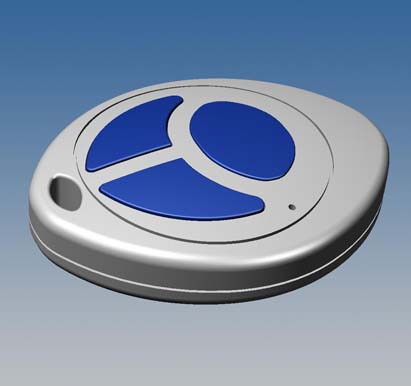

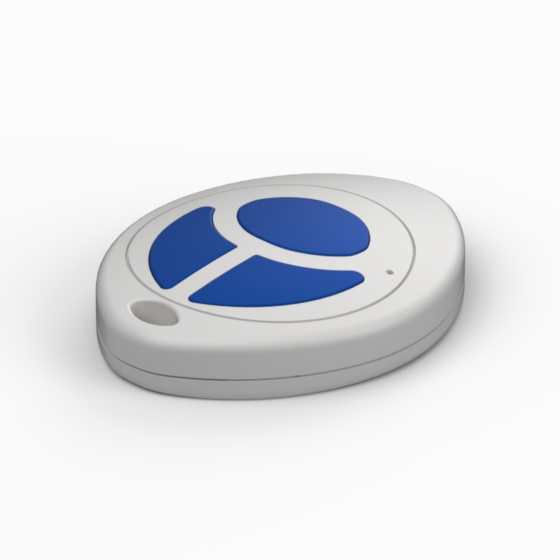

OVO-3/3.5 2,165 1,72 0,551 9018
AG-ATY Ø 1,354 - - AB2032
OT3
PDF
DWG
View
