POCKET 10

Family Pocket - Electronic enclosures - Plastic

Description

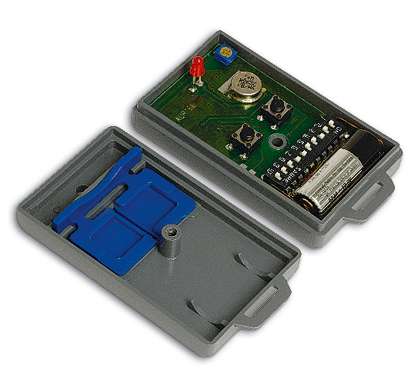

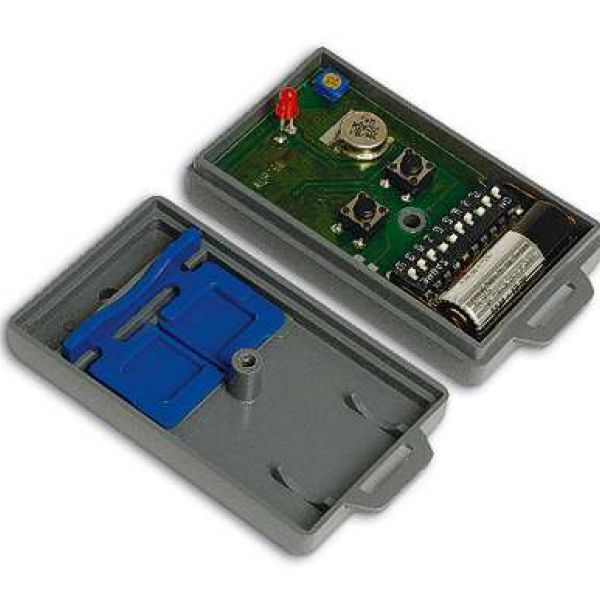

ABS enclosures with rounded corners with one or two push-button configurations. The base has a integral PCB mounting studs. The enclosure is supplied with two metal contacts for 12V battery (Mod. AB12). Matt surface finish. Closing by one screw.

Details

Products

Model L (inch) W (inch) H (inch) Color (Ral) Material MAX PCB L (inch) MAX PCB W (inch) Screws Battery Accessories Drawings Other

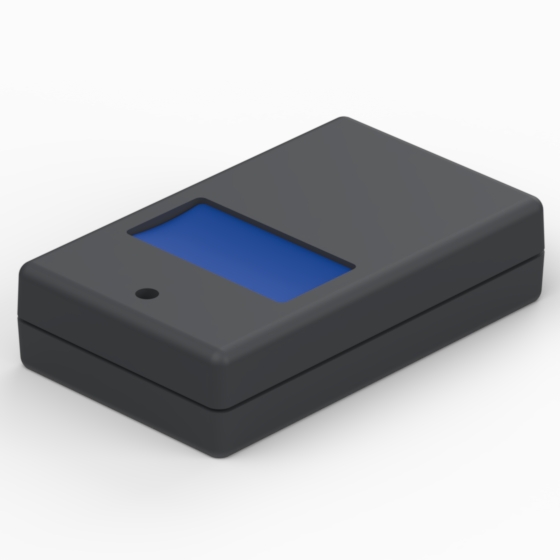

10120.2 2,402 1,457 0,591 7012
N-UT 1,693 1,240 1 1 x 12V PDF
DWG
View
  • Color (Ral): 7012
  • Material: N-UT
  • MAX PCB L (mm): 43
  • MAX PCB W (mm): 31,5
  • Screws: 1
  • Battery: 1 x 12V
  • Accessories:
  • Drawings:  PDF  DWG
10120.9 2,402 1,457 0,591 9004
GP40 1,693 1,240 1 1 x 12V PDF
DWG
View
  • Color (Ral): 9004
  • Material: GP40
  • MAX PCB L (mm): 43
  • MAX PCB W (mm): 31,5
  • Screws: 1
  • Battery: 1 x 12V
  • Accessories:
  • Drawings:  PDF  DWG

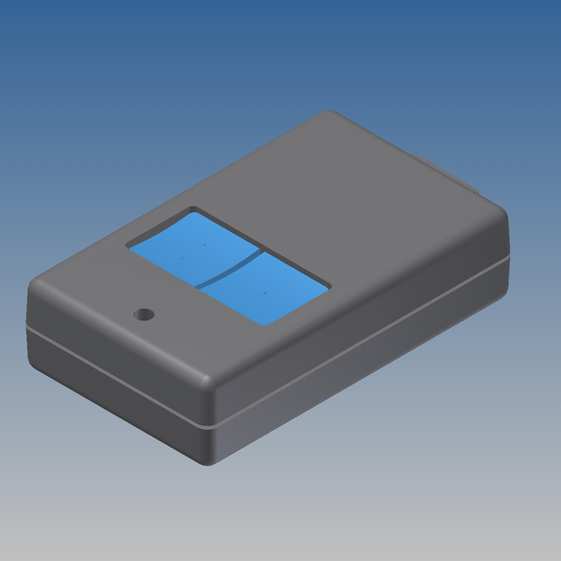

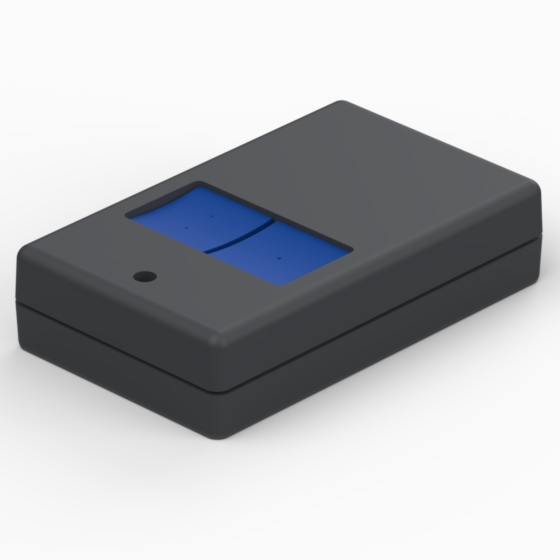

10120/2.2 2,402 1,457 0,591 7012
N-UT 1,693 1,240 1 1 x 12V PDF
DWG
View
  • Color (Ral): 7012
  • Material: N-UT
  • MAX PCB L (mm): 43
  • MAX PCB W (mm): 31,5
  • Screws: 1
  • Battery: 1 x 12V
  • Accessories:
  • Drawings:  PDF  DWG

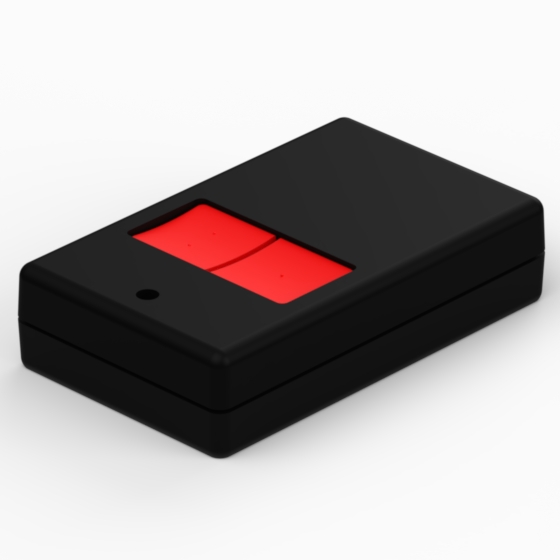

10120/2.9 2,402 1,457 0,591 9004
GP40 1,693 1,240 1 1 x 12V PDF
DWG
View
  • Color (Ral): 9004
  • Material: GP40
  • MAX PCB L (mm): 43
  • MAX PCB W (mm): 31,5
  • Screws: 1
  • Battery: 1 x 12V
  • Accessories:
  • Drawings:  PDF  DWG
