POCKET 12

Family Pocket - Electronic enclosures - Plastic

Description

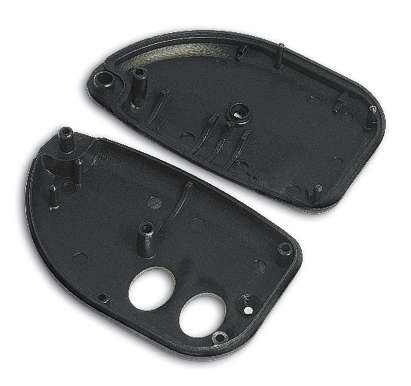

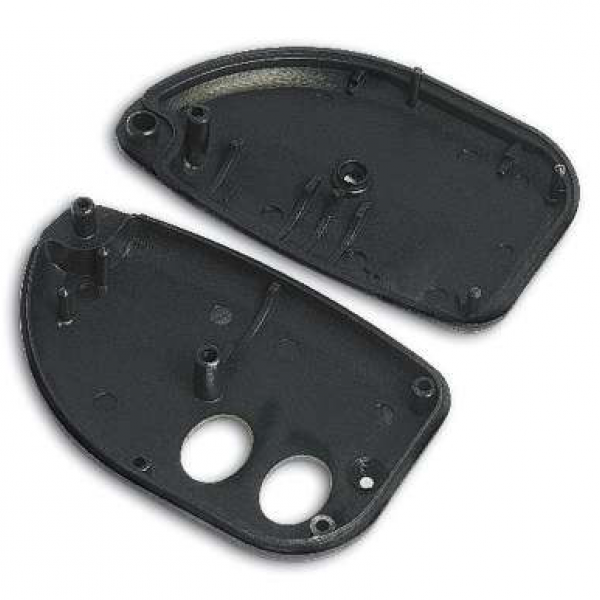

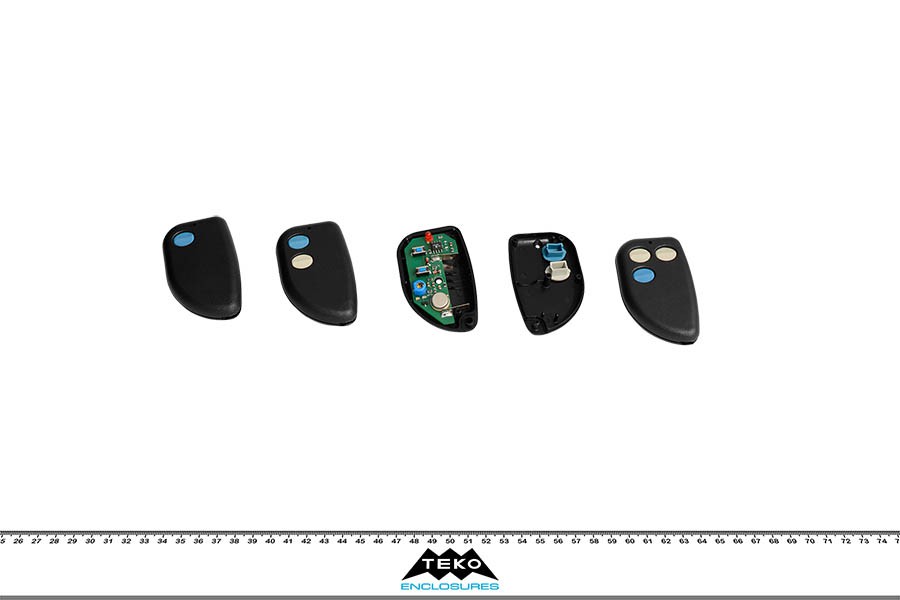

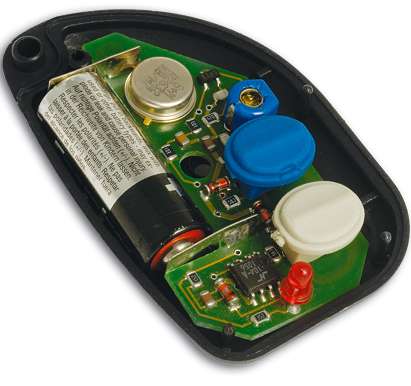

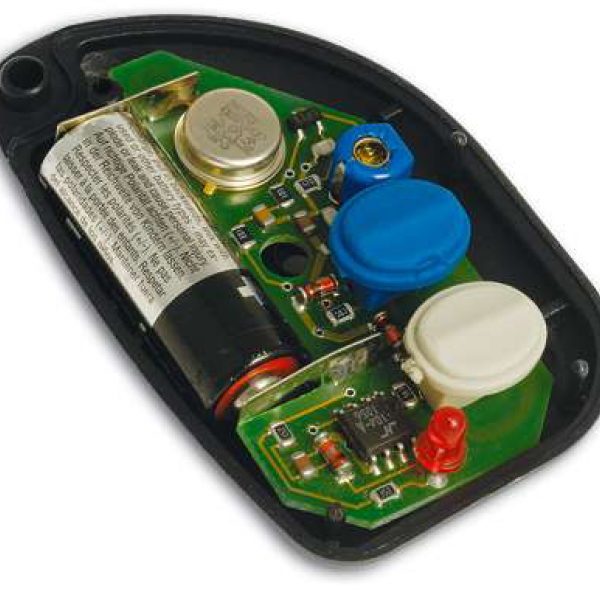

ABS enclosures with an innovative design. Three models available with one, two or three push-button configurations. The base has a integral PCB mounting studs. The enclosure is supplied with two metal contacts for 12V battery (Mod. ABM). Matt surface finish. Closing by one screw.

Details

Products

Model L (inch) W (inch) H (inch) Color (Ral) Material MAX PCB L (inch) MAX PCB W (inch) Screws Battery Accessories Drawings Other

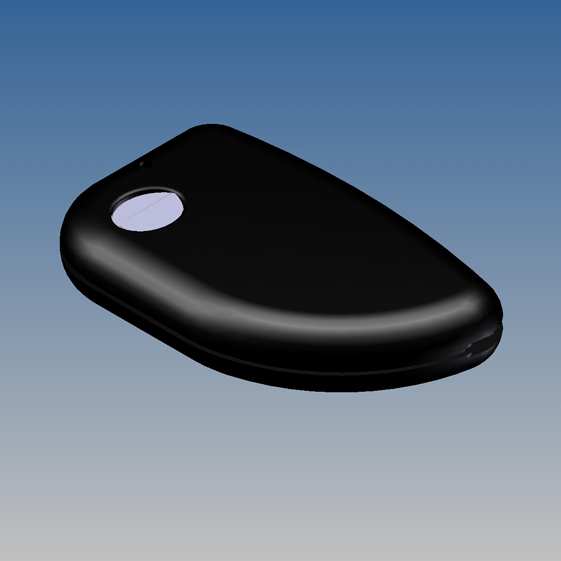

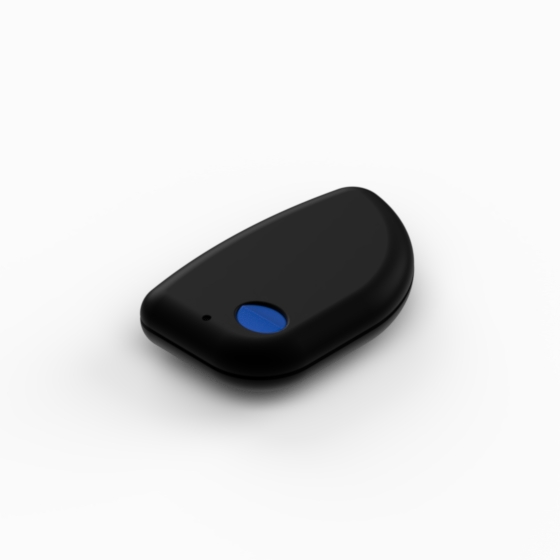

12121.9 2,224 1,398 0,531 9004
P2H-AT - - 1 1 x 12V PDF
DWG
View
  • Color (Ral): 9004
  • Material: P2H-AT
  • MAX PCB L (mm): -
  • MAX PCB W (mm): -
  • Screws: 1
  • Battery: 1 x 12V
  • Accessories:
  • Drawings:  PDF  DWG

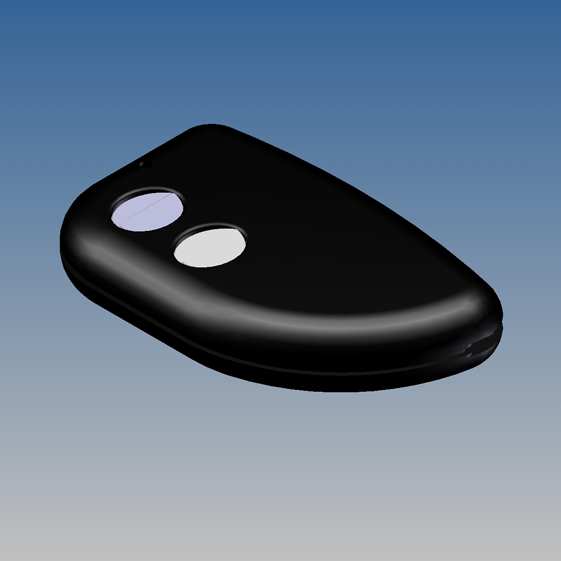

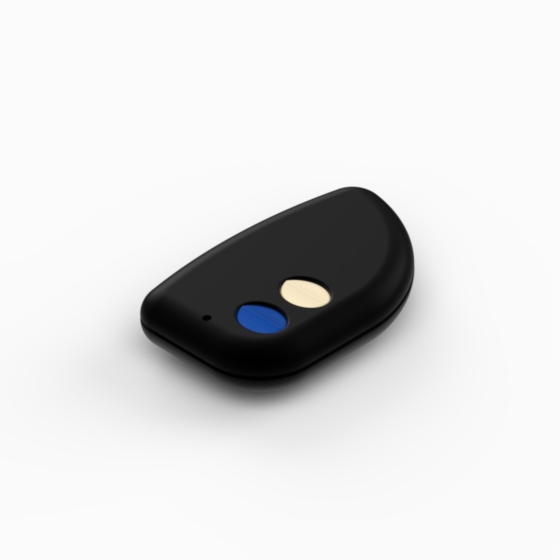

12122.9 2,224 1,398 0,531 9004
P2H-AT - - 1 1 x 12V PDF
DWG
View
  • Color (Ral): 9004
  • Material: P2H-AT
  • MAX PCB L (mm): -
  • MAX PCB W (mm): -
  • Screws: 1
  • Battery: 1 x 12V
  • Accessories:
  • Drawings:  PDF  DWG

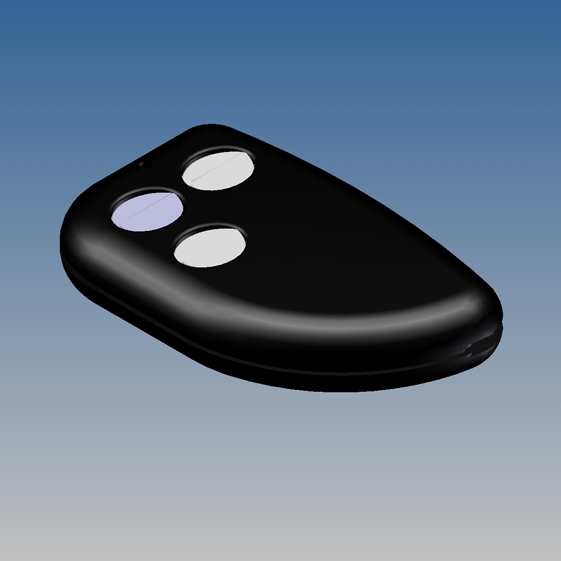

12123.9 2,224 1,398 0,531 9004
P2H-AT - - 1 1 x 12V PDF
DWG
View
  • Color (Ral): 9004
  • Material: P2H-AT
  • MAX PCB L (mm): -
  • MAX PCB W (mm): -
  • Screws: 1
  • Battery: 1 x 12V
  • Accessories:
  • Drawings:  PDF  DWG
