POCKET CARD

Family Pocket - Electronic enclosures - Plastic

Description

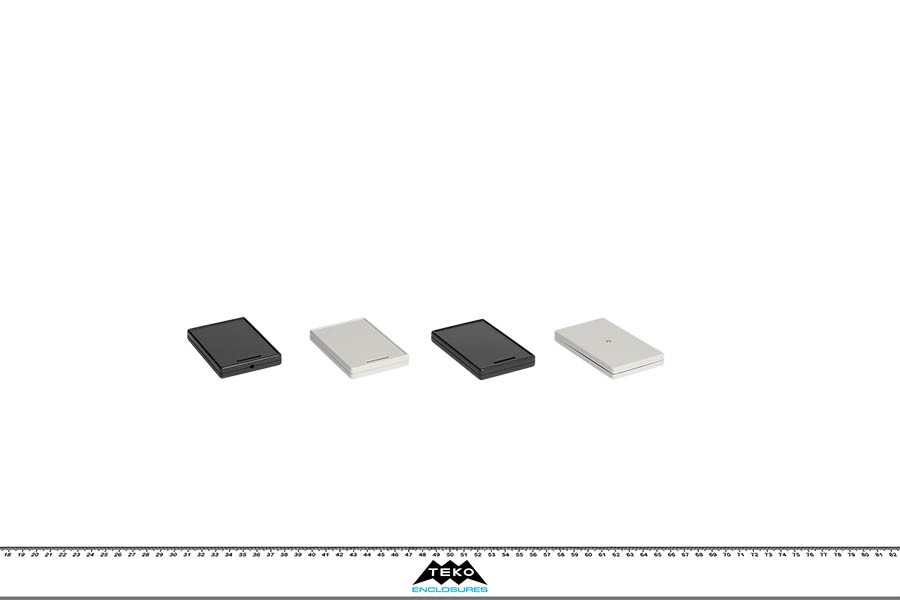

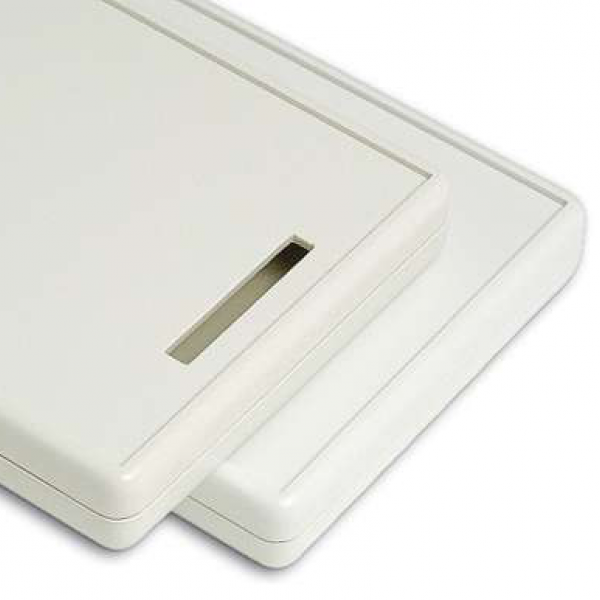

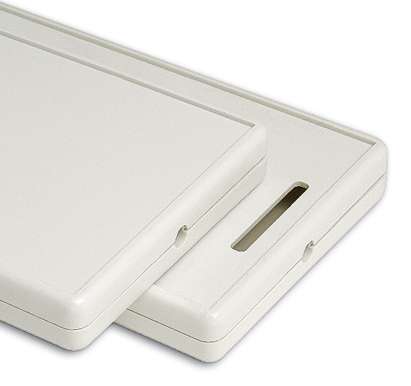

ABS enclosures with a innovative design. The top cover has a recessed operating area for membrane keyboards. Space for 3V small round cells. Four versions available: basic (PC), opening for flat cable (PC-1), LED front opening (PC-XIR) and opening for flat cable plus LED (PC-IR). Closing by only one screw.

Details

Products

Model L (inch) W (inch) H (inch) Color (Ral) Material MAX PCB L (inch) MAX PCB W (inch) Screws Battery Accessories Drawings Other

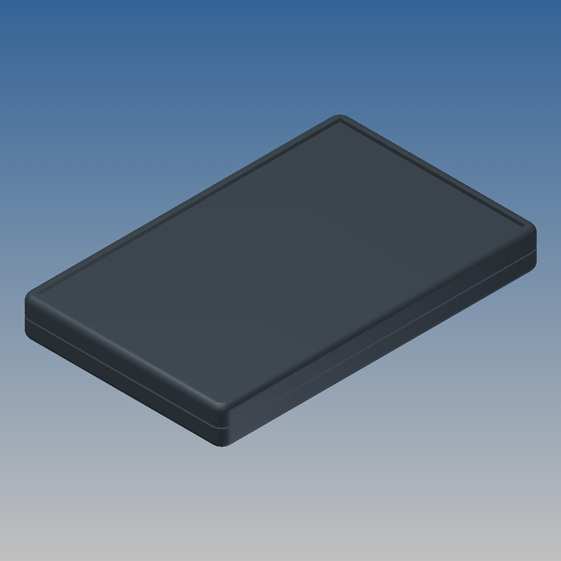

PC.4 3,346 2,126 0,394 7016
GP40 3,130 1,953 1 - PDF
DWG
View
  • Color (Ral): 7016
  • Material: GP40
  • MAX PCB L (mm): 79,5
  • MAX PCB W (mm): 49,6
  • Screws: 1
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

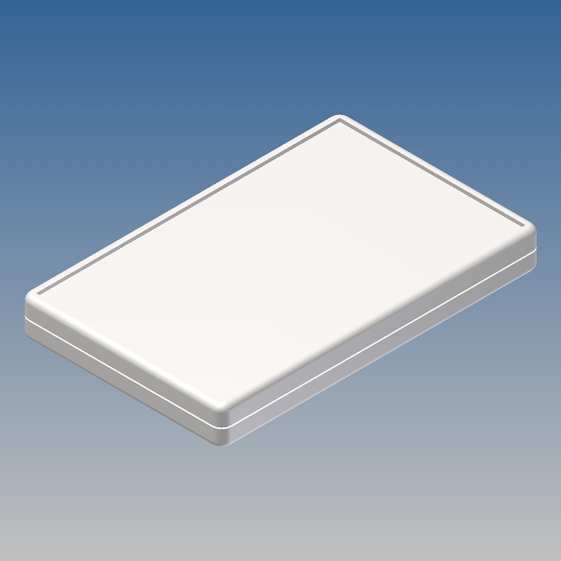

PC.7 3,346 2,126 0,394 9002
L320 3,130 1,953 1 - PDF
DWG
View
  • Color (Ral): 9002
  • Material: L320
  • MAX PCB L (mm): 79,5
  • MAX PCB W (mm): 49,6
  • Screws: 1
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG
PC-1.4 3,346 2,126 0,394 7016
GP40 3,130 1,953 1 - PDF
DWG
View
  • Color (Ral): 7016
  • Material: GP40
  • MAX PCB L (mm): 79,5
  • MAX PCB W (mm): 49,6
  • Screws: 1
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

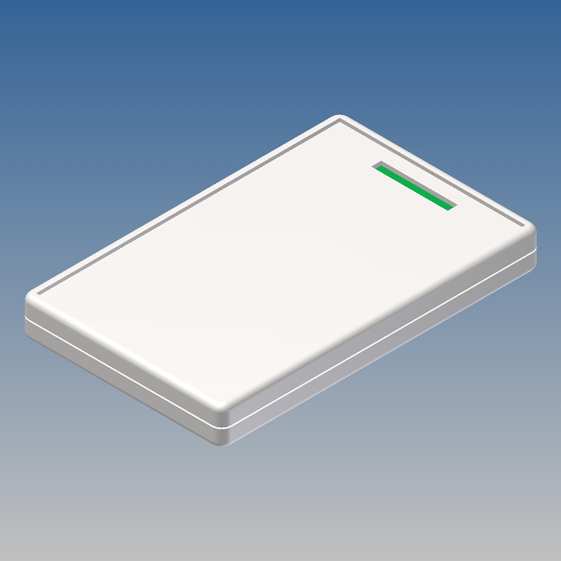

PC-1.7 3,346 2,126 0,394 9002
L320 3,130 1,953 1 - PDF
DWG
View
  • Color (Ral): 9002
  • Material: L320
  • MAX PCB L (mm): 79,5
  • MAX PCB W (mm): 49,6
  • Screws: 1
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

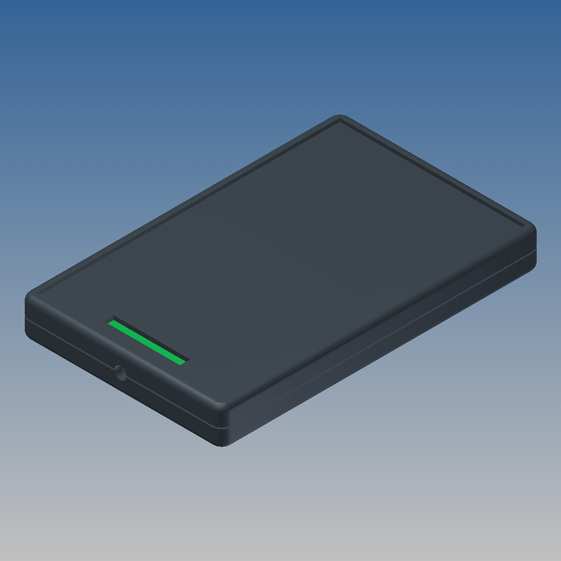

PC-IR.4 3,346 2,126 0,394 7016
GP40 3,130 1,953 1 - PDF
DWG
View
  • Color (Ral): 7016
  • Material: GP40
  • MAX PCB L (mm): 79,5
  • MAX PCB W (mm): 49,6
  • Screws: 1
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

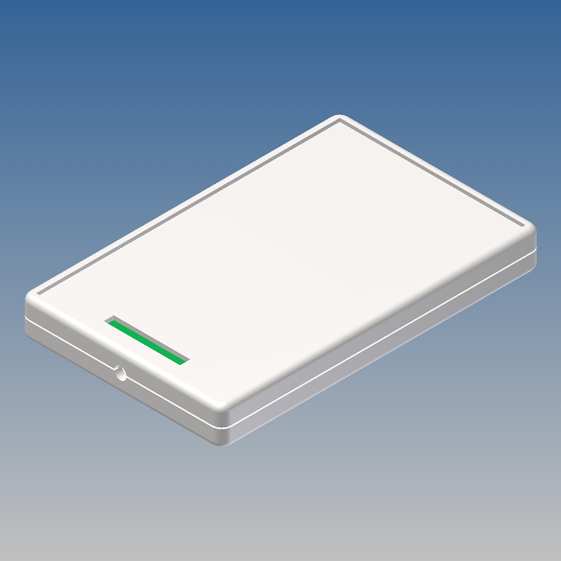

PC-IR.7 3,346 2,126 0,394 9002
L320 3,130 1,953 1 - PDF
DWG
View
  • Color (Ral): 9002
  • Material: L320
  • MAX PCB L (mm): 79,5
  • MAX PCB W (mm): 49,6
  • Screws: 1
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

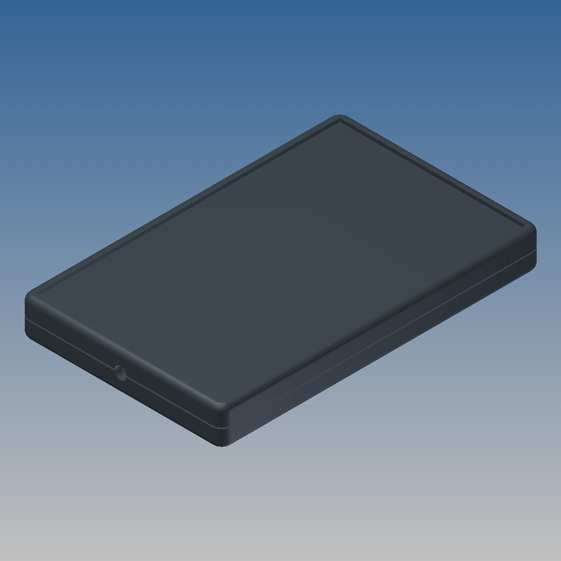

PC-XIR.4 3,346 2,126 0,394 7016
GP40 3,130 1,953 1 - PDF
DWG
View
  • Color (Ral): 7016
  • Material: GP40
  • MAX PCB L (mm): 79,5
  • MAX PCB W (mm): 49,6
  • Screws: 1
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG
PC-XIR.7 3,346 2,126 0,394 9002
L320 3,130 1,953 1 - PDF
DWG
View
  • Color (Ral): 9002
  • Material: L320
  • MAX PCB L (mm): 79,5
  • MAX PCB W (mm): 49,6
  • Screws: 1
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG
