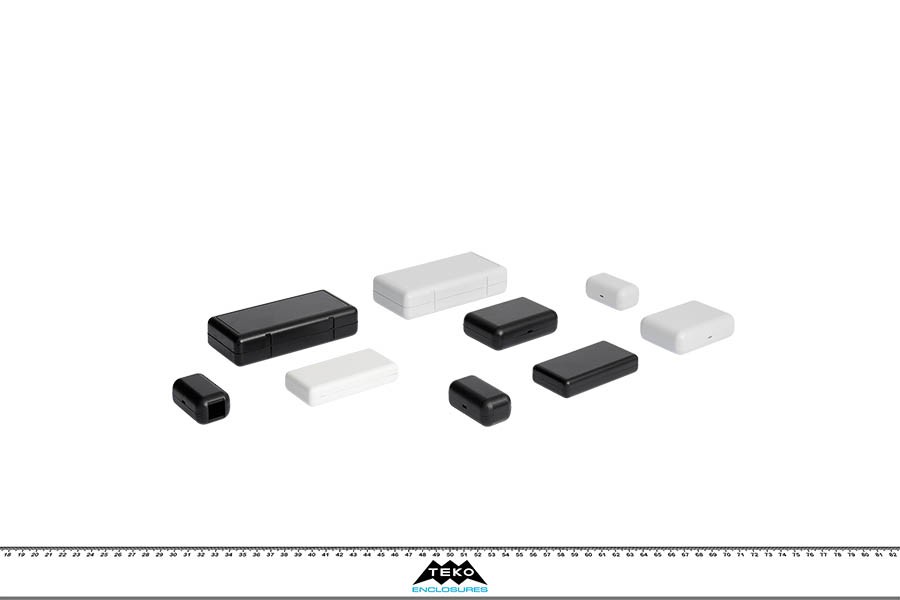

SOAP 1

Family Pocket - Electronic enclosures - Plastic

Description

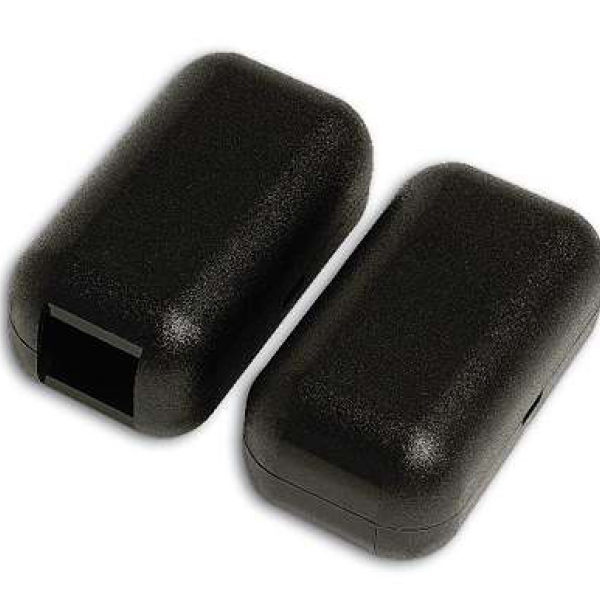

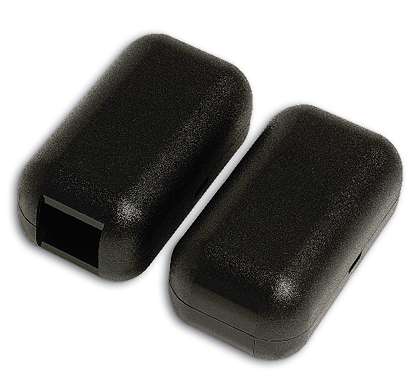

ABS enclosures with rounded corners, convenient to carry and snaps together for easy assembly. Base and cover have integral PCB mounting studs. The enclosures “10006/1” and “10006/2” are available with one or two cutouts for connectors or cables (14,7 x 12,5 mm). Matt surface finish. Only the model “10014” is available in black or white.

Details

Products

Model L (inch) W (inch) H (inch) Color (Ral) Material MAX PCB L (inch) MAX PCB W (inch) Screws Battery Accessories Drawings Other
10006.5 2,205 1,22 0,945 9018
AG-ATY 1,457 0,984 - - PDF
DWG
View
  • Color (Ral): 9018
  • Material: AG-ATY
  • MAX PCB L (mm): 37
  • MAX PCB W (mm): 25
  • Screws: -
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG
10006.9 2,205 1,22 0,945 9004
P2H-AT 1,457 0,984 - - PDF
DWG
View
  • Color (Ral): 9004
  • Material: P2H-AT
  • MAX PCB L (mm): 37
  • MAX PCB W (mm): 25
  • Screws: -
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

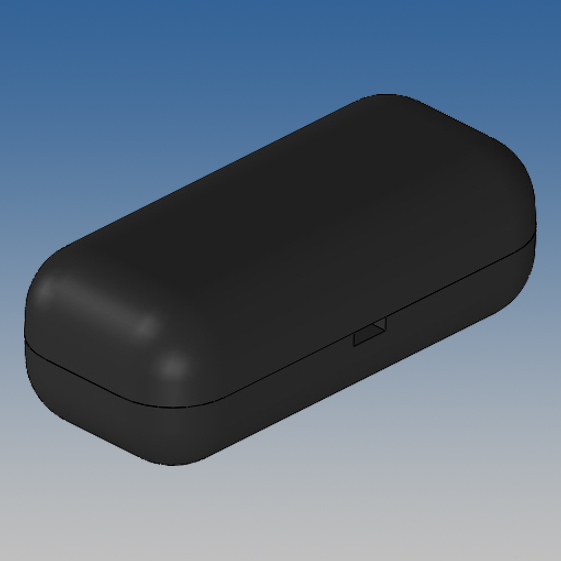

10006-L.9
NEW
2,677 1,220 0,945 9004
P2H-AT 2,402 0,965     PDF
DWG
View
  • Color (Ral): 9004
  • Material: P2H-AT
  • MAX PCB L (mm): 61
  • MAX PCB W (mm): 24,5
  • Screws:
  • Battery:
  • Accessories:
  • Drawings:  PDF  DWG

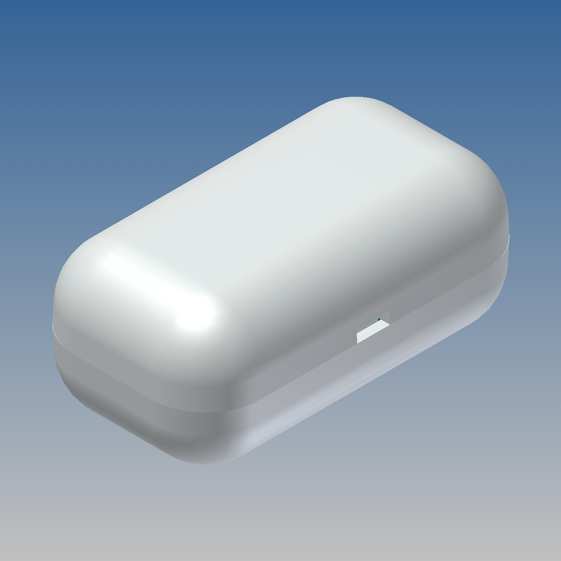

10006/1.5 2,205 1,22 0,945 9018
AG-ATY 1,457 0,984 - - PDF
DWG
View
  • Color (Ral): 9018
  • Material: AG-ATY
  • MAX PCB L (mm): 37
  • MAX PCB W (mm): 25
  • Screws: -
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

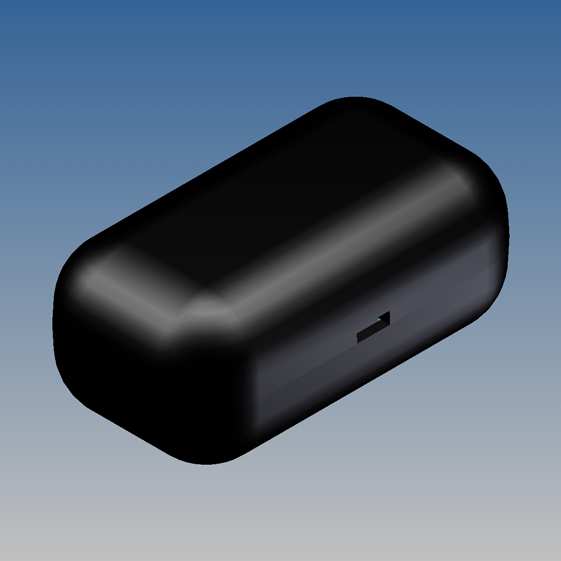

10006/1.9 2,205 1,22 0,945 9004
P2H-AT 1,457 0,984 - - PDF
DWG
View
  • Color (Ral): 9004
  • Material: P2H-AT
  • MAX PCB L (mm): 37
  • MAX PCB W (mm): 25
  • Screws: -
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

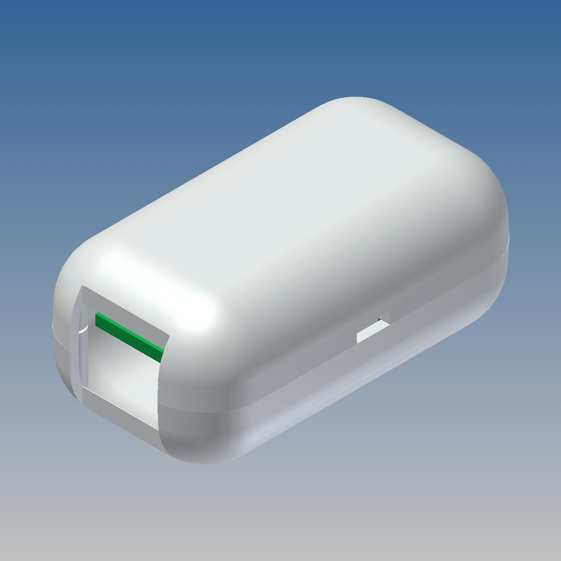

10006/2.5 2,205 1,22 0,945 9018
AG-ATY 1,457 0,984 - - PDF
DWG
View
  • Color (Ral): 9018
  • Material: AG-ATY
  • MAX PCB L (mm): 37
  • MAX PCB W (mm): 25
  • Screws: -
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

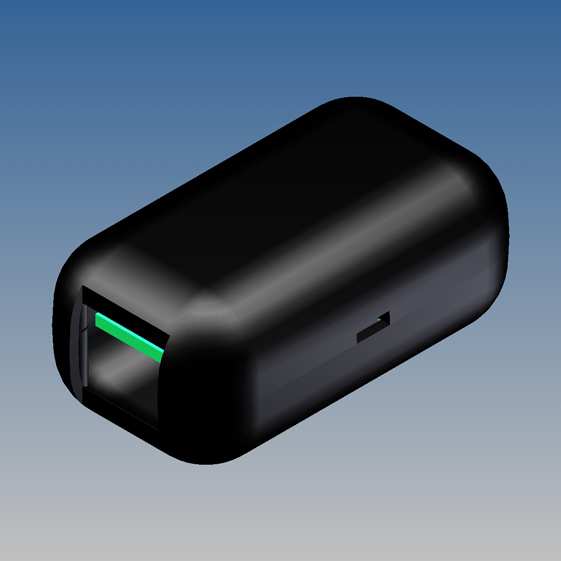

10006/2.9 2,205 1,22 0,945 9004
P2H-AT 1,457 0,984 - - PDF
DWG
View
  • Color (Ral): 9004
  • Material: P2H-AT
  • MAX PCB L (mm): 37
  • MAX PCB W (mm): 25
  • Screws: -
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

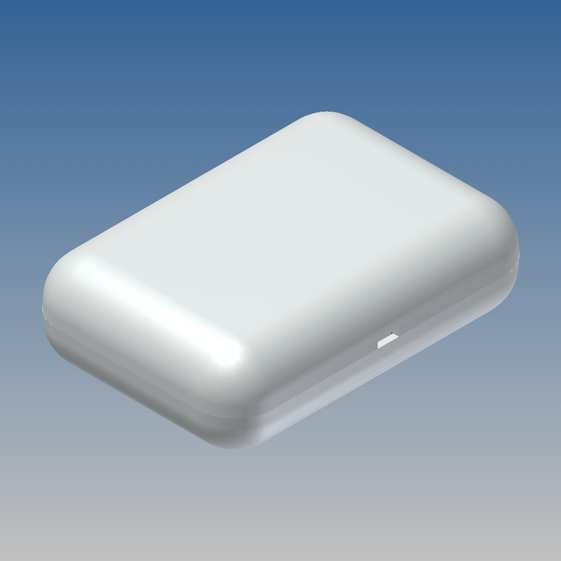

10007.5 3,15 2,205 0,965 9018
AG-ATY 2,559 1,949 - - PDF
DWG
View
  • Color (Ral): 9018
  • Material: AG-ATY
  • MAX PCB L (mm): 65
  • MAX PCB W (mm): 49,5
  • Screws: -
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

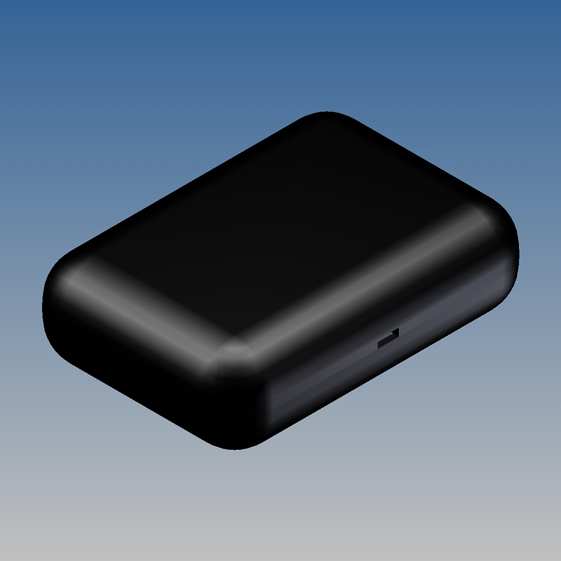

10007.9 3,15 2,205 0,965 9004
P2H-AT 2,559 1,949 - - PDF
DWG
View
  • Color (Ral): 9004
  • Material: P2H-AT
  • MAX PCB L (mm): 65
  • MAX PCB W (mm): 49,5
  • Screws: -
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

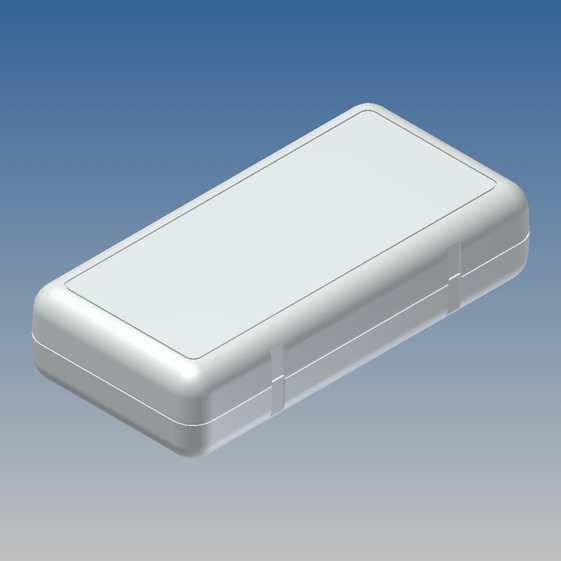

10008.5 5,157 2,559 1,201 9018
AG-ATY 4,606 2,283 - - PDF
DWG
View
  • Color (Ral): 9018
  • Material: AG-ATY
  • MAX PCB L (mm): 117
  • MAX PCB W (mm): 58
  • Screws: -
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

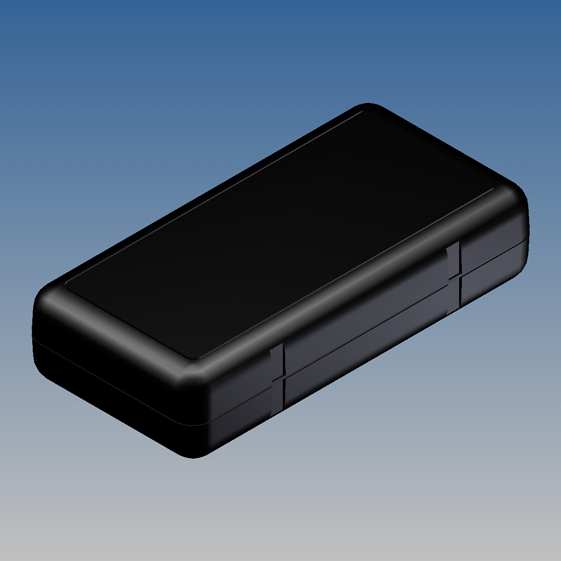

10008.9 5,157 2,559 1,201 9004
P2H-AT 4,606 2,283 - - PDF
DWG
View
  • Color (Ral): 9004
  • Material: P2H-AT
  • MAX PCB L (mm): 117
  • MAX PCB W (mm): 58
  • Screws: -
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

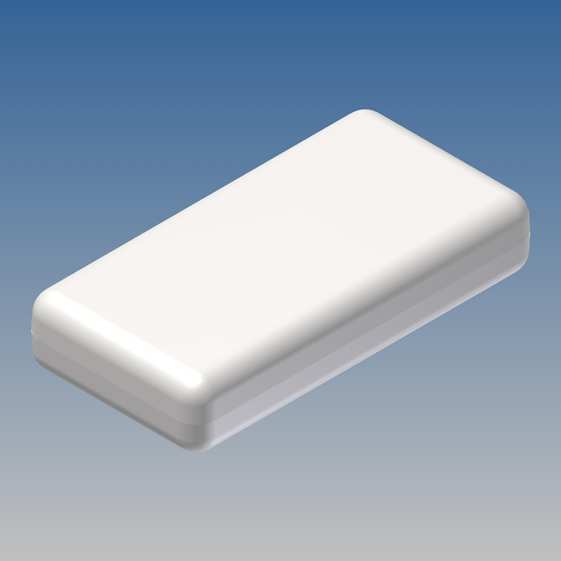

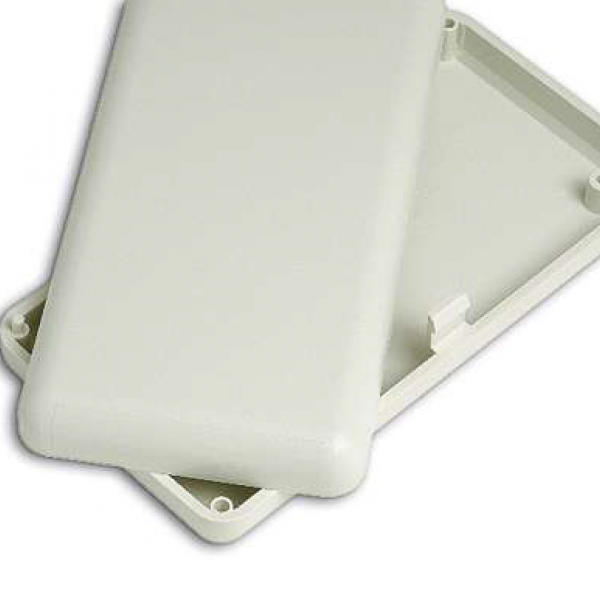

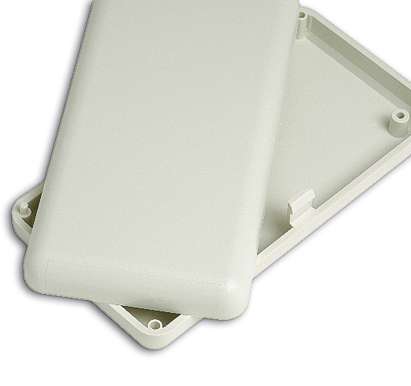

10014.7 3,543 1,811 0,689 9002
L320 3,268 1,535 - - PDF
DWG
View
  • Color (Ral): 9002
  • Material: L320
  • MAX PCB L (mm): 83
  • MAX PCB W (mm): 39
  • Screws: -
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG
10014.9 3,543 1,811 0,689 9004
P2H-AT 3,268 1,535 - - PDF
DWG
View
  • Color (Ral): 9004
  • Material: P2H-AT
  • MAX PCB L (mm): 83
  • MAX PCB W (mm): 39
  • Screws: -
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG
