SOAP 2

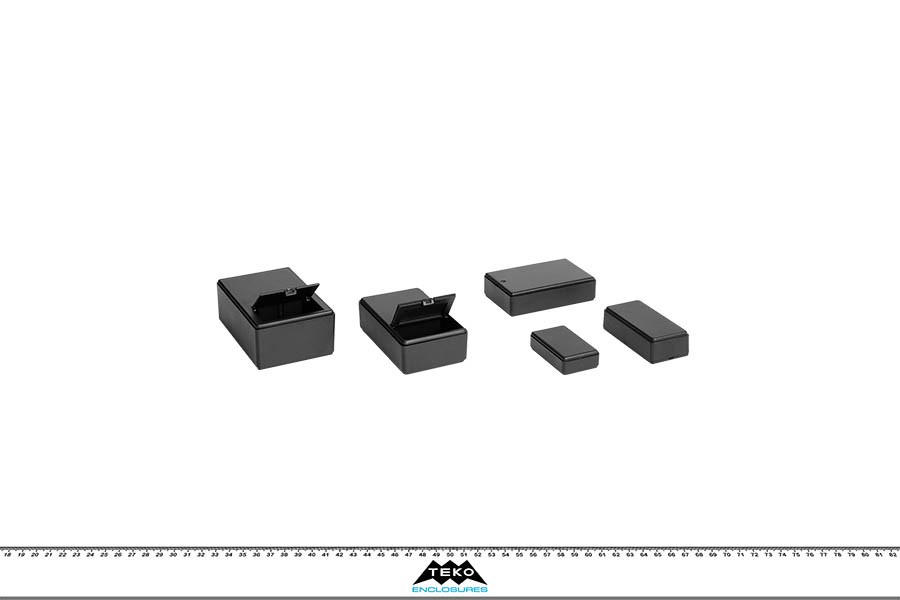

Family Pocket - Electronic enclosures - Plastic

Description

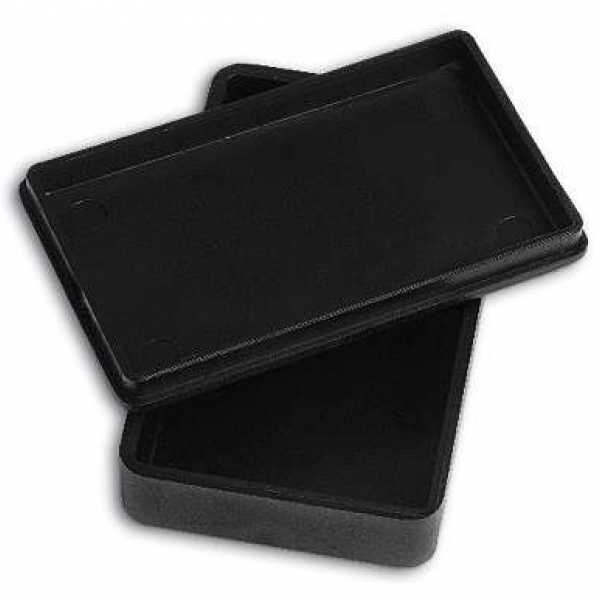

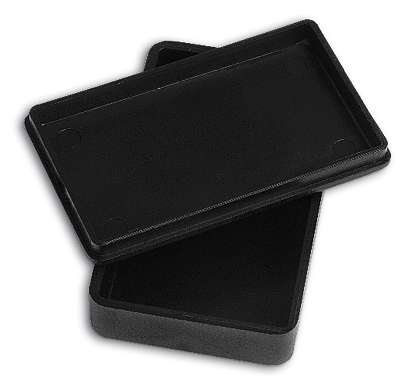

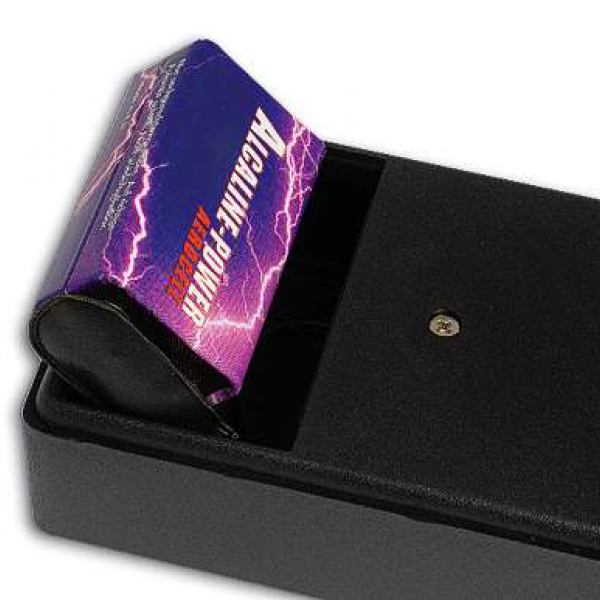

ABS enclosures with rounded corners. Base and cover have integral PCB mounting studs. The models “10011”, “10012-B” and “10013-B” have a closing by one screw. The model “10012-B” has a 9V battery compartment. The model “10013-B” has a compartment for two 9V batteries. Matt surface finish.

Details

Products

Model L (inch) W (inch) H (inch) Color (Ral) Material MAX PCB L (inch) MAX PCB W (inch) Screws Battery Accessories Drawings Other

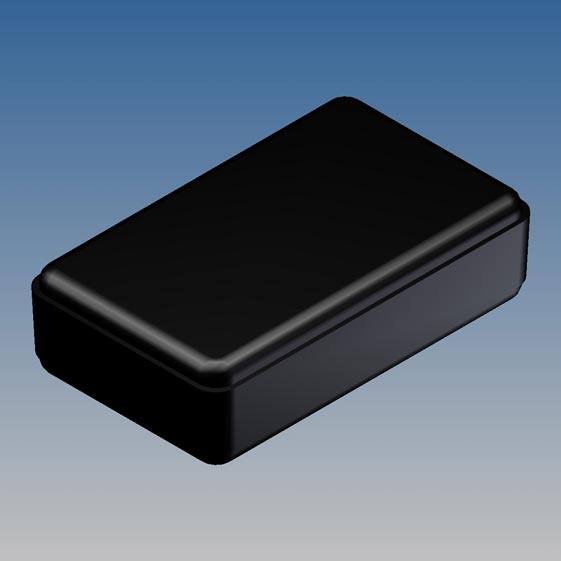

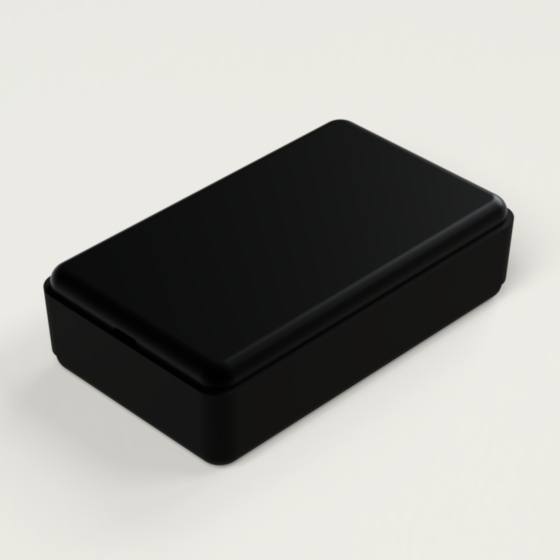

10010.9 2,283 1,378 0,63 9004
P2H-AT 2,150 1,244 - - PDF
DWG
View
  • Color (Ral): 9004
  • Material: P2H-AT
  • MAX PCB L (mm): 54,6
  • MAX PCB W (mm): 31,6
  • Screws: -
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

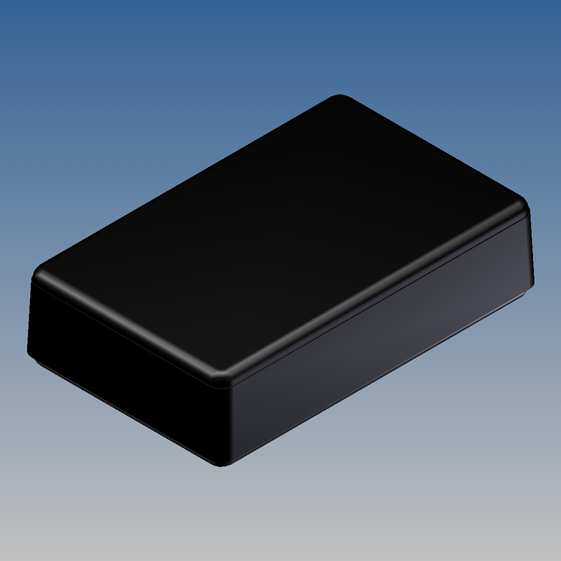

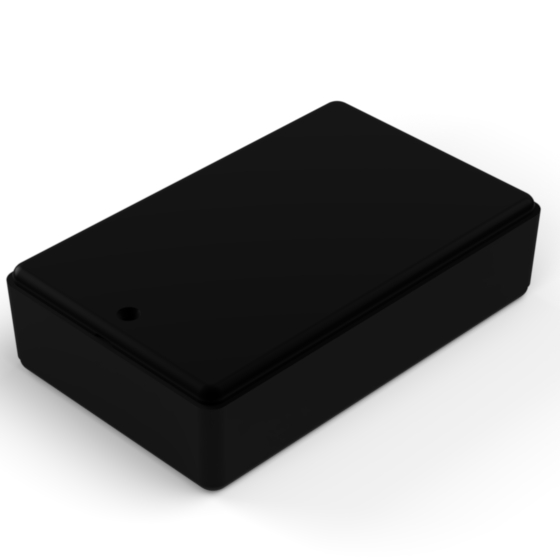

10011.9 3,543 2,205 0,866 9004
P2H-AT 2,972 1,929 1 - PDF
DWG
View
  • Color (Ral): 9004
  • Material: P2H-AT
  • MAX PCB L (mm): 75,5
  • MAX PCB W (mm): 49
  • Screws: 1
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

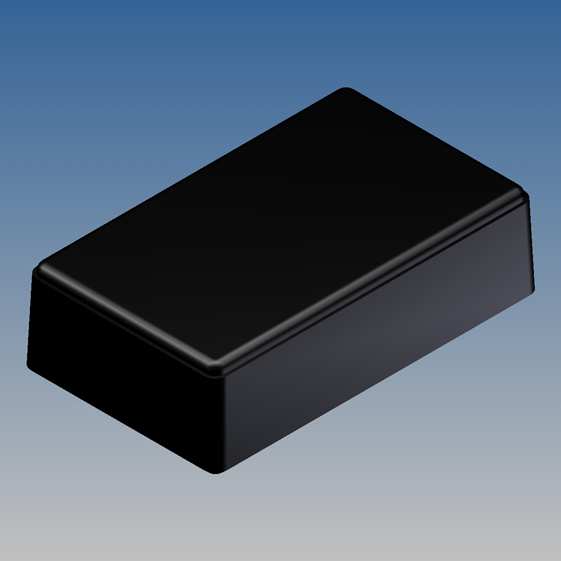

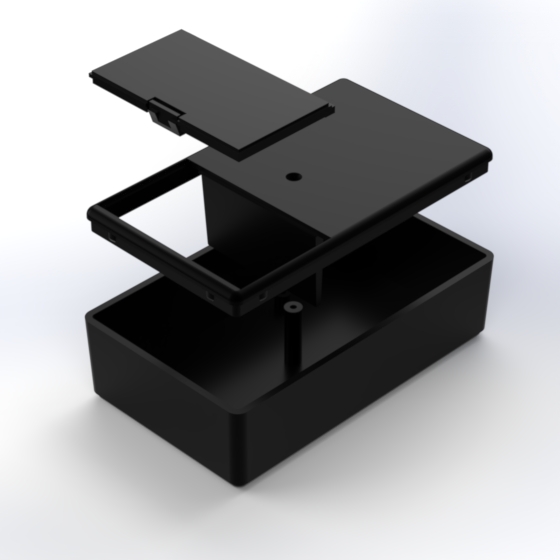

10012-B.9 3,917 2,362 1,181 9004
P2H-AT 2,146 2,028 1 1 x 9V AB9
PDF
DWG
View
  • Color (Ral): 9004
  • Material: P2H-AT
  • MAX PCB L (mm): 54,5
  • MAX PCB W (mm): 51,5
  • Screws: 1
  • Battery: 1 x 9V
  • Accessories: AB9
  • Drawings:  PDF  DWG

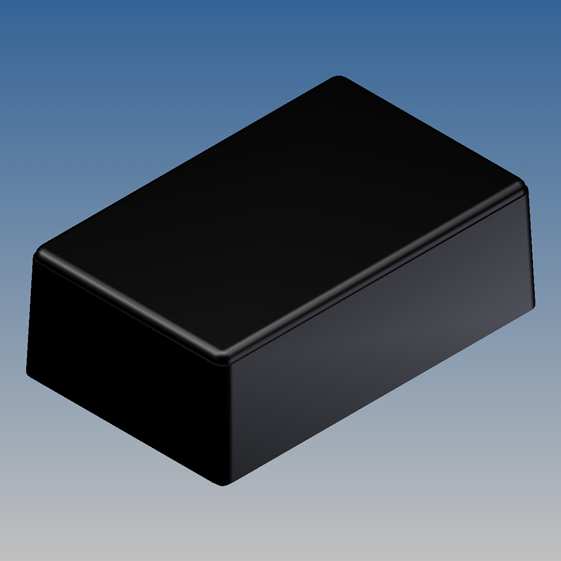

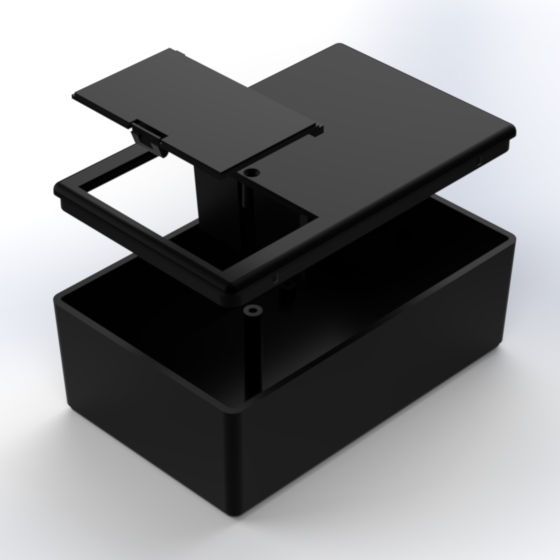

10013-B.9 4,291 2,736 1,575 9004
P2H-AT 2,382 2,343 1 1 x 9V / 2 x 9V AB9
PDF
DWG
View
  • Color (Ral): 9004
  • Material: P2H-AT
  • MAX PCB L (mm): 60,5
  • MAX PCB W (mm): 59,5
  • Screws: 1
  • Battery: 1 x 9V / 2 x 9V
  • Accessories: AB9
  • Drawings:  PDF  DWG

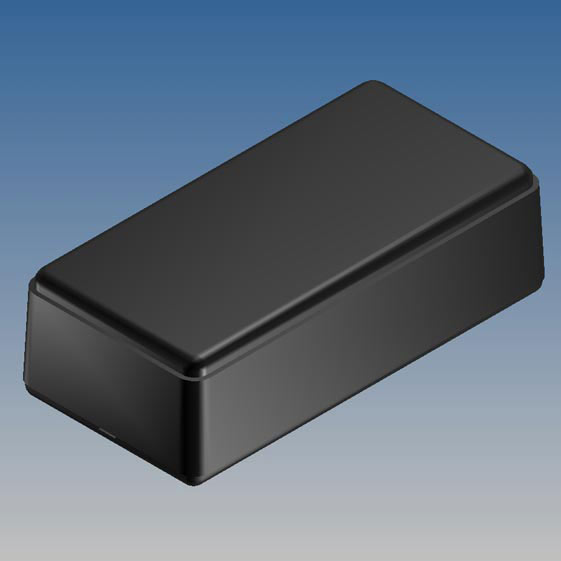

10015.9 3,071 1,535 0,906 9004
P2H-AT 2,756 1,240 - - PDF
DWG
View
  • Color (Ral): 9004
  • Material: P2H-AT
  • MAX PCB L (mm): 70
  • MAX PCB W (mm): 31,5
  • Screws: -
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG
