SQUID1

Family Pocket - Electronic enclosures - Plastic

Description

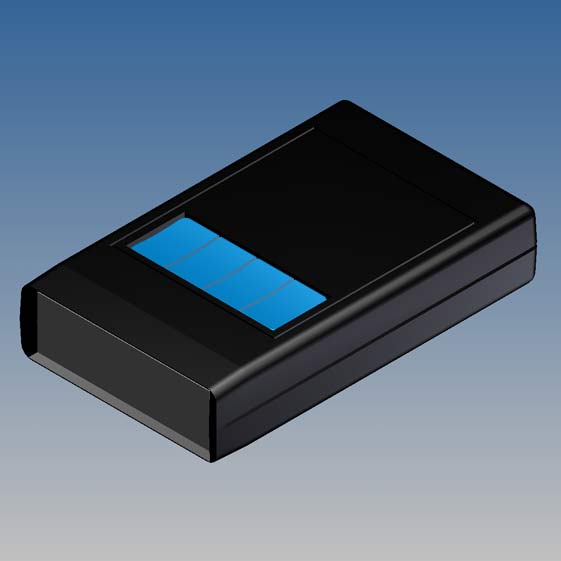

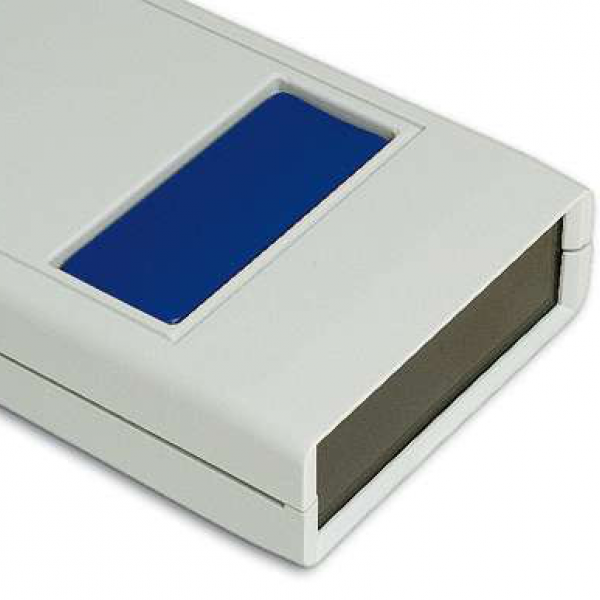

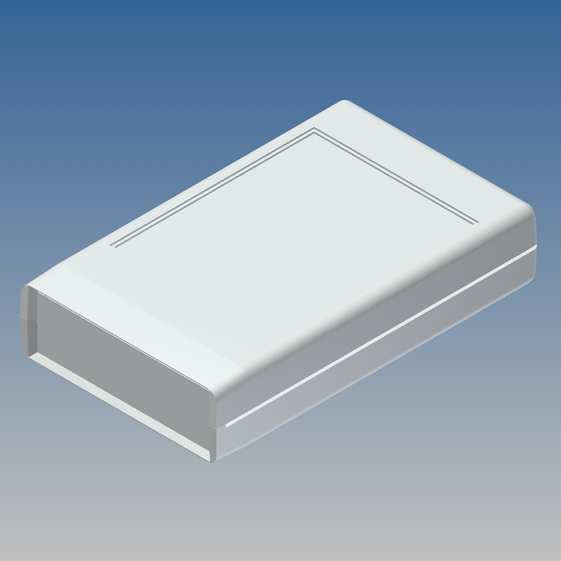

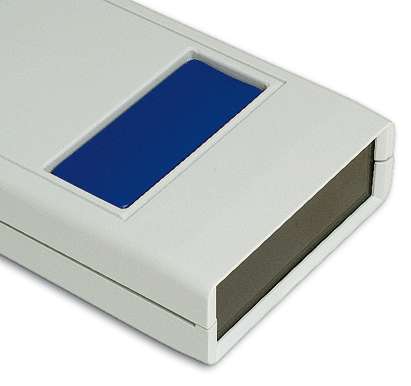

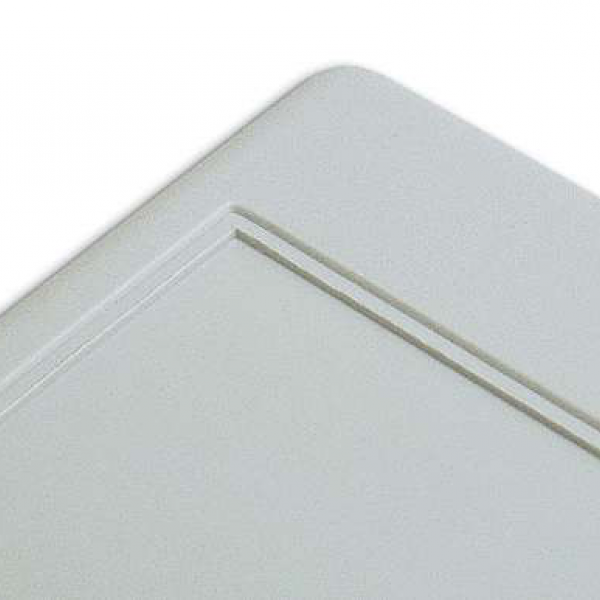

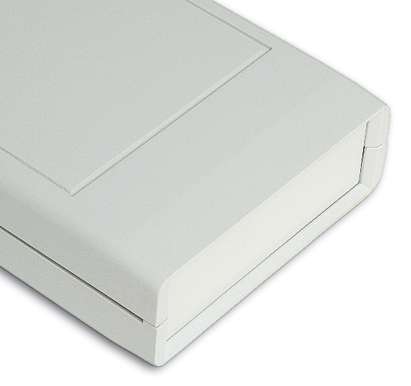

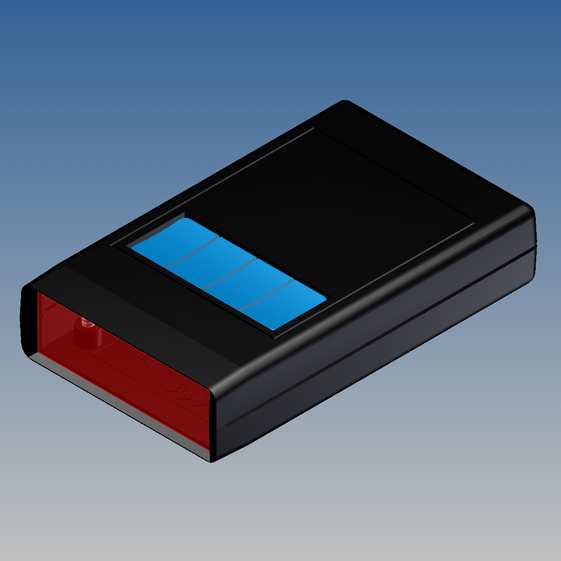

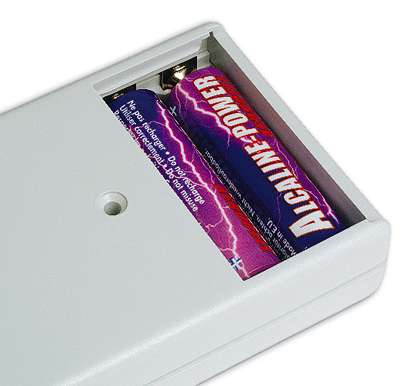

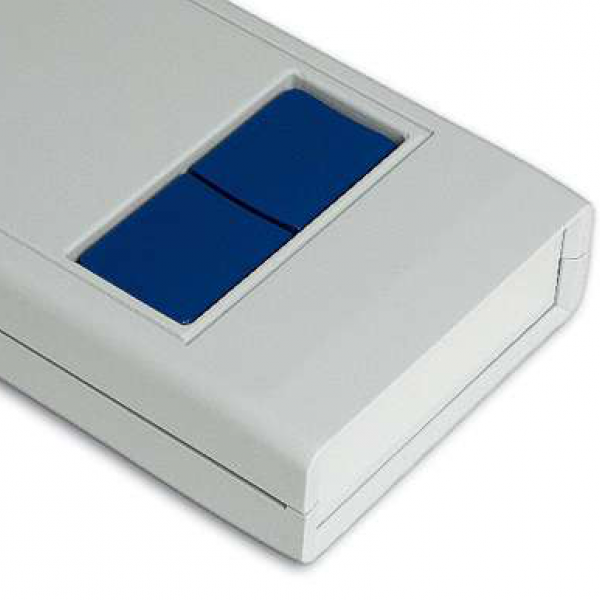

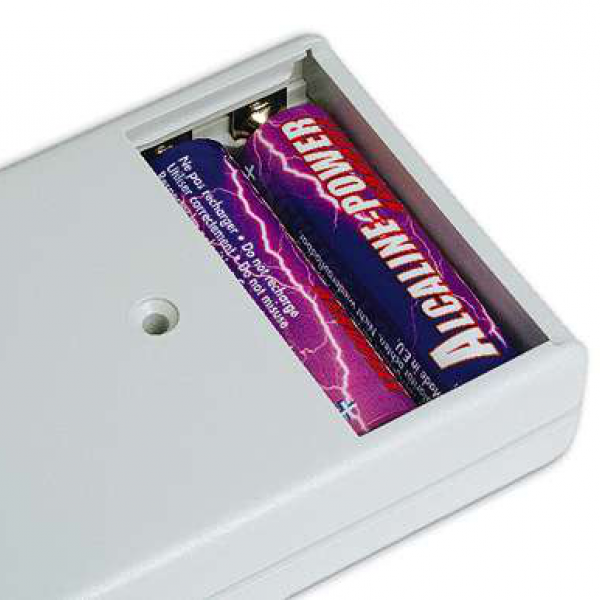

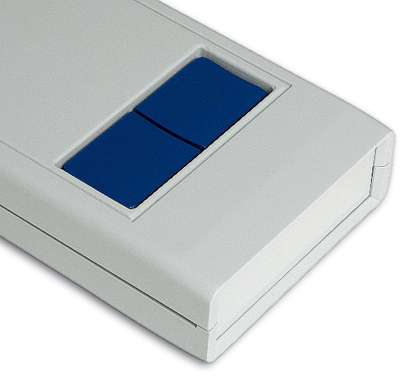

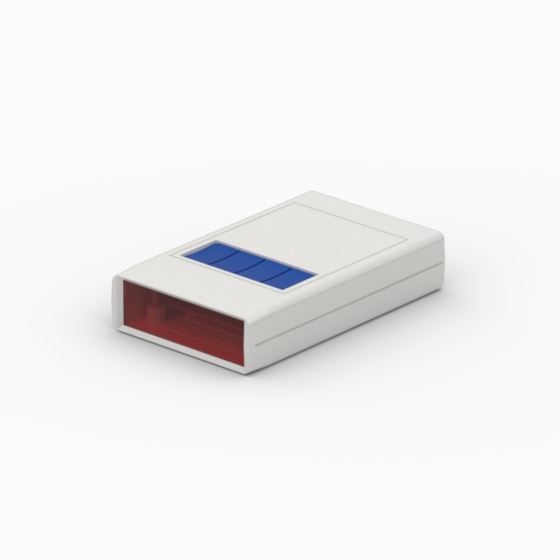

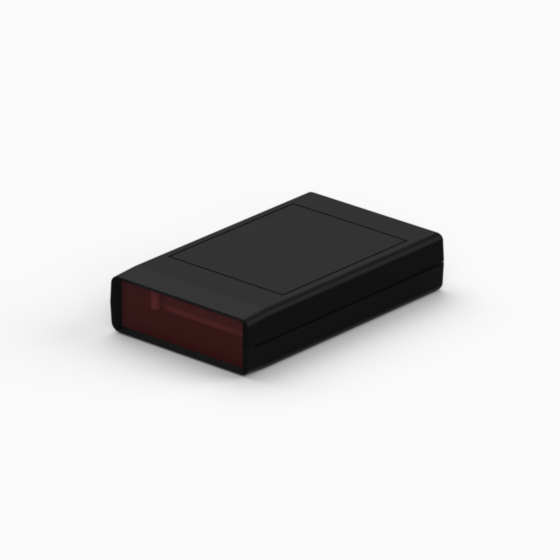

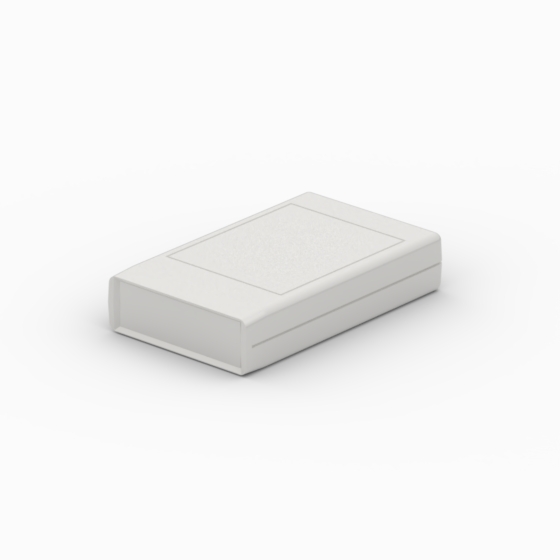

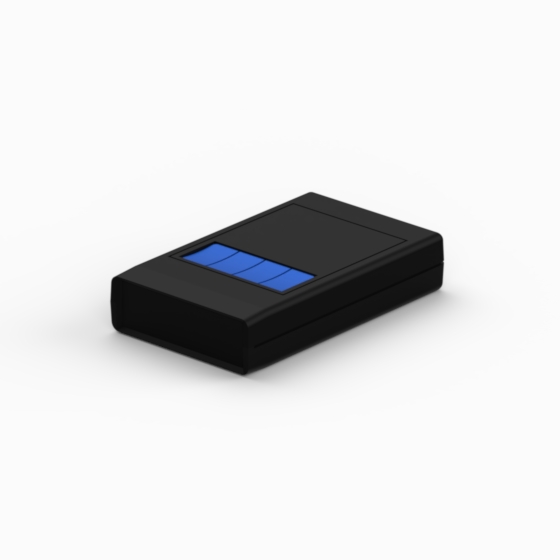

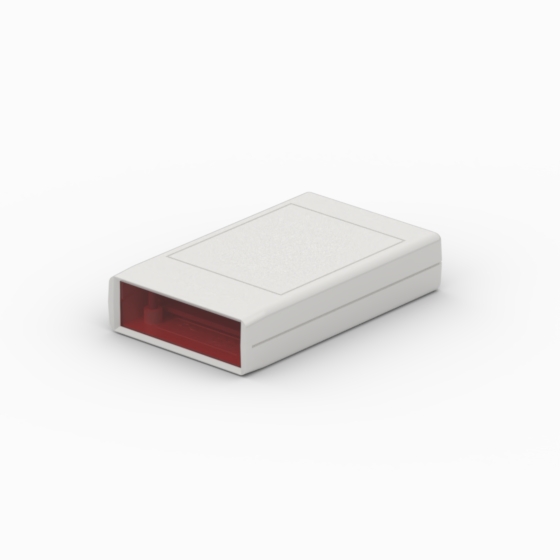

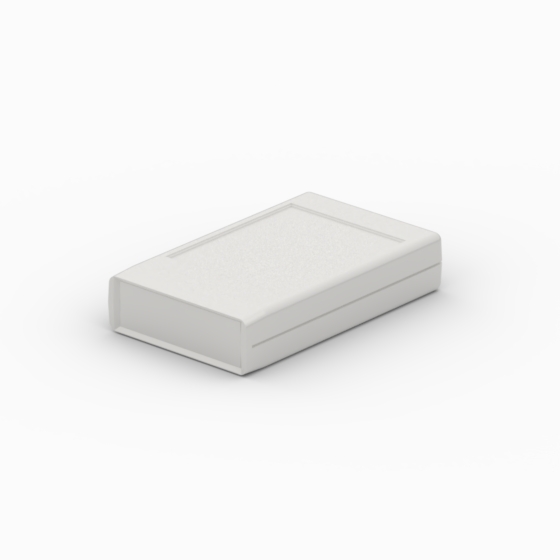

ABS enclosures with ergonomic design. The base and cover have integral PCB guides and mounting pillars. The base has a compartment with snap fit sliding door for housing either a single 9V battery or two 1.5V batteries. Available also a front panel permeable to infrared light (Mod. SQ1-IR and SQ124-IR). The model “SQ124” has one, two and four blue push buttons set. The models “SQ11” and “SQ11-IR” have a recessed area suitable for keypad membrane. Closing by three screws. Upon request dual miniature clip for 9V battery (Mod. AB9), Self adhesive spacer for batteries (Mod. DSA).

Details

Products

Model L (inch) W (inch) H (inch) Color (Ral) Material MAX PCB L (inch) MAX PCB W (inch) Screws Battery Accessories Drawings Other

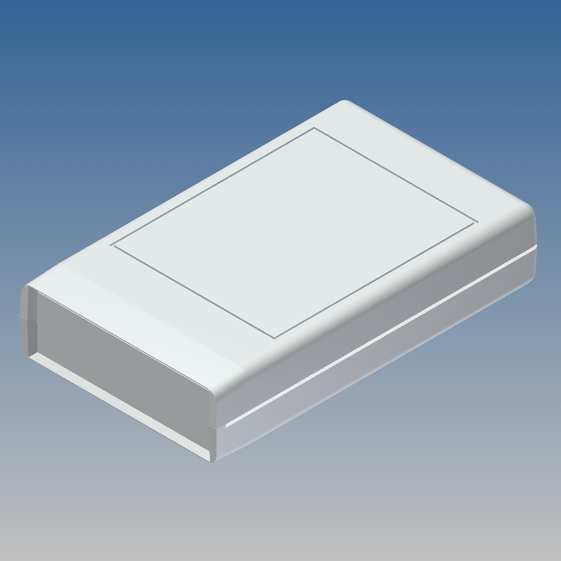

SQ1.5 3,937 2,382 0,827 9018
AG-ATY 2,047 1,909 3 2 x AA / 1 x 9V AB9
DSA
PDF
DWG
View
  • Color (Ral): 9018
  • Material: AG-ATY
  • MAX PCB L (mm): 52
  • MAX PCB W (mm): 48,5
  • Screws: 3
  • Battery: 2 x AA / 1 x 9V
  • Accessories: AB9 DSA
  • Drawings:  PDF  DWG
SQ1.9 3,937 2,382 0,827 9004
P2H-AT 2,047 1,909 3 2 x AA / 1 x 9V AB9
DSA
PDF
DWG
View
  • Color (Ral): 9004
  • Material: P2H-AT
  • MAX PCB L (mm): 52
  • MAX PCB W (mm): 48,5
  • Screws: 3
  • Battery: 2 x AA / 1 x 9V
  • Accessories: AB9 DSA
  • Drawings:  PDF  DWG

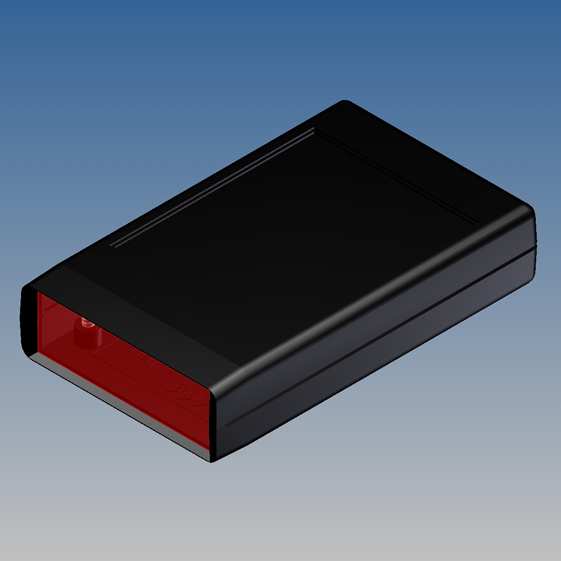

SQ1-IR.5 3,937 2,382 0,827 9018
AG-ATY 2,047 1,909 3 2 x AA / 1 x 9V AB9
DSA
PDF
DWG
View
  • Color (Ral): 9018
  • Material: AG-ATY
  • MAX PCB L (mm): 52
  • MAX PCB W (mm): 48,5
  • Screws: 3
  • Battery: 2 x AA / 1 x 9V
  • Accessories: AB9 DSA
  • Drawings:  PDF  DWG
SQ1-IR.9 3,937 2,382 0,827 9004
P2H-AT 2,047 1,909 3 2 x AA / 1 x 9V AB9
DSA
PDF
DWG
View
  • Color (Ral): 9004
  • Material: P2H-AT
  • MAX PCB L (mm): 52
  • MAX PCB W (mm): 48,5
  • Screws: 3
  • Battery: 2 x AA / 1 x 9V
  • Accessories: AB9 DSA
  • Drawings:  PDF  DWG
SQ11.5 3,937 2,382 0,827 9018
AG-ATY 2,047 1,909 3 2 x AA / 1 x 9V AB9
DSA
PDF
DWG
View
  • Color (Ral): 9018
  • Material: AG-ATY
  • MAX PCB L (mm): 52
  • MAX PCB W (mm): 48,5
  • Screws: 3
  • Battery: 2 x AA / 1 x 9V
  • Accessories: AB9 DSA
  • Drawings:  PDF  DWG
SQ11.9 3,937 2,382 0,827 9004
P2H-AT 2,047 1,909 3 2 x AA / 1 x 9V AB9
DSA
PDF
DWG
View
  • Color (Ral): 9004
  • Material: P2H-AT
  • MAX PCB L (mm): 52
  • MAX PCB W (mm): 48,5
  • Screws: 3
  • Battery: 2 x AA / 1 x 9V
  • Accessories: AB9 DSA
  • Drawings:  PDF  DWG

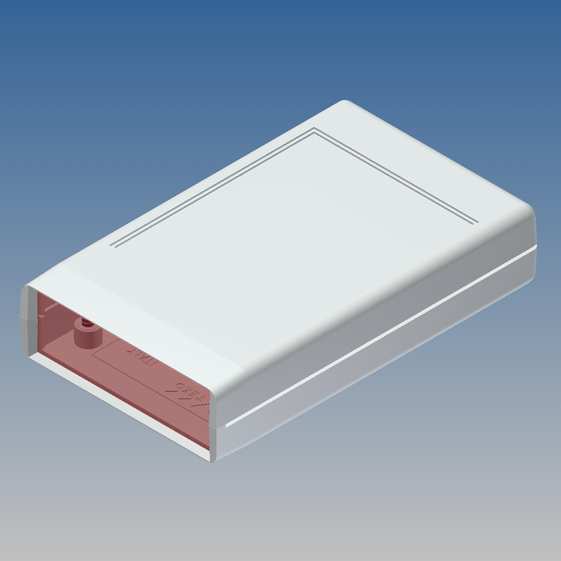

SQ11-IR.5 3,937 2,382 0,827 9018
AG-ATY 2,047 1,909 3 2 x AA / 1 x 9V AB9
DSA
PDF
DWG
View
  • Color (Ral): 9018
  • Material: AG-ATY
  • MAX PCB L (mm): 52
  • MAX PCB W (mm): 48,5
  • Screws: 3
  • Battery: 2 x AA / 1 x 9V
  • Accessories: AB9 DSA
  • Drawings:  PDF  DWG
SQ11-IR.9 3,937 2,382 0,827 9004
P2H-AT 2,047 1,909 3 2 x AA / 1 x 9V AB9
DSA
PDF
DWG
View
  • Color (Ral): 9004
  • Material: P2H-AT
  • MAX PCB L (mm): 52
  • MAX PCB W (mm): 48,5
  • Screws: 3
  • Battery: 2 x AA / 1 x 9V
  • Accessories: AB9 DSA
  • Drawings:  PDF  DWG

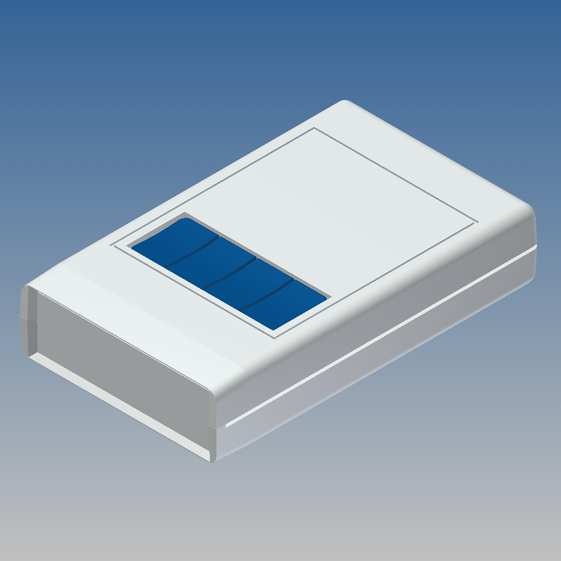

SQ124.5 3,937 2,382 0,827 9018
AG-ATY 2,047 1,909 3 2 x AA / 1 x 9V AB9
DSA
PDF
DWG
View
  • Color (Ral): 9018
  • Material: AG-ATY
  • MAX PCB L (mm): 52
  • MAX PCB W (mm): 48,5
  • Screws: 3
  • Battery: 2 x AA / 1 x 9V
  • Accessories: AB9 DSA
  • Drawings:  PDF  DWG
SQ124.9 3,937 2,382 0,827 9004
P2H-AT 2,047 1,909 3 2 x AA / 1 x 9V AB9
DSA
PDF
DWG
View
  • Color (Ral): 9004
  • Material: P2H-AT
  • MAX PCB L (mm): 52
  • MAX PCB W (mm): 48,5
  • Screws: 3
  • Battery: 2 x AA / 1 x 9V
  • Accessories: AB9 DSA
  • Drawings:  PDF  DWG
SQ124-IR.5 3,937 2,382 0,827 9018
AG-ATY 2,047 1,909 3 2 x AA / 1 x 9V AB9
DSA
PDF
DWG
View
  • Color (Ral): 9018
  • Material: AG-ATY
  • MAX PCB L (mm): 52
  • MAX PCB W (mm): 48,5
  • Screws: 3
  • Battery: 2 x AA / 1 x 9V
  • Accessories: AB9 DSA
  • Drawings:  PDF  DWG
SQ124-IR.9 3,937 2,382 0,827 9004
P2H-AT 2,047 1,909 3 2 x AA / 1 x 9V AB9
DSA
PDF
DWG
View
  • Color (Ral): 9004
  • Material: P2H-AT
  • MAX PCB L (mm): 52
  • MAX PCB W (mm): 48,5
  • Screws: 3
  • Battery: 2 x AA / 1 x 9V
  • Accessories: AB9 DSA
  • Drawings:  PDF  DWG
12 product families, 152 series. You can't find what you're looking for? Contact us
