SQUID2

Family Pocket - Electronic enclosures - Plastic

Description

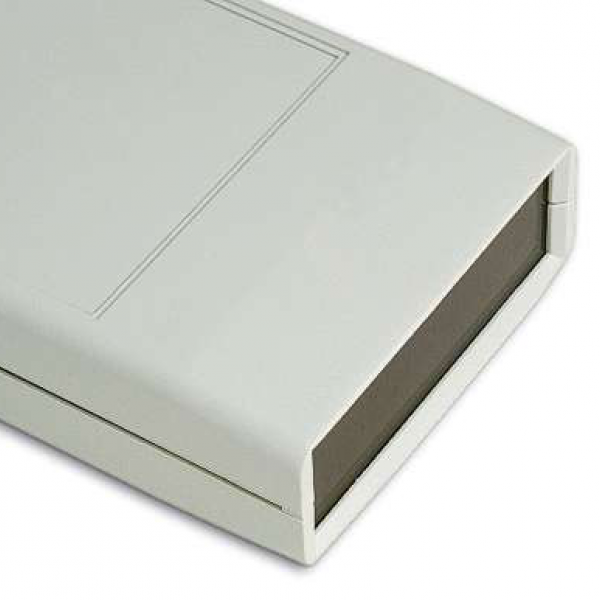

ABS enclosures with ergonomic design. The base and cover have integral PCB guides and mounting pillars. The base has a compartment with snap fit sliding door for housing either a single 9V battery or two 1.5V batteries. Available also a front panel permeable to infrared light (Mod. SQ2-IR). The models “SQ22” and “SQ22-IR” have a recessed area suitable for keypad membrane. Closing by three screws. Upon request dual miniature clip for 9V battery (Mod. AB9), Self adhesive spacer for batteries (Mod. DSA).

Details

Products

Model L (inch) W (inch) H (inch) Color (Ral) Material MAX PCB L (inch) MAX PCB W (inch) Screws Battery Accessories Drawings Other
SQ2.5 6,85 2,382 0,906 9018
AG-ATY 4,331 2,047 3 2 x AA / 1 x 9V AB9
DSA
PDF
DWG
View
  • Color (Ral): 9018
  • Material: AG-ATY
  • MAX PCB L (mm): 110
  • MAX PCB W (mm): 52
  • Screws: 3
  • Battery: 2 x AA / 1 x 9V
  • Accessories: AB9 DSA
  • Drawings:  PDF  DWG
SQ2.9 6,85 2,382 0,906 9004
P2H-AT 4,331 2,047 3 2 x AA / 1 x 9V AB9
DSA
PDF
DWG
View
  • Color (Ral): 9004
  • Material: P2H-AT
  • MAX PCB L (mm): 110
  • MAX PCB W (mm): 52
  • Screws: 3
  • Battery: 2 x AA / 1 x 9V
  • Accessories: AB9 DSA
  • Drawings:  PDF  DWG

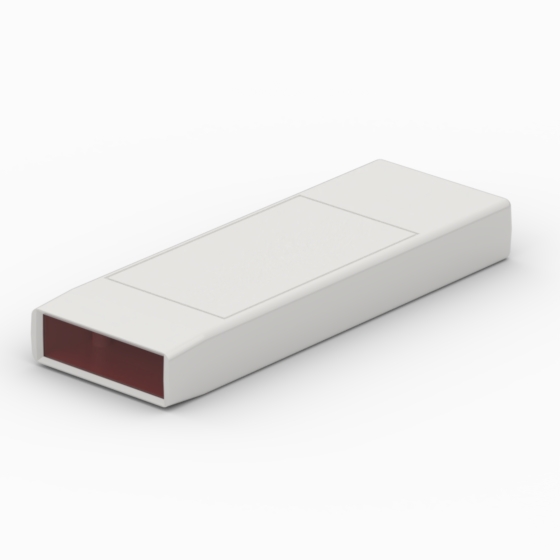

SQ2-IR.5 6,85 2,382 0,906 9018
AG-ATY 4,331 2,047 3 2 x AA / 1 x 9V AB9
DSA
PDF
DWG
View
  • Color (Ral): 9018
  • Material: AG-ATY
  • MAX PCB L (mm): 110
  • MAX PCB W (mm): 52
  • Screws: 3
  • Battery: 2 x AA / 1 x 9V
  • Accessories: AB9 DSA
  • Drawings:  PDF  DWG

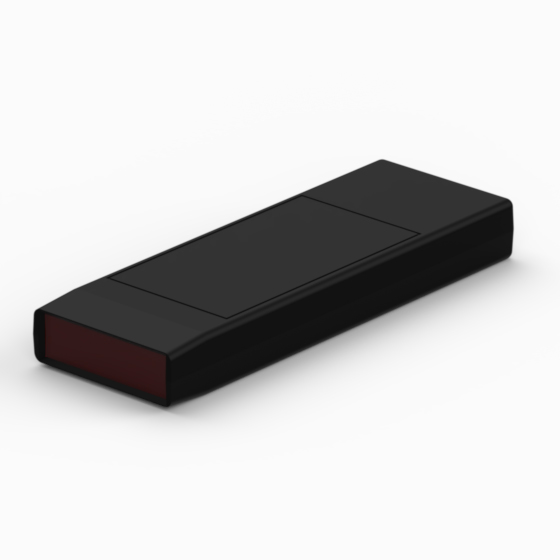

SQ2-IR.9 6,85 2,382 0,906 9004
P2H-AT 4,331 2,047 3 2 x AA / 1 x 9V AB9
DSA
PDF
DWG
View
  • Color (Ral): 9004
  • Material: P2H-AT
  • MAX PCB L (mm): 110
  • MAX PCB W (mm): 52
  • Screws: 3
  • Battery: 2 x AA / 1 x 9V
  • Accessories: AB9 DSA
  • Drawings:  PDF  DWG

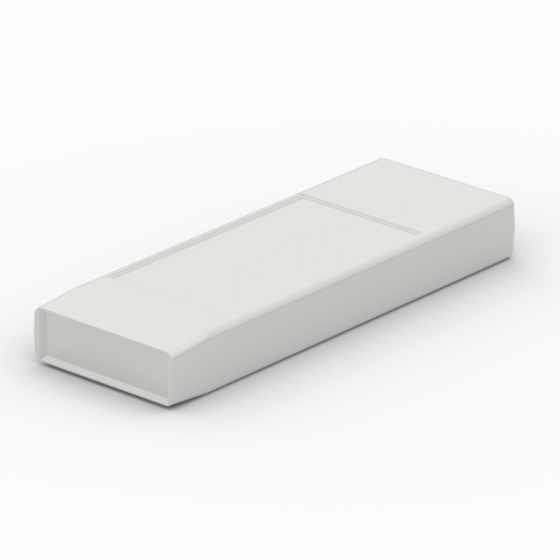

SQ22.5 6,85 2,382 0,906 9018
AG-ATY 4,331 2,047 3 2 x AA / 1 x 9V AB9
DSA
PDF
DWG
View
  • Color (Ral): 9018
  • Material: AG-ATY
  • MAX PCB L (mm): 110
  • MAX PCB W (mm): 52
  • Screws: 3
  • Battery: 2 x AA / 1 x 9V
  • Accessories: AB9 DSA
  • Drawings:  PDF  DWG

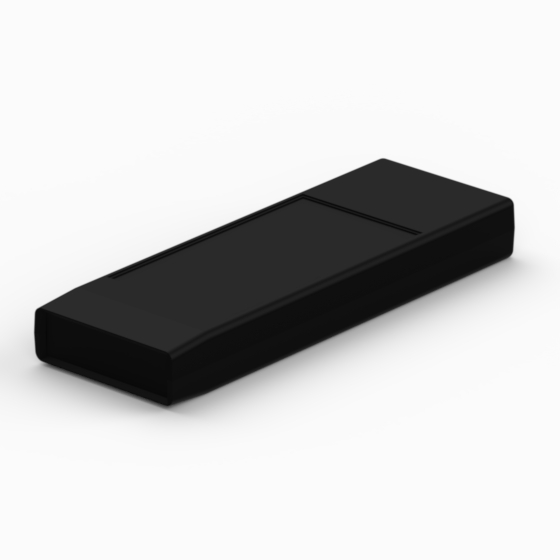

SQ22.9 6,85 2,382 0,906 9004
P2H-AT 4,331 2,047 3 2 x AA / 1 x 9V AB9
DSA
PDF
DWG
View
  • Color (Ral): 9004
  • Material: P2H-AT
  • MAX PCB L (mm): 110
  • MAX PCB W (mm): 52
  • Screws: 3
  • Battery: 2 x AA / 1 x 9V
  • Accessories: AB9 DSA
  • Drawings:  PDF  DWG

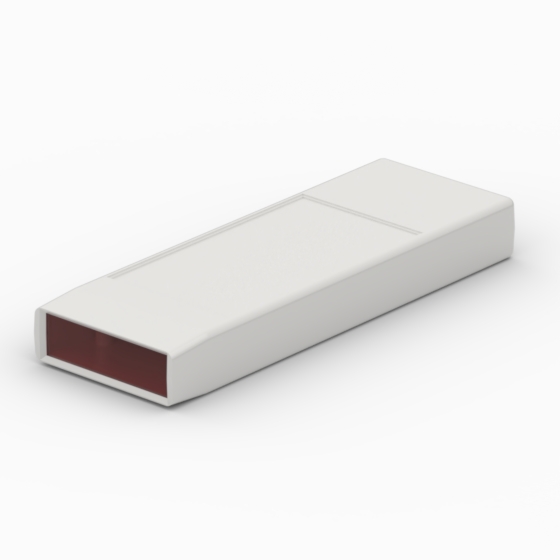

SQ22-IR.5 6,85 2,382 0,906 9018
AG-ATY 4,331 2,047 3 2 x AA / 1 x 9V AB9
DSA
PDF
DWG
View
  • Color (Ral): 9018
  • Material: AG-ATY
  • MAX PCB L (mm): 110
  • MAX PCB W (mm): 52
  • Screws: 3
  • Battery: 2 x AA / 1 x 9V
  • Accessories: AB9 DSA
  • Drawings:  PDF  DWG
SQ22-IR.9 6,85 2,382 0,906 9004
P2H-AT 4,331 2,047 3 2 x AA / 1 x 9V AB9
DSA
PDF
DWG
View
  • Color (Ral): 9004
  • Material: P2H-AT
  • MAX PCB L (mm): 110
  • MAX PCB W (mm): 52
  • Screws: 3
  • Battery: 2 x AA / 1 x 9V
  • Accessories: AB9 DSA
  • Drawings:  PDF  DWG
12 product families, 144 series. You can't find what you're looking for? Contact us
