EUROPULT

Family Pult - Electronic enclosures - Plastic

Description

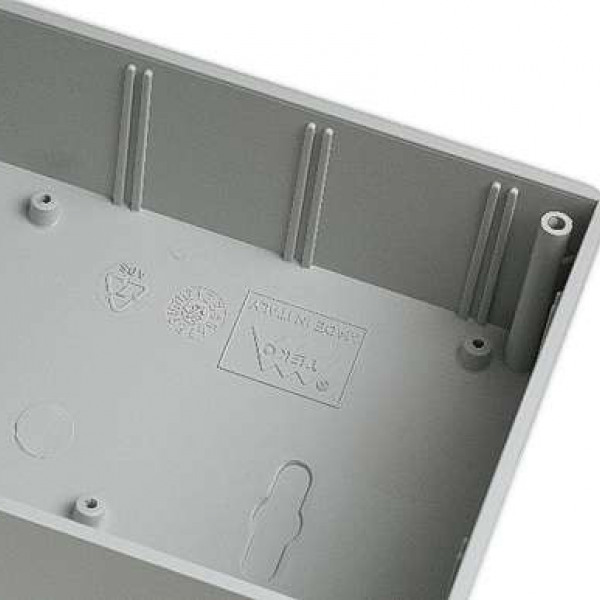

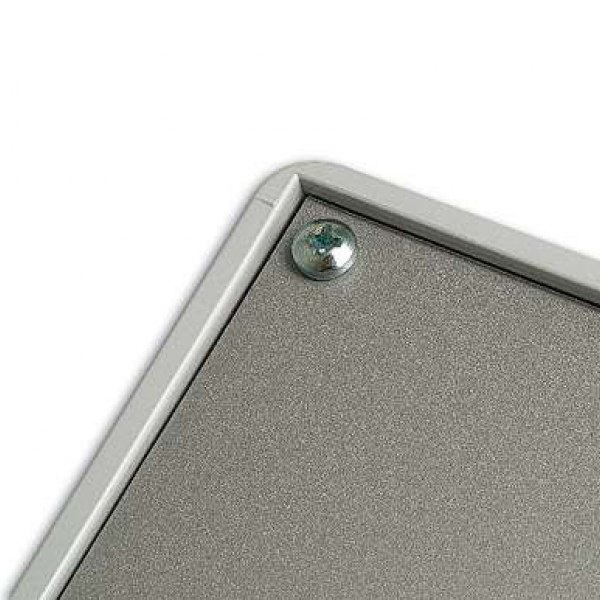

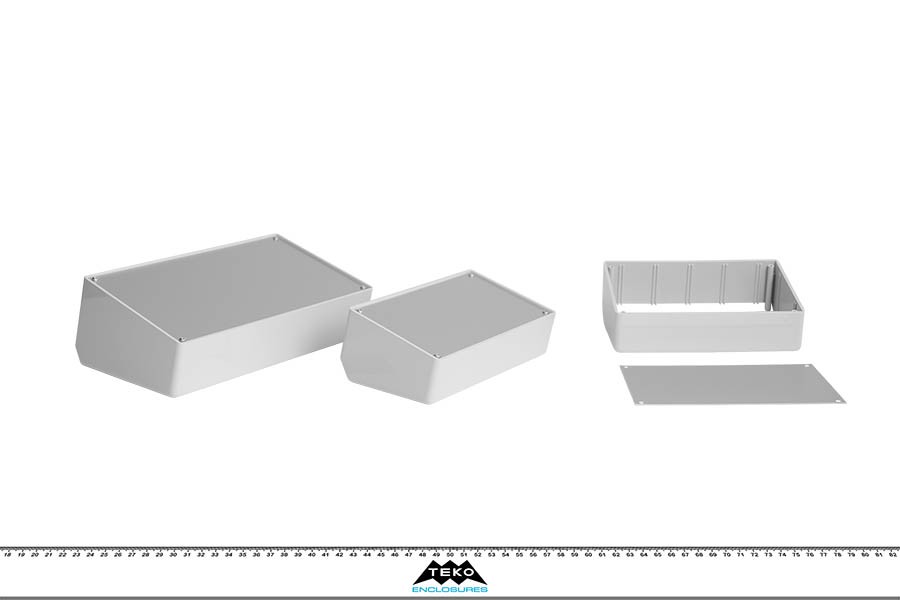

ABS enclosure with a 15° inclined 1mm aluminium panel. The base walls have integral PCB guides and mounting studs. Rounded corners. Glossy surfaces finish. Closing by four screws.

Details

Products

Model L (inch) W (inch) H (inch) Color (Ral) Material MAX PCB L (inch) MAX PCB W (inch) Screws Battery Accessories Drawings Other

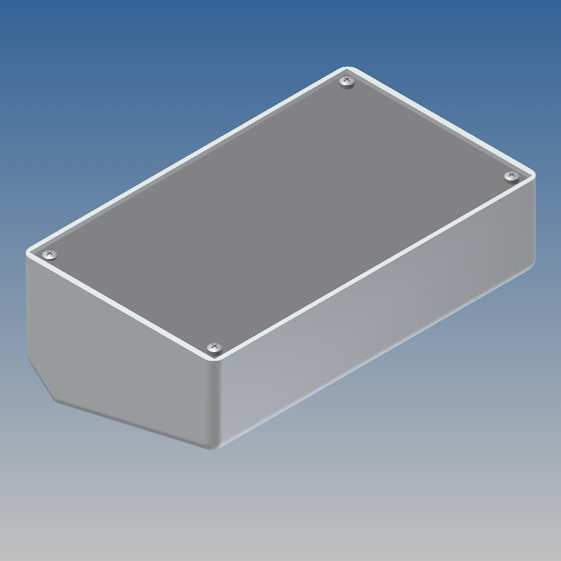

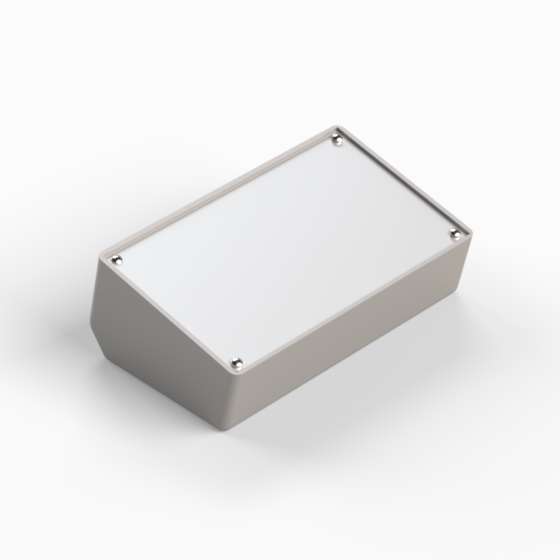

115.5 6,339 3,74 2,362 9018
AG-ATY 6,024 3,189 4 - PDF
DWG
View
  • Color (Ral): 9018
  • Material: AG-ATY
  • MAX PCB L (mm): 153
  • MAX PCB W (mm): 81
  • Screws: 4
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

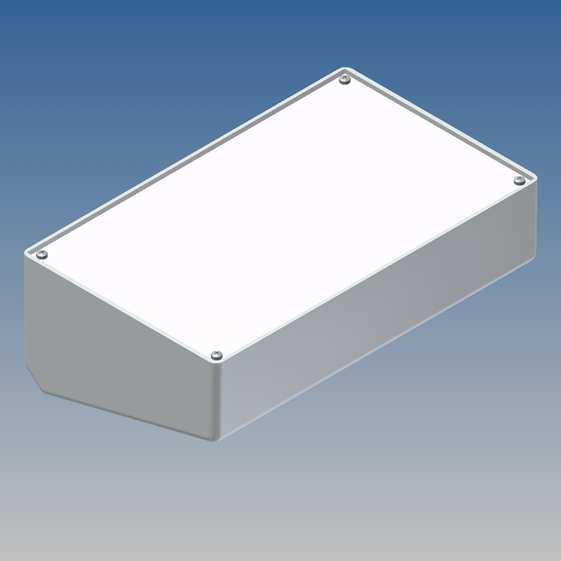

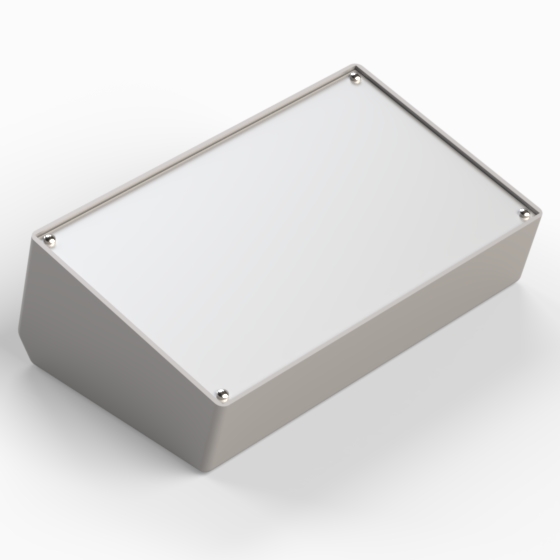

215.5 8,504 5,118 3,031 9018
AG-ATY 8,189 4,665 4 - PDF
DWG
View
  • Color (Ral): 9018
  • Material: AG-ATY
  • MAX PCB L (mm): 208
  • MAX PCB W (mm): 118,5
  • Screws: 4
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG
