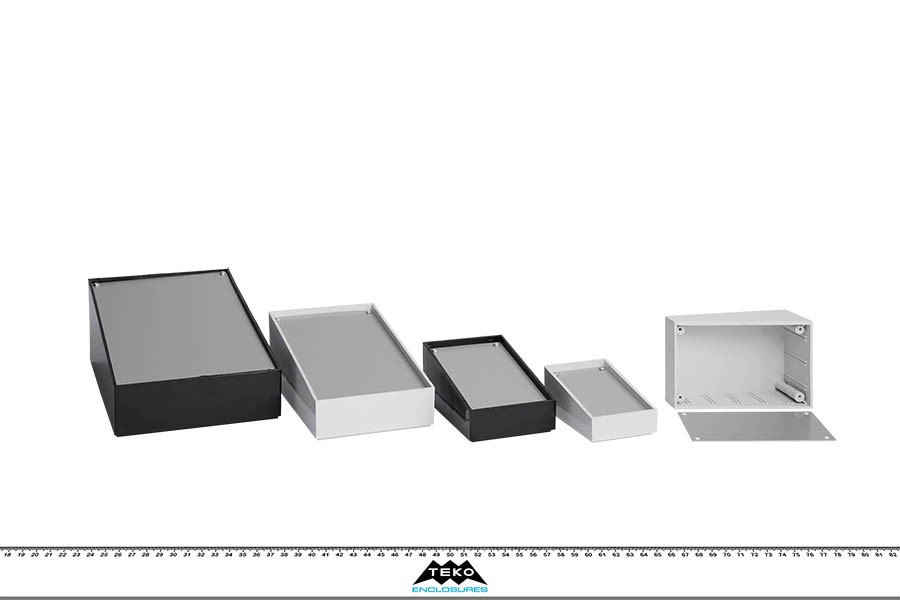

PULT-10

Family Pult - Electronic enclosures - Plastic

Description

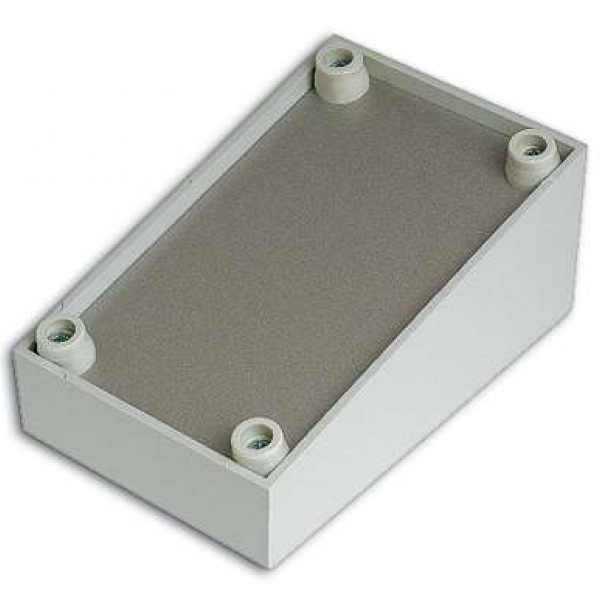

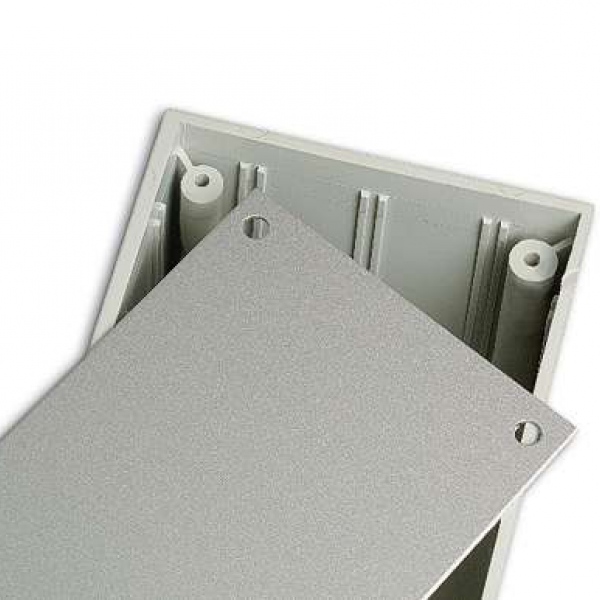

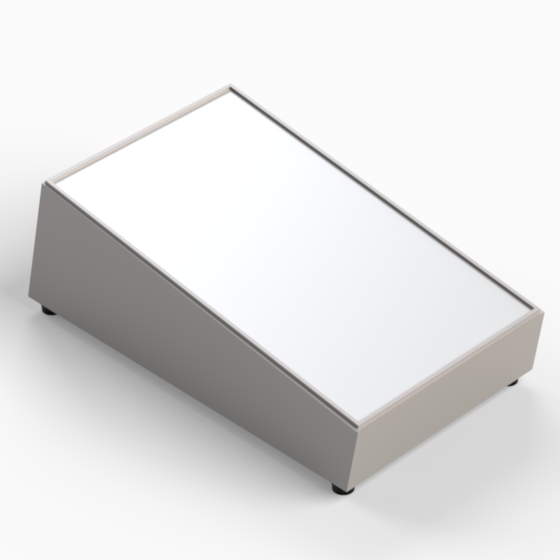

ABS enclosure with either a 10° or 12° incline for easy operation and readability, square corners and four non-skid feet (Mod. PT/4). The base walls have integral PCB guides. Two aluminium panels, closing by four screws.

Details

Products

Model L (inch) W (inch) H (inch) Color (Ral) Material MAX PCB L (inch) MAX PCB W (inch) Screws Battery Accessories Drawings Other

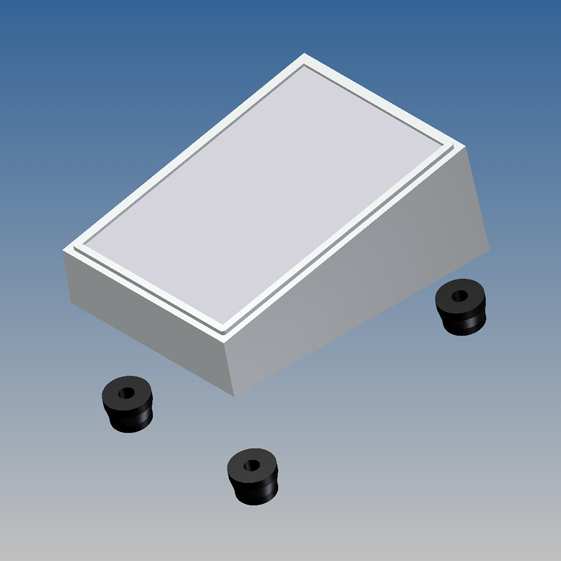

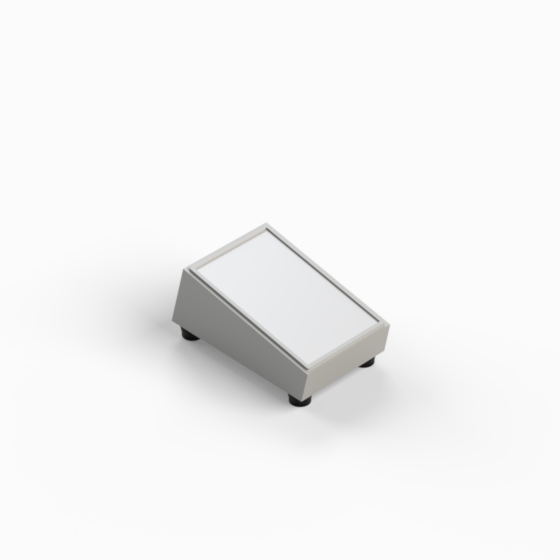

101.5 3,346 2,205 1,457 9018
AG-ATY 3,150 1,004 4 - PDF
DWG
View
  • Color (Ral): 9018
  • Material: AG-ATY
  • MAX PCB L (mm): 80
  • MAX PCB W (mm): 25,5
  • Screws: 4
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

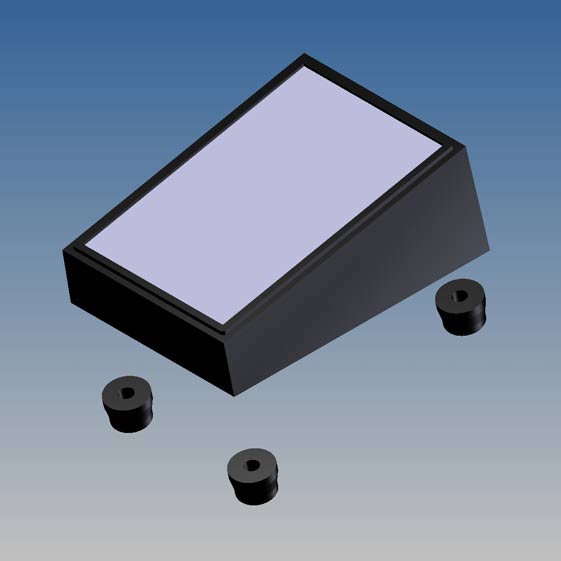

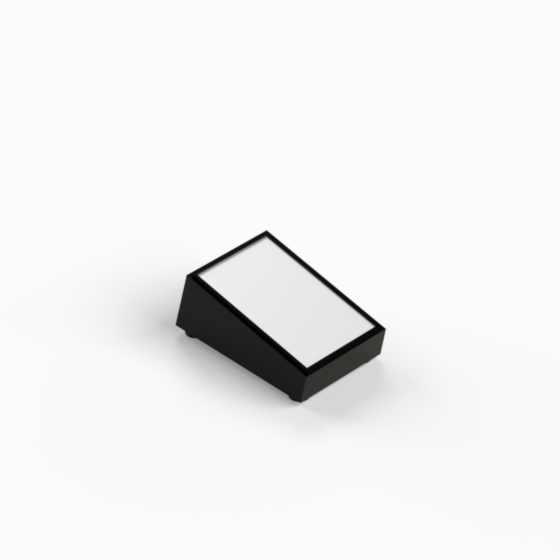

101.9 3,346 2,205 1,457 9004
P2H-AT 3,150 1,004 4 - PDF
DWG
View
  • Color (Ral): 9004
  • Material: P2H-AT
  • MAX PCB L (mm): 80
  • MAX PCB W (mm): 25,5
  • Screws: 4
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG
102.5 4,331 2,756 1,902 9018
AG-ATY 4,094 1,437 4 - PDF
DWG
View
  • Color (Ral): 9018
  • Material: AG-ATY
  • MAX PCB L (mm): 104
  • MAX PCB W (mm): 36,5
  • Screws: 4
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

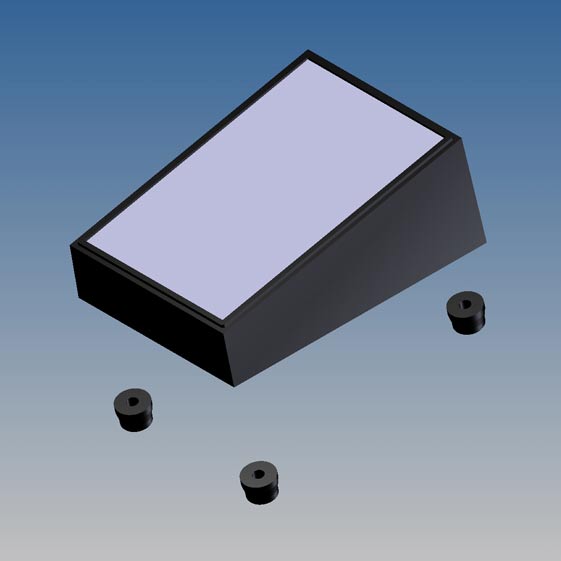

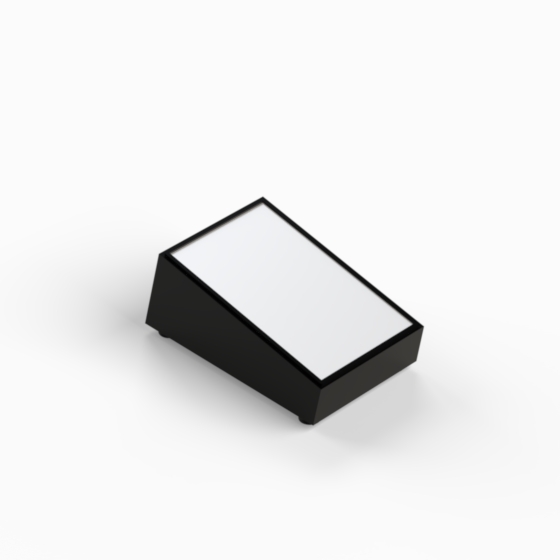

102.9 4,331 2,756 1,902 9004
P2H-AT 4,094 1,437 4 - PDF
DWG
View
  • Color (Ral): 9004
  • Material: P2H-AT
  • MAX PCB L (mm): 104
  • MAX PCB W (mm): 36,5
  • Screws: 4
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

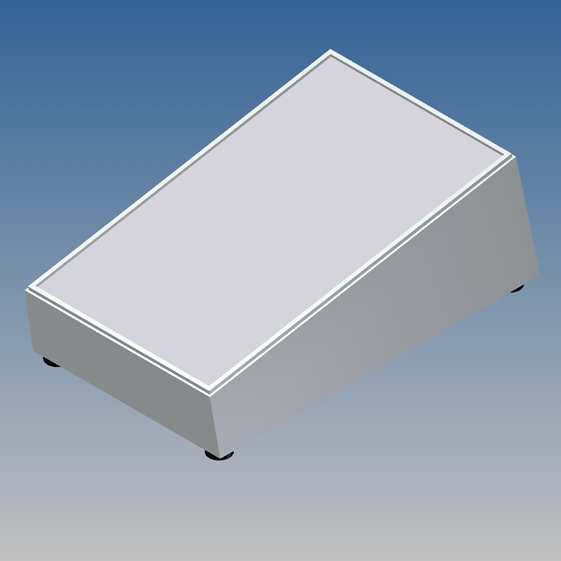

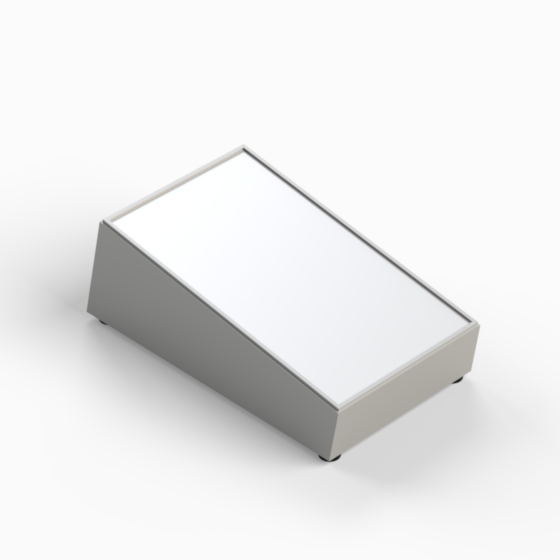

103.5 6,299 3,78 2,382 9018
AG-ATY 6,043 1,929 4 - PDF
DWG
View
  • Color (Ral): 9018
  • Material: AG-ATY
  • MAX PCB L (mm): 153,5
  • MAX PCB W (mm): 49
  • Screws: 4
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

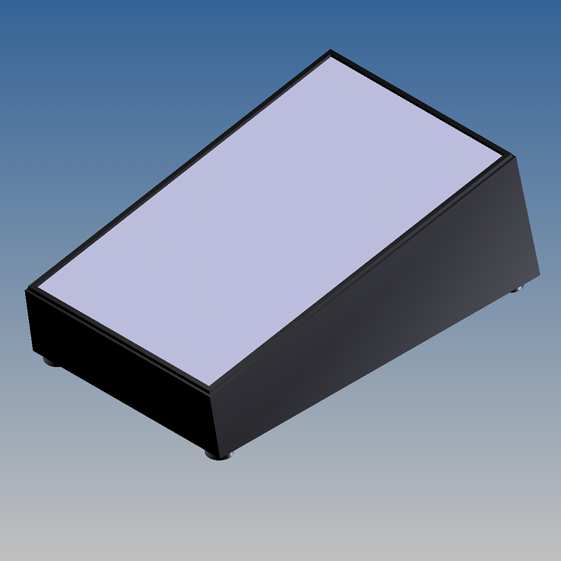

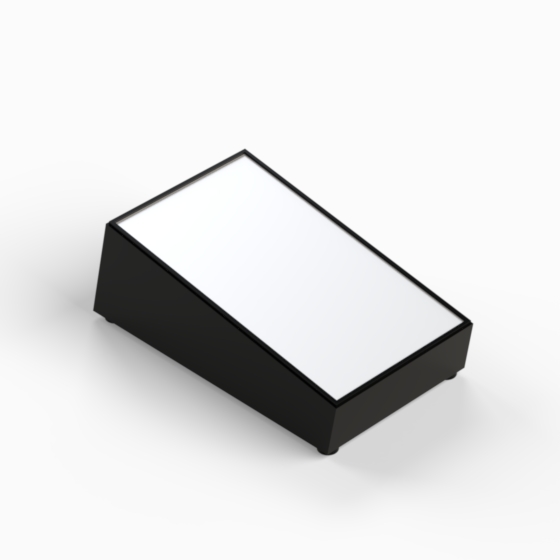

103.9 6,299 3,78 2,382 9004
P2H-AT 6,043 1,929 4 - PDF
DWG
View
  • Color (Ral): 9004
  • Material: P2H-AT
  • MAX PCB L (mm): 153,5
  • MAX PCB W (mm): 49
  • Screws: 4
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

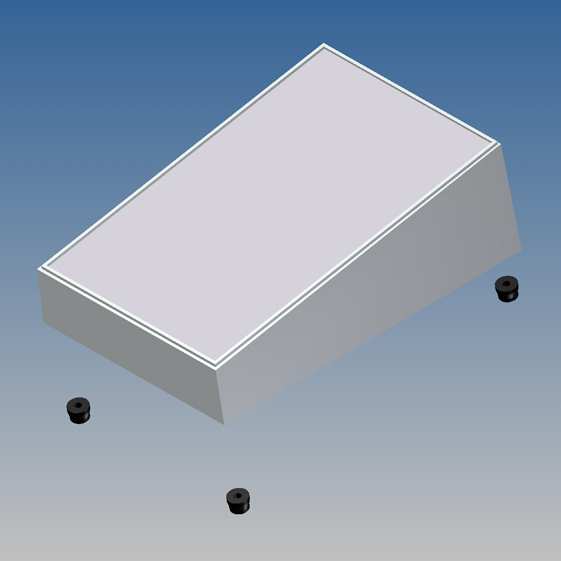

104.5 8,465 5,118 3,031 9018
AG-ATY 8,189 2,520 4 - PDF
DWG
View
  • Color (Ral): 9018
  • Material: AG-ATY
  • MAX PCB L (mm): 208
  • MAX PCB W (mm): 64
  • Screws: 4
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

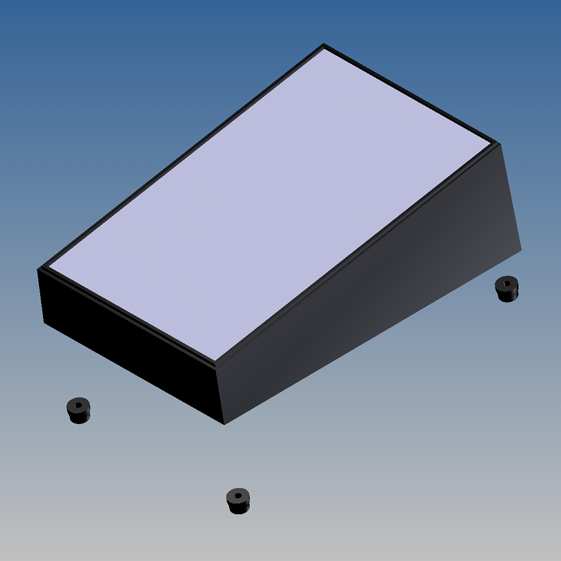

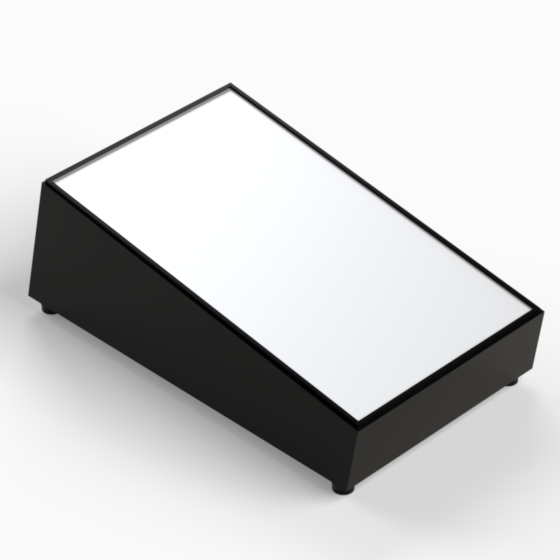

104.9 8,465 5,118 3,031 9004
P2H-AT 8,189 2,520 4 - PDF
DWG
View
  • Color (Ral): 9004
  • Material: P2H-AT
  • MAX PCB L (mm): 208
  • MAX PCB W (mm): 64
  • Screws: 4
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG
