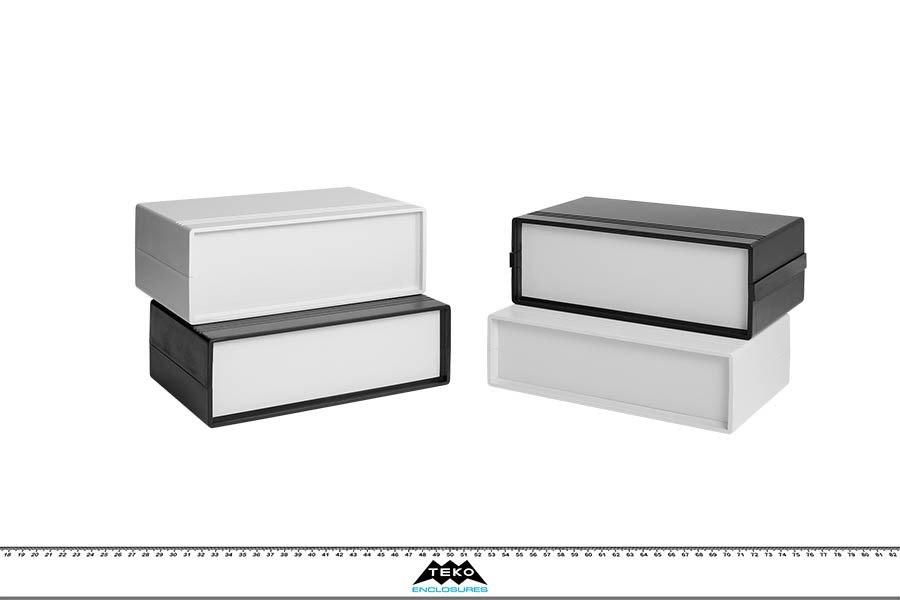

STRUMENTA MINOR

Family Strumentalia - Electronic enclosures - Plastic

Description

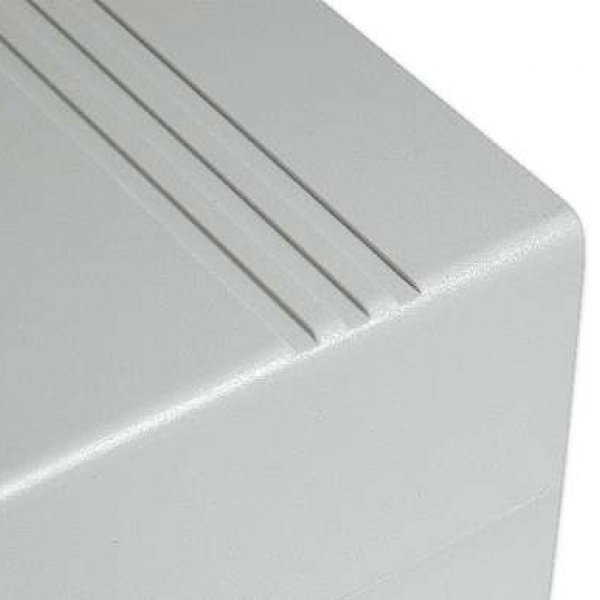

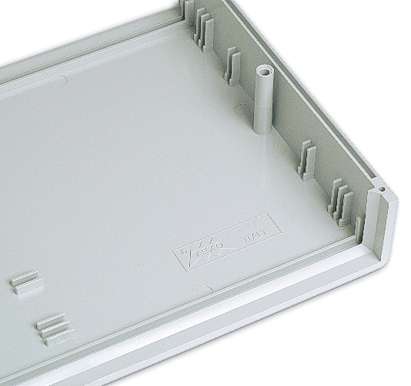

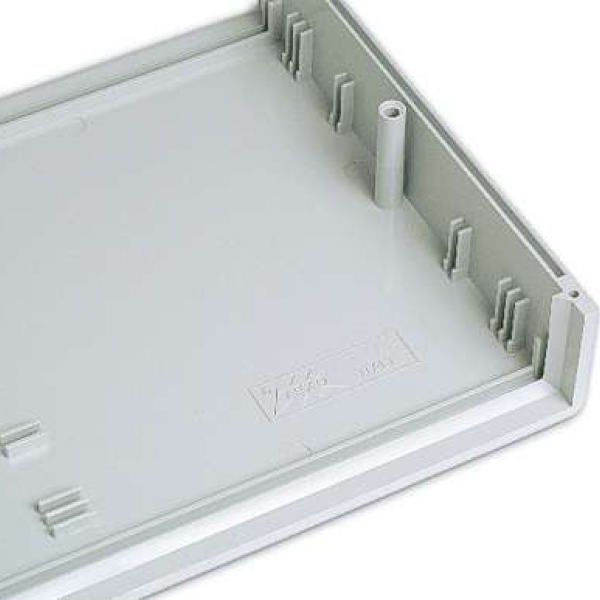

Cases with the front and rear panels moulded in ABS. The base and the cover have integral PCB guides and mounting studs. Closing by two screws.

Details

Products

Model L (inch) W (inch) H (inch) Color (Ral) Material MAX PCB L (inch) MAX PCB W (inch) Screws Battery Accessories Drawings Other

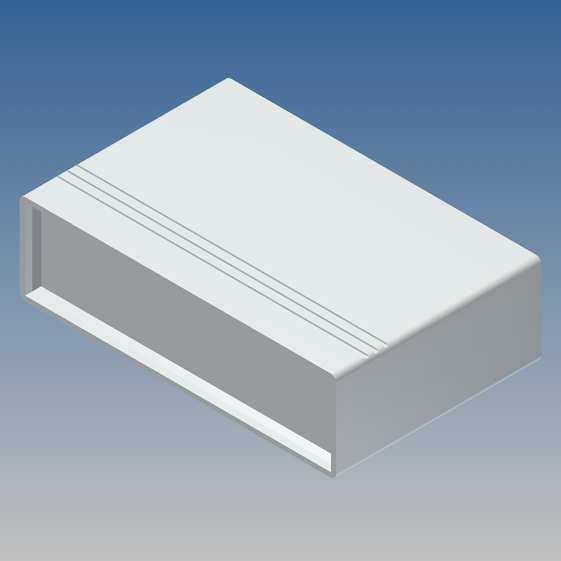

NE22.5 8,583 5,571 2,441 9018
AG-ATY 8,173 2,071 2 - PDF
DWG
View
  • Color (Ral): 9018
  • Material: AG-ATY
  • MAX PCB L (mm): 207,6
  • MAX PCB W (mm): 52,6
  • Screws: 2
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

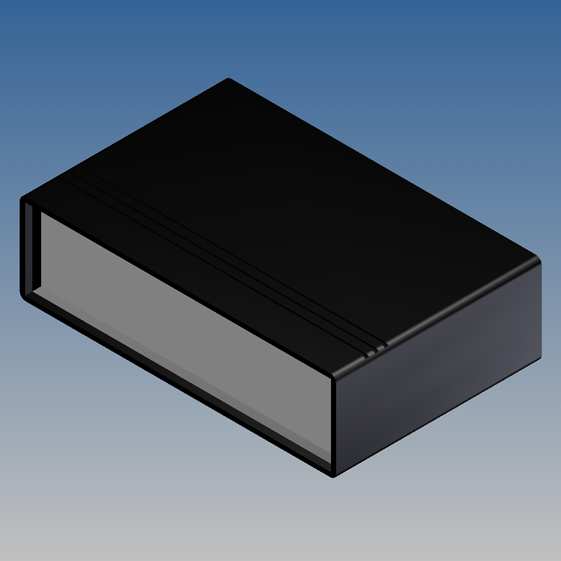

NE22.9 8,583 5,571 2,441 9004
P2H-AT 8,173 2,071 2 - PDF
DWG
View
  • Color (Ral): 9004
  • Material: P2H-AT
  • MAX PCB L (mm): 207,6
  • MAX PCB W (mm): 52,6
  • Screws: 2
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

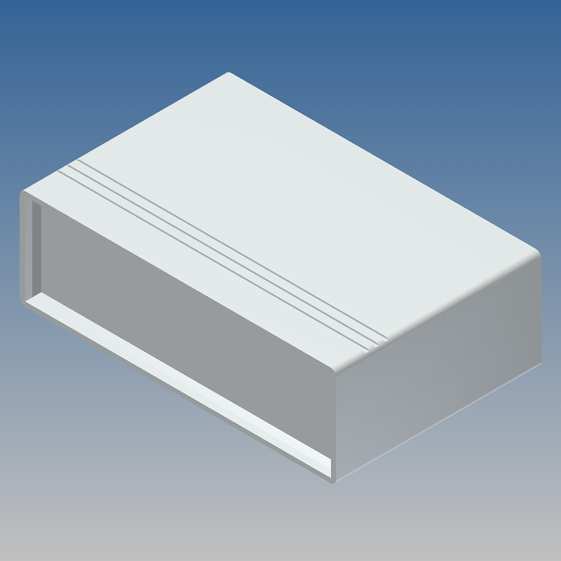

NE23.5 8,583 5,571 2,717 9018
AG-ATY 8,173 2,346 2 - PDF
DWG
View
  • Color (Ral): 9018
  • Material: AG-ATY
  • MAX PCB L (mm): 207,6
  • MAX PCB W (mm): 59,6
  • Screws: 2
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

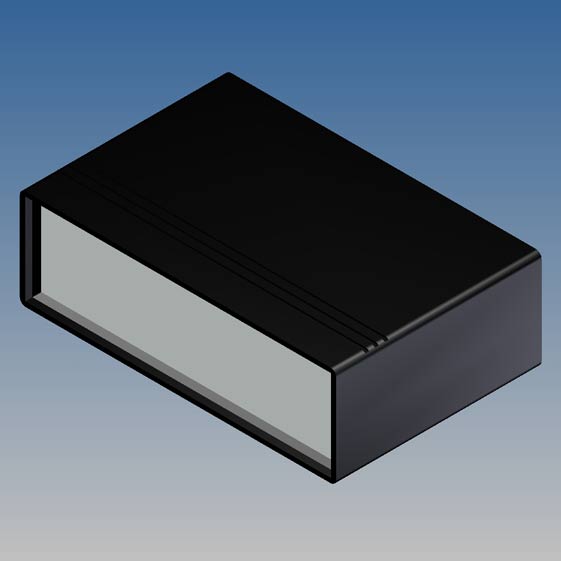

NE23.9 8,583 5,571 2,717 9004
P2H-AT 8,173 2,346 2 - PDF
DWG
View
  • Color (Ral): 9004
  • Material: P2H-AT
  • MAX PCB L (mm): 207,6
  • MAX PCB W (mm): 59,6
  • Screws: 2
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

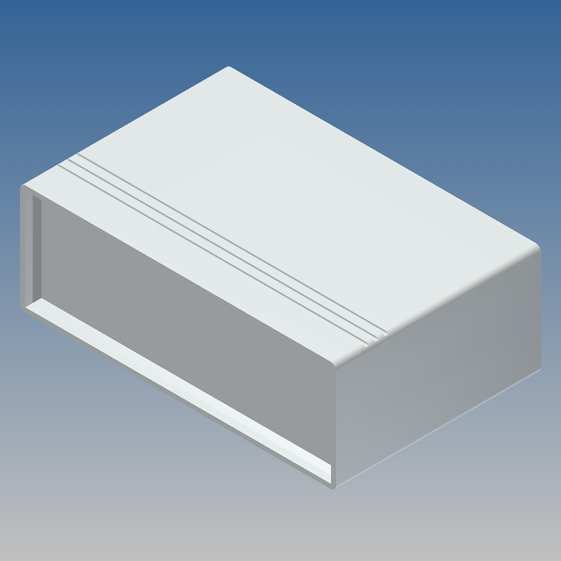

NE33.5 8,583 5,571 2,992 9018
AG-ATY 8,173 2,622 2 - PDF
DWG
View
  • Color (Ral): 9018
  • Material: AG-ATY
  • MAX PCB L (mm): 207,6
  • MAX PCB W (mm): 66,6
  • Screws: 2
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

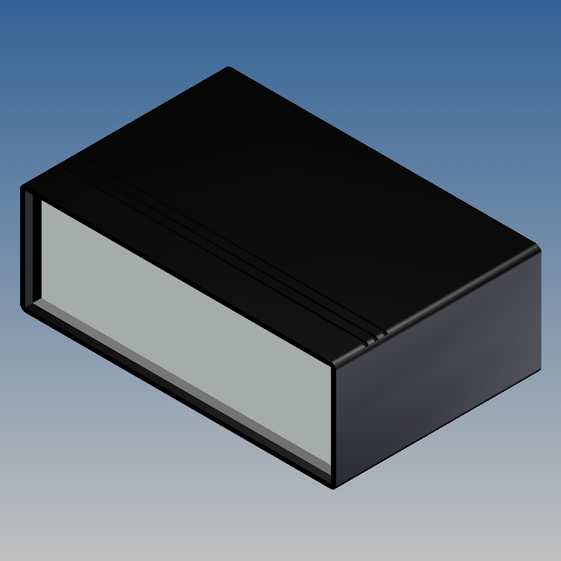

NE33.9 8,583 5,571 2,992 9004
P2H-AT 8,173 2,622 2 - PDF
DWG
View
  • Color (Ral): 9004
  • Material: P2H-AT
  • MAX PCB L (mm): 207,6
  • MAX PCB W (mm): 66,6
  • Screws: 2
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

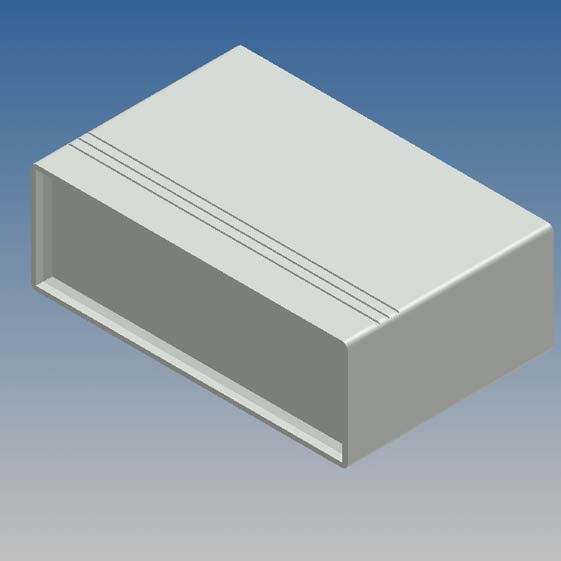

NE43.5 8,583 5,571 2,972 9018
AG-ATY 8,173 2,598 2 - PDF
DWG
View
  • Color (Ral): 9018
  • Material: AG-ATY
  • MAX PCB L (mm): 207,6
  • MAX PCB W (mm): 66
  • Screws: 2
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

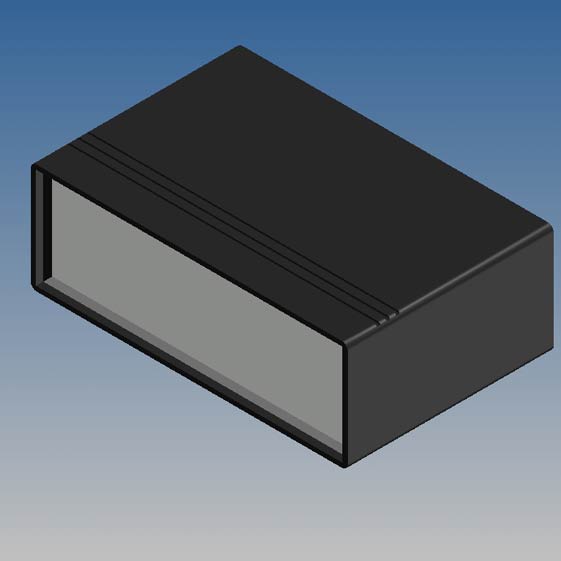

NE43.9 8,583 5,571 2,972 9004
P2H-AT 8,173 2,598 2 - PDF
DWG
View
  • Color (Ral): 9004
  • Material: P2H-AT
  • MAX PCB L (mm): 207,6
  • MAX PCB W (mm): 66
  • Screws: 2
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG
