STRUMENTA SAT

Family Strumentalia - Electronic enclosures - Plastic

Description

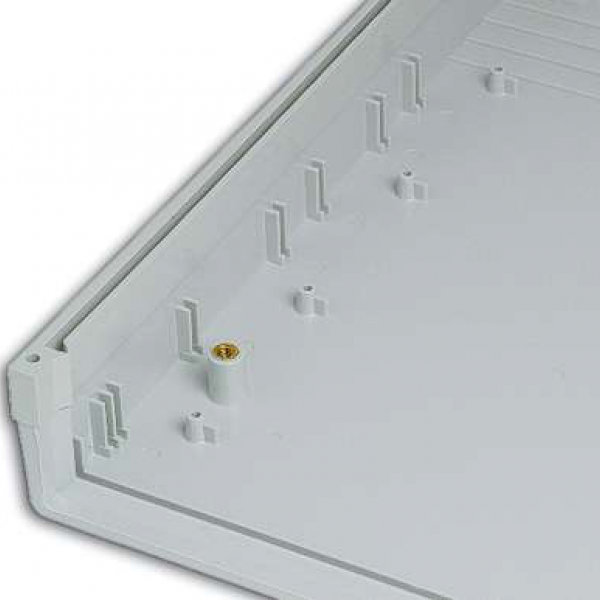

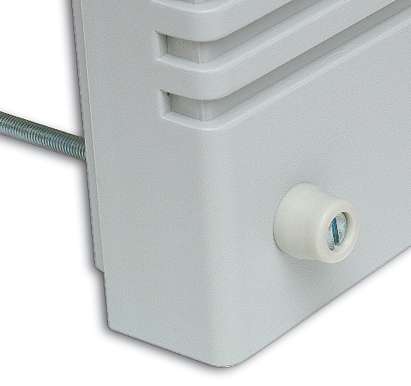

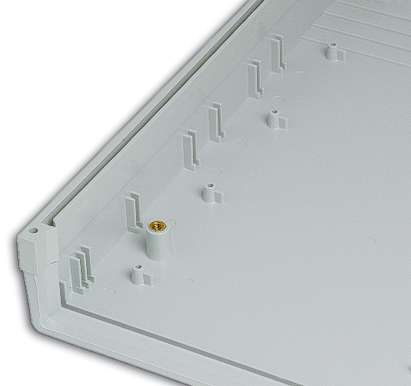

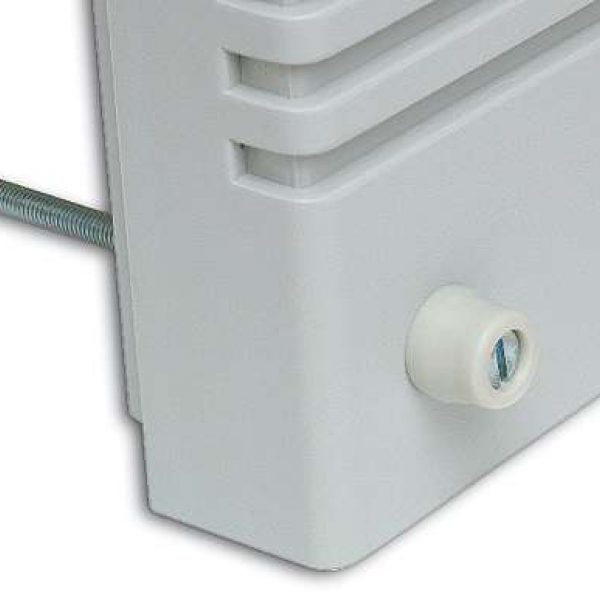

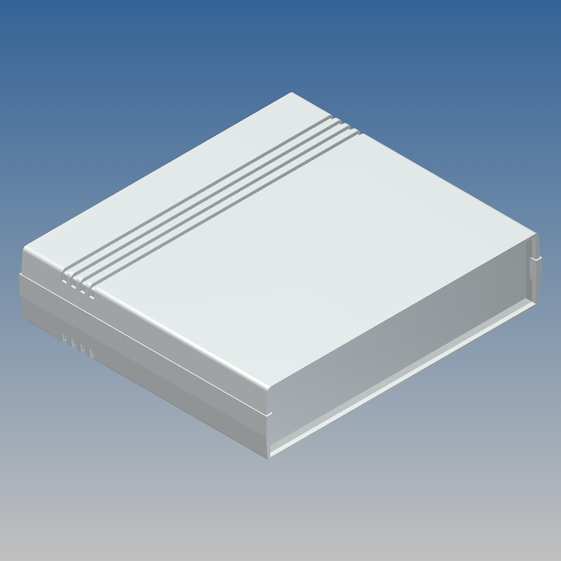

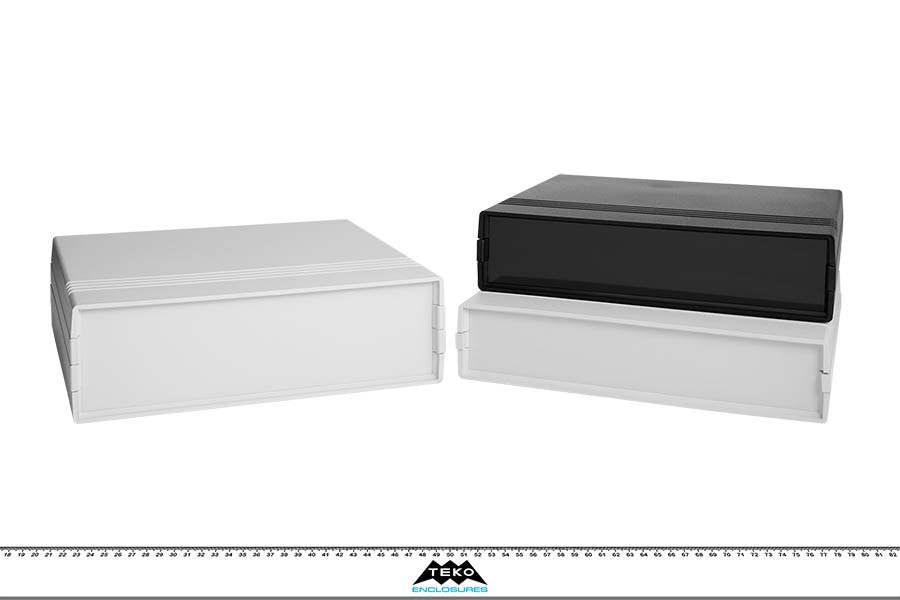

Cases with the front and rear panels moulded in ABS. The base and the cover have integral PCB guides and mounting studs. Closing by four screws.

Details

Products

Model L (inch) W (inch) H (inch) Color (Ral) Material MAX PCB L (inch) MAX PCB W (inch) Screws Battery Accessories Drawings Other

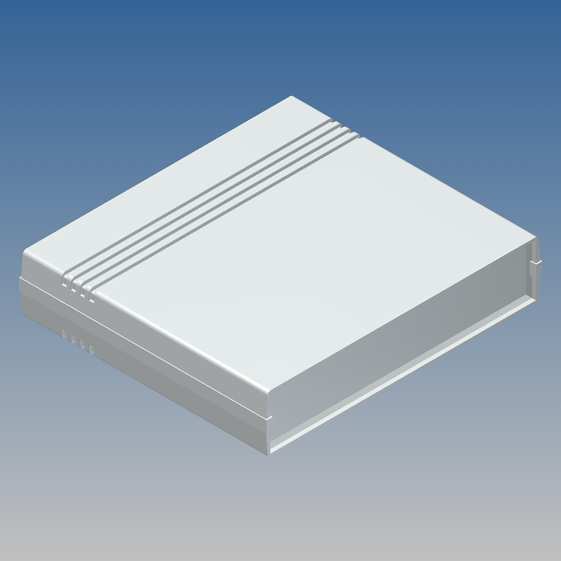

861.5 10,551 11,811 2,48 9018
AG-ATY 11,102 9,055 4 - PDF
DWG
View
  • Color (Ral): 9018
  • Material: AG-ATY
  • MAX PCB L (mm): 282
  • MAX PCB W (mm): 230
  • Screws: 4
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG
861.9 10,551 11,811 2,48 9004
P2H-AT 11,102 9,055 4 - PDF
DWG
View
  • Color (Ral): 9004
  • Material: P2H-AT
  • MAX PCB L (mm): 282
  • MAX PCB W (mm): 230
  • Screws: 4
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG
862.5 10,551 11,811 2,748 9018
AG-ATY 11,102 9,055 4 - PDF
DWG
View
  • Color (Ral): 9018
  • Material: AG-ATY
  • MAX PCB L (mm): 282
  • MAX PCB W (mm): 230
  • Screws: 4
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

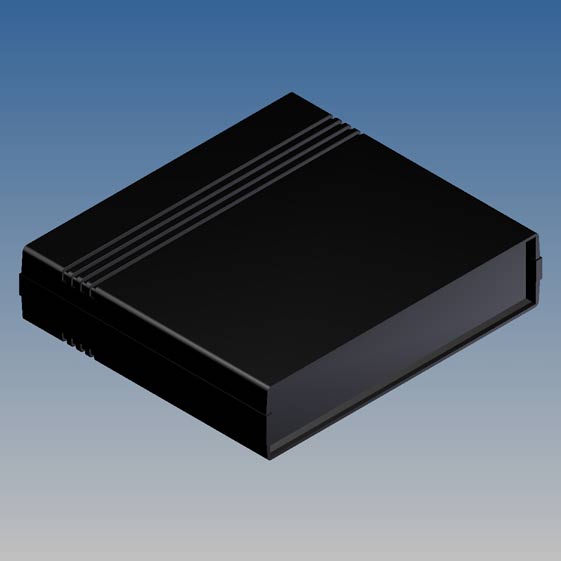

862.9 10,551 11,811 2,748 9004
P2H-AT 11,102 9,055 4 - PDF
DWG
View
  • Color (Ral): 9004
  • Material: P2H-AT
  • MAX PCB L (mm): 282
  • MAX PCB W (mm): 230
  • Screws: 4
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

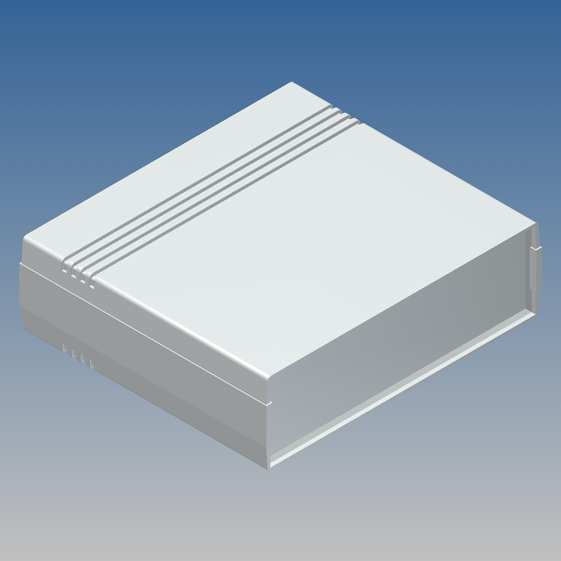

863.5 10,551 11,811 3,535 9018
AG-ATY 11,102 9,055 4 - PDF
DWG
View
  • Color (Ral): 9018
  • Material: AG-ATY
  • MAX PCB L (mm): 282
  • MAX PCB W (mm): 230
  • Screws: 4
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

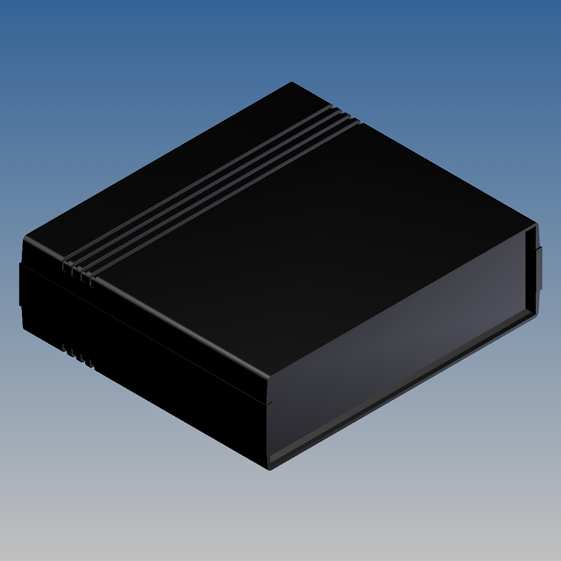

863.9 10,551 11,811 3,535 9004
P2H-AT 11,102 9,055 4 - PDF
DWG
View
  • Color (Ral): 9004
  • Material: P2H-AT
  • MAX PCB L (mm): 282
  • MAX PCB W (mm): 230
  • Screws: 4
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG
