STRUMENTALIA

Family Strumentalia - Electronic enclosures - Plastic

Description

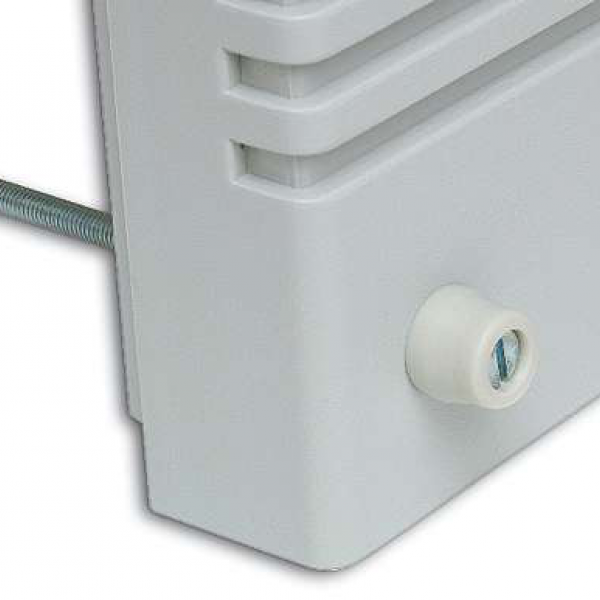

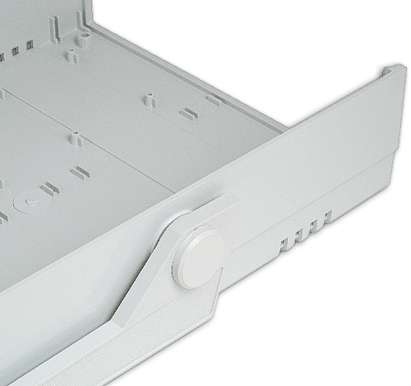

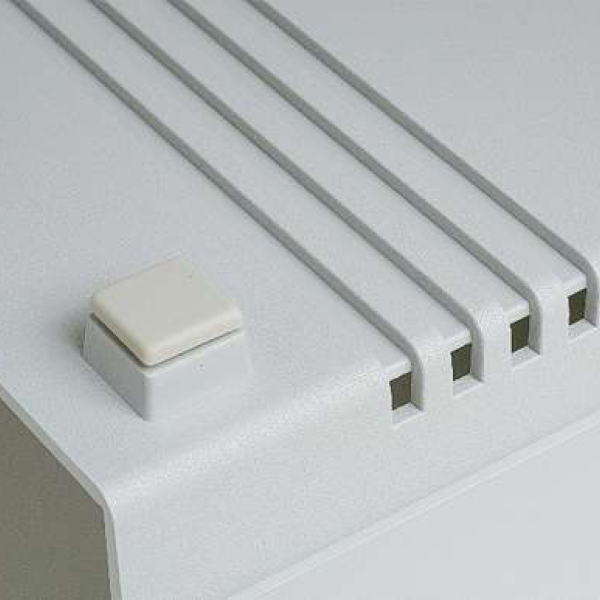

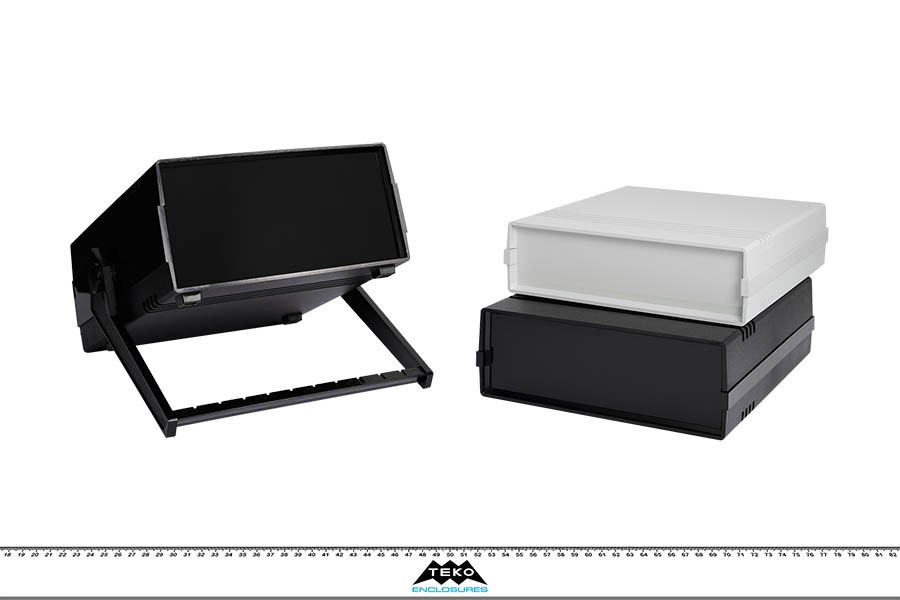

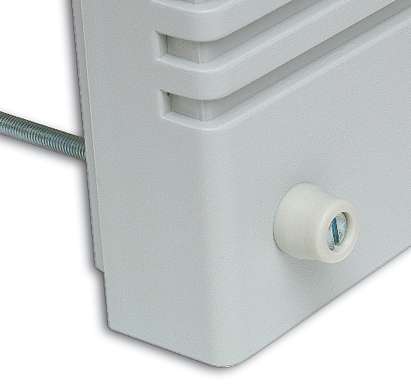

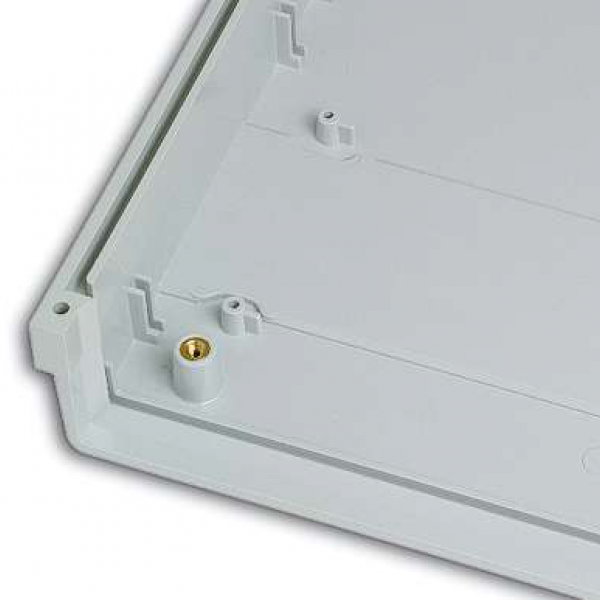

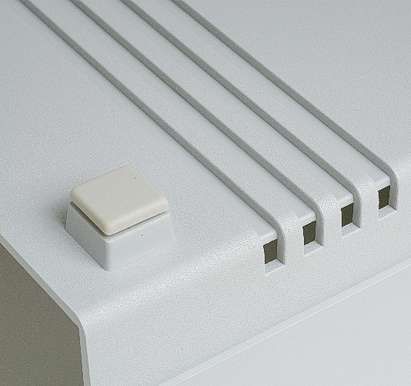

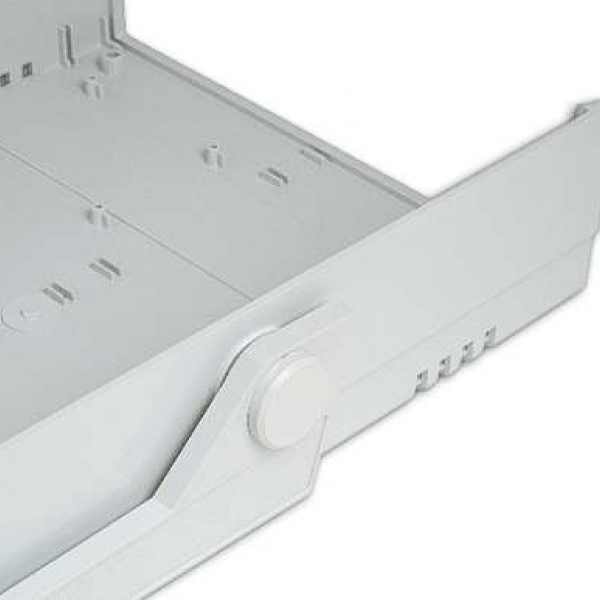

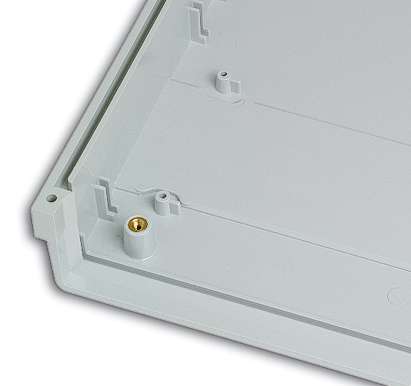

Cases with the front and rear panels moulded in ABS. The base and the cover have integral PCB guides and mounting studs. The models “761” and “762” come complete with easy-to-grip, multi-tilt support handles. Matt surface finish. Closing by four screws with plastic feet.

Details

Products

Model L (inch) W (inch) H (inch) Color (Ral) Material MAX PCB L (inch) MAX PCB W (inch) Screws Battery Accessories Drawings Other

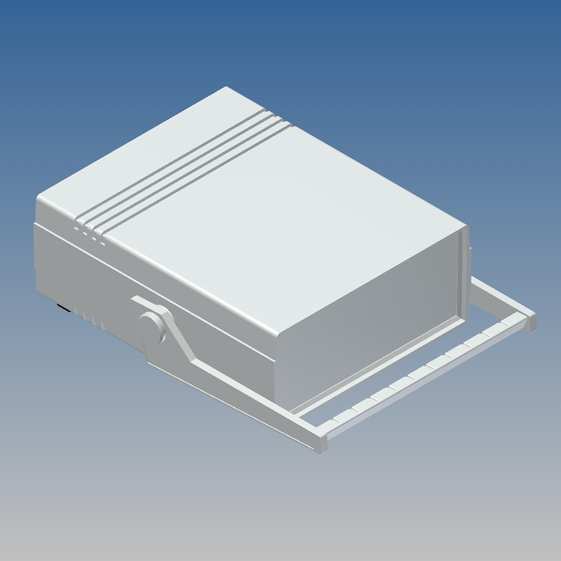

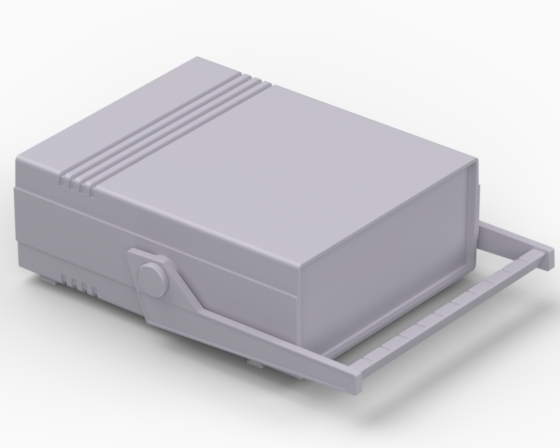

761.5 10,551 8,504 3,74 9018
AG-ATY 9,449 7,874 4 - PDF
DWG
View
  • Color (Ral): 9018
  • Material: AG-ATY
  • MAX PCB L (mm): 240
  • MAX PCB W (mm): 200
  • Screws: 4
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

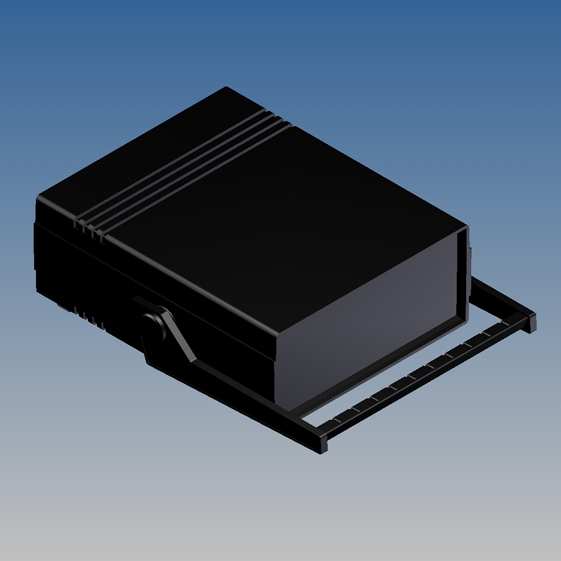

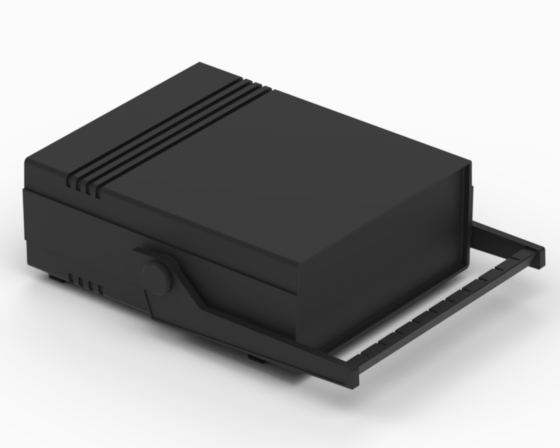

761.9 10,551 8,504 3,74 9004
P2H-AT 9,449 7,874 4 - PDF
DWG
View
  • Color (Ral): 9004
  • Material: P2H-AT
  • MAX PCB L (mm): 240
  • MAX PCB W (mm): 200
  • Screws: 4
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

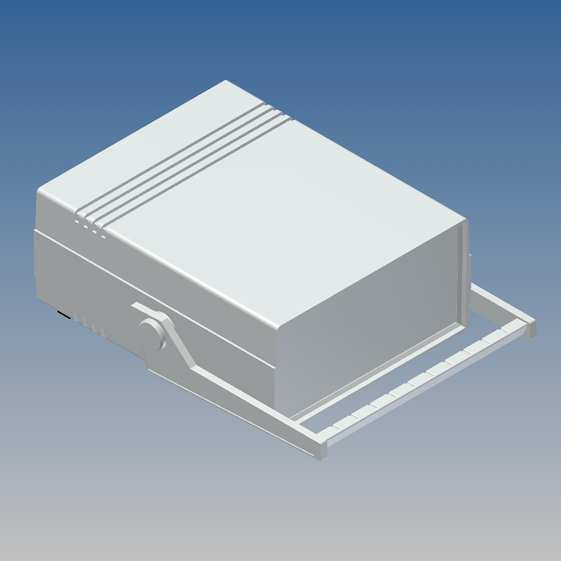

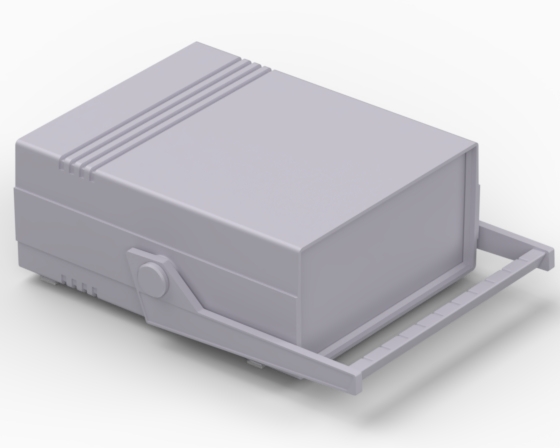

762.5 10,551 8,504 4,252 9018
AG-ATY 9,449 7,874 4 - PDF
DWG
View
  • Color (Ral): 9018
  • Material: AG-ATY
  • MAX PCB L (mm): 240
  • MAX PCB W (mm): 200
  • Screws: 4
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

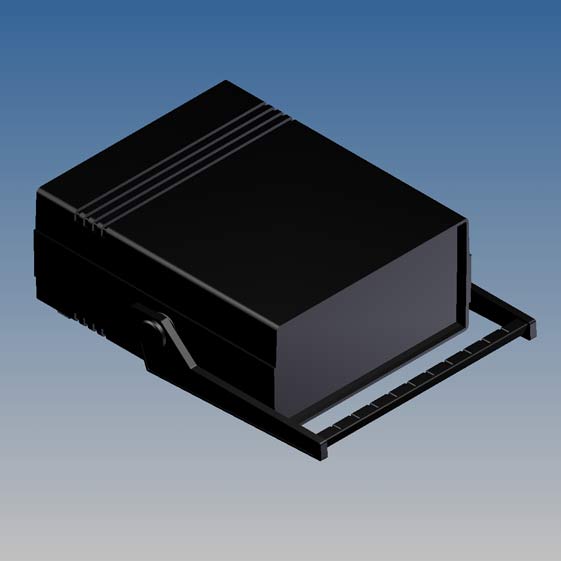

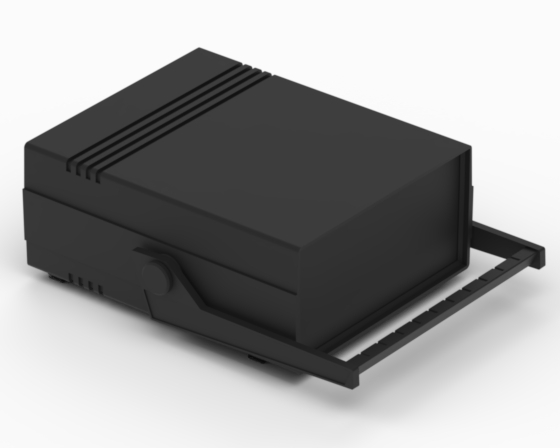

762.9 10,551 8,504 4,252 9004
P2H-AT 9,449 7,874 4 - PDF
DWG
View
  • Color (Ral): 9004
  • Material: P2H-AT
  • MAX PCB L (mm): 240
  • MAX PCB W (mm): 200
  • Screws: 4
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

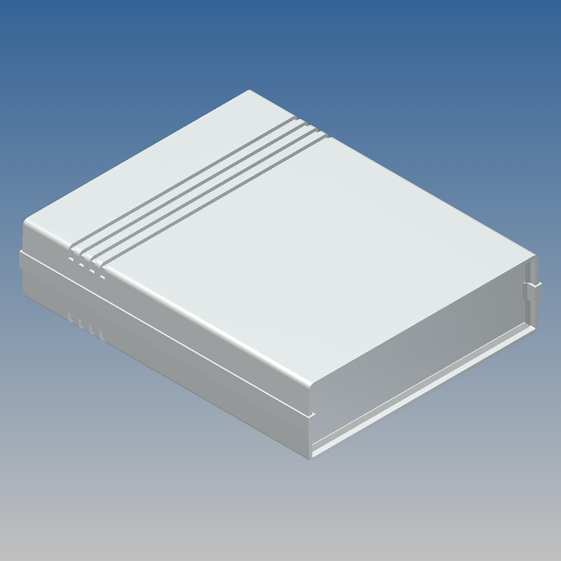

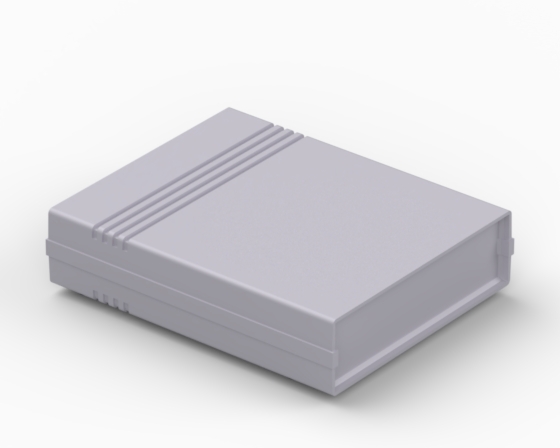

765.5 10,551 8,504 2,48 9018
AG-ATY 9,449 7,874 4 - PDF
DWG
View
  • Color (Ral): 9018
  • Material: AG-ATY
  • MAX PCB L (mm): 240
  • MAX PCB W (mm): 200
  • Screws: 4
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

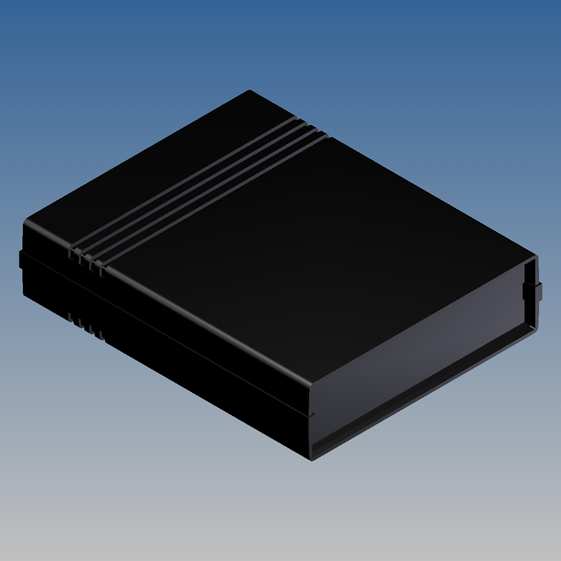

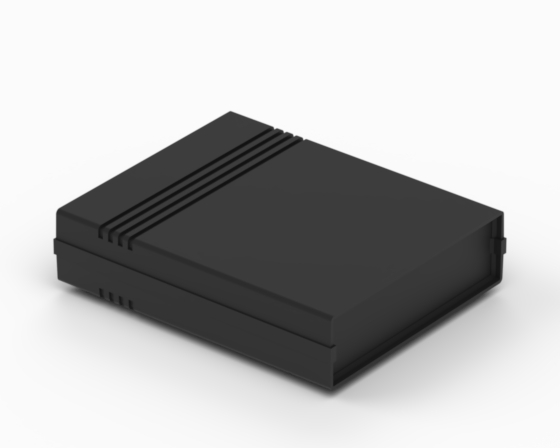

765.9 10,551 8,504 2,48 9004
P2H-AT 9,449 7,874 4 - PDF
DWG
View
  • Color (Ral): 9004
  • Material: P2H-AT
  • MAX PCB L (mm): 240
  • MAX PCB W (mm): 200
  • Screws: 4
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

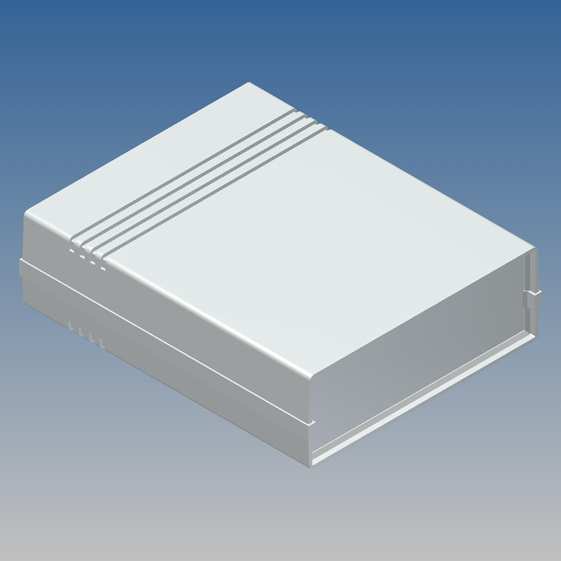

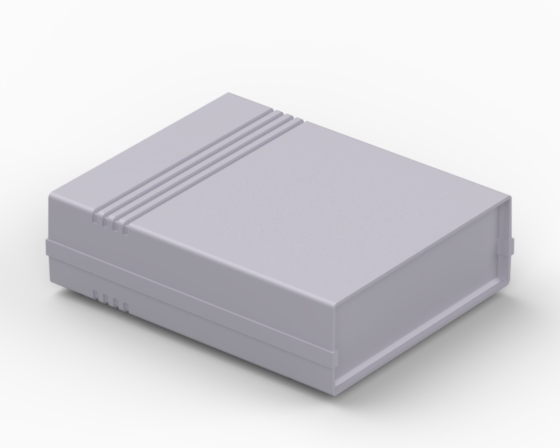

766.5 10,551 8,504 2,992 9018
AG-ATY 9,449 7,874 4 - PDF
DWG
View
  • Color (Ral): 9018
  • Material: AG-ATY
  • MAX PCB L (mm): 240
  • MAX PCB W (mm): 200
  • Screws: 4
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

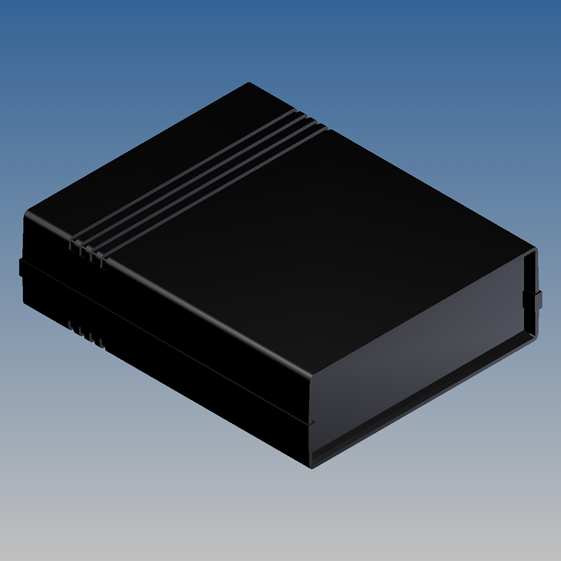

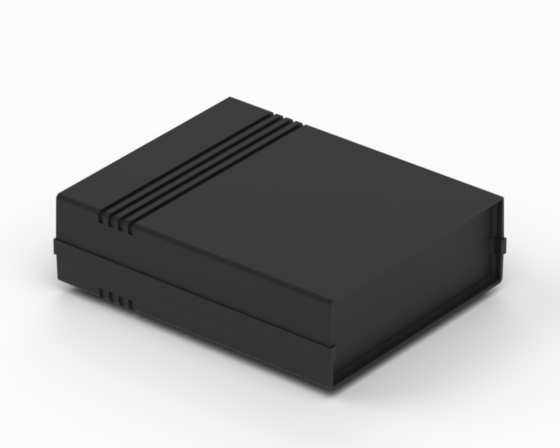

766.9 10,551 8,504 2,992 9004
P2H-AT 9,449 7,874 4 - PDF
DWG
View
  • Color (Ral): 9004
  • Material: P2H-AT
  • MAX PCB L (mm): 240
  • MAX PCB W (mm): 200
  • Screws: 4
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

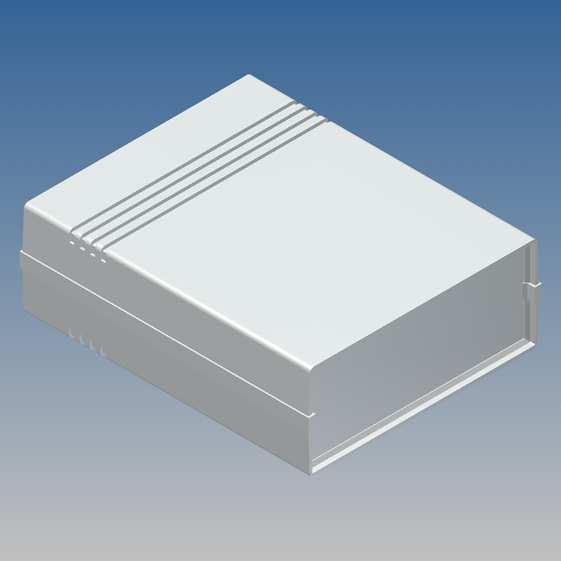

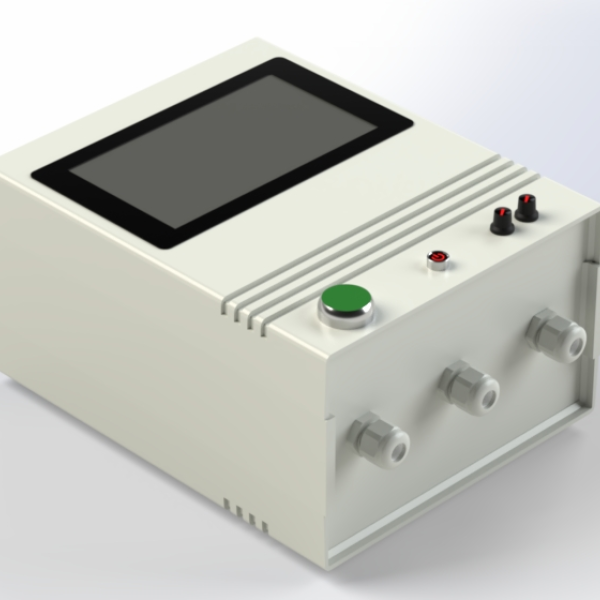

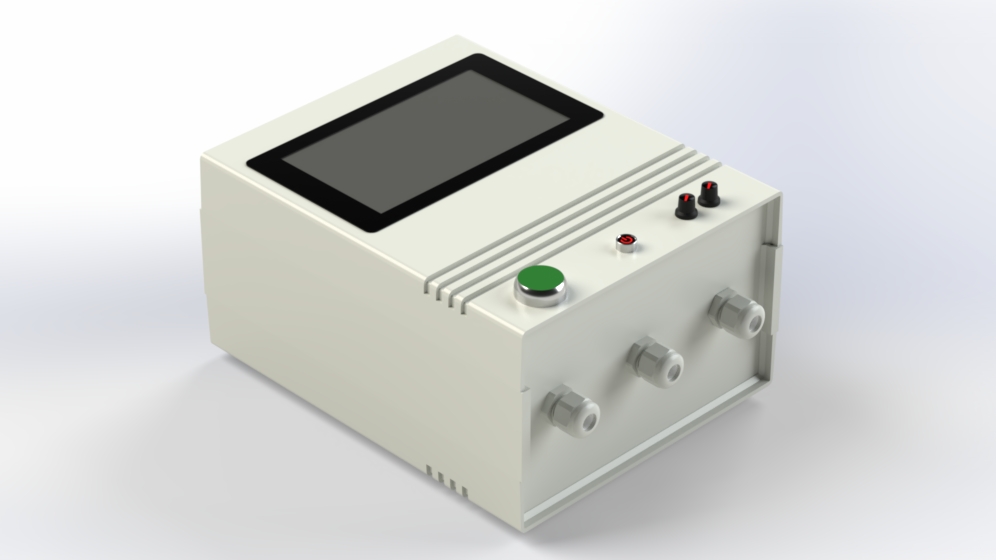

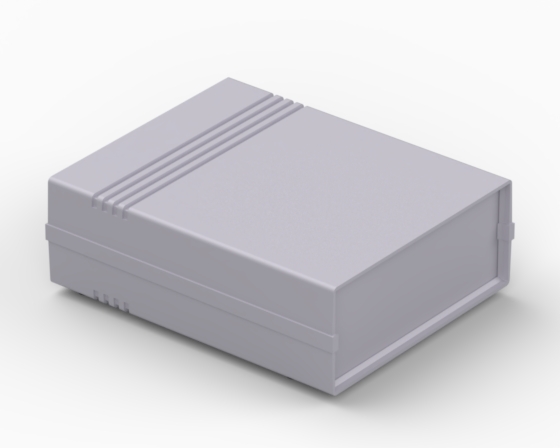

767.5 10,551 8,504 3,504 9018
AG-ATY 9,449 7,874 4 - PDF
DWG
View
  • Color (Ral): 9018
  • Material: AG-ATY
  • MAX PCB L (mm): 240
  • MAX PCB W (mm): 200
  • Screws: 4
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

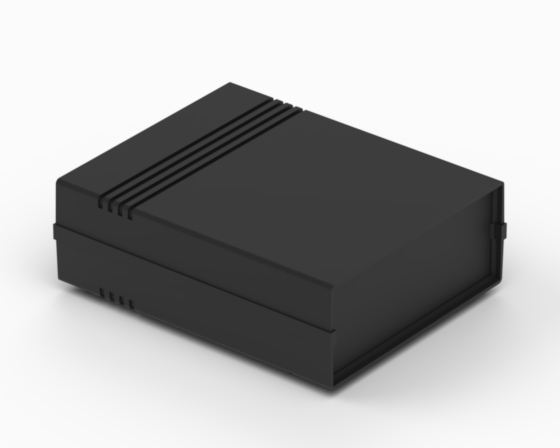

767.9 10,551 8,504 3,504 9004
P2H-AT 9,449 7,874 4 - PDF
DWG
View
  • Color (Ral): 9004
  • Material: P2H-AT
  • MAX PCB L (mm): 240
  • MAX PCB W (mm): 200
  • Screws: 4
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG
