STRUMENTALIA PULPIT

Family Strumentalia - Electronic enclosures - Plastic

Description

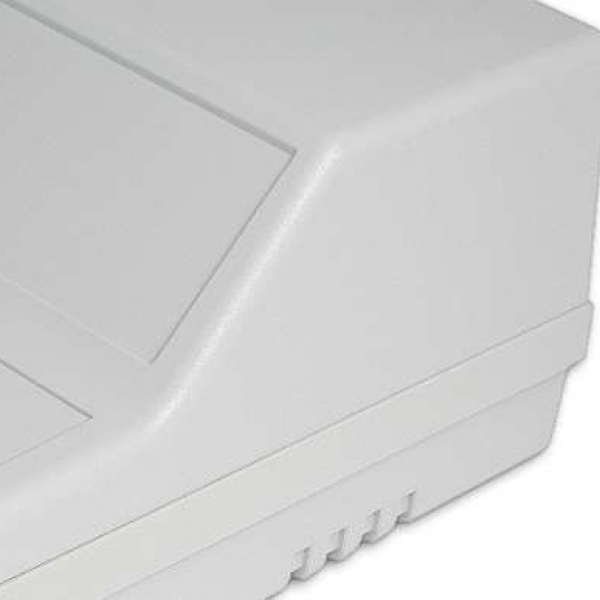

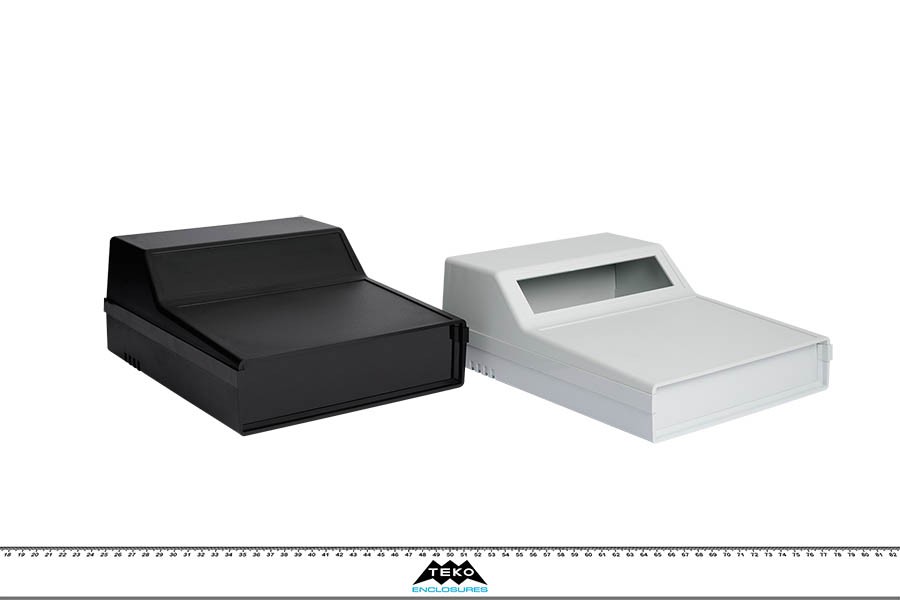

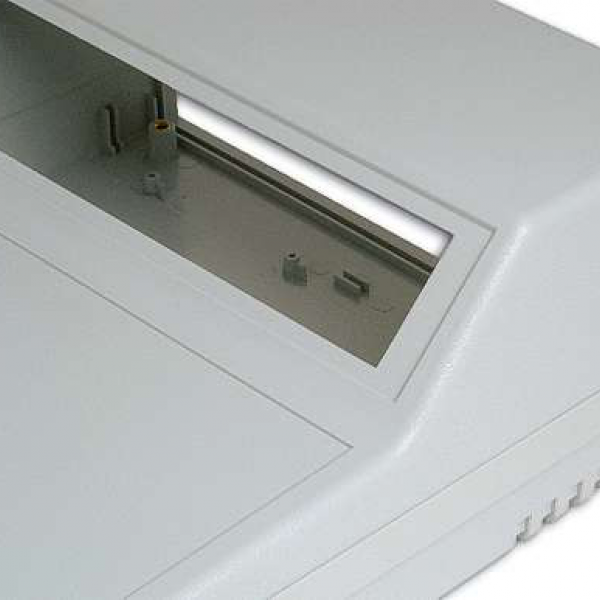

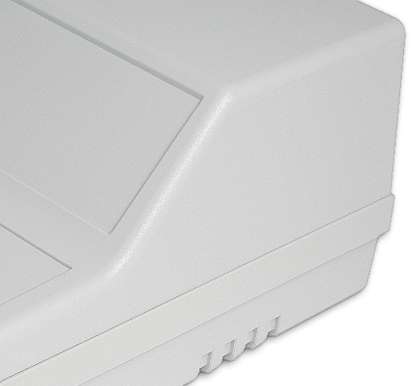

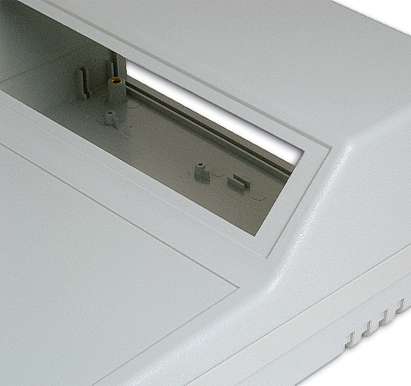

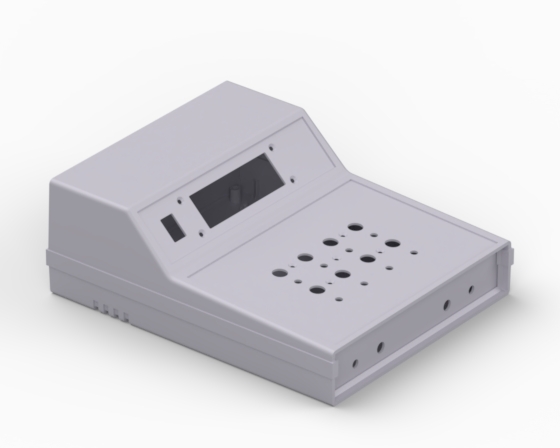

Cases with the front and rear panels moulded in ABS. The base and the cover have integral PCB guides and mounting studs. The models “763” and “764” have inclined cover with a recessed area or with cut-outs (175 x 35 mm.) for keyboard or display (Mod. 763/O and 764/O). Matt surface finish. Closing by four screws.

Details

Products

Model L (inch) W (inch) H (inch) Color (Ral) Material MAX PCB L (inch) MAX PCB W (inch) Screws Battery Accessories Drawings Other

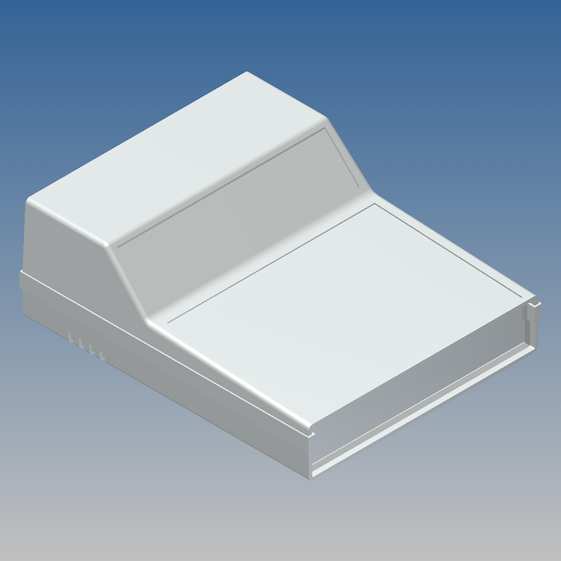

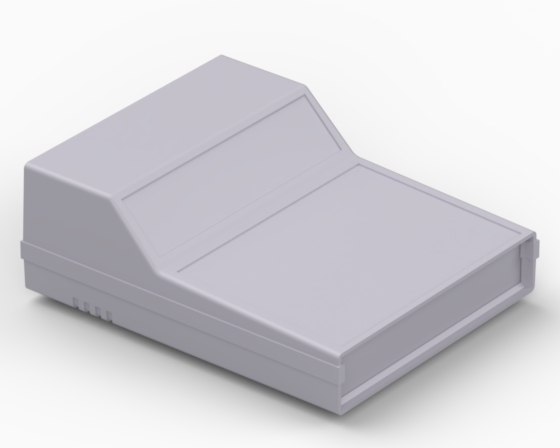

763.5 10,551 8,504 3,76 9018
AG-ATY 9,449 7,874 4 - PDF
DWG
View
  • Color (Ral): 9018
  • Material: AG-ATY
  • MAX PCB L (mm): 240
  • MAX PCB W (mm): 200
  • Screws: 4
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

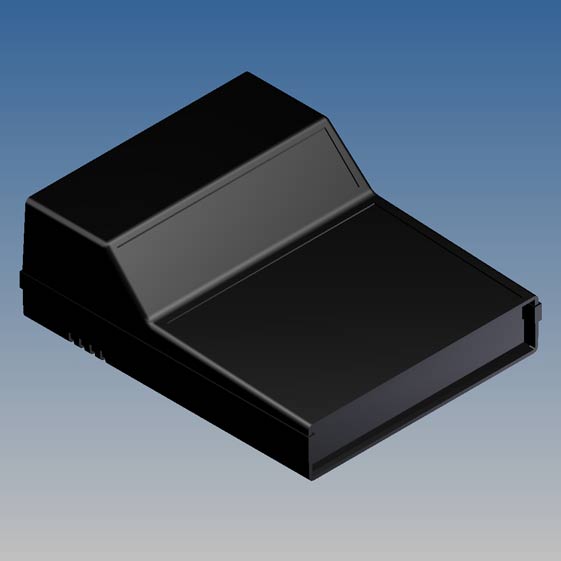

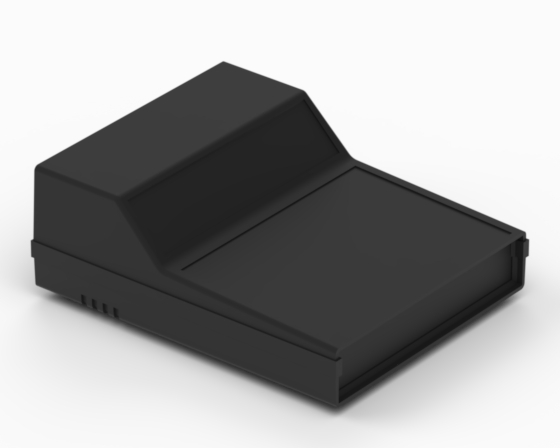

763.9 10,551 8,504 3,76 9004
P2H-AT 9,449 7,874 4 - PDF
DWG
View
  • Color (Ral): 9004
  • Material: P2H-AT
  • MAX PCB L (mm): 240
  • MAX PCB W (mm): 200
  • Screws: 4
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

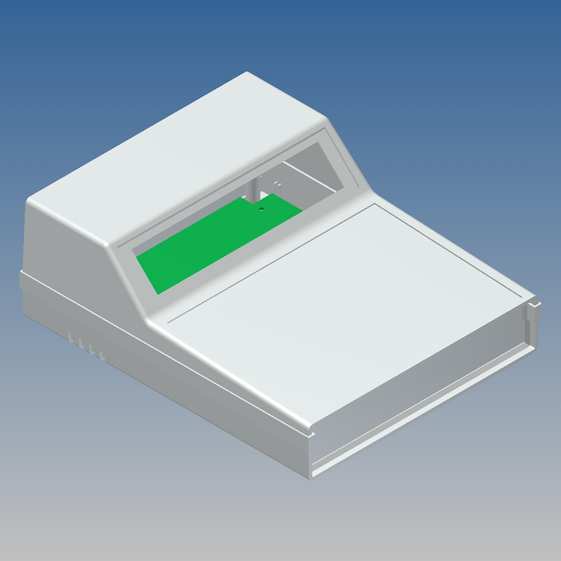

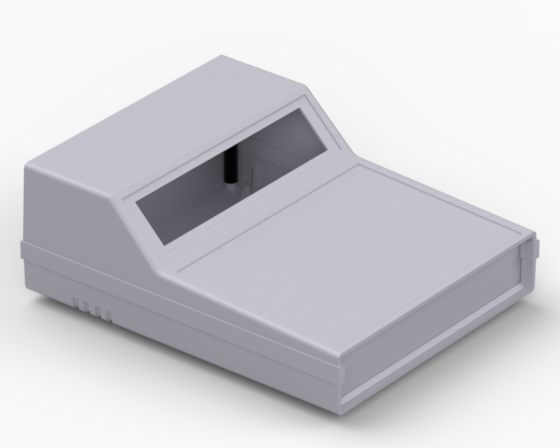

763/O.5 10,551 8,504 3,76 9018
AG-ATY 9,449 7,874 4 - PDF
DWG
View
  • Color (Ral): 9018
  • Material: AG-ATY
  • MAX PCB L (mm): 240
  • MAX PCB W (mm): 200
  • Screws: 4
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

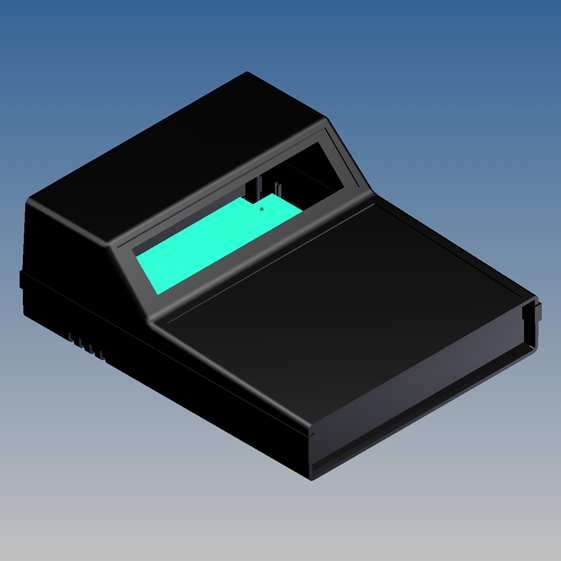

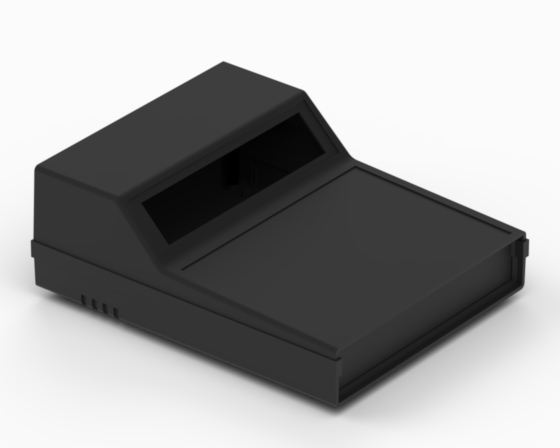

763/O.9 10,551 8,504 3,76 9004
P2H-AT 9,449 7,874 4 - PDF
DWG
View
  • Color (Ral): 9004
  • Material: P2H-AT
  • MAX PCB L (mm): 240
  • MAX PCB W (mm): 200
  • Screws: 4
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

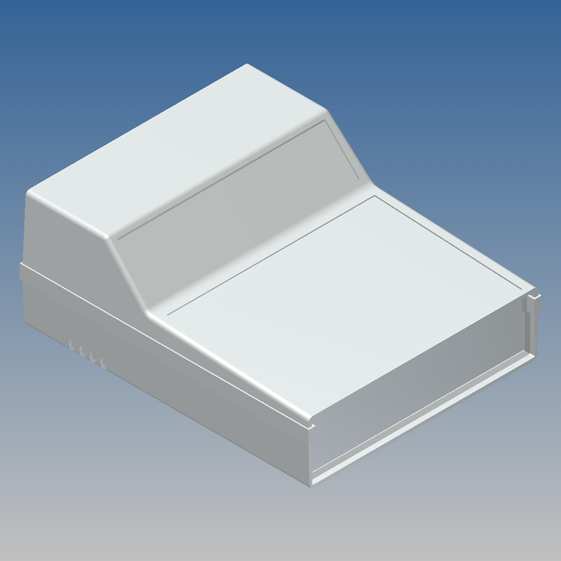

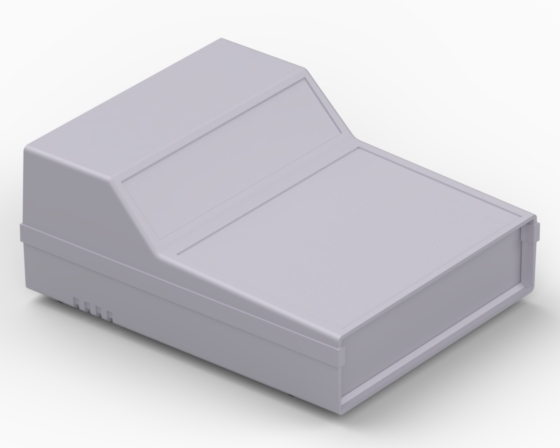

764.5 10,551 8,504 4,272 9018
AG-ATY 9,449 7,874 4 - PDF
DWG
View
  • Color (Ral): 9018
  • Material: AG-ATY
  • MAX PCB L (mm): 240
  • MAX PCB W (mm): 200
  • Screws: 4
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

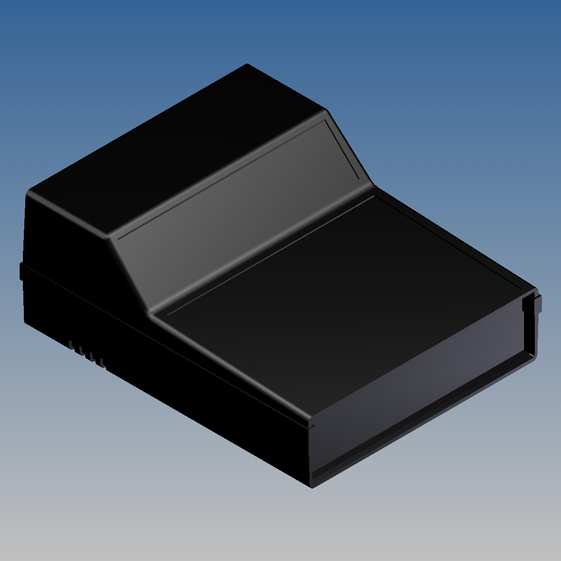

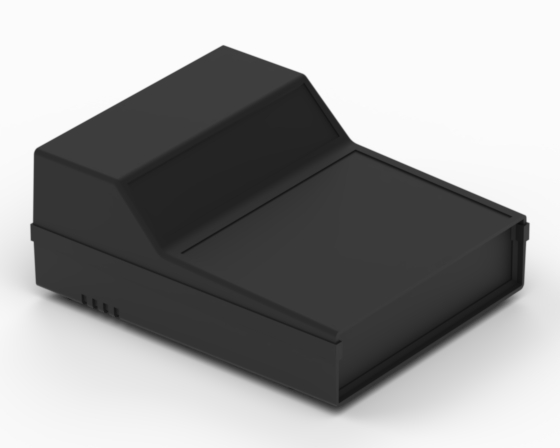

764.9 10,551 8,504 4,272 9004
P2H-AT 9,449 7,874 4 - PDF
DWG
View
  • Color (Ral): 9004
  • Material: P2H-AT
  • MAX PCB L (mm): 240
  • MAX PCB W (mm): 200
  • Screws: 4
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

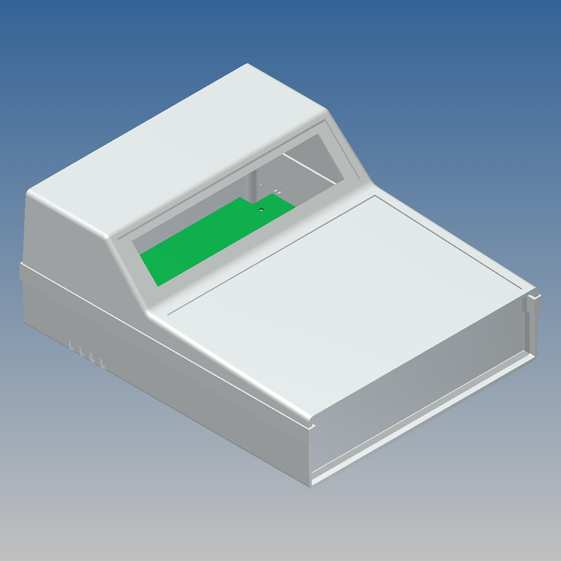

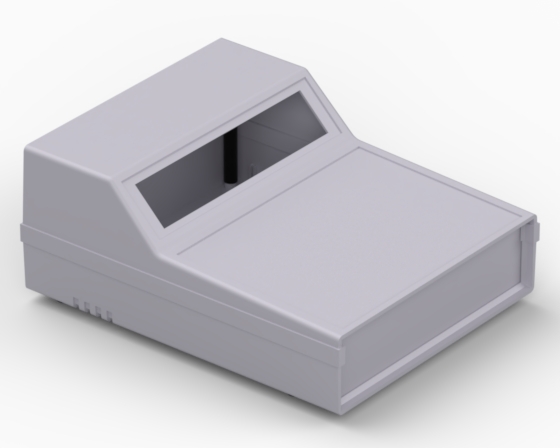

764/O.5 10,551 8,504 4,272 9018
AG-ATY 9,449 7,874 4 - PDF
DWG
View
  • Color (Ral): 9018
  • Material: AG-ATY
  • MAX PCB L (mm): 240
  • MAX PCB W (mm): 200
  • Screws: 4
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

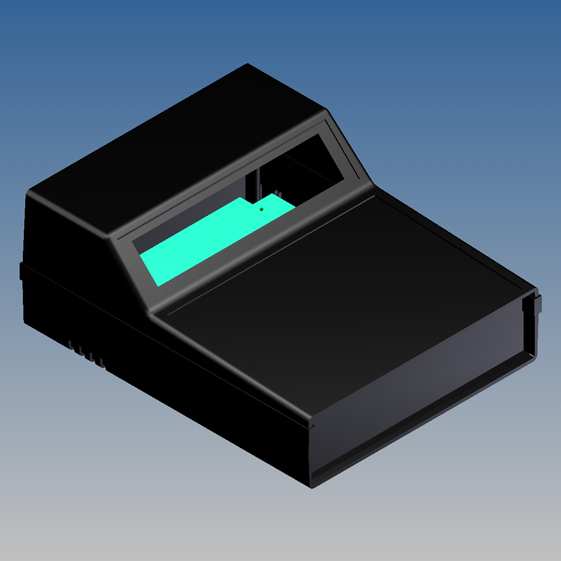

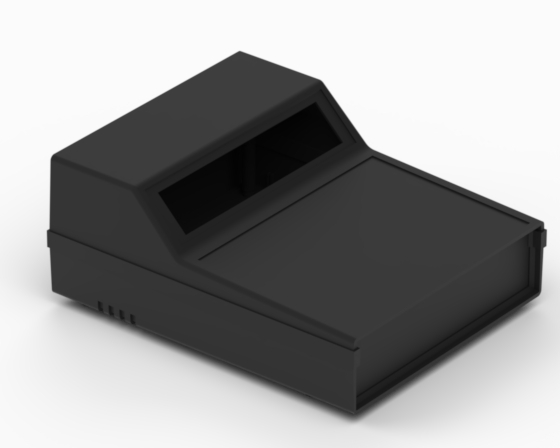

764/O.9 10,551 8,504 4,272 9004
P2H-AT 9,449 7,874 4 - PDF
DWG
View
  • Color (Ral): 9004
  • Material: P2H-AT
  • MAX PCB L (mm): 240
  • MAX PCB W (mm): 200
  • Screws: 4
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG
