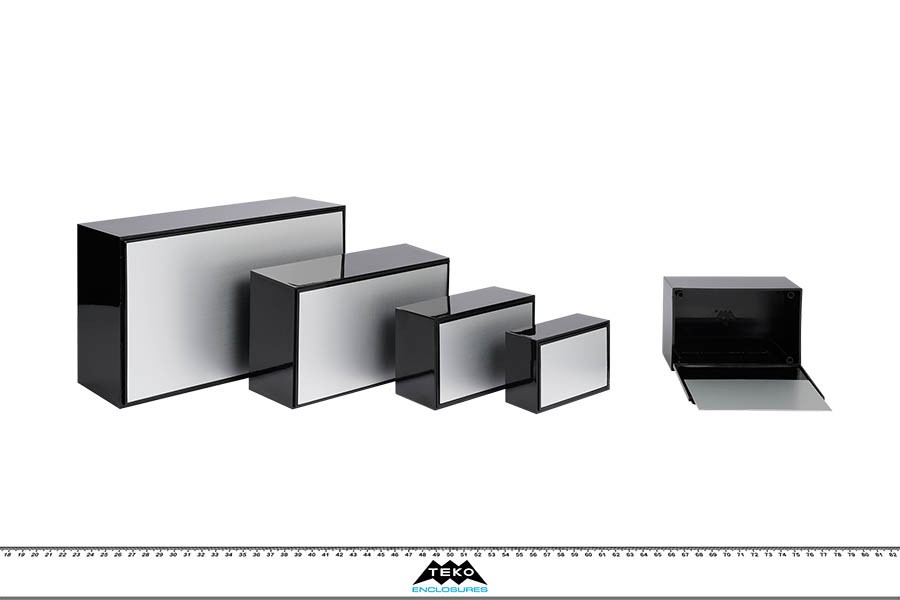

Family Top Cover - Electronic enclosures - Plastic

Description

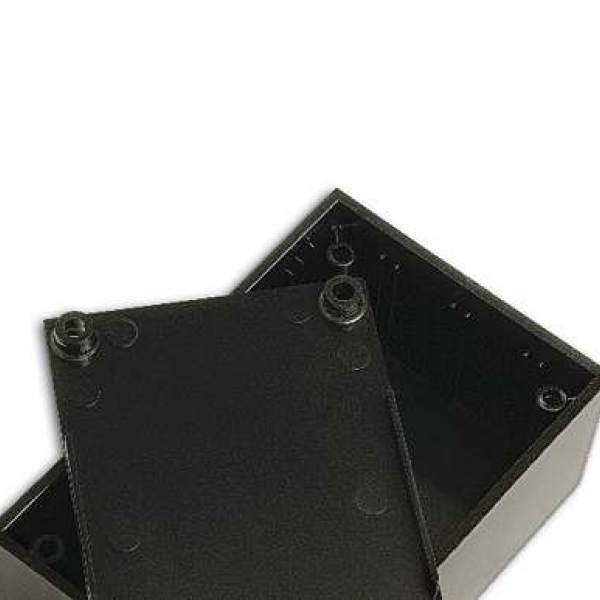

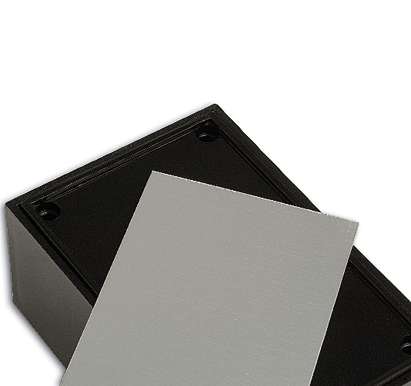

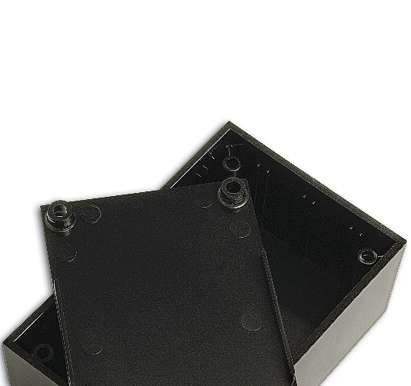

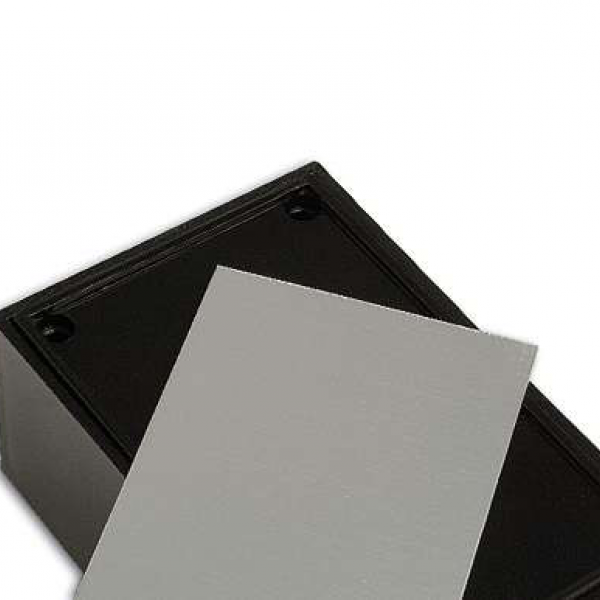

ABS enclosures with a plastic cover and an aluminium panel. Glossy surface finish. The cover has a recessed area to hold an 0.5 mm anodized aluminium panel. The base walls have integral PCB guides. Closing by four screws.

Details

Products

Model L (inch) W (inch) H (inch) Color (Ral) Material MAX PCB L (inch) MAX PCB W (inch) Screws Battery Accessories Drawings Other

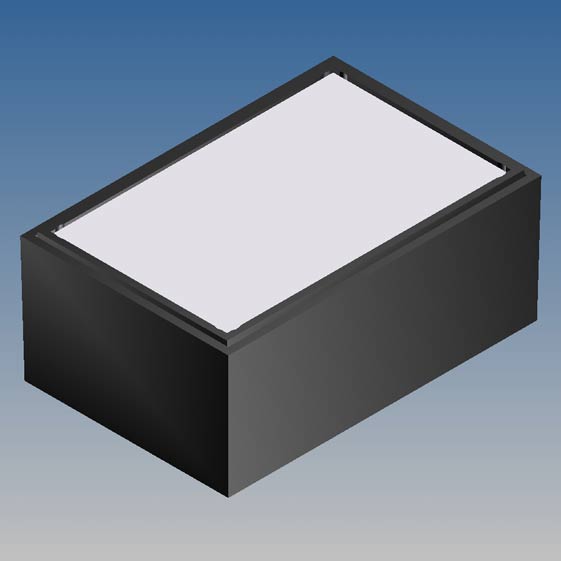

151/P.9 3,346 2,205 1,441 9004
ALLOY 6060  -  1640 AS 3,150 0,984 4 - PDF
DWG
View

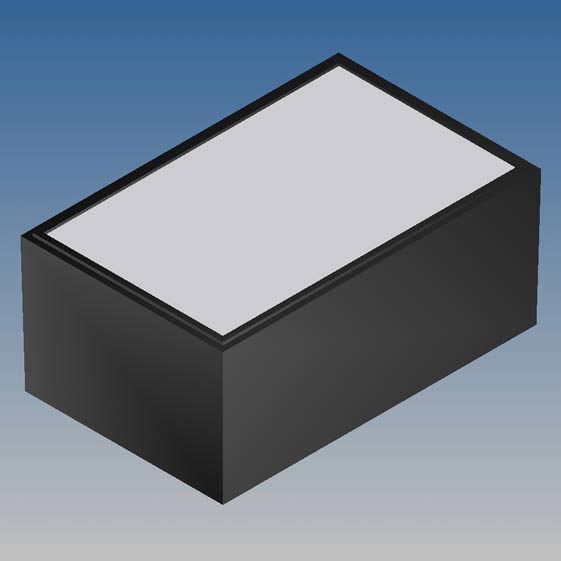

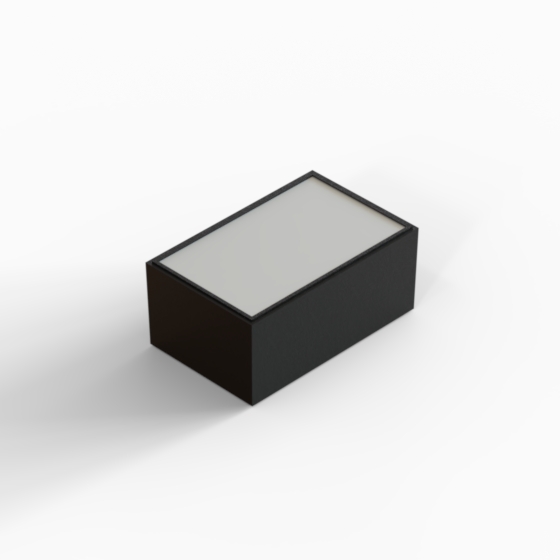

152/P.9 4,331 2,756 1,925 9004
ALLOY 6060  -  1640 AS 4,075 1,457 4 - PDF
DWG
View

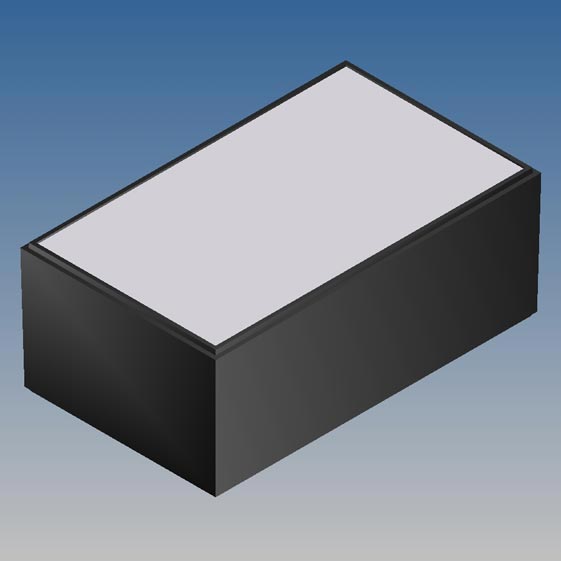

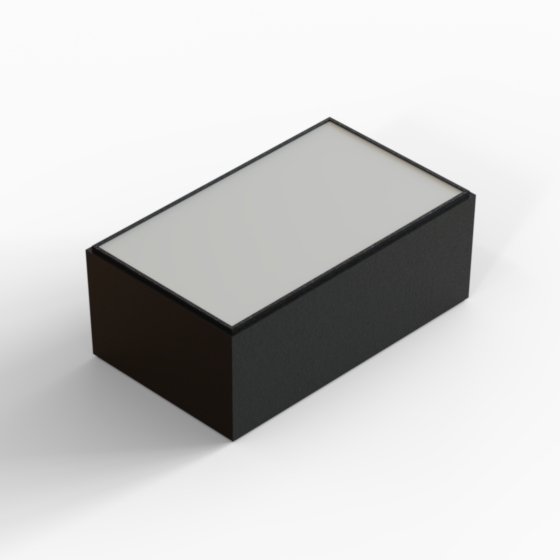

153/P.9 6,299 3,78 2,488 9004
ALLOY 6060  -  1640 AS 6,063 1,929 4 - PDF
DWG
View

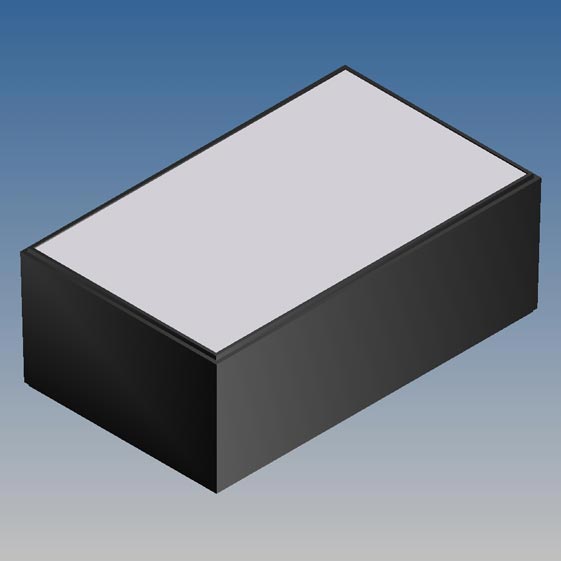

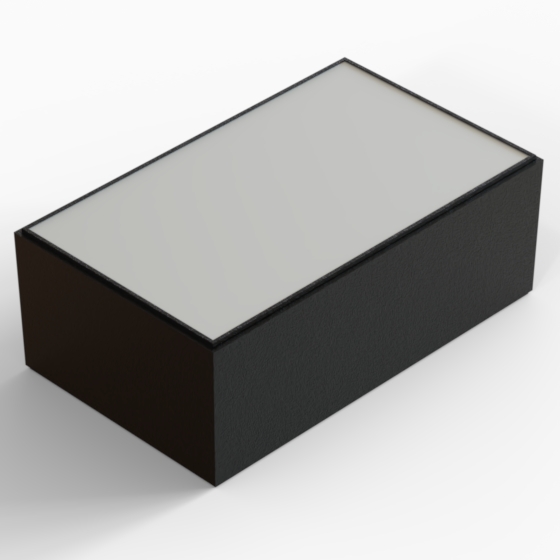

154/P.9 8,465 5,118 3,126 9004
ALLOY 6060  -  1640 AS 8,189 2,539 4 - PDF
DWG
View
