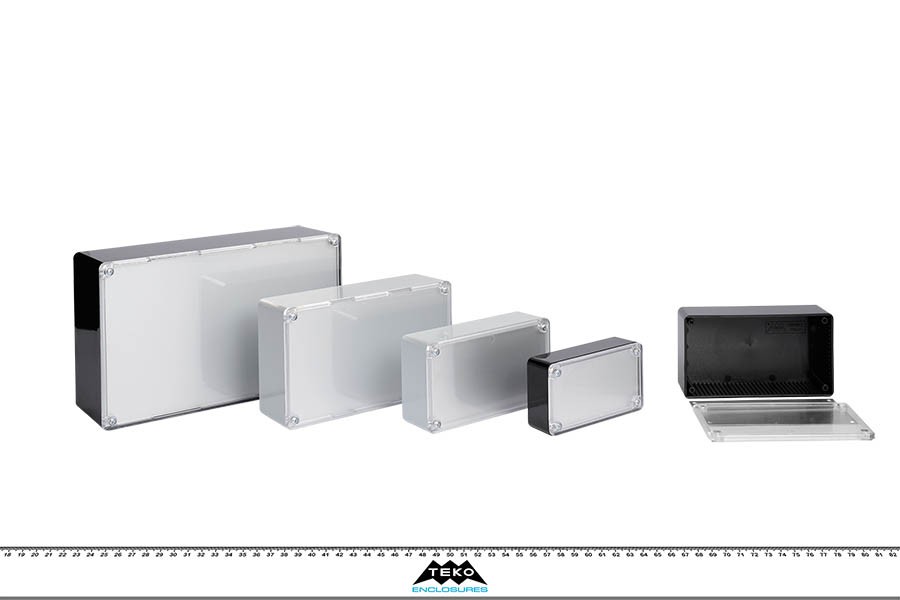

COFFER TP

Family Top Cover - Electronic enclosures - Plastic

Description

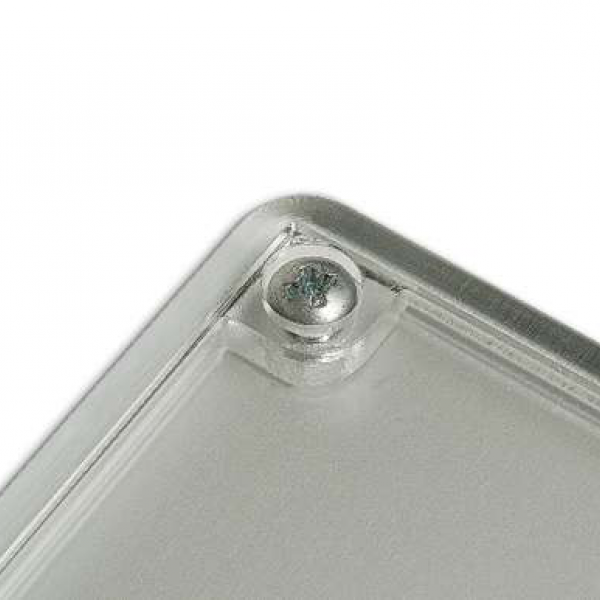

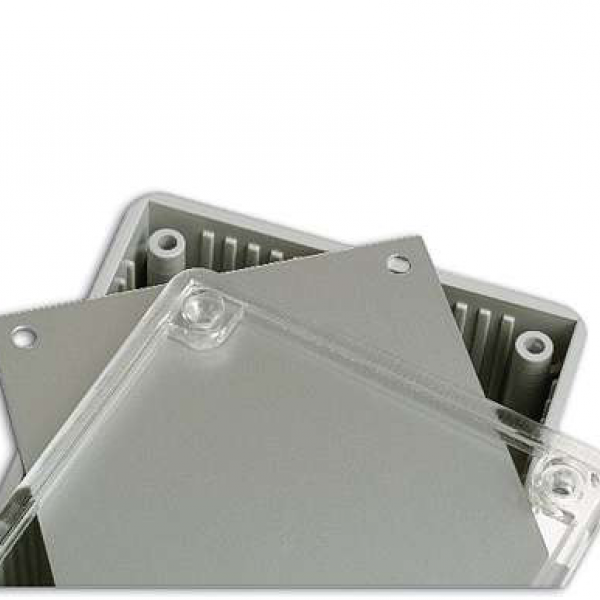

ABS enclosure with an 0.5 mm anodised aluminium panel and a transparent polycarbonate cover. The base walls have integral PCB guides in a high density configuration. Glossy surfaces finish. Closing by four screws.

Details

Products

Model L (inch) W (inch) H (inch) Color (Ral) Material MAX PCB L (inch) MAX PCB W (inch) Screws Battery Accessories Drawings Other

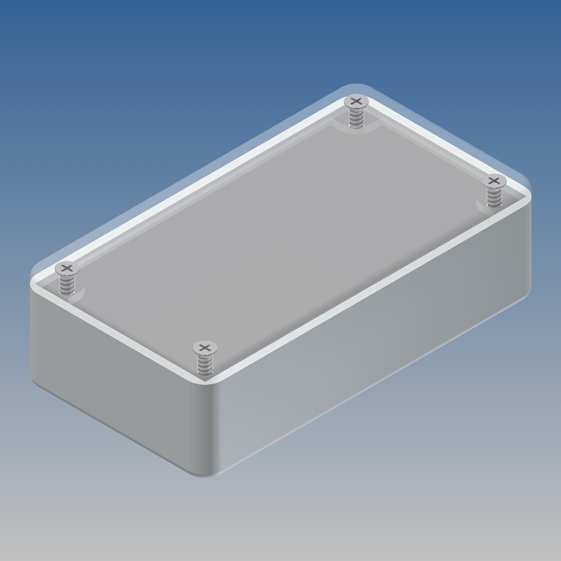

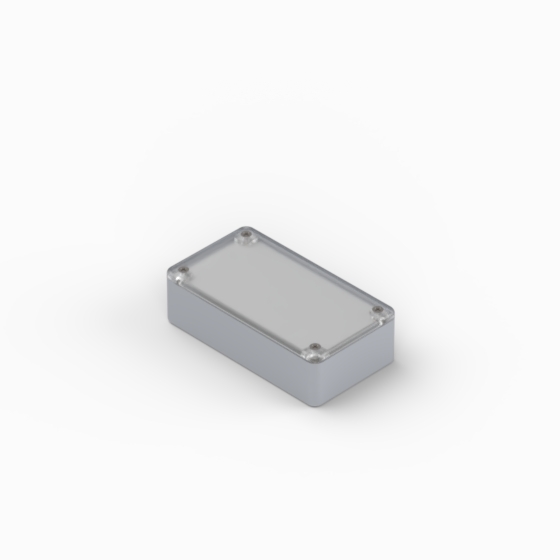

COFFER-TP1.5 3,937 2,165 1,142 9018
AG-ATY  -  2407 3,740 0,748 4 - PDF
DWG
View
  • Color (Ral): 9018
  • Material: AG-ATY  -  2407
  • MAX PCB L (mm): 95
  • MAX PCB W (mm): 19
  • Screws: 4
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

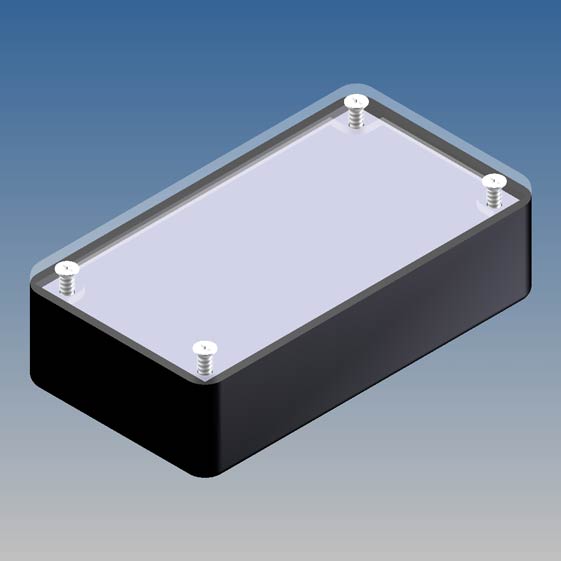

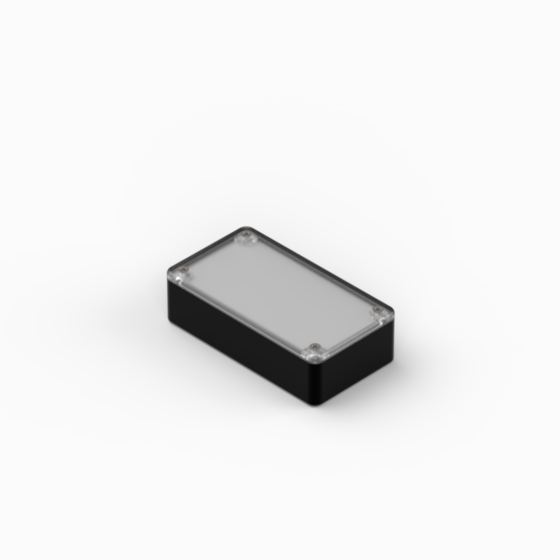

COFFER-TP1.9 3,937 2,165 1,142 9004
P2H-AT  -  2407 3,740 0,748 4 - PDF
DWG
View
  • Color (Ral): 9004
  • Material: P2H-AT  -  2407
  • MAX PCB L (mm): 95
  • MAX PCB W (mm): 19
  • Screws: 4
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

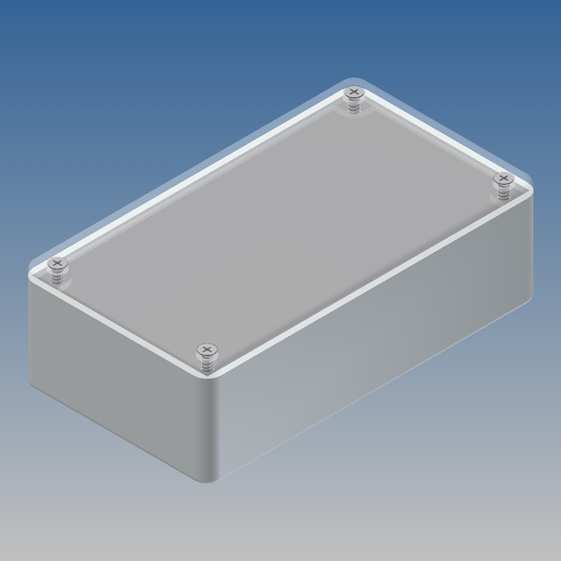

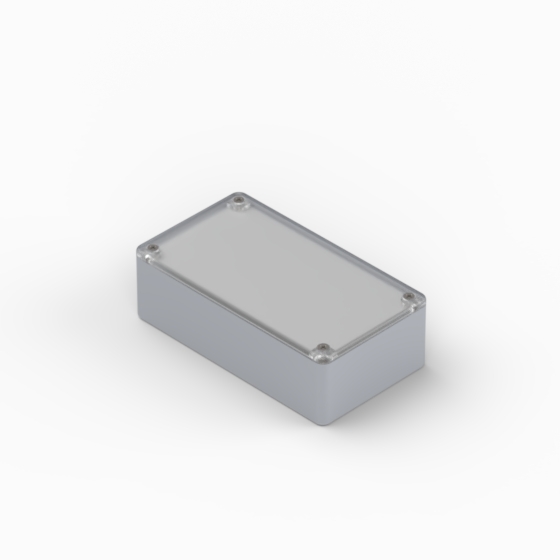

COFFER-TP2.5 4,921 2,756 1,535 9018
AG-ATY  -  2407 4,724 1,142 4 - PDF
DWG
View
  • Color (Ral): 9018
  • Material: AG-ATY  -  2407
  • MAX PCB L (mm): 120
  • MAX PCB W (mm): 29
  • Screws: 4
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

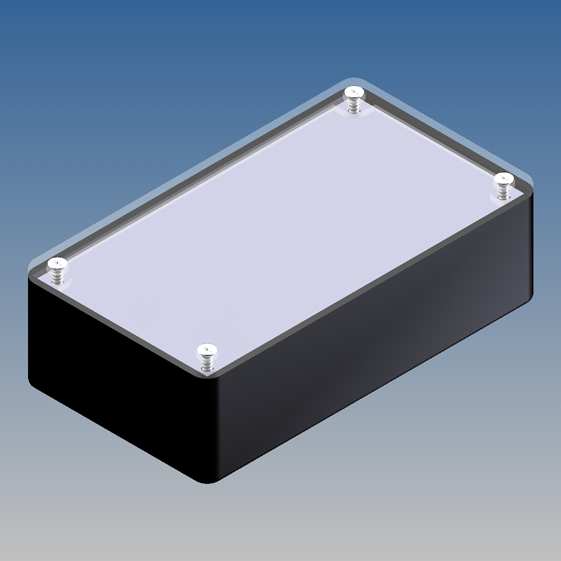

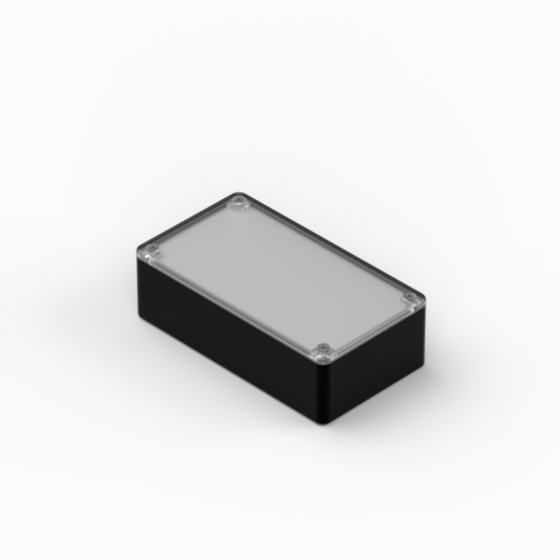

COFFER-TP2.9 4,921 2,756 1,535 9004
P2H-AT  -  2407 4,724 1,142 4 - PDF
DWG
View
  • Color (Ral): 9004
  • Material: P2H-AT  -  2407
  • MAX PCB L (mm): 120
  • MAX PCB W (mm): 29
  • Screws: 4
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

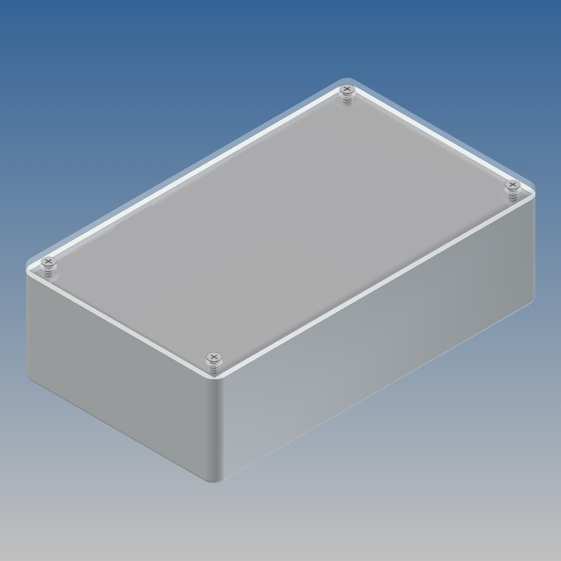

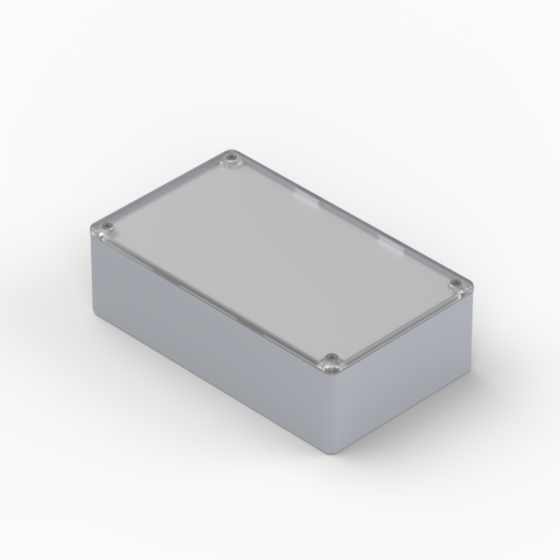

COFFER-TP3.5 6,299 3,74 1,929 9018
AG-ATY  -  2407 6,102 1,535 4 - PDF
DWG
View
  • Color (Ral): 9018
  • Material: AG-ATY  -  2407
  • MAX PCB L (mm): 155
  • MAX PCB W (mm): 39
  • Screws: 4
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

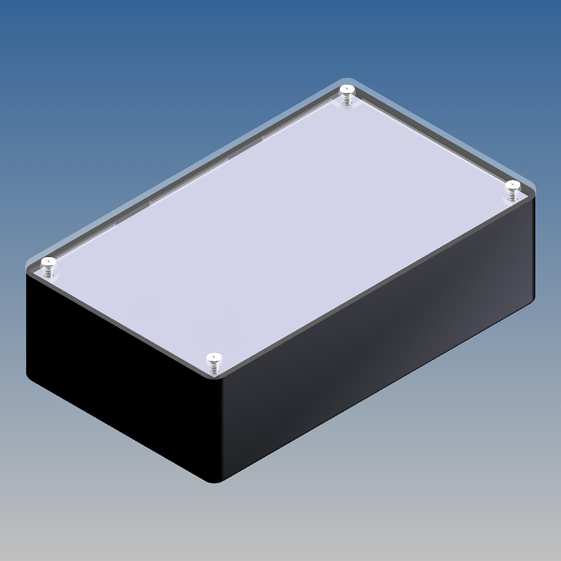

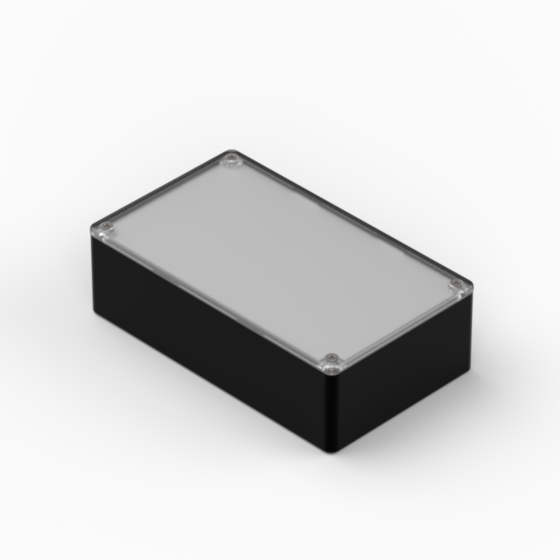

COFFER-TP3.9 6,299 3,74 1,929 9004
P2H-AT  -  2407 6,102 1,535 4 - PDF
DWG
View
  • Color (Ral): 9004
  • Material: P2H-AT  -  2407
  • MAX PCB L (mm): 155
  • MAX PCB W (mm): 39
  • Screws: 4
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

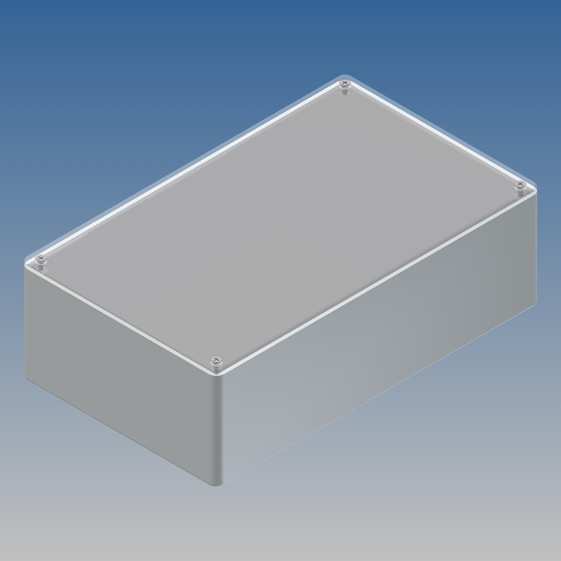

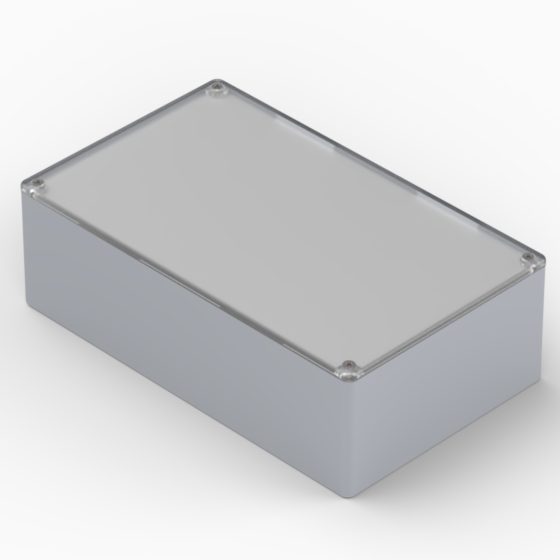

COFFER-TP4.5 8,465 5,118 2,697 9018
AG-ATY  -  2407 8,248 2,283 4 - PDF
DWG
View
  • Color (Ral): 9018
  • Material: AG-ATY  -  2407
  • MAX PCB L (mm): 209,5
  • MAX PCB W (mm): 58
  • Screws: 4
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

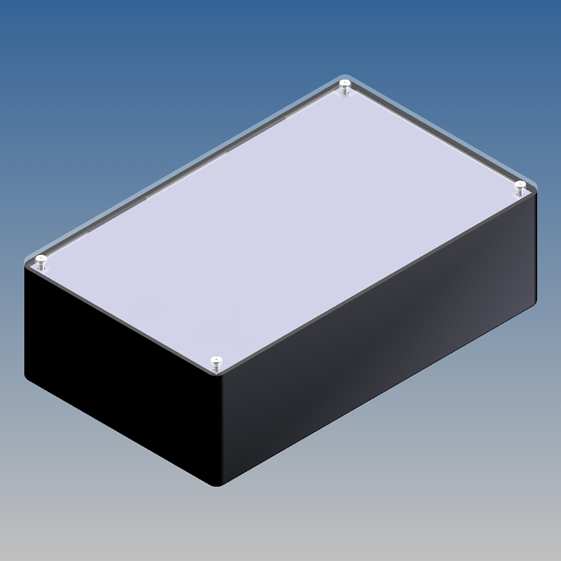

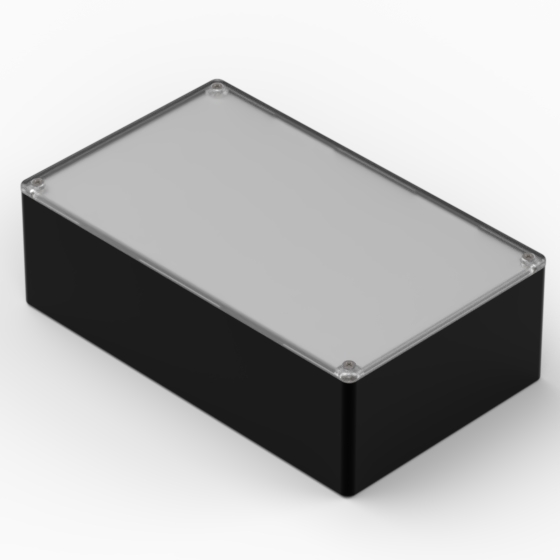

COFFER-TP4.9 8,465 5,118 2,697 9004
P2H-AT  -  2407 8,248 2,283 4 - PDF
DWG
View
  • Color (Ral): 9004
  • Material: P2H-AT  -  2407
  • MAX PCB L (mm): 209,5
  • MAX PCB W (mm): 58
  • Screws: 4
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG
