Family Top Cover - Electronic enclosures - Plastic

Description

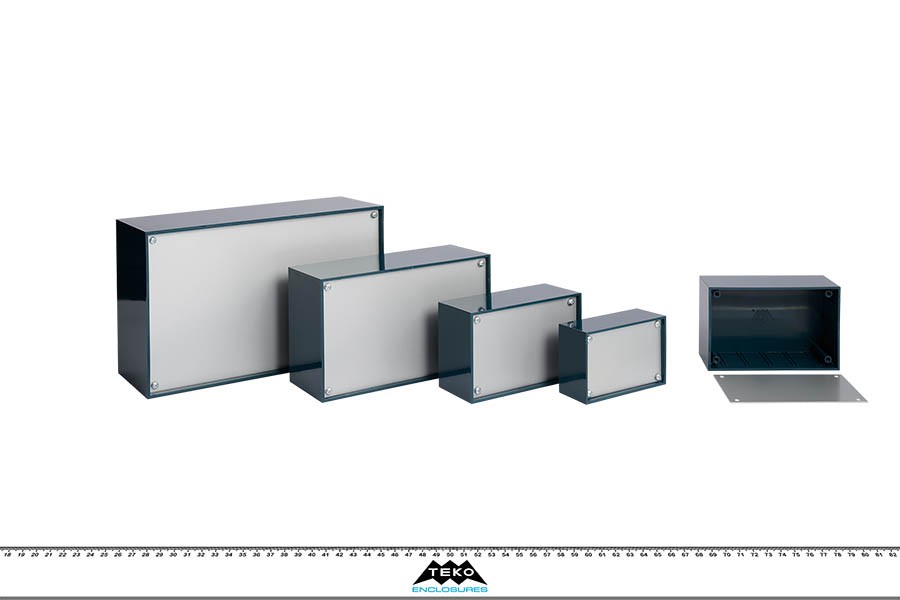

ABS enclosures with square corners and glossy surface finish. The base walls have integral PCB guides. P series have 1 mm aluminium panel. The models “K/1” and “K/2” are moulded in black polystyrene. The models “M1” and “M1/P” have a flanged panel for easy mounting. Closing by four screws. Upon request light gray Polystyrene panel suitable (Mod. PP1, PP2, PP3, PP4).

Products

Model L (inch) W (inch) H (inch) Color (Ral) Material MAX PCB L (inch) MAX PCB W (inch) Screws Battery Accessories Drawings Other

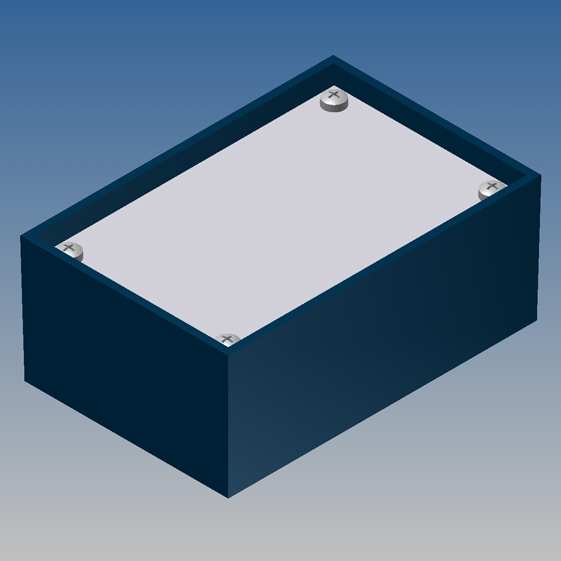

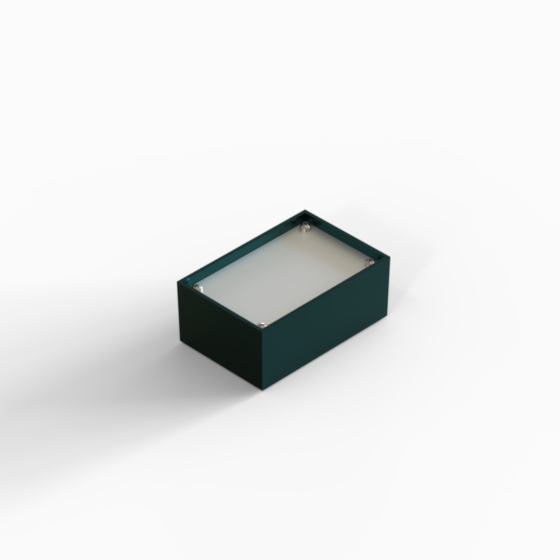

P/1.10 3,346 2,205 1,398 5020
N-UT 3,150 0,984 4 - PP1
PDF
DWG
View
  • Color (Ral): 5020
  • Material: N-UT
  • MAX PCB L (mm): 80
  • MAX PCB W (mm): 25
  • Screws: 4
  • Battery: -
  • Accessories: PP1
  • Drawings:  PDF  DWG

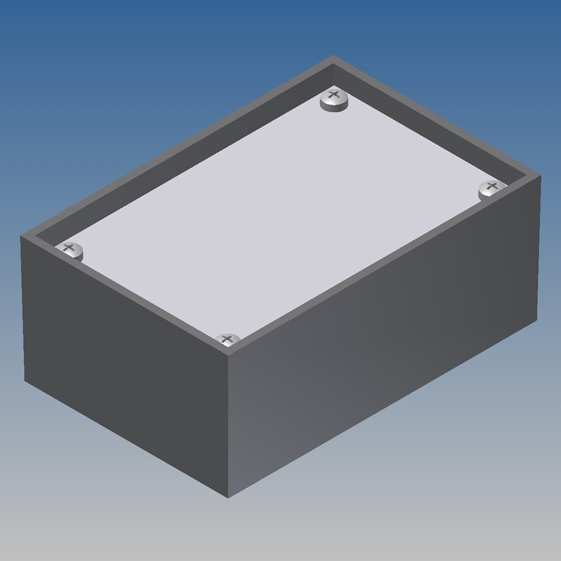

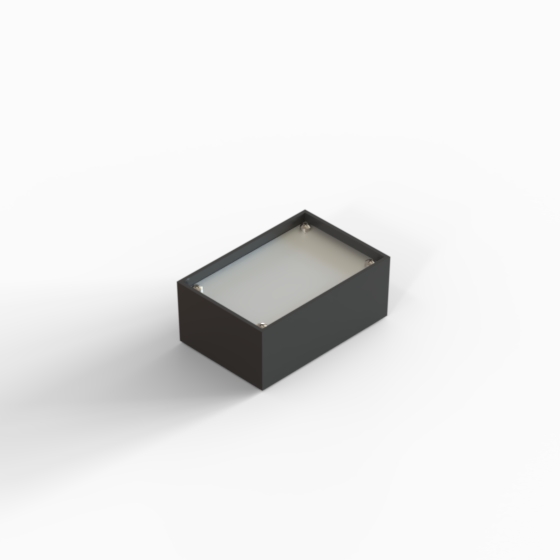

P/1.2 3,346 2,205 1,398 7012
N-UT 3,150 0,984 4 - PP1
PDF
DWG
View
  • Color (Ral): 7012
  • Material: N-UT
  • MAX PCB L (mm): 80
  • MAX PCB W (mm): 25
  • Screws: 4
  • Battery: -
  • Accessories: PP1
  • Drawings:  PDF  DWG

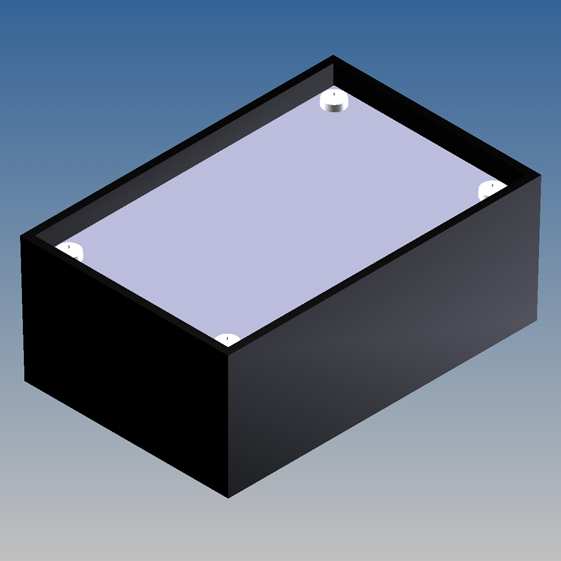

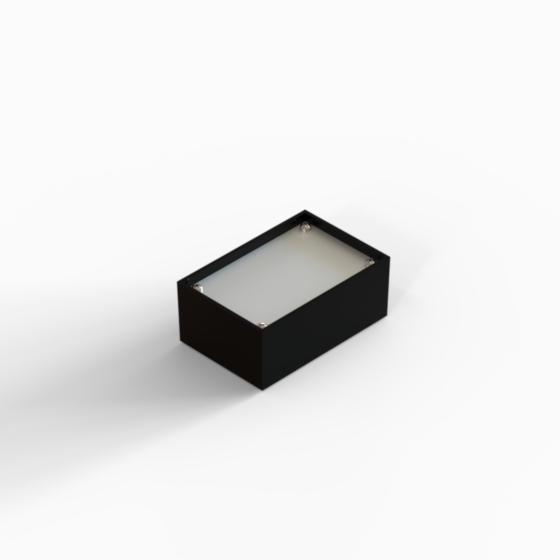

P/1.9 3,346 2,205 1,398 9004
P2H-AT 3,150 0,984 4 - PP1
PDF
DWG
View
  • Color (Ral): 9004
  • Material: P2H-AT
  • MAX PCB L (mm): 80
  • MAX PCB W (mm): 25
  • Screws: 4
  • Battery: -
  • Accessories: PP1
  • Drawings:  PDF  DWG

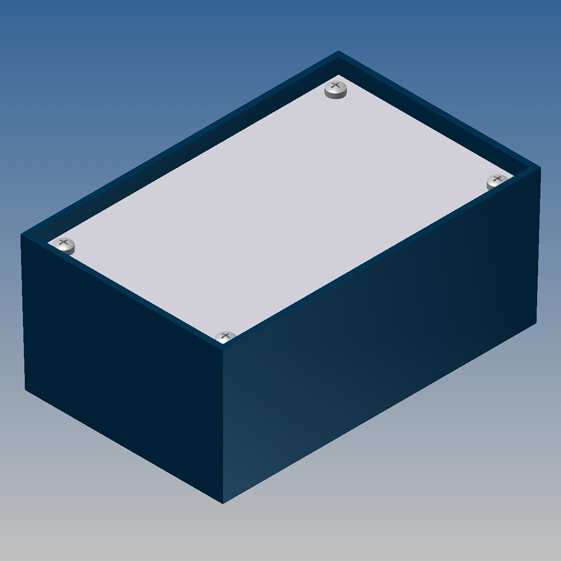

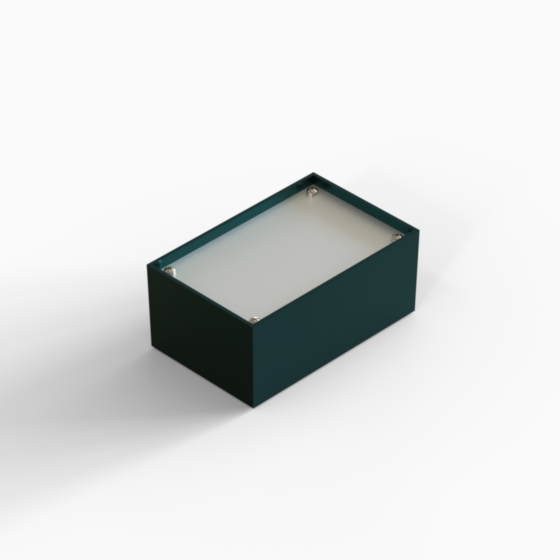

P/2.10 4,331 2,756 1,89 5020
N-UT 4,075 1,457 4 - PP2
PDF
DWG
View
  • Color (Ral): 5020
  • Material: N-UT
  • MAX PCB L (mm): 103,5
  • MAX PCB W (mm): 37
  • Screws: 4
  • Battery: -
  • Accessories: PP2
  • Drawings:  PDF  DWG

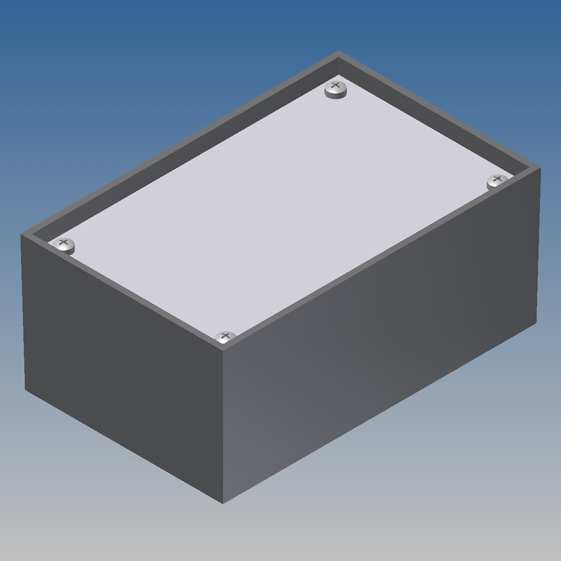

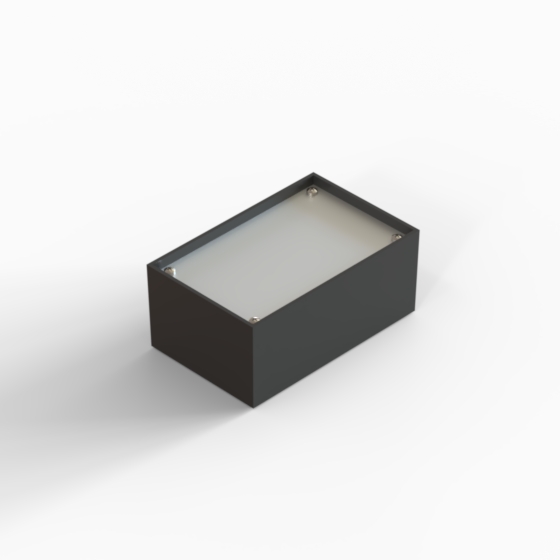

P/2.2 4,331 2,756 1,89 7012
N-UT 4,075 1,457 4 - PP2
PDF
DWG
View
  • Color (Ral): 7012
  • Material: N-UT
  • MAX PCB L (mm): 103,5
  • MAX PCB W (mm): 37
  • Screws: 4
  • Battery: -
  • Accessories: PP2
  • Drawings:  PDF  DWG

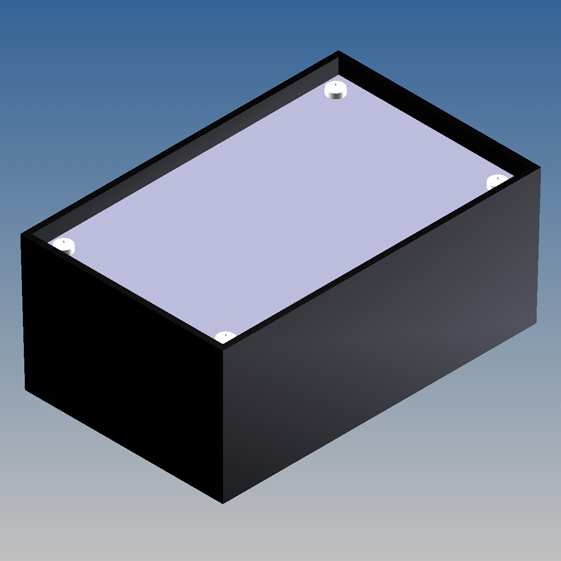

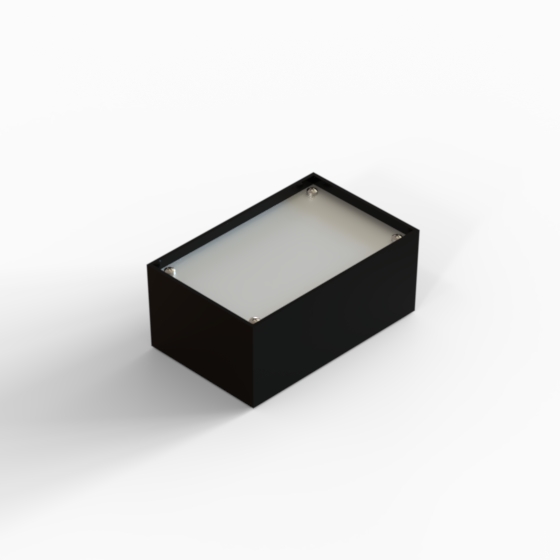

P/2.9 4,331 2,756 1,89 9004
P2H-AT 4,075 1,457 4 - PP2
PDF
DWG
View
  • Color (Ral): 9004
  • Material: P2H-AT
  • MAX PCB L (mm): 103,5
  • MAX PCB W (mm): 37
  • Screws: 4
  • Battery: -
  • Accessories: PP2
  • Drawings:  PDF  DWG

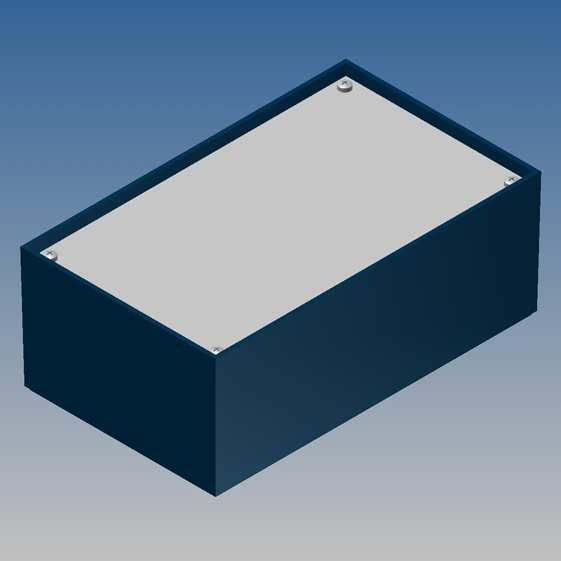

P/3.10 6,299 3,78 2,402 5020
N-UT 6,063 1,929 4 - PP3
PDF
DWG
View
  • Color (Ral): 5020
  • Material: N-UT
  • MAX PCB L (mm): 154
  • MAX PCB W (mm): 49
  • Screws: 4
  • Battery: -
  • Accessories: PP3
  • Drawings:  PDF  DWG

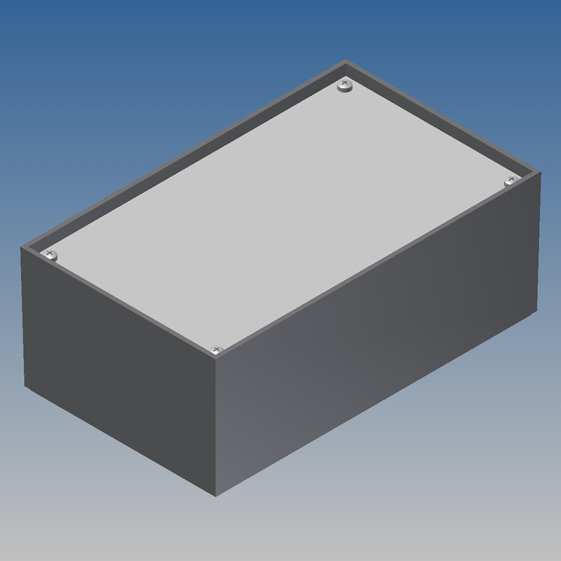

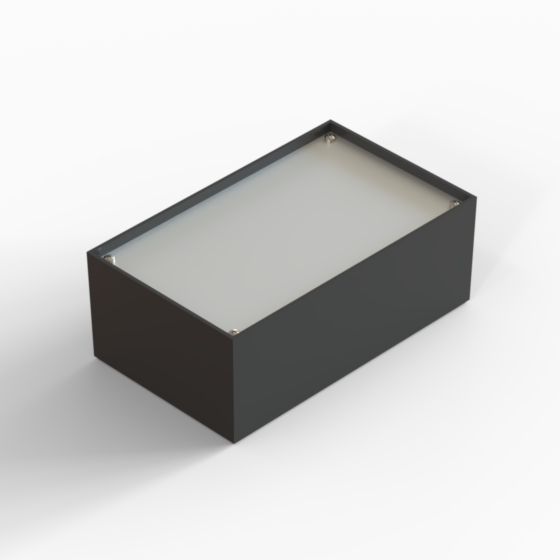

P/3.2 6,299 3,78 2,402 7012
N-UT 6,063 1,929 4 - PP3
PDF
DWG
View
  • Color (Ral): 7012
  • Material: N-UT
  • MAX PCB L (mm): 154
  • MAX PCB W (mm): 49
  • Screws: 4
  • Battery: -
  • Accessories: PP3
  • Drawings:  PDF  DWG

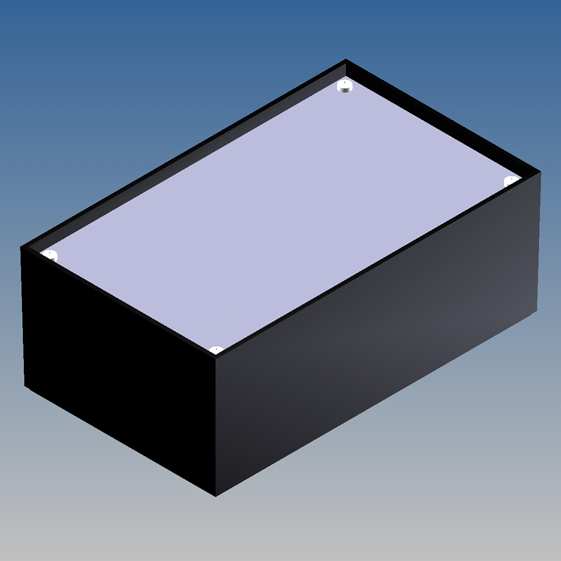

P/3.9 6,299 3,78 2,402 9004
P2H-AT 6,063 1,929 4 - PP3
PDF
DWG
View
  • Color (Ral): 9004
  • Material: P2H-AT
  • MAX PCB L (mm): 154
  • MAX PCB W (mm): 49
  • Screws: 4
  • Battery: -
  • Accessories: PP3
  • Drawings:  PDF  DWG

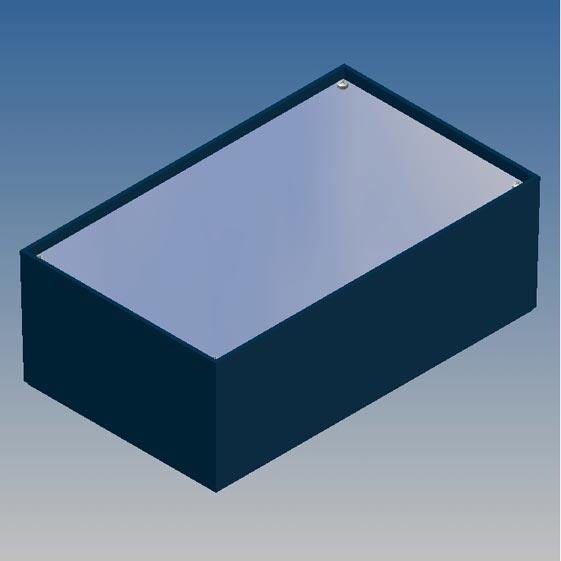

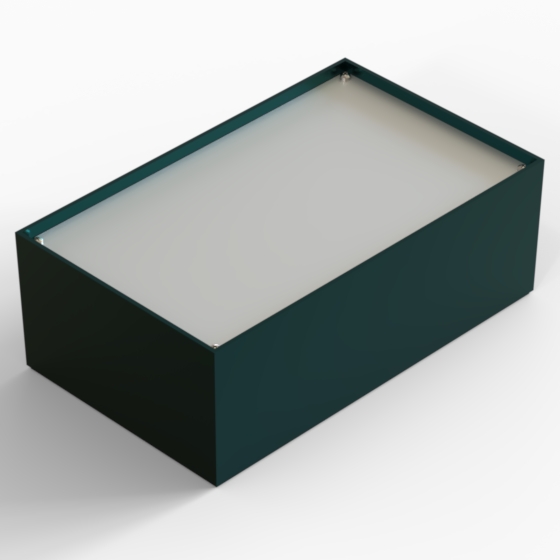

P/4.10 8,465 5,118 3,031 5020
N-UT 8,189 2,539 4 - PP4
PDF
DWG
View
  • Color (Ral): 5020
  • Material: N-UT
  • MAX PCB L (mm): 208
  • MAX PCB W (mm): 64,5
  • Screws: 4
  • Battery: -
  • Accessories: PP4
  • Drawings:  PDF  DWG

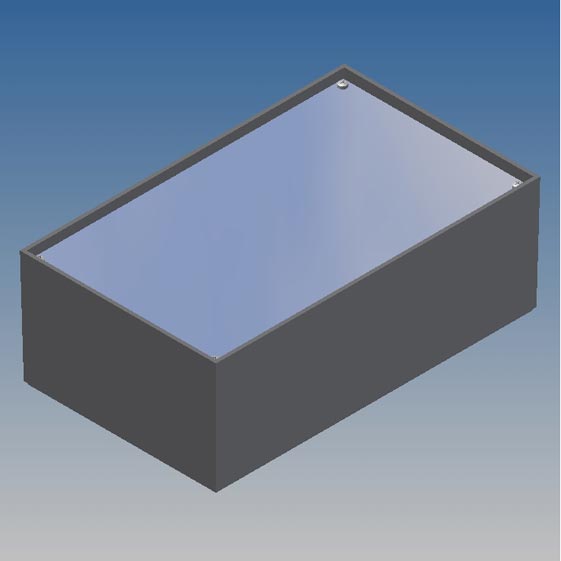

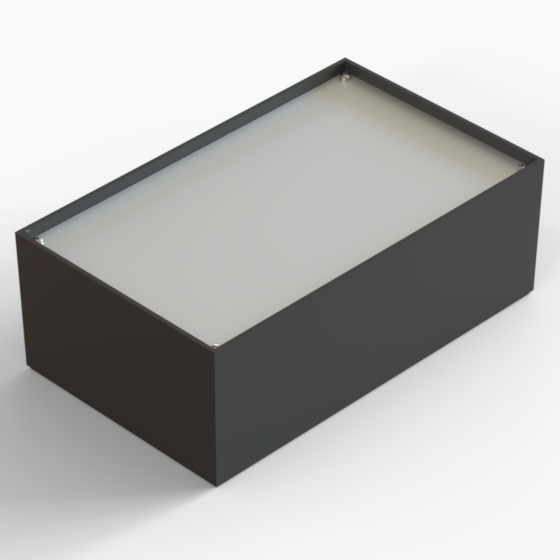

P/4.2 8,465 5,118 3,031 7012
N-UT 8,189 2,539 4 - PP4
PDF
DWG
View
  • Color (Ral): 7012
  • Material: N-UT
  • MAX PCB L (mm): 208
  • MAX PCB W (mm): 64,5
  • Screws: 4
  • Battery: -
  • Accessories: PP4
  • Drawings:  PDF  DWG

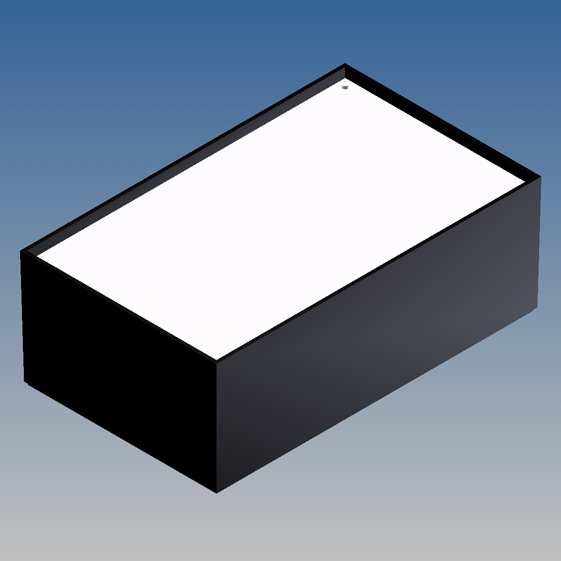

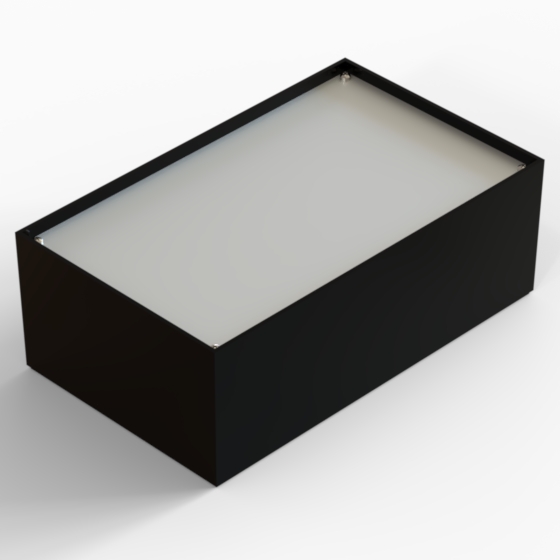

P/4.9 8,465 5,118 3,031 9004
P2H-AT 8,189 2,539 4 - PP4
PDF
DWG
View
  • Color (Ral): 9004
  • Material: P2H-AT
  • MAX PCB L (mm): 208
  • MAX PCB W (mm): 64,5
  • Screws: 4
  • Battery: -
  • Accessories: PP4
  • Drawings:  PDF  DWG
