WALL

Family Top Cover - Electronic enclosures - Plastic

Description

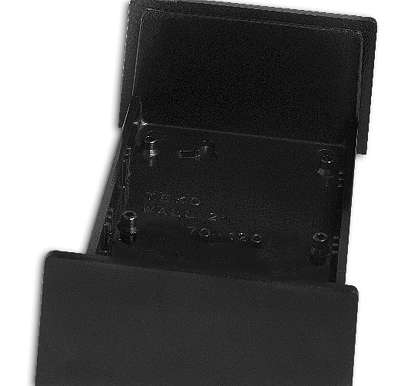

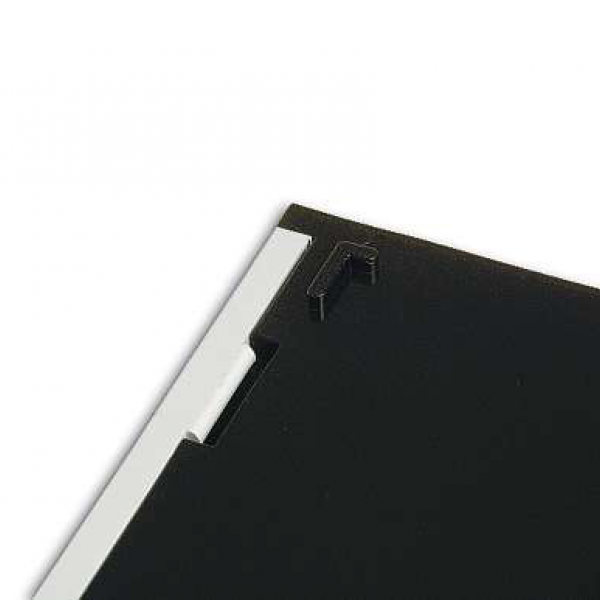

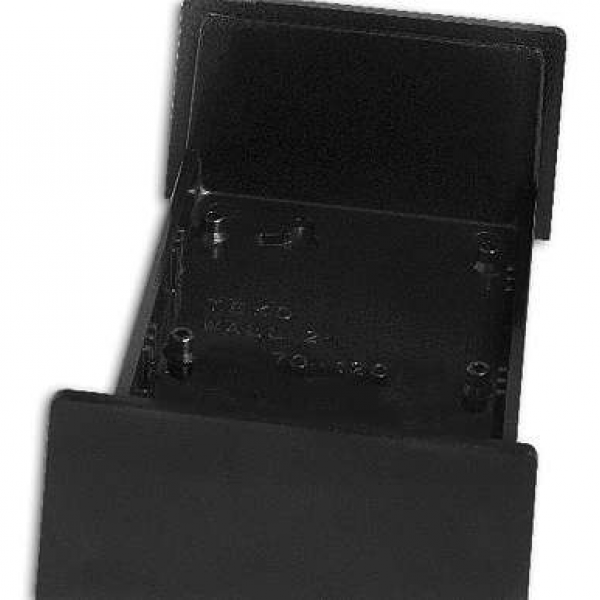

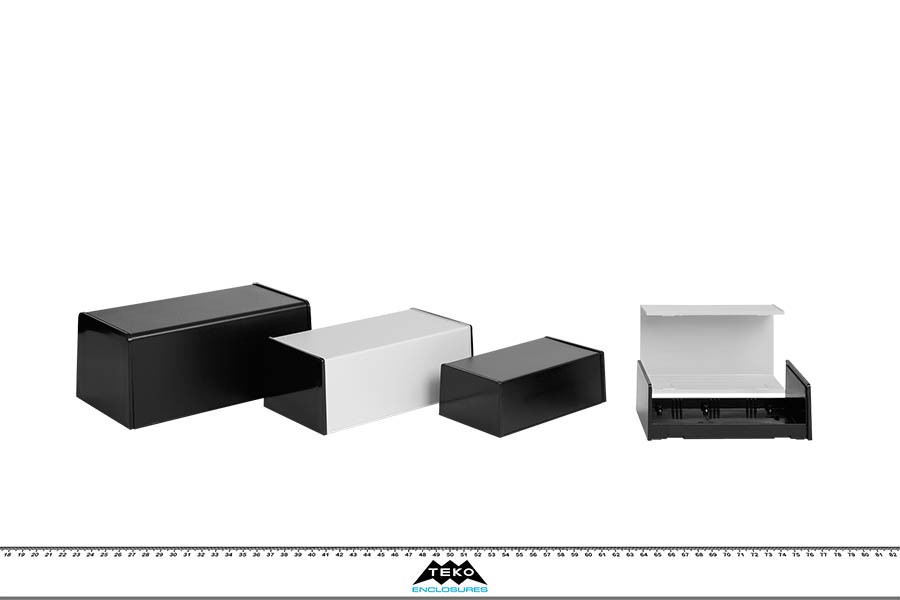

ABS enclosures with two snap together half-shells (one base/one cover) especially suited to wall mounting, available in either a solid (black) or a two-tone colour configuration (the base is always black). The base has integral PCB mounting studs and guides. No screws are required.

Details

Products

Model L (inch) W (inch) H (inch) Color (Ral) Material MAX PCB L (inch) MAX PCB W (inch) Screws Battery Accessories Drawings Other

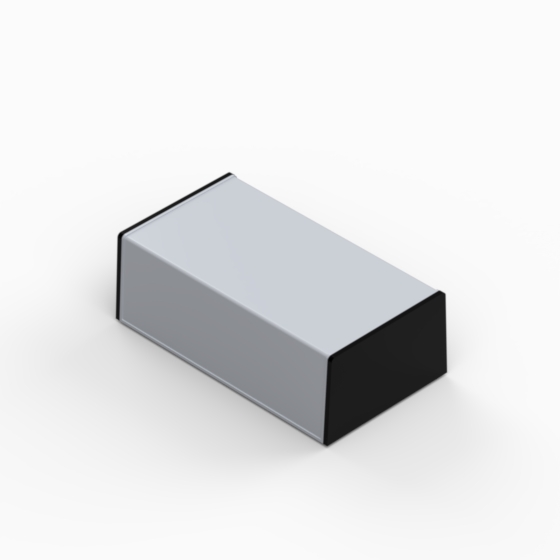

WALL2.23 4,823 2,736 1,697 9004 9018
P2H-AT  -  AG-ATY 4,488 2,126 - - PDF
DWG
View

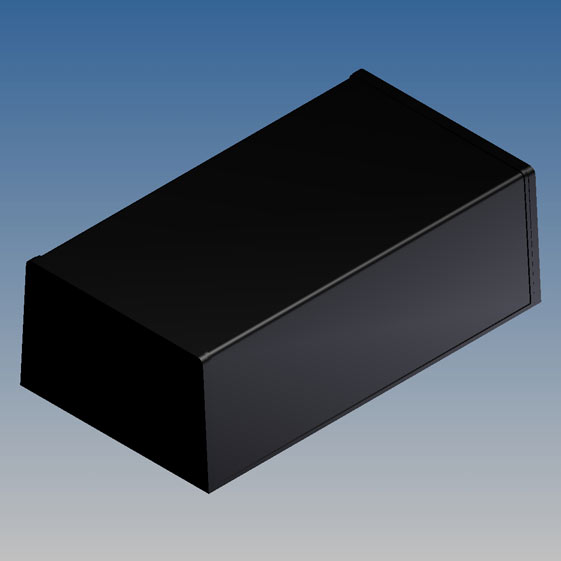

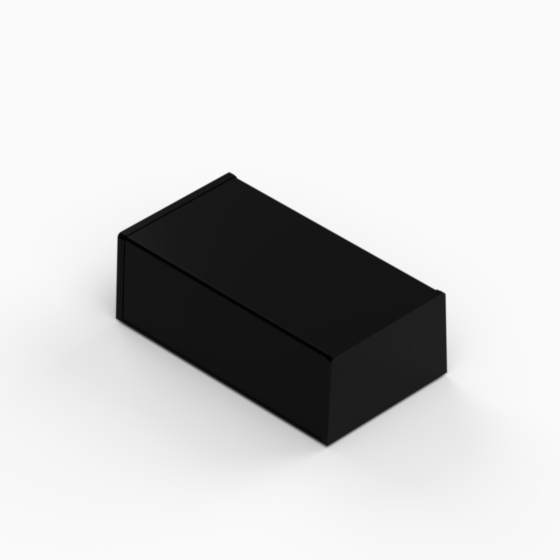

WALL2.9 4,823 2,736 1,697 9004
P2H-AT 4,488 2,126 - - PDF
DWG
View
  • Color (Ral): 9004
  • Material: P2H-AT
  • MAX PCB L (mm): 114
  • MAX PCB W (mm): 54
  • Screws: -
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

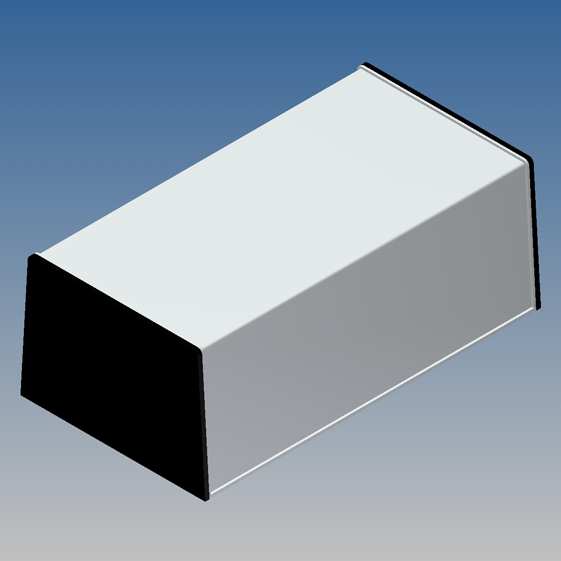

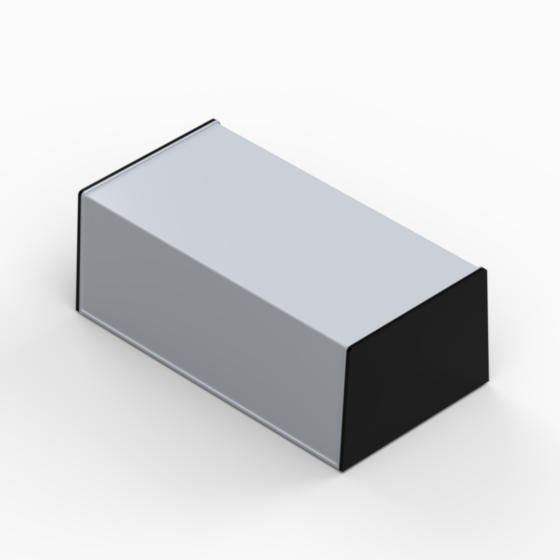

WALL3.23 6,083 3,346 2,323 9004 9018
P2H-AT  -  AG-ATY 5,748 2,717 - - PDF
DWG
View

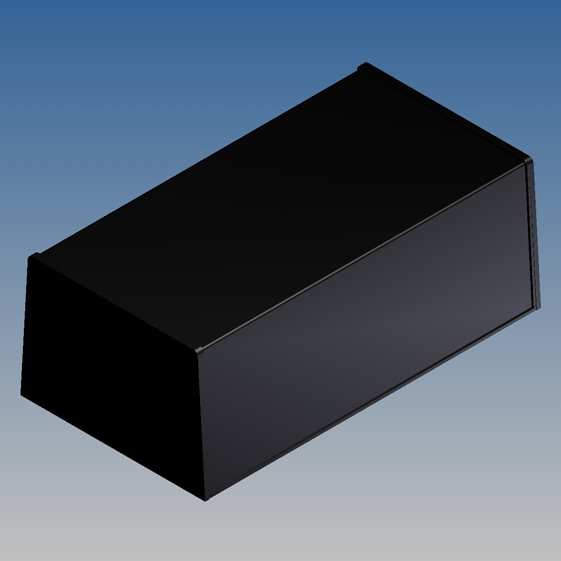

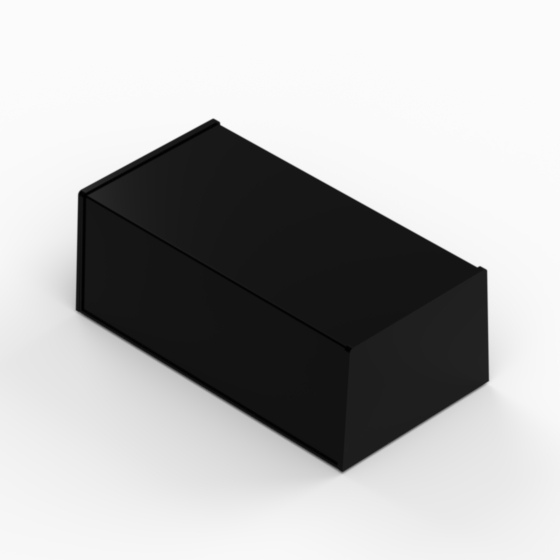

WALL3.9 6,083 3,346 2,323 9004
P2H-AT 5,748 2,717 - - PDF
DWG
View
  • Color (Ral): 9004
  • Material: P2H-AT
  • MAX PCB L (mm): 146
  • MAX PCB W (mm): 69
  • Screws: -
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

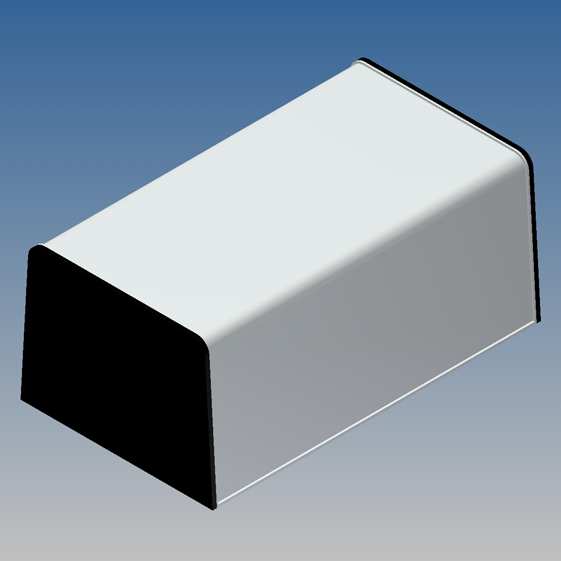

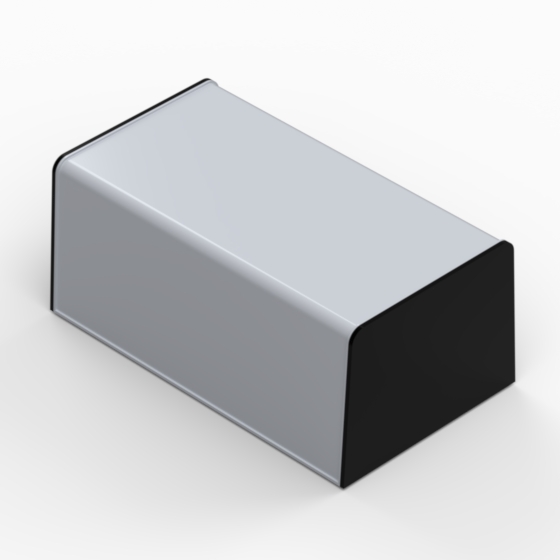

WALL4.23 6,693 3,917 2,913 9004 9018
P2H-AT  -  AG-ATY 6,339 3,307 - - PDF
DWG
View

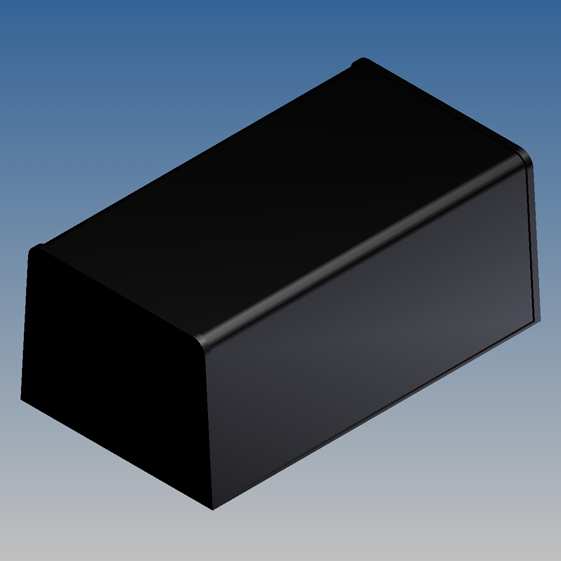

WALL4.9 6,693 3,917 2,913 9004
P2H-AT 6,339 3,307 - - PDF
DWG
View
  • Color (Ral): 9004
  • Material: P2H-AT
  • MAX PCB L (mm): 161
  • MAX PCB W (mm): 84
  • Screws: -
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG
12 product families, 144 series. You can't find what you're looking for? Contact us
